Batca LINK LD-5 User manual

www.batcafitness.com LD-5 Owner’s Manual
April 2012
Revision 1
Serial Number Here
Date of Purchase
Owner’s Manual
Ab Crunch/Back Extension
LD-5
1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com

Batca Fitness Systems 2LD-5 Owner's Manual
__________ Page
Instructions 2
Parts Listing 3

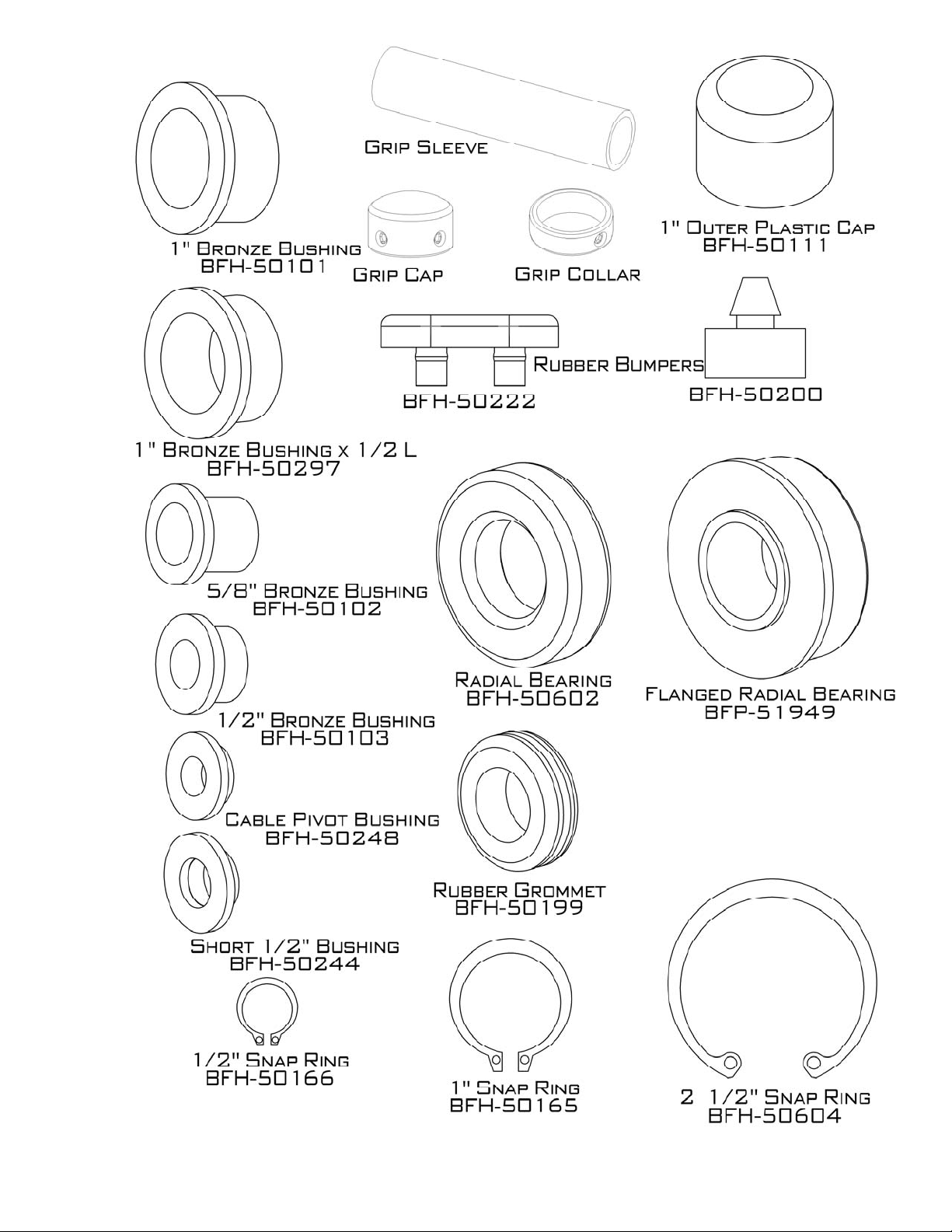

Hardware Comparison 4-7
MainAssembly 8-17
Upholstery 17
Cable Routing 14-15
Batca Fitness Systems has built this gym to give you a safe, effective and enjoyable
workout. However, there is a risk assumed by individuals who use this type of equipment. It is
very important that all warnings and instructions are read and followed before beginning any
exercise program.
It is also very important to read and follow the preventative maintenance schedule
described in this manual. If any of the warning labels or stickers are worn, faded, torn,
scratched or missing they should be replaced immediately.
WARNING: There is a risk assumed by individuals who use this type of equipment. To minimize
risk always follow these rules.
1) It is essential that you consult with your physician before beginning any exercise program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including cables, nuts
and bolts). Replace parts at first signs of wear (use only genuine BATCA replacement
parts). Use of equipment that is damaged, worn, frayed or not completely assembled on a
solid, level surface may result in injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of the gym. Be
alert to the possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this gym.
__________ Page
Final Assembly and Troubleshooting 18
Cable Tension and Adjustments 19
Maintenance 20
Warranty 21
Floor Plan Layout 22
Table of Contents
Instructions
Warning
Congratulations on the purchase of your new Batca LD-5. This gym will provide you with a lifetime of
enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms
and to package these gyms in such a way to avoid any damage during shipping.
In order to get started with your assembly you should first familiarize yourself with this manual. It is
recommended that you read through each step thoroughly before you begin. Begin by opening your boxes and
separating all of your parts. Verify that all parts are accounted for and have no damage. When all parts are
accounted for, you may begin your assembly. Some items may have been pre-assembled for your convenience.
Please note that hardware quantities shown reflect total quantities for your gym and may not reflect actual
quantities in each bag. Assemble your gym on a solid level surface. This will ensure the best possible perfor-
mance, function, and safety for the gym and your workout.
Assemble your gym according to the step by step instructions found in this manual. Failure to do so
will void your warranty and may result in personal injury. After assembly, you should check each station to
ensure correct operation. If a problem arises, recheck your assembly with these instructions to verify cor-
rect assembly. If you are unable to correct a problem or have questions with your assembly please contact
your authorized Batca dealer.

www.batcafitness.com 3LD-5 Owner’s Manual
Frame Components Accessories
Upholstery
Hardware
Cables
Tools Required
 9/16” Wrench
 9/16” Ratchet
 Allen Wrench Set
 Tape Measure
 Snap Ring Pliers
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 BFP-10879 LD-5 Cage (Short) 1
2 BFP-10878 Base 1
3 BFP-10876
Ab Crunch/Back Ext Frame 1
4 BFP-51861 Anti-Deflection Plate 1
5 BFP-10880 J Brace 1
6 BFP-51863 Anti-Deflection Plate 1
7 BFP-10881 U-Brace 1
8 BFP-51903
Curved Anit-Deflection Plate 1
9 BFP-51902 Anti-Deflection Plate 1
10 BFP-10839 Cable Lockout Plate 1
11 BFP-10827 Guide Rod Plate 1
12 BFP-51827 Guide Rod 2
13 BFP-10889 Top Weight Plate 1
14 BFM-50632 Weight Stack Plate 14
15 BFM-50529 Rubber Donut 2
16 BFM-10661_rev1 Left Handle 1
17 BFM-10662_rev1 Right Handle 1
18 BFP-10875 Selector Tube 1
19 BFP-10877 Foot Plate Adjustment 1
20 BFP-10883 AB/Back Ext. Arm 1
21 BFP-52200 6” Counter-Weight 1
22 BFP-10882 Bi-Directional Ab/Back Ext. Cam 1
23 BFP-51885 Red Pivot Point Cap 1
24 BFP-10838 Free Floater 1
25 BFP-51883 Double Pulley Cover 1
26 BFP-51711 Placard Plate 1
27 BFP-51740
Rear Weight Stack Shroud 1
28 BFP-51741 Left Front Weight Stack
Shroud 1
29 BFP-51742 Right Front Weight Stack
Shroud 1
ITEM NO. PART NUMBER DESCRIPTION QTY
.
36 BFH-50174 4 1/2” Pulley 6
37 BFH-50530 5” Pulley 1
38 BFH-50165 1” Snap Ring 2
39 BFH-50622 Aluminum End Cap 3
40 BFH-50221 3” Plastic Washer 2
41 BFP-52340 BHSCS 3/8” x 3/4” 7
42 BFH-50254 HCS 3/8” x 3/4” 2
43 BFP-52376 SHCS 3/8” x 1” 4
45 BFH-50351 1 3/8” Shoulder Bolt 2
46 BFP-51759 SHCS 3/8” x 2” 1
47 BFP-51752 SHCS 3/8” x 2 1/4” 4
48 BFH-50145 FHSCS 3/8” x 2 1/4” 2
49 BFP-51750 SHCS 3/8” x 2 3/4” 4
50 BFP-51748 SHCS 3/8” x 3 1/4” 6
51 BFP-51760 SHCS 3/8” x 3 1/2” 2
52 BFP-51753 SHCS 3/8” x 4 3/4” 2
53 BFP-51799 SHCS 3/8” x 5” 4
54 BFP-52364 SHCS 3/8” x 6” 1
55 BFH-50267 5/16”Nylock 2
57 BFH-50204 3/8” Curved Washer 10
58 BFH-50146 3/8” Flat Washer 47
59 BFH-50157 3/8” Nylock 25
56 BFH-50147 3/8” Lock Washer 2
44 BFP-51653 SHCS 3/8” x 1 1/4” 2
60 BFH-50620 BHSCS 3/8” x 1” 1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
33 BFU-50187 17” Upholstered (Long) Roller 1
34 BFU-50189 7” Upholstered (Short) Roller 2
35 BFP-52130 Large Bottom Pad 1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
30 CAB-15006
Weight Stack to Cable Lockout 1
31 CAB-15007 Free Floater to Cam Cable 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
32 BFM-51173 Weight Stack Pull Pin 1

Batca Fitness Systems 4LD-5 Owner's Manual

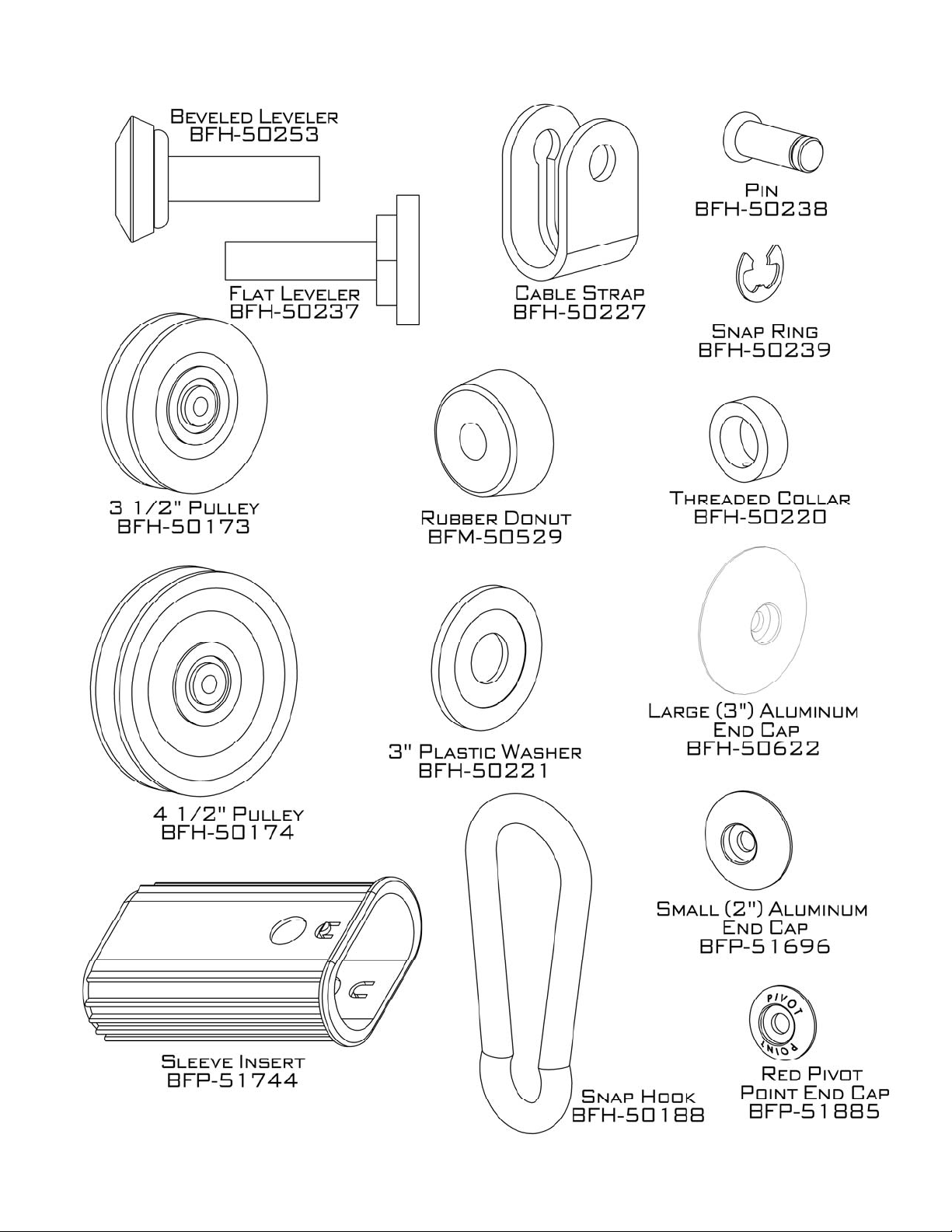

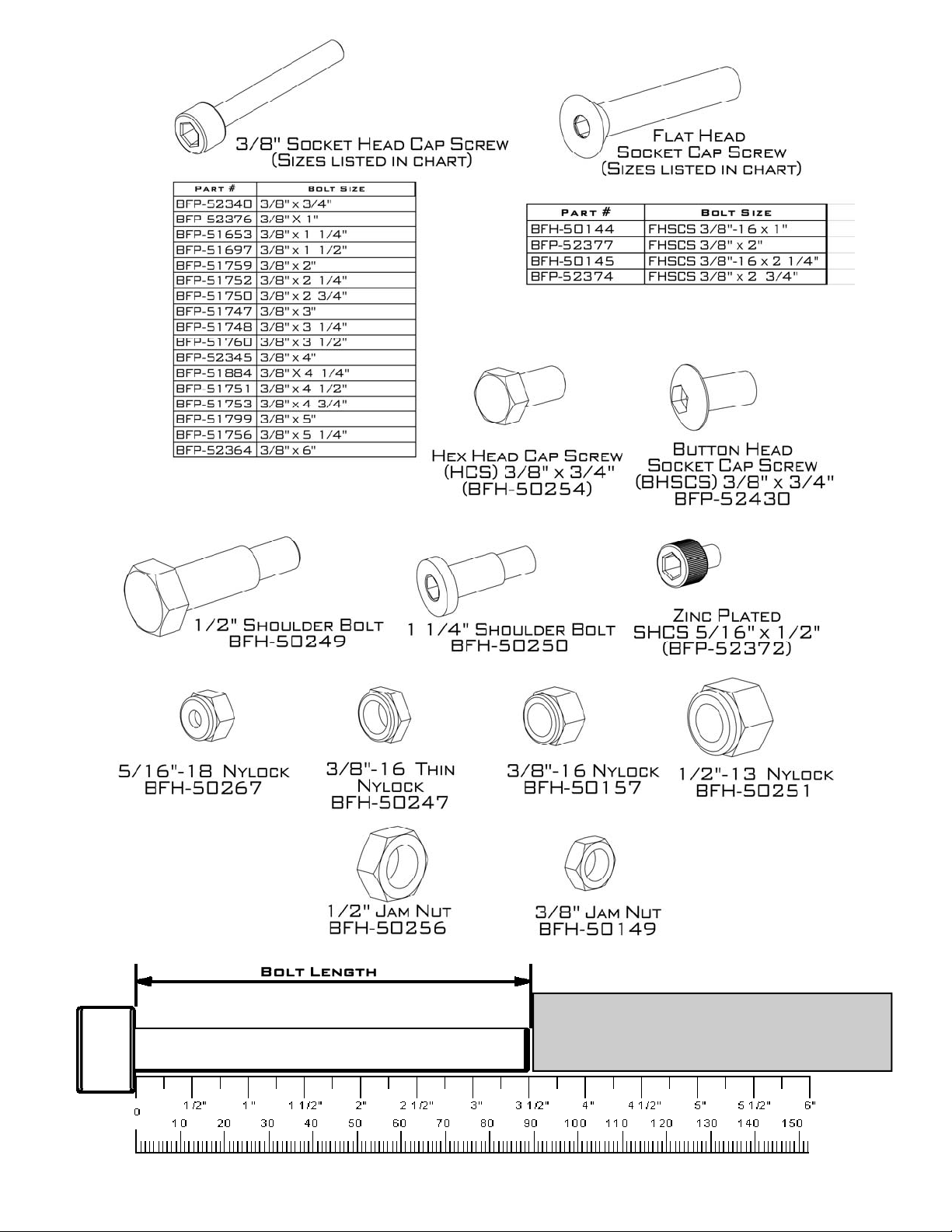

Bolt Length
Note: Bolt length is measured
from the underside of the head
of the bolt.

www.batcafitness.com 5LD-5 Owner’s Manual

Batca Fitness Systems 6LD-5 Owner's Manual

www.batcafitness.com 7LD-5 Owner’s Manual

Batca Fitness Systems 8LD-5 Owner's Manual
Step 1:
Note: For a more consistent appearance, position all bolts in the direction
shown in each figure
.
PLEASE FOLLOW ALL DIRECTIONS VERY
CAREFULLY FOR PROPER INSTALLATION.
All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Anywhere a washer is against the round
side of a tube there is to be a
3/8”
CURVED WASHER
instead of a 3/8”
FLAT WASHER.
Figure 1
Item # Part # Description Qty
1 BFP-10879 LD-5 Cage (Short) 1
2 BFP-10878 Base 1
3 BFP-10876 Ab Crunch/Back Ext Frame 1
4 BFP-51861 Anti-Deflection Plate 1
36 BFH-50174 4 1/2” Pulley 1
49 BFP-51750 SHCS 3/8” x 2 3/4” 2
50 BFP-51748 SHCS 3/8” x 3 1/4” 2
58 BFH-50146 3/8” Flat Washer 8
59 BFH-50157 3/8” Nylock 4
DO NOT TIGHTEN
BOLTS UNTIL STEP 4

www.batcafitness.com 9LD-5 Owner’s Manual

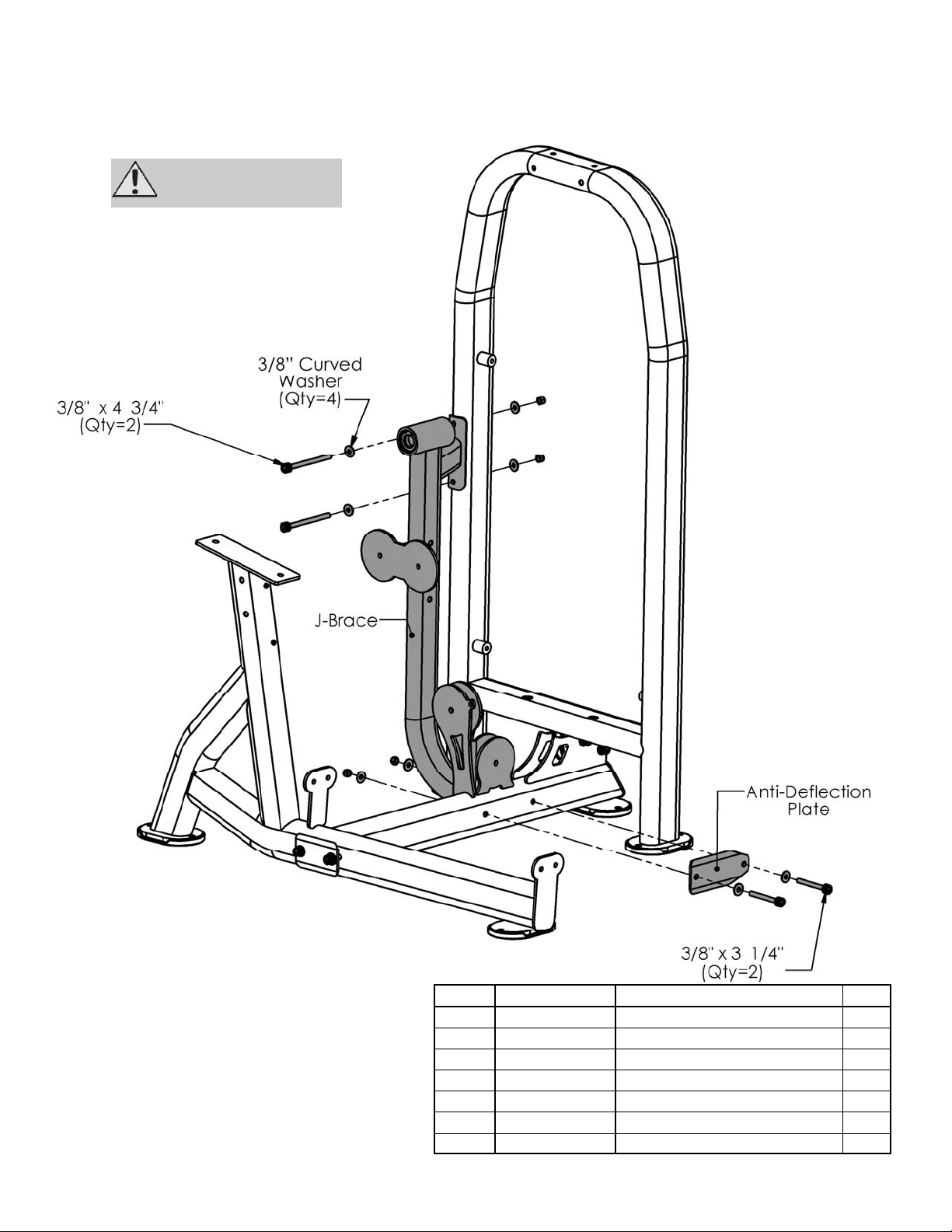

Figure 2
Step 2:
Item # Part # Description Qty
5 BFP-10880 J Brace 1
6 BFP-51863 Anti-Deflection Plate 1
50 BFP-51748 SHCS 3/8” x 3 1/4” 2
52 BFP-51753 SHCS 3/8” x 4 3/4” 2
57 BFH-50204 3/8” Curved Washer 4
58 BFH-50146 3/8” Flat Washer 4
59 BFH-50157 3/8” Nylock 4
DO NOT TIGHTEN
BOLTS UNTIL STEP 4
All Flat Washers and Nylocks are 3/8” unless
otherwise noted. Anywhere a washer is against the
round side of a tube there is to be a
3/8” CURVED
WASHER
instead of a 3/8” FLAT WASHER.

Batca Fitness Systems 10 LD-5 Owner's Manual

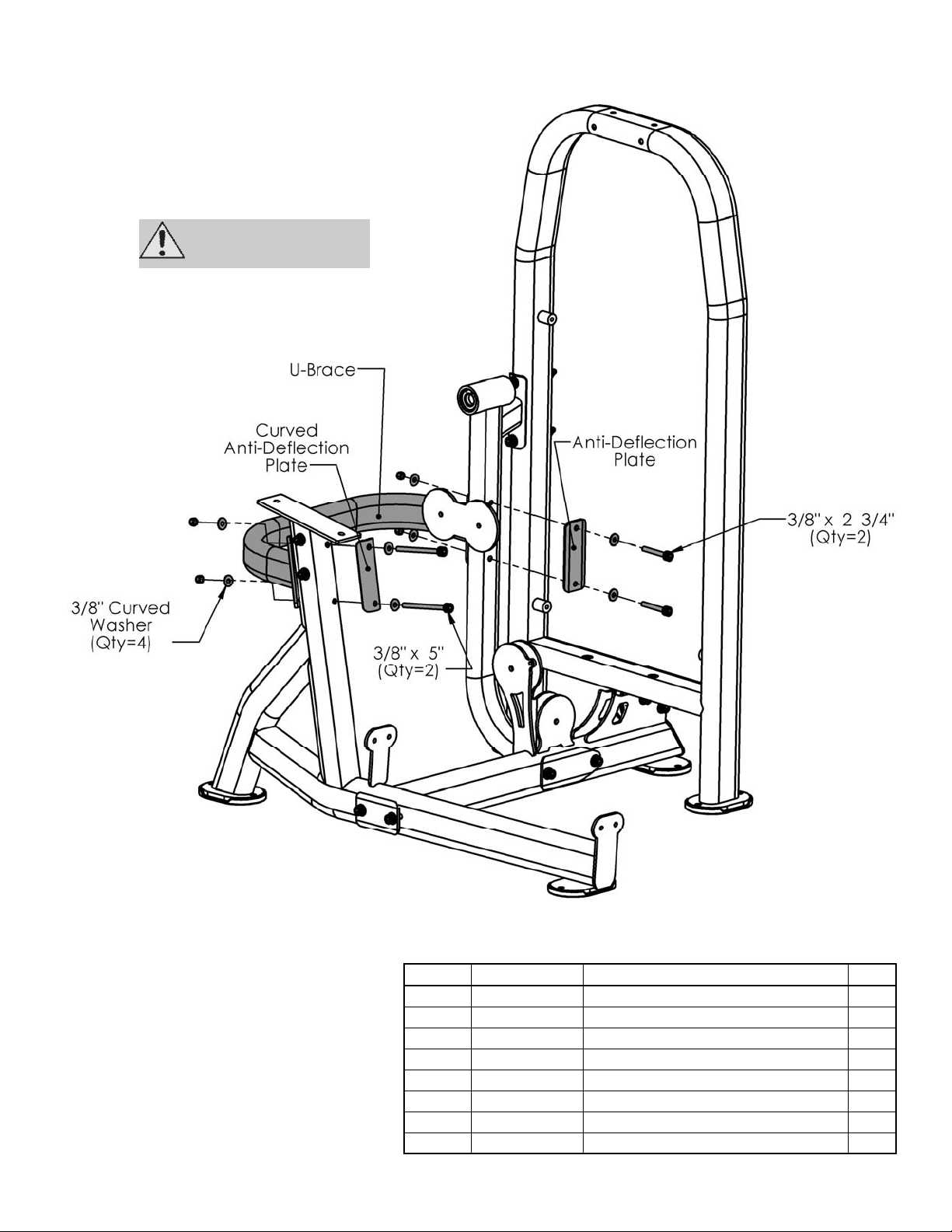

Step 3:
Figure 3
All Flat Washers and Nylocks are 3/8”
unless otherwise noted. Anywhere a
washer is against the round side of a
tube there is to be a
3/8” CURVED
WASHER
instead of a 3/8” FLAT
WASHER.
Item # Part # Description Qty
7 BFP-10881 U-Brace 1
8 BFP-51903 Curved Anit-Deflection Plate 1
9 BFP-51902 Anti-Deflection Plate 1
49 BFP-51750 SHCS 3/8” x 2 3/4” 2
53 BFP-51799 SHCS 3/8” x 5” 2
57 BFH-50204 3/8” Curved Washer 4
58 BFH-50146 3/8” Flat Washer 4
59 BFH-50157 3/8” Nylock 4
DO NOT TIGHTEN
BOLTS UNTIL STEP 4

www.batcafitness.com 11 LD-5 Owner’s Manual

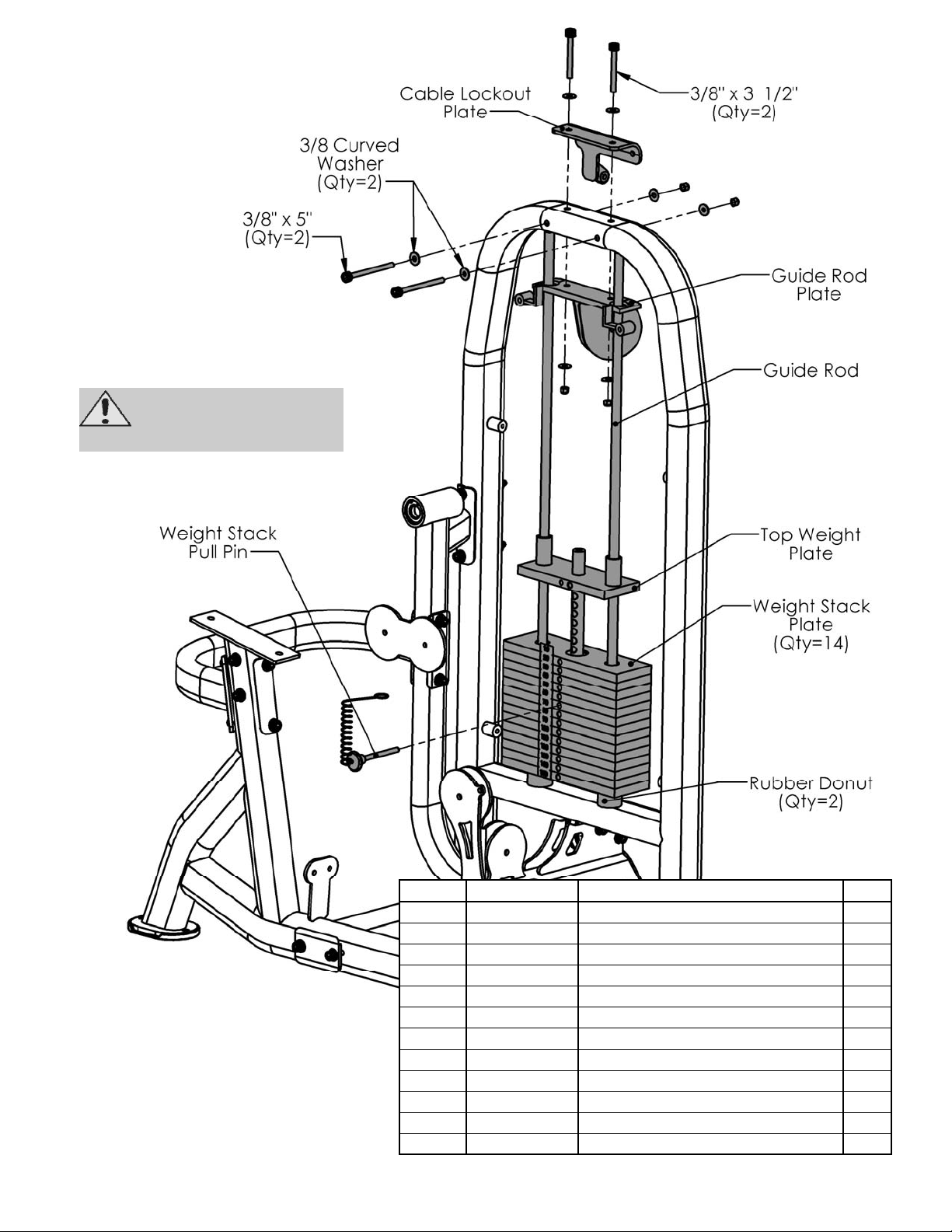

Figure 4
Step 4:
All Flat Washers and Nylocks are 3/8” unless
otherwise noted. Anywhere a washer is against
the round side of a tube there is to be a
3/8”
CURVED WASHER
instead of a 3/8” FLAT
WASHER.
Make sure all bolts are
tightened before moving
on
Item # Part # Description Qty
10 BFP-10839 Cable Lockout Plate 1
11 BFP-10827 Guide Rod Plate 1
12 BFP-51827 Guide Rod 2
13 BFP-10889 Top Weight Plate 1
14 BFM-50632 Weight Stack Plate 14
15 BFM-50529 Rubber Donut 2
32 BFM-51173 Weight Stack Pull Pin 1
51 BFP-51760 SHCS 3/8” x 3 1/2” 2
53 BFP-51799 SHCS 3/8” x 5” 2
57 BFH-50204 3/8” Curved Washer 2
58 BFH-50146 3/8” Flat Washer 6
59 BFH-50157 3/8” Nylock 4

Batca Fitness Systems 12 LD-5 Owner's Manual
Step 5:
All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Item # Part # Description Qty
16 BFM-10661_rev1 Left Handle 1
17 BFM-10662_rev1 Right Handle 1
18 BFP-10875 Selector Tube 1
19 BFP-10877 Foot Plate Adjustment 1
43 BFP-52376 SHCS 3/8” x 1” 4
50 BFP-51748 SHCS 3/8” x 3 1/4” 2
58 BFH-50146 3/8” Flat Washer 8
59 BFH-50157 3/8” Nylock 2
Figure 5

www.batcafitness.com 13 LD-5 Owner’s Manual

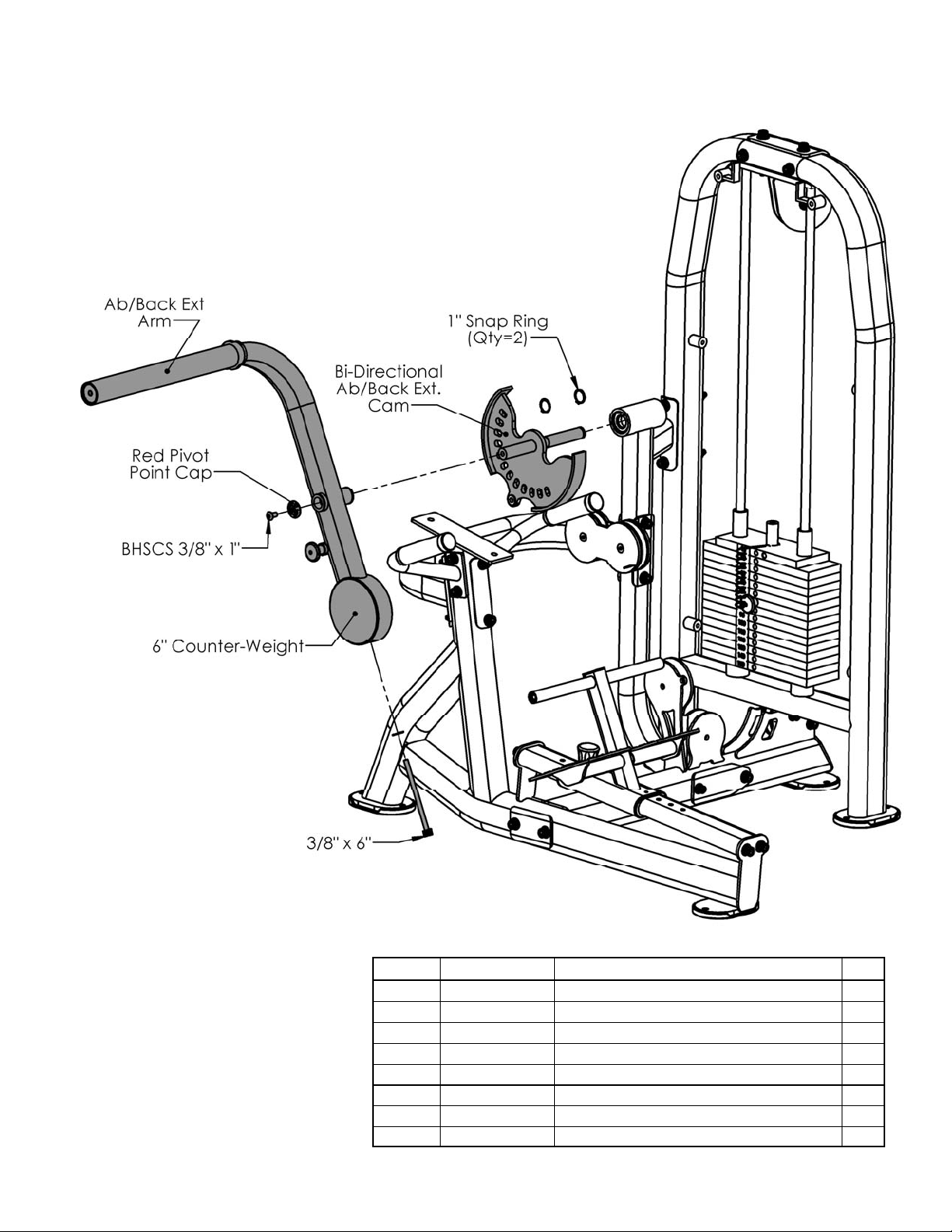

Step 6:
Figure 6
All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Item # Part # Description Qty
20 BFP-10883 AB/Back Ext. Arm 1
21 BFP-52200 6” Counter-Weight 1
22 BFP-10882 Bi-Directional Ab/Back Ext. Cam 1
23 BFP-51885 Red Pivot Point Cap 1
38 BFH-50165 1” Snap Ring 2
54 BFP-52364 SHCS 3/8” x 6” 1
58 BFH-50146 3/8” Flat Washer 1
60 BFH-50620 BHSCS 3/8” x 1” 1

Batca Fitness Systems 14 LD-5 Owner's Manual
Item # Part # Description Qty
30 CAB-15006 Weight Stack to Cable Lockout Cable 1
24 BFP-10838 Free Floater 1
36 BFH-50174 4 1/2” Pulley 1
37 BFH-50530 5” Pulley 1
45 BFH-50351 1 3/8” Shoulder Bolt 1
48 BFP-51752 SHCS 3/8” x 2 1/4” 2
55 BFH-50267 5/16”Nylock 1
58 BFH-50146 3/8” Flat Washer 4
59 BFH-50157 3/8” Nylock 2

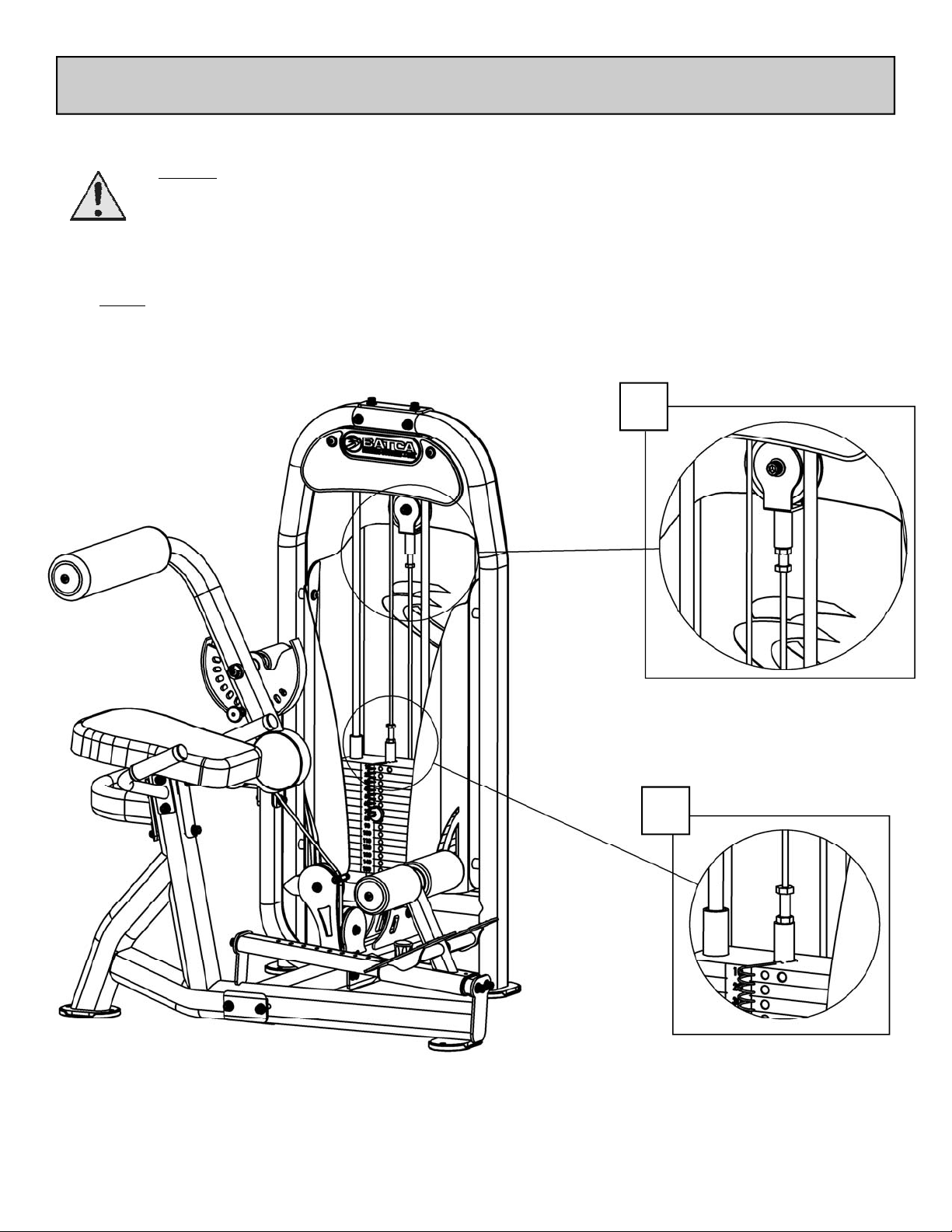

Step 7:
Figure 7
Note: The threaded bolt on
the end of the cable must
be threaded at least 1/2”
the Top Plate of the
weight stack. The bolt
must also be secured with
a 1/2” Jam Nut to ensure a
safe and proper
connection.
CAB-15006
53 3/4”
1 3/8”
Shoulder
Bolt

www.batcafitness.com 15 LD-5 Owner’s Manual
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.
Step 8:
Item # Part # Description Qty
31 CAB-15007 Free Floater to Cam Cable 1
25 BFP-51883 Double Pulley Cover 1
36 BFH-50174 4 1/2” Pulley 4
45 BFH-50351 1 3/8” Shoulder Bolt 1
46 BFP-51759 SHCS 3/8” x 2” 1
47 BFP-51752 SHCS 3/8” x 2 1/4” 2
48 BFH-50145 FHSCS 3/8” x 2 1/4” 2
55 BFH-50267 5/16” Nylock 1
59 BFH-50157 3/8” Nylock 5
58 BFH-50146 3/8” Flat Washer 6
Figure 8
Note: The threaded bolt on
the end of the cable must
be threaded at least 1/2”
in the Free Floater. The
bolt must also be secured
with a 1/2” Jam Nut to
ensure a safe and proper
connection.
CAB-15007
78 9/16”
CAB-15007
1 3/8”
Shoulder
Bolt

Batca Fitness Systems 16 LD-5 Owner's Manual
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.

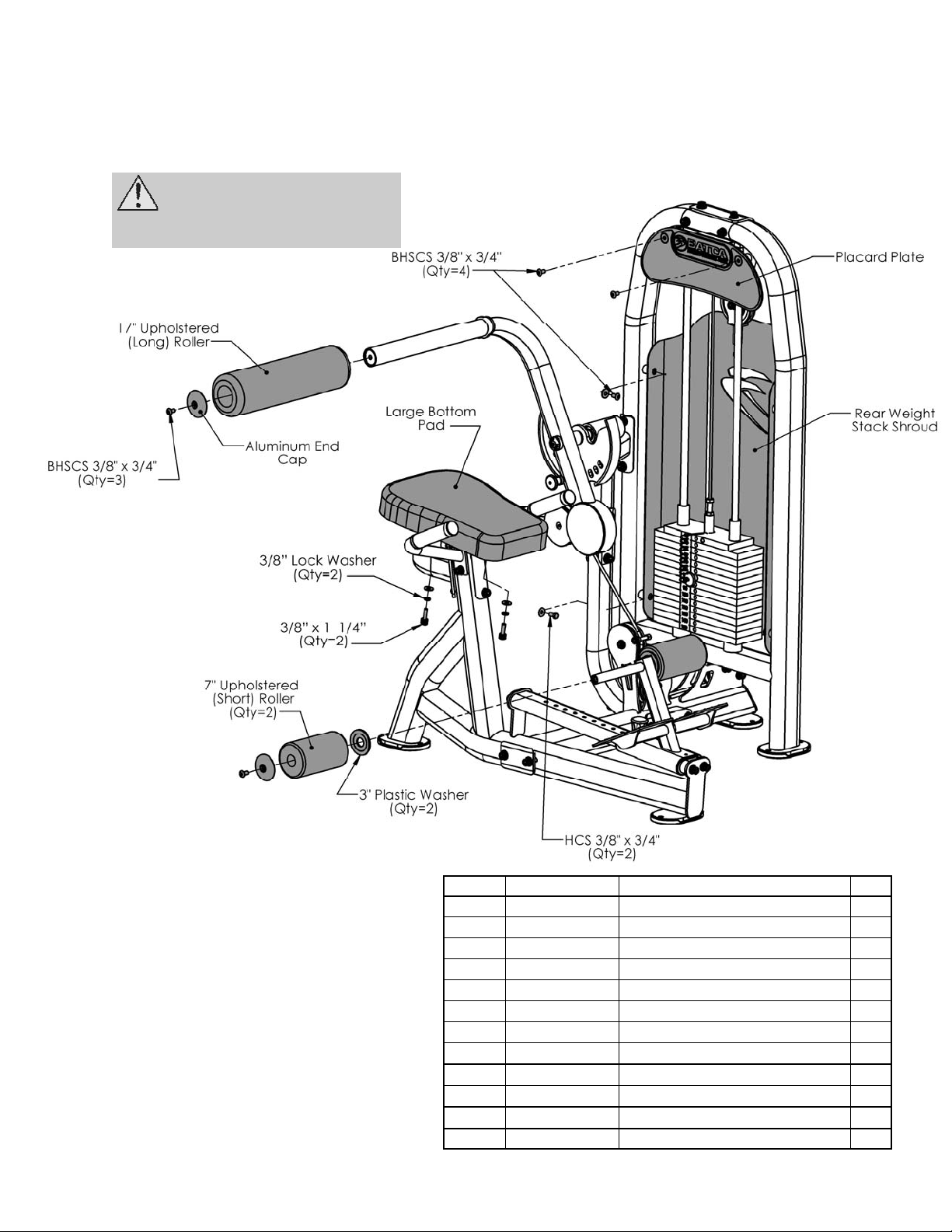

Step 9:
Item # Part # Description Qty
27 BFP-51740 Rear Weight Stack Shroud 1
33 BFU-50187 17” Upholstered (Long) Roller 1
34 BFU-50189 7” Upholstered (Short) Roller 2
39 BFH-50622 Aluminum End Cap 3
40 BFH-50221 3” Plastic Washer 2
41 BFP-52340 BHSCS 3/8” x 3/4” 7
42 BFH-50254 HCS 3/8” x 3/4” 2
26 BFP-51711 Placard Plate 1
59 BFH-50146 3/8” Flat Washer 6
35 BFP-52130 Large Bottom Pad
44 BFP-51653 SHCS 3/8” x 1 1/4” 2
58 BFH-50147 3/8” Lock Washer 2
Figure 8
Do not tighten the
four bolts on the
shroud until next step.

www.batcafitness.com 17 LD-5 Owner’s Manual
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.
Step 10:
Figure 10
Item # Part # Description Qty
28 BFP-51741 Left Front Weight Stack Shroud 1
29 BFP-51742 Right Front Weight Stack Shroud 1
Make sure all bolts are
tightened

Batca Fitness Systems 18 LD-5 Owner's Manual
Final Assembly and Troubleshooting
Top Plate
150lb Stack
Weight Stack Decals:
IMPORTANT - Check These Components Before Using Gym:
 Each Cable with a threaded bolt on either end must be
threaded at least 1/2” into its attachment, whether it be a
Free Floater, Lockout Free Floater, or the Top Plate of the
weight stack. Each must also be secured with a 1/2” Jam Nut
to ensure a safe and proper connection.
 Record your serial number on the front of this manual
and keep for your records. The serial number can be
found on the side of the cage as seen in the figure to the
left.
Guide Rod
Lubrication:
 Clean guide rods with a lint-free cloth and apply a thin layer of silicone lubricant (Part # BFH-
50262) to each guide rod. This will ensure a glass smooth performance from your weight stack.
Free Floater

www.batcafitness.com 19 LD-5 Owner’s Manual
 Adjust cables to proper tension from any of the locations shown below.
Note: All cables with threaded adjustable ends must have at least 1/2” of the threads
threaded in to its counterpart. It is very important that the 1/2” Jam Nut be wrench tight-
ened to the counterpart to ensure that the threaded adjustable end of the cable does not
back out of its counterpart.
 Note: If the top plate raises off of the second plate in the weight stack, then the cable ten-
sion is too tight. You will need to take some of the tension out to lower the Top plate flush
with the second plate.
Cable Adjustments
2
1

Batca Fitness Systems 20 LD-5 Owner's Manual
Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully
engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative
maintenance schedule below should be followed.
Clean upholstery, grips, and roller pads with mild soap and water generally after every use. The guide rods,
chrome slides and frame should be cleaned with a cotton cloth. Upon cleaning the guide rods, a thin layer of
Silicone or Teflon gel should be applied to each rod to ensure a glass smooth performance.
An overall inspection should be done before each workout. If the warning and safety decals are worn or have
been removed they should be replaced immediately. The cables and cable systems should be inspected for
signs of wear and proper tension. In order to check cables properly you should carefully run the cable
through your fingertips, checking for signs of wear, cracks, burs and thinning spots. Replace any part at
first signs of wear. Cables should be adjusted for proper tension. See assembly instructions for this detail.
All hardware, stops, and adjustments should be checked and tightened as required.
The guide rods on your machine should be cleaned and lubricated regularly. This will ensure a glass smooth
performance from your weight stack. A thin layer of either Silicone or Teflon gel should applied to each rod.
Each pillow block bearing and flange bearing has a grease fittings that must be lubricated regularly. Use
general purpose bearing grease and follow the schedule below.
Although cables should be inspected daily, it is important that ALL cables be replaced as directed in the
schedule below. Please note that at any first sign of wear the cable should be replaced immediately.
If there are any questions concerning maintenance, please contact your local Batca dealer or contact Batca
Fitness Systems directly at:
Batca Fitness Systems
[phone]
www.batcafitness.com
Daily Weekly Monthly Quarterly Years
Commercial Home Commercial Home Commercial Home Commercial Home Commercial Home
Clean
Upholstery X X
Hand Grips X X
Roller Pads X X
Guide Rods X X
Chrome Slides X X
Frame X X
Inspect
Overall X X
Safety Decals X X
Cables X X
Cable Tension X X
Pulleys X X
Hardware X X
Stops X X
Upholstery X X
Hand Grips X X
Frame X X
Bushings X X
Bearings X X
Lubricate
Guide Rods X X
Bearings As Needed 1
Replace
Cables 1 3
Preventive Maintenance
