Batca X2 User manual

www.batcafitness.com X2 Owner’s Manual
X2
Owner’s Manual
Record Serial Number Here
Batca Fitness Systems
Tel. [phone]
www.batcafitness.com
Date of Purchase
September 2008
Revision 4

Batca Fitness Systems 2 X2 Owner’s Manual
Page
Instructions 2
Parts Listing 3-5
Hardware Comparison 6-9
Cable Comparison 10
Main Frame Assembly 11-14
Shoulder Press and Low Row Station 15
Pec and Chest Station 16-22
Leg Extension and Leg Curl 23-26
Cable Routing 27-35
Upholstery 36-39
Page
Weight Stack Decals 39
Weight Stack Enclosures, Bars, Straps 40
Leg Press Option 41-43
Leg Press Cable Routing 44-45
Cable Tension and Adjustment 46-47
Final Assembly and Troubleshooting 48-49
Maintenance 50
Warranty 51
Layout 52
Table of Contents
Congratulations on the purchase of your new Batca X2. This gym will provide you with a lifetime of enjoyment to meet your
strength training needs. Batca Fitness Systems strives to build the best quality multi-station gyms and to package these gyms in such
a way to avoid any damage during shipping.
In order to get started with your assembly you should first familiarize yourself with this manual. It is recommended that you
read through each step thoroughly before you begin. Begin by opening your boxes and separating all of your parts. Verify that all
parts are accounted for and have no damage. When all parts are accounted for, you may begin your assembly. Some items may
have been pre-assembled for your convenience. Please note that hardware quantities shown reflect total quantities for your gym and
may not reflect actual quantities in each bag. Assemble your gym on a solid level surface. This will ensure the best possible perform-
ance, function, and safety for the gym and your workout.
Assemble your gym according to the step by step instructions found in this manual. Failure to do so will void your warranty
and may result in personal injury. After assembly, you should check each station to ensure correct operation. If a problem arises,
recheck your assembly with these instructions to verify correct assembly. If you are unable to correct a problem or have questions
with your assembly please contact your authorized Batca dealer.
Batca Fitness Systems has built this gym to give you a safe, effective and enjoyable workout. However,
there is a risk assumed by individuals who use this type of equipment. It is very important that all warnings and
instructions are read and followed before beginning any exercise program.
It is also very important to read and follow the preventative maintenance schedule described in this
manual. If any of the warning labels or stickers are worn, faded, torn, scratched or missing they should be replaced
immediately.
WARNING:There is a risk assumed by individuals who use this type of equipment. To minimize risk
always follow these rules.
1) It is essential that you consult with your physician before beginning any exercise program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including cables, nuts and bolts). Replace
parts at first signs of wear (use only genuine BATCA replacement parts). Use of equipment that is damaged,
worn, frayed or not completely assembled on a solid, level surface may result in injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of the gym. Be alert to the
possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this gym.
6) If you have any questions on proper use or maintenance of this gym, do not hesitate to call your local BATCA
FITNESS SYSTEMS distributor or BATCA FITNESS SYSTEMS at [phone]. www.batcafitness.com
Instructions
Warning

www.batcafitness.com 3 X2 Owner’s Manual
Main Frame Components
Accessories Upholstery
ITEM NO. PART NO. DESCRIPTION QTY.
81 BFC-10101 1 inch Chain 1
82 BFC-10102 12 inch Chain 1
83 BFC-50122 Ab Strap 1
84 BFC-50125 Lat Bar 1
85 BFC-50126 Short Bar 1
178 BFC-50123 Ankle Strap 1
BOX
3
3
2
1
2
2
195 BFM-51173 Weight Stack Pin 1 3
ITEM NO. PART NO. DESCRIPTION QTY.
170 BFU-10117 Large Bottom Pad 2
171 BFU-10118 Bottom Pad 1
172 BFU-10119 Head Pad 1
173 BFU-10120 Back Pad With Lumbar 3
174 BFU-10121 7" Upholstery Roller 4
175 BFU-10122 Large Upholstery Roller 2
176 BFU-10125 Lat Bar Pad 1
BOX
3
3
3
1
3
1
1
ITEM NO. PART NO. DESCRIPTION QTY.
1 BFM-10111 Chest Base 1
2 BFM-10120 Low Row 1
3 BFM-10117 Shoulder Base 1
4 BFM-10119 Leg Ext/Curl Base 1
5 BFM-50163 Plate 1
6 BFM-10112 Chest Pole 1
7 BFM-10108 Leg Ext/Curl Pole 1
8 BFM-10127 Shoulder Pole 1
9 BFM-10113 Bent Top 1
10 BFM-10114 Chest Top 1
11 BFM-50150 Plate 2
12 BFM-10130 Bar Catch Left 1
13 BFM-10131 Bar Catch Right 1
14 BFM-50260 Guide Rod 4
15 BFM-10348 5lb Top Plate 2*
16 BFM-10299 10lb Top Plate 2
17 BFM-50256 Weight Plate 38
18 BFM-10107 Guide Rod Holder 2
19 BFM-10105 Shoulder Arm 1
20 BFM-10118 Back Adjustment 1
21 BFM-10104 Chrome Pad Adjustment 1
22 BFM-10121 Low Row Diamond Plate 2
23 BFM-10153 Chrome Pad Adjustment 1
24 BFM-50247 Spacer 5/8" 2
25 BFM-10126 Pec Top 1
26 BFL-50127 Pec Pulley Holder 1
27 BFM-10148 Pec Cam Right 1
28 BFM-10147 Pec Cam Left 1
29 BFM-10124 Upper Pec Arm Left 1
30 BFM-10125 Upper Pec Arm Right 1
31 BFM-10103 Lower Pec Arm 2
32 BFL-50115 Plate 2
33 BFM-50261 Axle 4
34 BFM-50240 Cold Roll Handle 2
BOX
1
3
1
3
3
1
1
1
1
3
2
2
2
4
N/A
N/A
N/A
3
3
3
3
3
1
3
2
2
3
3
2
2
3
3
3
3
ITEM NO. PART NO. DESCRIPTION QTY.
35 BFM-10132 Foot Assist 1
36 BFM-50263 1/2 in. Cold Roll 1
37 BFM-10101 Chest Pivot 1
38 BFM-50262 Chrome Cable Pivot 2
39 BFM-10138 Chest Press Arm 1
40 BFM-10146 Chest Press Pulley Holder 1
41 BFM-50246 Spacer 3/16" 2
42 BFM-10110 Chrome Pad Adjustment 1
43 BFM-10128 Elbow Support 1
44 BFM-10129 Leg Ext/Curl Pillow Holder 1
45 BFM-10136 Knee Hold Down Elbow 1
46 BFM-10145 Two Pulley Feeder 1
47 BFM-10139 Leg Ext/Curl Pivot Arm 1
48 BFM-10144 Leg Ext/Curl Cam 1
49 BFM-50267 Counter Weight 1
50 BFM-10143 Leg Ext/Curl Frame 1
51 BFM-10135 High Pivot Roller 1
52 BFM-10151 Low Pivot Roller 1
53 BFM-10115 Left Handle 1
54 BFM-10116 Right Handle 1
55 BFM-10141 Knee Alignment Roller 1
56 BFM-50222 Axle 1
57 BFM-50345 Pulley Cover 3
58 BFM-10154 Free Floater 3
59 BFM-10134 Free Floater With Lockout 2
60 BFM-50245 Cable Connector Plate 1
62 BFM-10137 Foot Shroud 1
63 BFM-50244 Round Tube 1
64 BFM-50239 Tube 2
65 BFM-10109 Chrome Pad Adjustment 1
66 BFM-50322 Weight Stack Shroud 2
67 BFM-50456 Weight Stack Shroud w/ Logo 2
185 BFM-50186 Plate 1
191 BFM-50504 5lb Weight Plate 4*
BOX
2
2
2
2
2
2
3
1
2
2
2
2
2
2
3
2
2
2
2
2
2
3
2
3
3
3
2
2
2
2
4
4
2
N/A

Batca Fitness Systems 4 X2 Owner’s Manual
Hardware
Cables
ITEM NO. PART NUMBER DESCRIPTION QTY.
160 CAB-10101 Lat Pull to Weight Stack Cable 1
161 CAB-10102-1 Ab to Low Pulley Cable 1
163 CAB-10104 Leg Ext/Curl Cam to Free Floater Cable 1
164 CAB-10105 Lockout Free Floater to Free Floater Cable 1
165 CAB-10106 Pec Cam to Pec Cam Cable 1
166 CAB-10107 Chest Top Lockout to Weight Stack Cable 1
167 CAB-10108 Free Floater to Plate Cable 1
168 CAB-10109 Free Floater to Chest Lockout Cable 1
169 CAB-10401 Foot Assist Cable 2
ITEM NO. PART NO. DESCRIPTION QTY.
86 BFH-50101 1" Flanged Bushing 20
87 BFH-50102 5/8" Flanged Bushing 2
88 BFH-50103 1/2" Flanged Bushing 2
89 BFH-50110 Molded Grip 10
90 BFH-50111 1" Plastic Cap 3
91 BFH-50112 Screw Cap Cover 4
92 BFH-50113 Screw Cap Washer 4
93 BFH-50114 1 1/2" Round Inner Plastic Cap 2
94 BFH-50254 HCS 3/8"-16 X 3/4" P5 8
95 BFH-50119 HCS 3/8"-16 X 1 1/4" P5 8
96 BFH-50120 HCS 3/8"-16 1 1/2" P5 8
97 BFH-50121 HCS 3/8"-16 X 2" P5 0
98 BFH-50122 HCS 3/8"-16 X 2 1/4" P5 23
99 BFH-50124 HCS 3/8"-16 X 2 3/4" P5 20
100 BFH-50125 HCS 3/8"-16 X 3" P5 12
101 BFH-50126 HCS 3/8"-16 X 3 1/4" P5 28
102 BFH-50127 HCS 3/8"-16 X 3 1/2" P5 4
103 BFH-50128 HCS 3/8"-16 X 3 3/4" P5 4
104 BFH-50129 HCS 3/8"-16 X 4" P5 8
105 BFH-50130 HCS 3/8"-16 X 4 1/4" P5 3
106 BFH-50133 HCS 3/8"-16 X 6 1/2" P5 2
107 BFH-50134 HCS 3/8"-16 X 9" P5 2
108 BFH-50137 HCS 1/2"-13 X 3 1/4" P5 4
108 BFH-50137 1/2"-13 X 3 1/4” (5/8” Thread) 1
111 BFH-50146 3/8" Flat Washer Black 196
112 BFH-50147 3/8" Lock Washer (Black) 24
113 BFH-50288 3/8"-16 Nylock (Zinc) 4
114 BFH-50149 3/8"-16 Jam Nut (Zinc) 9
115 BFH-50256 1/2"-13 Jam Nut (Zinc) 7
116 BFH-50155 1/2"-13 Nylock (Black) 5
117 BFH-50157 3/8"-16 Nylock (Black) 106
118 BFH-50165 1" Snap Ring 2
119 BFH-50166 1/2" Snap Ring 2
120 BFH-50171 Side Mounted Flange Bearing 2
121 BFH-50172 Pillow Block Bearing 4
122 BFH-50173 3 1/2" Pulley 11
123 BFH-50174 4 1/2" Pulley 22
124 BFH-50175 Sleeve Insert 8
125 BFH-50188 Snap Hook 4
126 BFH-50190 Rubber Donut 4
127 BFH-50192 200lb Weight Stack Decals 2
128 BFH-50197 Small Logo 2
129 BFH-50198 Large Logo 2
ITEM NO. PART NO. DESCRIPTION QTY.
130 BFH-50199 Rubber Grommit 4
131 BFH-50200 Rubber Bumper 2
132 BFH-50201 1/2" Pulley Spacer 23
133 BFH-50202 3/4" Pulley Spacer 7
134 BFH-50210 Gas Spring 2
135 BFH-50211 2" Square Plastic Cap 14
136 BFH-50212 2" x 3" Plastic Cap 10
137 BFH-50213 1 1/2" x 2" Plastic Cap 2
138 BFH-50214 1 3/4" Square Plastic Cap 2
139 BFH-50215 1 1/2" Square Plastic Cap 5
140 BFH-50220 Threaded Collar 5
141 BFH-50221 3" Plastic Washer 4
142 BFH-50222 Rubber Bumper 2
143 BFH-50258 175lb Weight Stack Decals 2*
145 BFH-50234 Spring 2
146 BFH-50236 Foam Grip (Foam Cover Only) 2
147 BFH-50237 Flat Leveler 2
148 BFH-50238 Pin 2
149 BFH-50239 Snap Ring 2
150 BFH-50240 Bar Catch Rubber Sleeve 2
151 BFH-50242 3/8 Fender Washer 2
152 BFH-50245 FHSCS 5/16"-18 X 1" 2
153 BFH-50246 Anti-Skid Material 5
154 BFH-50247 3/8"-16 Thin Nylock (Zinc) 2
155 BFH-50248 Cable Pivot Bushing 6
156 BFH-50250 1 1/4" Shoulder Bolt 3
157 BFH-50251 1/2" Flat Washer 10
158 BFH-50622 Roller End Cap 6
159 BFH-50253 Beveled Leveler 3
177 BFH-50263 Pull Pin T-Handle N/A
179 BFM-50157 1/2" Short Pull Pin Assembly 4
180 BFM-50177 3/8" Long Pull Pin Assembly 2
181 BFM-50207 1/2" Long Pull Pin Assembly 2
182 BFH-50267 5/16"-18 Nylock 3
184 BFH-50227 Cable Strap 3
186 BFH-50257 Warning Label 2
187 BFH-50262 Silicon Gel Pack 4
189 BFH-50269 Warning Label - Do Not Hang 1
190 BFH-50280 1" Round Inner Plastic Cap 10
192 BFH-50118 HCS 3/8"-16 X 1" P5 2
193 BFH-50259 Black Wrinkle Touch Up Paint 1
194z BFH-50278 Silver Wrinkle Touch Up Paint 1
196 BFH-50297 1” Bronze Bushing x 1/2” L 4
197 BFH-50620 3/8” BHSCS x 1” 6

www.batcafitness.com 5 X2 Owner’s Manual
Leg Press Components
Tools Required
• 7/16” Wrench
• 1/2” Wrench
• 9/16” Wrench
• 3/4” Wrench
• 9/16” Ratchet
• 3/4” Ratchet
• Allen Wrench Set
• Tape Measure
Leg Press Hardware
Upholstery
Cables
ITEM NO. PART NUMBER DESCRIPTION QTY.
86 BFH-50101 1" Flanged Bushing 2
89 BFH-50110 Molded Grip 2
95 BFH-50119 HCS 3/8"-16 X 1 1/4" P5 2
97 BFH-50121 HCS 3/8"-16 X 2" P5 1
99 BFH-50124 HCS 3/8"-16 X 2 3/4" P5 3
100 BFH-50125 HCS 3/8"-16 X 3" P5 6
101 BFH-50126 HCS 3/8"-16 X 3 1/4" P5 10
109 BFH-50144 FHSCS 3/8"-16 X 1" 2
110 BFH-50145 FHSCS 3/8"-16 X 2 1/4" 3
111 BFH-50146 3/8" Flat Washer Black 37
112 BFH-50147 3/8" Lock Washer (Black) 4
114 BFH-50149 3/8"-16 Jam Nut (Zinc) 1
115 BFH-50256 1/2"-13 Jam Nut (Zinc) 1
117 BFH-50157 3/8"-16 Nylock (Black) 25
121 BFH-50172 Pillow Block Bearing 2
ITEM NO. PART NUMBER DESCRIPTION QTY.
122 BFH-50173 3 1/2" Pulley 2
123 BFH-50174 4 1/2" Pulley 4
124 BFH-50175 Sleeve Insert 2
132 BFH-50201 1/2" Pulley Spacer 6
133 BFH-50202 3/4" Pulley Spacer 4
136 BFH-50212 2" x 3" Plastic Cap 4
139 BFH-50215 1 1/2" Square Plastic Cap 10
144 BFH-50249 1/2 Shoulder Bolt (3/8-16x50mm) 4
156 BFH-50250 1 1/4" Shoulder Bolt 1
157 BFH-50251 1/2" Flat Washer 4
159 BFH-50253 Beveled Leveler 1
177 BFH-50263 Pull Pin T-Handle N/A
182 BFH-50267 5/16"-18 Nylock (Black) 1
183 BFH-50244 Short 1/2" Flange Bushing 8
184 BFH-50227 Cable Strap (422 x 1900) 1
190 BFH-50235 Foam Grip LP (Foam Cover Only) 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
11 BFM-50150 Plate 1
24 BFM-50247 Spacer 5/8" 2
53 BFM-10115 Left Handle 1
54 BFM-10116 Right Handle 1
57 BFM-50345 Pulley Cover 1
68 BFM-50171 Plate 2
69 BFM-10122 Leg Press Connector 1
70 BFM-10142 Leg Press Frame 1
71 BFM-10102 Foot Plate Pivot 1
72 BFM-50252 Four Bar 2
73 BFM-10106 Chrome Pad Adjustment 1
75 BFM-50139 Tube 2
76 BFM-10140 Leg Press Pivot 1
77 BFM-10152 Bushing Holder 2
78 BFL-50128 Foot Plate 1
79 BFM-50271 Handle 1
179 BFM-50157 1/2" Short Pull Pin Assembly 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
170 BFU-10117 Large Bottom Pad 1
173 BFU-10120 Back Pad With Lumbar 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
162 CAB-10103 Leg Press to Free Floater Cable 1

Batca Fitness Systems 6 X2 Owner’s Manual

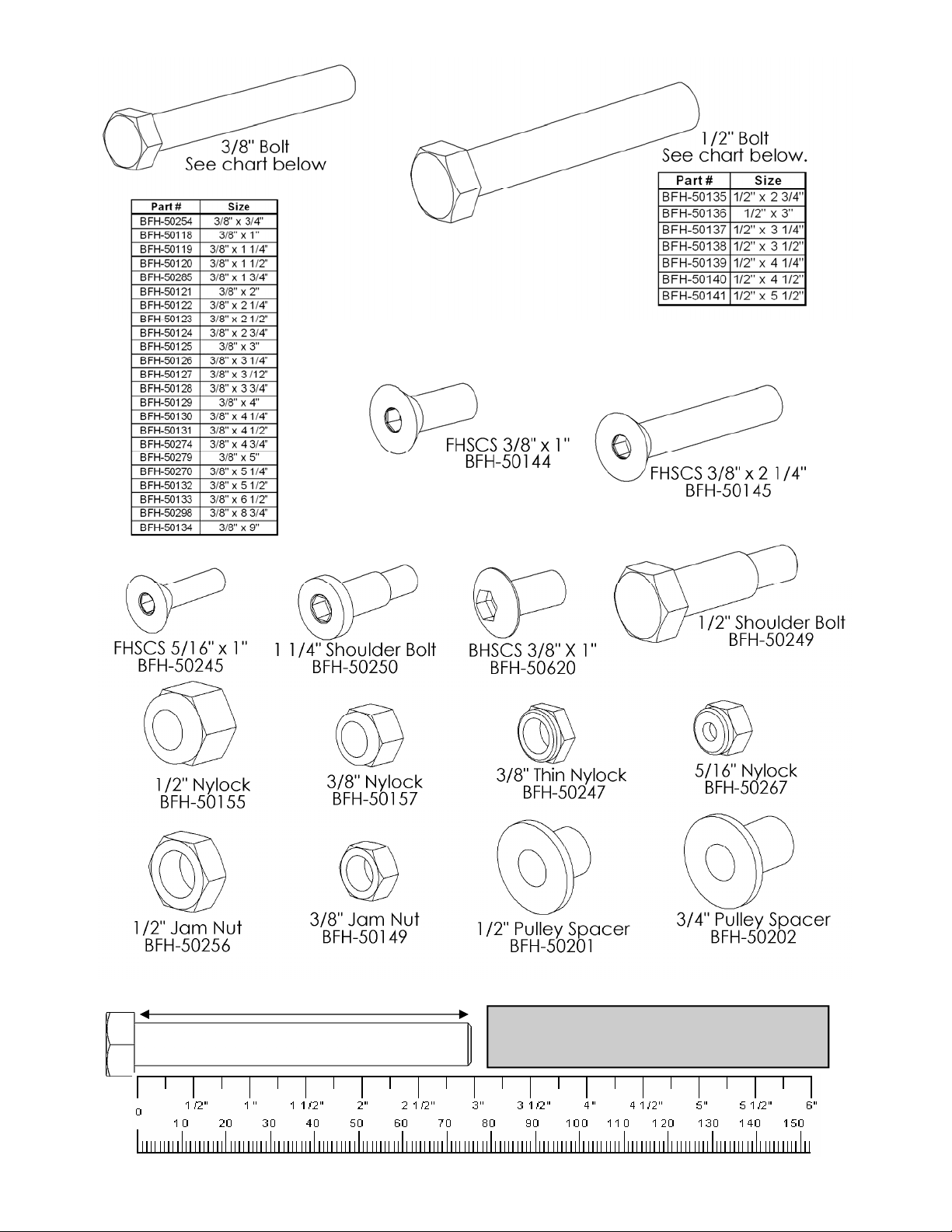

Bolt Length Note: Bolt length is measured from
the underside of the head of the bolt.

www.batcafitness.com 7 X2 Owner’s Manual

Batca Fitness Systems 8 X2 Owner’s Manual

www.batcafitness.com 9 X2 Owner’s Manual

Batca Fitness Systems 10 X2 Owner’s Manual
ITEM NO. PART NUMBER DESCRIPTION QTY.
160 CAB-10101 Lat Pull to Weight Stack Cable 1
161 CAB-10102-1 Ab to Low Pulley Cable 1
162 CAB-10103 Leg Press to Free Floater Cable 1
163 CAB-10104 Leg Ext/Curl Cam to Free Floater Cable 1
164 CAB-10105 Lockout Free Floater to Free Floater Cable 1
165 CAB-10106 Pec Cam to Pec Cam Cable 1
166 CAB-10107 Chest Top Lockout to Weight Stack Cable 1
167 CAB-10108 Free Floater to Plate Cable 1
168 CAB-10109 Free Floater to Chest Lockout Cable 1
169 CAB-10401 Foot Assist Cable 2
Cables
Cable Comparison Chart

www.batcafitness.com 11 X2 Owner’s Manual
Step 1:
• Set the Chest Base (1) in a location close to the gym’s final position. (See Layout Diagram on the back cover of this
manual). Keep in mind that you should allow at least 18”-24” as working room around the unit.
• Record your serial number on the front of this assembly instructions and keep for your records. The serial number
can be found on the back side of the Leg Ext/Curl Base (4), as seen below in Figure 1A.
• Hand Tighten all hardware for Steps 1-3.
Note: For a more consistent appearance, position all bolts in the direction shown in each figure.
Figure 1
Figure 1A
Item # Part # Description Qty
1 BFM-10111 Chest Base 1
2 BFM-10120 Low Row 1
3 BFM-10117 Shoulder Base 1
4 BFM-10119 Leg Ext/Curl Base 1
5 BFM-50163 Plate 1
101 BFH-50126 HCS 3/8"-16 x 3 1/4" P5 3
111 BFH-50146 3/8" Flat Washer 6
117 BFH-50157 3/8" Nylock (Black) 3
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER
INSTALLATION.

Batca Fitness Systems 12 X2 Owner’s Manual
Step 2:
Figure 2

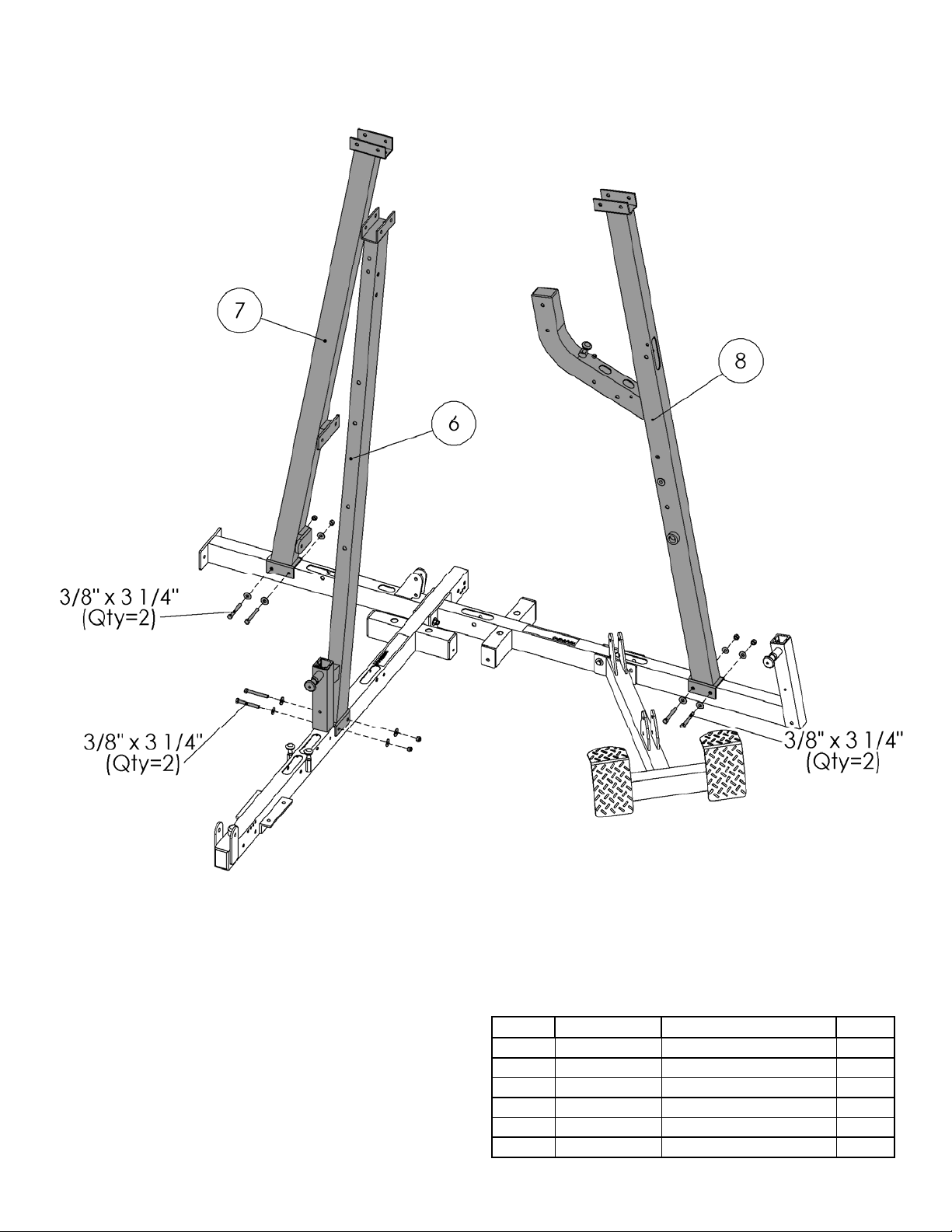

Item # Part # Description Qty
6 BFM-10112 Chest Pole 1
7 BFM-10108 Leg Ext/Curl Pole 1
8 BFM-10127 Shoulder Pole 1
101 BFH-50126 HCS 3/8"-16 x 3 1/4" P5 6
111 BFH-50146 3/8" Flat Washer 12
117 BFH-50157 3/8" Nylock (Black) 6
All Flat Washers and Nylocks are 3/8" unless otherwise noted.

www.batcafitness.com 13 X2 Owner’s Manual
Step 4:
• Snug Tighten all loose hardware.
• Align the Chest Pole, the Leg
Ext/Curl Pole, and the Shoulder
Pole so that they each are plumb
and standing up vertically as shown
in Figure 4.
• Wrench
Tighten
all
hardware
thus far
as found
in Steps
1-3,
starting
from the
top of the
gym and
working
to the
bottom.
Figure 3
Figure 4

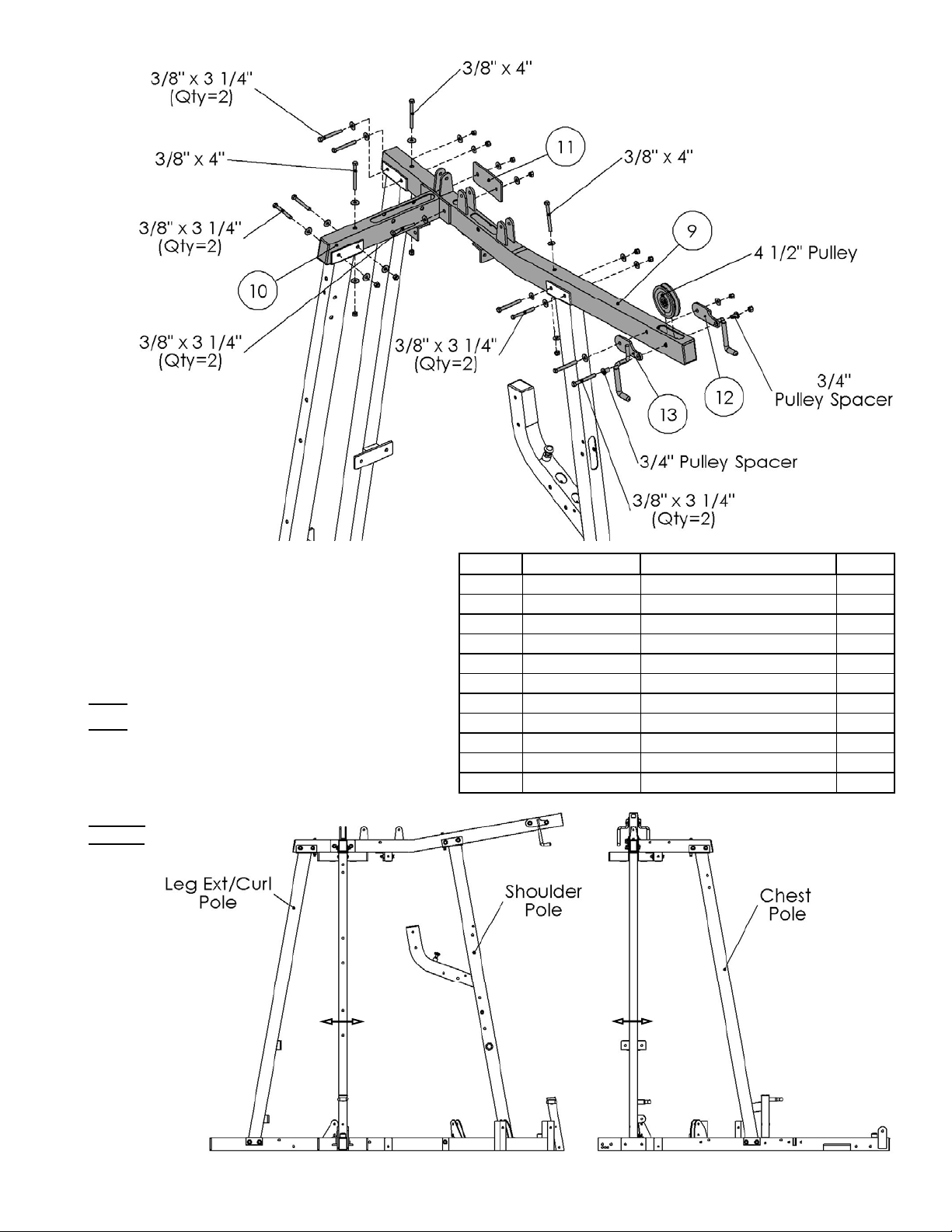

Item # Part # Description Qty
9 BFM-10113 Bent Top 1
10 BFM-10114 Chest Top 1
11 BFM-50150 Plate 1
12 BFM-10130 Bar Catch Left 1
13 BFM-10131 Bar Catch Right 1
101 BFH-50126 HCS 3/8"-16 x 3 1/4" P5 10
104 BFH-50129 HCS 3/8"-16 x 4" P5 3
111 BFH-50146 3/8" Flat Washer 24
117 BFH-50157 3/8" Nylock (Black) 13
123 BFH-50174 4 1/2" Pulley 1
133 BFH-50202 3/4" Pulley Spacer 2
Step 3:
All Flat Washers and Nylocks are 3/8" unless otherwise noted.

Batca Fitness Systems 14 X2 Owner’s Manual
Step 5:
Figure 5
Item # Part # Description Qty
14 BFM-50260 Guide Rod 4
16 BFM-10299 10lb Top Plate 2
17 BFM-50256 Weight Plate 38
18 BFM-10107 Guide Rod Holder 2
100 BFH-50125 HCS 3/8"-16 x 3" P5 4
111 BFH-50146 3/8" Flat Washer 8
117 BFH-50157 3/8" Nylock (Black) 4
126 BFH-50190 Rubber Donut 4
197 BFM-50258 Selector Shaft 2
198 BFH-50291 Roll Pin 2
Figure 5A
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Figure 5B

www.batcafitness.com 15 X2 Owner’s Manual
Item # Part # Description Qty
19 BFM-10105 Shoulder Arm 1
20 BFM-10118 Back Adjustment 1
21 BFM-10104 Chrome Pad Adjustment 1
23 BFM-10153 Chrome Pad Adjustment 1
24 BFM-50247 5/8" Plastic Spacer 2
98 BFH-50122 HCS 3/8"-16 x 2 1/4" P5 1
99 BFH-50124 HCS 3/8"-16 x 2 3/4" P5 1
100 BFH-50125 HCS 3/8"-16 x 3" P5 2
103 BFH-50128 HCS 3/8"-16 x 3 3/4" P5 2
111 BFH-50146 3/8" Flat Washer 8
117 BFH-50157 3/8" Nylock (Black) 6
120 BFH-50171 Side Mounted Flange Bearing 2
122 BFH-50173 3 1/2" Pulley 1
132 BFH-50201 1/2" Pulley Spacer 1
133 BFH-50202 3/4" Pulley Spacer 1
134 BFH-50210 Gas Spring 1

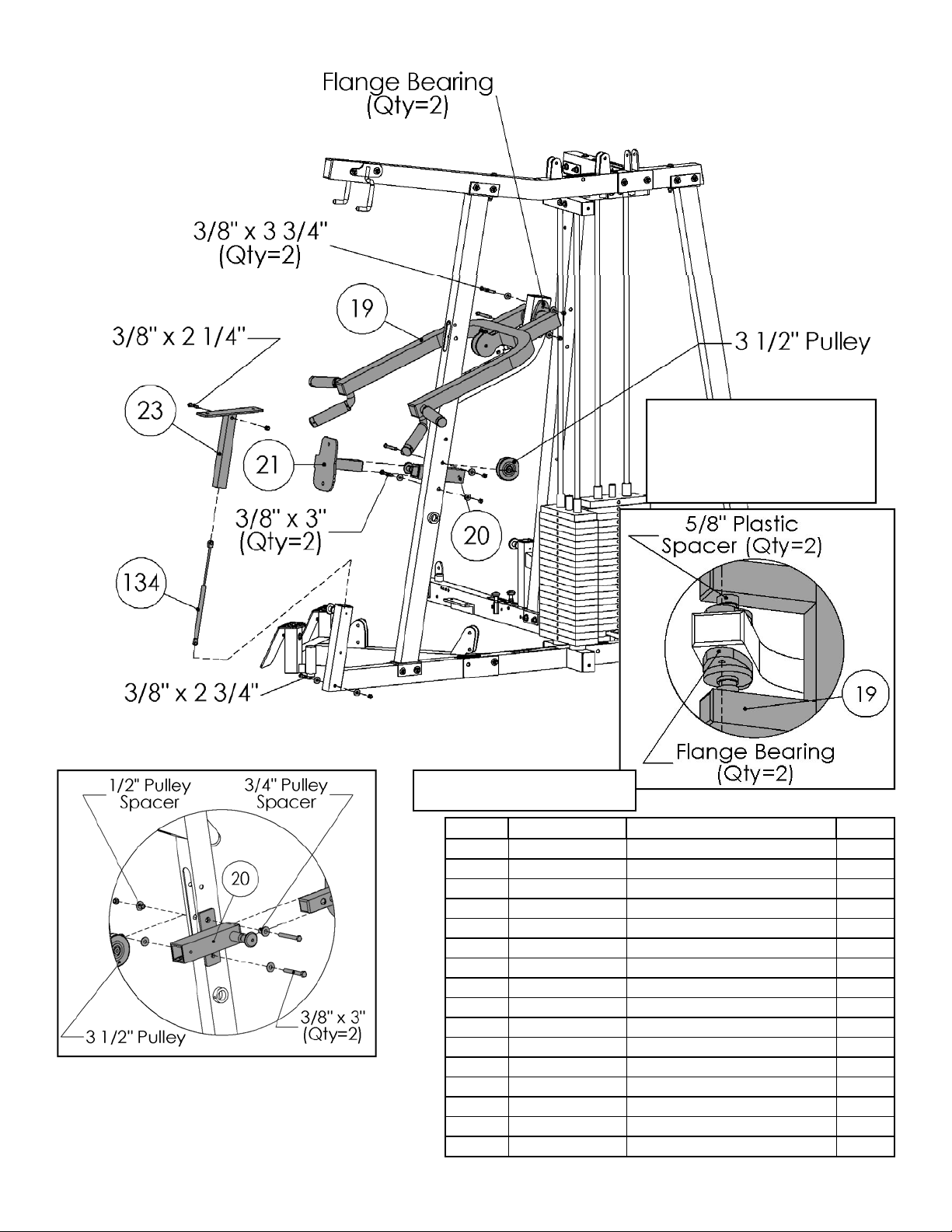

Step 6:
Figure 6B
Figure 6
Figure 6A
Black plastic spacers
center arm inside bearings.
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
Note: Be sure to attach the Side
Mounted Flange Bearings (120) to
the Shoulder Arm (19) before trying
to install the Shoulder Arm to the
machine.

Batca Fitness Systems 16 X2 Owner’s Manual
Step 7:
Note: The Pec Pulley Holder (26) can very easily be put on upside down. Note that the notch represents
the top, as shown in Figure 7A.
Figure 7A
Figure 7
Item # Part # Description Qty
25 BFM-10126 Pec Top 1
26 BFL-50127 Pec Pulley Holder 1
101 BFH-50126 HCS 3/8"-16 x 3 1/4" P5 2
104 BFH-50129 HCS 3/8"-16 x 4" P5 1
105 BFH-50130 HCS 3/8"-16 x 4 1/4" P5 1
111 BFH-50146 3/8" Flat Washer 8
117 BFH-50157 3/8" Nylock (Black) 4
All Flat Washers and Nylocks are 3/8" unless otherwise noted.

www.batcafitness.com 17 X2 Owner’s Manual
Step 8:
Figure 8

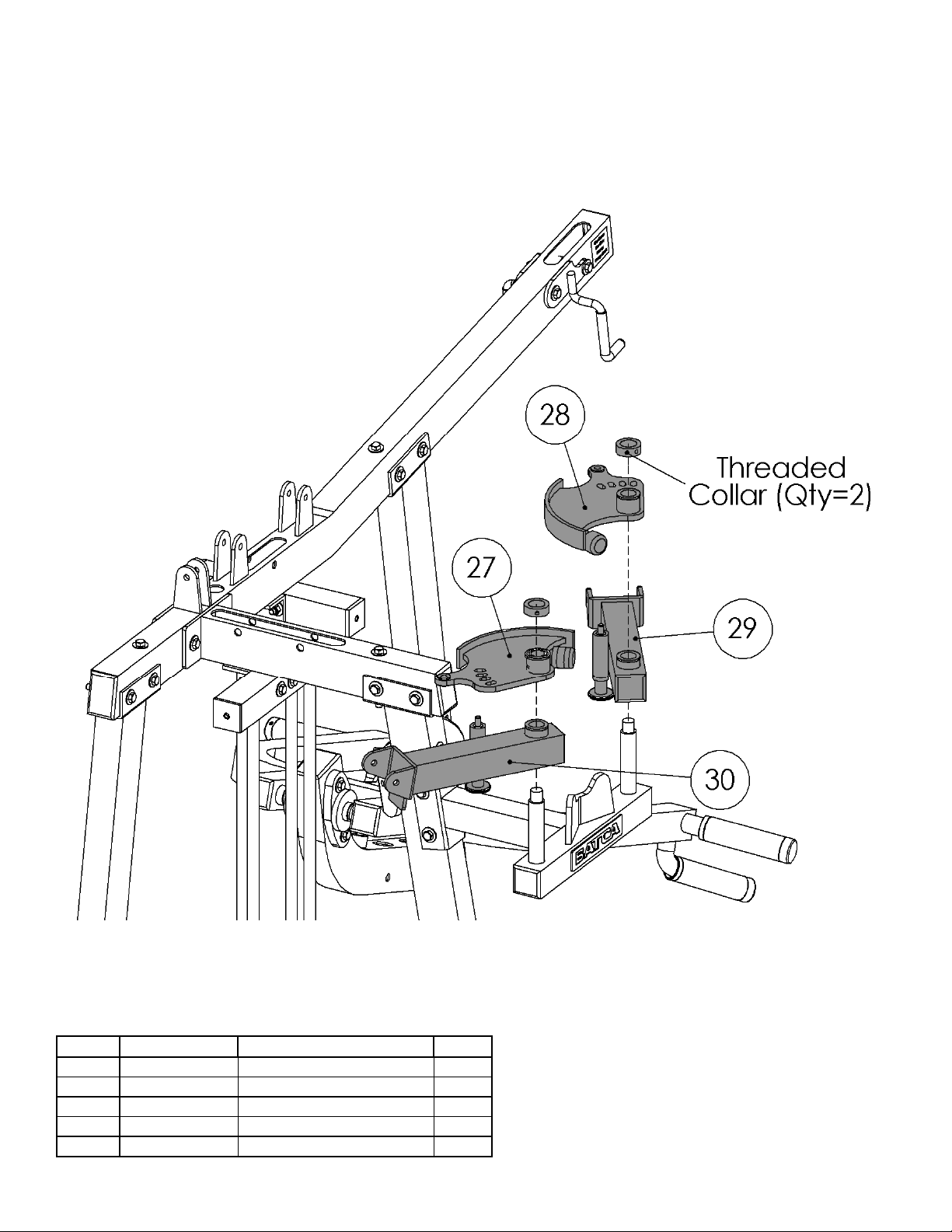

Item # Part # Description Qty
27 BFM-10148 Pec Cam Right 1
28 BFM-10147 Pec Cam Left 1
29 BFM-10124 Upper Pec Arm Left 1
30 BFM-10125 Upper Pec Arm Right 1
140 BFH-50220 Threaded Collar 2
All Flat Washers and Nylocks are 3/8" unless otherwise noted.

Batca Fitness Systems 18 X2 Owner’s Manual
Figure 9
Note: Rubber Bumper (142) should
be on inside and face towards the
Upper Pec Arms (29 and 30).
Item # Part # Description Qty
31 BFM-10103 Lower Pec Arms 2
33 BFM-50261 Axle 2
105 BFH-50130 HCS 3/8"-16 x 4 1/4" P5 2
111 BFH-50146 3/8" Flat Washer 4
117 BFH-50157 3/8" Nylock (Black) 2
Step 9:
Figure 9A
All Flat Washers and Nylocks are 3/8" unless otherwise noted.

www.batcafitness.com 19 X2 Owner’s Manual
Step 10:
Note: It is very important that the HCS 1/2”-13 x 3 1/4” (108) is not over tightened. This may affect
the operation of the Foot Assist (35) and could cause it to bind.
Figure 10
Item # Part # Description Qty
35 BFM-10132 Foot Assist 1
37 BFM-10101 Chest Pivot 1
41 BFM-50246 3/16" Plastic Spacers 2
96 BFH-50120 HCS 3/8"-16 x 1 1/2" P5 4
108 BFH-50137 HCS 1/2"-13 x 3 1/4" (5/8" Thread) 1
111 BFH-50146 3/8" Flat Washer 8
116 BFH-50155 1/2" Nylock 1
117 BFH-50157 3/8" Nylock (Black) 4
157 BFH-50251 1/2" Flat Washer 2
Black plastic spacers
center arm inside bearings.
All Flat Washers and Nylocks are 3/8" unless otherwise noted.

Batca Fitness Systems 20 X2 Owner’s Manual
Figure 11A
Figure 11
Item # Part # Description Qty
113 BFH-50288 3/8" Nylock (Zinc) 4
114 BFH-50149 3/8"-16 Jam Nut (Zinc) 4
169 CAB-10401 Foot Assist Cable 2

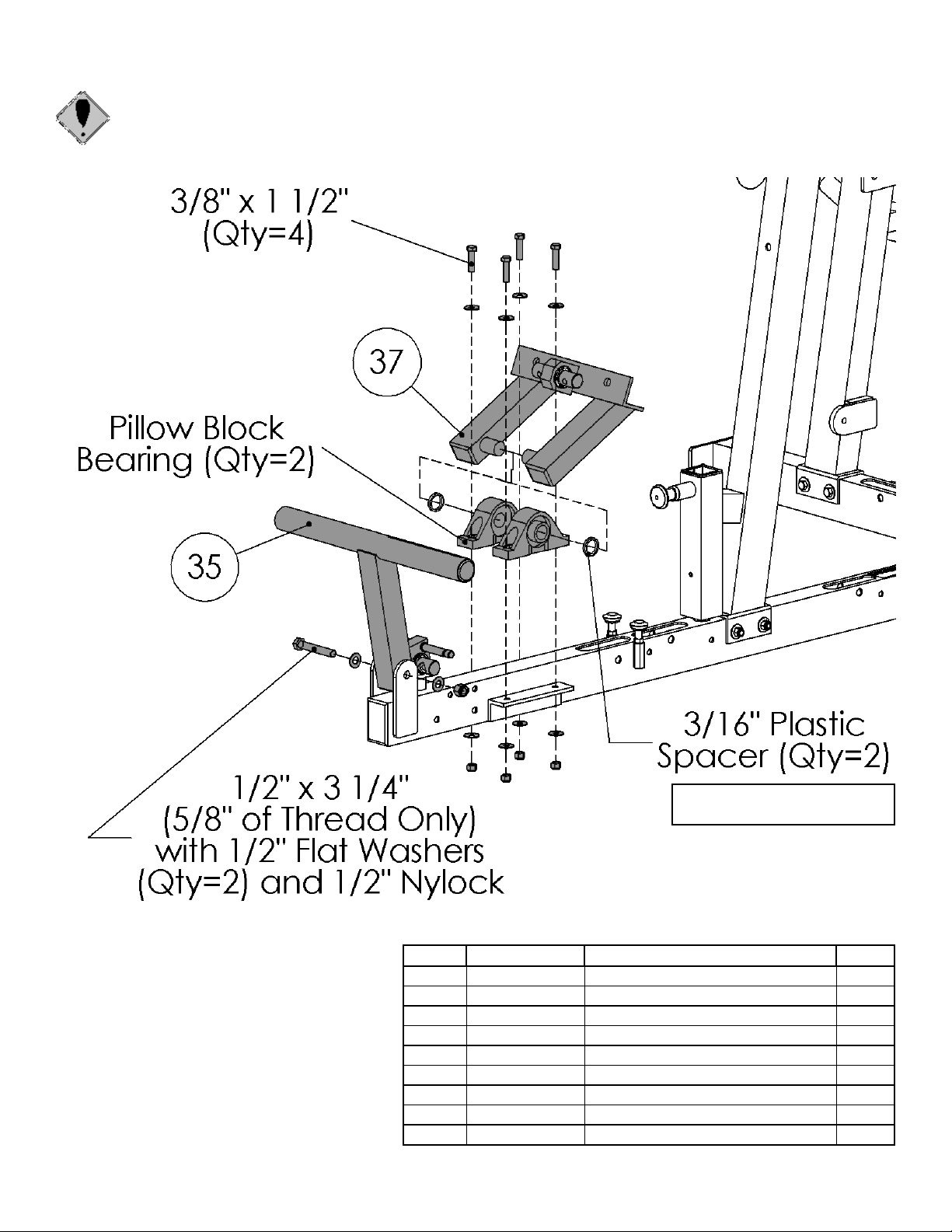

Step 11:
All Flat Washers and Nylocks are 3/8" unless otherwise noted.
