Batca LINK DUAL FUNCTION LD-9 User manual

www.batcafitness.com LD-9 Owner’s Manual
April 2012
Revision 1
Serial Number Here
Date of Purchase
Owner’s Manual
Weight Assisted Chin/dip
LD-9
1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com

Batca Fitness Systems 2LD-9 Owner's Manual
__________ Page
Instructions 2
Parts Listing 3
Hardware Comparison 4-7
Main Assembly 8-15
Upholstery 15
Cable Routing 14
Batca Fitness Systems has built this gym to give you a safe, effective and enjoyable
workout. However, there is a risk assumed by individuals who use this type of equipment. It is
very important that all warnings and instructions are read and followed before beginning any
exercise program.
It is also very important to read and follow the preventative maintenance schedule
described in this manual. If any of the warning labels or stickers are worn, faded, torn,
scratched or missing they should be replaced immediately.
WARNING: There is a risk assumed by individuals who use this type of equipment. To minimize
risk always follow these rules.
1) It is essential that you consult with your physician before beginning any exercise program.
2) Inspect equipment before each use for loose, worn, or frayed parts (including cables, nuts
and bolts). Replace parts at first signs of wear (use only genuine BATCA replacement
parts). Use of equipment that is damaged, worn, frayed or not completely assembled on a
solid, level surface may result in injury.
3) Make sure all adjustment pins are fully engaged before using equipment.
4) Keep all parts of the body and clothing outside the path of any moving parts of the gym. Be
alert to the possibility of injury. Do not be careless.
5) Minors and children should not be allowed to play on or around this gym.
__________ Page
Final Assembly and Troubleshooting 16
Cable Tension and Adjustments 17
Maintenance 18
Warranty 19
Floor Plan Layout 20
Table of Contents
Instructions
Warning
Congratulations on the purchase of your new Batca LD-9. This gym will provide you with a lifetime of
enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms
and to package these gyms in such a way to avoid any damage during shipping.
In order to get started with your assembly you should first familiarize yourself with this manual. It is
recommended that you read through each step thoroughly before you begin. Begin by opening your boxes and
separating all of your parts. Verify that all parts are accounted for and have no damage. When all parts are
accounted for, you may begin your assembly. Some items may have been pre-assembled for your convenience.
Please note that hardware quantities shown reflect total quantities for your gym and may not reflect actual
quantities in each bag. Assemble your gym on a solid level surface. This will ensure the best possible perfor-
mance, function, and safety for the gym and your workout.
Assemble your gym according to the step by step instructions found in this manual. Failure to do so
will void your warranty and may result in personal injury. After assembly, you should check each station to
ensure correct operation. If a problem arises, recheck your assembly with these instructions to verify cor-
rect assembly. If you are unable to correct a problem or have questions with your assembly please contact
your authorized Batca dealer.

www.batcafitness.com 3LD-9 Owner’s Manual
Frame Components Accessories
Upholstery
Hardware
Cables
Tools Required
 9/16” Wrench
 9/16” Ratchet
 Allen Wrench Set
 Tape Measure
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 BFP-10905 LD-9 Cage 1
2 BFP-10907 Right Leg Support 1
3 BFP-10906 Left Leg Support 1
4 BFP-10914 Chin/Dip Pole 1
5 BFP-10849 Guide Rod Plate 1
6 BFP-51745 Guide Rod 2
7 BFM-10413 Top Weight Plate 1
8 BFM-50632 Weight Stack Plate 19
9 BFH-50529 Rubber Donut 2
10 BFP-51740 Rear Weight Stack Shroud 1
12 BFP-10909 Right Dip Arm 1
13 BFP-10908 Left Dip Arm 1
14 BFP-10910 CHIN/Dip Carriage 1
15 BFM-50924 Chin/Dip Shaft 2
16 BFP-10915 Chin/Dip Handle Bar Assembly 1
17 BFP-52013 Bent Anti-Deflection Plate 1
18 BFP-10911 Adjustment Plate 1
19 BFP-10912 Knee Support 1
20 BFP-51995 Axle 1
21 BFP-51742 Right Weight Stack Shroud 1
22 BFP-51741 Left Weight Stack Shroud 1
23 BFP-51797 Placard Plate 1
24 BFP-51981 Diamond Foot Plate 1
ITEM NO. PART NUMBER DESCRIPTION QTY
.
28 BFH-50174 4 1/2” Pulley 1
29 BFP-52340 BHSCS 3/8” x 3/4” 4
30 BFH-50254 HCS 3/8” x 3/4” 2
31 BFH-50144 FHSCS 3/8” x 1” 4
32 BFH-50351 1 3/8” Shoulder Bolt 1
33 BFP-51653 SHCS 3/8” x 1 1/4” 2
34 BFP-51759 SHCS 3/8” x 2” 1
35 BFP-51752 SHCS 3/8” x 2 1/4” 1
36 BFP-52378 FHSCS 3/8” x 2 1/2” 1
37 BFP-51750 SHCS 3/8” x 2 3/4” 4
38 BFP-51747 SHCS 3/8” x 3” 8
39 BFP-51760 SHCS 3/8” x 3 1/2” 2
40 BFP-52345 SHCS 3/8” x 4” 2
41 BFP-51884 SHCS 3/8” x 4 1/4” 2
42 BFP-52379 BHSCS 3/8” x 4 1/2” 1
43 BFP-51799 SHCS 3/8” x 5” 6
44 BFH-50267 5/16 Nylock 1
45 BFH-50147 3/8” Lock Washer 4
46 BFH-50204 3/8” Curved Washer 8
47 BFH-50146 3/8” Flat Washer 53
48 BFH-50157 3/8” Nylock 30
49 BFH-50227 Cable Strap End 1
51 BFH-50620 BHSCS 3/8” x 1” 2
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
27 BFP-52378 Knee Pad 1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
25 CAB-15013 Weight Stack to Cable Lockout
Cable
1
ITEM NO. PART NUMBER DESCRIPTION QTY.
26 BFM-51173 Weight Stack Pull Pin 1

Batca Fitness Systems 4LD-9 Owner's Manual

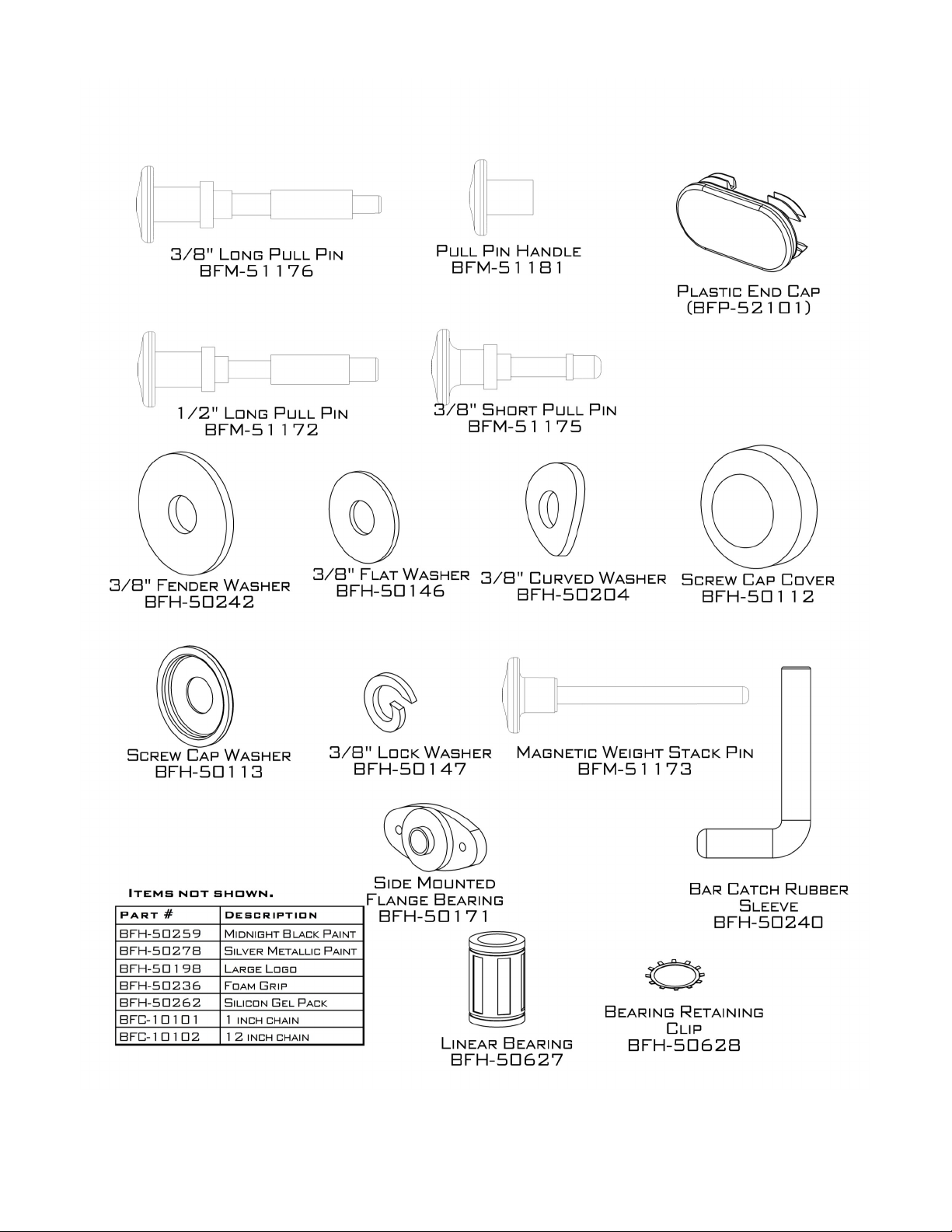

Bolt Length
Note: Bolt length is measured
from the underside of the head
of the bolt.

www.batcafitness.com 5LD-9 Owner’s Manual

Batca Fitness Systems 6LD-9 Owner's Manual

www.batcafitness.com 7LD-9 Owner’s Manual

Batca Fitness Systems 8LD-9 Owner's Manual

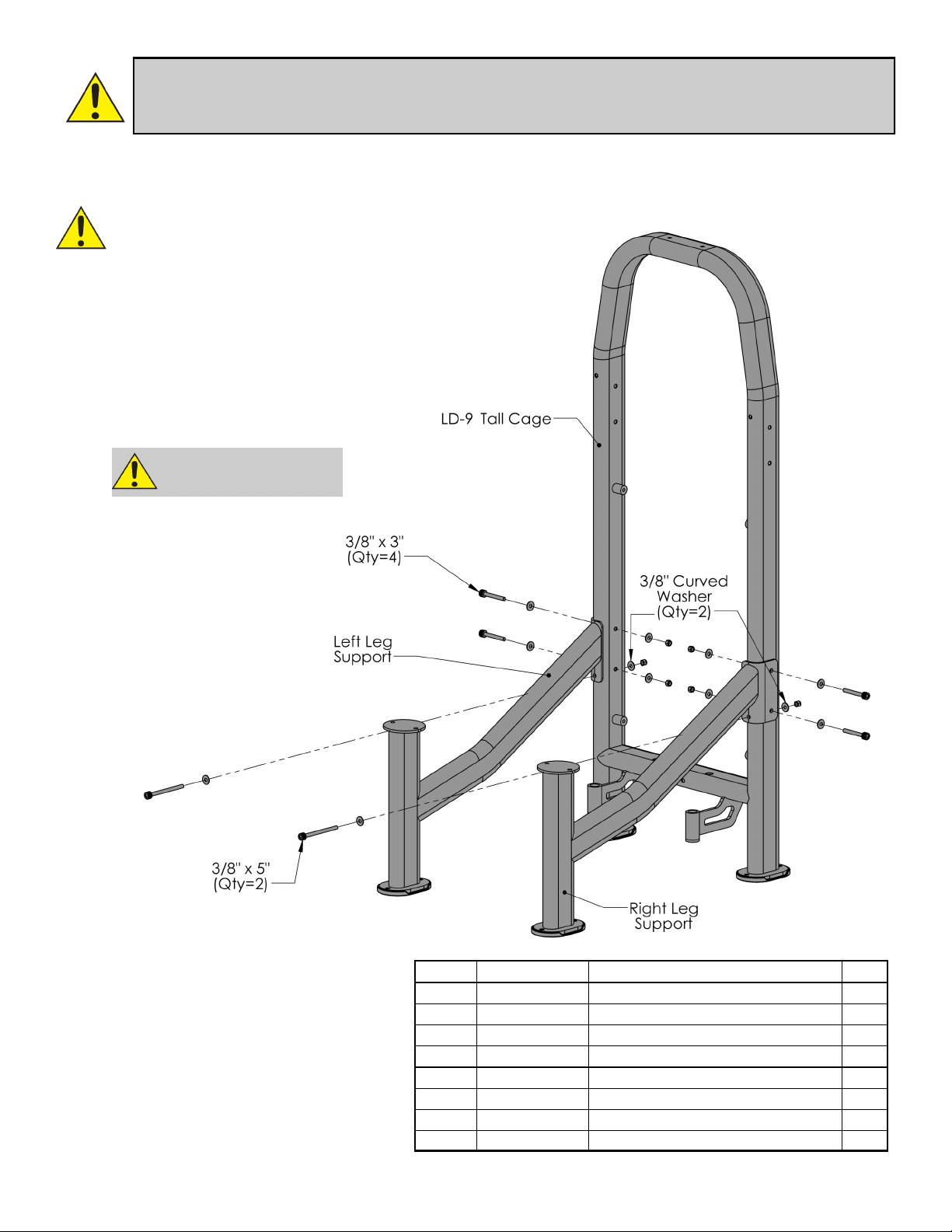

Step 1:
Note: For a more consistent appearance, position all bolts in the direction
shown in each figure .
PLEASE FOLLOW ALL DIRECTIONS VERY
CAREFULLY FOR PROPER INSTALLATION.
All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Anywhere a washer is against the round
side of a tube there is to be a 3/8”
CURVED WASHER instead of a 3/8”
FLAT WASHER.
Figure 1
Item # Part # Description Qty
1 BFP-10905 LD-9 Cage 1
2 BFP-10907 Right Leg Support 1
3 BFP-10906 Left Leg Support 1
38 BFP-51747 SHCS 3/8” x 3” 4
43 BFP-51799 SHCS 3/8” x 5” 2
46 BFH-50204 3/8” Curved Washer 2
47 BFH-50146 3/8” Flat Washer 10
48 BFH-50157 3/8” Nylock 6
DO NOT TIGHTEN
BOLTS UNTIL STEP 2

www.batcafitness.com 9LD-9 Owner’s Manual
Figure 2
Step 2:
Item # Part # Description Qty
4 BFP-10914 Chin/Dip Pole 1
5 BFP-10849 Guide Rod Plate 1
6 BFP-51745 Guide Rod 2
7 BFM-10413 Top Weight Plate 1
8 BFM-50632 Weight Stack Plate 19
9 BFH-50529 Rubber Donut 2
10 BFP-51740 Rear Weight Stack Shroud 1
26 BFM-51173 Weight Stack Pull Pin 1
Make sure all bolts are
tightened EXCEPT FOR
THE FOUR BOLTS ON THE
SHROUD before moving on. Do
not tighten the bolts for the
shroud until step 6.
All Flat Washers and Nylocks are 3/8” unless
otherwise noted. Anywhere a washer is against the
round side of a tube there is to be a 3/8” CURVED
WASHER instead of a 3/8” FLAT WASHER.
Item # Part # Description Qty
28 BFH-50174 4 1/2” Pulley 1
29 BFP-52340 BHSCS 3/8” x 3/4” 2
30 BFH-50254 HCS 3/8” x 3/4” 2
35 BFP-51752 SHCS 3/8” x 2 1/4” 1
39 BFP-51760 SHCS 3/8” x 3 1/2” 2
42 BFP-52379 BHSCS 3/8” x 4 1/2” 1
43 BFP-51799 SHCS 3/8” x 5” 2
46 BFH-50204 3/8” Curved Washer 2
47 BFH-50146 3/8” Flat Washer 12
48 BFH-50157 3/8” x Nylock 6
To counter balance the seat, pin
the weight stack on the third
plate from the top as shown in
the figure to the right. Use a
BHSCS 3/8” x 4 1/2” bolt. Refer
to figure on page 16.

Batca Fitness Systems 10 LD-9 Owner's Manual
Step 3:
Figure 3
All Flat Washers and Nylocks are 3/8” unless
otherwise noted. Anywhere a washer is against the
round side of a tube there is to be a 3/8”
CURVED WASHER instead of a 3/8”
FLAT WASHER.
Item # Part # Description Qty
21 BFP-51742 Right Weight Stack Shroud 1
22 BFP-51741 Left Weight Stack Shroud 1

www.batcafitness.com 11 LD-9 Owner’s Manual
Step 4:
Figure 4
All Flat Washers and Nylocks are 3/8”
unless otherwise noted. Anywhere a
washer is against the round side of a
tube there is to be a 3/8” CURVED
WASHER instead of a 3/8” FLAT
WASHER.
Item # Part # Description Qty
12 BFP-10909 Right Dip Arm 1
13 BFP-10908 Left Dip Arm 1
14 BFP-10910 Chin/Dip Carriage 1
15 BFM-50924 Chin/Dip Shaft 2
33 BFP-51653 SHCS 3/8” x 1 1/4” 2
38 BFP-51747 SHCS 3/8” x 3” 4
43 BFP-51799 SHCS 3/8” x 5” 2
45 BFH-50147 3/8” Lock Washer 2
46 BFH-50204 3/8” Curved Washer 2
47 BFH-50146 3/8” Flat Washer 12
48 BFH-50157 3/8” Nylock 6
The Hole in the Carriage
is offset from the
center of the tube.
When the Carriage is
installed, the hole
should be towards the
top of the machine.

Batca Fitness Systems 12 LD-9 Owner's Manual
Figure 5

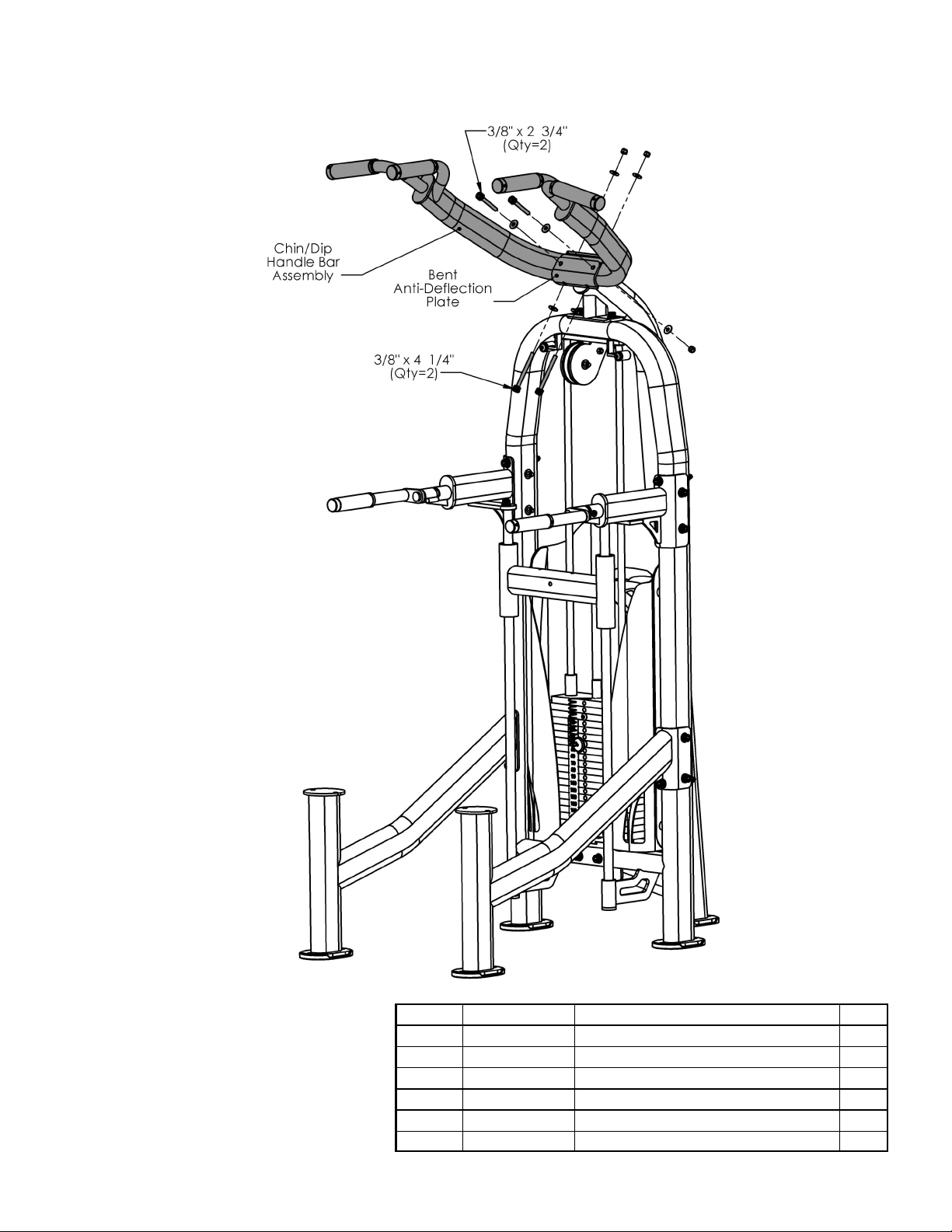

Step 5:
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.
Item # Part # Description Qty
16 BFP-10915 Chin/Dip Handle Bar Assembly 1
17 BFP-52013 Bent Anti-Deflection Plate 1
37 BFP-51750 SHCS 3/8” x 2 3/4” 2
41 BFP-51884 SHCS 3/8” x 4 1/4” 2
47 BFH-50146 3/8” Flat Washer 8
48 BFH-50157 3/8” Nylock 4

www.batcafitness.com 13 LD-9 Owner’s Manual
Step 6:
All Flat Washers and Nylocks are 3/8”
unless otherwise noted. Anywhere a
washer is against the round side of a
tube there is to be a 3/8” CURVED
WASHER instead of a 3/8” FLAT
WASHER.
Item # Part # Description Qty
18 BFP-10911 Adjustment Plate 1
19 BFP-10912 Knee Support 1
20 BFP-51995 Axle 1
36 BFP-52378 FHSCS 3/8” x 2 1/2” 1
40 BFP-52345 SHCS 3/8” x 4” 2
46 BFH-50204 3/8” Curved Washer 2
47 BFH-50146 3/8” Flat Washer 5
48 BFH-50157 3/8” Nylock 3
51 BFH-50620 BHSCS 3/8” x 1” 2
Figure 6

Batca Fitness Systems 14 LD-9 Owner's Manual
Item # Part # Description Qty
25 CAB-15013 Weight Stack to Cable Lockout Cable 1
49 BFH-50227 Cable Strap End 1
32 BFH-50351 1 3/8” Shoulder Bolt 1
34 BFP-51759 SHCS 3/8” x 2” 1
44 BFH-50267 5/16 Nylock 1
48 BFH-50157 3/8” Nylock 1

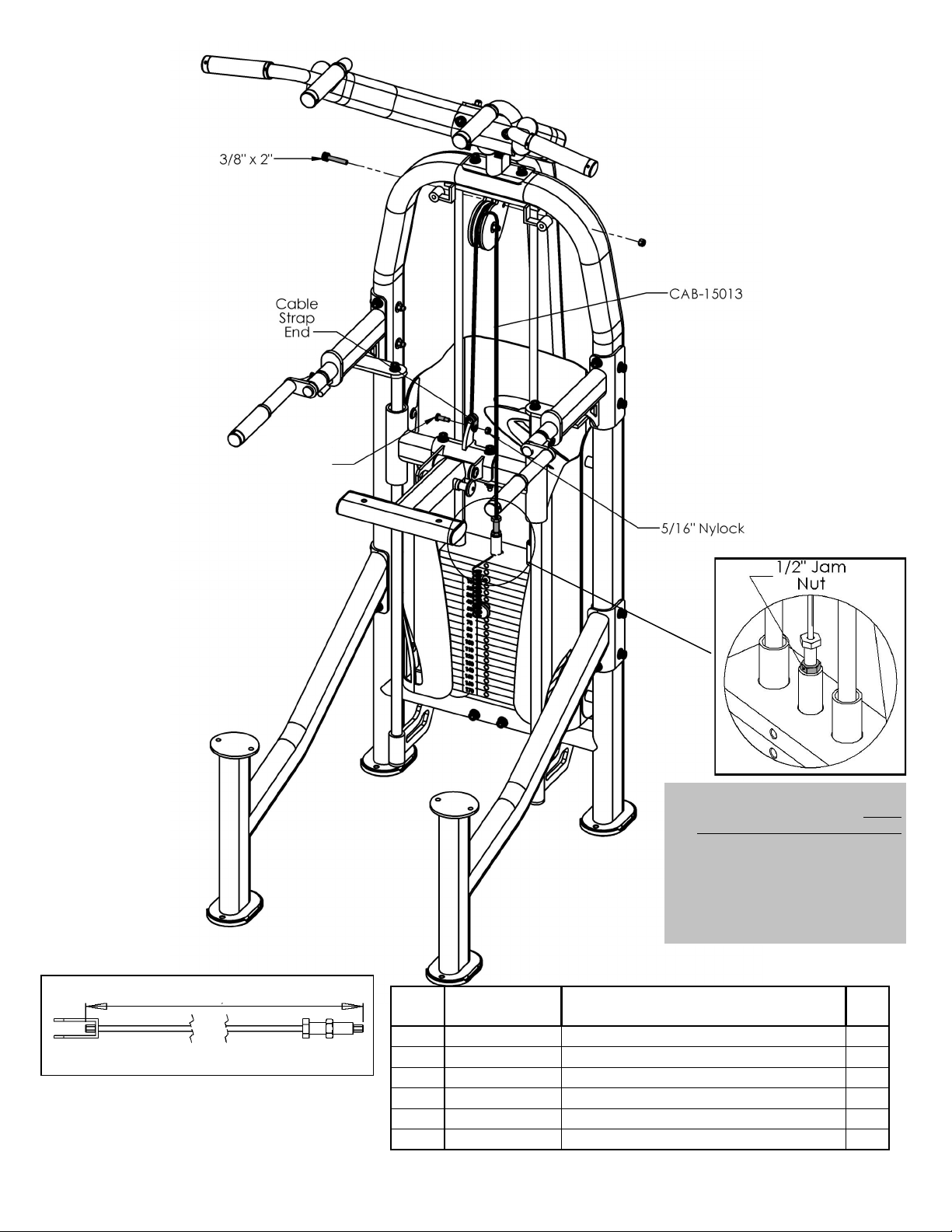

Step 7:
Figure 7
Note: The threaded bolt on
the end of the cable must
be threaded at least 1/2”
the Top Plate of the
weight stack. The bolt
must also be secured with
a 1/2” Jam Nut to ensure a
s a f e a n d p r o p e r
connection.
CAB-15006
57 3/4”
1 3/8”
Shoulder
Bolt

www.batcafitness.com 15 LD-9 Owner’s Manual
All Flat Washers and Nylocks are 3/8” unless
otherwise noted.

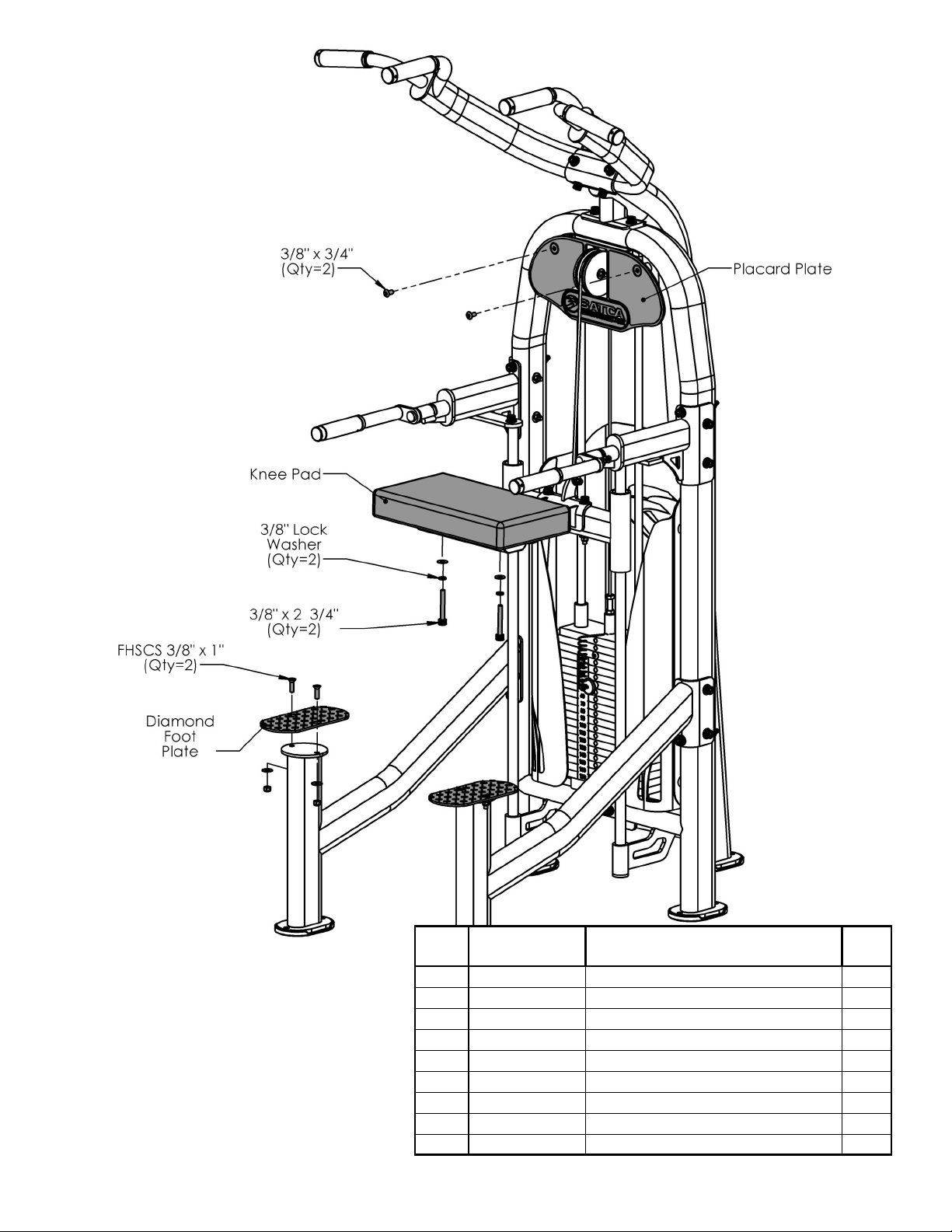

Step 8:
Item # Part # Description Qty
23 BFP-51797 Placard Plate 1
24 BFP-51981 Diamond Foot Plate 2
27 BFP-52378 Knee Pad 1
29 BFP-52340 BHSCS 3/8” x 3/4” 2
31 BFH-50144 FHSCS 3/8” x 1” 4
37 BFP-51750 SHCS 3/8” x 2 3/4” 2
45 BFH-50147 3/8” Lock Washer 2
47 BFH-50146 3/8” Flat Washer 6
48 BFH-50157 3/8” Nylock 4
Figure 8

Batca Fitness Systems 16 LD-9 Owner's Manual

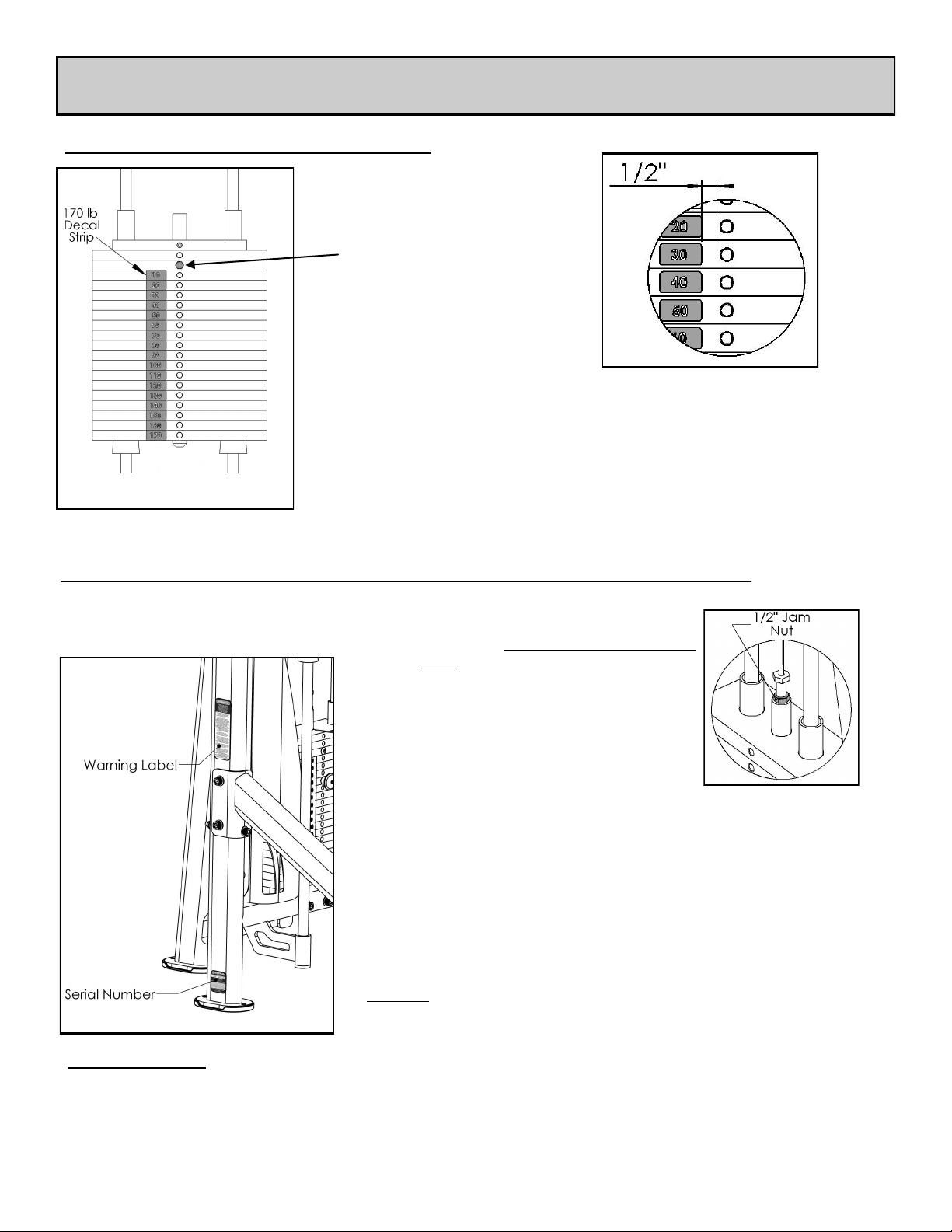

Final Assembly and Troubleshooting
Top Plate
200lb Stack
Weight Stack Decals:
IMPORTANT - Check These Components Before Using Gym:
 Each Cable with a threaded bolt on
either end must be threaded at least
1/2” into its attachment, whether it
be a Free Floater, Lockout Free
Floater, or the Top Plate of the
weight stack. Each must also be
secured with a 1/2” Jam Nut to
ensure a safe and proper connection.
 Record your serial number on the front of this manual
and keep for your records. The serial number can be
found on the side of the cage as seen in the figure to the
left.
Guide Rod
 Clean guide rods with a lint-free cloth and apply a thin layer of silicone lubricant (Part # BFH-
50262) to each guide rod. This will ensure a glass smooth performance from your weight stack.
200lb Stack
(Standard)
 Begin numbering the
weight stack on the
fourth plate down from
the top as shown in the
figure to the left.
Discard the three
remaining weight plate
decals.
 To counter balance the
seat, pin weight stack on
the third plate from the
top as shown in the
figure to the left. Use a
BHSCS 3/8” x 4 3/4”
bolt.

www.batcafitness.com 17 LD-9 Owner’s Manual

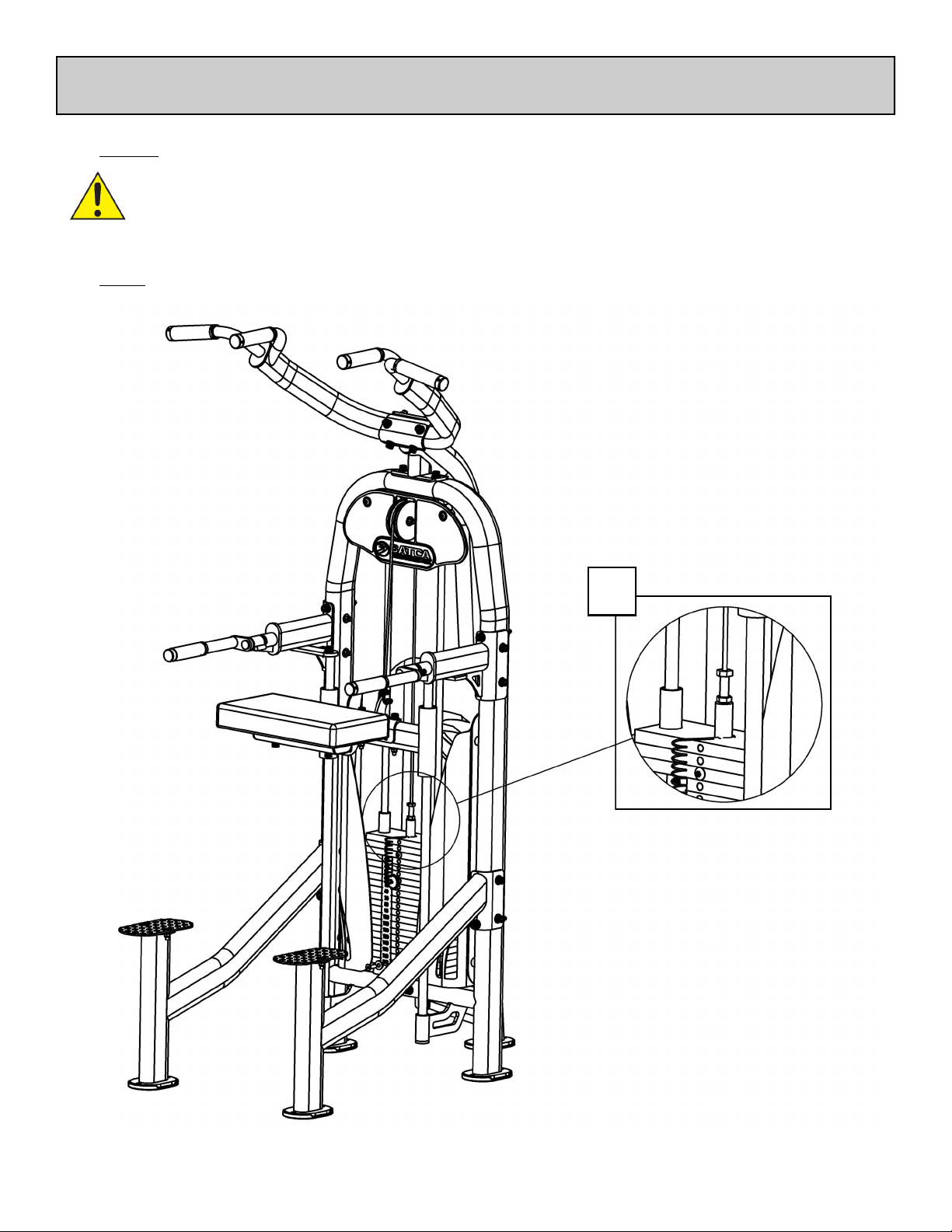

 Adjust cables to proper tension from any of the locations shown below.
Note: All cables with threaded adjustable ends must have at least 1/2” of the threads
threaded in to its counterpart. It is very important that the 1/2” Jam Nut be wrench tight-
ened to the counterpart to ensure that the threaded adjustable end of the cable does not
back out of its counterpart.
 Note: If the top plate raises off of the second plate in the weight stack, then the cable ten-
sion is too tight. You will need to take some of the tension out to lower the Top plate flush
with the second plate.
Cable Adjustments
1

Batca Fitness Systems 18 LD-9 Owner's Manual
Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully
engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative
maintenance schedule below should be followed.
Clean upholstery, grips, and roller pads with mild soap and water generally after every use. The guide rods,
chrome slides and frame should be cleaned with a cotton cloth. Upon cleaning the guide rods, a thin layer of
Silicone or Teflon gel should be applied to each rod to ensure a glass smooth performance.
An overall inspection should be done before each workout. If the warning and safety decals are worn or have
been removed they should be replaced immediately. The cables and cable systems should be inspected for
signs of wear and proper tension. In order to check cables properly you should carefully run the cable
through your fingertips, checking for signs of wear, cracks, burs and thinning spots. Replace any part at
first signs of wear. Cables should be adjusted for proper tension. See assembly instructions for this detail.
All hardware, stops, and adjustments should be checked and tightened as required.
The guide rods on your machine should be cleaned and lubricated regularly. This will ensure a glass smooth
performance from your weight stack. A thin layer of either Silicone or Teflon gel should applied to each rod.
Each pillow block bearing and flange bearing has a grease fittings that must be lubricated regularly. Use
general purpose bearing grease and follow the schedule below.
Although cables should be inspected daily, it is important that ALL cables be replaced as directed in the
schedule below. Please note that at any first sign of wear the cable should be replaced immediately.
If there are any questions concerning maintenance, please contact your local Batca dealer or contact Batca
Fitness Systems directly at:
Batca Fitness Systems
[phone]
www.batcafitness.com
Daily Weekly Monthly Quarterly Years
Commercial Home Commercial Home Commercial Home Commercial Home Commercial Home
Clean
Upholstery XX
Hand Grips XX
Roller Pads XX
Guide Rods XX
Chrome Slides XX
Frame XX
Inspect
Overall XX
Safety Decals XX
Cables XX
Cable Tension XX
Pulleys XX
Hardware XX
Stops XX
Upholstery XX
Hand Grips XX
Frame XX
Bushings XX
Bearings XX
Lubricate
Guide Rods XX
Bearings As Needed 1
Replace
Cables 13
Preventive Maintenance

www.batcafitness.com 19 LD-9 Owner’s Manual
What is covered
For Residential Use:
Batca Fitness Systems warrants all of its products against defects in manufacturing, materials and
workmanship under normal use and service for one year from date of purchase including paint,
chrome, upholstery and grips. Batca Fitness Systems also warrants all cables, belts, bolts, nuts,
caps, plugs, bumpers, washers, levelers, decals, gas springs and other hardware for three years af-
ter date of purchase; all moving parts, including pulleys, bushings, bearings and pull pins for five
years after date of purchase and warrants the frame and all welded parts for the lifetime of the
original purchaser.
For Commercial Use:
Batca Fitness Systems warrants all of its products against defects in manufacturing, materials and
workmanship under normal use and service for six months from date of purchase including paint,
chrome, upholstery and grips. Batca Fitness Systems also warrants all cables, belts, bolts, nuts,
caps, plugs, bumpers, washers, levelers, decals, gas springs and other hardware for one year after
date of purchase; all moving parts, including pulleys, bushings, bearings and pull pins for three
years after date of purchase and warrants the frame and all welded parts for ten years after date of
purchase.
What is not covered
This warranty does not cover damage, which results from shipping, misuse, abuse, neglect, careless-
ness, modification or alteration, accident, fire, flood, “acts of God” or other contingencies beyond
the control of Batca Fitness Systems. This warranty also does not cover deterioration from wear
and tear or exposure or any defect, which would not have happened if instructions in the owner’s man-
ual had been followed. Improper installation, improper assembly or follow-up maintenance along with
installation of parts or accessories not originally intended for products of Batca Fitness Systems
are also not covered by this warranty. Only genuine Batca parts should be used for replacement,
repair, and maintenance for this warranty to apply.
Defective parts will be repaired or replaced at Batca Fitness Systems option, without parts charge to
the purchaser. All returns require a return authorization prior to acceptance of repair work. Batca
Fitness Systems reserves the right to make design changes without any prior notification and shall
not be responsible for incidental or consequential damages.
The purchaser is responsible for shipping the defective part back to the factory. Repair or replace-
ment is the exclusive and sole remedy of the purchaser. Labor charges associated with parts change-
overs are not covered by this warranty. Proof of purchase, serial number, model number and date of
purchase will be required along with all pertinent information of the alleged damage.
This warranty applies only to the original purchaser and is not transferable. Claims under this war-
ranty must be made directly to Batca Fitness Systems.
Batca Fitness Systems
1207 N. New Hope Road
Raleigh, NC 27610
[phone]
www.batcafitness.com
Limited Lifetime Warranty

Batca Fitness Systems 20 LD-9 Owner's Manual
The LD-9 has a layout dimension of 3’-6” (width) x 4’-6” (length) x 7’-3” (height). There
should be a minimum of 18”, preferably 24”, of working space around the entire unit.
Layout Diagram
