Welcome
Congratulations on your purchase!
This installation guide tells you all you need to know about using your new BAUHN®product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by BAUHN®are manufactured to the highest standards of performance and safety and,
as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
Domestic use only: This product is intended for indoor domestic use only. It is not suitable for commercial, industrial
or outdoor use. Do not use this product for anything other that its intended purpose, and only use it as described in
this guide.
We hope you will enjoy using your purchase for many years to come.
Fixing a TV to a wall mount requires specialist knowledge. We assume no liability for any injury or
material damage incurred due to incorrect assembly or use. Make sure to follow all instructions and if
you require professional advice, please consult a relevant tradesperson.
WARNING

3
Specications 15
Compliance and
Responsible Disposal 16
Warranty Information 17
Contents
Welcome 2
Unpack and Prepare 4
What's in the Box 4
Parts List 5
Product Overview 5
Installation Pack (Assembly Hardware) 6
Installation 7
Preparation (for a Brick or Concrete Wall) 8
Preparation (for a Wood Stud Wall) 10
Attaching the Monitor Brackets to the TV 12
Securing the TV 13
Adjusting the Viewing Angle 14
Repair and Refurbished
Goods or Parts Notice 18

4 | UNPACK AND PREPARE
Before setting up your new product,
check you have everything:
Unpack and Prepare

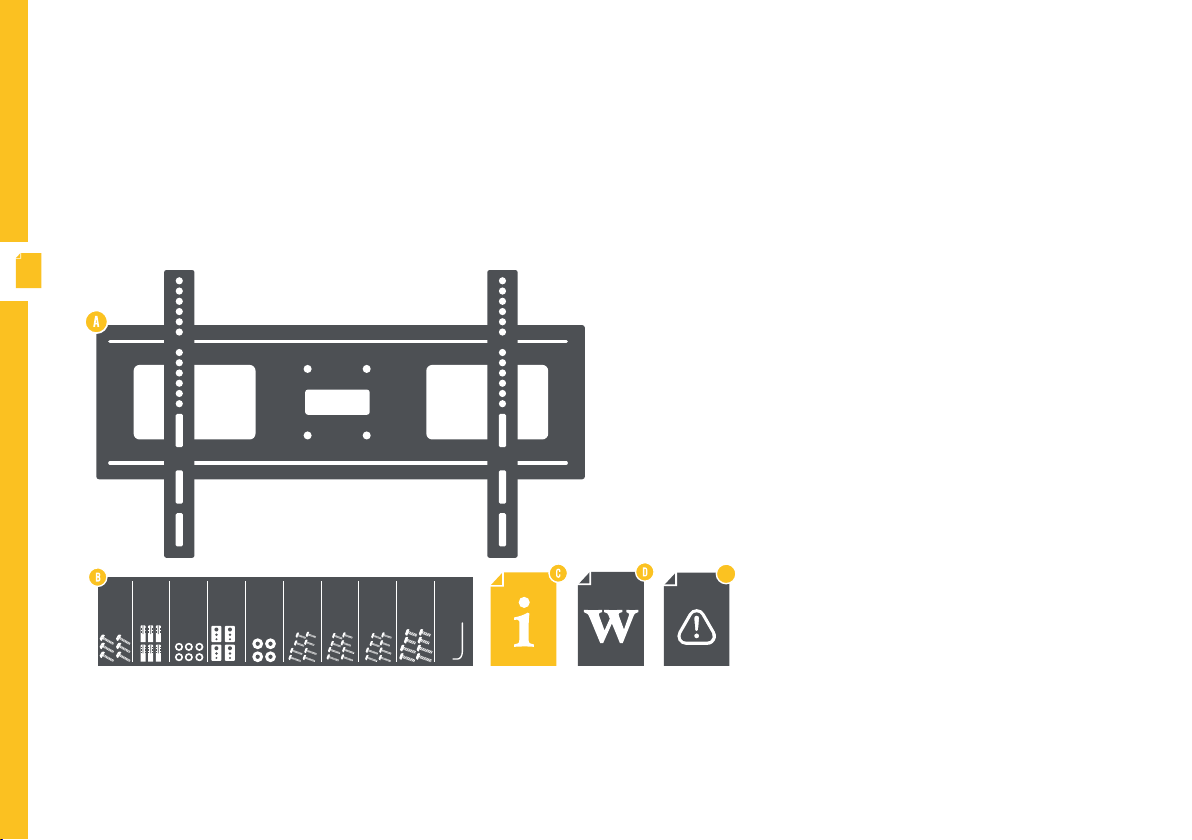

What's in the Box
A. Swing Arm TV Wall Mount
B. Installation Pack (see page 6 for information)
C. Installation Guide
D. Warranty Certificate
E. General Safety Warnings
E

PARTS LIST| 5
Parts List
Wall Base Plate
TV Mounting Plate
Spirit Level
Left Monitor Bracket Right Monitor Bracket
Tilt Angle Adjustment Bolts

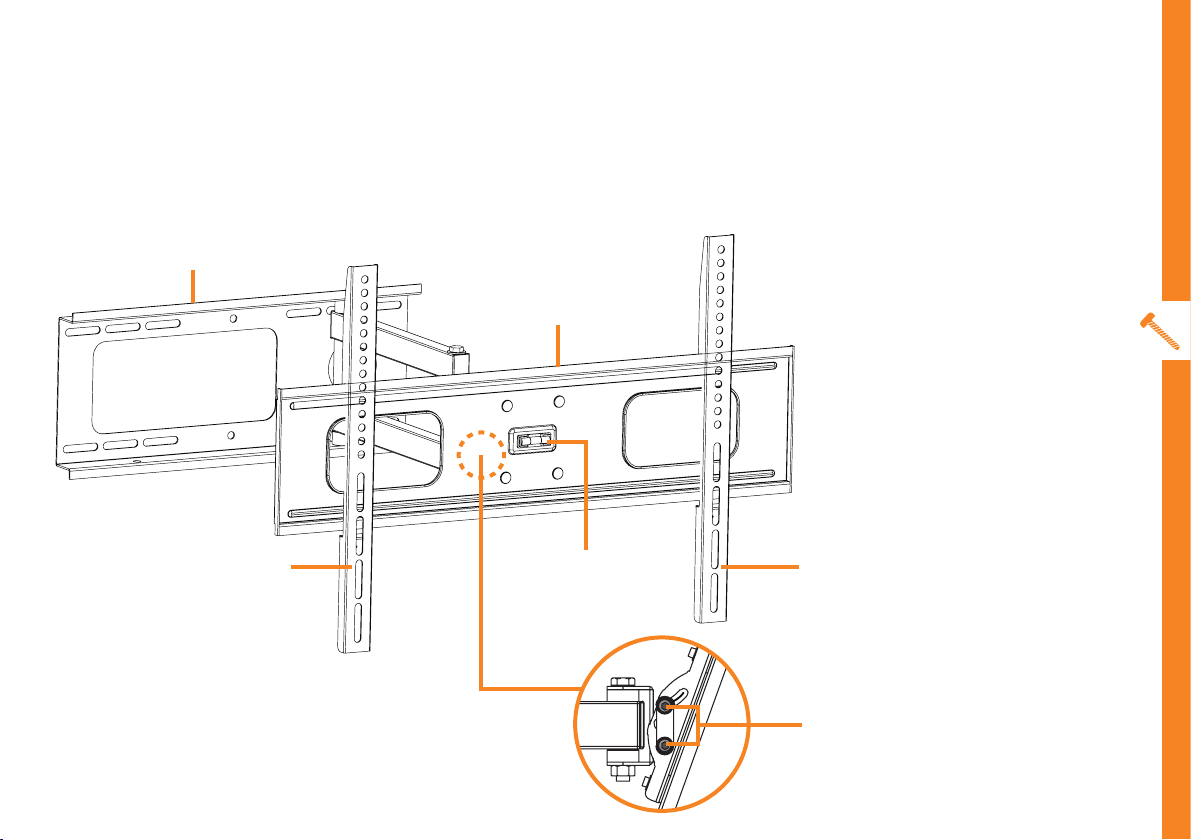

Product Overview

6 | PARTS LIST
Installation Pack (Assembly Hardware)
The illustration below shows the contents of the installation pack. These are the parts that
you will need to assemble this wall mount. Some parts are not shown at the same scale.
(A)
Self-Tapping Screw
M8 x 50mm
(6pcs)
(F)
Bolt
M4 x 15mm (4pcs)
M4 x 20mm (4pcs)
(B)
Masonry Plug
ø10 x ø8 x L50
(6pcs)
(G)
Bolt
M5 x 15mm (4pcs)
M5 x 25mm (4pcs)
(H)
Bolt
M6 x 15mm (4pcs)
M6 x 25mm (4pcs)
(I)
Bolt
M8 x 15mm (4pcs)
M8 x 30mm (4pcs)
(C)
Washer
ø 8.5 x ø19 x
T1.6 (6pcs)
(D)
Flat Washer
M5-M8
(4pcs)
(E)
Plastic Spacer
ø 8 x 14mm
(4pcs)
(J)
Allen Key
(1pcs)
A B C D E F G H I J

INSTALLATION | 7
Installation
Make sure you read and understand all instructions. Handle and use all materials strictly according to the
instructions. If you do not understand these directions, or have any questions in relation to the safety of the
installation,werecommendyoucontactaqualiedprofessional.
Note: This wall mount is for indoor home use only.
Installation steps:
1Preparation
2Drilling the holes
3Attaching to the wall
4Attaching the Monitor Brackets to the TV
5Securing the TV
6Adjusting the Viewing Angle
TIP: Installation of the Wall Mount will be easier with two people.
WARNING: Be sure to choose a structurally sound wall area that is strong enough to hold the weight of the TV as
well as the wall mount. Mount the wall plate far away from any water source and direct sunlight.
WARNING: DO NOT attach the wall mount to a hollow wall or decorative cardboard.
Tools Required: To complete the following steps you will need:
A. Pencil
B. Phillips Head Screwdriver
C. Power Drill
D. Hammer
E. Stud Detector
A
DE
BC

8 | INSTALLATION

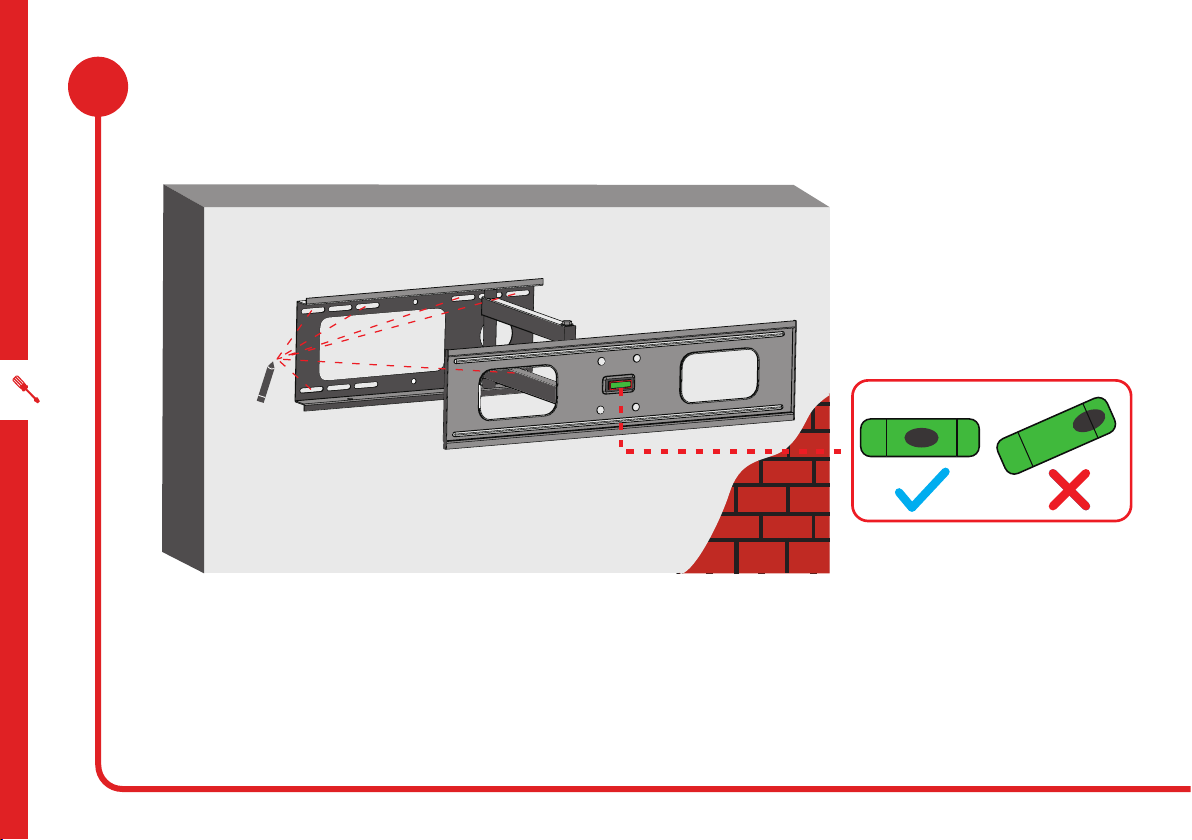

Using the wall base plate as a template, mark six holes in the locations as shown above.
NOTE:Ensurethatyoualignthebracketsothatthespiritlevelisatandeven.
Preparation (for a Brick or Concrete Wall)
1A

INSTALLATION | 9

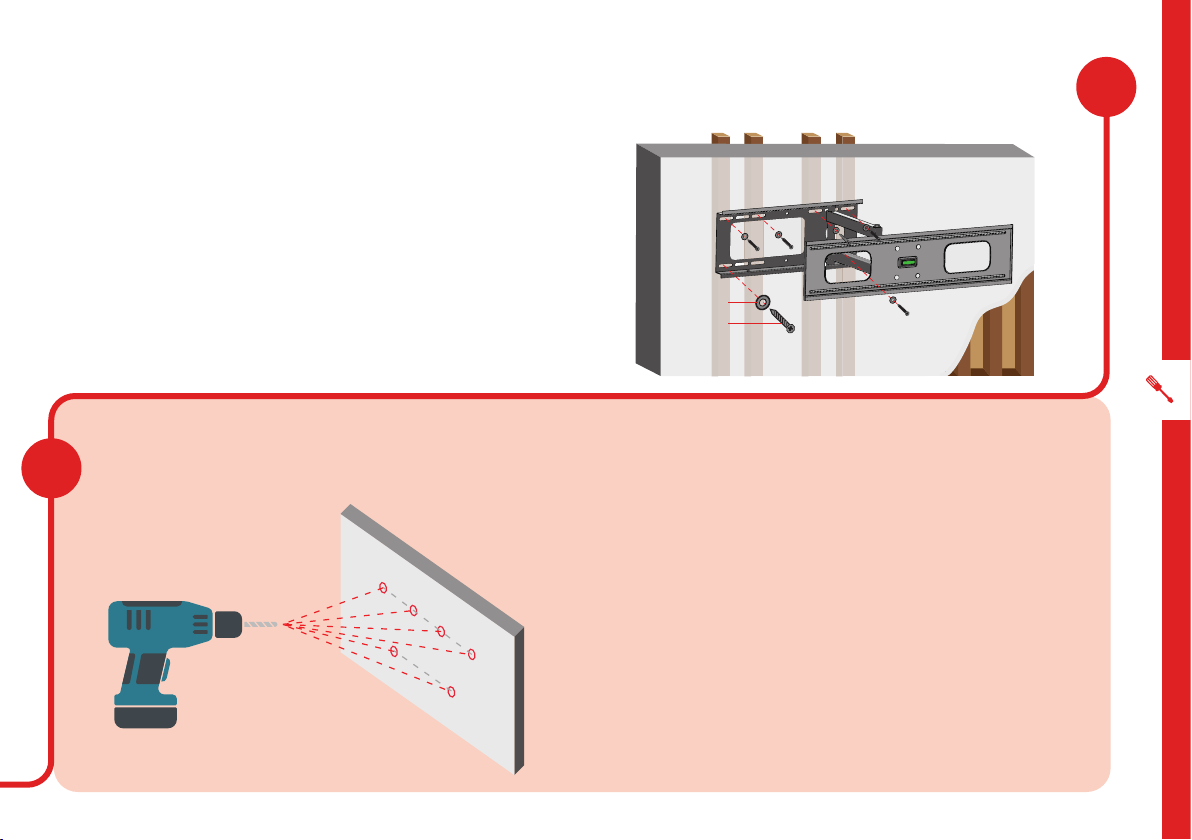

On the marked holes, pre-drill holes of
10mm diameter and 60mm depth into the
concrete or brick wall. Then wedge the
masonry plugs (B) into the holes, gently
tap each plug with a hammer until they are
ushwiththewallasillustratedontheleft.
WARNING: Do not drill into mortar joints.
Please pay attention to the electrical lines
and also the location of gas and water
lines when drilling holes.
Attaching to the Wall
Drilling the Holes
Hold the wall plate against the wall and align the holes
in the plate to the holes drilled into the wall.
Screw the wall plate to the wall with the self-tapping
screws (A): insert them through the washers (C) into
each masonry plug (B) in the wall and then tighten the
screws.
2A
3A
[B]
(C)
(A)

10 | INSTALLATION
Use a stud detector to locate the centre of the framing studs.
Mark six holes in the locations as shown above. Use the wall base plate as
a template.
NOTE: If you are installing the wall mount to a wood stud wall, consult a
builder for advice. The wall must be strong enough for the weight of the
wall mount and the TV.
Preparation (for a Wood Stud Wall)
1B
WARNING: You must spread the
wall plate across two studs.

INSTALLATION | 11
Hold the wall plate to the wall and align the holes in the
plate to the holes drilled into the wall.
Screw the wall plate to the wall with the self-tapping
screws (A), inserting them through the washers (C).
On the marked holes, drill holes of 5mm diameter
and 60mm depth into the wood stud wall.
WARNING: Please pay attention to the electrical
lines and also the location of gas and water
lines when drilling holes.
Attaching to the Wall
2B
3B
Drilling the Holes
(C)
(A)

12 | INSTALLATION
Attaching the Monitor Brackets to the TV
4
1. Lay the TV face down. Check the back of the TV to
ndtheappropriatemountingpattern.
2. Selecttheappropriatebolts(F/G/H/I)thattthe
thread holes at the back of the TV (refer to the TVs
manual to determine the correct bolt sizes). Due to
the many varieties of TVs, you may need to visit your
localhardwaresuppliertondthecorrectboltand
washer sizes.
3. To attach the left and right brackets to the back of
the TV, place the mounting arms on the back of the
TV and align to match the VESA mounting holes.
4. Insertthecorrectboltsthroughtheatwashers (D),
as illustrated on the right. Use the plastic spacers (E)
if necessary (check the TV's back panel).
5. Tightentheboltsandensurethebracketsarermly
bolted into place.
6. Whenafxingthemonitorbrackets,makesurethat
the sides of the brackets with the hooks are towards
the top of the display. Use the holes in the centre,
ensuring that the mounting holes are at the same
level.
TV
[E] [D]
[F-I]

INSTALLATION | 13
Securing the TV
5

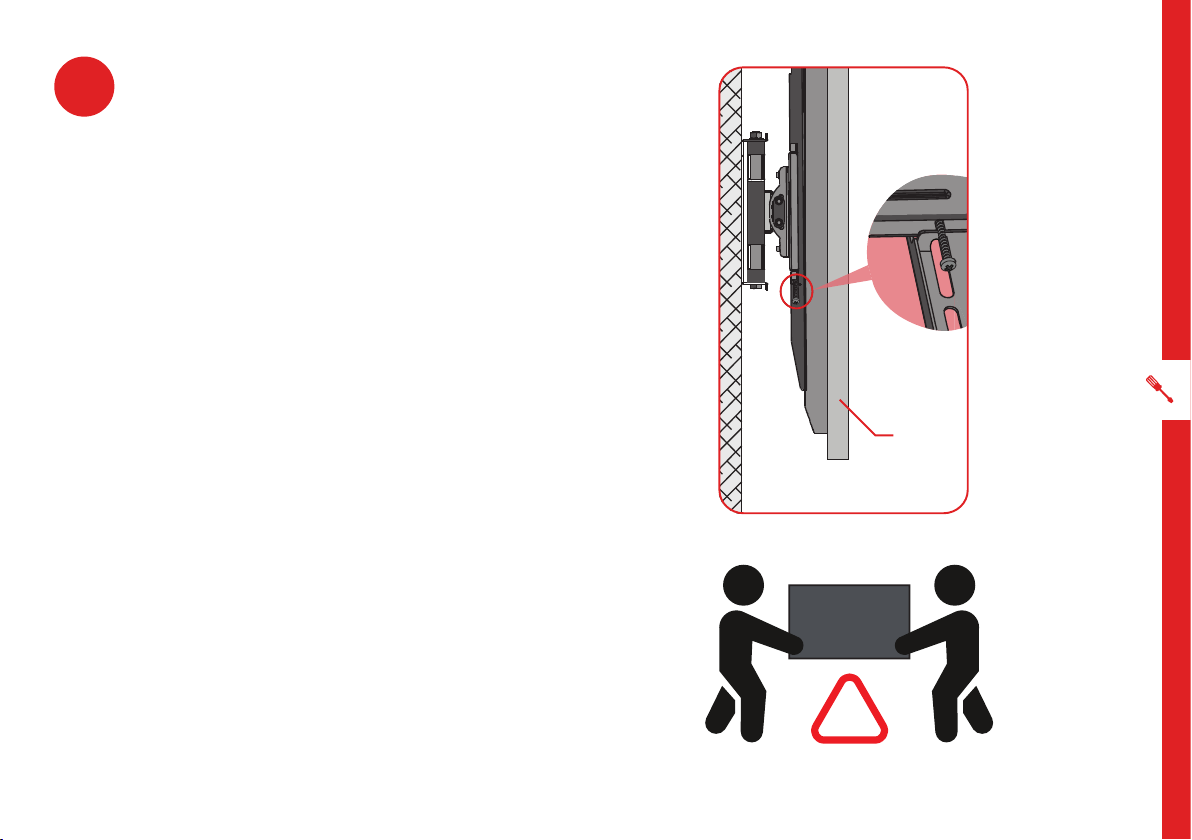

1. Carefully lift the TV and hook the mounting arms
over the front plate. Do not let go of the TV until it
is securely in place on the brackets.
2. Tighten the bolt under each bracket with a Phillips
head screwdriver to secure the TV in place. This will
help ensure that the TV does not fall off the wall
mount during use.
NOTE:
• While adjusting, please take care of your hands
to avoid getting pinched and pay attention to the
cables’ position to avoid damage.
• Atleasttwopeoplearerequiredtonishthis
mounting procedure. Do not attempt to assemble
this wall mount independently, as it may result in
incorrect assembly or injury.
!
TV

14 | INSTALLATION
Adjusting the Viewing Angle
6
Before adjusting the direction and viewing angle for the
TV, loosen the Allen bolts at the rear of the TV mounting
plate with the Allen key provided (make sure that they
are only loose enough just to tilt the TV, and not so
loose that the TV is not secured and can fall).
The viewing angle can be adjusted to ±20°. Tighten the
bolts securely again once you have found your preferred
viewing angle.
TV
Tilt angle adjustment
bolt
+20° ~ - 20°

SPECIFICATIONS | 15
Specications
VESA Support Max. 600 x 400mm
Maximum Load 60kg
Size of flat panel TV 32"-65" (81-165cm)
Adjustment Angle ±20° up/down, ±90° left/right
Distance From Wall 65-470mm approx.
Product Weight (including
accessories) 4.5kg
