Bauhn ASWM65-0919 User manual

INSTRUCTION MANUAL
Model Number: ASWM65-0919
Swing Arm TV Wall Mount
1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS

21300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Welcome
Congratulations on choosing to buy a BAUHN®product. All products
brought to you by BAUHN®are manufactured to the highest standards of
performance and safety and, as part of our philosophy of customer service
and satisfaction, are backed by our comprehensive 1 Year Warranty. We hope
you will enjoy using your purchase for many years to come.

3
1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Welcome 2
Warranty Details 4
General Safety Instructions 5
Parts List 6
Installation 7
Repair and Refurbished Goods or Parts Notice 13
Contents

41300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Swing Arm TV Wall Mount
Warranty Details
Register your purchase at www.aldi.com.au/en/about-aldi/product-registration
to stay updated with important product information
The product is guaranteed to be free from defects in workmanship and parts
for a period of 12 months from the date of purchase. Defects that occur within
this warranty period, under normal use and care, will be repaired, replaced or
refundedatourdiscretion.Thebenetsconferredbythiswarrantyareinaddition
to all rights and remedies in respect of the product that the consumer has under
the Competition and Consumer Act 2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and to compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.

5
1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Read this manual thoroughly before installing the Swing Arm TV Wall Mount to
ensure your personal and other people’s safety and to avoid any property loss.
If you do not understand these directions, or have any questions in relation
tothesafetyoftheinstallation,werecommendyoucontactaqualied
professional. For all other general inquiries, please contact the after sales
support line on the number at the bottom of the page.
• Before installation, check carefully to ensure that there are no missing or
defective parts. All parts are listed and illustrated on the following page.
• Never use defective parts. Our customer service representatives can
quickly assist you with installation questions and replacement for missing
or defective parts.
• Donotusethisproductforanypurposethatisnotexplicitlyspeciedin
this manual.
• Improper installation may cause damage or serious injury.
• We assume no liability for any eventual damage or injury caused by
incorrect mounting, incorrect assembly or incorrect use.
• This product is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, unless they have been
given supervision or instruction by a person responsible for their safety.
• This is not a toy. Keep the Swing Arm TV Wall Mount away from infants
and children. Young children should be supervised to ensure they do not
play with the product.
• Mount the wall plate far away from any water source and direct sunlight.
• Beawareofthehealthhazardassociatedwithasbestosbrespotentially
present in the wall structure when drilling.
• WARNING: Choose a structurally sound wall area that is strong enough
to hold the weight of the TV as well as the wall mount.
• WARNING: DO NOT attach the wall mount to a hollow wall or
decorative room divider.
• Only use this Swing Arm TV Wall Mount in accordance with the
technical specications below:
SizeofatpanelTV:32”-65”(81-165cm)
Maximumload: 60kg(132.3lbs)
Adjustableangle: ±20°up/down,±90°left/right
Distancefromwall: 65-470mm
Max. VESA 600x400
General Safety Instructions

61300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS

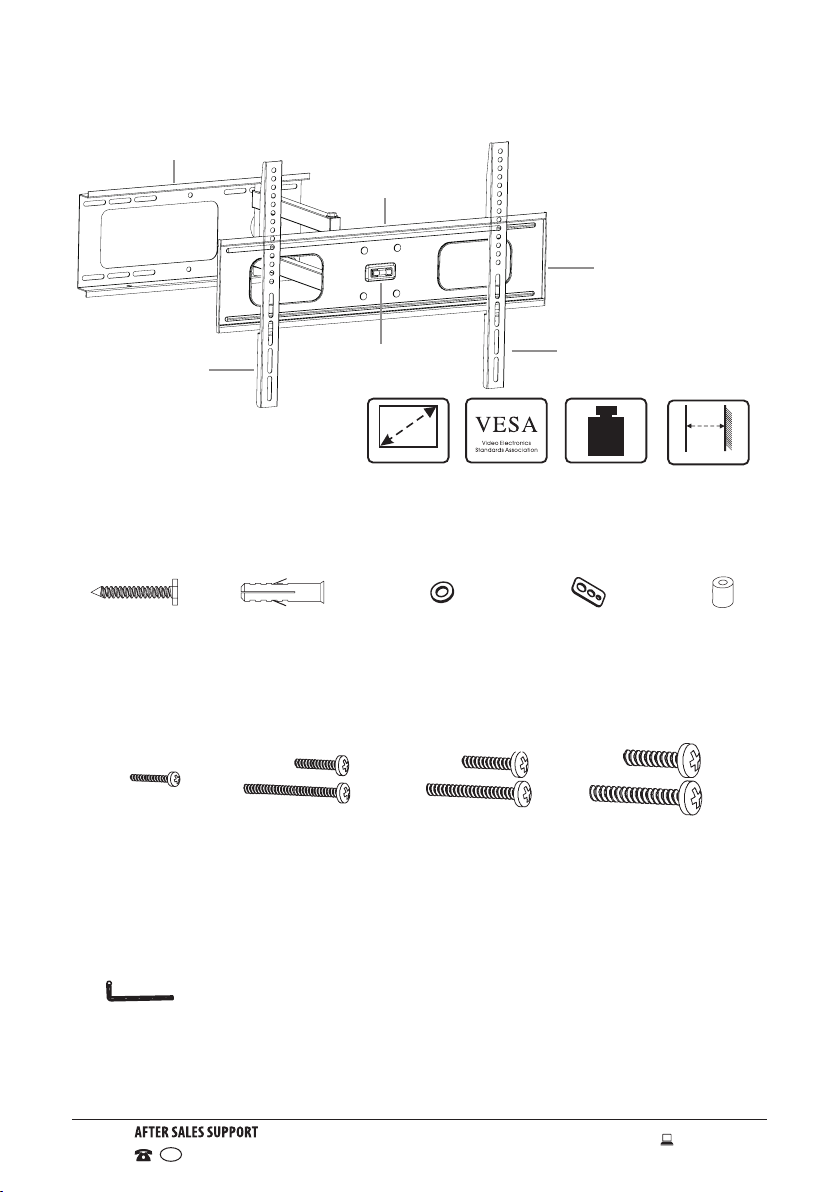

Parts List
(A)
M8x50mm
(6pcs)
(F)
M4 x 15mm
(4pcs)
(B)
ø10xø8x
L50 (6pcs)
(G)
M5 x 15mm
(4pcs)
M5 x 25mm
(4pcs)
(H)
M6 x 15mm
(4pcs)
M6 x 25mm
(4pcs)
(I)
M8x15mm
(4pcs)
M8x30mm
(4pcs)
(C)
ø8.5xø19x
T1.6 (6pcs)
(D)
M5-M8
(4pcs)
(E)
ø8x14mm
(4pcs)
(J)
Allen Key
(1pcs)
Assembly Hardware
The illustration below is to help you identify the parts that you will need to
assemble this wall mount. Some parts are not shown at the same scale.
Wall Base Plate
Spirit Level
Left Monitor
Bracket
Right Monitor
Bracket
TV Mounting
Plate
Tilt
Adjustment
Bolts
60kg
600 x 400mm
65-470mm32”-65”

7
1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Installation
Make sure you read and understand all instructions. Handle and use all
materials strictly according to the instructions. If you do not understand these
directions, or have any questions in relation to the safety of the installation,
werecommendyoucontactaqualiedprofessional.
WARNING: Be sure to choose a structurally sound wall area that is strong
enough to hold the weight of the TV as well as the wall mount.
Mount the wall plate far away from any water source and direct
sunlight.
TIP: Installation of the Wall Mount will be easier with two people.
WARNING: DO NOT attach the wall mount to a hollow wall or decorative
cardboard.
Tools Required: To complete the following steps you will need a pencil, a
Philips-headscrewdriver,apowerdrill,ahammerandawallstudnder.
Step 1: Preparation

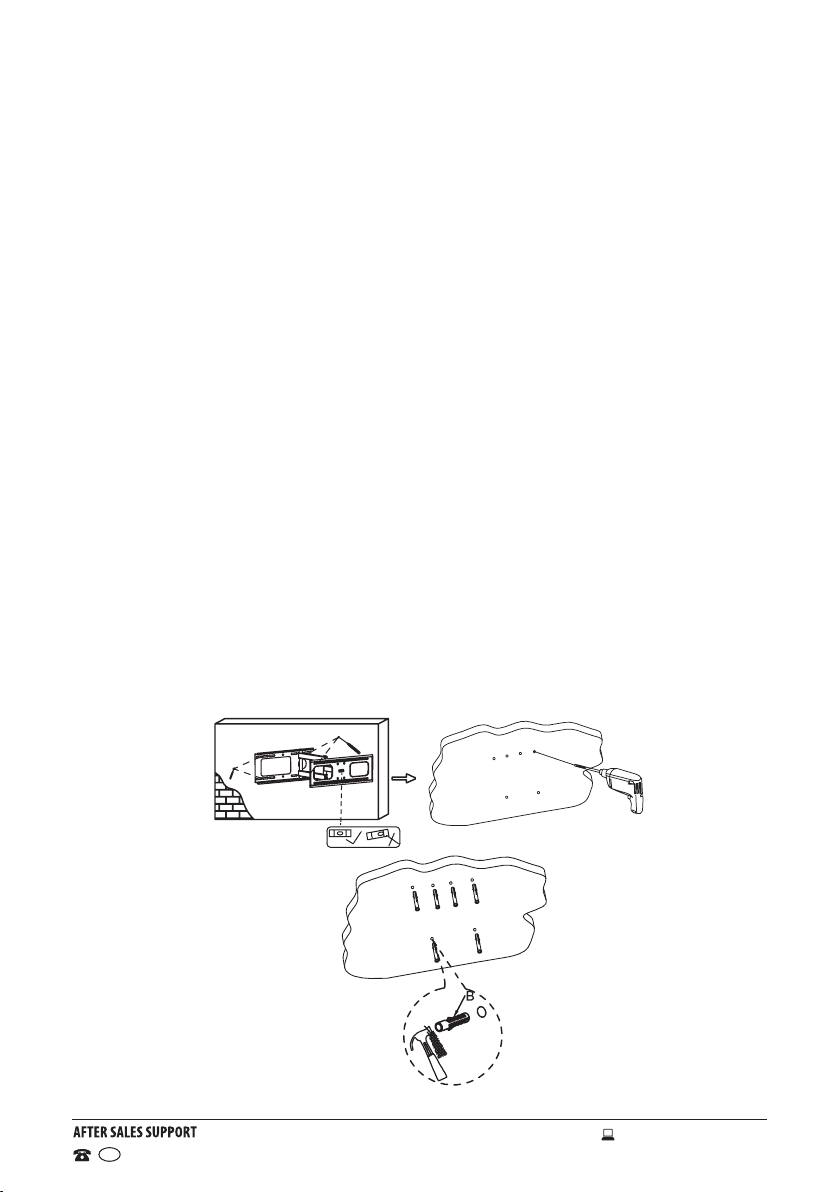

For a brick or concrete wall: Using the wall base plate as a template, mark
six holes. Pre-drill holes of 10mm diameter and 60mm depth in a concrete
or brick wall. Then wedge the six plastic concrete anchors (B) into the holes,
as illustrated below.
NOTE:Ensurethatyoualigntheholessothatthespiritlevelisatand
even.
WARNING: Do not drill into mortar joints.

81300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Installation (Cont.)
Step 1: Preparation

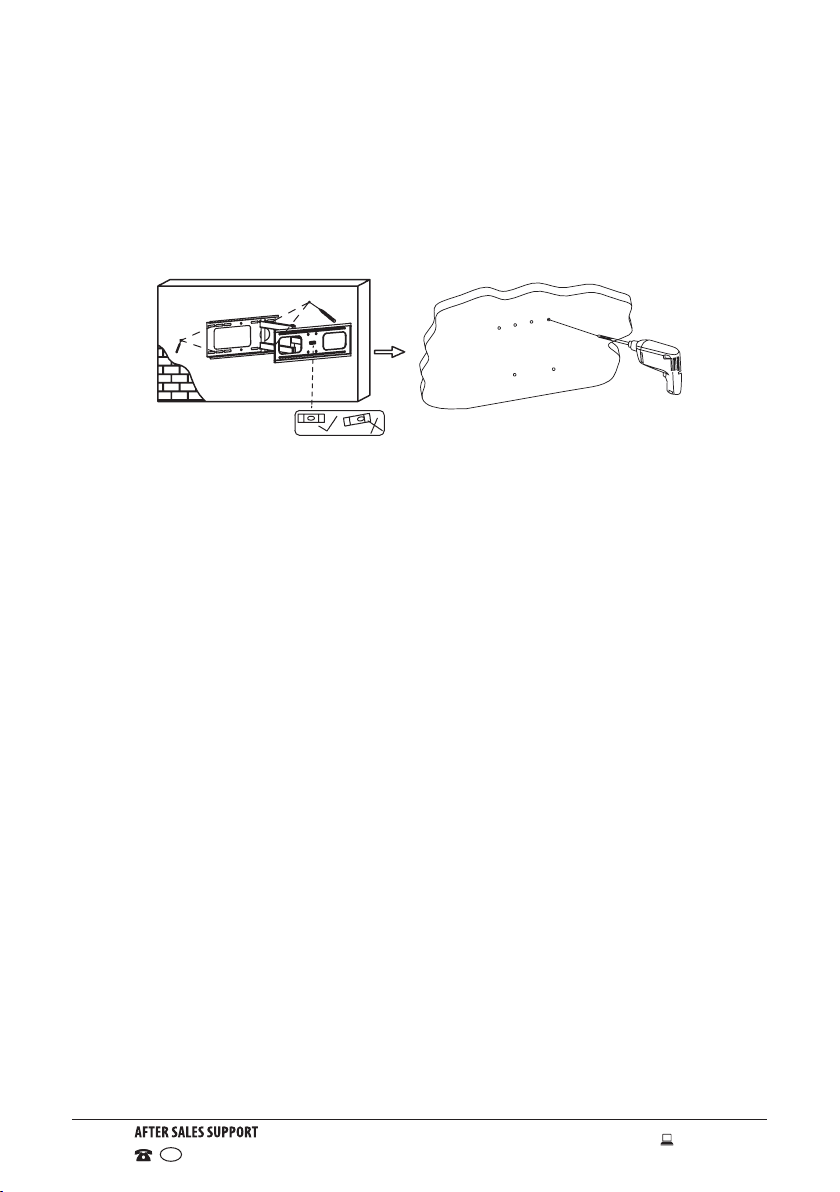

For a wood stud wall: Using the wall base plate as a template, drill six holes
of 5mm diameter and 60mm depth into the wood stud wall.
NOTE: When you are installing the wall mount to a wood stud wall, consult
your builder for advice. The wall must be strong enough for the
weight of the wall mount and the TV.
WARNING: You must spread the wall plate across two studs.

9
1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Installation (Cont.)
Step 2: Attaching the Wall Plate
For a brick or concrete wall: Hold the wall plate to the wall and align the
holes in the plate to the holes drilled into the wall.
Screwthewallplatetothewallwiththesixself-tappingscrews(A):insert
themthroughthesixatwashers(C)intoeachplasticanchor(B)inthewall
and then tighten the screws.
Step 2: Attaching the Wall Plate
For a wood stud wall: Hold the wall plate to the wall and align the holes in
the plate to the holes drilled into the wall.
Screw the wall plate to the wall with the six self-tapping screws (A), inserting
themthroughthesixatwashers(C).
NOTE: When you are installing the wall mount to a wood stud wall,
consult your builder for advice. The wall must be strong enough for the
weight of the wall mount and the TV.
CA
CA

10 1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Installation (Cont.)

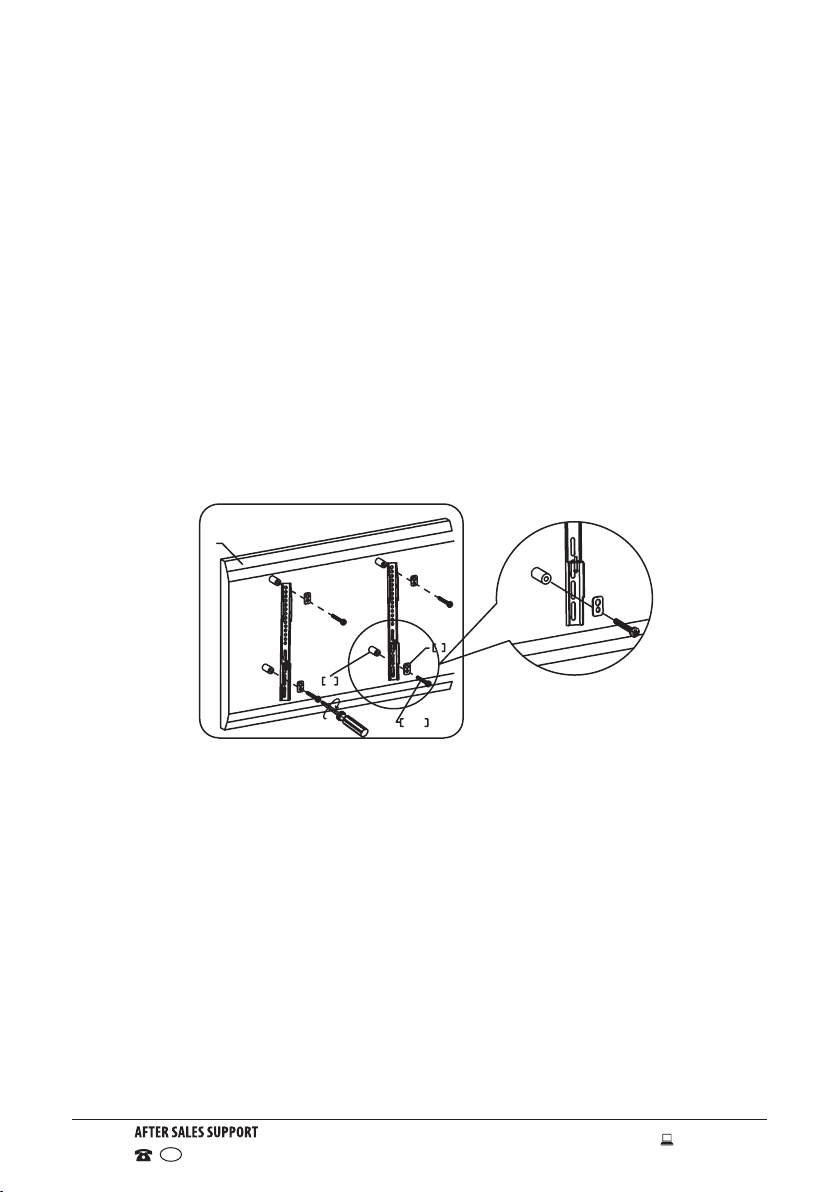

Step 3: Attaching the Monitor Brackets to the TV
Lay your TV face down on something soft so as not to scratch the TV screen.
CheckthebackofyourTVtondtheappropriatemountingpattern.
Selecttheappropriatebolts(F/G/H/I)thattthethreadholesatthebackof
your TV monitor. Due to the many varieties of television, you may need to
visityourlocalhardwaresuppliertondthecorrectboltandwashersizes.
ToafxtheleftandrightmonitorbracketstothebackoftheTVdisplay
panel, put the mounting arms on the back of the of your TV so that the
mouting pattern holes are showing through the holes of the mounting arms.
Then insert the four selected bolts through the alignment washers (D), as
illustrated below, to attach the mounting arms to the rear of the TV. Use the
plastic spacers (E), if necessary.
Whenafxingthemonitorbrackets,makesurethatthesidesofthebrackets
with the hooks are towards the top of the display. Use the holes in the
centre, if possible, and ensure the mounting holes are at the same level.
NOTE: The plastic spacers (E) may be required, depending on the design of
your TV’s back panel.
TV
E
D
F-I

11
1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Installation (Cont.)
NOTE: Atleasttwopeoplearerequiredtonishthismountingprocedure.
Do not attempt to assemble this wall mount independently, as it
may result in incorrect assembly or injury.

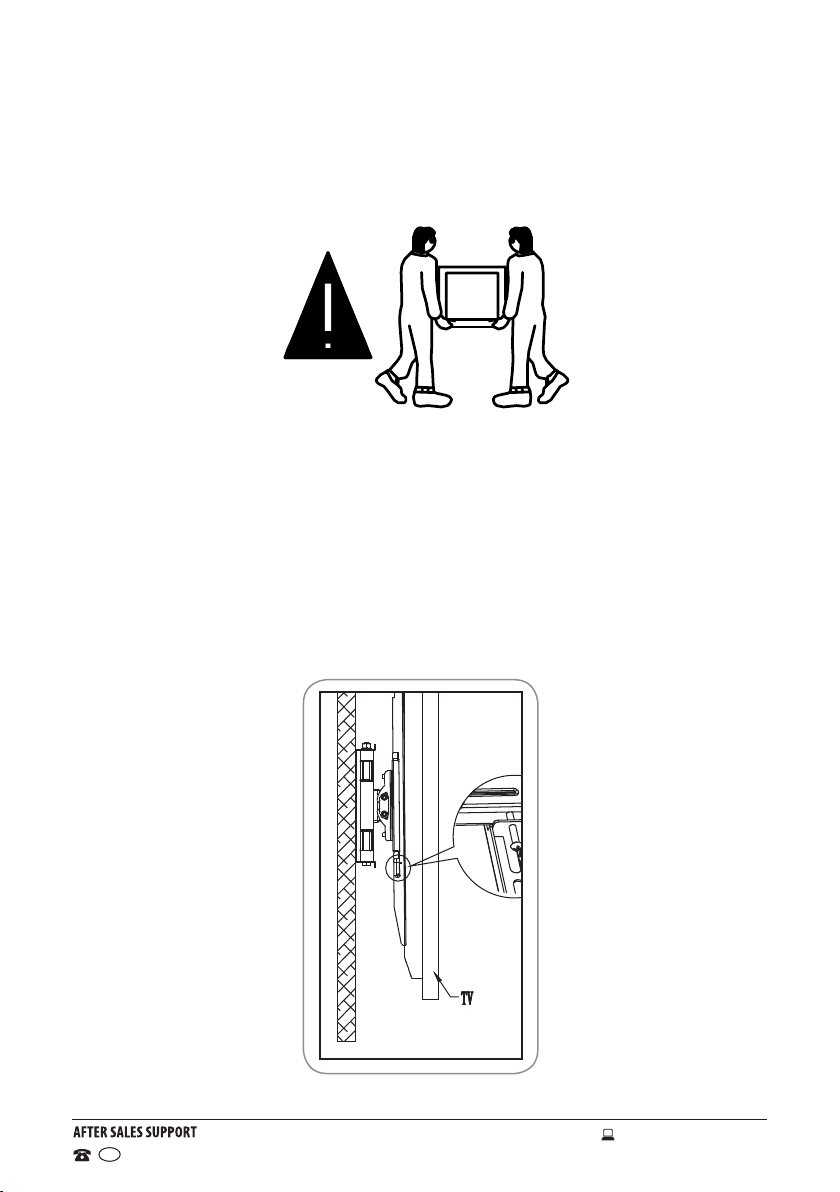

Step 4: Securing the TV
Carefully lift TV and hook the mounting arms over the front plate. Do not let
go of the TV until the it is securely in place on the brackets.
Tighten the two bolts under the monitor brackets to secure the TV using a
Philips-head screwdriver. This will help ensure that your TV does not fall off
the wall mount during use.
NOTE:Whileadjusting,pleasetakecareofyourhandstoavoidgetting
pinched, and pay attention to the cables’ position to avoid damage.
Attention

12 1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Installation (Cont.)
NOTE: FixingaatpanelTVtoawallmountrequiresspecialistknowledge.
We assume no liability for any injury or material damage incurred due to
incorrect assembly or use. Make sure to follow all instructions and if you
require professional advice, please consult a relevant tradesperson.

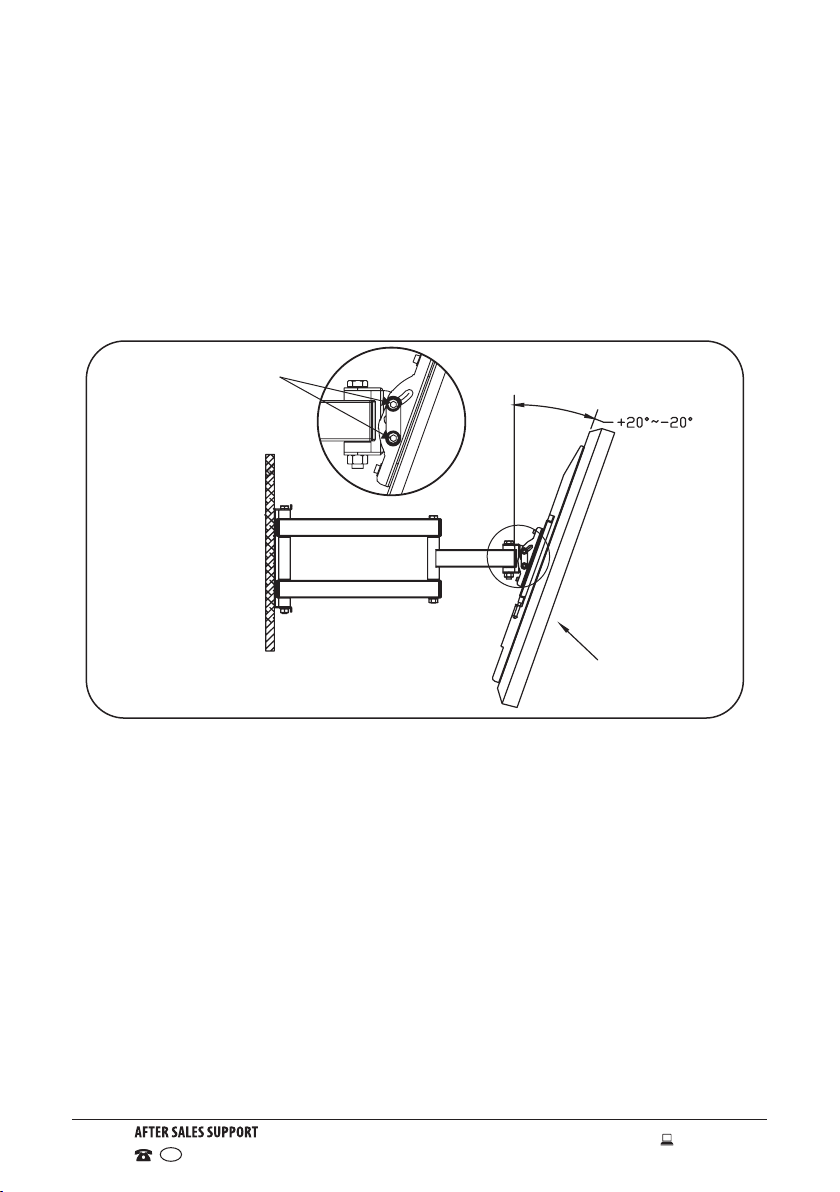

Step 5: Adjusting the Viewing Angle
BeforeadjustingthedirectionandviewinganglefortheatpanelTV,loosen
the Allen bolts at the rear of the TV mounting plate with the Allen key
provided (make sure that are only loose enough just to tilt the TV, and not
so loose that the TV is not secured and can fall). The viewing angle can be
adjusted to ± 20°.Tightentheboltssecurelyagainonceyouhavefoundyour
preferred viewing angle.
TV
Tilt angle adjustment bolt

13
1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be
returned to the supplier for repair.
Please be aware that if your product is capable of retaining user-generated data (such
aslesstoredonacomputerharddrive,telephonenumbersstoredonamobile
telephone, songs stored on a portable media player, games saved on a games
consoleorlesstoredonaUSBmemorystick)duringtheprocessofrepair,someor
all of your stored data may be lost. We recommend you save this data elsewhere
prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them
with refurbished goods of the same type or use refurbished parts in the repair
process.
Please be assured though, refurbished parts or replacements are only used
where they meet ALDI’s stringent quality specications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate
yourcomplaint.Pleasetelephoneuson1300886649orwritetousat:
Tempo (Aust) Pty Ltd ABN 70 106 100 252
POBox6056FrenchsForest,NSW2086,Australia
TempoHelpDesk:1300886649(Aust)
(OperatingHours:Monday-Friday8:30am-6pm;Saturday9am-6pmAEST)
Email:[email protected]
Swing Arm TV Wall Mount

14 1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
This page has been left blank intentionally.

15
1300 886 649 Model: ASWM65-0919 Product Code: 9397 09/2019
www.tempo.org
AUS
This page has been left blank intentionally.

Warranty returns
Should you for any reason need to return this product
for a warranty claim, make sure to include all accessories
with the product.
Product does not work?
If you encounter problems with this product, or if it fails
to perform to your expectations, please contact
ourAfterSalesSupportCentreon1300886649before
returning it to the store for a refund.
