Bauhn ASWM65-0922 User manual

Installation Guide
MODEL: ASWM65-0922
Swing Arm TV
Wall Mount
AFTER SALES SUPPORT
1300 002 534
tempo.org/support
MODEL: ASWM65-0922 PRODUCT CODE: 709713 09/2022
AUS

2
Welcome
Congratulations on your purchase!
This installation guide tells you all you need to know about using your new BAUHN®product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by BAUHN®are manufactured to the highest standards of performance and safety and,
as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
Domestic use only: This product is intended for indoor domestic use only. It is not suitable for commercial, industrial
or outdoor use. Do not use this product for anything other that its intended purpose, and only use it as described in
this guide.
We hope you will enjoy using your purchase for many years to come.
Fixing a TV to a wall mount requires specialist knowledge. We assume no liability for any injury or
material damage incurred due to incorrect assembly or use. Make sure to follow all instructions and if
you require professional advice, please consult a relevant tradesperson.
WARNING

3
Specications 15
Compliance and
Responsible Disposal 16
Warranty Information 17
Contents
Welcome 2
Unpack and Prepare 4
What's in the Box 4
Parts List 5
Product Overview 5
Installation Pack (Assembly Hardware) 6
Installation 7
Preparation (for a Brick or Concrete Wall) 8
Preparation (for a Wood Stud Wall) 10
Attaching the Monitor Brackets to the TV 12
Securing the TV 13
Adjusting the Viewing Angle 14
Repair and Refurbished
Goods or Parts Notice 18

4 | UNPACK AND PREPARE
Before setting up your new product,
check you have everything:
Unpack and Prepare

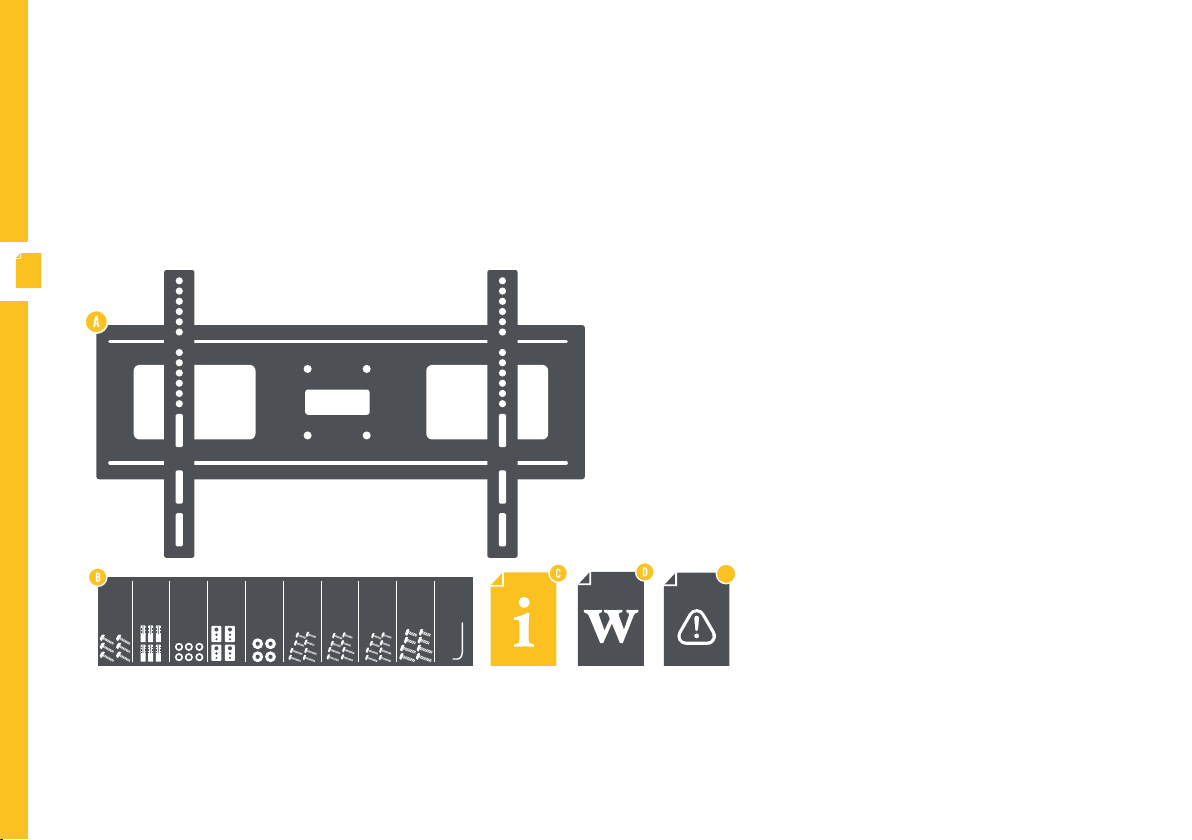

What's in the Box
A. Swing Arm TV Wall Mount
B. Installation Pack (see page 6 for information)
C. Installation Guide
D. Warranty Certificate
E. General Safety Warnings
E

PARTS LIST| 5
Parts List
Wall Base Plate
TV Mounting Plate
Spirit Level
Left Monitor Bracket Right Monitor Bracket
Tilt Angle Adjustment Bolts

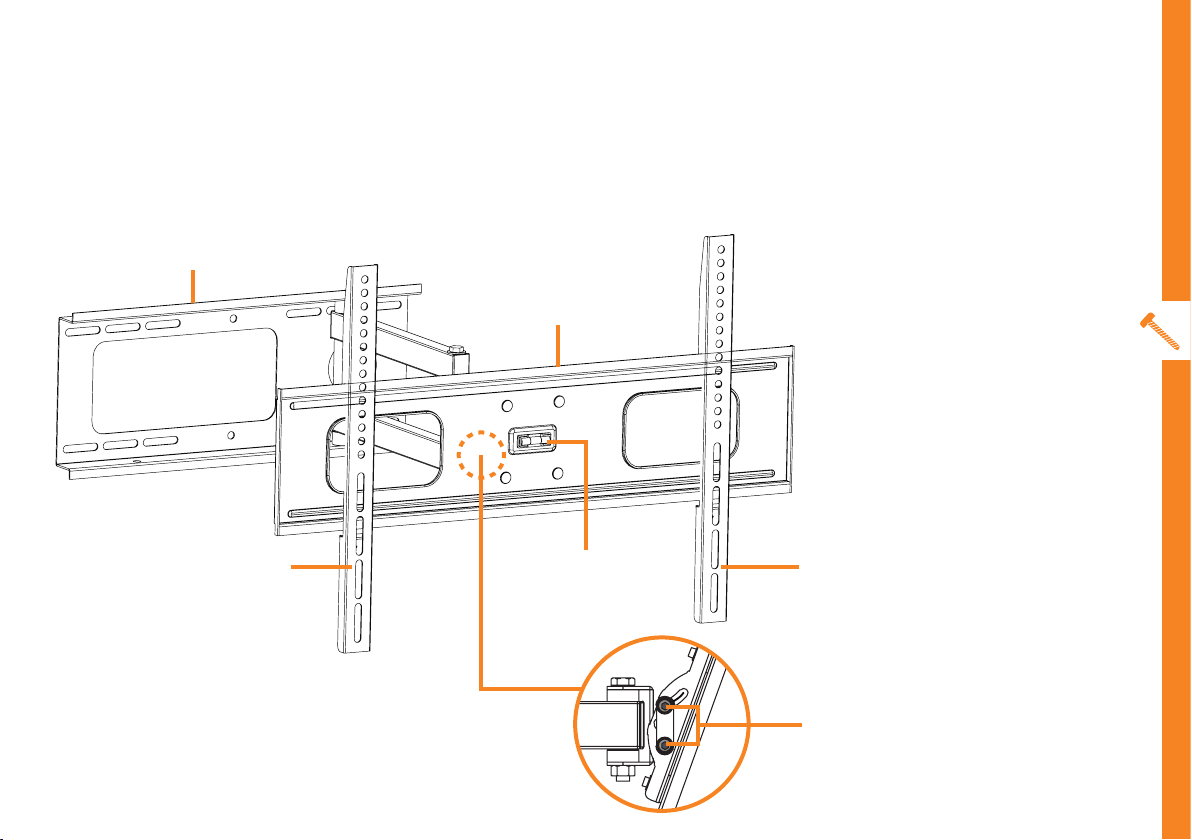

Product Overview

6 | PARTS LIST
Installation Pack (Assembly Hardware)

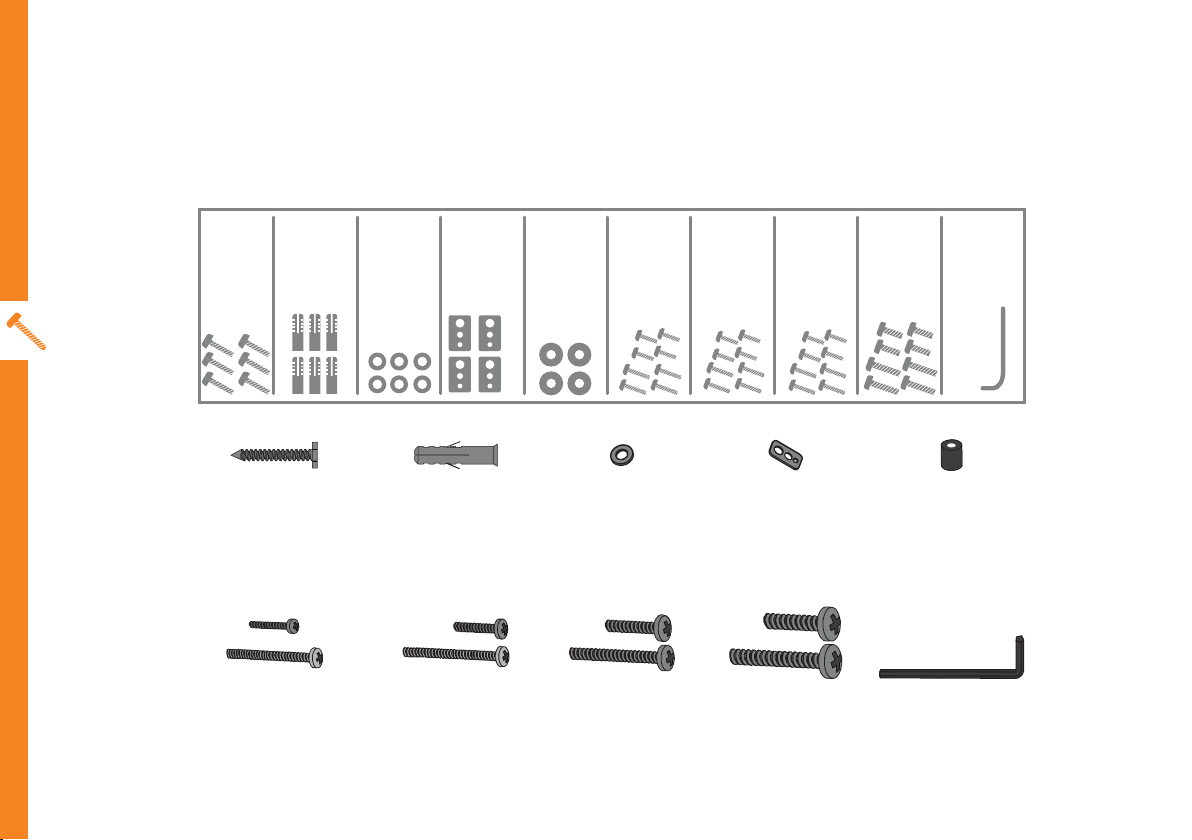

The illustration below shows the contents of the installation pack. These are the parts that
you will need to assemble this wall mount. Some parts are not shown at the same scale.
(A)
Self-Tapping Screw
M8 x 50mm
(6pcs)
(F)
Bolt
M4 x 15mm (4pcs)
M4 x 20mm (4pcs)
(B)
Masonry Plug
ø10 x ø8 x L50
(6pcs)
(G)
Bolt
M5 x 15mm (4pcs)
M5 x 25mm (4pcs)
(H)
Bolt
M6 x 15mm (4pcs)
M6 x 25mm (4pcs)
(I)
Bolt
M8 x 15mm (4pcs)
M8 x 30mm (4pcs)
(C)
Washer
ø 8.5 x ø19 x
T1.6 (6pcs)
(D)
Flat Washer
M5-M8
(4pcs)
(E)
Plastic Spacer
ø 8 x 14mm
(4pcs)
(J)
Allen Key
(1pcs)
A B C D E F G H I J

INSTALLATION | 7
Installation
Make sure you read and understand all instructions. Handle and use all materials strictly according to the
instructions. If you do not understand these directions, or have any questions in relation to the safety of the
installation,werecommendyoucontactaqualiedprofessional.
Note: This wall mount is for indoor home use only.
Installation steps:
1Preparation
2Drilling the holes
3Attaching to the wall
4Attaching the Monitor Brackets to the TV
5Securing the TV
6Adjusting the Viewing Angle
TIP: Installation of the Wall Mount will be easier with two people.
WARNING: Be sure to choose a structurally sound wall area that is strong enough to hold the weight of the TV as
well as the wall mount. Mount the wall plate far away from any water source and direct sunlight.
WARNING: DO NOT attach the wall mount to a hollow wall or decorative cardboard.

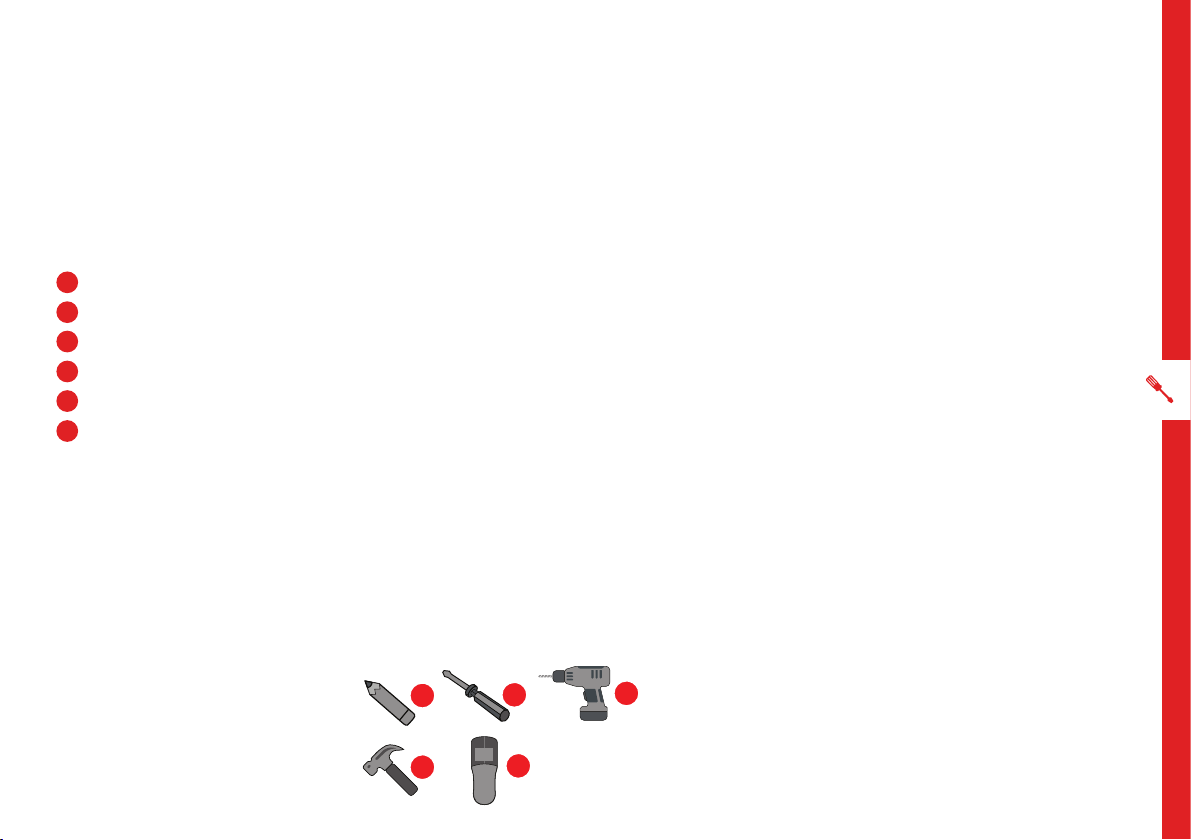

Tools Required: To complete the following steps you will need:
A. Pencil
B. Phillips Head Screwdriver
C. Power Drill
D. Hammer
E. Stud Detector
A
DE
BC

8 | INSTALLATION
Using the wall base plate as a template, mark six holes in the locations as shown above.
NOTE:Ensurethatyoualignthebracketsothatthespiritlevelisatandeven.
Preparation (for a Brick or Concrete Wall)
1A

INSTALLATION | 9

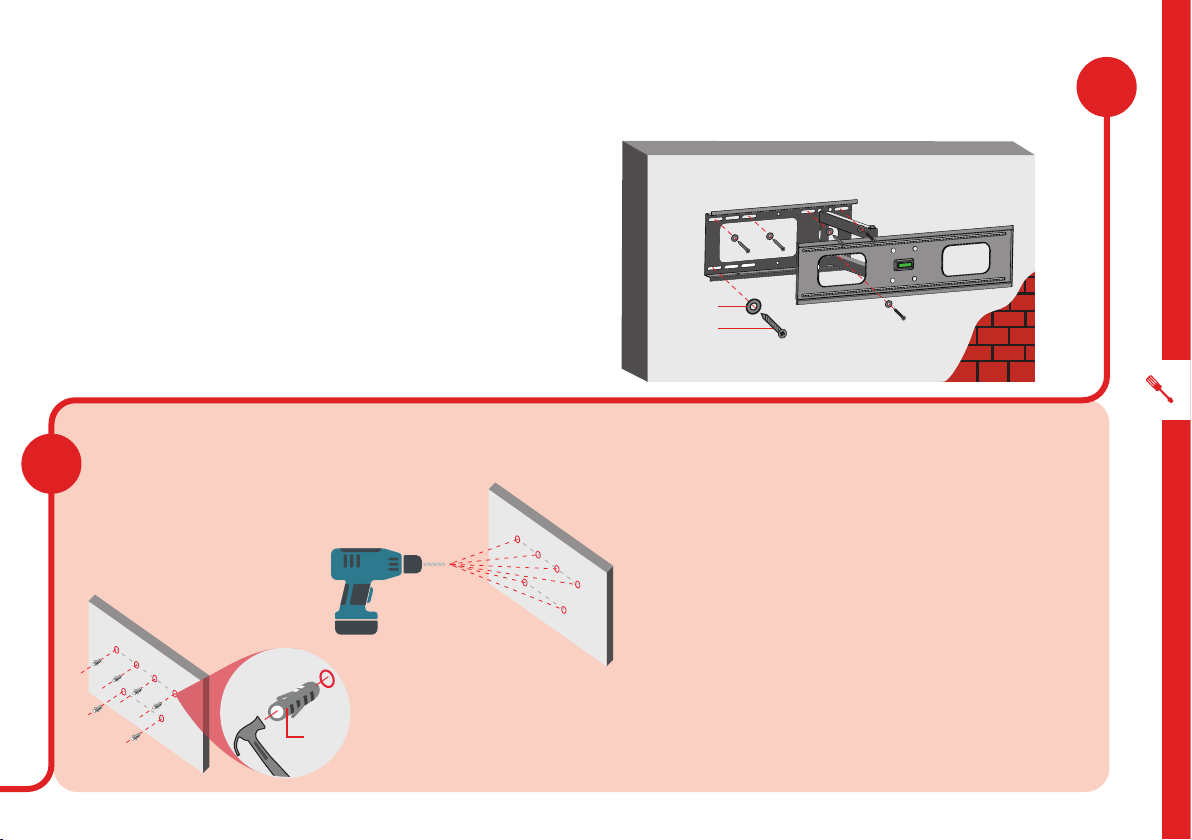

On the marked holes, pre-drill holes of
10mm diameter and 60mm depth into the
concrete or brick wall. Then wedge the
masonry plugs (B) into the holes, gently
tap each plug with a hammer until they are
ushwiththewallasillustratedontheleft.
WARNING: Do not drill into mortar joints.
Please pay attention to the electrical lines
and also the location of gas and water
lines when drilling holes.
Attaching to the Wall
Drilling the Holes
Hold the wall plate against the wall and align the holes
in the plate to the holes drilled into the wall.
Screw the wall plate to the wall with the self-tapping
screws (A): insert them through the washers (C) into
each masonry plug (B) in the wall and then tighten the
screws.
2A
3A
[B]
(C)
(A)

10 | INSTALLATION
Use a stud detector to locate the centre of the framing studs.
Mark six holes in the locations as shown above. Use the wall base plate as
a template.
NOTE: If you are installing the wall mount to a wood stud wall, consult a
builder for advice. The wall must be strong enough for the weight of the
wall mount and the TV.
Preparation (for a Wood Stud Wall)
1B
WARNING: You must spread the
wall plate across two studs.

INSTALLATION | 11
Hold the wall plate to the wall and align the holes in the
plate to the holes drilled into the wall.
Screw the wall plate to the wall with the self-tapping
screws (A), inserting them through the washers (C).
On the marked holes, drill holes of 5mm diameter
and 60mm depth into the wood stud wall.
WARNING: Please pay attention to the electrical
lines and also the location of gas and water
lines when drilling holes.
Attaching to the Wall
2B
3B
Drilling the Holes
(C)
(A)

12 | INSTALLATION
Attaching the Monitor Brackets to the TV
4
1. Lay the TV face down. Check the back of the TV to
ndtheappropriatemountingpattern.
2. Selecttheappropriatebolts(F/G/H/I)thattthe
thread holes at the back of the TV (refer to the TVs
manual to determine the correct bolt sizes). Due to
the many varieties of TVs, you may need to visit your
localhardwaresuppliertondthecorrectboltand
washer sizes.
3. To attach the left and right brackets to the back of
the TV, place the mounting arms on the back of the
TV and align to match the VESA mounting holes.
4. Insertthecorrectboltsthroughtheatwashers (D),
as illustrated on the right. Use the plastic spacers (E)
if necessary (check the TV's back panel).
5. Tightentheboltsandensurethebracketsarermly
bolted into place.
6. Whenafxingthemonitorbrackets,makesurethat
the sides of the brackets with the hooks are towards
the top of the display. Use the holes in the centre,
ensuring that the mounting holes are at the same
level.
TV
[E] [D]
[F-I]

INSTALLATION | 13

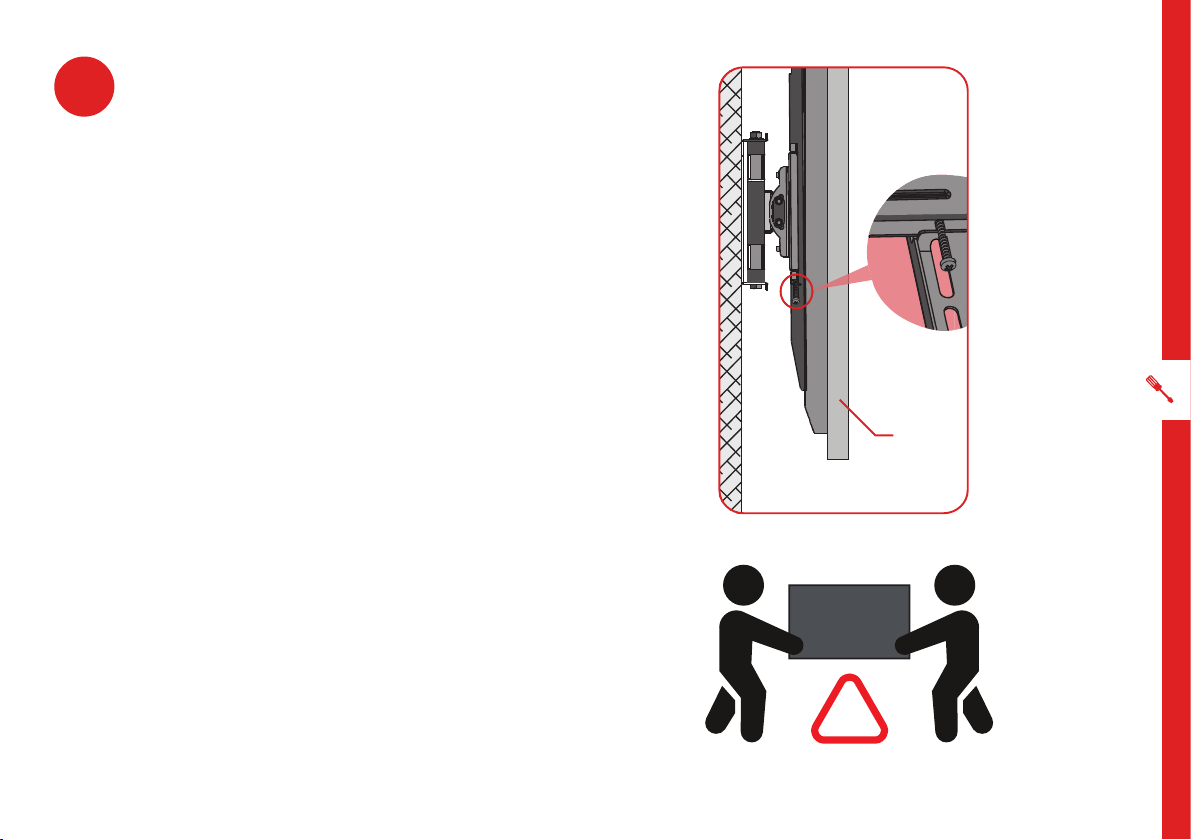

Securing the TV
5
1. Carefully lift the TV and hook the mounting arms
over the front plate. Do not let go of the TV until it
is securely in place on the brackets.
2. Tighten the bolt under each bracket with a Phillips
head screwdriver to secure the TV in place. This will
help ensure that the TV does not fall off the wall
mount during use.
NOTE:
• While adjusting, please take care of your hands
to avoid getting pinched and pay attention to the
cables’ position to avoid damage.
• Atleasttwopeoplearerequiredtonishthis
mounting procedure. Do not attempt to assemble
this wall mount independently, as it may result in
incorrect assembly or injury.
!
TV

14 | INSTALLATION

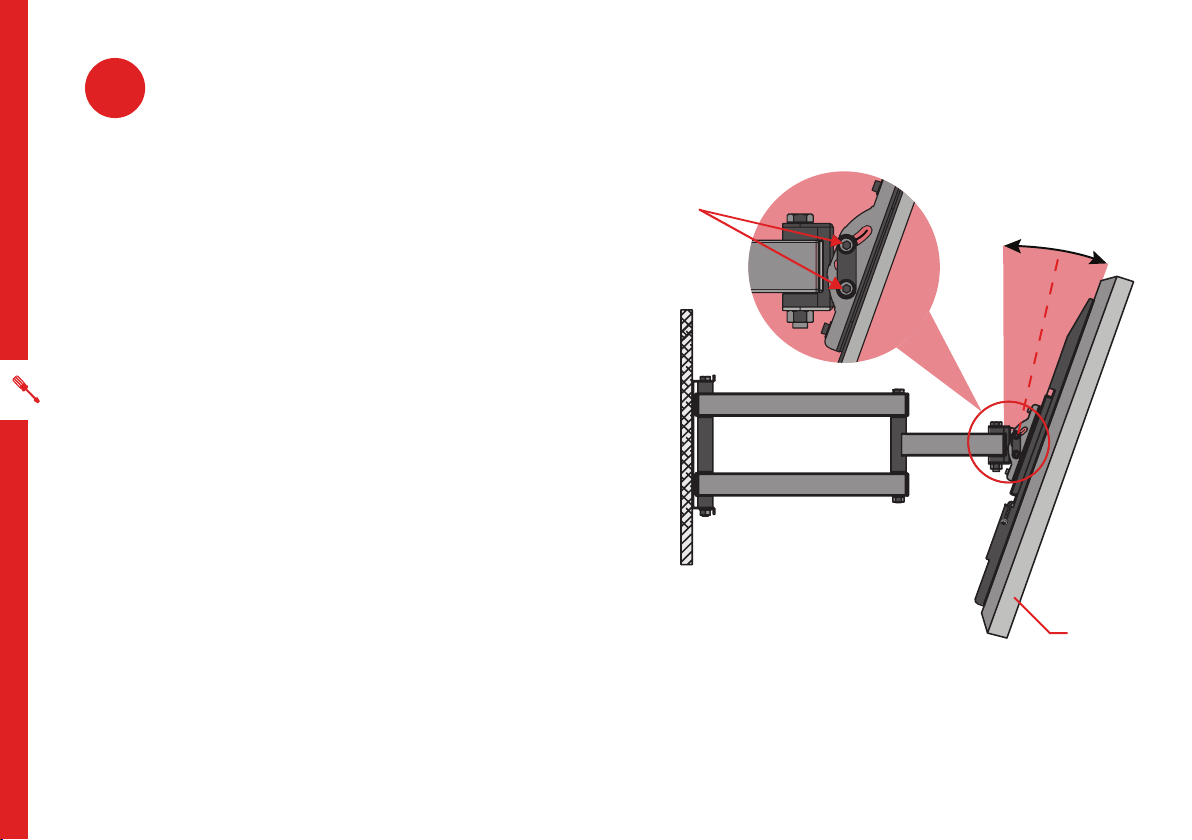

Adjusting the Viewing Angle
6
Before adjusting the direction and viewing angle for the
TV, loosen the Allen bolts at the rear of the TV mounting
plate with the Allen key provided (make sure that they
are only loose enough just to tilt the TV, and not so
loose that the TV is not secured and can fall).
The viewing angle can be adjusted to ±20°. Tighten the
bolts securely again once you have found your preferred
viewing angle.
TV
Tilt angle adjustment
bolt
+20° ~ - 20°

SPECIFICATIONS | 15
Specications
VESA Support Max. 600 x 400mm
Maximum Load 60kg
Size of flat panel TV 32"-65" (81-165cm)
Adjustment Angle ±20° up/down, ±90° left/right
Distance From Wall 65-470mm approx.
Product Weight (including
accessories) 4.5kg

16 | SPECIFICATIONS
Compliance and Responsible Disposal
Packaging
The packaging of your product has been
selected from environmentally friendly
materials and can usually be recycled. Please ensure
these are disposed of correctly. Plastic wrapping can
be a suffocation hazard for babies and young children,
please ensure all packaging materials are out of
reach and are safely disposed of. Please recycle these
materials rather than throwing them away.
Product
At the end of its working life, do not throw this
product out with your household rubbish. An
environmentally friendly method of disposal will ensure
that valuable raw materials can be recycled. Electrical
and electronic items contain materials and substances
which, if handled or disposed of incorrectly, could
potentially be hazardous to the environment and
human health.

17
Warranty Information
The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of
purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at
our discretion, solely at our option with no charge for parts and labour. The benefits conferred by this warranty are in addition
to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount
to a major failure.

18
Repair and Refurbished Goods or Parts Notice
Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair.
Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive,
telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or
files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. We recommend you
save this data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them with refurbished goods of the same type or use
refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where they meet ALDI’s stringent quality specifications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint. Please telephone us on
1300 002 534 or write to us at:
Tempo (Aust) Pty Ltd ABN 70 106 100 252
PO Box 132, Frenchs Forest, NSW 1640
Telephone: [phone] (Aust) Fax: [phone]
Tempo Help Desk: 1300 002 534 (Aust)
(Operating Hours: Mon-Fri 8:30am-6pm; Sat 9am-6pm AEST)
Email: tempo.org/support

19
Notes

Online support
Visit bauhn.com.au for the latest User Manual for
information on the updated features.
Warranty returns
Should you for any reason need to return this product
for a warranty claim, make sure to include all accessories
with the product.
Product does not work?
If you encounter problems with this product, or if it fails
to perform to your expectations, please contact our
After Sales Support Centre on 1300 002 534.
ALDI guarantees that our products are developed to our stringent quality
specications. If you are not entirely satised with this product, please return
it to your nearest ALDI store within 60 days from the date of purchase for a full
refund or replacement, or take advantage of our after sales support by calling
the supplier's Customer Service Hotline.
[email protected]
MODEL: ASWM65-0321 PRODUCT CODE: 702417 03/2021
1
1 x Swing Arm TV Wall Mount
1 x Installation Pack
1 x Installation Guide
1 x Warranty Certicate
1 x General Safety Warnings
Made in China.
ALDI guarantees that our exclusive brand products are developed to our stringent quality specifications. If you are not
entirely satisfied with this product, please return it to your nearest ALDI store within 60 days from the date of purchase for a
full refund or replacement, or take advantage of our after sales support by calling the supplier's Customer Service Hotline.
V1.0 Distributed by Tempo (Aust) Pty Ltd, PO Box 6056, Frenchs Forest DC 2086
Please read the guide
tempo.org/support
tempo.org/support1300 002 534
1
MODEL: ASWM65-0922 PRODUCT CODE: 709713 09/2022
