Bauhn ALPB80-0723 User manual

Installation Guide
MODEL: ALPB80-0723
Low Prole TV
Wall Mount
AFTER SALES SUPPORT
1300 002 534
tempo.org/support
MODEL: ALPB80-0723 PRODUCT CODE: 711617 07/2023
AUS

2
Welcome
Congratulations on your purchase!
This installation guide tells you all you need to know about using your new BAUHN®product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by BAUHN®are manufactured to the highest standards of performance and safety and,
as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
Domestic use only: This product is intended for indoor domestic use only. It is not suitable for commercial, industrial
or outdoor use. Do not use this product for anything other that its intended purpose, and only use it as described in
this guide.
We hope you will enjoy using your purchase for many years to come.
Fixing a TV to a wall mount requires specialist knowledge. We assume no liability for any injury or
material damage incurred due to incorrect assembly or use. Make sure to follow all instructions and if
you require professional advice, please consult a relevant tradesperson.
WARNING

3
Specications 14
Compliance and
Responsible Disposal 15
Warranty Information 16
Contents
Welcome 2
Unpack and Prepare 4
What's in The Box 4
Parts List 5
Product Overview 5
Installation Pack (Assembly Hardware) 6
Installation 7
Preparation (for a Brick or Concrete Wall) 8
Preparation (for a Wood Stud Wall) 10
Attaching the Monitor Brackets to the TV 12
Securing the TV 13
Repair and Refurbished
Goods or Parts Notice 17

4 | UNPACK AND PREPARE
E
Before setting up your new product,
check you have everything:
A. Low Profile TV Wall Mount
B. Installation Pack (see page 6 for information)
C. Installation Guide
D. Warranty Certificate
E. General Safety Warnings
Unpack and Prepare
What's in The Box

PARTS LIST| 5

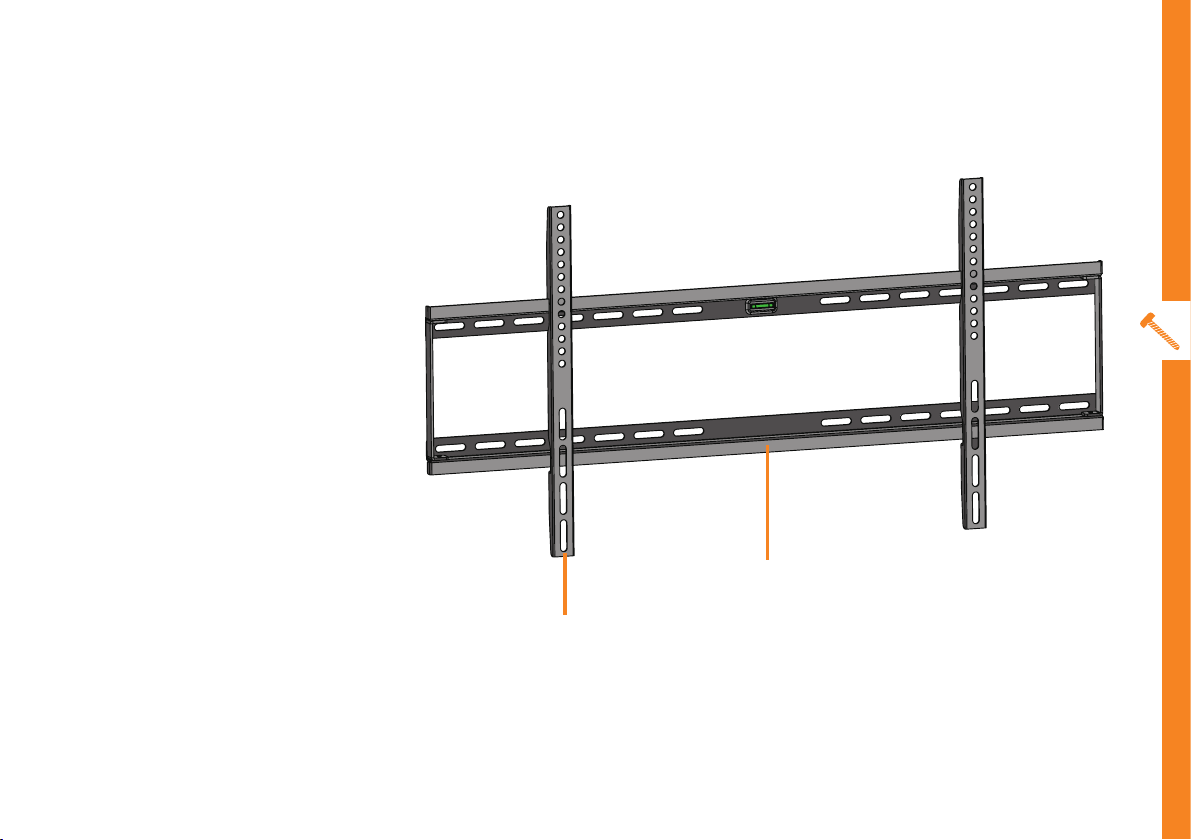

Parts List
Wall Plate
TV Mounting
Bracket
Product Overview
• Supports 800 x 400mm max
VESA Hole pattern.
• Suitable for TVs sized 42-80"
(106-203cm), weighing up to
65kg.
• Low profile, extending only
30mm (approx.) from the wall.

6 | PARTS LIST
Installation Pack (Assembly Hardware)
The illustration below shows the contents of the installation pack. These are the parts that
you will need to assemble this wall mount. Some parts are not shown at the same scale.
(A)
Self-Tapping Screw
ST8 x 50mm
(6pcs)
(B)
Masonry Plug
10 x 50mm
(6pcs)
(C)
Flat Washer
M5-M6-M8
(4pcs)
(D)
Plastic Spacer
D8 x 14mm
(4pcs)
(E)
Washer
ø 20 x ø 8.51 x
1.6mm (6pcs)
(F)
Bolt
M5 x 12mm
(4pcs)
(G)
Bolt
M5 x 25mm
(4pcs)
(H)
Bolt
M6 x 12mm
(4pcs)
(I)
Bolt
M6 x 25mm
(4pcs)
(J)
Bolt
M8 x 15mm
(4pcs)
(K)
Bolt
M8 x 30mm
(4pcs)

INSTALLATION | 7
Tools Required: To complete the following steps you will need:
Installation
A. Pencil
B. Phillips Head Screwdriver
C. Stud Detector
D. Measuring Tape
E. Hammer
F. Power Drill
G. Masonry Bit (10mm)
H. Drill Bit (6mm)
Make sure you read and understand all instructions. Handle and use all materials strictly according to the instructions.
If you do not understand these directions, or have any questions in relation to the safety of the installation, we
recommendyoucontactaqualiedprofessional.
Installation steps:
1Preparation
2Drilling the holes
3Attaching to the wall
4Attaching the Monitor Brackets to the TV
5Securing the TV
TIP: Installation of the Wall Mount will be easier with two people.
WARNING: Be sure to choose a structurally sound wall area that is strong enough to hold the weight of the TV as well
as the wall mount. Mount the wall plate far away from any water source and direct sunlight.
WARNING: DO NOT attach the wall mount to a hollow wall or decorative cardboard.
A B
F
D
G H
E
C

8 | INSTALLATION
Using the wall base plate as a template, mark six holes in locations as shown above.
NOTE: Ensure that you align the bracket so that the spirit level is flat and even.

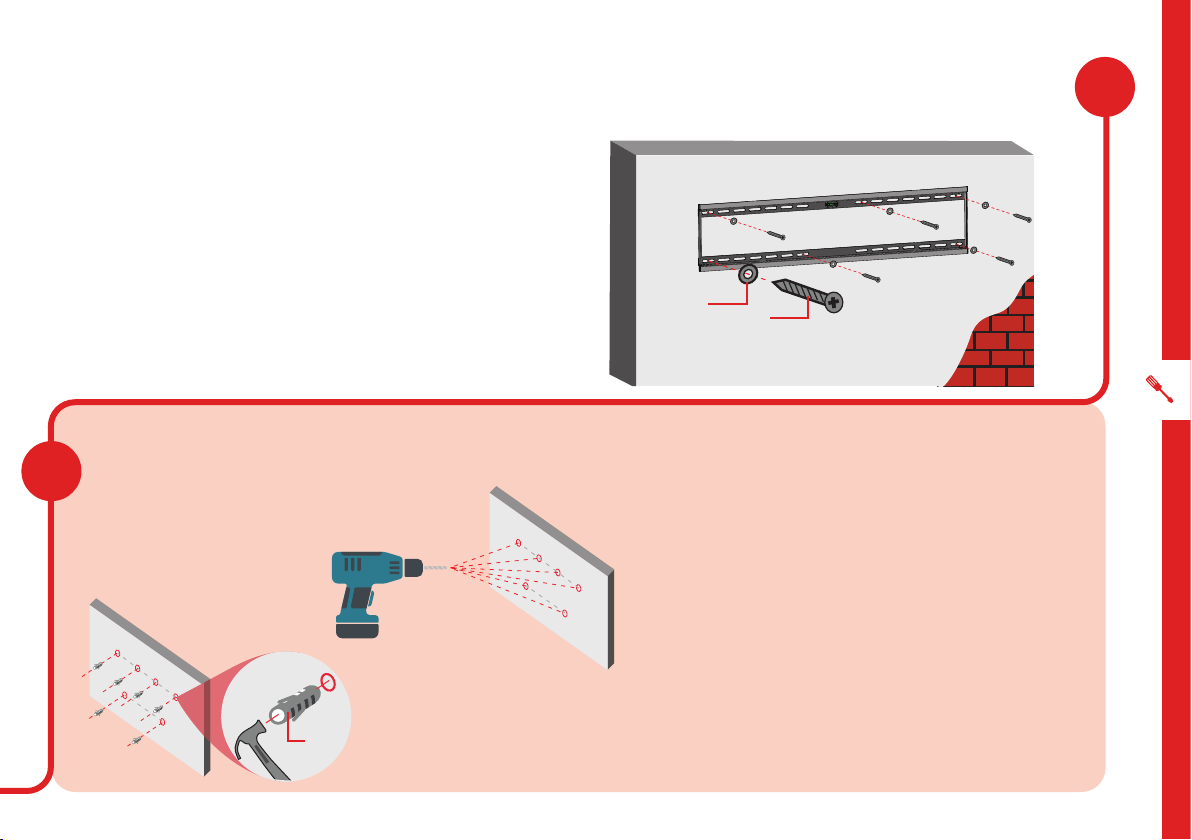

Preparation (for a Brick or Concrete Wall)
1A

INSTALLATION | 9
Attaching to the Wall 3A
Hold the wall plate against the wall and align the holes
in the plate to the holes drilled into the wall.
Screw the wall plate to the wall with the self-tapping
screws (A): insert them through the washers (E) into each
masonry plug (B) in the wall and then tighten the screws.
Drilling the Holes On the marked holes, drill holes of 50mm
depth into the concrete or brick wall.
Wedge the masonry plugs (B) into the holes,
gently tap each plug with a hammer until
theyareushwiththewallasillustratedon
the left.
WARNING: Do not drill into mortar joints.
Please pay attention to the electrical lines
and also the location of gas and water
lines when drilling holes.
[E] [A]
2A
[B]

10 | INSTALLATION
Use a stud detector to locate the centre of the framing studs.
Mark six holes in the locations as shown above. Use the wall base
plate as a template.
NOTE: When you are installing the wall mount to a wood stud wall,
consult your builder for advice. The wall must be strong enough for
the weight of the wall mount and the TV.
Preparation (for a Wood Stud Wall)
1B
WARNING: You must spread the
wall plate across two studs.

INSTALLATION | 11
Hold the wall plate to the wall and align the holes in the
plate to the holes drilled into the wall.
Screw the wall plate to the wall with the self-tapping
screws (A), inserting them through the washers (E).
Make sure the upper and lower raised sections of the
plate sit away from the wall.
On the marked holes, drill small diameter pilot holes
into the wood stud wall.
WARNING: Please pay attention to the electrical
lines and also the location of gas and water
lines when drilling holes.
Attaching to the Wall 3B
Drilling the Holes
2B
[E] [A]

12 | INSTALLATION
Attaching the Monitor Brackets to the TV
4
1. Lay the TV face down. Check the back of the TV to
ndtheappropriatemountingpattern.
2. Selecttheappropriatebolts(F/G/H/I/J/K)thattthe
thread holes at the back of the TV (refer to the TVs
manual to determine the correct bolt sizes). Due to
the many varieties of TVs, you may need to visit your
localhardwaresuppliertondthecorrectboltand
washer sizes.
3. Position the left and right bracket over the thread
holes, ensuring the hooks of the bracket (with the
square holes in either side) are towards the top of
the TV (see illustration on the right).
4. Insertthecorrectboltsthroughtheatwashers (C),
as illustrated on the right. Use the plastic spacers (D)
if necessary (check the TV's back panel).
5. Tightentheboltsandensurethebracketsarermly
bolted into place.
6. Whenafxingthemonitorbrackets,makesurethat
the sides of the brackets with the hooks are towards
the top of the display. Use the holes in the centre,
ensuring that the mounting holes are at the same
level.
TV
[D] [C] [F-K]

INSTALLATION | 13
NOTE:Atleasttwopeoplearerequiredtonishthis
mounting procedure. Do not attempt to assemble this
wall mount independently, as it may result in incorrect
assembly or injury.
Securing the TV
5
1. Loosen the bolts on the bracket so that the bracket
can sit securely on the wall plate.
2. Safely lift the TV and hook the mounting brackets
onto the top edge of the wall plate.
3. Gently allow the screen to sit against the wall plate.
4. Tighten the bolts on the brackets to lock it to the
wall plate.
!
TV WALL

14 | SPECIFICATIONS
Specications
VESA Support Max. 800 x 400mm
Maximum Load 65kg
Distance From Wall 30mm Approx.
Product Weight (including
accessories) 2.4kg
