Bauhn ALPB80-0718 User manual

INSTRUCTION MANUAL
Model Number: ALPB80-0718
Low Prole TV Wall Mount
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS

2
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS
Congratulations on choosing to buy a BAUHN®product. All products
brought to you by BAUHN®are manufactured to the highest standards of
performance and safety and, as part of our philosophy of customer service
and satisfaction, are backed by our comprehensive 1 Year Warranty. We
hope you will enjoy using your purchase for many years to come.
Welcome
Version 1.0

3
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS
Contents
Welcome 2
Warranty Details 4
General Safety Instructions 5
Product Overview 6
Wall Mounting Instructions 7
Repair and Refurbished Goods or Parts Notice 11

4
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS
Low Profile TV Wall Mount
Warranty Details
The product is guaranteed to be free from defects in workmanship and
parts for a period of 12 months from the date of purchase. Defects that
occur within this warranty period, under normal use and care, will be
repaired, replaced or refunded at our discretion. The benefits conferred
by this warranty are in addition to all rights and remedies in respect of the
product that the consumer has under the Competition and Consumer Act
2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and to compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration TO KEEP UPDATED WITH IMPORTANT PRODUCT INFORMATION

5
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read these instructions carefully before assembling and using the Low
Prole TV Wall Mount to ensure your personal and other people’s safety
and to avoid any property loss. If you do not understand these directions, or
have any questions in relation to the safety of the installation, we recommend
you contact a qualified professional. For all other general inquiries, please
contact our After Sales Support centre (see details at the bottom of the page).
• Check carefully to ensure that there are no missing or defective parts.
• Never use defective parts. Our customer service representatives can
quickly assist you with installation queries and replacement for missing or
defective parts.
• Do not use this product for any other purpose than what is specified in
this manual.
• Improper installation may cause damage or serious injury. We assume no
liability for any eventual damage or injury caused by incorrect assembly,
mounting or use, or by noncompliance with these instructions.
• This product is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, unless they have been
given supervision or instruction by a person responsible for their safety.
• This product is not a toy. Before installing the Low Profile TV Wall Mount,
make sure to keep the product away from infants and children. Supervise
young children to ensure they do not play with the product or its parts.
• This product is intended for indoor use only. Do not install outdoors.
General Safety Instructions

6
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS

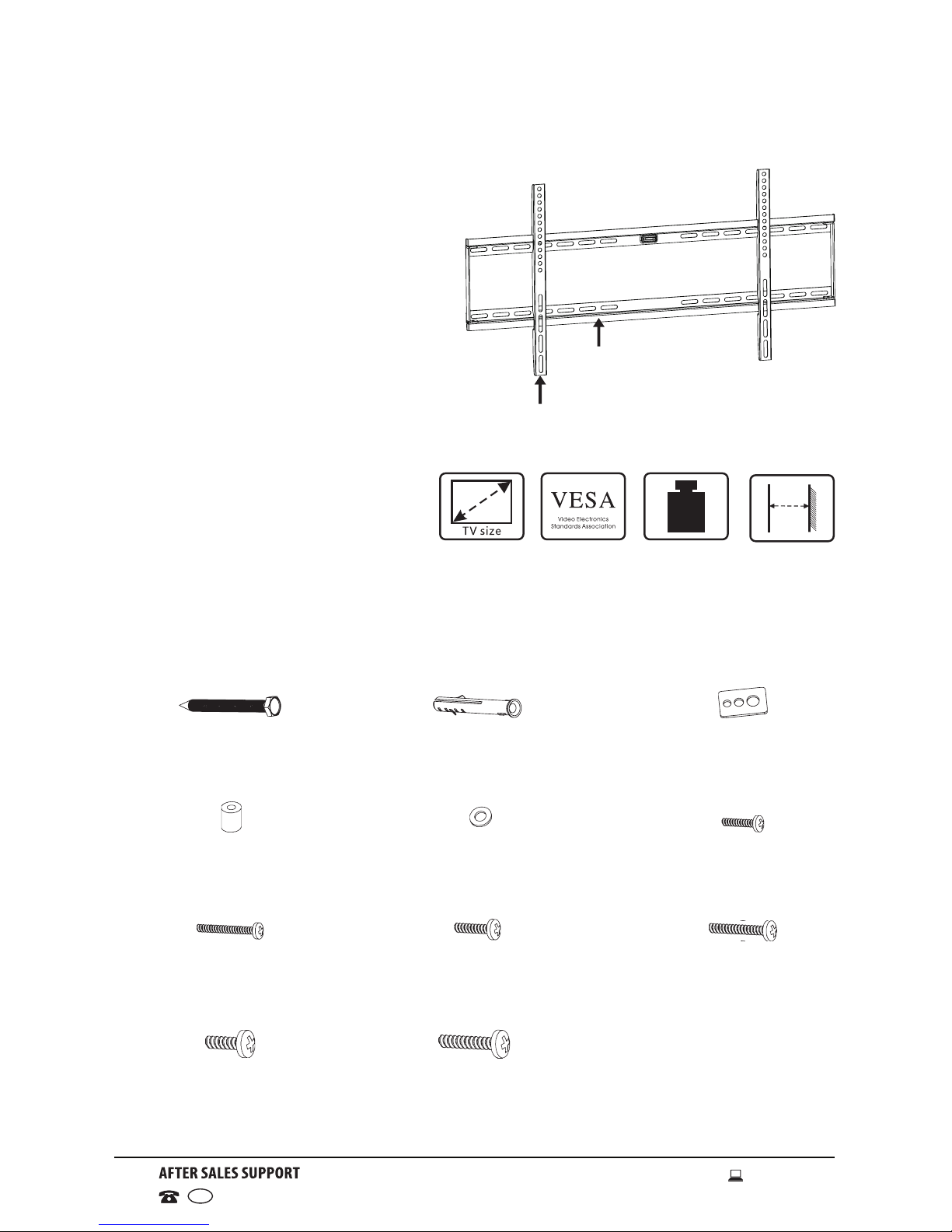

Supplied Parts and Hardware
The illustration below is to help you identify the parts; some parts are not
shown at the same scale.
Product Overview
Low Prole Wall Mount
TV Mounting Rail
Wall Plate
65Kg 32mm
800 x 400mm
(A)
Self-Tapping Screws
ST8x50mm 6pcs
(G)
Bolts
M5x25mm 4pcs
(J)
Bolts
M8x15mm 4pcs
(F)
Bolts
M5x12mm 4pcs
(B)
Masonry Plugs
10x50mm 6pcs
(H)
Bolts
M6x12mm 4pcs
(K)
Bolts
M8x30mm 4pcs
(I)
Bolts
M6x25mm 4pcs
(C)
Flat Washers
M5-M8 4pcs
(D)
Alignment Washers
D8x14mm 4pcs
(E)
Washer
Ø16xØ8.5x1.6mm 6pcs
• Supports 800 x 400mm
max VESA Hole pattern
• Suitable for TVs sized
42-80” (106-203cm),
weighing up to 65kg.
• Low profile, extending
only 32mm from the wall.

7
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS
Wall Mounting Instructions
IMPORTANT!
• This product can be mounted to a brick, concrete or stud wall. DO NOT
attach it to a hollow plasterboard wall or decorative wall divider.
• If you want to install the wall mount to a wood stud wall, use a
commercially available stud finder to locate the studs in the wall. If you
have any doubts regarding this installation, consult a professional installer
for advice.The wall must be structurally sound and strong enough
to hold the weight of the TV and wall mount. If your builder approves
mounting to a wood stud wall, follow the instructions on page 9.
• Be aware of the health hazard associated with asbestos fibres potentially
present in the wall structure when drilling.
• If you want to install the wall mount to a steel stud wall, purchase suitable
steel stud fasteners from your local hardware store. DO NOT use the
supplied large self-tapping screws in steel studs.
• Before installing the wall mount, make sure you have read and understood
all instructions. Also ensure that the wall is strong enough to hold the
weight of the TV as well as the wall mount.

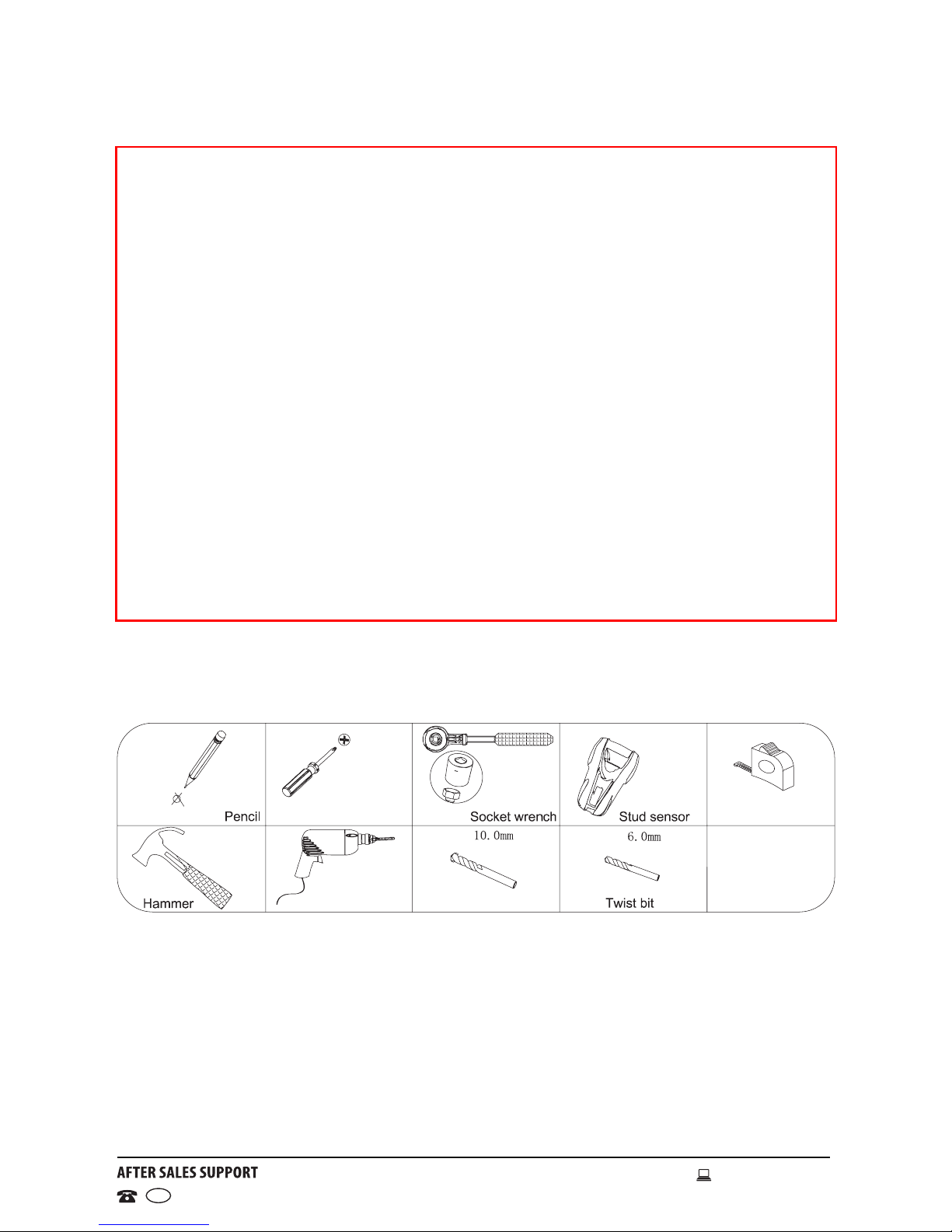

Tools Needed for Wall-Mounting:
Electric drill
(Hammer Drill
Recommended for Masonry)
Measuring tape
Philips-head screwdriver
Masonry bit

8
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS
Wall Mounting Instructions (Cont.)
Step 1: Attaching the Wall Plate
Mounting to a Brick or Concrete Wall
• Choose a solid wall area far away from any water source and direct
sunlight. Avoid hollow areas or the mortar joints between bricks.
• Using the wall plate and its built-in spirit level, outline the location of the
six holes on the wall (see Diagram 1). Ensure the holes are level.
• Using an appropriate the masonry plug, pre-drill a 50mm deep hole in
each marked location.
• Place the masonry plugs (B) into the holes and gently tap them with a
hammer until they are flush with the wall.
• Position the wall plate and insert the self-tapping screws (A) and flat
washers (E) into the plugs. Secure the wall plate to the wall, making sure
the upper and lower raised sections of the plate sit away from the wall.
Mounting to a Stud Wall
• Locate the edges of studs in the wall using a commercially available stud
finder and mark the centre of the studs. Confirm the presence of the
studs by drilling a small diameter pilot hole.
• Using the wall plate and its built-in spirit level, outline the location of the
six holes on the studs (see Diagram 1). Ensure the wall plate is level.
• Position the wall plate and screw the self-tapping screws (A) and flat
washers (E) into the studs. Secure the wall plate to the wall, making sure
the upper and lower raised sections of the wall plate sit away from the
wall (see Diagram 2).
NOTE: All 6 screws must be firmly installed to support the heavy load of a TV.

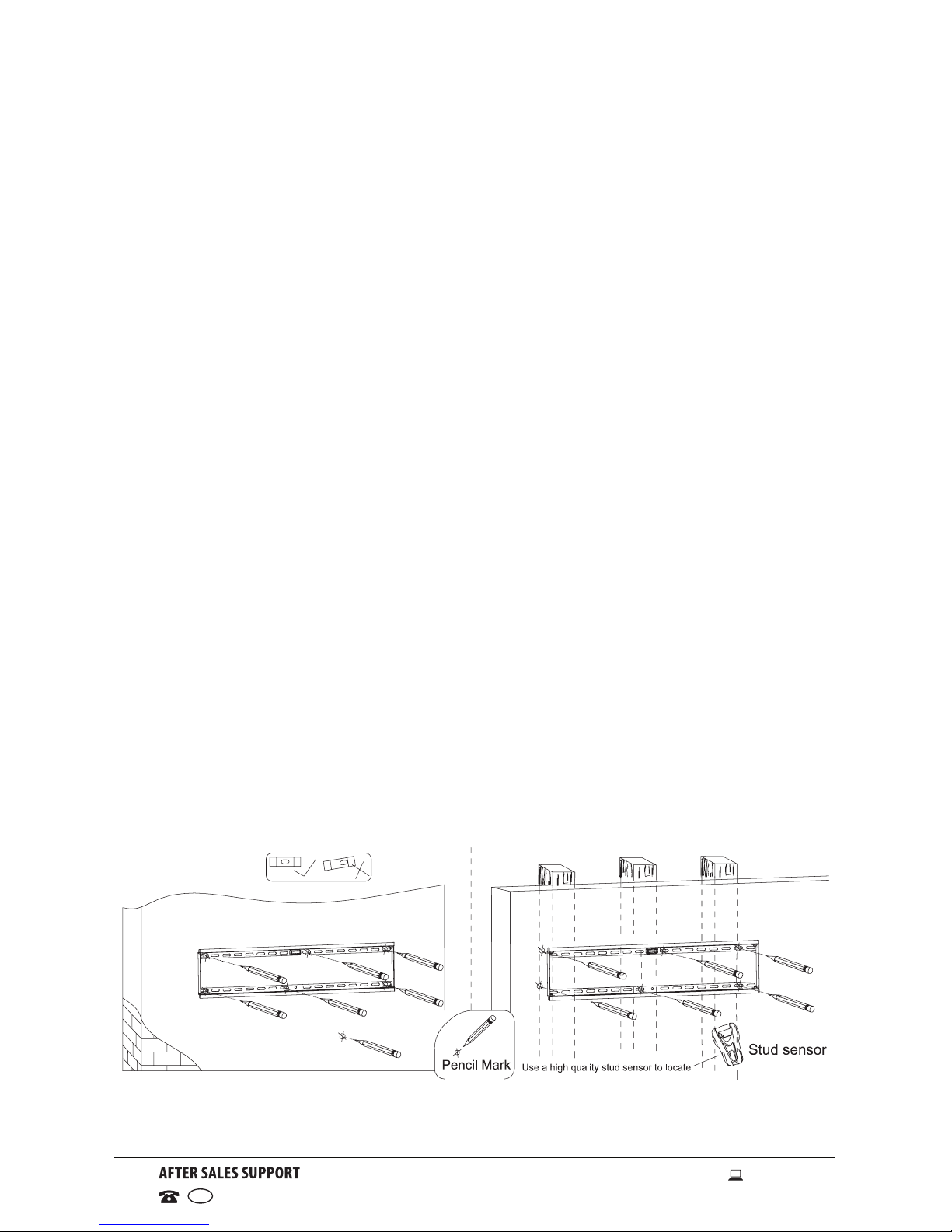

Diagram 1: Mark drill hole positions in a brick/concrete (left) or wood stud (right) wall.

9
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS
Wall Mounting Instructions (Cont.)

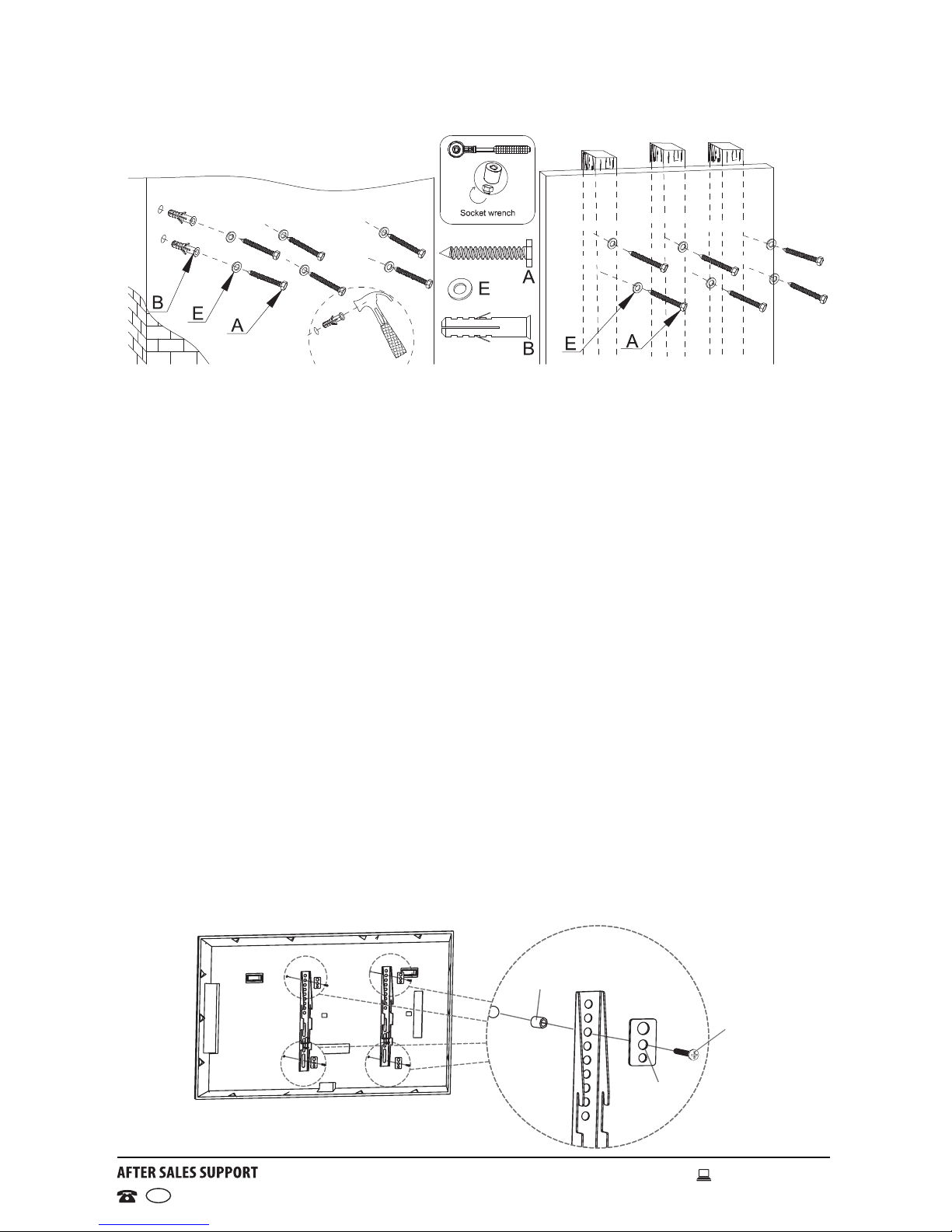

Diagram 2: Secure the wall plate to a brick/concrete (left) or wood stud (right) wall
using the appropriate installation hardware.
Step 2: Mounting the Rails to a Television
• Using a blanket or towel to protect the front of the screen, place your flat
screen TV, and face down on the floor or a suitable table.
• On the rear of the TV, locate the screw holes used for attaching a wall
bracket. Position the two mounting rails vertically over these holes,
ensuring the hooks of the rails (with the square holes either side) are
toward the top of the TV (see Diagram 3, below).
• Determine the correct size screws (F/G/H/I/J/K) to suit the screw holes in
the screen.
NOTE: If the television manufacturer included different screws, use them, not
the ones that are included with this bracket.
• Insert the appropriate screws and alignment washers (C) and secure the
rails to the television using a screwdriver.
NOTE: If the screw reaches the end of its travel but has not firmly secured the
rail, then you may need to use thicker washers (not supplied) to reduce the
depth the screw travels inside the chassis of the TV.
D
C
F-K
Diagram 3
13mm

10
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS
Wall Mounting Instructions (Cont.)
IMPORTANT!
Fixing a flat panel TV to a wall mount requires specialist knowledge. We
assume no liability for any injury or material damage incurred due to
incorrect assembly or use. Make sure to follow all instructions and if you
require professional advice, please consult a relevant tradesperson.
IMPORTANT!
At least two people are required to finish the mounting procedure. Do not
attempt to assemble this wall mount independently to avoid incorrect
assembly or any possible injury this may cause.
Step 3: Attaching the Television to the Wall Plate
• Loosen the screws on the rail so
that the rail can sit securely on
the wall plate.
• Safely lift the TV and hook the
mounting rails onto the top edge
of the wall plate.
• Gently allow the screen to sit
against the wall plate.
• Tighten the screws on the rails to
lock it to the wall plate.

11
Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to
be returned to the supplier for repair.
Please be aware that if your product is capable of retaining user-generated data
(such as files stored on a computer hard drive, telephone numbers stored on
a mobile telephone, songs stored on a portable media player, games saved on
a games console or files stored on a USB memory stick) during the process of
repair, some or all of your stored data may be lost. We recommend you save this
data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them
with refurbished goods of the same type or use refurbished parts in the repair
process.
Please be assured though, refurbished parts or replacements are only used
where they meet ALDI’s stringent quality specications.
If at any time you feel your repair is being handled unsatisfactorily, you may
escalate your complaint. Please telephone us on 1300 886 649 or write to us at:
Tempo (Aust) Pty Ltd ABN 70 106 100 252
PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086
Tempo Help Desk: 1300 886 649 (Aust)
(Operating Hours: Mon-Fri 08:30AM to 06:00PM AEST)
Email: [email protected]g
Low Profile TV Wall Mount
1300 886 649 Model: ALPB80-0718 Product Code: 61430 07/2018
www.tempo.org
AUS

Warranty returns
Should you for any reason need to return this product
for a warranty claim, make sure to include all accessories
with the product.
Product does not work?
If you encounter problems with this product, or if it fails
to perform to your expectations, please contact
our After Sales Support Centre on 1300 886 649 before
returning it to the store for a refund.
!
