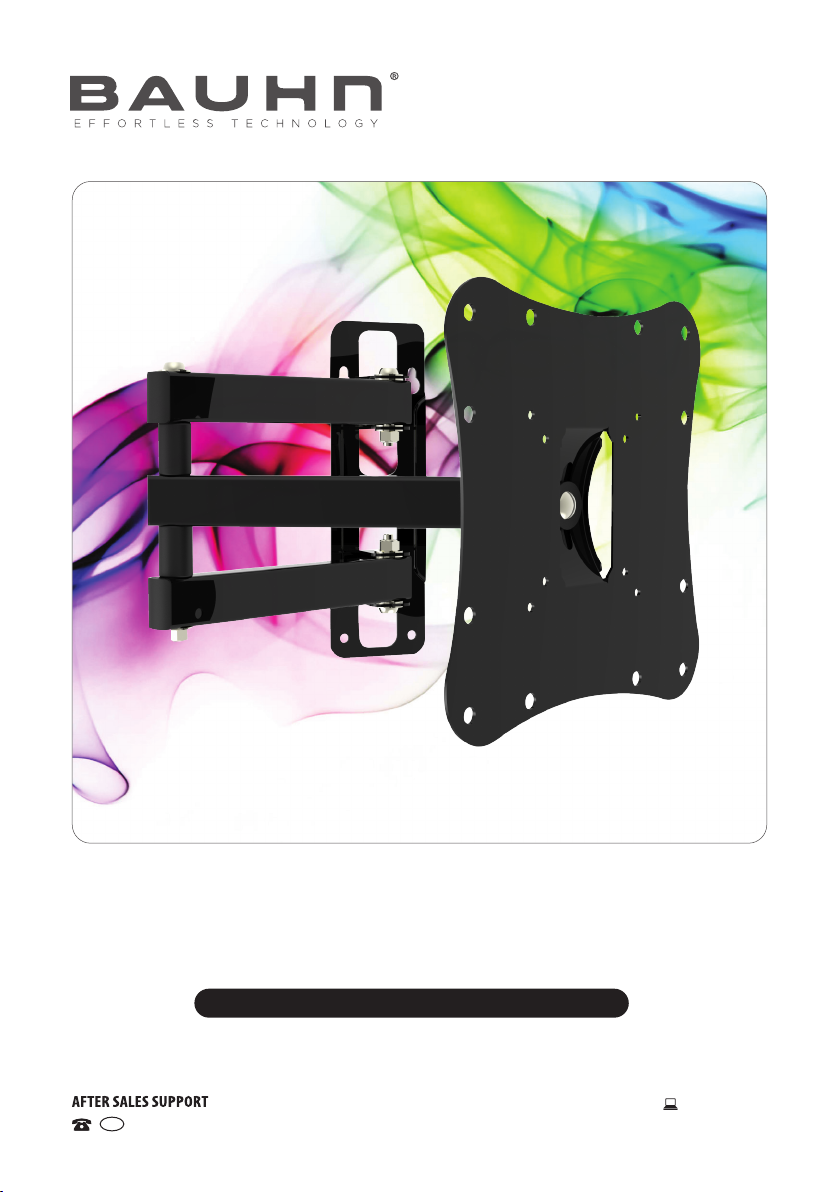

INSTRUCTION MANUAL
Model Number: AWMW1-315
Swing Arm Wall Bracket
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS

2
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS
Warranty Details 3
Welcome 4
General Safety Instructions 5
Parts List 6
Getting Started 7
Installation 8
Repair and Refurbished Goods or Parts Notice 12
Contents

3
Swing Arm Wall Bracket
Warranty Details
The product is guaranteed to be free from defects in workmanship and
parts for a period of 12 months from the date of purchase. Defects that
occur within this warranty period, under normal use and care, will be
repaired, replaced or refunded at our discretion, solely at our option with
no charge for parts and labour. The benefits conferred by this warranty
are in addition to all rights and remedies in respect of the product that the
consumer has under the Competition and Consumer Act 2010 and similar
state and territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS

4
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS
Welcome
Congratulations on choosing to buy a BAUHN®product. All products
brought to you by BAUHN®are manufactured to the highest standards of
performance and safety and, as part of our philosophy of customer service
and satisfaction, are backed by our comprehensive 1 Year Warranty. We hope
you will enjoy using your purchase for many years to come.

5
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS
Read this manual thoroughly before installing the Swing Arm Wall Bracket to
ensure your personal and other people’s safety and to avoid any property loss.
If you do not understand these directions, or have any questions in relation
to the safety of the installation, we recommend you contact a qualified
professional. For all other general inquiries, please contact the after sales
support line on the number at the bottom of the page.
• Before installation, check carefully to ensure that there are no missing or
defective parts. All parts are listed and illustrated on the following page.
• Never use defective parts. Our customer service representatives can
quickly assist you with installation questions and replacement for missing
or defective parts.
• Do not use this product for any purpose that is not explicitly specified in this
manual. Handle and use the bracket strictly according to the instructions.
• Improper installation may cause damage or serious injury.
• We assume no liability for any eventual damage or injury caused by
incorrect mounting, incorrect assembly or incorrect use.
• This product is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• This is not a toy. Keep the Swing Arm Wall Bracket away from infants and
children. Young children should be supervised to ensure they do not play
with the product.
• Mount the wall plate far away from any water source and direct sunlight.
• WARNING: Choose a structurally sound wall area that is strong
enough to hold the weight of the TV as well as the wall
bracket.
• WARNING: DO NOT attach the wall mount to a hollow wall or
decorative room divider. Only use this Swing Arm Wall
Bracket in accordance with the technical specications
below:
Size of flat panel TV: 58-101cm (23”-40”)
Maximum load: 37kg
Adjustable tilt angle: -20° to +20° up/down
90° left and 90° right
Distance from wall: 82-475mm
VESA: 75/100/200
General Safety Instructions

6
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS

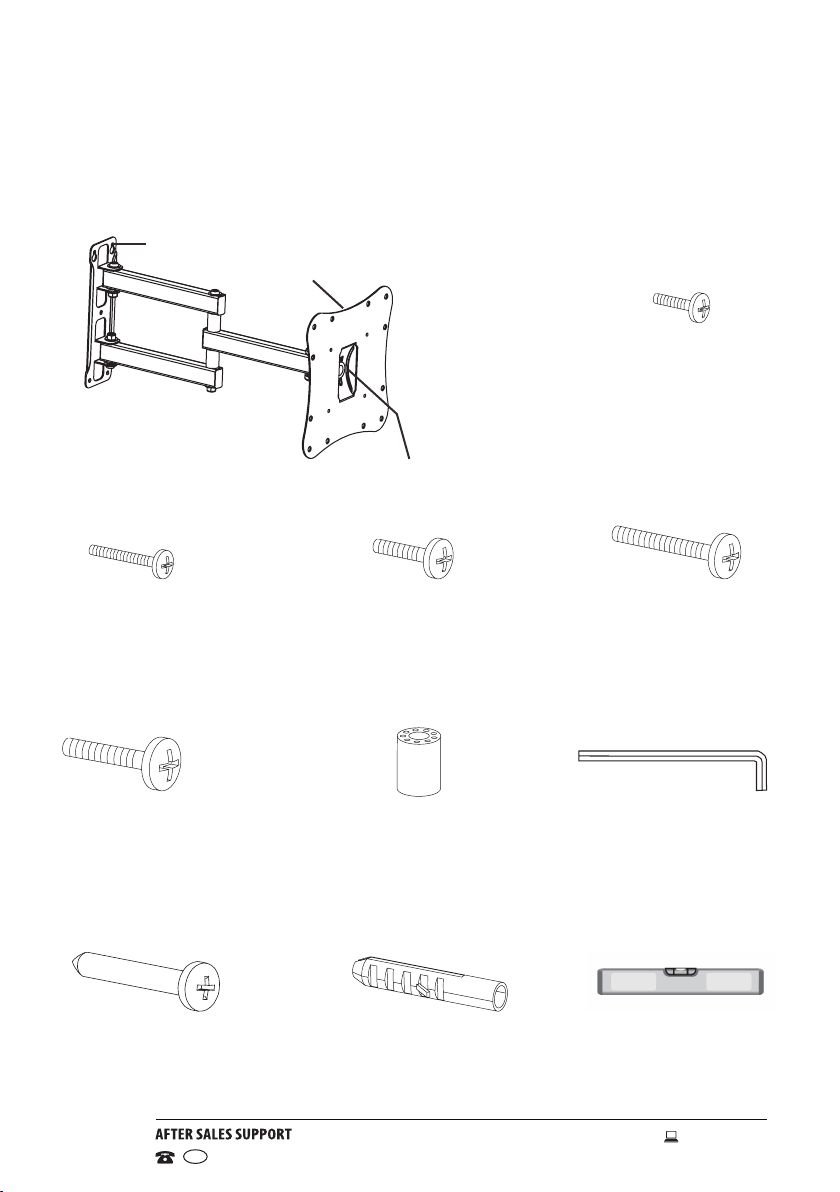

Parts List
Assembly hardware
The illustration below is to help you identify the parts; some parts are not
shown at the same scale.
(B i)
M4x12
4pcs
(D iii)
Allen Key
(F)
1pc
Spirit level
(E ii)
Φ8x40 5pcs
Masonry plugs
(E i)
M6x50 5pcs
Self-tapping screws
(B ii)
M4x30
4pcs
(C i)
M6x12
4pcs
(A)
Swing Arm Wall Bracket
(the assembly)
(C ii)
M6x30
4pcs
(D i)
M8x16
4pcs
(D ii)
Φ18 x Φ8 x 20
4pcs
Wall Plate
Up/down angle adjustment nut
TV Plate

7
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS
Getting Started
IMPORTANT!
• Only install this bracket on a structurally sound wall area that is strong
enough to hold the weight of the TV as well as the wall mount.
• Mount the bracket far away from any water source and direct sunlight.
• DO NOT attach the bracket to a hollow wall or decorative room divider.
• Consult your builder for advice if you want to install the bracket to a wood
stud wall. The wall must be strong enough for the weight of the bracket
and the TV.
• If you want to install the wall mount to a steel stud wall, purchase
suitable steel stud fasteners from your local hardware store. DO NOT
use the supplied large self-tapping screws in steel studs.
• This Swing Arm Wall Bracket consists of a wall plate with a swing arm
and a TV mounting plate at the end. It comes fully assembled. You first
affix the wall plate to the wall, then you will need help to attach your TV
to the TV mounting plate.
Before you start installing the wall bracket
• Unpack the product but keep all packaging materials until you have made
sure your new Swing Arm Wall Bracket is undamaged and in good working
order. (In case of damage, contact our after sales support line for advice
on examination, repair or return of the damaged product.) Plastic wrapping
can be a suffocation hazard for babies and young children, so ensure all
packaging materials are out of their reach.
• Read this manual to familiarise yourself with all the parts and installation
instructions. Pay particular attention to the safety instructions on page 5.
• All the parts that are supplied for installation are pictured on page 6 with
their respective part identification letter (A to F). Sort the items accordingly
so you know which ones to use during installation.
CAUTION!
At least two people are required
to install this Swing Arm Wall
Bracket. Do not attempt to
assemble it independently to
avoid incorrect assembly or any
possible injury this may cause.

8
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS
Installation
Step 1: Attaching the wall plate
Tools required: Pencil, drill and drill bits, hammer, Phillips head screwdriver,
spanner wrench
Mounting to a brick or concrete wall
• Choose a solid wall area far away from any water source and direct
sunlight. Avoid hollow areas or the mortar joints between bricks.
• Using the wall plate of the wall bracket as a
template and with the aid of the spirit leveller
(F) mark the positions of the 5 holes on the wall.
Ensure the holes are level.
• Using an 8mm masonry bit, pre-drill a 5cm deep
hole in each marked location.
• Place the masonry plugs (E-ii) into the holes and
gently tap them with a hammer until flush with
the wall.
• Position the wall plate and insert the self-tapping
screws (E-i) into the plugs. Secure the wall plate
to the wall.
Mounting to a stud wall
• Locate the edges of studs in the wall using a commercially available stud
finder and mark the centre of the studs. Confirm the presence of the
studs by drilling a small diameter pilot hole.
• Using the wall plate of the wall bracket and supplied
spirit leveller, outline the location of the five holes on
the studs. Ensure the holes are level.
• Using a 3mm bit, pre-drill a 3cm deep hole in each
marked location.
• Position the wall plate and screw the self-tapping
screws (E-i) into the studs. Secure the wall plate to the
wall.

9
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS
Installation (Cont.)
IMPORTANT!
Attaching a flat panel TV to a wall mount requires specialist knowledge.
We assume no liability for any injury or material damage incurred due
to incorrect assembly or use. Make sure to follow all instructions in this
manual, and if you require professional advice, please consult a relevant
tradesperson.
Step 2: Mounting the rails to a television
• When the wall plate is properly attached to the wall, pull the swing arm as
far out from the wall as possible.
• Select the appropriate bolts (B-i/B-ii/C-i/C-ii/D-i) that fit the thread holes
at the back of your TV monitor.
NOTE: If the television manufacturer included different screws, use them,
not the ones that came with the bracket.
• You will need another person to help you attach the TV to the TV
mounting plate. While the other person is holding the TV monitor, insert
the four selected bolts through the spacers (D-ii) if required, and the
corresponding holes on the TV mounting plate into the thread holes on
the back of the TV, as illustrated below (the illustration shows the TV
mounting plate without the attached swing arm and wall plate, for better
visibility). Then tighten the bolts.
• Make sure the TV mounting plate is mounted symmetrically and evenly.

10
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS
Installation (Cont.)
Step 3: Adjusting the viewing angle
• To adjust the viewing angle upwards or
downwards, loosen the adjustment nut using
a spanner wrench and tilt the monitor on the
mounting plate slightly. Then tighten the nut again
securely after you have found the correct viewing
angle. Take care not to over tighten it.
• To adjust the viewing distance and/or the viewing
angle to the left or right, move the swing arm.
Then tighten the nuts again securely after you
have found the correct viewing angle using the Allen key and the spanner
wrench. Take care not to over tighten them.

11
Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to
be returned to the supplier for repair.
Please be aware that if your product is capable of retaining user-generated data
(such as files stored on a computer hard drive, telephone numbers stored on
a mobile telephone, songs stored on a portable media player, games saved on
a games console or files stored on a USB memory stick) during the process of
repair, some or all of your stored data may be lost. We recommend you save this
data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them
with refurbished goods of the same type or use refurbished parts in the repair
process.
Please be assured though, refurbished parts or replacements are only used
where they meet ALDI’s stringent quality specications.
If at any time you feel your repair is being handled unsatisfactorily, you may
escalate your complaint. Please telephone us on 1300 886 649 or write to us at:
Tempo (Aust) Pty Ltd ABN 70 106 100 252
PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086
Tempo Help Desk: 1300 886 649 (Aust)
(Operating Hours: Mon-Fri 08:30AM to 06:00PM EST)
Email: [email protected]g
Swing Arm Wall Bracket
1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS

1300 886 649 Model: AWMW1-315 Product Code: 49627 05/2015
www.tempo.org
AUS
Warranty returns
Should you for any reason need to return this product
for a warranty claim, make sure to include all accessories
with the product.
Product does not work?
If you encounter problems with this product, or if it fails
to perform to your expectations, make sure to contact
our After Sales Support Centre on 1300 886 649 before
returning it to the store for a refund.
