Baxi Fires Division 828 Longlite Instructions for use

© Baxi Heating U.K. Limited 2007.
5122417-01
INSTALLER AND OWNER GUIDE
Model 828
Electric Heater
Fitted with one of the following fascia.
Blenheim or Seattle
GC No. EF-032-21
This guide is intended to help you
install and care for your Baxi Fires
Division electric heater. Please read
carefully before installing and using
your heater. However, if further
information is required, our
Baxi Fires Division Technical
Helpline
will be pleased to help.
Telephone [phone]
(National call rates apply in the United
Kingdom)
In the Republic of Ireland
Telephone [phone]
Important: Please keep your guide in a safe place for future reference

the nation’s favourite for
PLUMBING & HEATING SUPPLIES
SECURE PAYMENTS
shop online with confidence
FREE SHIPPING
on all orders over £100 to mainland UK
FINANCE AVAILABLE
spread the cost with low interest rates
PRICE MATCH
always get the best deals available
Boilers
Radiators
Heating controls

Cylinders
Fires
Renewable energy
Bathroom suites
Kitchen sinks & taps
Showers
Wet rooms
Towel warmers
Bathroom furniture
& much more
HUGE REDUCTIONS
we have
ON THOUSANDS OF ITEMS
0844 800 3460
CALL US ON
visit our website
plumbnation.co.uk

© Baxi Heating U.K. Limited 2007.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following address:
The Company Secretary, Baxi Heating UK Limited, Pentagon House, Sir Frank Whittle
Road, Derby, DE21 4XA.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Baxi Fires Division, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

Safety First.
Baxi Fires Division heaters are CE Approved and designed to meet the appropriate
British Standards and Safety Marks.
Quality and Excellence.
All Baxi Fires Division heaters are manufactured to the highest standards of quality and
excellence and are manufactured to ISO 9001
CUSTOMER CARE
Thank you for choosing Baxi Fires Division
All Baxi Fires Division heaters are designed to meet the most stringent quality,
performance and safety requirements to provide our customers with many years of
trouble free service. This guide aims to improve your understanding and appreciation of
your new heater, by providing simple and informative instructions to enable you to
install it and to ensure that you benefit from the excellent performance and features it
has to offer.
If you require further assistance, the Baxi Fires Division Technical Helpline
will be
pleased to help.
Please telephone [phone] (local rates apply in the United Kingdom).
In the Republic of Ireland telephone [phone].
FOR OTHER USEFUL TELEPHONE NUMBERS SEE PAGE 14 OF THIS GUIDE
Page 3
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

HANDLING AND UNPACKING
Before continuing any further with the installation of this heater please read the
following:
Important safety instructions.
!The approximate lifting weights (kg) of the heater parts are listed below: -
Model Heat engine Firefront Fascia Spacer*
Fuel effect
Blenheim 5.8 4.58 0.63 1.3 0.72
Seattle 5.8 0.91 0.63 1.3 0.9
* An optional spacer frame kit is obtainable either from the your heater supplier or
direct from Baxi Fires Division Sales. The kit is a 75mm (3 inch) spacer kit (Kit number
05801T1).
!
One person should be sufficient to lift the heater. If for any reason this weight is
considered too heavy then obtain assistance.
!When lifting always keep your back straight. Bend your legs and not your back.
!Avoid twisting at the waist. It is better to reposition your feet.
!
Avoid upper body/top heavy bending. Always bend from the knees rather than the
waist. Do not lean forward or sideways whilst handling the heater.
!
Always grip with the palm of the hand. Do not use the tips of fingers for support.
!Always keep the heater as close to the body as possible. This will minimise the
cantilever action.
!Use gloves to provide additional grip.
!Always use assistance if required.
Always
! Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
! Always make sure the electrical socket is accessible and located adjacent to, but
not above the heater.
! Always disconnect the heater from the electrical supply before carrying out

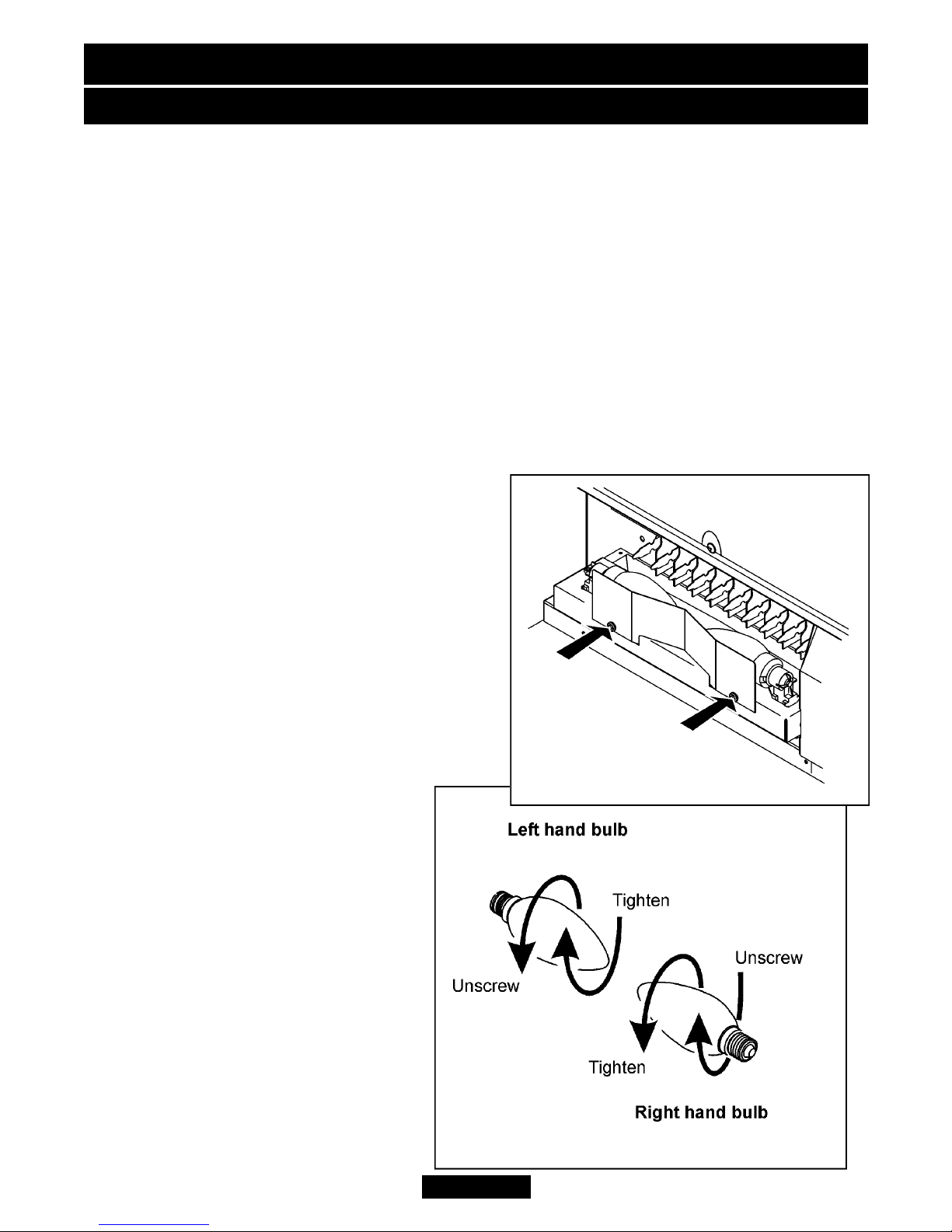

cleaning, maintenance or replacing the light bulbs.
! Always
make sure the heater is firmly secured to prevent it from being tipped over.
! Always use a fireguard when young children and infirm persons can come into
contact with the heater.
! Always use genuine Baxi Fires Division spare parts.
Page 4
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

Never
! Never leave children unsupervised in a room where the heater is ON and
unguarded.
! Never obstruct or cover the fan outlet or force items into heater openings.
! Never install or use the heater anywhere where water is in use, i.e.
Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.
! Never use aerosols or steam cleaners on or around the heater.
! Never route the electric supply cable under carpet etc.
! Never install the heater close to curtains or combustible materials.
! Never use the heater to dry clothes etc.
! Never sit or stand on the heater.
FITTING THE HEATER
The installation of this heater requires a reasonable level of DIY skills.
Please read this guide thoroughly before commencing installation and if in doubt,
seek help from a competent person.
Do I need any tools?
1. Depending upon the chosen method of installation you may need the following
screwdrivers: -
! A Pozidrive / Phillips / cross head. This should have a number 2 size tip.
! AFlat end.
2.
If drilling into brickwork you will need a power drill (preferably with hammer action)
and appropriate size drill bit for the wall plugs supplied.
Where can I fit the heater?
This heater can be fitted into fireplaces or surrounds where the following dimensions
are available.
Width 400mm - 450 mm (15.35 inches - 17.72 inches)
Height 555mm - 590 mm (21.9 inches - 23.2 inches)
Depth At least 75mm (At least 3 inches)
An optional
spacer frame kit is obtainable either from the your heater supplier or direct
from Baxi Fires Division Sales. The kit is a 75mm (3 inch) spacer kit (Kit number
05801T1).
Page 5
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

Important electrical safety.
The heater must not
be located in front of or under an electrical socket, the socket must
always be accessible in order to disconnect the heater from the electrical supply for
maintenance and cleaning.
Important! This heater must be earthed.
! The heater is supplied with a 3 pin 13 Amp fused
re-wireable plug with 1mm² 3 core cable.
! The wires in the cable are coloured in
accordance with the following code: -
Live = Brown
Neutral = Blue
Earth = Green / Yellow
! The electric cable must be safely routed from the
heater to an electrical socket.
Moving the cable guide.
At the base of the heater you will find an electric
cable which runs through a rectangular plastic cable
guide. As supplied the cable guide is fitted into the
rectangular cut-out on the right side of the heater. If
required, the cable guide can be removed and put in
the rectangular slot in the centre or left hand side of
the heater. For removal and fitting please see the
following sections.
Removing the cable guide
1. Before removing the cable guide please note that
the wider part of the cable guide is on the outer edge
of the base (See figure 1- Item 1).
2. To remove the cable guide push and lift the tab on
the bottom. The bottom of the cable guide will open
(See figure 1- Item 2).
3. Lift the electric cable clear of the cable guide.
4. Hold the bottom of the cable guide close to the
heater then gently pull the cable guide away from
the rectangular slot (See figure 1- Item 3).
Fitting the cable guide.
When fitting the cable guide please remember that
the wider part of the cable guide has to be fitted
Page 6
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

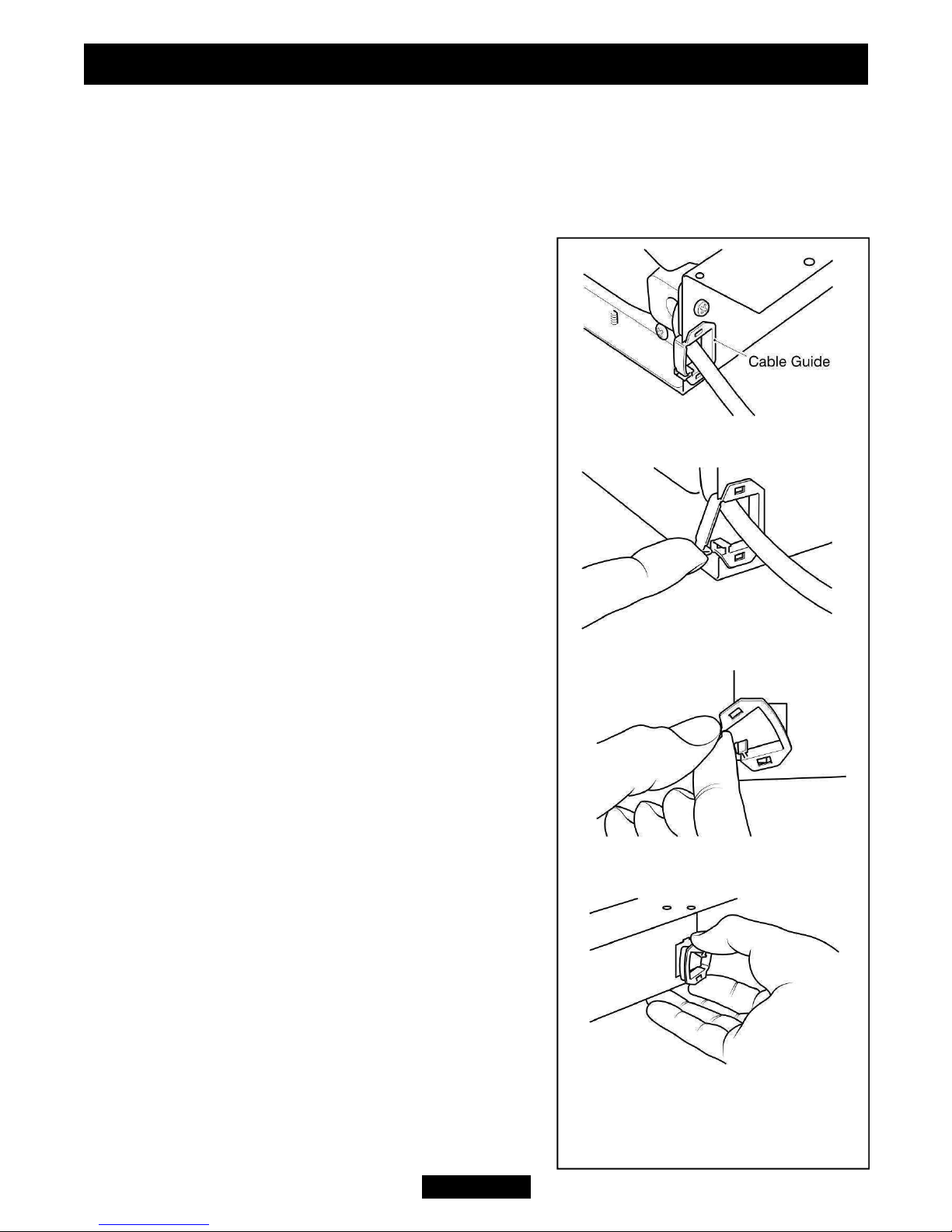

Figure 1. Removing and
positioning the cable guide.
Item 1
Item 2
Item 3
Item 4

against the outer edge of the base (See figure 1- Item 1).
1.
Gently pinch the sides of the cable guide (See figure 1 - Item 4) and push the cable
guide into the required rectangular slot.
2. Place the electrical cable into the guide and close the top of the cable guide.
If the electric cable is damaged, to avoid a hazard it must be
replaced by a Baxi Fires Division authorised service agent, or
similarly qualified person (See the last page of this guide for
useful telephone numbers).
All external wiring between the heater and the electrical
supply shall comply with current IEE regulations.
Removing the fascia

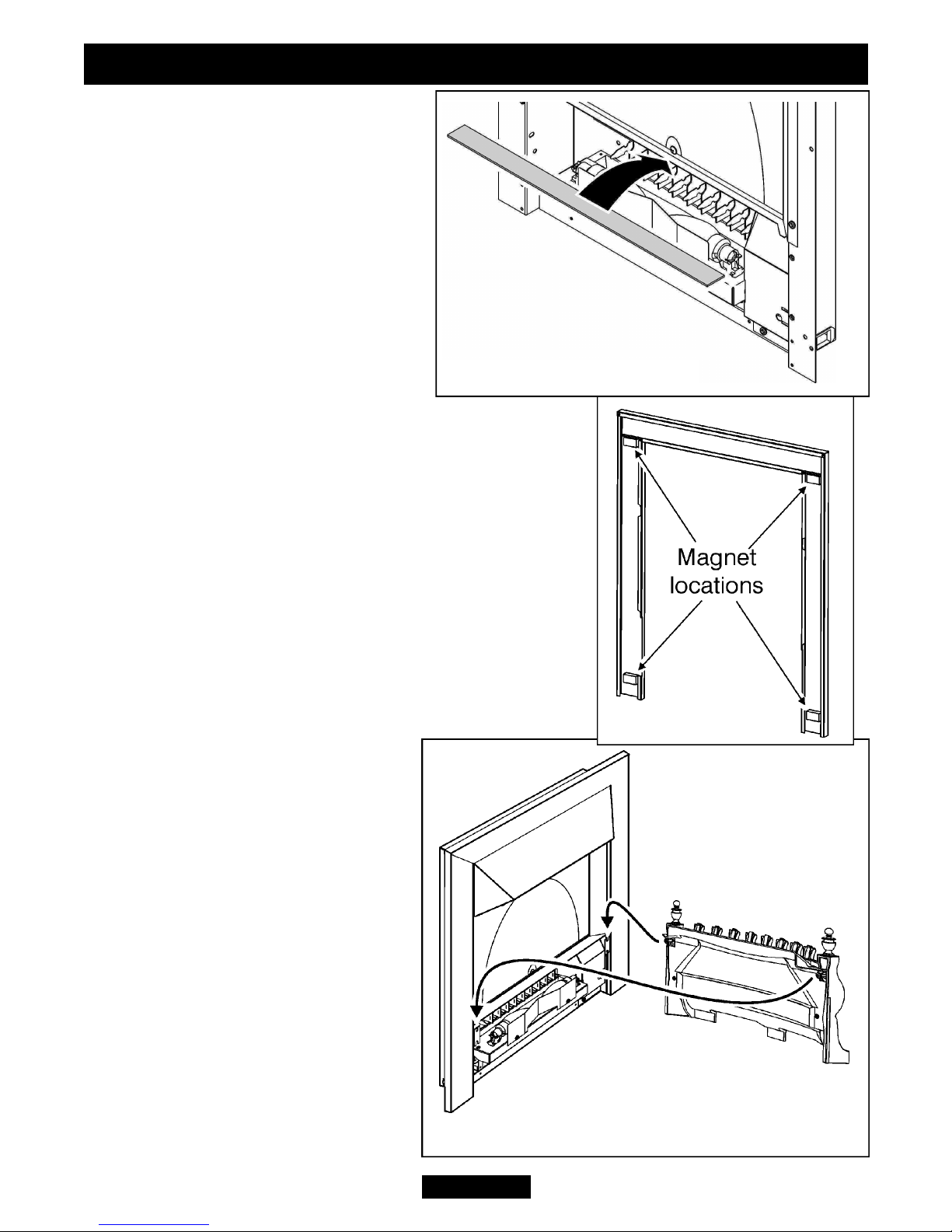

1. Very strong magnets attach the fascia to the heater. Support
the rear of the heater and gently pull the fascia forward (See
figure 2).
2. Keep the fascia in a safe place while installing the heater.
Heater fixing.
All fixings supplied with the heater have been identified in
figure 3.
Page 7
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

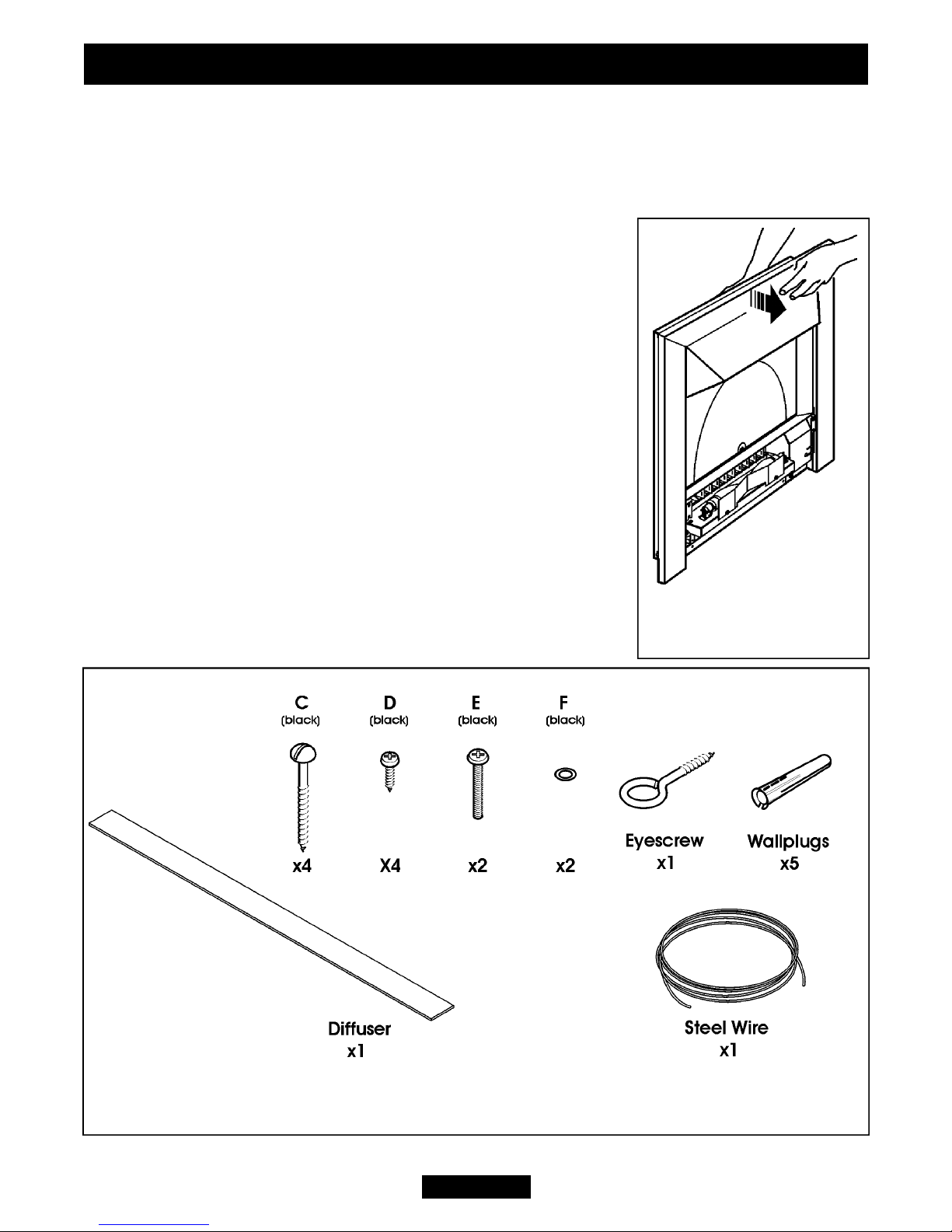

Figure 2. Removing the
fascia.
Figure 3. Loose parts identification (Items are not to scale. certain parts may not be
included or required)

The heater must be fixed into position to prevent it from being tipped over
The following fixing options are available:
! Screw Fixing.
! Wire Fixing.
! Spacer Frame*.
* An optional spacer frame kit is obtainable either from the your heater supplier or
direct from Baxi Fires Division Sales. The kit is a 75mm (3 inch) spacer kit (Kit number
05801T1).
If fitting the heater into a fireplace or surround opening, try the heater in the opening to
ensure that it will fit.
If fitting the heater onto a decorative hearth surface such as marble or tile it is advisable
to protect the hearth surface. Do not drag the heater across the surface of the hearth as
this may scratch the hearth surface.
Method A - Screw fixing.
Note - If fixing to marble it is recommended that
Method B - ‘Wire fixing’ is used. Drilling marble
without the correct tools and experience may result in
the marble cracking.
1. Place the heater into the fireplace or surround
opening. Make sure that the heater is in the middle of
the surround or fireplace.

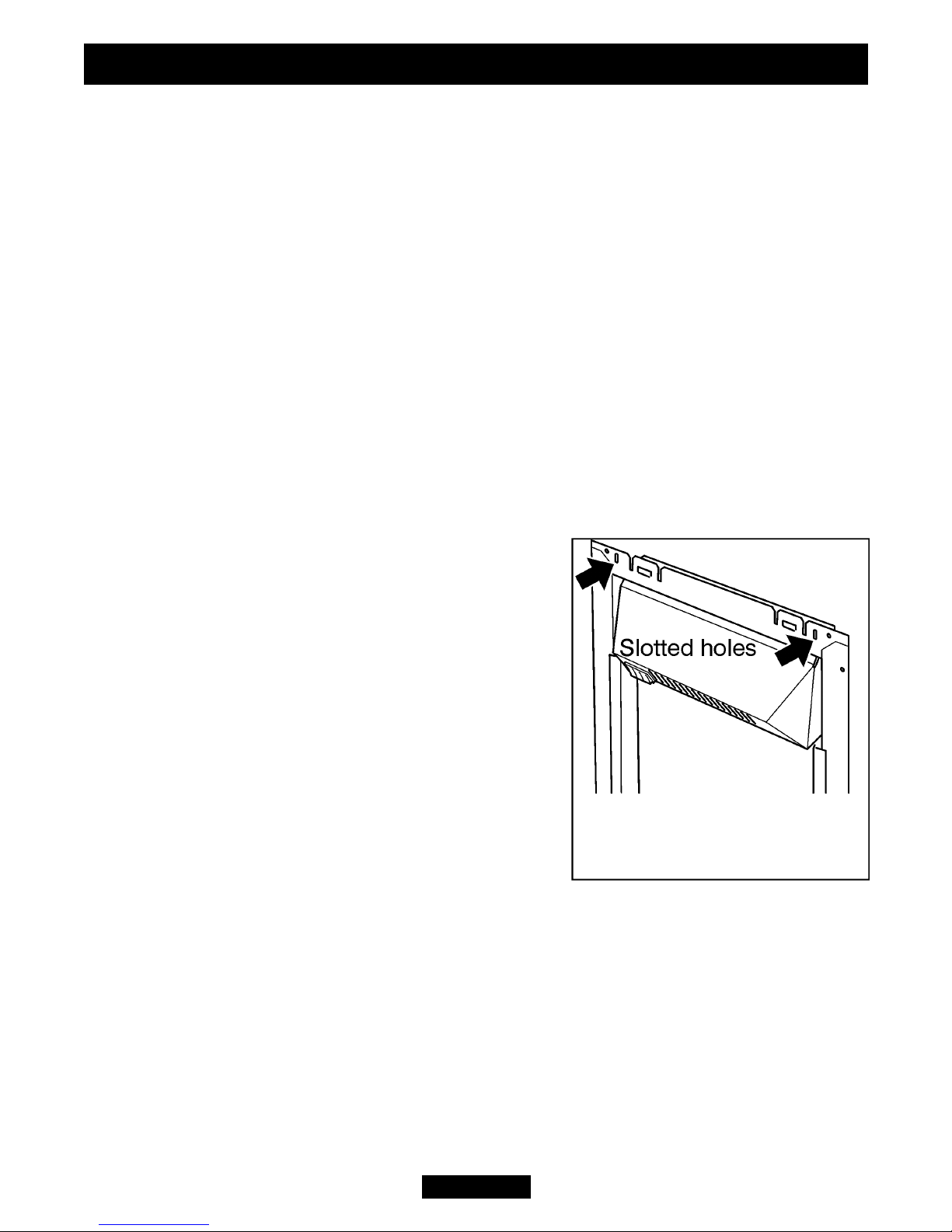

2. There are two slotted holes in the top of the heater
(See figure 4). Mark through the slotted holes so that
their position is clear when the heater is removed.
3. Remove the heater.
4. Drill an appropriate size hole in each of the marked
positions. Insert wall plugs into the drilled holes.
5. Place the heater so that the slotted holes are in line
with the wall plugs in the fixing surface.
6. Screw and secure the heater with two ‘C’ screws (See figure 3).
Method B - Wire fix.
This method of fixing needs a fireplace opening and is recommended when fixing the
heater to a marble surround or where the wall or brickwork is in poor condition.
1.
The fixing kit supplied with the heater includes a steel wire and eyescrew (See figure
3). These can be used to secure the heater to the back of a fireplace opening.
2.
Mark the eyescrew position on the centre line at the back of the fireplace opening and
Page 8
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 4. Slots for screw
fixing.

at a height of 533-560mm (21 inches - 22 inches)
(See figure 5).
3. Drill an appropriate size hole in the marked
position.
4. Insert a wall plug into the drilled hole.
5. Screw the eyescrew into the wall plug.
6. Position the heater in front of the fireplace
opening.
7. At the top of the heater there are four small
holes, two each side of the heater (See figure 6-
Item 1). From the front of the heater, thread about
50mm ( 2 inches) of the steel wire into the inside
small hole on the left side of the heater (See figure
6 - item 2).
8. Thread the other end of the wire through the
remaining small hole on the left hand
side of the heater. Continue to push the
wire through this hole until there is
only a small loop of wire at the front of
the heater (See figure 6 - item 3).
9. At the back of the heater there will
be a long piece and a short piece of
wire coming through the two holes.
Hold the short piece and give the long
piece a gentle tug. This will secure the
steel wire. Take the long piece and
thread this through the eyescrew in the
back of the fireplace opening (See
figure 6 - item 4).
10. From the back of the heater thread
the long piece of steel wire through the
outer small hole on the right hand side
of the heater (See figure 6 - item 5).
11. Locate the heater in the fireplace
opening, then from the front of the
heater, gently pull the steel wire on the
right hand side to gather up the excess
until the heater is secure. Thread the
wire through the remaining small hole
to lock the wire and heater in place
(See figure 6 - item 6).
Page 9
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 6. Steel wire fixing (Detail at top of
heater may differ from that shown)
Figure 5. Eyescrew position.

Method C - Spacer Frame
The optional spacer frame is for use during installations where a chimney recess or
rebated fire surround are not available. For your safety the frame and heater must be
securely fixed to the rear wall.
Fitting the spacer frame
The rear of the spacer has two screw location slots in the top flange. These should be to
the rear when fitting.
1.
Position the spacer frame against the wall. Ensure that the spacer frame is central to
the fireplace.
2. The top rear flange of the spacer frame has two
screw locations. Mark the positions of the two
screw locations on the rear wall (See figure 7).
3. Remove the spacer frame from the fireplace
and place away from the work area.
4. Drill the screw locations using a no. 12
masonry drill bit.
5. Insert two wall plugs provided into the holes.
6. Insert a ‘C’ screw into each hole and screw in
until there is approximately 6mm of screw
protruding from the wall.
Preparing the heater for installation.
1. Ensure that the decorative front surround has been
removed from the heater as described earlier in this
guide.
2. Using the four ‘D’ screws provided, fix the heater
to the spacer frame.
3. There is a supply cable slot on both sides of the
spacer frame. It is located at the base. Decide which
side to pass the supply cable through and position the supply cable in the spacer frame
slot (See figure 8).
Fitting the heater.
1.
Locate the spacer frame and heater over the screw heads ensuring a tight fit. If the fit
is loose, remove the spacer frame and heater from the wall. Tighten the wall screws
slightly and reposition the spacer frame and heater.
Fitting the light diffuser.
1.
There is a light diffuser supplied with the heater (See figure 3). Place this on to the
metal flange below the plastic screen (See figure 9).
Page 10
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 8. Locating the cable
Figure 7. Location points

Fitting the Fascia
Blenheim model.
1. Removing the fascia trim may have
moved the magnets used to fix it to the
heater. The magnets should be located
as in figure 10.
2. Locate the fascia onto the heater.
Ensure that the sides of the fascia sit
on the floor / hearth.
3. There are two hanging screws on the
rear of the firefront. Locate these into
the slots as in figure 11.
4. Place the one piece fuel effect on top of the firefront
fuel support.
Page 11
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 11. Firefront location
Figure 10.
Figure 9. Diffuser location

Seattle model.
1. With the fascia trim removed , align
the four holes in the firefront assembly
with those on the heater (See figure
12). Secure with the four screws
supplied.
2. Removing the fascia trim may have
moved the magnets used to fix it to the
heater. The magnets should be located
as in figure 10.
3. Place the one piece fuel effect on
top of the firefront fuel support.
USING THE HEATER
Important Safety
Never cover the heater or obstruct the openings at the base of the heater, this could
cause overheating and consequent risk of fire.
What are the three switches for?
The heater is operated by three switches located below the hood on the left hand side of
the heater.
Switch 1 = Main On - Off. (In the ‘ON’ position, only the flame
effect operates)
Switch 2 =
1kW fan heat setting and flame effect. (Switch 1 needs to
be in the ‘ON’ position to enable switch 2 to operate).
Switch 3 =
2kW fan heat setting and flame effect. (Switch 2 needs to
be in the ‘ON’ position to enable switch 3 to operate).
Page 12
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 12.

CLEANING AND MAINTAINING THE HEATER
How do I clean my heater?
The heater fascia and plastic parts need only to be wiped clean with a dry soft cloth, do
not use polishes or abrasive materials.
I have a problem with my heater!
Important Safety
Before undertaking maintenance or replacing the light bulb(s) always disconnect
the heater from the electricity supply by removing the 3 pin plug and allowing the
heater to cool completely.
1. My heater is on but there is no light or the light appears brighter on one
side of the heater.
This is possibly a light bulb failure. Remove
the light bulb(s) as follows and check it / them
in a table lamp that is known to work. If it /
they do not work in the table lamp then replace
as below.
The light bulbs fitted to this heater are 5W to
10W max, Opal Compact fluorescent candle,
Small Edison screw (SES) -E14 240V energy
saving lamps, but due to the indeterminate life
span and ease of replacement, they are
specifically excluded from the guarantee.
To replace the light bulb(s).
1. To gain access to the light bulb/s,
remove the top fuel effect and place
carefully to one side.
2. Remove the firefront in the reverse
of that shown on pages 11 and 12.
3. Unscrew and remove the copper
reflector plate (See figure 13).
4. Replace the light bulb/s with 5W to
10W max, Opal Compact fluorescent
candle, Small Edison screw (SES) -
E14 240V energy saving lamps.
5. Refit the copper reflector plate.
Refit the firefront / fascia and fuel
effect.
Page 13
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 14. Bulb replacement
Figure 13. Copper reflector

2. My heater is on but there is no light or heat.
The first thing to do is check the wall socket. To do this plug in a known working
appliance. If the appliance you have plugged in works then there is a good chance that
the problem lies with the 13Amp fuse in the heater plug. If either fuse or socket is
suspected, have them checked by an electrician.
3. My heater is on but there is no heat.
A cut out device is fitted to the heater to prevent damage due to over heating. If it
operates due to an obstruction in the airflow, the heater must be turned off and allowed
to cool for 15 minutes and the obstruction removed before restarting.
4. I Have a problem that is different to those in the previous examples 1- 3.
Following is a list of useful telephone numbers
For general advice about your heater:
BAXI FIRES DIVISION TECHNICAL HELPLINE 08706 061 065.
To report faults or arrange for your heater to be serviced:
BAXI FIRES DIVISION SERVICE 08706 090 081.
For sales or product information:
BAXI FIRES DIVISION SALES 08706 061 067.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 8706 061 065
For spares inquiries
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow pages under ‘Central Heating’.
When ordering spare parts please have the below information available. This will help
us to deal with your call quicker and avoid you having to make a second call.
! Your Post Code
! Type of Heater (Electric or gas)
!
Model, Name and serial number (This information can be found on a small label
attached to the inside lower left of the heater. To see this you will have to remove
the firefront (On the Adage heaters it will be necessary to remove the whole front
fascia)
! The fault, problem or request.
Page 14
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

What should I do when I’m ready to dispose of my heater?
The plug should be removed from the mains supply cable and the mains supply cable
cut from the heater.
Environmental Protection.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.
Page 15
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
