Baxi Fires Division MIRAGE 804 Instructions for use

5119993/01
INSTALLER AND OWNER GUIDE
This guide is intended to help you install and care for your Baxi Fires Division electric
heater. Please read carefully before installing and using your heater. However, if further
information is required, our Baxi Fires Division Technical Helpline
will be pleased to
help.
Telephone [phone] (National call rates apply in the United Kingdom)
In the Republic of Ireland call 0044 8706 061 065
Important: Please keep your guide in a safe place for future reference
© Baxi Heating U.K. Limited 2006.
Model 804
Mirage
Electric Heater.
This guide is intended for use when installing
the heater into the KATRINA surround.

© Baxi Heating U.K. Limited 2006.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following address:
The Company Secretary, Baxi Heating UK Limited, Pentagon House, Sir Frank Whittle
Road, Derby, DE21 4XA.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
CUSTOMER CARE
Thank you for choosing Baxi Fires Division
All Baxi Fires Division heaters are designed to meet the most stringent quality,
performance and safety requirements to provide our customers with many years of
trouble free service. This guide aims to improve your understanding and appreciation of
your new Baxi Fires Division heater, by providing simple and informative instructions
to enable you to install it and to ensure that you benefit from the excellent performance
and features it has to offer.
If you require further assistance, the Baxi Fires Division Technical Helpline
will be
pleased to help.
Please telephone [phone]
(local rates apply in the United Kingdom). In the
Republic of Ireland please telephone [phone].
FOR OTHER USEFUL TELEPHONE NUMBERS SEE PAGE 11 OF THIS GUIDE.
Baxi Fires Division, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

Safety First.
Baxi Fires Division he
aters are CE Approved and designed to meet the appropriate
British Standards and Safety Marks.
Quality and Excellence.
All Baxi Fires Division heaters are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted by
the British Standards Institute.
HANDLING AND UNPACKING
Before continuing any further with the installation of this heater please read the
following:
Important instructions.
!The lifting weight of the heater is as below:
Model Heater Body (kg) Fascia (kg) Spacer (kg)
Total (kg)
Mirage 5.3 kg. 3.60 kg. 0.66 kg. 9.56kg.
!One person should be sufficient to lift the heater. If for any reason this weight is
considered too heavy then obtain assistance.
!When lifting always keep your back straight. Bend your legs and not your back.
!Avoid twisting at the waist. It is better to reposition your feet.
!Avoid upper body / top heavy bending. Always bend from the knees rather than
the waist. Do not lean forward or sideways whilst handling the heater.
!
Always grip with the palm of the hand. Do not use the tips of fingers for support.
!Always keep the heater as close to the body as possible. This will minimise the
cantilever action.
!Use gloves to provide additional grip.
!Always use assistance if required.
Page 3
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

SAFETY
Always
! Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
! Always make sure the electrical socket is accessible and located adjacent to, but
not above or behind the heater.
! Always disconnect the heater from the electrical supply before carrying out
cleaning, maintenance or replacing the light bulb.
! Always
make sure the heater is firmly secured to prevent it from being tipped over.
! Always use a fireguard when young children and infirm persons can come into
contact with the heater.
! Always use genuine Baxi Fires Division spares.
Never
! Never leave children unsupervised in a room where the heater is ON and
unguarded.
! Never obstruct or cover the fan outlet or force items into heater openings.
! Never install or use the heater anywhere where water is in use, i.e.
Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.
! Never use aerosols or steam cleaners on or around the heater.
! Never route the electric cable under carpet etc.
! Never install the heater close to curtains or combustible materials.
! Never use the heater to dry clothes etc.
! Never sit or stand on the heater.
Page 4
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

FITTING THE HEATER
The installation of this heater requires a reasonable level of DIY skills.
Please read this guide thoroughly before commencing installation and if in doubt,
seek help from a competent person
Do I need any tools?
You will need a Pozidrive / Phillips / cross head
screwdriver. This should have a number 2 size tip.
Important Electrical Safety
The heater must not be located in front of or under
an electrical socket, the socket must always be
accessible in order to disconnect the heater from the
electrical supply for maintenance and cleaning.
Important! This heater must be earthed.
! The heater is supplied with a 3 pin 13 Amp fused
re-wireable plug with 1mm² 3 core cable.
! The wires in the cable are coloured in
accordance with the following code: -
Live =Brown
Neutral = Blue
Earth = Green /Yellow
! The electric supply must be safely routed from
the heater to an electrical socket.
Moving the Cable Guide
At the base of the heater you will find the electric
cable which runs through a rectangular plastic cable
guide. The cable guide is fitted into the rectangular
slot on the right side of the heater. If required this
can be moved and put in the rectangular slot in the
centre or left hand side of the heater. For removal
and fitting please see below.
Page 5
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

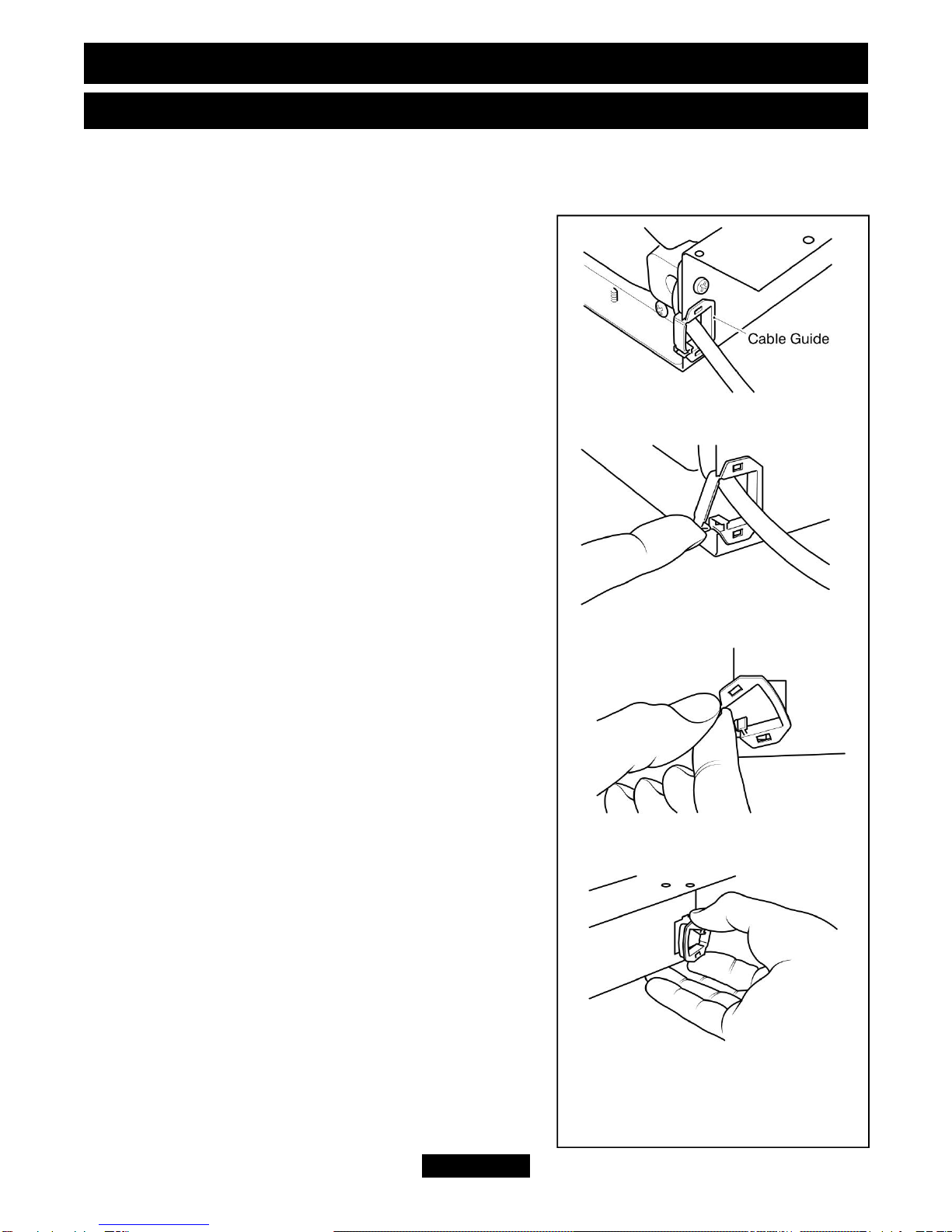

Figure 1. Removing and
positioning the cable guide.
Item 1
Item 2
Item 4
Item 3

Removing the cable guide
1. Before moving the cable guide please note that the lip of the cable guide is on the
outer edge of the base (See figure 1- Item 1).
2. To remove the cable guide push and lift the tab on the bottom of it and the cable
guide will open (See figure 1- Item 2).
3. Lift the electric cable clear of the cable guide.
4.
Hold the bottom of the cable guide close to the heater then gently pull the cable guide
away from the rectangular slot (See figure 1- Item 3).
Fitting the cable guide.
When fitting the cable guide please remember that the lip of the cable guide has to be
fitted against the outer face of the base (See figure 1- Item 1).
1. Gently pinch the sides of the cable guide (See figure 1 - Item 4) and push into the
desired rectangular slot.
2. Place the electrical cable into the guide and close the top.
If the electric cable is damaged, to avoid a hazard it must be replaced by a Baxi Fires
Division authorised service agent, or similarly qualified person (See page 11) All
external wiring between the heater and the electrical supply shall comply with current
IEE regulations.
Fascia support brackets.
As supplied the fascia support brackets may
be flat against the heater body. Using a
suitable tool or gloved hand bend the
brackets as in figure 2.
Heater Fixing.

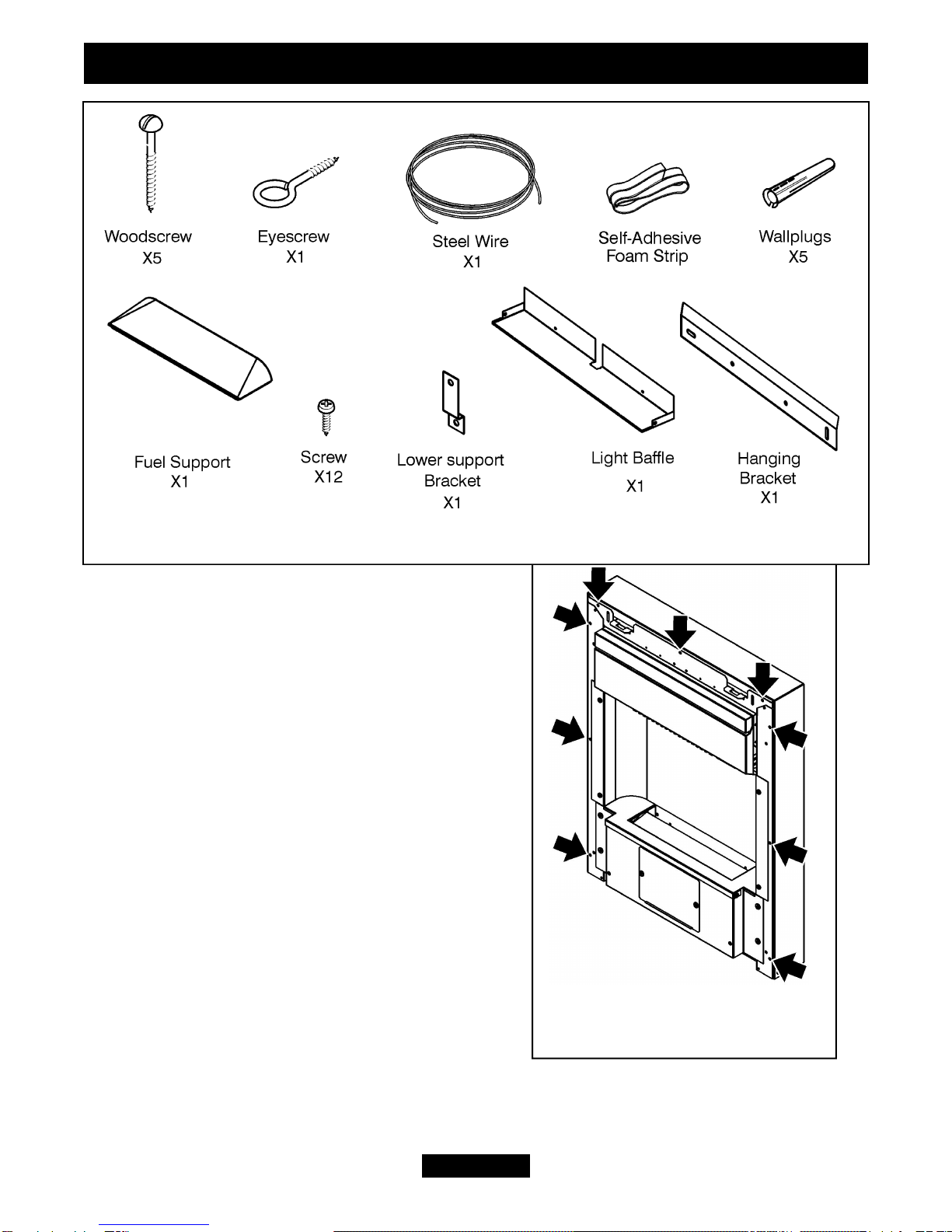

All of the fixings and loose parts supplied
with the heater have been identified as in
figure 3.
Page 6
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 2. Fascia support brackets

The heater must always be fixed into position
to prevent it from being tipped over
Preparing the heater for installation.

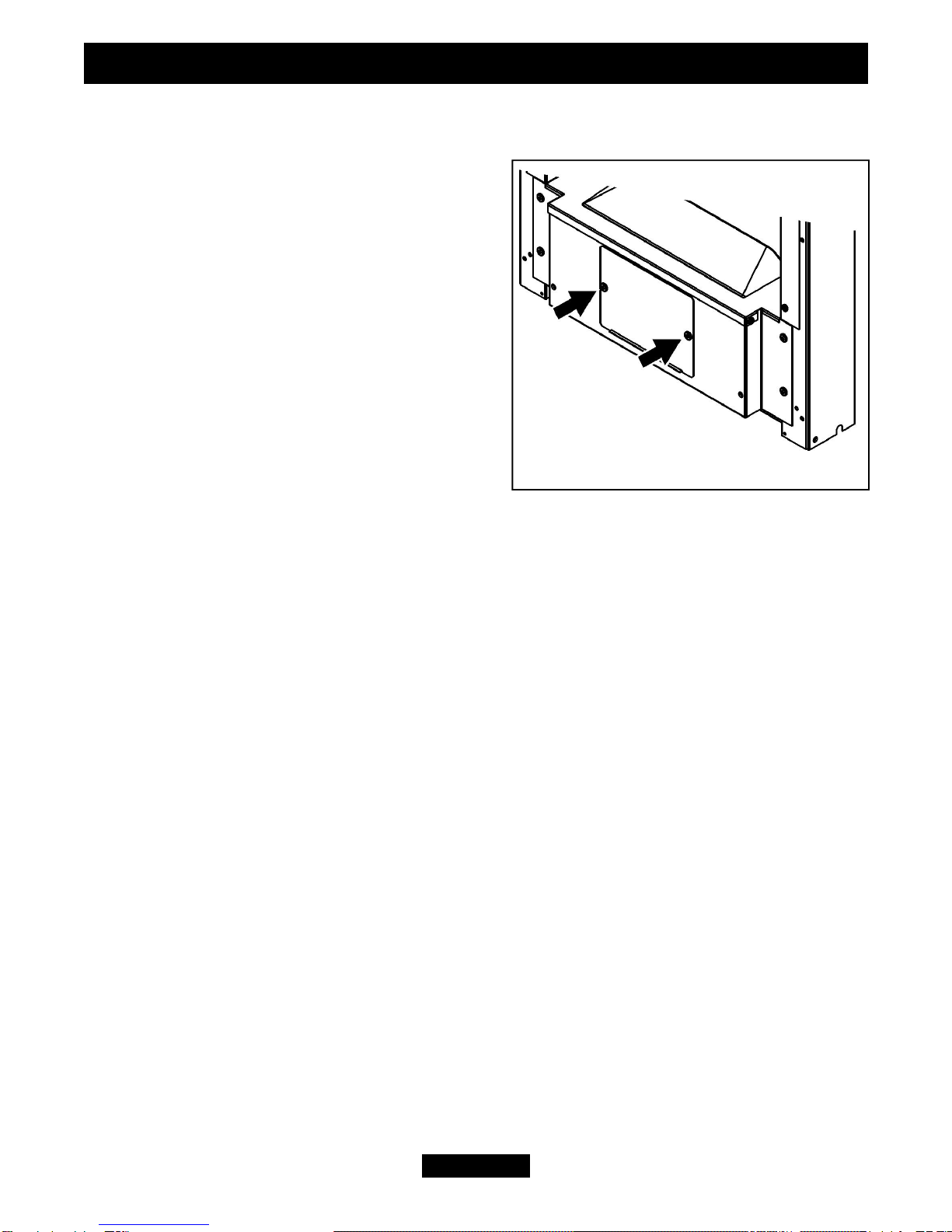

The spacer frame will need to be fitted to the
heater at this point using the nine black screws
provided (See figure 4).
Page 7
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 4. Fitting the spacer
frame
Figure 3. Loose parts identification (Items are not to scale)

Fitting the heater.

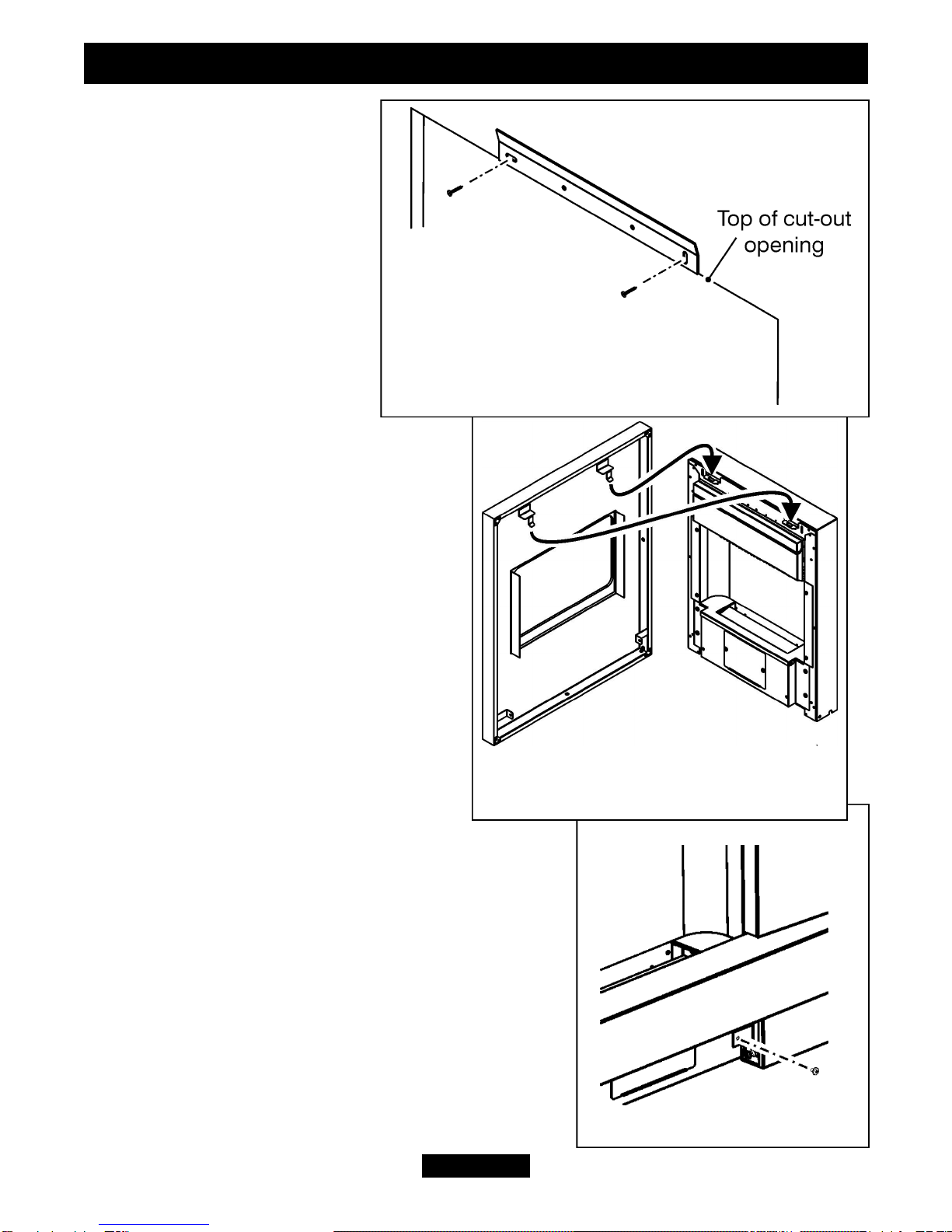

1. The heater is supplied with a
hanging bracket. Locate the
bracket to the top of the cut-out
opening in the surround back
panel as in figure 5. The bottom
of the bracket should be level
with the cut-out. Secure in place
using the two screws supplied
with the suite.
2. Hang the heater / back of the
spacer frame on the hanging
bracket. There is a electric cable
slot on both sides of the spacer frame. Pass
the electric cable through the required slot.
Fitting the fascia.
1. There are two hooked brackets on the
top rear of the fascia. Locate the hooks into
the brackets at the top of the heater (See
figure 6).
2. The fascia is secured using the two
screws with bright metal finish. These are
located as in figure 7.
3. Locate the fuel support as in figure 8.
4. Place the loose pebbles onto the fuel
support. It is not necessary to use all the
pebbles supplied.
Important Note:
The pebbles are for decorative purposes only.
There is a choke risk to young children. Make sure
they cannot gain access to them.
Page 8
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 7. Securing the fascia.
Figure 6. Fitting the fascia (Fascia may
differ from that shown).
Figure 5. Fitting the spacer frame

5. The lower section of the fascia is secured
with magnets. Locate it as in figure 9. The
bottom of the lower section should sit on
the tags as shown.
6. Supplied in the fascia pack is a canopy
trim. Hang this at the top of the fascia (See
figure 10).
7. Supplied in the fascia pack is a three bar
trim. Hang this at the bottom of the fascia
(See figure 11).
Page 9
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 11. Fitting the hanging trims
Figure 10. Fitting the canopy trim
Figure 9. Fitting the lower section to the fascia.
Figure 8. Fitting the fuel support.

USING THE HEATER
Important Safety
Never cover the heater or obstruct the openings at the base of the heater, this could
cause overheating and consequent risk of fire.
What are the three switches for?
The heater is operated by three switches located below the hood on the left hand side of
the heater.
Switch 1 = OMain On - Off
In the On position only the fuel effect operates
Switch 2 = I1kW fan heat setting and fuel effect
Switch 3 = II 2kW fan heat setting and fuel effect
The switches are mechanically interlocked, so when switch 1 is turned off, all switches
turn off.
CLEANING AND MAINTAINING THE HEATER
How do I Clean my heater?
The heater fascia, spacer frame and glass parts need only to be wiped clean with a dry
soft cloth, do not use polishes or abrasive materials.
I have a problem with my heater!
Important Safety
Before undertaking maintenance or replacing the light bulb(s) always disconnect
the heater from the electricity supply by removing the 3 pin plug and allowing the
heater to cool.
1. My heater is on but there is no light / low light.
This is possibly a light bulb failure. Remove the light bulb as below and check it in a
table lamp that is known to work. If it does not work in the table lamp then replace it as
below.
The light bulb fitted to this heater is a B22 100Watt, 240Volt, triple life, Bayonet fitting
with a clear finish. Due to the indeterminate life span and ease of replacement, it is
specifically excluded from the guarantee.
Page 10
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

To replace the light bulb.
1. To gain access to the light bulb, remove the loose pebbles from the fuel support.
2. Remove the fascia in the reverse order to that
shown on pages 8 & 9.
3. Remove the lower cover plate from the front
of the heat engine. To do this remove the two
screws (See figure 12).
4. Replace the light bulb with a B22 100Watt,
240Volt, triple life, Bayonet fitting type bulb
with a clear finish .
5. Fit the fascia (See pages 8 & 9).
6. Place the pebbles back on top of the fuel
support.
2. My heater is on but there is no light or
heat.
The first thing to do is check the wall socket. To do this plug in a known working
appliance. If the appliance you have plugged in works then there is a good chance that
the problem lies with the 13Amp fuse in the heater plug. If either fuse or socket is
suspected, have them checked by an electrician.
3. My heater is on but there is no heat.
A cut out device is fitted to the heater to prevent damage due to over heating. If it
operates due to an obstruction in the airflow, the heater must be turned off and allowed
to cool for 15 minutes and the obstruction removed before restarting.
4. I Have a problem that is different to those in the previous examples 1- 3.
Below is a list of Useful Telephone numbers
For general advice about your heater:
BAXI FIRES DIVISION TECHNICAL HELPLINE 08706 061 065.
To report faults or arrange for your heater to be serviced:
BAXI FIRES DIVISION SERVICE 08706 090 081.
For sales or product information:
BAXI FIRES DIVISION SALES 08706 061 067.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 8706 061 065
Page 11
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 12. Lower cover plate

For spares inquiries
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow pages under ‘Central Heating’.
When ordering spare parts please have the below information available. This will help
us to deal with your call quicker and avoid you having to make a second call.
! Your Post Code
! Type of Heater (Electric or gas)
! The fault, problem or request.
!
Model, Name and serial number (This information can be found on a small label on
the lower left of the heater next to the cover plate. To see this you may have to remove
the fascia).
What should I do when I’m ready to dispose of my heater?
The plug should be removed from the mains cable and the mains cable cut from the
heater. These should be disposed of with the heater.
Environmental Protection.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.
Page 12
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
