Baxi Fires Division 831 Instructions for use

5116091/04
© Baxi Heating U.K. Limited 2007.
Model831
ELECTRIC HEATER
Fitted with one of the following fascia.
Fantasy, Glamour,
Landscape, Manhattan,
Parkeror Visia
(GC No. EF-032-17)
Important: Please keep your guide in a safe place for future reference
INSTALLER AND OWNER GUIDE
This guide is intended to help you
install and care for your Baxi Fires
Division electric heater. Please read
carefully before installing and using
your heater. However, if further
information is required, our Baxi Fires
Division Technical Helpline
will be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom)
In the Republic of Ireland call
0044 8706 061 065

© Baxi Heating U.K. Limited 2007.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following address:
The Company Secretary, Baxi Heating UK Limited, Pentagon House, Sir Frank Whittle
Road, Derby, DE21 4XA.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
CUSTOMER CARE
Thank you for choosing Baxi Fires Division
All Baxi Fires Division heaters are designed to meet the most stringent quality,
performance and safety requirements to provide our customers with many years of
trouble free service. This guide aims to improve your understanding and appreciation of
your new Baxi Fires Division heater, by providing simple and informative instructions
to enable you to install it and to ensure that you benefit from the excellent performance
and features it has to offer.
If you require further assistance, the Baxi Fires Division Technical Helpline
will be
pleased to help.
Please telephone [phone]
(local rates apply in the United Kingdom). In the
Republic of Ireland please telephone [phone].
FOR OTHER USEFUL TELEPHONE NUMBERS SEE PAGE 10 OF THIS GUIDE.
Baxi Fires Division, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

Safety First.
Baxi Fires Division heaters are CE Approved and designed to meet the appropriate
British Standards and Safety Marks.
Quality and Excellence.
All Baxi Fires Division heaters are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted by
the British Standards Institute.
HANDLING AND UNPACKING
Before continuing any further with the installation of this heater please read the
following:
Important instructions.
!The approximate lifting weight of the heater is as below:
Model Heater Body (kg) Fascia (kg) Total (kg)
Fantasy 9.6 10.85 20.45
Glamour 9.8 12.5 22.3
Landscape 9.6 10.85 20.45
Manhattan 9.6 10.85 20.45
Parker 9.6 3.1 12.7
Visia 9.6 7.4 17.0
Page 3
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

!
One person should be sufficient to lift the heater. If for any reason this weight is
considered too heavy then obtain assistance.
!
When lifting always keep your back straight. Bend your legs and not your back.
!Avoid twisting at the waist. It is better to reposition your feet.
!
Avoid upper body / top heavy bending. Always bend from the knees rather than
the waist. Do not lean forward or sideways whilst handling the heater.
!
Always grip with the palm of the hand. Do not use the tips of fingers for support.
!
Always keep the heater as close to the body as possible. This will minimise the
cantilever action.
!Use gloves to provide additional grip.
!Always use assistance if required.
SAFETY
Always
! Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
! Always make sure the electrical socket is accessible and located adjacent to, but
not above or behind the heater.
! Always disconnect the heater from the electrical supply before carrying out
cleaning, maintenance or replacing the light bulbs.
! Always make sure the heater is firmly secured to the wall.
! Always
use a fireguard when young children, infirm persons and pet animals can
come into contact with the heater.
! Always use genuine Baxi Fires Division spares.
Never
! Never leave children unsupervised in a room where the heater is ON and
unguarded.
! Never obstruct or cover the fan outlet or force items into heater openings.
! Never install or use the heater anywhere where water is in use, i.e.
Bathrooms, Kitchens, Shower Rooms, Swimming Pools etc.
! Never use aerosols or steam cleaners on or around the heater.
! Never route the electric cable under carpet etc.
! Never install the heater close to curtains or combustible materials.
! Never use the heater to dry clothes etc.
! Never sit or stand on the heater.
! Never fit a shelf or position soft furnishings such as curtains above the heater.
Page 4
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

FITTING THE HEATER
The installation of this heater requires a reasonable level of DIY skills.
Please read this guide thoroughly before commencing installation and if in doubt,
seek help from a competent person
Do I need any tools?
You will need the following tools: -
! Pozidrive / Phillips / cross head screwdriver.
This should have a number 2 size
tip.
! Power drill
(Preferably with hammer action). This is only required if drilling into
brick work. An appropriate size drill bit will be required for the wall plugs supplied.
Where can I fit the heater?
This heater can be fitted onto a flat wall. Ideally fix the heater through to brick work,
block work or the internal wooden frame of a plaster board wall. If the wooden frame
behind the plasterboard is not accessible use a minimum of four heavy duty cavity
fixings.
We do not recommend that the heater be fitted to a wall covered in blown vinyl
wallpaper or polystyrene tiles etc.
It is important that the heater is never fitted under a shelf or soft furnishings such as
curtains.
If the heater is to be mounted on to a
plasterboard wall that has a wooden frame behind
it then the integrity and ability of the wall to carry the weight of the appliance must be
confirmed. It is important that any vapour control barrier is not damaged, and that the
structural members of the house are not damaged. We recommend a minimum 12mm
thick plasterboard.
Model Fantasy / Glamour Landscape/ Visia
Manhattan Parker
Width (mm) 930 935 930 930
Height (mm) 560 560 560 560
Depth (mm) 151 149 151 149
Important Electrical Safety
The heater must not
be located in front of or under an electrical socket, the socket must
always be accessible in order to disconnect the heater from the electrical supply for
maintenance and cleaning.
Page 5
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

Important! This heater must be earthed.
!
The heater is supplied with a 3 pin 13 Amp fused re-wireable plug with 1mm² 3 core
cable.
! The wires in the cable are coloured in accordance with the following code: -
Live =Brown
Neutral = Blue
Earth = Green /Yellow
! The electric supply must be safely routed from the heater to an electrical socket.
If the electric cable is damaged, to avoid a hazard it must be replaced by a Baxi Fires
Division authorised service agent, or similarly qualified person (See page 9). All
external wiring between the heater and the electrical supply shall comply with current
IEE regulations.
Heater Fixing.

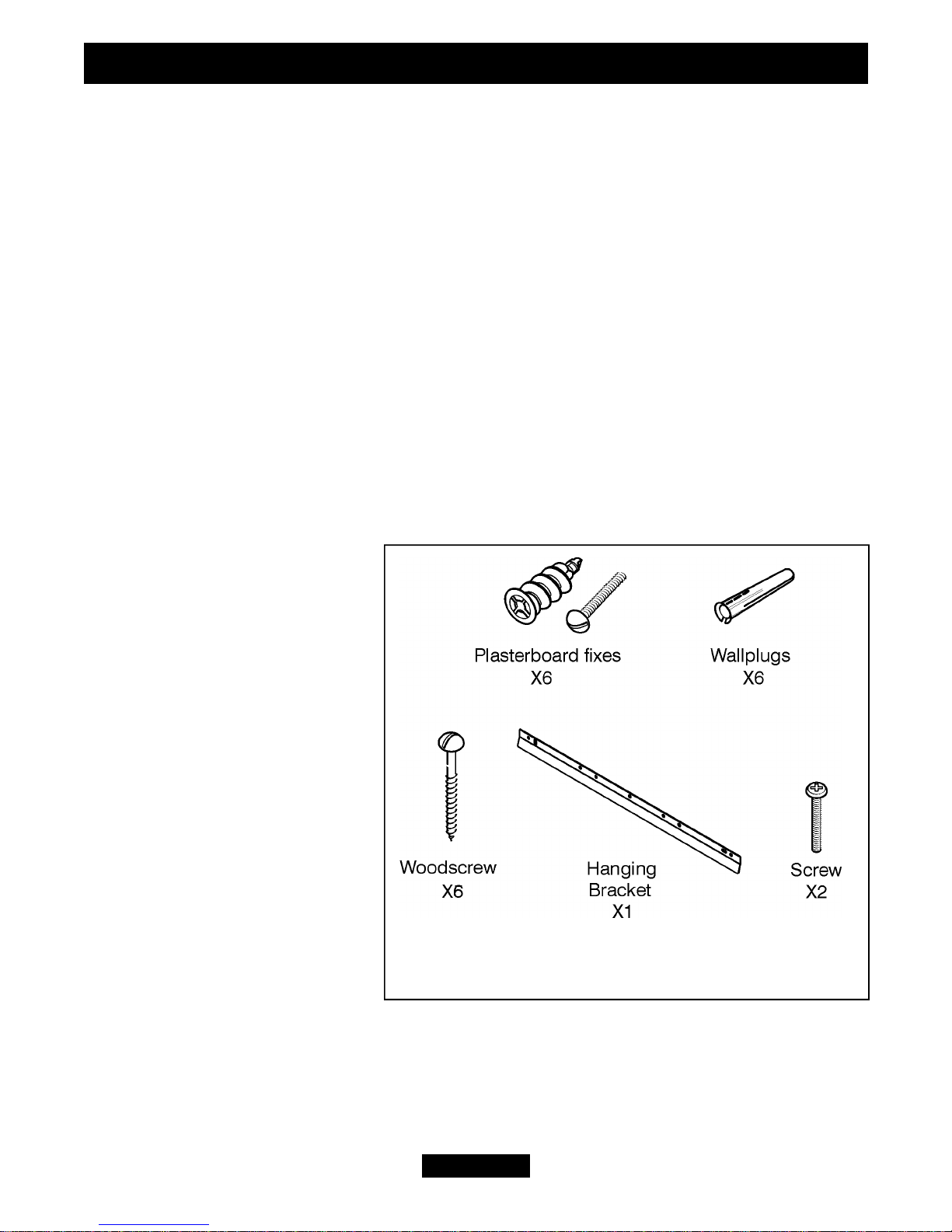

All of the fixings and loose parts supplied with the heater have been identified as in
figure 1.
Fitting the heater.
! Decide the location of the
heater. It is important that the
heater is never fitted under a
shelf or soft furnishings such as
curtains.
! If fitting to a conventional
brick wall then use the outer
slotted holes in the bracket. If
fitting to a plasterboard wall that
has a wooden frame behind it
then use all five fixing holes in
the bracket. This is required to
spread the load. Mark the
positions of the hanging bracket
holes on the wall (See figure 2).
There is a 150mm clearance required under the heater to open the light bulb access
covers.
! Drill the marked positions using a suitable sized drill bit for the chosen fixings.
! Insert the wall plugs / fixings and secure the bracket to the wall using suitable
screws.
Page 6
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 1. Loose parts identification (Items are not to
scale)

! Locate the heater onto the
wall bracket.
! Mark the position of the
lower support bracket hole
on the wall.
! Remove the heater from
the wall bracket.
! Drill the marked position
using a suitable sized drill bit
for the chosen fixings.
! Locate the heater onto the
wall bracket and secure the
lower support bracket using a
suitable screw.
The lower support bracket
must always be used. This
prevents the heater
lifting from the hanging
bracket.
Fitting the fascia.
! Place the loose pebbles
onto the fuel support. It is
not necessary to use all
the pebbles supplied.
! Locate the top of the
fascia behind the top
flange of the heater.
! The fascia is secured using
the two screws with bright
metal finish. These are located
as in figure 3.
! On Visia and Glamour
models the glass panel that
forms part of the fascia is
supplied seperately. Locate the
glass panel hanging hooks into
the slots in the heater body
(See figure 4)
Page 7
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 4.
Figure 3. Underside of heater (Shown with Glamour
facia)
Figure 2. Hanging bracket heights from finished
floor / hearth

USING THE HEATER
Important Safety
Never cover the heater or obstruct any openings on the heater, this could cause
overheating and consequent risk of fire.
What are the three switches for?
The heater is operated by three switches located on the right hand side of the heater.
Switch 1 = OMain On - Off
In the On position only the fuel effect operates
Switch 2 = I1kW fan heat setting and fuel effect
Switch 3 = II 2kW fan heat setting and fuel effect
The switches are mechanically interlocked, so when switch 1 is turned off, all switches
turn off.
CLEANING AND MAINTAINING THE HEATER
How do I Clean my heater?
The heater fascia and glass parts need only to be wiped clean with a dry soft cloth, do
not use polishes or abrasive materials.
I have a problem with my heater!
Important Safety
Before undertaking maintenance or replacing the light bulb(s) always disconnect
the heater from the electricity supply by removing the 3 pin plug and allowing the
heater to cool.
1. My heater is on but there is no light / low light.
This is possibly a light bulb failure. Remove the light bulb as below and check it in a
table lamp that is known to work. If it does not work in the table lamp then replace it as
below.
The light bulbs fitted to this heater are 60Watt E27, 240Volt, triple life, Edison fitting
with a clear finish. Due to the indeterminate life span and ease of replacement, they are
specifically excluded from the guarantee.
Page 8
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.

To replace the light bulb.
!

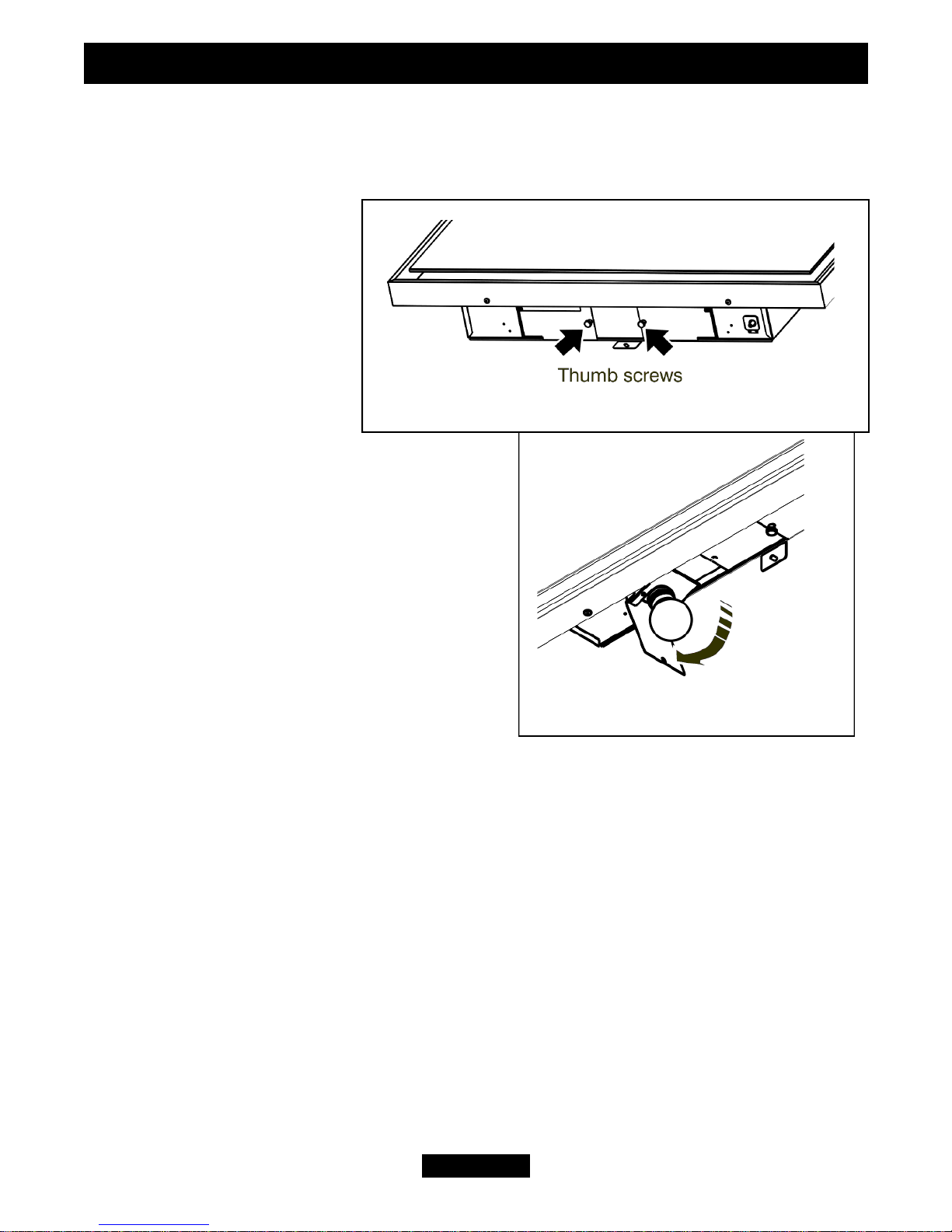

At the base of the heater are two thumb screws (See figure 3) that secure the light
baffle. To gain access to the bulbs unscrew the thumb screws and remove the light
baffle.
! There are two thumb
screws (See figure 5) that
secure the light bulb access
covers. To gain access to the
bulbs unscrew the thumb
screw and lower the access
panel (See figure 6).
! Unscrew the faulty bulb in
a counter clockwise direction
and replace with a maximum
60Watt E27, 240Volt, triple life, Edison fitting
with a clear finish.
! Close the access cover and secure with the
thumbscrew removed previously.
2. My heater is on but there is no light or
heat.
The first thing to do is check the wall socket. To
do this plug in a known working appliance. If
the appliance you have plugged in works then
there is a good chance that the problem lies with
the 13Amp fuse in the heater plug. If either fuse or socket is suspected, have them
checked by an electrician.
3. My heater is on but there is no heat.
A cut out device is fitted to the heater to prevent damage due to over heating. If it
operates due to an obstruction in the airflow, the heater must be turned off and allowed
to cool for 15 minutes and the obstruction removed before restarting.
Page 9
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 6. Light bulb access covers
Figure 5. Light bulb access cover thumbscrews

4. I Have a problem that is different to those in the previous examples 1- 3.
Below is a list of Useful Telephone numbers
For general advice about your heater:
BAXI FIRES DIVISION TECHNICAL HELPLINE 08706 061 065.
To report faults or arrange for your heater to be serviced:
BAXI FIRES DIVISION SERVICE 08706 090 081.
For sales or product information:
BAXI FIRES DIVISION SALES 08706 061 067.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 8706 061 065
For spares inquiries
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow pages under ‘Central Heating’.
When ordering spare parts please have the below information available. This will help
us to deal with your call quicker and avoid you having to make a second call.
! Your Post Code
! Type of Heater (Electric or gas)
! The fault, problem or request.
!
Model, Name and serial number (This information can be found on a small label on
the lower left of the heater next to the cover plate. To see this you may have to remove
the fascia).
What should I do when I’m ready to dispose of my heater?
The plug should be removed from the mains cable and the mains cable cut from the
heater. These should be disposed of with the heater.
Environmental Protection.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer
for recycling advice.
Page 10
INSTALLER AND OWNER GUIDE
© Baxi Heating U.K. Limited 2007.
