BDI ELEMENTS User manual

1
Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to
your BDI products. Register today, and you will be entered to win
free a BINK table from BDI: www.bdiusa.com/register
Placement and Maintenance
Your Elements Media Cabinet is designed for indoor use on level
floors. Clean wood veneer and steel parts with a moist cloth.
Elements is engineered for easy assembly. Carefully follow this
procedure to prevent any damage. Do not use power tools for
assembly of this product.
Step 1
Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as
carpet. For missing hardware pieces, contact BDI Customer Service at: [email protected].
For all other concerns, please contact your BDI retailer.
Designed by BDI Studio.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Elements & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2016, BDI
Made in China. 03.27.2017 7 V2
ELEMENTS™8779__ME__
4 BAY MEDIA CABINET
ELEMENTS™8777__ME__
3 BAY MEDIA CABINET
A1 Cabinet x 1
[quad (shown)
or triple wide]
C5 Back Panels x 2
C4 Side Shelf x 2
C3 Middle Shelf x 1
bdiusa.com
customerservic[email protected]om
T2 Hex Wrench x 1
H1 1/4-20 x 15 mm
Machine Screw x 16
H2 1/4-20 x 63 mm
Machine Screw x 6
T1 Phillips Screwdriver x 1
Note: Door
pattern may
be different
A2 Base Rails x 2
A3 Left Leg x 1
A4 Right
Leg x 1
Your Elements cabinet includes an air-purifier pouch containing chemical-free, non-toxic, activated carbon.
This pouch is designed to absorb and remove traces of odor which may remain as a result of the unique
manufacturing processes used to create Elements. While any such odor will naturally dissipate over a period
of time, the pouch is provided to accelerate the effect. Please feel free to utilize the pouch inside the cabinet
indefinitely or transfer it to any other area in the home where you wish to manage moisture and odors. If you
choose to use it elsewhere (shoe racks, closets, basements, etc.), please be aware that the pouch can be
“re-charged” by placing in direct sunlight for 1-2 hrs after 2-3 months of continuous usage.

bdiusa.com
customerservic[email protected]om
ELEMENTS 8777/8779__ME__
MEDIA CABINET
2
Step 3 Quad - With help from another person, carefully position the cabinet A1 upside-down (as shown) or on
its back. Caution-do not remove blocking above the shelves. Attach the base to the cabinet with 8 Screws
H1 and 6 Screws H2 using Hex Wrench T2. Do NOT fully tighten until all screws are started.
T2
Step 2 - Build Base Assembly
Slide Legs A3 & A4 into Base Rails A2 and attach by using Hex Wrench T2 and 8Screw H1. NOTE: You
MUST align arrows on Base Rails A2 with arrows on Metal Legs E for proper orientation.
A4
A3
A2
A2
Æ
Æ
Æ
Æ
H1
H1
H1
H1
2 Person Task
H2 x 6
H1x 8

bdiusa.com
customerservic[email protected]om
ELEMENTS 8777/8779__ME__
MEDIA CABINET
3
Step 3 Triple - With help from another person, carefully position the cabinet A1 upside-down (as shown) or on
its back. Attach the base to the cabinet with 8 Screws H1 and 6 Screws H2 using Hex Wrench T2. Do NOT
fully tighten until all screws are started.
2 Person Task
T2 H2 x 6
H1x 8
Step 4 Quad Only - Adjustable Shelves
With help from another person, carefully rotate your Elements Media Cabinet onto its feet. The shelf pins located
inside all three cabinet spaces may be repositioned using Screwdriver T1, allowing you to raise or lower
Middle and Side Shelves C3 and C4 to the desired level.
2 Person Task
C3
C4
C4
T1

bdiusa.com
customerservic[email protected]om
ELEMENTS 8777/8779__ME__
MEDIA CABINET
4
H4 Cord Wrap
Step 4 - The 2 Back Panels C5 are removable and can slide towards the middle. To remove lift up and pull the
bottom edge out of its groove. To re-install, put the top edge of the back panel into the top groove, then drop
the bottom edge into the bottom groove.
Your Elements Media Cabinet comes with 2KLEET Cord Wraps H4. Remove the adhesive backing and
adhere the Cord Wraps onto the back as shown (or where desired).
2
1
C5
C5

bdiusa.com
customerservic[email protected]om
ELEMENTS 8777/8779__ME__
MEDIA CABINET
5
Fine tuning your new BDI Media Furniture
These steps are to be followed after you have unpacked and completed the simple assembly instructions for
your console. Due to jostling in freight or perhaps an uneven floor, the doors on your cabinet may not appear
to be in perfect alignment. Making a few minor adjustments can rectify this situation. The high-quality European
hinge hardware is adjustable. Through a little adjustment, you can modify the orientation of the cabinet doors to
make sure that they are sitting perfectly on your unit.
STEP 1 - Level your unit
Levelers are integrated into each leg assembly and are accessed at the bottom of each cabinet leg. If your floor
is uneven, you may extend one or more levelers to attain a level, stable cabinet placement. Turning the leveler
clockwise will extend the leveler; turning it counter-clockwise will retract it.
STEP 2 - Adjust Door Hinges (if needed)
The doors on your cabinet should be evenly spaced and the doors should open and close freely without rubbing
against the door frame. If the cabinet’s doors appear out of alignment, this condition can be corrected with minor
adjustment to the European hinges on each door. Because these hinges are adjustable, adjusting one hinge
element can sometimes cause the need for adjustments to other elements. But with a few adjustments, you can
modify the orientation of the cabinet doors to make sure that they hang perfectly within your cabinet.

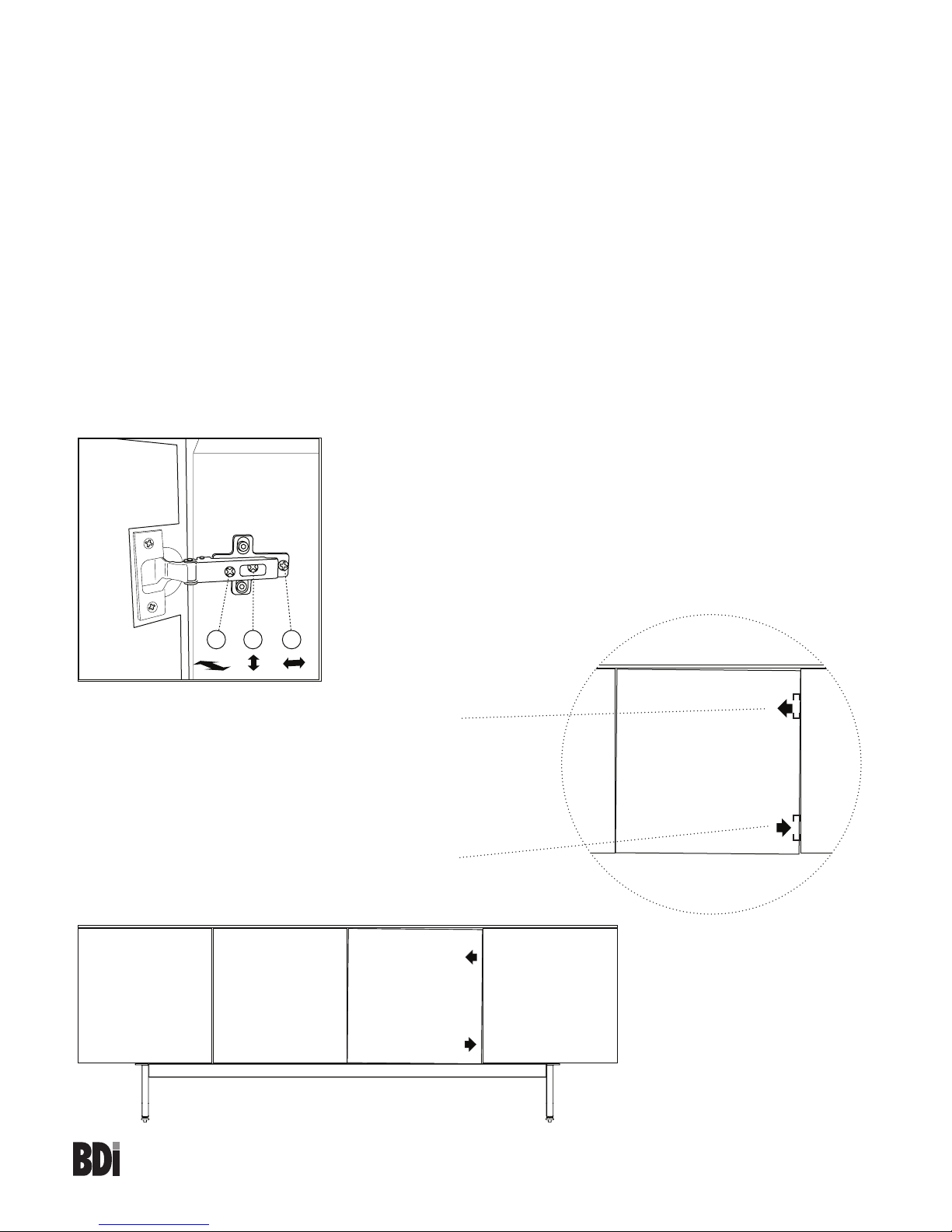

Use the Phillips Screwdriver T1 supplied to adjust the door hinges:
• By adjusting Screw 1, the door will move LEFT or RIGHT within the
frame. Make minor adjustments at both top and bottom hinges for
best results.
• By adjusting Screw 2, the door will move UP or DOWN.
• By adjusting Screw 3 the entire door will move IN or OUT, opening
or closing the gap between the door frame and cabinet. (This screw
rarely needs adjustment.)
Tightening screw 1
on top hinge will open the
seam between Door C
& Door D here.
Loosening screw 1
on this hinge will close
the seam between Door C
& Door D here.
1 2 3
Door A Door B Door C Door D
Door C
