MeridenTM 8127
Assembly Instructions
7/2008
HIGH PERFORMANCE
FURNITURE FOR YOUR
HOME THEATER

2
Meriden™ Home Theater Furniture is engineered for easy assembly.
Carefully follow this procedure to prevent any damage.
Placement and Maintenance
Meriden™ Home Theater Furniture is designed for indoor use on level
floors. Clean glass with glass cleaner; clean steel parts and wood
veneer with a moist cloth.
Step 1
Unpack and identify the parts listed above.
The assembly workspace should be a non-marring surface such
as clean carpet. For missing hardware pieces, please contact BDI
Customer Service at: customerser[email protected].
For all other concerns, please contact your BDI Retailer.
Step 2
Install legs.
Carefully lay assembled cabinet (H) on its rear side. Install base
part (G) to bottom of cabinet using machine screw (D) and allen
wrench (A) or hex driver (C).
Meriden™Home Theater Furniture
Component List
www.bdiusa.com
customerser[email protected]
G - Base Part x 2
D - Machine Screw
x 4
E - Adjustable Shelf x 2
F - Back Panel x 2
C - Hex Driver x 1
A - Allen Wrench x 1
B - Phillips Screwdriver
x 1
H - Assembled Cabinet
x 1
G x 2
D x 4

3
Step 3
Install adjustable shelf (E) to left and right cabinet area. Adjustable shelf may need to be angled slightly in order to
clear door hinges upon installation.
Step 4
Install back panel (F) to the rear side of cabinet. Velcro straps are included as wire management for your
convenience.
Using the Phillips screwdriver, the shelf clips
can be adjusted vertically depending on your
component dimensions.
Pin Assembly Diagram
1 : Retention clip (C)
2 : Glass Shelf (A)
3 : Shelf Pin (B)
4 : Cabinet wall
Retention clip (C)
Shelf pin (B)
1
4
1
4

4
Thank you for choosing BDI.
Your BDI home theater cabinet is engineered to include a range of adjustments. Please read and retain this guide so
that you can fully enjoy the look and use of your cabinet for years to come.
Unless manual leveling is required or you wish to prevent the cabinet from rolling, you may prefer to keep the
cabinet’s levelers up and off the floor. This allows easier cabinet movement for greater access to rear panels and
wire-management, and permits easier cleaning/vacuuming underneath the cabinet.
By following the steps in this guide, you can be sure that your BDI cabinet is in optimum tune and adjustment. If you
need additional assistance, contact BDI at customerser[email protected].
Fine tuning your BDI Meriden Home Theater Furniture
After unpacking and assembling your cabinet, inspect it to be sure that it is sitting level on the floor, that all doors
appear level, and that they open and close freely without rubbing or binding.
Due to uneven floors or perhaps gentle jostling during shipment, your BDI cabinet may not appear to be in perfect
alignment when first assembled or when loaded with heavier electronic equipment. Such alignment issues are
usually minimized or eliminated with only a few minor adjustments.
STEP 1 - Level the cabinet (if needed)
Levelers are integrated into each leg assembly and are accessed from inside the cabinet. If your floor is uneven,
you may extend one or more levelers (with the provided Allen Wrench) to attain a level, stable cabinet placement.
Turning the leveler clockwise will extend the leveler; turning it counter-clockwise will retract it.

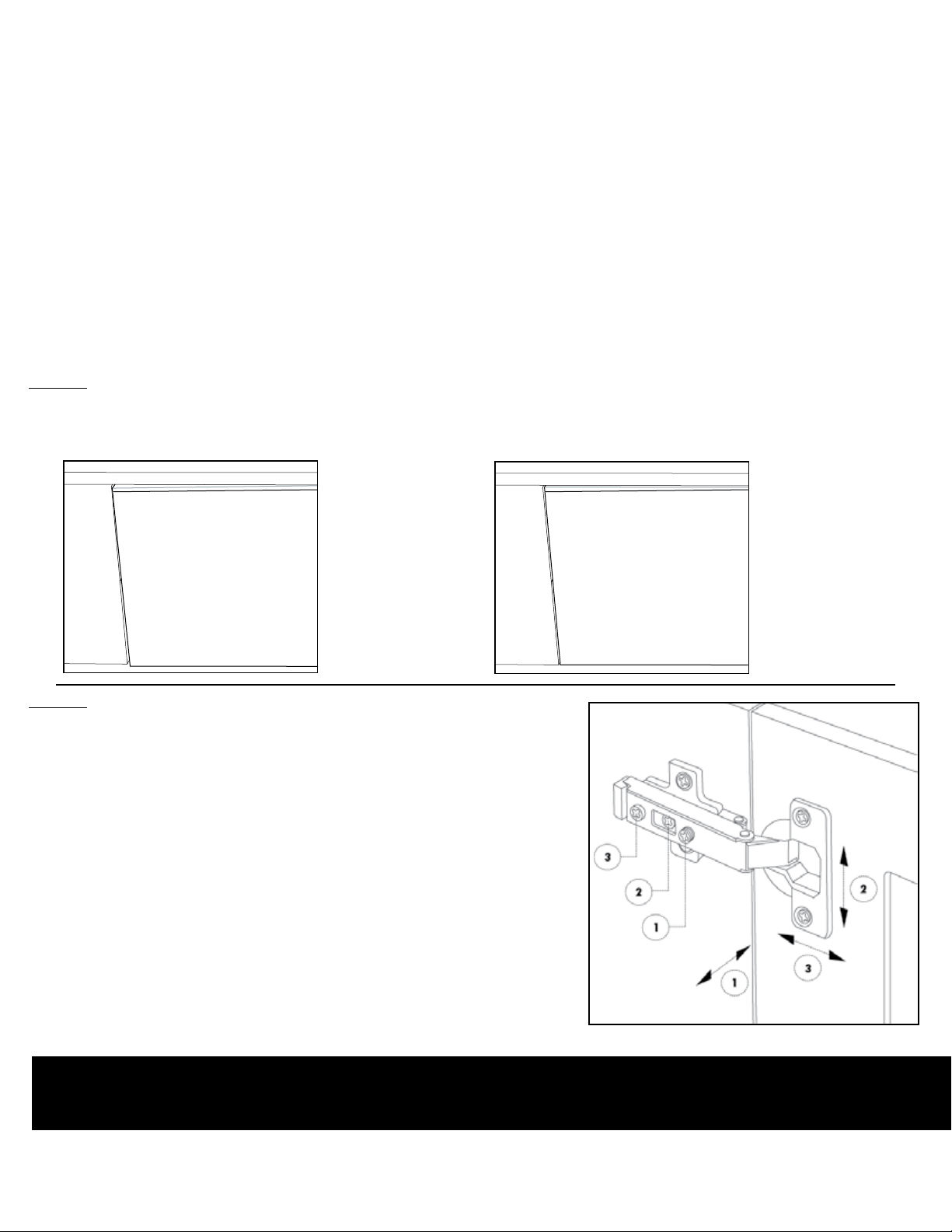

STEP 2 - Adjust Door Hinges (if needed)
Your cabinet’s doors should show even spacing around edges and
should open and close freely, without rubbing against the door frame.
BDI cabinets feature high-quality, infinitely adjustable European hinges.
Adjustments may be made to the door hinges with the use of a Phillips
head screwdriver, and each hinge features three (3) adjustment screws:
• By adjusting Screw 1, the door will move left or right within the
frame. Making minor adjustments to both the top and bottom hinges
usually yields best results.
• By adjusting Screw 2, the door will move up or down within the
frame. (The top and bottom hinges must be adjusted equally).
• By adjusting Screw 3, the door will move in or out, opening and
closing the gap between the door frame and cabinet. (Screw 3 rarely
needs adjustment.)
MeridenTM 8127
Designed by Cristian Wicha.
‘Meriden’ is a trademark of Becker Designed, Inc.
All rights reserved. ©2008 Becker Designed, Inc.
7/2008
INCORRECT! Door
is out of alignment
with the rest of the
unit.
CORRECT! Door is
sitting squarely and
evenly spaced on
tops and sides.
