Behringer 2500 Series User manual

Quick Start Guide
SAMPLE & HOLD / RANDOM
VOLTAGE MODULE 1036
Legendary 2500 Series Dual Sample and
Hold with Voltage Controlled Clock Module
for Eurorack
Controls
(3)
(4)
(5)
(2)
(1)
(8)
(9)
(6)
(7)
(13)(12)
(10)
(11)
(1) LED - Indicates that clock A or B is engaged.
(2) CLOCK FREQ - Sets the clock frequency value.
(3) CLOCK RANGE - Determines whether the value selected with the
associated Clock Frequency knob is interpreted by a factor of 1/10th or x10.
For example, a setting of 50 on the knob will either result in 5 Hz or 500 Hz.
(4) SAMPLE - Manually generate a sample command pulse.
(5) CLOCK ON/OFF - Engage clock A and B pulse generators independently.
Clock A can be assigned to both sample and hold sections if desired.
(6) TRIG/GATE - Determines whether a short trigger or longer gate will open
the sampler. In the trigger position, the positive edge of the pulse will
open the sampler for about 10 ms, whereas the gate position will hold the
output of the sampler open for the entire duration of the positive pulse.
(7) INT RANDOM SIG - Adjusts the level of the internal random
signal generator, which can be used instead of or in addition to an
external signal.
(8) EXT SIG - Attenuates the signal connected to the EXT IN jack.
(9) CLOCK FREQ MOD - Attenuates the signal connected to the FM IN jack.
(10) EXT IN - Connect an external voltage which will be sampled
and manipulated.
(11) SAMPLE - Connect an external oscillator or keyboard trigger to generate a
sample command pulse.
(12) FM IN - Connect a voltage to control the clock frequency modulation of the
pulse generator.
(13) OUT - Send the sample to other modules via 3.5 mm TS cable.
Power Connection
The unit comes with the required power cable for connecting to a standard
Eurorack power supply system. Follow these steps to connect power to the
module. It is easier to make these connections before the module has been
mounted into a rack case.
1. Turn the power supply or rack case power o and disconnect the
power cable.
2. Insert the 16-pin connector on the power cable into the socket on the
power supply or rack case. The connector has a tab that will align with the
gap in the socket, so it cannot be inserted incorrectly. If the power supply
does not have a keyed socket, be sure to orient pin 1 (-12 V) with the red
stripe on the cable.
3. Insert the 10-pin connector into the socket on the back of the module. The
connector has a tab that will align with the socket for correct orientation.
4. After both ends of the power cable have been securely attached, you may
mount the module in a case and turn on the power supply.
Installation
The necessary screws are included with the module for mounting in a Eurorack
case. Connect the power cable before mounting.
Depending on the rack case, there may be a series of xed holes spaced 2 HP
apart along the length of the case, or a track that allows individual threaded
plates to slide along the length of the case. The free-moving threaded plates
allow precise positioning of the module, but each plate should be positioned in
the approximate relation to the mounting holes in your module before attaching
the screws.
Hold the module against the Eurorack rails so that each of the mounting holes
are aligned with a threaded rail or threaded plate. Attach the screws part way to
start, which will allow small adjustments to the positioning while you get them
all aligned. After the nal position has been established,
tighten the screws down.
V 1.0
Specications
Inputs
FM in
Type 2 x 3.5 mm TS jacks
Impedance 50 kΩ, unbalanced
CV range 0-10 V
Sample
Type 2 x 3.5 mm TS jacks
Impedance 10 kΩ, unbalanced
Max input level 5 V
Ext in
Type 2 x 3.5 mm TS jacks
Impedance 25 kΩ, unbalanced
Max input level 10 V
Outputs
Out
Type 2 x 3.5 mm TS jacks
Impedance 1 kΩ, unbalanced
Max output level 10 V
Controls
Clock freq 0.3-30 Hz
Clock range Clock value factor of x0.1 or x10
Clock on/o Engage pulse generators
Sample Generate sample command
Trig/gate Selects sample (trig) or
continues sample (gate)
Int random sig 0 to ±7 V
Ext sig -∞ to unity gain
Clock freq mod -∞ to unity gain
Power
Power supply Eurorack
Current draw 40 mA (+12 V), 40 mA (-12 V)
Physical
Dimensions 43 x 81 x 129 mm (1.7 x 3.2 x 5.1")
Rack units 16 HP
Weight 0.18 kg (0.4 lbs)
LEGAL DISCLAIMER
Music Tribe accepts no liability for any loss which may be suered by any
person who relies either wholly or in part upon any description, photograph,
or statement contained herein. Technical specications, appearances and other
information are subject to change without notice. All trademarks are the property
of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake,Tannoy,
Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone and Coolaudio
are trademarks or registered trademarks of MusicTribe Global Brands Ltd. ©
Music Tribe Global Brands Ltd. 2020 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information
regarding Music Tribe’s Limited Warranty, please see complete details online at
musictribe.com/warranty.

Other manuals for 2500 Series

6

This manual suits for next models

1

Other Behringer Control Unit manuals

Behringer 112 DUAL VCO User manual

Behringer

Behringer 112 DUAL VCO User manual

Behringer CP35 Attenuators User manual

Behringer

Behringer CP35 Attenuators User manual

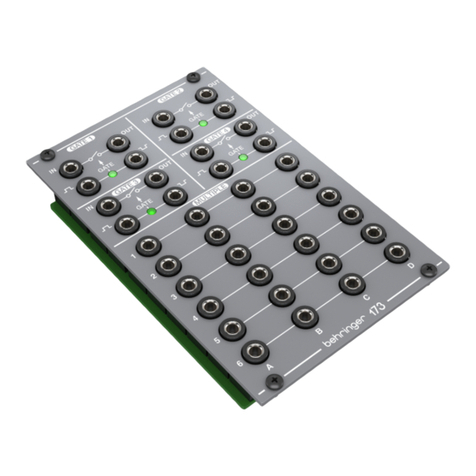

Behringer 173 QUAD GATE/MULTIPLES User manual

Behringer

Behringer 173 QUAD GATE/MULTIPLES User manual

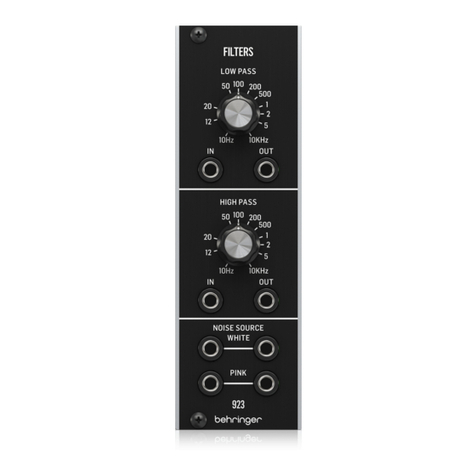

Behringer 923 FILTERS User manual

Behringer

Behringer 923 FILTERS User manual

Behringer 994 MULTIPLES User manual

Behringer

Behringer 994 MULTIPLES User manual

Behringer 960 SEQUENTIAL CONTROLLER User manual

Behringer

Behringer 960 SEQUENTIAL CONTROLLER User manual

Behringer 150 RING MOD/NOISE/S&H/LFO User manual

Behringer

Behringer 150 RING MOD/NOISE/S&H/LFO User manual

Behringer 921B OSCILLATOR User manual

Behringer

Behringer 921B OSCILLATOR User manual

Behringer 992 CONTROL VOLTAGES User manual

Behringer

Behringer 992 CONTROL VOLTAGES User manual

Behringer 961 Interface User manual

Behringer

Behringer 961 Interface User manual

Behringer 140 DUAL ENVELOPE/ LFO User manual

Behringer

Behringer 140 DUAL ENVELOPE/ LFO User manual

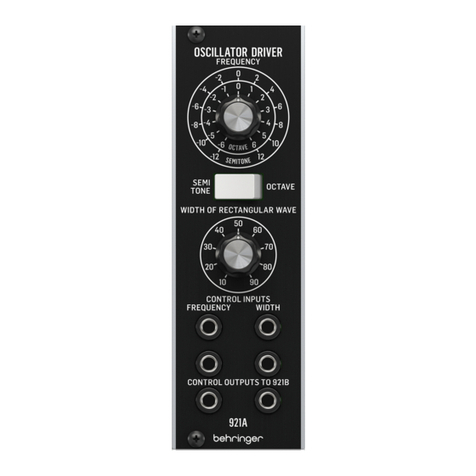

Behringer 921A Oscillator Driver User manual

Behringer

Behringer 921A Oscillator Driver User manual

Behringer CP3A-O User manual

Behringer

Behringer CP3A-O User manual

Behringer 2500 Series User manual

Behringer

Behringer 2500 Series User manual

Behringer 130 DUAL VCA User manual

Behringer

Behringer 130 DUAL VCA User manual

Behringer 121 DUAL VCF User manual

Behringer

Behringer 121 DUAL VCF User manual

Behringer 902 User manual

Behringer

Behringer 902 User manual

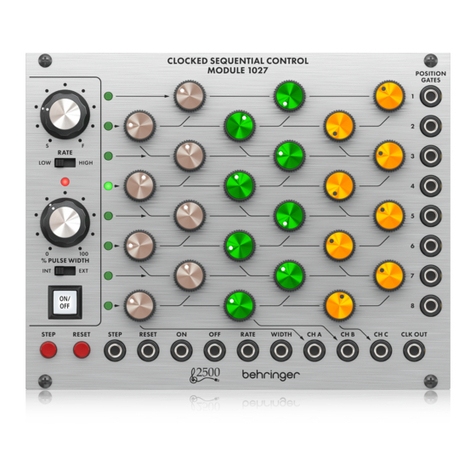

Behringer 1027 User manual

Behringer

Behringer 1027 User manual

Behringer 992 CONTROL VOLTAGES User manual

Behringer

Behringer 992 CONTROL VOLTAGES User manual

Behringer MODAMP 2500 Series User manual

Behringer

Behringer MODAMP 2500 Series User manual

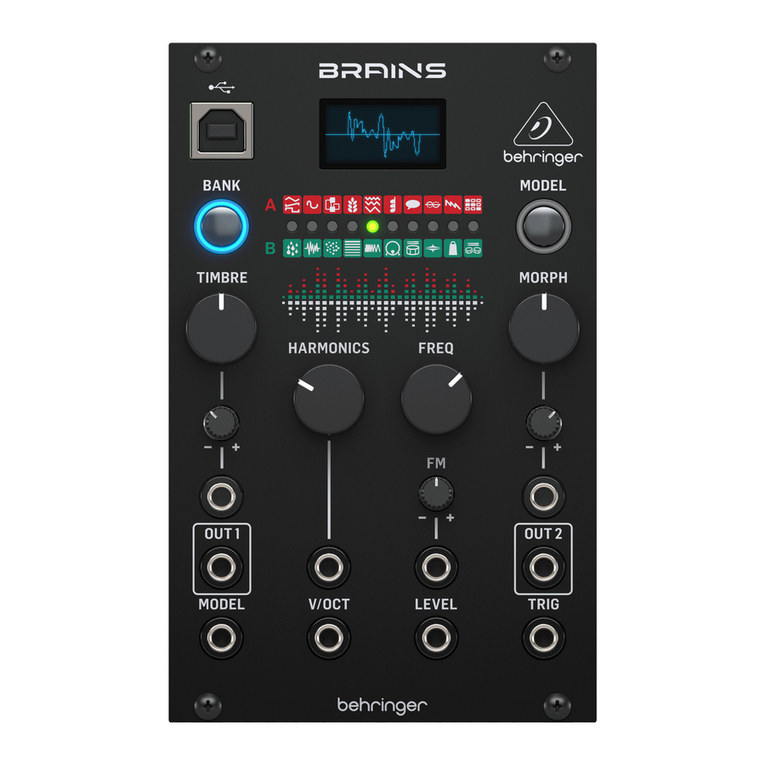

Behringer BRAINS User manual
