Belden Hirschmann SPIDER-SL-20-01T1S29999SZ9HHHH User manual

Installation SPIDER-SL
Release 06 01/2020
Technical support
https://hirschmann-support.belden.com
User Manual
Installation
Industrial Ethernet Rail Switch
SPIDER Standard Line

2020-01-20 Installation SPIDER-SL
Release 06 01/2020
The naming of copyrighted trademarks in this manual, even when not specially indicated, should
not be taken to mean that these names may be considered as free in the sense of the trademark
and tradename protection law and hence that they may be freely used by anyone.
© 2020 Hirschmann Automation and Control GmbH
Manuals and software are protected by copyright. All rights reserved. The copying, reproduction,
translation, conversion into any electronic medium or machine scannable form is not permitted,
either in whole or in part. An exception is the preparation of a backup copy of the software for
your own use.
The performance features described here are binding only if they have been expressly agreed
when the contract was made. This document was produced by Hirschmann Automation and
Control GmbH according to the best of the company's knowledge. Hirschmann reserves the right
to change the contents of this document without prior notice. Hirschmann can give no guarantee
in respect of the correctness or accuracy of the information in this document.
Hirschmann can accept no responsibility for damages, resulting from the use of the network
components or the associated operating software. In addition, we refer to the conditions of use
specified in the license contract.
You can get the latest version of this manual on the Internet at the Hirschmann product site
(www.hirschmann.com).
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany

Installation SPIDER-SL
Release 06 01/2020 3
Contents
Safety instructions 5
About this Manual 10
Legend 11
1 Description 12
1.1 General device description 12
1.2 Device name and product code 13
1.3 Device view 14
1.3.1 Front view 14
1.4 Power supply 16
1.4.1 Supply voltage with the characteristic value HH 16
1.4.2 Supply voltage with characteristic value HK 16
1.5 Ethernet ports 16
1.5.1 10/100/1000 Mbit/s twisted pair port 16
1.5.2 10/100 Mbit/s twisted pair port 17
1.5.3 100/1000 Mbit/s F/O port 17
1.5.4 100 Mbit/s F/O port 17
1.6 Pin assignments 18
1.7 Display elements 18
1.7.1 Device state 18
1.7.2 Port status 19
2 Installation 20
2.1 Checking the package contents 20
2.2 Mounting the device 21
2.2.1 Installing the device onto the DIN rail 21
2.2.2 Mounting on a flat surface 22
2.3 Installing an SFP transceiver (optional) 23
2.4 Wiring the terminal block for the supply voltage and the
grounding 24
2.4.1 Connecting the 3-pin terminal block (device variants
with characteristic value HH) 25

4Installation SPIDER-SL
Release 06 01/2020
2.4.2 Connecting the 3-pin voltage terminal with spring
(device variants with the characteristic value HK) 26
2.5 Operating the device 27
2.6 Connecting data cables 27
3 Monitoring the ambient air temperature 28
4 Maintenance and service 29
5Disassembly 30
5.1 Removing an SFP transceiver (optional) 30
5.2 Removing the device 31
6 Technical data 32
A Further support 38

Installation SPIDER-SL
Release 06 01/2020 5
Safety instructions
General safety instructions
You operate this device with electricity. Improper usage of the device
entails the risk of physical injury or significant property damage. The
proper and safe operation of this device depends on proper handling
during transportation, proper storage and installation, and careful
operation and maintenance procedures.
Before connecting any cable, read this document, and the safety
instructions and warnings.
Operate the device with undamaged components exclusively.
The device is free of any service components. In case of a damaged
or malfunctioning device, turn off the supply voltage and return the
device to Hirschmann for inspection.
Certified usage
Use the product only for the application cases described in the
Hirschmann product information, including this manual.
Operate the product only according to the technical specifications.
See “Technical data” on page 32.
Connect to the product only components suitable for the requirements
of the specific application case.
Installation site requirements
Install the device in a fire enclosure according to EN 60950-1.
Device casing
Only technicians authorized by the manufacturer are permitted to open
the casing.
Never insert pointed objects (narrow screwdrivers, wires, etc.) into the
device or into the connection terminals for electric conductors. Do not
touch the connection terminals.
Keep the ventilation slits free to ensure good air circulation.
See “General technical data” on page 32.
Mount the device in the vertical position.

6Installation SPIDER-SL
Release 06 01/2020
Qualification requirements for personnel
Only allow qualified personnel to work on the device.
Qualified personnel have the following characteristics:
Qualified personnel are properly trained. Training as well as practical
knowledge and experience make up their qualifications. This is the
prerequisite for grounding and labeling circuits, devices, and systems
in accordance with current standards in safety technology.
Qualified personnel are aware of the dangers that exist in their work.
Qualified personnel are familiar with appropriate measures against
these hazards in order to reduce the risk for themselves and others.
Qualified personnel receive training on a regular basis.
National and international safety regulations
Verify that the electrical installation meets local or nationally applicable
safety regulations.
Grounding the device
The device is grounded by a 3-pin terminal block.
Use a wire diameter for the ground conductor that is no smaller than
the diameter of the supply voltage connection, however of at least
0.5 mm² (AWG20).
Shielding ground
The shielding ground of the connectable twisted pair cables is connected
to the ground connection as a conductor.
Beware of possible short circuits when connecting a cable section with
conductive shielding braiding.

Installation SPIDER-SL
Release 06 01/2020 7
Requirements for connecting electrical wires
Before connecting the electrical wires, always verify that the
requirements listed are complied with.
Supply voltage
The supply voltage is only connected with the ground connection via
protective elements.
General requirements for connecting electrical wires
The following requirements apply without restrictions:
The electrical wires are voltage-free.
The cables used are permitted for the temperature range of the application case.
The voltage connected complies with the requirements for a safety extra-low voltage
(SELV) as per IEC/EN 60950-1.
Relevant for North America:
Exclusively use 60/75 °C (140/167 °F) or 75 °C (167 °F) copper (Cu) wire.
Requirements for connecting the supply voltage
The following requirements apply without restrictions:
The supply voltage corresponds to the voltage specified on the type plate of the device.
The power supply conforms to overvoltage category I or II.
The power supply has an easily accessible disconnecting device (for example a switch or
a plug). This disconnecting device is clearly identified. So in the case of an emergency, it is
clear which disconnecting device belongs to which power supply cable.
The power supply cable is suitable for the voltage, the current and the physical load.
Hirschmann recommends a wire diameter of 0.5 mm² (AWG20).
The cross-section of the ground conductor is the same size as or bigger than the cross-
section of the power supply cables.
The following requirements apply alternatively:
Alternative 1 The power supply complies with the requirements for a limited power source
(LPS) as per EN 60950-1.
Alternative 2 All of the following requirements are complied with:
The power supply complies with the requirements for a safety extra-low
voltage (SELV) as per IEC/EN 60950-1.
A fuse suitable for DC voltage is located in the plus conductor of the power
supply.
The minus conductor is on ground potential. Otherwise, a fuse is also
located in the minus conductor.
Regarding the properties of this fuse:
See “General technical data” on page 32.
Alternative 3 Relevant for North America:
The power supply complies with the requirements according to NEC Class 2.

8Installation SPIDER-SL
Release 06 01/2020
CE marking
The labeled devices comply with the regulations contained in the following
European directive(s):
2011/65/EU and 2015/863/EU (RoHS)
Directive of the European Parliament and of the Council on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
2014/30/EU (EMC)
Directive of the European Parliament and of the Council on the
harmonisation of the laws of the Member States relating to
electromagnetic compatibility.
In accordance with the above-named EU directive(s), the EU conformity
declaration will be available to the relevant authorities at the following
address:
Hirschmann Automation and Control GmbH
Stuttgarter Str. 45-51
72654 Neckartenzlingen
Germany
www.hirschmann.com
The device can be used in the industrial sector.
Interference immunity: EN 61000-6-2
Emitted interference: EN 55032
You find more information on technical standards here:
“Technical data” on page 32
Warning! This is a class A device. This device can cause interference in
living areas, and in this case the operator may be required to take
appropriate measures.
Note: The assembly guidelines provided in these instructions must be
strictly adhered to in order to observe the EMC threshold values.
LED or laser components
LED or LASER components according to IEC 60825-1 (2014):
CLASS 1 LASER PRODUCT
CLASS 1 LED PRODUCT

Installation SPIDER-SL
Release 06 01/2020 9
FCC note
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
SPIDER-SL
U.S. Contact Information
Belden – St. Louis
1 N. Brentwood Blvd. 15th Floor
St. Louis, Missouri 63105, United States
Phone: [phone]
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference; (2) this device must accept any interference received,
including interference that may cause undesired operation.
Appropriate testing has established that this device fulfills the
requirements of a class A digital device in line with part 15 of the FCC
regulations.
These requirements are designed to provide sufficient protection against
interference when the device is being used in a business environment.
The device creates and uses high frequencies and can also radiate these
frequencies. If it is not installed and used in accordance with this
operating manual, it can cause radio transmission interference. The use
of this device in a residential area can also cause interference, and in this
case the user is obliged to cover the costs of removing the interference.
Recycling note
After usage, this device must be disposed of properly as electronic waste,
in accordance with the current disposal regulations of your county, state,
and country.

10 Installation SPIDER-SL
Release 06 01/2020
About this Manual
The “Installation” user manual contains a device description, safety
instructions, a description of the display, and the other information that you
need to install the device.
Documentation mentioned in the “User Manual Installation” that is not
supplied with your device as a printout can be found as PDF files for
downloading on the Internet at: https://www.doc.hirschmann.com

Installation SPIDER-SL
Release 06 01/2020 11
Legend
The symbols used in this manual have the following meanings:
Listing
Work step
Subheading

12 Installation SPIDER-SL
Release 06 01/2020
1 Description
1.1 General device description
The device is designed for the special requirements of industrial automation.
The device meets the relevant industry standards, provides very high
operational reliability, even under extreme conditions, and also long-term
reliability and flexibility.
You have numerous options of combining the device characteristics. You can
determine the possible combinations using the configurator which is
available in the Belden Online Catalog https://catalog.belden.com on the web
page of the device.

Installation SPIDER-SL
Release 06 01/2020 13
1.2 Device name and product code
The device name corresponds to the product code. The product code is
made up of characteristics with defined positions. The characteristic values
stand for specific product properties.
Item Characteristic Character
istic value
Description
1 ... 9 Product SPIDER-
SL
SPIDER Standard Line
10 (hyphen) –
11 Data rate 2 10/100 Mbit/s
4 10/100/1000 Mbit/s
12 Power over Ethernet
(PoE)
0 without PoE support
13 (hyphen) –
14 ... 17 Number
Twisted pair ports
01T1
04T1
05T1
06T1
08T1
18 ... 19 Optical fiber port 1 M2 DSC multimode socket for 100 Mbit/s F/O
connections
S2 DSC singlemode socket for 100 Mbit/s F/O
connections
M4 ST multimode socket for 100 Mbit/s F/O
connections
O6 SFP slot for 100/1000 Mbit/s F/O connections
99 without
20 ... 21 Optical fiber port 2 M2 DSC multimode socket for 100 Mbit/s F/O
connections
S2 DSC singlemode socket for 100 Mbit/s F/O
connections
O6 SFP slot for 100/1000 Mbit/s F/O connections
99 without
22 ... 23 Optical fiber port 3 99 without
24 Temperature range S Standard +32 °F ... +140 °F (0 °C ...
+60 °C)
Deratinga
T Extended -40 °F ... +158 °F (-
40 °C ... +70 °C)
25 ... 26 Certificates and
declarations
Z9 CE, FCC, EN61131, RCM
Y9 Z9 + cUL 61010
TY Y9 + EN 50121-4
27 ... 28 Customer-specific
version
HH Hirschmann standard
HK Voltage terminal with spring
29 ... 30 Configuration HH Hirschmann standard
Table 1: Device name and product code

14 Installation SPIDER-SL
Release 06 01/2020
1.3 Device view
1.3.1 Front view
a. For device variant SPIDER SL-40-06T1O6O699SZ9HHHH, the maximum permitted
ambient air temperature has to be reduced to 122 °F (50 °C).
Front view using example of device variants SPIDER-SL-20...
SPIDER-SL-20-08T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 ... 6 4 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
7 Rail lock slide for DIN rail mounting
8 ... 11 4 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
SPIDER-SL-20-06T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 LED display elements for port status
4 depending on device variant
DSC multimode socket for 100 Mbit/s F/O connections
DSC singlemode socket for 100 Mbit/s F/O connections
5 RJ45 socket for 10/100 Mbit/s Twisted pair connections
6 Rail lock slide for DIN rail mounting
7 ... 11 5 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
SPIDER-SL-20-04T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 ... 6 4 × RJ45 socket for 10/100 Mbit/s Twisted pair connections
7 LED display elements for port status
8 Rail lock slide for DIN rail mounting
SPIDER-SL-20-01T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 RJ45 socket for 10/100 Mbit/s Twisted pair connections
22
3
4
5
SPIDER-SL-20-01T1...
1
SPIDER-SL-20-04T1...
1
2
3
4
5
6
7
8
SPIDER-SL-20-06T1...
1
1111
1010
9
8
7
2
4
5
6
3
SPIDER-SL-20-08T1...
1
7
1111
1010
9
8
3
4
5
6
2

Installation SPIDER-SL
Release 06 01/2020 15
4 LED display elements for port status
5 Rail lock slide for DIN rail mounting
Front view using example of device variants SPIDER-SL-40...
SPIDER-SL-40-08T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 ... 6 4 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
7 Rail lock slide for DIN rail mounting
8 ... 11 4 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
SPIDER-SL-40-06T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 LED display elements for port status
4 ... 5 SFP slot for 100/1000 Mbit/s F/O connections
6 ... 7 2 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
8 Rail lock slide for DIN rail mounting
9 ... 12 4 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
SPIDER-SL-40-06T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 LED display elements for port status
4 SFP slot for 100/1000 Mbit/s F/O connections
5 ... 6 2 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
7 Rail lock slide for DIN rail mounting
8 ... 11 4 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
SPIDER-SL-40-05T1...
1 LED display elements for device status
2 3-pin, pluggable terminal block for power supply
3 ... 7 5 × RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
8 Rail lock slide for DIN rail mounting
SPIDER-SL-40-06T1...
1
12
12
11
11
10
10
9
2
4
6
7
3
5
SPIDER-SL-40-06T1...
1
7
2
4
5
6
3
11
11
10
10
9
8
SPIDER-SL-40-05T1...
1
2
3
4
5
6
7
8
SPIDER-SL-40-08T1...
7
11
11
10
10
9
8
3
4
5
6
2
1
8

16 Installation SPIDER-SL
Release 06 01/2020
1.4 Power supply
1.4.1 Supply voltage with the characteristic value HH
The following options for power supply are available:
3-pin terminal block
You will find information on connecting the supply voltage here:
See “Connecting the 3-pin terminal block (device variants with
characteristic value HH)” on page 25.
1.4.2 Supply voltage with characteristic value HK
The following options for power supply are available:
3-pin terminal block
You will find information on connecting the supply voltage here:
See “Connecting the 3-pin voltage terminal with spring (device variants
with the characteristic value HK)” on page 26.
1.5 Ethernet ports
You can connect end devices and other segments to the device ports using
twisted pair cables or optical fibers (F/O).
You find information on pin assignments for making patch cables here:
“Pin assignments” on page 18
1.5.1 10/100/1000 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100/1000 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX/
1000BASE-T standard.
This port supports:
Autonegotiation
Autopolarity
Autocrossing
1000 Mbit/s full duplex
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode

Installation SPIDER-SL
Release 06 01/2020 17
1.5.2 10/100 Mbit/s twisted pair port
This port is an RJ45 socket.
The 10/100 Mbit/s twisted pair port allows you to connect network
components according to the IEEE 802.3 10BASE-T/100BASE-TX standard.
This port supports:
Autonegotiation
Autopolarity
Autocrossing
100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
1.5.3 100/1000 Mbit/s F/O port
This port is an SFP slot.
The 100/1000 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX/1000BASE-SX/1000BASE-LX
standard.
This port supports:
100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver
1.5.4 100 Mbit/s F/O port
The 100 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX standard.
This port supports:
Full duplex mode

18 Installation SPIDER-SL
Release 06 01/2020

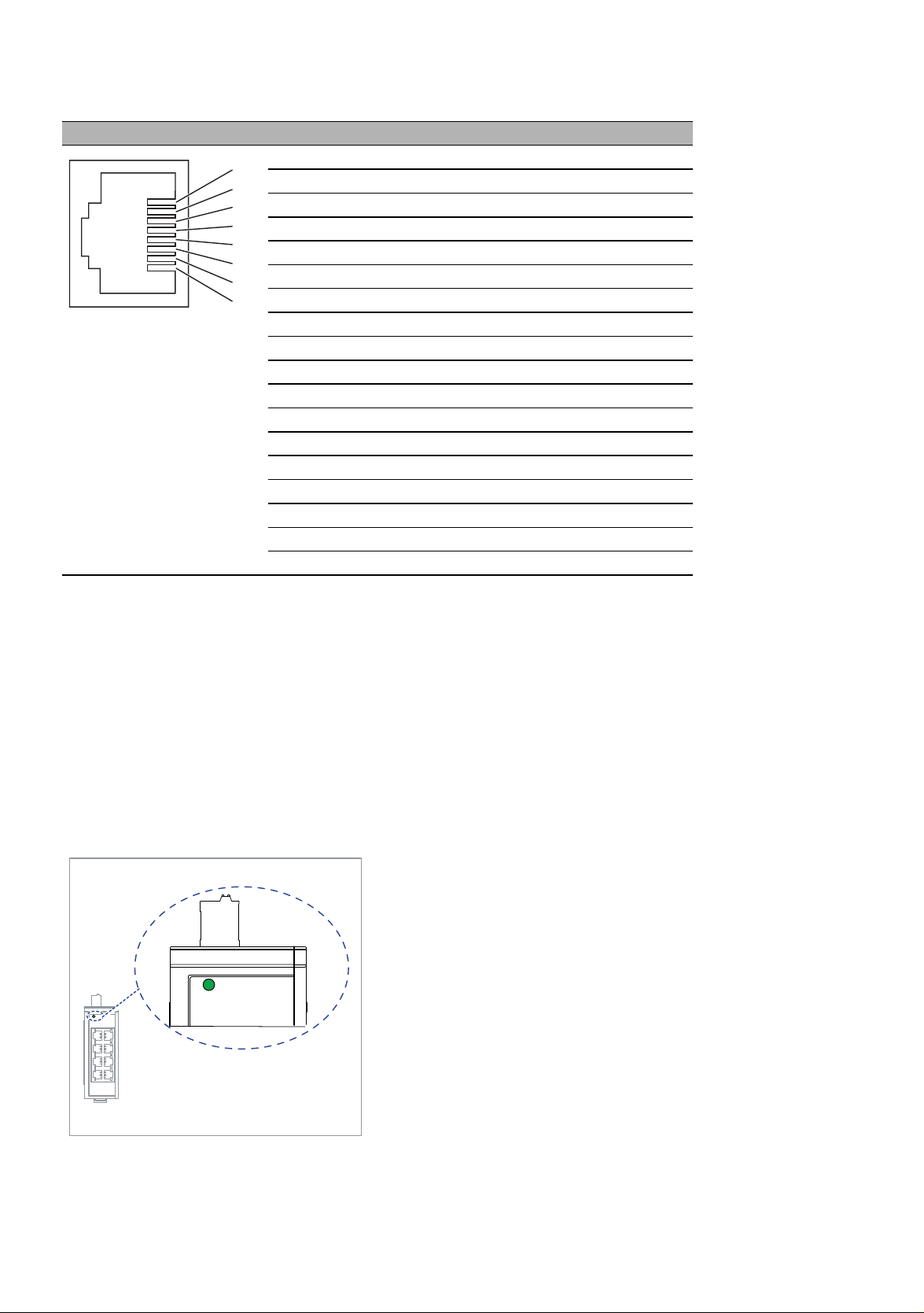

1.6 Pin assignments
1.7 Display elements
After the supply voltage is switched on, the device performs a self-test.
During this process, various LEDs light up.
1.7.1 Device state
This LED provides information on the status of the power supply.
RJ45 Pin 10/100 Mbit/s 1000 Mbit/s
MDI mode
1 TX+ BI_DA+
2TX−BI_DA−
3 RX+ BI_DB+
4— BI_DC+
5— BI_DC−
6RX−BI_DB−
7— BI_DD+
8— BI_DD−
MDI-X mode
1 RX+ BI_DB+
2RX−BI_DB−
3 TX+ BI_DA+
4— BI_DD+
5— BI_DD−
6TX−BI_DA−
7— BI_DC+
8— BI_DC−
1
2
3
4
5
6
7
8

Installation SPIDER-SL
Release 06 01/2020 19

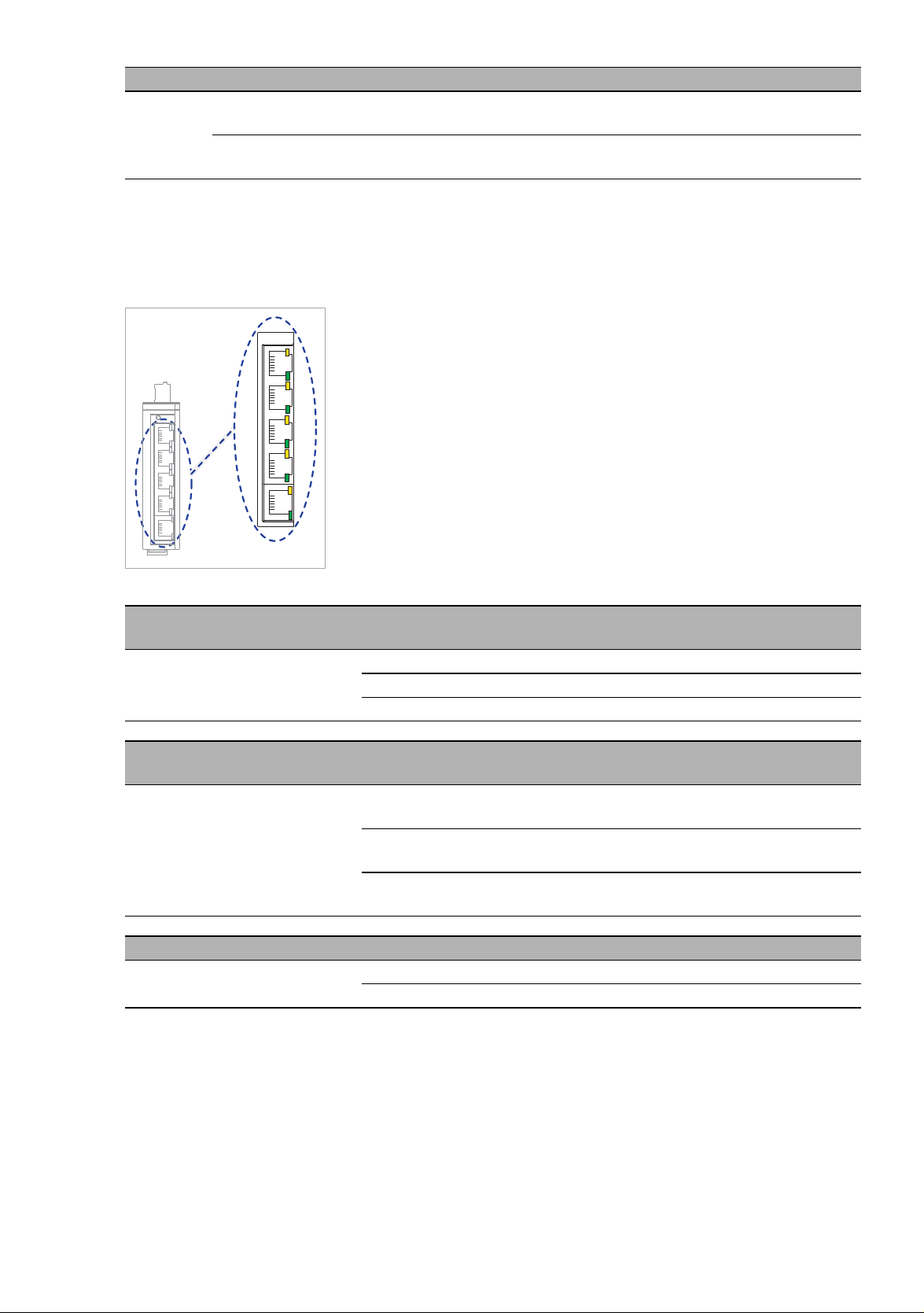

1.7.2 Port status
These LEDs provide port-related information.
Color Activity Meaning
green lights up Supply voltage is on
Device is ready for operation
none Supply voltage is too low
Device is not ready for operation
L/D
(link status/data)
Color Activity Meaning
green lights up Device detects a valid link
flashing Device is transmitting and/or receiving data
none Device detects an invalid or missing link
SP
(data rate)
Color Activity Meaning
yellow flashes 1 time a
period
10 Mbit/s connection
flashes 2 times a
period
100 Mbit/s connection
flashes 3 times a
period
1000 Mbit/s connection
100 Mbit/s Color Activity Meaning
yellow lights up 100 Mbit/s connection
none Device detects an invalid or missing link
1
2
3
4
5

20 Installation SPIDER-SL
Release 06 01/2020
2 Installation
The devices have been developed for practical application in a harsh
industrial environment.
On delivery, the device is ready for operation.
Perform the following steps to install the device:
Checking the package contents
Mounting the device
Installing an SFP transceiver (optional)
Wiring the terminal block for the supply voltage and the grounding
Operating the device
Connecting data cables
2.1 Checking the package contents
Check whether the package includes all items named in the section
“Scope of delivery” on page 35.
Check the individual parts for transport damage.
