Belleze 014-HG-PH00 User manual

BELLEZE
Owner’s Manual
48000 BTU Stand Patio Heate
014-HG-PH00
www.bellezefurniture.com
[phone]
FOLLOW US: CONTACT INFO: NOTE:
ANS Z83.26-2014 •CSA 2.37-2014 Gas-Fired Outdoor Patio Heaters
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or
home.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
WARNING: For Outdoor Use Only
US
R
R
R

www.bellezefurniture.com
2
TABLE OF CONTENTS
OUR BRAND
PACKAGE CONTENTS
HARDWARE CONTENTS
SAFETY INFORMATION
ASSEMBLY INSTRUCTIONS
OPERATION INSTRUCTIONS
TROUBLESHOOTING
WARRANTY
02
04
05
06
08
14
20
21
OUR BRAND
Belleze is one of the nation’s largest direct sellers of home decor. We offer an extensive selection of high-quality
indoor and outdoor furniture, applicances, and accessories. We are committed to making decorating your home
easy, affordable and fun. Everything you need to make your house into a beautiful home can be found at Belleze.
So whether you shop by website or catalog, you can be sure you will always find top-quality merchandise for
your home.
PLEASE LIKE, COMMENT AND SUBSCRIBE.

3
www.bellezefurniture.com
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or
home.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
WARNING: For Outdoor Use Only
US
R
R
R

4www.bellezefurniture.com
PACKAGE CONTENTS
PACKAGE CONTENTS
2
NOITPIRCSEDTRAP YTITNAUQ
A Reflector Panel 3
B
Reflector Plate 1
FF
Reflector Stud 3
C
Head Assembly 1
D
Cylinder Housing
F Gas Hose
H Base
G Support Bracket
J Regulator
1
1
1
1
3
1
1
1
A
B
FF
C
H
F
K
L
J
D
G
Upper Pole
Lower Pole
K
L
II Wheel Kit

www.bellezefurniture.com 5
HARDWARE CONTENTS (SHOWN ACTUAL SIZE)
HARDWARE CONTENTS (shown actual size)
3
AA
II
DD EE HH
CC FF
BB GG
Reflector
spacer
Qty. 3
Qty. 9
Qty. 9
Screw
Qty. 9
Cap nut
Qty. 9
Wrench
Qty.
(not actual
size)
JJ KK
Wing nut
Qty. 3
LL
Stainless
steel bolt
Qty. 4
Bolt
Qty. 5
Bolt
Qty.
Qty. 2
Flange
nut
Qty.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product. This manual contains important information about the assembly, operation and
maintenance of this patio heater. General safety information is presented in these first few pages
and is also located throughout the manual. Keep this manual for future reference and to educate
new users of this product. This manual should be read in conjunction with the labeling on the product.
Safety precautions are essential when any mechanical or propane fueled equipment is involved.
These precautions are necessary when using, storing, and servicing. Using this equipment with the
respect and caution demanded will reduce the possibilities of personal injury or property damage.
these precautions, as they are essential when using any mechanical or fueled equipment.
D NGERD NGER
which, if not avoided, will result in death or serious injury. If you smell gas:
3. If odor continues, keep away from the appliance and
immediately call you gas supplier or fire department.
D NGER
Failure to comply with the precautions and instructions
provided with this heater can result in death, serious
bodily injury and property loss or damage from
understand and follow the instructions should use or
service this heater.
MM
Qty. 2
Stainless
Bolts
Flange
nut

6www.bellezefurniture.com
SAFETY INFORMATION
4
SAFETY INFORMATION
DANGER
combustion appliances produce carbon monoxide
(CO) during the combustion process. This product is
designed to produce extremely minute, non-hazardous
amounts of CO if used and maintained in accordance
with all warnings and instructions. Do not block air
flow into or out of the heater.
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can't see it and you can't
smell it. It's an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
enclosed areas.
unventilated or enclosed areas to avoid endangering
your life.
WARNING
DANGER
paper or cardboard, a safe distance away from the
heater as recommended by the instructions.
into the combustion chamber.
contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
ignition. Keep heater area clear and free from
combustible materials, gasoline, paint thinner, cleaning
solvents and other flammable vapors and liquids. Do
not use heater in areas with high dust content.
Minimum heater clearances from combustible
materials: three (3) feet from the sides & two (2) feet
from the top.
We cannot foresee every use which may be made of
our heaters.
Check with your local fire safety authority if you have
questions about heater use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANS Z223.1. In Canada, installation must conform to
local codes. If no local codes exist, follow the current
National standards of CANADA CAN/CGA-B 149.2.
DANGER
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent or home.
WARNING: For Outdoor Use Only
DANGER
pilot lights, direct sunlight, other ignition sources or
accumulate in low places. If you smell gas, leave the
area immediately.
is lighted, near flame, pilot lights, other ignition sources
or while heater is hot to touch.
flammables too close to the burner. Keep flammables
at least 3 feet from sides & 2 feet from top. Keep
gasoline and other flammable liquids and vapors well
away from heater.
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If
heater is to be stored indoors, disconnect the propane
cylinder for outdoor storage.
WARNING
WARNING indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.

www.bellezefurniture.com 7
SAFETY INFORMATION
5
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included):
Phillips screwdriver w/ medium blade. Leak Detection Solution.
WARNING
California Proposition 65
Combustion by-products produced when using
this product contain chemicals known to the State
of California to cause cancer, birth defects, and
other reproductive harm.
WARNING
BURN HAZARD
WARNING
is invisible, odorless, and flammable. An odorant is
normally added to help detect leaks and can be
fade over time so leaking gas is not always detectable
by smell alone.
will sink to the lowest level possible. It can ignite by
ignition sources including matches, lighters, sparks or
open flames of any kind many feet away from the
original leak. Use only propane gas set up for vapor
withdrawal.
ordinances and codes or with ANS/NFPA 58. Turn off
propane when not in use.
WARNING
temperatures. Stay away from these surfaces to avoid
burning skin or igniting clothing.
of the heater.
from the heater, or place on or near the heater.
servicing the appliance prior to placing back in service.
service person. The heater should be inspected
before use and annually by a qualified service person.
More frequent cleaning may be required as necessary.
It is imperative that the control compartment, burners,
and circulating air passageway of the appliance be
kept clean.
SAFETY INFORMATION
CAUTION
CAUTION indicates an imminently hazardous situation
which, if not avoided, may result in minor or moderate
personal injury, or property damage.
CAUTION
SERVICE SAFETY
propane cylinder valve outlet is clean.
leaks using soapy water. Never use a flame.
way or use with any device.
WARNING
Certain materials or items, when stored under the
heater, will be subjected to radiant heat and could be
seriously damaged.

8www.bellezefurniture.com
ASSEMBLY INSTRUCTIONS
6
ASSEMBLY INSTRUCTIONS
Hardware Used
AA
BB
Hardware Used
1
2

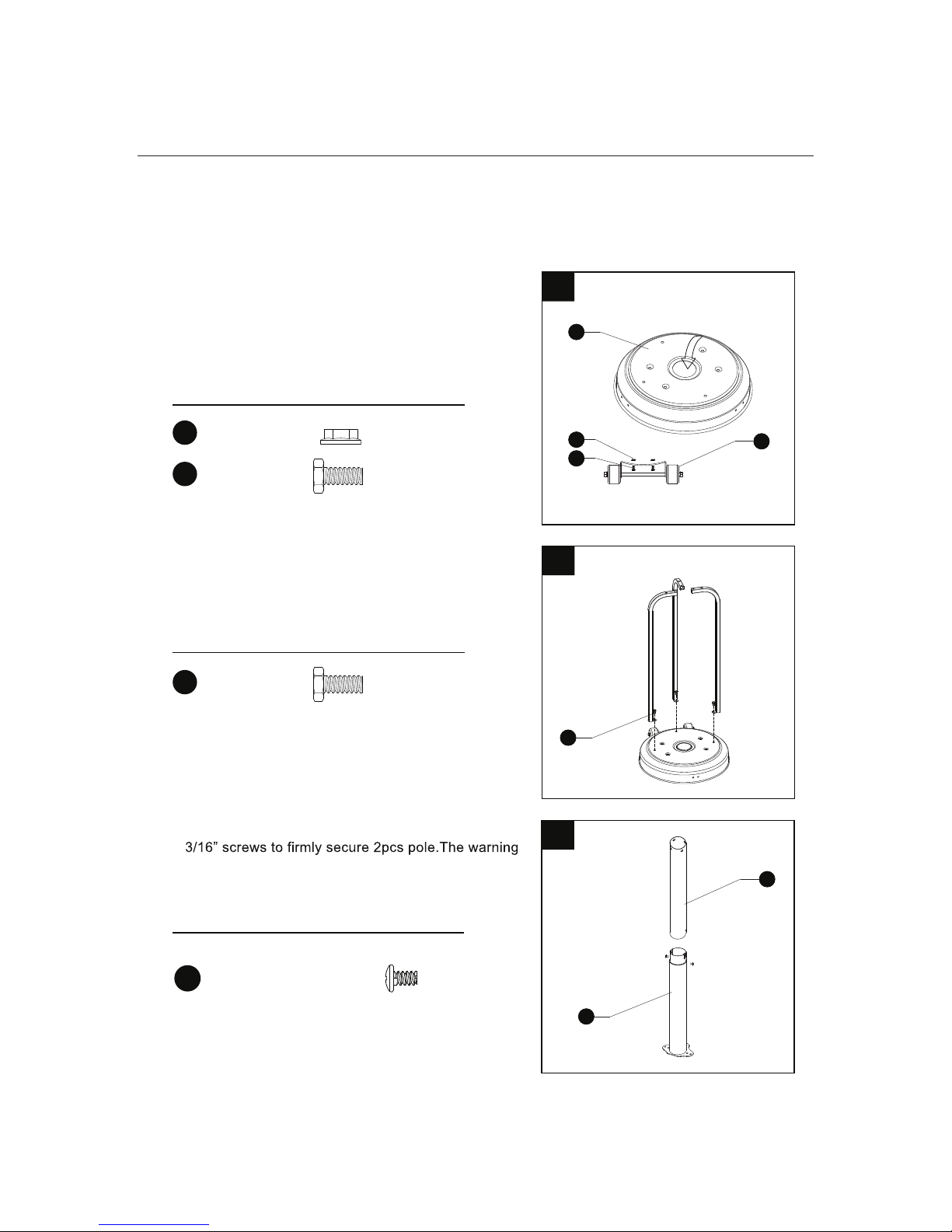

1. Attach wheel assembly (I) to base (H). Line up holes
in wheel bracket with corresponding holes in base, insert
two bolts M8 x 16 (BB) through holes, and finger tighten
two M8 flange nuts (AA). Be sure that the wheel assembly
is parallel to the base, and fully tighten bolts. To improve
the stability, bucket must be filled with sand.
2. Attach three support brackets loosely to base with
three boltsM8 x 16 (BB) downward through support
brackets into the Base.
x 2
Bolt M8 x 16
M8 Flange nut
x 2
BB Bolt M8 x 16 x 3
BB
L
H
AA
BB
I
K
Fill sand
Put the upper pole(K)onto the lower pole(L),using 2pcs
label on the upper pole should be on the same side as
the flat plate of the lower pole.
Hard
3
3.
ware Used
MM x 2 3/16 in. Stainless Bolts

www.bellezefurniture.com 9
ASSEMBLY INSTRUCTIONS
7
ASSEMBLY INSTRUCTIONS
5
6

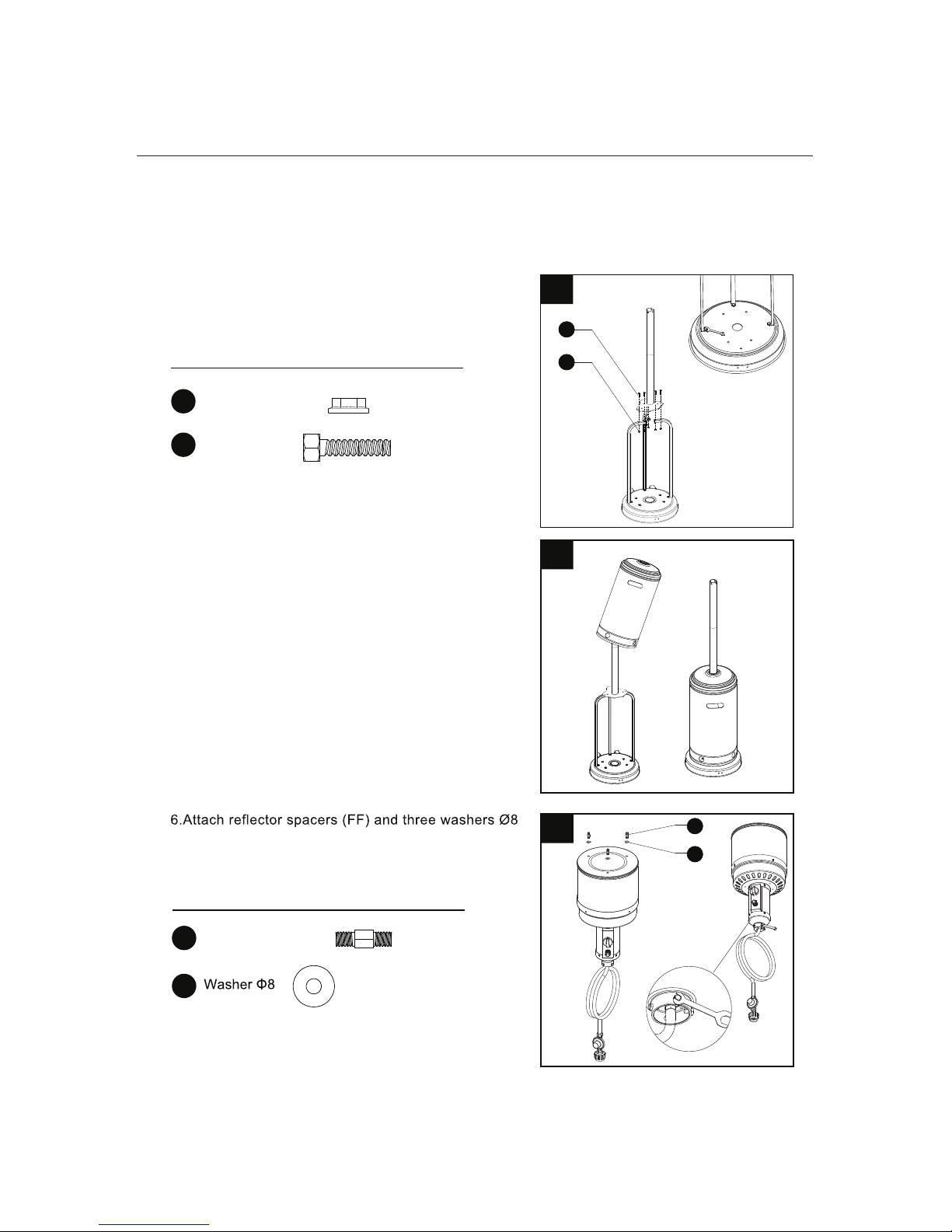

5. Load Cylinder Housing onto Post.
Slide Cylinder Housing down.
(GG) to screen cover. Tighten the reflector spacers.
Unscrew four stainless steel bolts (DD).
FF
GG
x 3
Reflector Spacer
x 3
Hardware Used
FF
GG
4
4. Install post onto three support brackets. Attach
post to support brackets using six bolts M6 x 30 & six
M6 flange nuts. Fully tighten all of the screws.
CC x 6
M6 Flange nut
EE Bolt M6 x 30 x 6
Hardware Used
EE
CC

10 www.bellezefurniture.com
ASSEMBLY INSTRUCTIONS
8
ASSEMBLY INSTRUCTIONS
Hardware Used
HH
II
JJ
8
TT

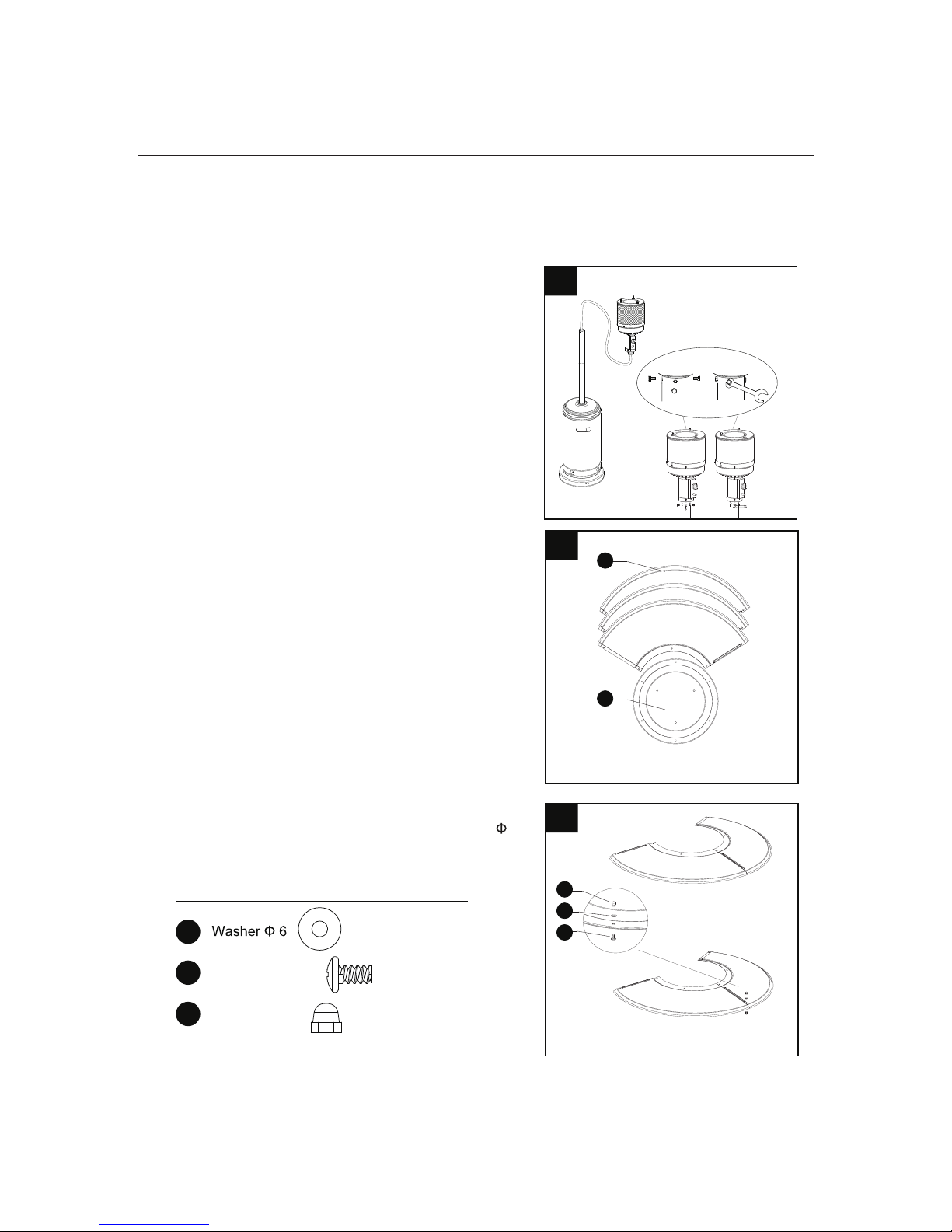

8. WARNING:Remove protective cover before
assembling.
Note: If necessary for proper alignment of reflector
sections, loosen each bolt prior to further assembly
and retighten after sections are aligned.
9. Slide two reflector panels together.
Insert one screw M6 X 10 (II). Slide one washer6
(HH) over threaded end of screw M6 X 10 (II) and
screw on cap nut (JJ) loosely.
x 9
x 9
x 9
Screw M6 X 10
B
A
Cap nuts
JJ
HH
II
9
7. Load head assembly by inserting hose into post.
Insert head assembly into post.
Control knob should be above decal on post.
Attach head assembly to post, and loosely install four
stainless steel bolts. Tighten bolts securely.
7

www.bellezefurniture.com 11
ASSEMBLY INSTRUCTIONS
9
ASSEMBLY INSTRUCTIONS
Hardware Used
GG
KK
11. Support heater. Slide threewashers washer 8 (GG)
over threadedend of spacer.Locate reflector assembly
on 3 spacers. Install threewashers8 on spacersand
securely tighten wing nuts (KK) but do not overtighten.
x 6
x 3
Wing nut
11
KK
GG
10.Slide reflector plate onto reflector panels.
Insert one screw M6 X 10 (II). Slide one washer6
over threaded end of screw M6 X 10 (II) and screw on
cap nut (JJ) loosely. Repeat procedure to complete
the assembly of all four sections. Fully tighten all of
the screws in the rolled edge.
JJ
HH
II
TT
10

12 www.bellezefurniture.com
ASSEMBLY INSTRUCTIONS
10
ASSEMBLY INSTRUCTIONS
11
11. Connect hoseand regulator to cylinder.
The propanegas and cylinder are sold separately.
Useastandard 20 lb.propane cylinder only.
Use this heater only withapropane vapor withdrawal
supply system. See chapter 5 of the standard for
storage andhandling of liquefiedpetroleum gas,
ANS /NFPA58. Your local library or firedepartment
shouldhave thisbook.
A minimum supply pressure of 0.4 p.s.i. is required for
the purpose of input adjustment for propane gas. Storage
of an appliance indoors is permissible only if the cylinder
is disconnected and removed from the appliance. A
cylinder must be storedoutdoors in a well-ventilated
areaout of the reach of children.Adisconnected cylinder
musthavedust caps tightly installedandmust not be
stored in a building, garage or any other enclosed area.
The minimum permissible gas supply pressure of 10
W.C. is required for purpose of input adjustment.
The minimum hourly of 17000 Btu is required input
rating for a heater for automatic operation at ratingsless
than fullinputrating.
The pressure regulator and hose assembly supplied
with the appliance must be used.
The installation must conformwith local codes, or in the
absence of local codes,with national fuelgas code,
ANS Z223.1/NFPA54, naturalgas and propane
InstallationCode, CSA B149.1, or propanestorage and
handling code, B149.2.

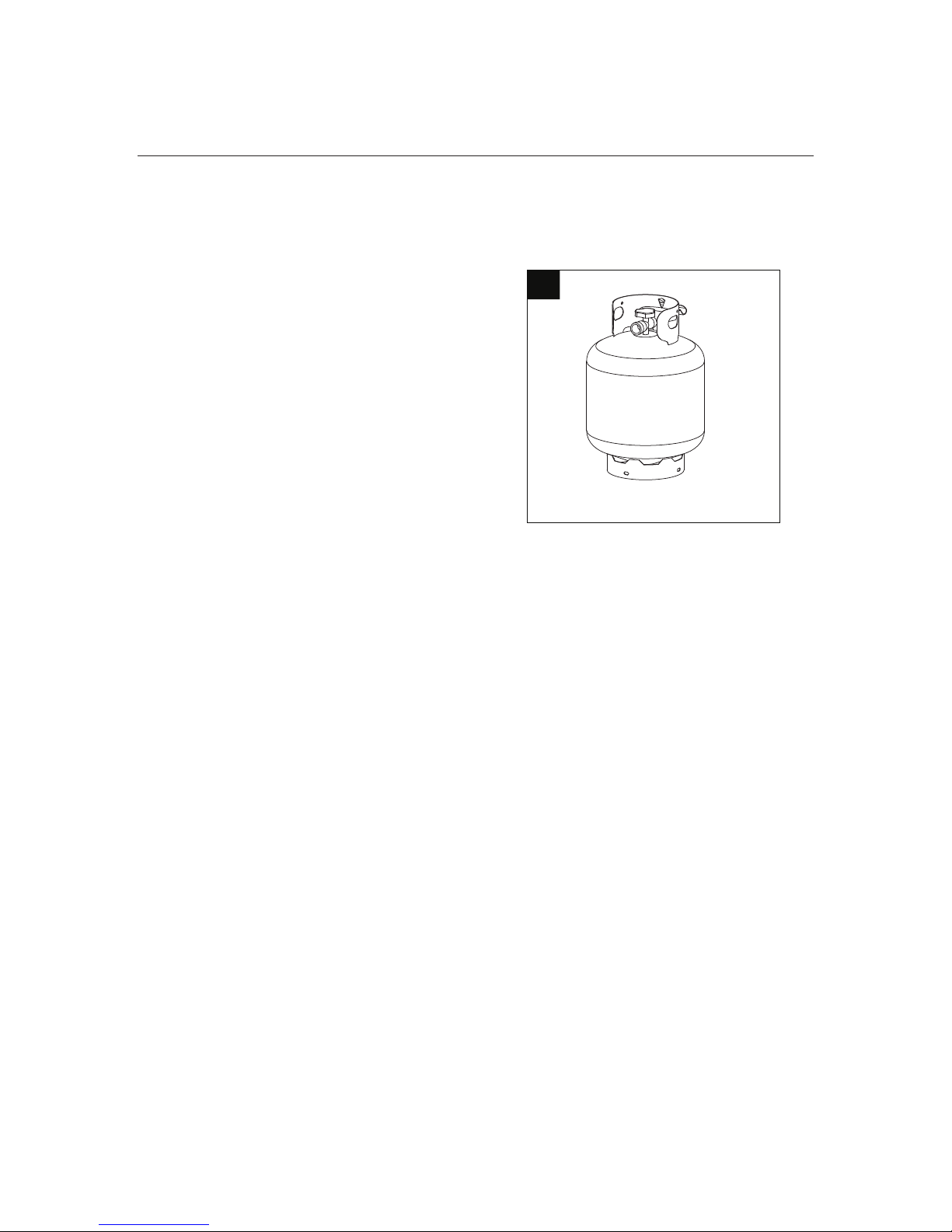

Standard 20 lb. tank

www.bellezefurniture.com 13
ASSEMBLY INSTRUCTIONS
11
ASSEMBLY INSTRUCTIONS
A dented, rusted or damaged propane cylinder may be
hazardous and should be checked by your cylinder
supplier. Never use a propane cylinder with a damaged
valve connection.
The propane cylinder must be constructed and marked
in accordance with the specifications for LP gas
cylinders of the U.S. Department of Transportation
(DOT) or the standard for cylinders, spheres and
tubes for transportation of dangerous goods and
commission, CAN/CSA-B339.
The cylinder must have a listed overfilling prevention
device.
The cylinder must have a connection device compatible
with the connection for the appliance.
The cylinder used must include a collar to protect the
cylinder valve.
Never connect an unregulated propane cylinder to the
heater.

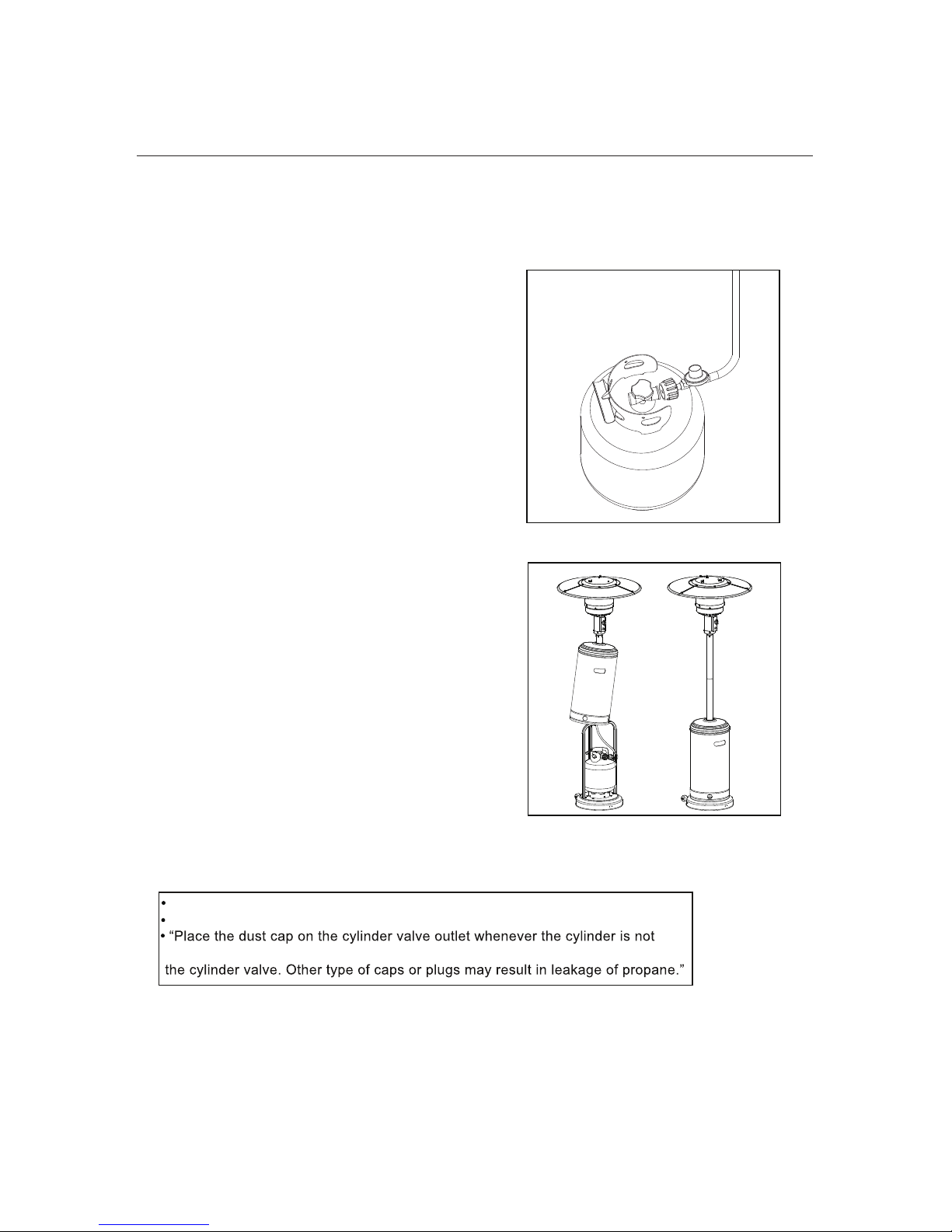

Attach regulator to cylinder. Complete attachment.
Install cylinder.
Do not store a spare LP-gas cylinder under or near this appliance;
Never fill the cylinder beyond 80 percent full;
in use. Only install the type of dust cap on the cylinder valve that is provided with

14 www.bellezefurniture.com
OPERATION INSTRUCTIONS
12
OPERATION INSTRUCTIONS
Leak Check
1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water).
2. Apply several drops of solution where hose attaches to regulator.
3. Apply several drops of solution where regulator connects to cylinder.
4. Make sure all patio heater and light valves are OFF.
5. Turn cylinder valve ON.
If bubbles appear at any connection, there is a leak.
1. Turn cylinder valve OFF.
2. If leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles
continue appearing, the hose should be returned to the place of purchase.
3. If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak
check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be
If NO bubbles appear at any connection, the connections are secure.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.
4. Complete installation.
WARNING
leak tested and do not leak.
Regulator / Cylinder
connection
Hose / Regulator
connection

www.bellezefurniture.com 15
OPERATION INSTRUCTIONS
13
OPERATION INSTRUCTIONS

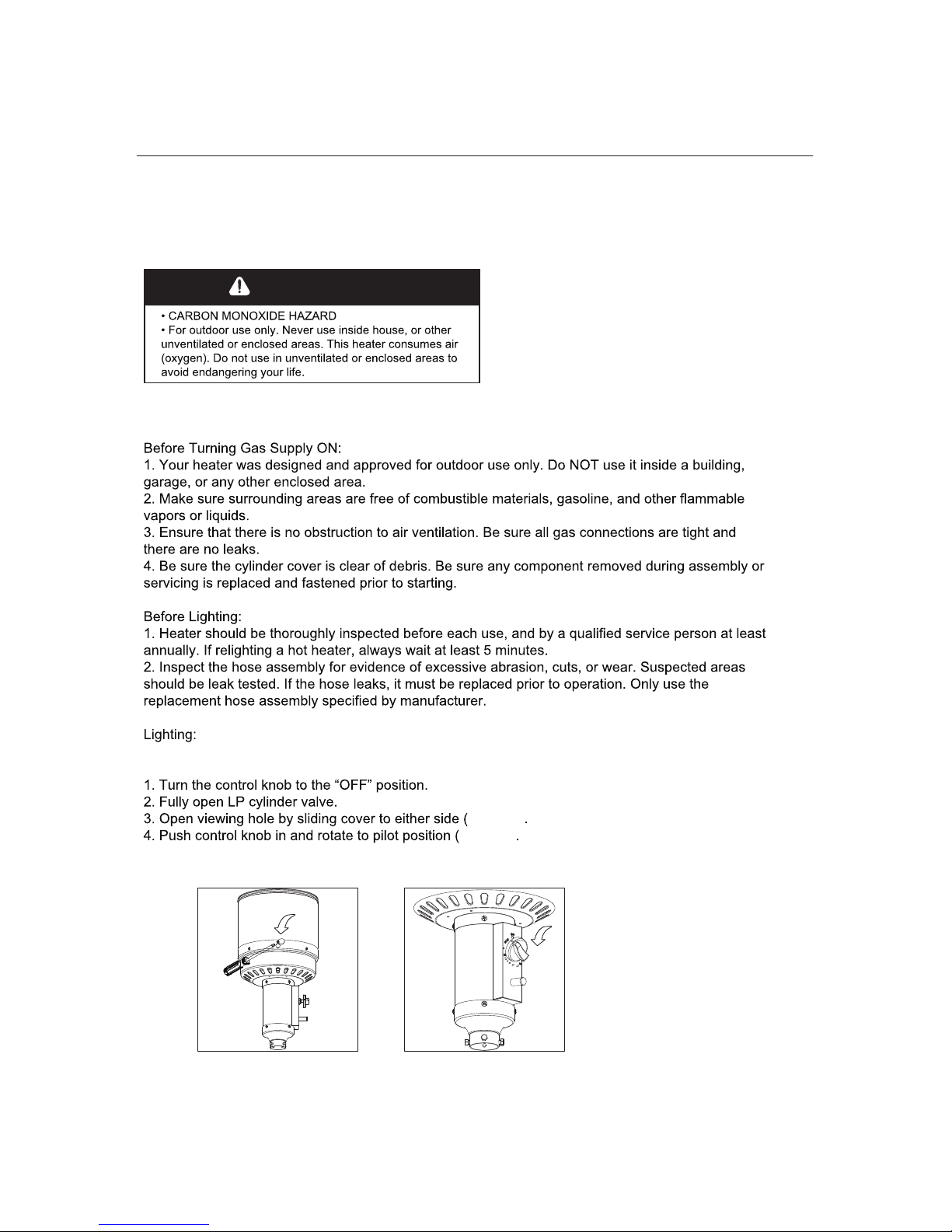

DANGER
Note: This heater is equipped with a pilot light that allows for safer startups and shutdowns. Pilot must
be lit before main burner can be started.
Figure 1)
Figure 2)
Note: For initial start or after any cylinder change, hold control knob in for 2 minutes to purge air from
gas lines before proceeding.
Caution: Do not attempt to operate until you have read and understand all General Safety Information
in this manual and all assembly is complete and leak checks have been performed.
Figure 1 Figure 2

www.bellezefurniture.com
16
OPERATION INSTRUCTIONS
14
OPERATION INSTRUCTIONS
5. Push and release the igniter button until pilot flame is visible through
viewing hole.
6. Once the pilot is lit, continue to depress the control knob for 30 seconds.
7. If the pilot does not stay lit, repeat steps 4 to 6.
8. If after repeating steps 4 to 6 unit does not light, then
Figure 3).
-As you are depressing the control knob, place long stem lighter into
the ignition hole on the emitter screen to light the pilot (Figure 4).
-Repeat step 6.
control knob. If you want a higher temperature, push in the control knob
Figure 5).
Note: If pilot fails to remain lit, all valves should be closed and a waiting
period of at least 5 minutes should pass before attempting to light.
Caution:
of oils used in manufacturing will appear. Both smoke and odor will dissipate after approximately 30
minutes. The heater should NOT produce thick black smoke.
Note: The burner may be noisy when initially turned on. To eliminate excessive noise from the burner,
turn the control knob to the PILOT position. Then, turn the knob to the level of heat desired.
in.
in.
in.
in.
in.
in.
Normal Abnormal
Figure 3 Figure 4 Figure 5

www.bellezefurniture.com 17
OPERATION INSTRUCTIONS
15
OPERATION INSTRUCTIONS
Shut Down:
1. Turn control knob clockwise to PILOT. (Normally, burner will make a slight popping sound when
extinguished.) Burner will extinguish but PILOT will remain ON.
2. To extinguish PILOT depress control knob and continue to turn it clockwise to OFF.
3. Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.
Note: After use, some discoloration of the emitter screen is normal.
Operation Checklist
For a safe and pleasurable heating experience, perform this check before each use.
Before Operating:
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 10 mph.
7. Heater is outdoors (outside any enclosure).
8. There is adequate fresh air ventilation.
When heater is ON:
Emitter screen will become bright red due to intense heat. The color is more visible at night. Burner
will display tongues of blue and yellow flame. These flames should not be yellow or produce thick
black smoke, indicating an obstruction of airflow through the burners. The flame should be blue with
on page 17.
Re-lighting:
Note: For your safety, control knob cannot be turned OFF without first
depressing control knob in PILOT position and then rotating it to OFF.
1. Turn control knob to OFF.
2. Wait at least 5 minutes, to let gas dissipate, before attempting to relight Pilot.

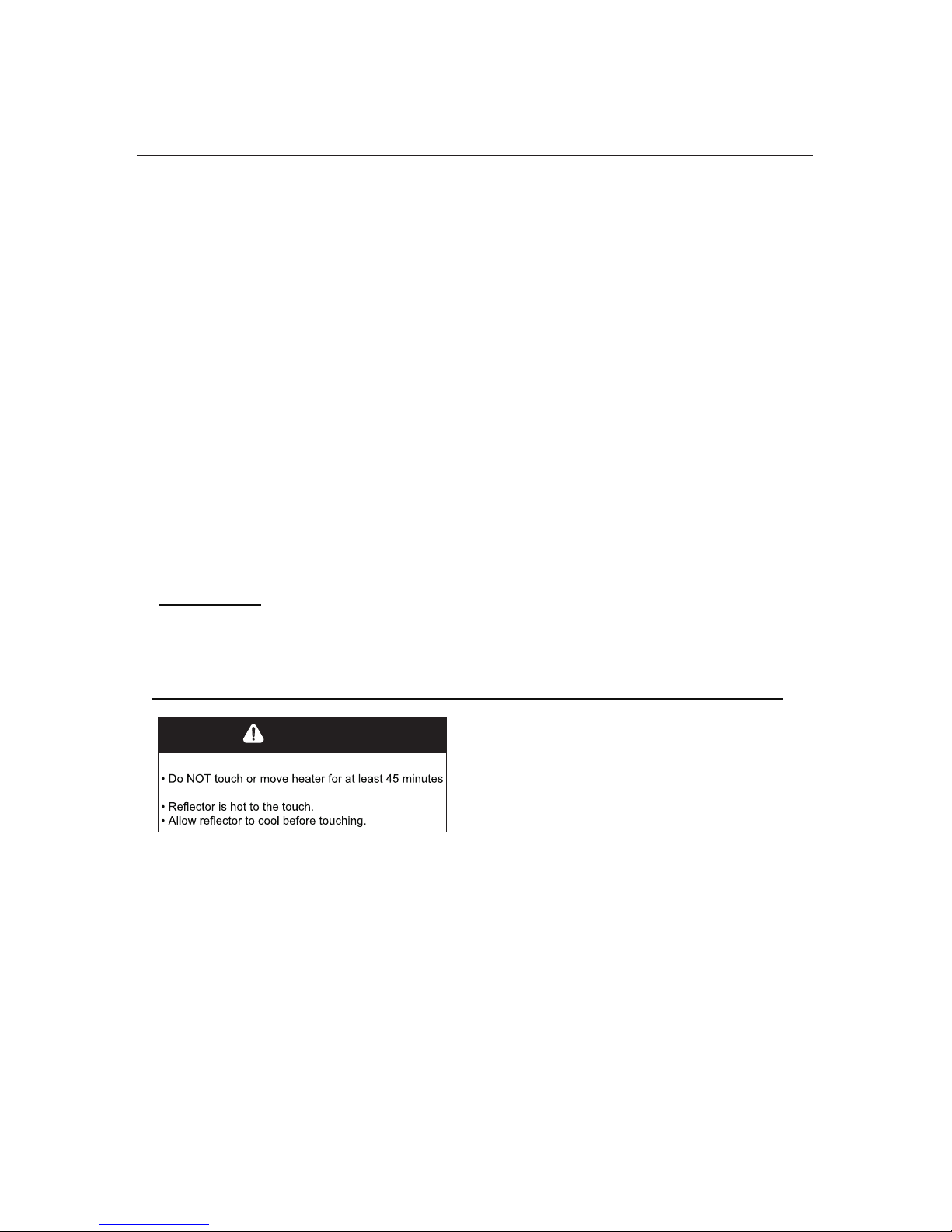

WARNING
FOR YOUR SAFETY
Be careful when attempting to manually ignite this
heater. Holding in the control knob for more than 10
seconds before igniting the gas will cause a ball of
flame upon ignition.
WARNING
FOR YOUR SAFETY
Heater will be hot after use. Handle with extreme care.

www.bellezefurniture.com
18
OPERATION INSTRUCTIONS
16
OPERATION INSTRUCTIONS
CARE AND MAINTENANCE
9. Heater is away from gasoline or other flammable liquids or vapors.
10. Heater is away from windows, air intake openings, sprinklers and other water sources.
11. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials.
12. Heater is on a hard and level surface.
13. There are no signs of spider or insect nests.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
17. Young children should be carefully supervised when they are in the area of the heater.
18. Clothing or other protective material should not be hung from the heater, or placed on or near the
heater.
19. Any guard or other protective device removed for servicing the heater must be replaced prior to
operating the heater.
20. Installation and repair should be done by a qualified service person. The heater should be
inspected before use and at least annually by a qualified service person.
21. More frequent cleaning may be required as necessary. It is imperative that control compartment,
burner and circulating air passageways of the heater be kept clean.
After Operation
1. Gas control is in OFF position.
2. Gas Tank valve is OFF.
3. Disconnect Gas line.
WARNING
FOR YOUR SAFETY:
after use.
To enjoy years of outstanding performance from your heater, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
1. Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
2. While cleaning your unit, be sure to keep the area around the burner and pilot assembly dry at all
times. Do not submerge the control valve assembly. If the gas control is submerged in water, do
NOT use it. It must be replaced.
a. Keep the appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
b. Do not obstruct the flow of combustion and ventilation air.
c. Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
3. Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean.
Signs of possible blockage include:

www.bellezefurniture.com 19
OPERATION INSTRUCTIONS
17
CARE AND MAINTENANCE
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and
render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may
help clear away smaller particles.
Carbon deposits may create a fire hazard. Clean dome and burner screen with warm soapy water if
any carbon deposits develop.
Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal.
Frequently check for corroded areas and repair them promptly.
TIP:
Use high-quality automobile wax to help maintain the appearance of
your heater. Apply to exterior surfaces from the pole down. Do not
apply to emitter screen or domes.
Storage
Between uses:
Turn Control Knob OFF.
Disconnect LP source.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages.
Note: Wait until heater is cool before covering.
During periods of extended inactivity or when transporting:
Turn Control Knob OFF.
Disconnect LP source and move to a secure, well-ventilated location outdoors.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages.
Never leave LP cylinder exposed to direct sunlight or excessive heat.
Note: Wait until heater is cool before covering.
Service
Only a qualified service person should repair gas passages and associated components.
Caution: Always allow heater to cool before attempting service.

www.bellezefurniture.com
20
TROUBLESHOOTING
18
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Burner flame is low
Carbon build-up
Thick black smoke
Cylinder valve is closed Open valve
Blockage in orifice or pilot tube
Air in gas line
Low gas pressure with cylinder valve
fully open
Igniter fails
Propane cylinder is frosted over
Blockage in orifice
Control knob is not in ON position
Gas pressure is low
Control knob fully ON
Dirt or film on reflector and burner screen
Blockage in burner Remove blockage and clean burner
inside and outside
Check burner and orifices for
blockage
Clean reflector and burner screen
tank is less than 1/4 full
Turn cylinder valve OFF and replace
cylinder
Use a full cylinder
Turn control knob to ON
Dirt built up around pilot
Connection between gas valve and pilot
assembly is loose
Thermocouple is not operating correctly
Clean or replace orifice or
pilot tube
Open gas line and bleed it
(pressing control knob in) for not
more than 1 - 2 minutes or until
you smell gas
Turn cylinder valve OFF and replace
cylinder
Use match to light pilot; obtain new
igniter and replace
Clean dirt from around pilot
Tighten connection and perform
leak check
Replace thermocouple
Wait until the propane cylinder
warms up and becomes unfrosted
Clear blockage
Note: Heater operates
at reduced efficiency
