48000 BTU Stand Patio Heater w/ Table
item no. 014-HG-PH01 / 014-HG-PH02 / 014-HG-PH03
www.bellezefurniture.com
US
R
R
R

2
OUR BRAND
Since 2013, Belleze has been dedicated to providing customers with quality products and
exceptional service and has prospered into one of the nation’s largest retailers of indoor and
outdoor home décor. Every Belleze product is carefully selected to ensure they meet our
standards as well as your standards. We believe quality should never be determined by price
which is why Belleze is committed to providing high end merchandise at the absolute lowest cost.
PLEASE LIKE, COMMENT AND FOLLOW.
Estimated Time for Assembly
00:45 mins
@bellezefurniture

3
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or
home.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
WARNING: For Outdoor Use Only

4
PACKAGE CONTENT
PACKAGE CONTENTS
2
NOITPIRCSEDTRAP QUANTITY
A Reflector Panel 3
B
Reflector Plate 1
1
C
Head Assembly
1D
H
Post
I
Regulator
J
K
L
M
N
O
Base
Bucket (preassembled)
Wheel Kit
1E
1F
1
Fastening Nut
1
1
1
1
1
1
1
1
A
B
C
D
E
F
G
H
K
L
M
I
J
O
N
Gas Hose
Cylinder Housing
Door (preassembled)
Screw Coupler
Table
Tightening Spacer
G

5
HANDWARE CONTENTS(shown actual size)
AA DD EE
CC
BB
M5 x 8 mm
Screw
M6 x 10 mm
Bolt
4X 4X 3X 9X 9X
Φ6
Small Flat
Washer
M8 x 16 mm
Bolt
M8
Flange
Nut
HH
FF GG
Reflector
Spacer Φ8 Washer
Φ6 Washer
II KK LL MM
NN
M6 x 10 mm
Screw
9X 9X
2X 2X 4X
Cap Nut
Reinforced
Ring
Wrench
1x
4x
1x 1x
JJ
Wing Nut
3x
Stainless
Steel Bolt
(not actual size) (not actual size)
OO
Deck Ring
(not actual size)
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
This manual contains important information about the assembly, operation and maintenance of
this patio heater. General safety information is presented in these first few pages and is also
located throughout the manual. Keep this manual for future reference and to educate new users
of this product. This manual should be read in conjunction with the labeling on the product. Safety
precautions are essential when any mechanical or propane-fueled equipment is involved. These
precautions are necessary when using, storing, and servicing this item. Using this equipment with the
respect and caution demanded will reduce the possibilities of personal injury or property damage.
The following symbols shown below are used extensively throughout this manual. Always heed
these precautions, as they are essential when using any mechanical or fueled equipment.
DANGER
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
DANGER
Failure to comply with the precautions and
instructions provided with this heater can
result in death, serious bodily injury and
property loss or damage from hazards of fire,
explosion, burn, asphyxiation, and/or carbon
monoxide poisoning. Only persons who can
understand and follow the instructions
should use or service this heater.

6
SAFETY INFORMATION
SAFETY INFORMATION
DANGER
combustion appliances produce carbon
monoxide (CO) during the combustion
process. This product is designed to
produce extremely minute, non-hazardous
amounts of CO if used and maintained in
accordance with all warnings and
instructions. Do not block air flow into or
out of the heater.
produces flu-like symptoms, watery eyes,
headaches, dizziness, fatigue and possibly
death. You can't see it and you can't smell
it. It's an invisible killer. If these symptoms
are present during operation of this product
get fresh air immediately!
unventilated or enclosed areas.
use in unventilated or enclosed areas to
avoid endangering your life.
DANGER
materials, paper or cardboard, a safe distance
away from the heater as recommended by the
instructions.
openings into the combustion chamber.
may contain volatile or airborne combustibles,
or products such as gasoline, solvents, paint
thinner, dust particles or unknown chemicals.
source of ignition. Keep heater area clear and
free from combustible materials, gasoline,
paint thinner, cleaning solvents and other
flammable vapors and liquids. Do not use
heater in areas with high dust content.
Minimum heater clearances from combustible
materials: three (3) feet from the sides and
two (3) feet from the top.
DANGER
ignition sources or where temperatures exceed 120˚F.
smell gas, leave the area immediately.
pilot lights, other ignition sources or while heater is hot to touch.
Keep flammables at least 3 feet from sides and 3feet from top. Keep gasoline and
other flammable liquids and vapors well away from heater.
children. Never store the propane cylinder in an enclosed area (house, garage, etc.).
If heater is to be stored indoors, disconnect the propane cylinder for outdoor storage.
SAFETY INFORMATION

7
SAFETY INFORMATION
5
WARNING
We cannot foresee every use that may be
made of our heaters.
Check with your local fire safety authority if you
have questions about heater use.
Other standards govern the use of fuel gases
and heat producing products for specific uses.
Your local authorities can advise you about
these.
If no local codes exist, follow National Fuel Gas
Code, ANS Z223.1. In Canada, installation
must conform to local codes. If no local codes
exist, follow the current National standards of
CANADA CAN/CGA-B 149.2.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.An LP-cylinder not connected
for use shall not be stored in the vicinity of this
or any other appliance.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operation and maintenance instructions
thoroughly before installing or servicing this
equipment.
WARNING
California Proposition 65
Combustion by-products produced when using
this product contain chemicals known to the
state of California to cause cancer,
birth defects, and other reproductive harm.
WARNING
BURN HAZARD
or in use.
WARNING
Certain materials or items, when stored under
the heater, will be subjected to radiant heat
and could be seriously damaged.
SAFETY INFORMATION

8
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Phillips Screwdriver and Leak Detection Solution.
Estimated Assembly Time: 60 minutes
WARNING
gas is invisible, odorless, and flammable. An
odorant is normally added to help detect leaks
The odorant can fade over time so leaking gas is
not always detectable by smell alone.
propane will sink to the lowest level possible.
It can ignite by ignition sources including matches,
lighters, sparks or open flames of any kind many
feet away from the original leak.
Use only propane gas set up for vapor withdrawal.
ordinances and codes or with ANS/NFPA 58.
Turn off propane when not in use.
CAUTION
SERVICE SAFETY
sure propane cylinder valve outlet is clean.
fittings for leaks using soapy water.
Never use a flame.
in any way or use with any device.
WARNING
high surface temperatures. Stay away from
these surfaces to avoid burning skin or
igniting clothing.
the vicinity of the heater.
materials from the heater, or place on or near
the heater.
removed for servicing the appliance prior to
placing back in service.
qualified service person. The heater should be
inspected before use and annually by a
qualified service person.
More frequent cleaning may be required as
necessary.
It is imperative that the control compartment,
burners,and circulating air passageway of the
appliance be kept clean.
SAFETY INFORMATION

9
ASSEMBLY INSTRUCTIONS
7
ASSEMBLY INSTRUCTIONS
Hardware Used
AA
BB
Hardware Used
CC
1
2
3
TT
1.

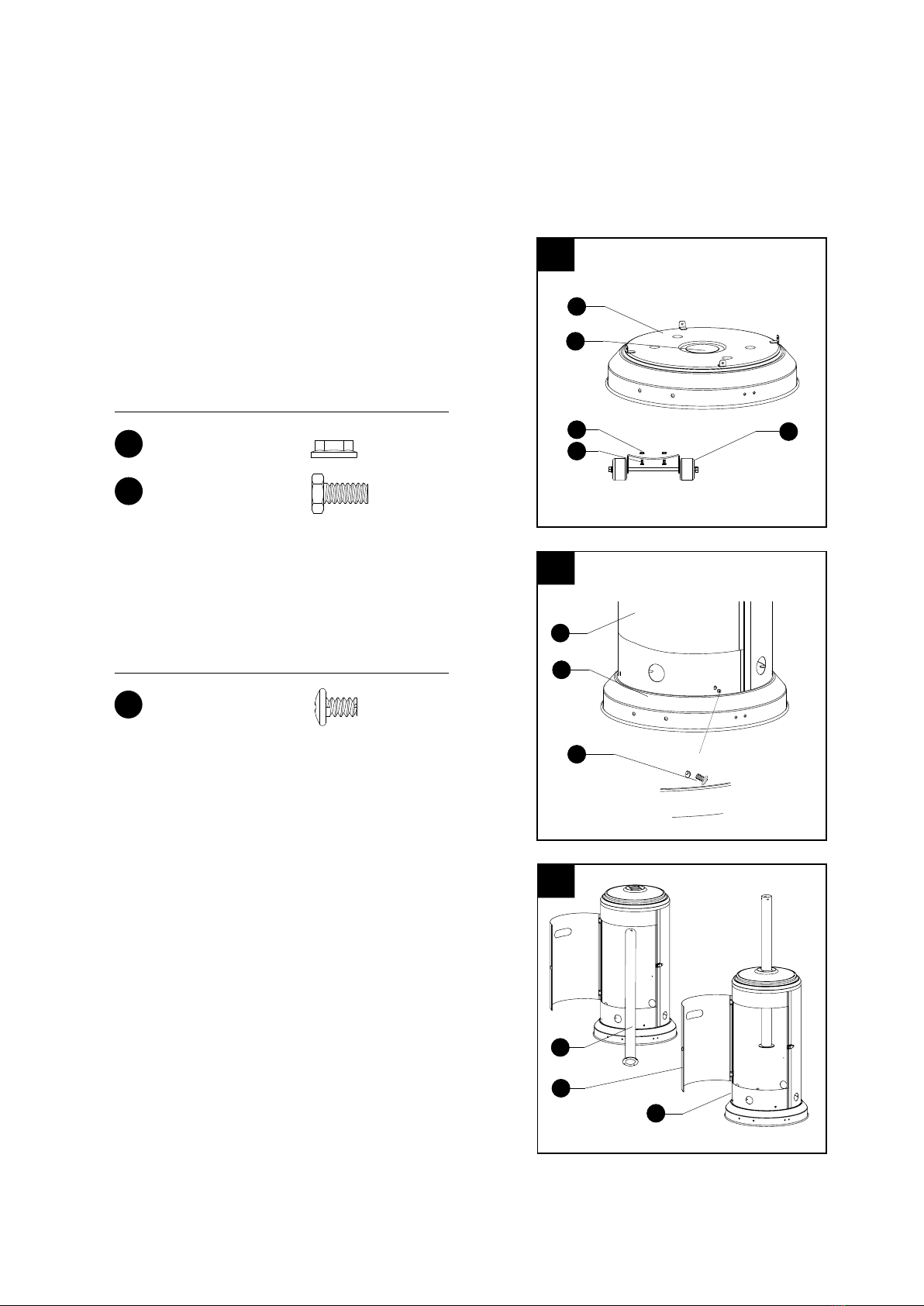

2. Attach cylinder housing (H) loosely to base (M) with
M5 x 8 mm screws (CC).
3. Open the preassembled door (I) on cylinder housing
(H) and place post (J) through the hole on the top.
x 2
M8 x 16 mm Bolts
M8 Flange Nut
x 2
M5 x 8 mm Screw x 4
J
I
H
H
M
N
M
AA
CC
BB
O
Fill sand
Line up holes on the bracket of wheel assembly (O)
，with the corresponding holes on base (M), then
insert M8 x 16 mm bolts (BB) through holes. Hand
tighten with M8 flange nuts (AA). Be sure the wheel
assembly (O) is
parallel to the base (M).
Note: To improve stability, the preassembled bucket
(N) can be filled with sand (not included).
ASSEMBLY INSTRUCTIONS

10
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
Hardware Used
4
5
4. Secure post (J) to cylinder housing (H) using the
reinforced ring (NN), M6 x 10 mm bolts (DD) and
Φ6small flat washers (EE). Fasten and cover
with the deck ring (OO).
6.
NN
EE
NN
Φ6 Small Flat Washer x 4
x 1
Reinforced Ring
OO
x 1
Deck Ring
oo
G
G
FJ
J
H
E
E
J
F
6
D
DD M6 x 10 mm Bolt x 4
5. Slide fastening nut (G) down the post (J) with the
rounded side facing down. Next, slide the tighten-
ing spacer (F) down the post (J) with the smaller
side facing down. Put the table (E) on the post (J)
with the metallic side facing up.
Insert the screw coupler (D) on the post (J),
inserting it through the middle of the table (E) on
the post (J).Thread the tightening spacer (F) on
the bottom of the table (E) counterclockwise
onto the screw coupler (D). Tighten securely to
hold the table (E) tothe screwcoupler (D).
Thread the fastening nut (G) counterclockwise.
Tighten securely to lock in place.Loosen the
fastening nut (G) to adjust the position of the
table (E) on the post (J).
ASSEMBLY INSTRUCTIONS

11
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
7.

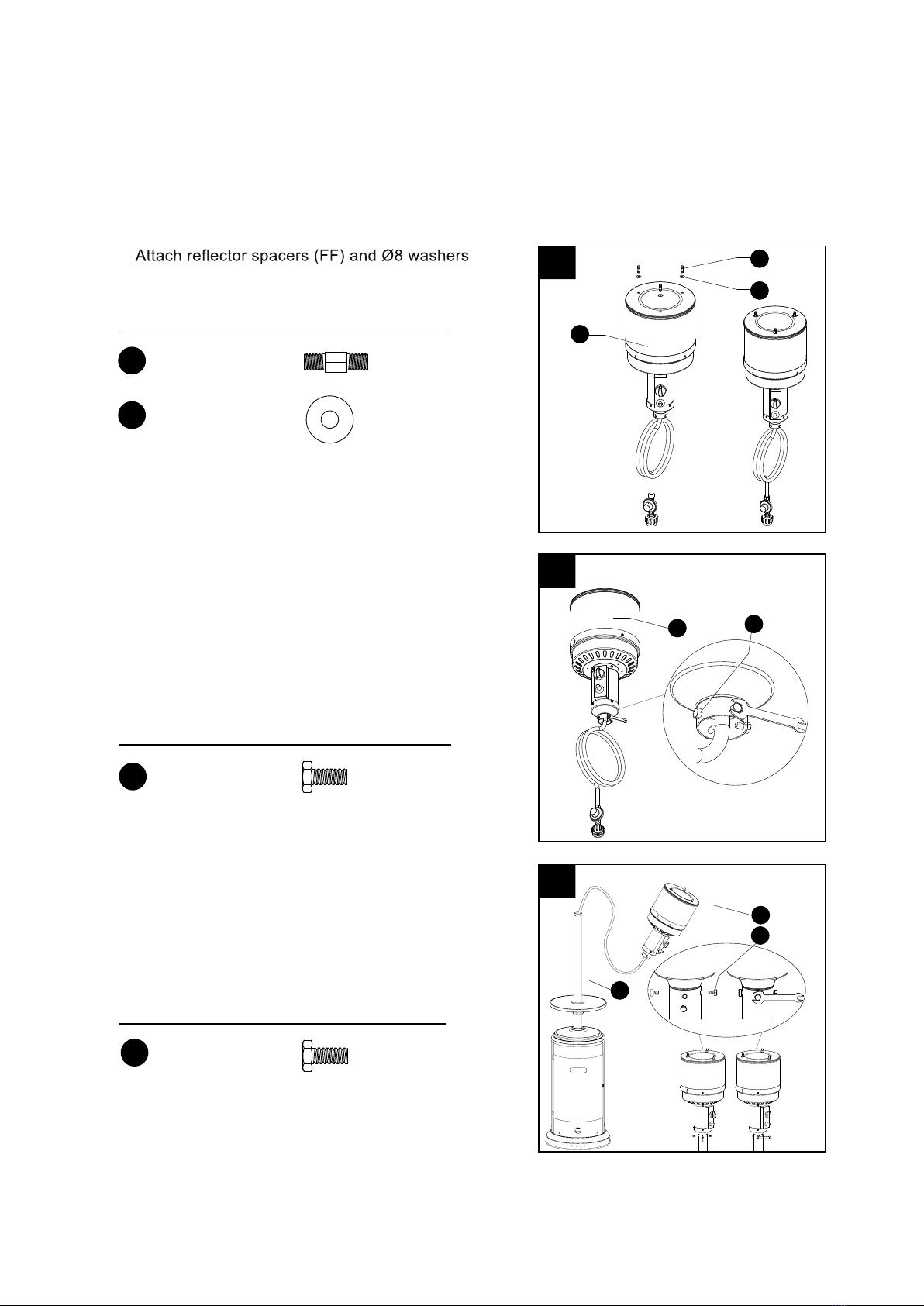

(GG)tothe top of head assembly (C). Tighten the
reflector spacers (FF).
FF
GG
x 3
Reflector Spacer
x 3
Φ8 Washer
Hardware Used
Hardware Used
LL
LL
x 4
Stainless Steel Bolt
8.Unscrew stainless steel bolts (LL) from head
assembly (C).
Hardware Used
x 4
Stainless Steel Bolt
9. Insert hose of head assembly (C) into post (J). Secure
head assembly (C) to post (J) with stainless steel
bolts (LL).
Note: The control knob on head assembly (C) should
be above the decal on post (J).
7
C
C
J
LL
C
FF
GG
LL
8
9
ASSEMBLY INSTRUCTIONS

12
ASSEMBLY INSTRUCTIONS
10
ASSEMBLY INSTRUCTIONS
Hardware Used
HH
II
JJ
10
11
10.Remove protective cover from reflector panel (A)
and reflector plate (B).
Note: In order to achieve proper alignment of
reflector sections, it may be necessary to loosen the
preassembled bolts prior to assembly and retighten
once complete.
11.
12.
x 3
x 3
x 3
Φ 6 Washer
M6 X 10 mm Screw
B
JJ
HH
II
A
Cap Nut
Hardware Used
HH
II
JJ
x 6
x 6
x 6
Φ 6 Washer
M6 X 10 mm Screw
Cap Nut
12
JJ
HH
II
Attach reflector panels (A) together using M6 x
10 mm screws (II) and Φ6 washers (HH). Secure
loosely with cap nuts (JJ).
Attach reflector plate (B) to reflector panels (A)
using M6 x 10 mm screws (II) and Φ6washers
(HH).Secure loosely with cap nuts (JJ). Once
properlyaligned, tighten all screws and the preas-
sembled bolts.
ASSEMBLY INSTRUCTIONS

13
ASSEMBLY INSTRUCTIONS
LY INSTRUCTIONS
Hardware Used
GG
KK
14
14.
WARNING: Use a standard 20 lb. propane cylinder
only.
Use this heater only with a propane vapor withdrawal
supply system. See chapter 5 of the standard for
storage and handling of liquefied petroleum gas,
ANS/NFPA 58. Your local library or fire department
should have this book.
A minimum supply pressure of 0.4 P.S.I. is required for
the purpose of input adjustment for propane gas.
Storage of an appliance indoors is permissible only if
the cylinder is disconnected and removed from the
appliance. A cylinder must be stored outdoors in a
well-ventilated area out of the reach of children. A
disconnected cylinder must have dust caps tightly
installed and must not be stored in a building, garage
or any other enclosed area. The minimum permissible
gas supply pressure of 10 W.C. is required for purpose
of input adjustment. A minimum of 17,000 BTUs per
hour is the required input rating for a heater with a
rating less than full.
The pressure regulator and hose assembly supplied
with the appliance must be used.
The installation must conform with local codes, or in the
absence of local codes,with national fuel gas code,
ANS Z223.1/NFPA54, natural gas and propane
Installation Code, CSA B149.1, or propane storage and
handling code, B149.2.
13.
x 6
Φ8 Washer
x 3
Wing Nut
K
H
J
L
FF x 3
Reflector Spacer
C
FF
13
KK
GG
Slide Φ8 washers (GG) over the threaded ends of
reflectors spacers (FF). Attach reflector assembly to
head assembly (C). Place Φ8 washers (GG) over
threaded ends of reflector spacers (FF) sticking out
through reflector assembly and secure with wing nuts
(KK).
Note: Do not overtighten.
13.
Screw gas hose (K) and regulator (L) onto
propane cylinder (not included). Do not
cross-thread.Place the propane cylinder into the
cylinder housing (H),then close the door (I).
ASSEMBLY INSTRUCTIONS

14
ASSEMBLY INSTRUCTIONS
12
ASSEMBLY INSTRUCTIONS
A dented, rusted or damaged propane cylinder may be
hazardous and should be checked by your cylinder
supplier. Never use a propane cylinder with a damaged
valve connection.
The propane cylinder must be constructed and marked
in accordance with the specifications for LP gas
cylinders of the U.S. Department of Transportation
(DOT) or the standard for cylinders, spheres and
tubes for transportation of dangerous goods and
commission, CAN/CSA-B339.
The cylinder must have a listed overfilling prevention
device.
The cylinder must have a connection device compatible with the connection for the appliance.
The cylinder used must include a collar to protect the cylinder valve.
Never connect an unregulated propane cylinder tothe heater.
Do not store a spare LP-gas cylinder under or near this appliance.
Never fill the cylinder beyond 80 percent full.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not
in use. Only install the type of dust cap on the cylinder valve that is provided with
the cylinder valve. Other type of caps or plugs may result in leakage of propane.

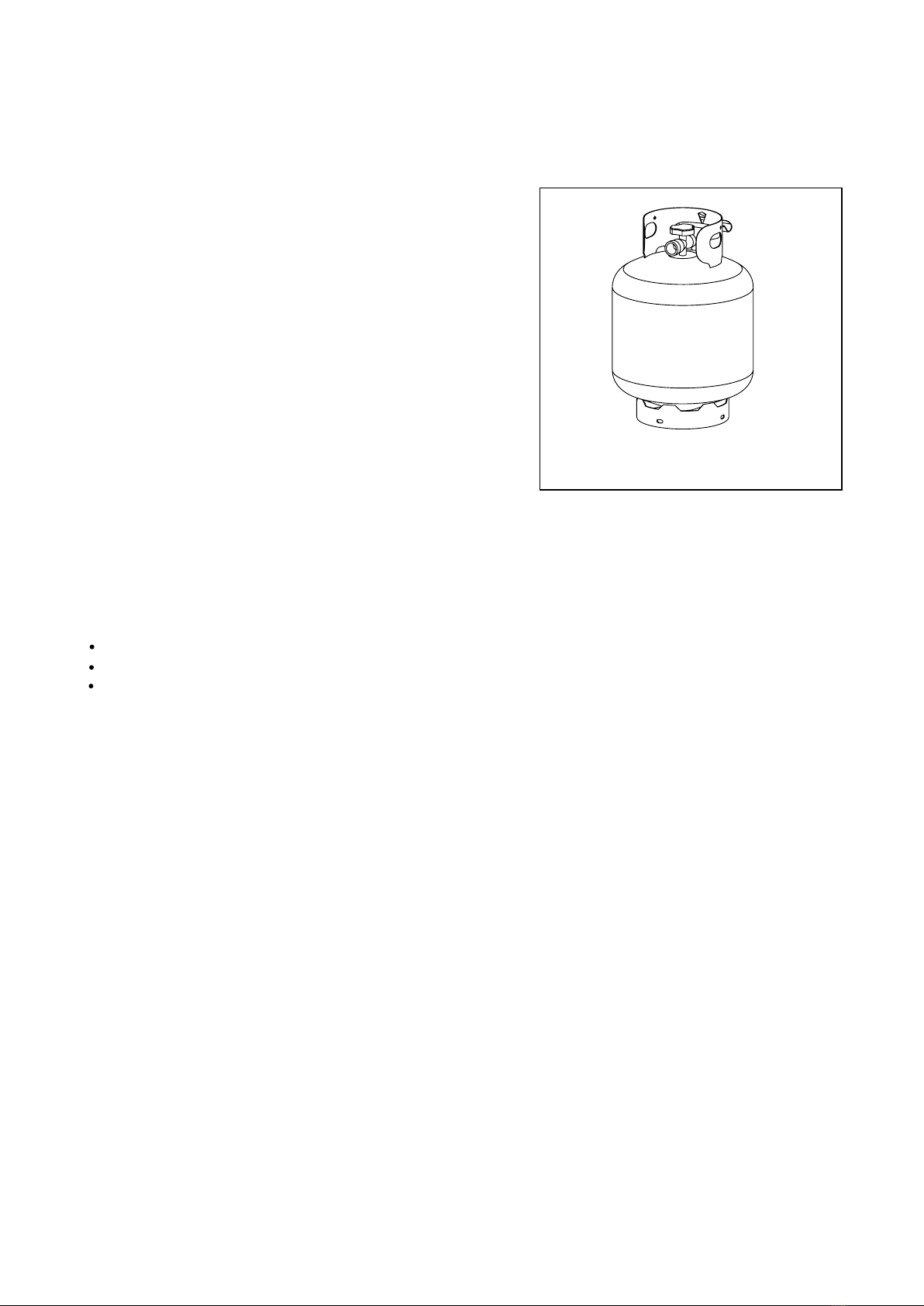

Standard 20 lb. tank
ASSEMBLY INSTRUCTIONS

15
OPERATION INSTRUCTIONS
OPERATION INSTRUCTIONS
To check for a leak:
1. Make 2-3 oz. leak check solution (one part
liquid dishwashing detergent and three parts
water).
2. Apply several drops of solution where
regulator connects to cylinder and to all hose
and valve connections
3. Make sure all patio heater and light valves
are OFF.
4. Turn cylinder valve ON.
If bubbles appear at any connection, there is a
leak.
1. Turn cylinder valve OFF.
2.
3.
If NO bubbles appear at any connection, the connections are secure.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.
WARNING
leak tested and do not leak.
1
Regulator / Cylinder
connection
If leak is at regulator/cylinder valve connection:
Disconnect, reconnect, and perform another leak
check. Apply the soapy solution to all hose and
valve connections. If you continue to see
bubbles after several attempts,defective cylinder
valve is defective and should be returned to
cylinder’s place of purchase.
If leak is at hose/regulator connection:
This part is defective and you should contact
thecustomer service department for replace-
ment.
OPERATION INSTRUCTIONS

16
DANGER
unventilated or enclosed areas. This heater consumes air
(oxygen). Do not use in unventilated or enclosed areas to
avoid endangering your life.
Before Turning Gas Supply ON:
1. Your heater was designed and approved for outdoor use only. Do NOT use it inside a building,
garage, or any other enclosed area.
2. Make sure surrounding areas are free of combustible materials, gasoline, and other flammable
vapors or liquids.
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and
there are no leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during assembly or
servicing is replaced and fastened prior to starting.
Before Lighting:
1. Heater should be thoroughly inspected before each use, and by a qualified service person at least
annually. If relighting a hot heater, always wait at least 5 minutes.
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas
should be leak tested. If the hose leaks, it must be replaced prior to operation. Only use the
replacement hose assembly specified by manufacturer.
Lighting:
Note: This heater is equipped with a pilot light that allows for safer
startups and shutdowns. Pilot must
be lit before main burner can be started.
2. Fully open LP cylinder valve.
3. Open viewing hole by sliding cover to either side.
4. Push control knob in and rotate to pilot position.

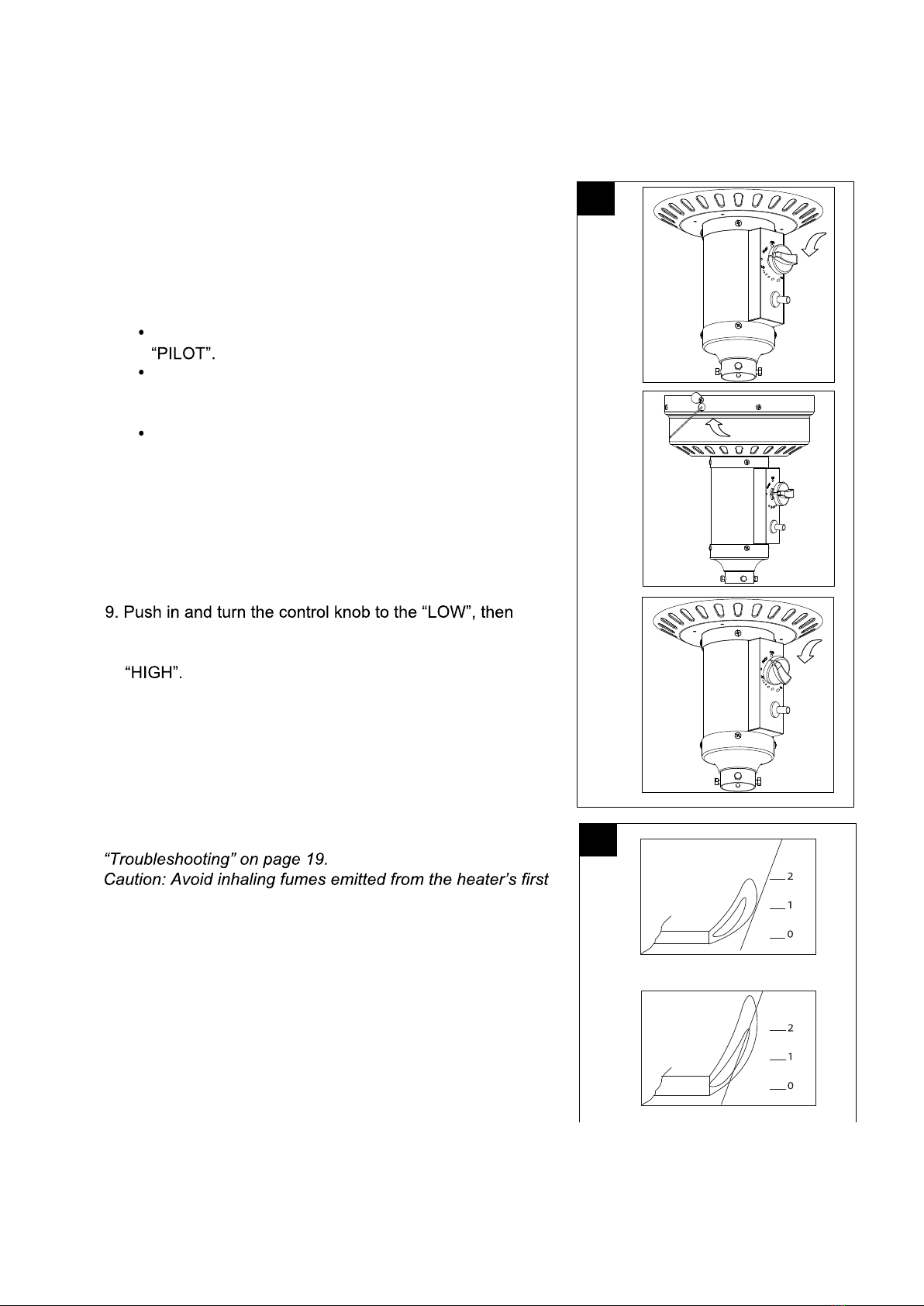

Note: For initial start or after any cylinder change, hold control
knob in for 2 minutes to purge air from
gas lines before proceeding.
Caution: Do not attempt to operate until you have read and understand all General Safety Information
in this manual and all assembly is complete and leak checks have been performed.
2
OPERATION INSTRUCTIONS
This appliance shall be used only in a well-ventilated space and shall not be used in a building, garage or any
other enclosed area.
An appliance may be installed with shelter no more inclusive than:
1) With walls on all sides, but with no overhead cover.
2) Within a partial enclosure which includes an overhead cover and no more than two side walls. These
side walls may be parallel, as in a breezeway, or at right angles to each other.
3) Within a partial enclosure which includes an overhead cover and three side walls, as long as 30
percent or more of the horizontal periphery of the enclosure is permanently open.

17
OPERATION INSTRUCTIONS
15
OPERATION INSTRUCTIONS
5. Push and release the igniter button until pilot flame
is visible through viewing hole.
6. Once the pilot is lit, continue to depress the control knob for
30 seconds.
7. If the pilot does not stay lit, repeat steps 4 to 6.
8. If after repeating steps 4 to 6 unit does not light,
then:
release control knob. If you want a higher temperature,
push in the control knob and turn counterclockwise to the
Note: If pilot fails to remain lit, all valves should be closed
and a waiting period of at least 5 minutes should pass before
attempting to light
in.
in.
in.
in.
in.
in.
Abnormal
Nomal
4
If you experience any ignition problem please consult
use. Smoke and odor from the burning of oils used in
manufacturing will appear. Both smoke and odor will dissipate
after approximately 30 minutes. The heater should NOT
produce thick black smoke.
Note: The burner may be noisy when initially turned on.
To eliminate excessive noise from the burner,
turn the control knob to the PILOT position.
Then, turn the knob to the level of heat desired.
Push in control knob and turn counterclockwise to
As you are depressing the control knob, place long stem
lighter into the ignition hole on the emitter screen to light
the pilot
Repeat step 7.
3
OPERATION INSTRUCTIONS

18
OPERATION INSTRUCTIONS
17
OPERATION INSTRUCTIONS
CARE AND MAINTENANCE
After Operation
1. Gas control is in OFF position.
2. Gas tank valve is OFF.
3. Disconnect gas line.
WARNING
FOR YOUR SAFETY:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
While cleaning your unit, be sure to keep the area around the burner and pilot assembly dry at all
times. Do not submerge the control valve assembly. If the gas control is submerged in water, do
NOT use it. It must be replaced.
Keep the appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
Do not obstruct the flow of combustion and ventilation air.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean.
Heater is away from gasoline or other flammable liquids or vapors.
Heater is away from windows, air intake openings, sprinklers and other water sources.
Heater is at least 36 in. on top and at least 36 in. on sides from combustible materials.
Heater is on a hard and level surface.
There are no signs of spider or insect nests.
All burner passages are clear.
All air circulation passages are clear.
Children ARE alerted of the hazards of high surface temperatures.
OPERATION INSTRUCTIONS

19
CARE AND MAINTENANCE
18
CARE AND MAINTENANCE
Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and
render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may
help clear away smaller particles.
Carbon deposits may create a fire hazard. Clean dome and burner screen with warm soapy water if
any carbon deposits develop.
Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal.
Frequently check for corroded areas and repair them promptly.
Use high-quality automobile wax to help maintain the appearance of the heater. Apply to exterior
surfaces from the pole down. Do not apply to emitter screen or domes.
Between uses:
Turn Control Knob OFF.
Disconnect LP source.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages.
Note: Wait until heater is cool before covering.
During periods of extended inactivity or when transporting:
Turn Control Knob OFF.
Disconnect LP source and move to a secure, well-ventilated location outdoors.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages.
Never leave LP cylinder exposed to direct sunlight or excessive heat.
Note: Wait until heater is cool before covering.
Service
Only a qualified service person should repair gas passages and associated components.
Caution : Always allow heater to cool before attempting service.
Visually checking portions of the hose assembly located within the confines of the heater post. Inspect the
entire hose assembly at least annually, disassembling the reflector and burner. Inspect the hose assembly
for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak tested. Then
assembling the reflector and burner again following with step 9and 14.

20
TROUBLESHOOTING
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Burner flame is low
Heater makes
popping noises.
Carbon build-up
Heater glow is
excessively uneven.
Thick black smoke
.
Gas odor with
extreme yellow
tipping of flame.
1. Cylinder valve is closed 1. Open valve
2. Blockage in orifice or pilot tube
3. Air in gas line
4. Low gas pressure with cylinder valve
fully open
5. Igniter fails
1. Propane cylinder is frosted over
2. Blockage in orifice
3. Control knob is not in ON position
1. Gas pressure is low
3. Control knob fully ON
4. Spiders and insects nest in burner or
orifices
1. Dirt or film on reflector and burner screen
1. Blockage in burner
1. Spiders and insects nest in burner or
orifices
1. Spiders and insects nest in burner or
orifices
1. Spiders and insects nest in burner or
orifices
1. Remove blockage and clean burner
inside and outside
3. Check burner and orifices for
4. Clean burner and orifices
blockage
1. Clean reflector and burner screen
1. Clean burner and orifices
1. Clean burner and orifices
1. Clean burner and orifices
tank is less than 1/4 full
1. Turn cylinder valve OFF and
replacecylinder
2. Use a full cylinder
3. Turn control knob to ON
1. Dirt built up around pilot
2. Connection between gas valveand pilot
assembly is loose
3. Thermocouple is not operating correctly
2. Clean or replace orifice or pilot
tube
3. Open gas line and bleed it
(pressing control knob in) for not
more than 1 - 2 minutes or until
you smell gas
4. Turn cylinder valve OFF and
replace cylinder
5 .Use match to light pilot; obtain new
igniter and replace
1. Clean dirt from around pilot
2. Tighten connection and perform
leak check
3. Replace thermocouple
1. Wait until the propane cylinder
warms up and becomes unfrosted
2. Clear blockage
Note: Heater operates
at reduced efficiency
