Bentel Security ABSOLUTA ABS16P15 User manual

3.50
*
EN50131 Grade 2 and Grade 3**
Expandable Hybrid Control Panel
User Manual
Default User PIN: 0001 (00001 for Grade 3 Control Panels)
ISO 9001
9105.BNT1 ISO 9001 IT-52587
OHSAS 18001
9192.BSEC OHSAS 18001 IT - 60983
ISO 14001
9191.BNT2 ISO 14001 IT-52588
www.bentelsecurity.com
https://itunes.apple.com
https://play.google.com/store

Installation of the system must be carried out strictly in accordance with the instructions described in this manual, and in
compliance with the local laws and bylaws in force.
The ABSOLUTA Control panels have been designed and manufactured to the highest standards of quality and performance.
The ABSOLUTA Control panels have no user-changeable components, therefore, they should be serviced by authorized
personnel only.
BENTEL SECURITY does not assume responsibility for damage arising from improper application or use.
The manufacturer recommends that the installed system should be completely tested at least once a month.
Hereby, BENTEL SECURITY, declares that ABSOLUTA Control panels comply with the essential requirements and other
relevant provisions of Directives:
1999/5/EEC The R&TTE Directive
2006/95/EC The low Voltage Directive
2004/108/EC The Electromagnetic Compatibility Directive
This panel complies with EN50131-1: 2008,EN50131-3: 2009 and EN50131-6: 2008
Security Grading: 2
Environmental Class: II
MAINTENANCE
Please verify the correct operation of security system at least once a month.
Periodically, perform the steps below.
— Remove dust accumulation on the panel container, with a damp cloth without use any type of solvent.
— Check the status of the connections and wires.
— Check inside the panel there are no foreign bodies.
— For other security-system devices, such as smoke detectors, infrared and microwave detectors, and inertial detectors, refer
to the instructions for maintenance and testing.
RECYCLING INFORMATION
BENTEL SECURITY recommends that customers dispose of their used equipment (panels, detectors, sirens, and other
devices) in an environmentally sound manner. Potential methods include reuse of parts or whole products and recycling of
products, components, and/or materials.
For specific information see: http://www.bentelsecurity.com/index.php?o=environmental
ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE
In the European Union, this label indicates that this product NOT be disposed of with household waste. It should be
deposited at an appropriate facility to enable recovery and recycling.
For specific information see: http://www.bentelsecurity.com/index.php?o=environmental
NOTE
In addition to User Manual, the Installation Manual is also available for the ABSOLUTA control panel.
This manuals may be purchased separately, or downloaded, free of charge, from the BENTEL SECURITY website:
www.bentelsecurity.com.
The control keypads of ABSOLUTA control panel are the CLASSIKA and PREMIUM LCD, ABSOLUTA T-Line and the
ABSOLUTA M-Touch touchscreen Keypad.
ABSOLUTA control panel supports both the new key readers of the ECLIPSE 2 series and the previous versions of
ECLIPSE series.
BENTEL SECURITY srl reserves the right to change the technical specifications of this product without prior notice.
*) See Table 1 on page 5.
**)See Table 1 on page 5.

TABLE OF CONTENTS
INTRODUCTION 5
Glossary 6
OPERATIONS FROM TOUCH KEYPAD 7
Emergency Keys 8
Entering the Home Screen 9
Failed to access 10
Arming/Disarming Partitions 10
Arming 11
Disarming 11
Disarm under Duress 12
Disarm for patrol 12
Disarming with several PINs/Keys 12
Auto-arming 12
Arming Block Conditions 13
Alarm Status 13
Clear the transmission of events 14
Viewing Signals 14
Menu Bar 15
Menu (User) 16
PIN 16
Keys 17
Numbers 18
Teleservice 18
Extra Time 18
Stop Alarms 19
Restore Alarms 19
Settings 19
Alarm Test 20
Date and Time 20
System 20
Privacy 20
Answering 21
Installer 21
Auto arming 21
GSM 21
IP 21
Super User 22
Keypad 22
Backlight 23
Buzzer Control 23
Picture Frame 23
Clock Mode 24
Clean Mode 24
Background Image 25
Language 25
Scrolling Text 25
Scenarios 26
Info 26
Partition Status 26
Zone Status 27
Events Buffer 28
Installer 28
Bentel Security 28
GSM/IP 29
GSM 29
SMS Credit Balance 29
Received SMS 29
IP 30
APP 30
Screen Calibration 30
OPERATIONS FROM LCD KEYPAD 31
Adjusting Volume, Brightness, Contrast 32
Adjusting Buzzer Volume 32
Contrast Adjustment 32
Brightness adjustment 32
LEDs and signals on Keypads 32
View Signals 32
View Partition status 34
Fast Keys (Superkeys) 34
Basic (Arming) Commands 35
Arming (<PIN> ON) 35
Disarming (<PIN> OFF) 35
A, B, C and D Arming (<PIN> A, B, C or D + ON) 36
Notes on Arming from Keypads 36
Silencing Alarm Devices 36
Wrong PIN 36
User Menu Structure 37
Accessing the User menu (<PIN> ENTER) 37
Action 38
Alarm Reset (1.1) 38
Extra Time Request (1.2) 38
Clear Call Queue (1.3) 39
Teleservice Request (1.4) 39
Alarm Signals Test (1.5) 40
Outputs (ON/OFF) (1.6) 40
Arm Partition (Disarm) (1.7) 41
Zone Test (1.8) 41
Clear Fault/ Tamper (1.9) 42
Program 42
ON/OFF Answering (2.1) 42
Enable Installer (Teleservice) (2.2) 43
Auto-Arm (2.3) 43
Date/Time (2.4) 44
PIN Programming (2.5) 44
Telephone Numbers (2.6) 45
Change My Pin (2.7) 46
Enable/Disable Super User (2.8) 46
Enable/Disable Key (2.9) 47
View 47
View LOG (3.1) 47
Zone Status and Bypass (3.2) 48
GSM Module Status (3.3) 48
Display SMS (3.4) 49
IP Module status (3.5) 49
ABSOLUTA INFO (3.6) 50

READER OPERATIONS 51
The Reader 51
The Digital Key 52
The Reader’s Light Indicators 52
Key at Reader 52
No Key at Reader 52
Multiple Systems 52
Key operations 52
No Action 52
Disarm 53
Away Arm 53
Arm — A Mode 53
Arm — B Mode 54
Disarm Patrol 54
False Key 54
The Wireless Key 54
Away Arming (<)54
Stay Arming (=)54
Disarming (>)54
Other functions (!)54
Low Battery 54
TELEPHONE OPERATIONS 55
Remote Access via Dialler mode 55
Remote Access via Answer mode 55
Typing-in your User PIN 55
Entering Commands 56
Cancel Command (#)56
On Hook (*)56
Remote Talk/Listen-in (1)56
Zone/Partitions status (2)56
Turn Reserved Outputs ON/OFF (3)56
Panel Arming/Disarming (4)57
Arm/Disarm Single Partitions (5)57
Enable/Disable Installer (6)57
Clear call queue (7)57
Alarms Reset (8)57
Disable Current User PIN (9)57
SMS OPERATIONS 59
Events Controlled by Caller ID 59
Events Controlled by SMS 59
Partition Status 60
Arming/Disarming the Partitions 60
Credit Check 61
Disabling a PIN 61
GSM Module IMEI Request 61
APPENDIX 63
PIN list 63
ABSOLUTA App 63
Arming block conditions 63
List of Faults 66

INTRODUCTION
ABSOLUTA is a series of Modular Control Panels
based on the ABSOLUTA 16, ABSOLUTA 42 and
ABSOLUTA 104 Main Boards, with the characteristics
listed in Table 2.
By combining these main boards with the boxes and
power supplies available (see the Table opposite), your
installer has developed the most suited control panel to
your needs.
This Manual is designed for anyone using a Control
panel from the ABSOLUTA range. Most of the features
described in this Manual are included on all ABSOLUTA
Control panels. However, some features are included on
certain models only, in such cases, the name of the Con-
trol panel will be specified.
3This note will be used to highlight specific charac-
teristics of the Grade 3 control panels (Table 1).
ABSOLUTA INTRODUCTION 5
Versions Main
Boards Boxes Power Supplies
ABS16P15*ABS16
ABS-P
BAQ15T12
ABS16P35*BAW35T12
ABS42P15*
ABS42
BAQ15T12
ABS42P35*BAW35T12
ABS42P50*BAW50T12
ABS104P50*ABS104 BAW50T12
ABS16M35 ABS16
ABS-M
BAW35T12
ABS16M50-G3** BAW50T12
ABS42M50*ABS42 BAW50T12
ABS42M75*BAW75T12
ABS104M50*
ABS104
BAW50T12
ABS104M75*BAW75T12
ABS104M75-G3** BAW75T12
Table 1 *) Grade 2 certified Control Panel;
**) Grade 3 certified Control Panel.
ABSOLUTA 16 ABSOLUTA 42 ABSOLUTA 104
Max Number of Keypads 8816
Number of user PINs 31 63 127
Number of keys 64 128 250
Number of Key readers 16 32 32
Number of input expansions 16 32 32
Number of output expansions 16 16 16
Number of power supply stations 044
Max number of wired zones 16 42 104
Max number of wireless zones 32 32 32
Total max number of combined
(wired+wireless) zones 32 42 104
Number of partitions 8816
Max number of output 62050
Max telephone numbers 32 32 32
Table 2 ABSOLUTA Panel Series Features.

Glossary
Alarm Zone A limited area of the premises monitored
by detectors (e.g. Motion detectors, Door/Window con-
tacts, etc.).
BPI Device A peripheral device connected to the Con-
trol panel by a 4 pin conductor.
Beep An audible signal emitted by the Keypad each
time a key is pressed, or when requested operations
have been completed.
Buzz An audible signal emitted by the Keypad to indi-
cate that a requested operation is impossible, or has
been denied (for example, automatic exit from the User
Menu at a LED keypad).
Buzzer An audible signalling device inside Keypads
and PROXI Readers.
Central Station A private Security Company your
Control panel will send Alarm, Trouble and Emergency
messages to (that is, if remote monitoring is enabled).
Detector A device which signals alarm conditions (e.g.
Glassbreak, Forced entry, etc.).
Dialler A device which sends voice message to pro-
grammed phone numbers.
Digital Communicator An integrated on-line device
that sends digital signals.
Digital Key An electronic control key with a random
PIN (selected from over 4,294,967,296 billion combina-
tions).
Display An alphanumeric screen on the LCD
Keypads.
LCD Keypad A command keypad with a display. Your
Control panel can be programmed and controlled via
LCD Keypads.
Touch Keypad Touchscreen keypad to manage and
program the Control Panel.
LED A small coloured light on the Keypads and Readers.
Log A list of the last 2000 events
Partition A section of the premises. Each Partition can
have its own Times, PINs and Digital Keys/Cards, etc.
Reader A peripheral control device which accepts
commands from Digital Keys/Cards (e.g. PROXI Prox-
imity Reader, ECLIPSE2 Readers).
Real-time Instant Audible/Visual signals or communi-
cations.
Telemonitoring A remote-monitoring service provided by
a Central Station. This feature will allow the Control panel to
transmit real-time events (e.g. Forced entry, Tamper,
Alarms, etc.) to the Central station.
Teleservice A remote-maintenance service provided by
your Installer. The Teleservice feature allows the Installer
to operate on your system over the phone remotely.
6 Expandable Hybrid Control Panel ABSOLUTA

OPERATIONS FROM TOUCH KEYPAD
The M-Touch keypad with its ample display enables
graphic presentation of system information. Then the
display is touch-sensitive so is easy and intuitive to
interact with.
In standby the keypad can display information shown in
Figure 1 and described below.
+Information shown by the keypad in standby de-
pends on operations programmed by the installer
(option EN50131 enabled or disabled): ask your in-
staller for more information.
1) Status Bar This area can show the following mes-
sages (with decreasing priority):
ØSystem in Alarm, above a red bar, in an alarm;
ØAuto-arm in, above an orange bar, if the system is
about to be armed by the time scheduler;
ØLabels of open zones, above a grey bar, of zones
with the option Active on Keypads enabled (ask the
installer for more information).
2) Signals Icon This area can show the following
icons, if the EN50131 option is disabled (with decreas-
ing priority):
Øfixed, in an alarm;
Øfixed, with tampering or fault;
Øblinking, with an alarm memorised;
Øblinking, with tampering or a fault memorised;
Øfixed, with zones bypassed.
3) SMS not read This icon is displayed when there
are unread SMSs: the number above the icon indicates
the number of messages not read. Read “GSM/IP > Re-
ceived SMS” for more information.
4) Time and Date This area displays the current time
and date: read “Settings > Date and Time” for more in-
formation.
5) Stop Alarms If option EN50131 is disabled, this area
displays the icon when the visual/audio (sirens) signal-
ling devices are disabled via the Stop Alarms option: see
“Menu (User) > Stop Alarms” for more information.
+The icon is also displayed when option
EN50131 is enabled, if the signalling devices are
disabled by the jumper SERV: ask your installer for
more information.
6) Arm Status This area can show the following icons,
if the EN50131 option is disabled:
Øif all Keypad Partitions are disarmed;
Øif at least one Keypad Partition is armed.
7) Auto-arming If option EN50131 is disabled, this
area displays the icon when the auto-arming is en-
abled: see “System > Auto arming” for more information.
8) Partition Status If option EN50131 is disabled, this
area displays the partitions status of the keypad, when
icon 6 is pressed ( or ):
ØPress or to scroll through the partitions;
ØPress icon 6 ( or ) to hide the partition status.
9) User Logged in LED (green) If on indicates that
the user is logged in to the keypad: read “Entering the
Home Screen” for more information.
10) Armed Partition LED (red) If the EN50131 option
is disabled, comes on when at least one keypad Parti-
tion is armed: read “Arming/Disarming Partitions” for
more information.
ABSOLUTA OPERATIONS FROM TOUCH KEYPAD 7
Figure 1 The M-Touch keypad is on standby (EN50131
disabled).

11) Home Key Press this key for less than 3 seconds
to display the Login Screen: read “Entering the Home
Screen” for more information.
Keep this key pressed for at least 3 seconds but less
than 10 seconds to enter calibrate screen: read
“Screen calibration” for more information.
Keep this key pressed for at least 10 seconds to re-
store the keypad.
+This key blinks when the control panel receives an
SMS: read “Received SMS” for more information.
12) Signals LED (amber) If option EN50131 is dis-
abled, it comes on with a signal: read “Viewing Signals”
for more information.
13) Power LED (green) When on the keypad is pow-
ered.
14) Slot for SD memory card SD (Secure Digital)
Memory Card slot with images to be displayed in digital
picture frame mode (see “ Keypad> Picture Frame”) or
with the desired image for the background (see “Key-
pad > Background Image”).
+The keypad supports memory cards up to 32 GB,
formatted to FAT16 or FAT32.
Emergency Keys
Emergency Keys enable the user to recall actions pro-
grammed by the installer quickly, with no need to enter
a PIN.
To enter Emergency Keys:
Øtouch any point on the screen when the screen is off
or shows Digital Frame images; then touch any point
on the screen again, or,
Øpress the Home key for at least 3 seconds.
The keypad displays the Login Screen with the Emer-
gency Keys described below.
Fire Keep this key pressed until the keypad beeps and
displays the icon (about 4 seconds) to signal a fire.
Panic Keep this key pressed until the keypad beeps
and displays the icon (about 4 seconds) to signal an
aggression.
Emergency Keep this key pressed until the keypad
beeps and displays the icon (about 4 seconds) to
signal an emergency situation.
+Actions triggered by the Emergency Keys, and
Emergency Key labels, depend on control panel pro-
gramming: ask your installer for more information.
8 Expandable Hybrid Control Panel ABSOLUTA

Entering the Home Screen
On standby the keypad display is off or displays images
selected for the Digital Frame.
To carry out any operations you must access the key-
pad’s Home Screen, as described below.
1. Press the Home key for at least 3 seconds and go
to step 3 or touch any point on the display when it is
off or displays Digital Frame images:
2. Touch any point on the display again when the
standby status screen appears:
+The key is for access in Installer or Level 4
mode. If you touch this key by mistake, touch it
again to display the user Login Screen.
3. Enter a valid PIN:
4. Press:
Øto cancel all numbers entered;
Øagain to exit the Login Screen and go back to
step 2;
Øto confirm the PIN entered.
The keypad displays the Home Screen described be-
low.
1) Signals Icon This icon signals alarms, tampering,
failures or bypassed zones, in progress or memorised
(it changes based on whether the signal is in progress
or memory): touch this icon to display signals as de-
scribed in “Viewing Signals”.
2) Unread SMS Icon This icon signals the presence of
SMSs that have not been read; the number to the top
right indicates the number of SMSs to be read: touch
this icon to read them (only Master and Normal Users)
as described in “Received SMS”.
3) Event Transmission Icon This icon signals that
the control panel is transmitting the events (Alarm,
Tamper, Fault or Generic) through its communication
channels (voice calls, SMS, transmissions to the Cen-
tral Stations): touch this icon to cancel the transmission
in progress and those queuing as described in “Alarm
Status > Clear the transmission of events”.
4) Status Bar This zone can show the following mes-
sages (with decreasing priority):
ØSystem in Alarm, above a red bar, in an alarm (read
“Alarm Status” for more information);
ØAuto-arm in, above an orange bar, if the system is
about to be armed by the time scheduler (read
“Auto-arming” for more information).
5) Stop Alarms This icon indicates that the visual/au-
dio (sirens) signalling devices have been disabled by
the option Stop Alarms (see “Menu (User) > Stop
Alarms” for more information) or through the jumper
SERV (ask your installer for more information).
ABSOLUTA OPERATIONS FROM TOUCH KEYPAD 9

6) Arming/Disarming Keys These keys are to
arm/disarm Partitions: read “Arming/Disarming Parti-
tions” for more information.
+The Patrol User can ONLY Away Arming and
Disarming the system, therefore these keys are
NOT available to the Patrol User.
7) Auto-arming This icon indicates that auto-arming is
enabled: see “System > Auto-arming” for more information.
Press display/hide the Menu Bar (read “Menu Bar”
for more information):
Press Exit to quit the Home Screen or any other keypad
screen, and go back to step 2.
+The keypad quits automatically from the Home
Screen (from all other screens) after 30 (180) sec-
onds if no key is pressed.
+Operations possible and information visible de-
pend on the type of PIN used to log in: Master, Nor-
mal or Limited or Patrol.
+Operations related to Partitions and Zones will
ONLY be effective on Partitions and Zones of Parti-
tions common to the PIN and Keypad used.
+Each PIN and Keypad can ONLY display the infor-
mation in Partitions and Zones belonging to Parti-
tions common to the PIN and Keypad used.
nFailed to access
The following message appears if an invalid PIN is en-
tered:
+The keypad blocks for 90 seconds if 10 consecu-
tive invalid PIN are entered.
Arming/Disarming Partitions
When a Partition is armed, any violation of one of its
Zones causes an alarm.
When a Partition is disarmed, its zones can be violated
without causing any alarms.
+The 24h Zones cause an alarm independent of the
status of Partitions they belong to; they are gener-
ally used to detect security system device tamper-
ing and as fire detectors.
Operations described in this paragraph arm/disarm ALL
Partitions common to Keypad and PIN used, as pro-
grammed by the installer (ask the installer for more in-
formation).
Single Partitions can also be armed/disarmed singly as
described in “Info > Partition Status”.
To arm/disarm Partitions, follow the instructions below.
Enter the Home Screen as described in “Entering the
Home Screen”.
The keypad displays the Home Screen described below.
1) Arming Mode Displays Arming Modes available:
ØGlobal, arms all Partitions common to Keypad and
PIN used;
ØSTAY type A (B/C/D), arms/disarms the Partitions
common to keypad and PIN used as programmed by
the installer.
+The Global option is NOT displayed if the installer
has not programmed at least one stay arming
(Type A, B,C or D).
+Labels of Stay Arming Modes can vary based on
installer programming.
+Any arming mode labels that exceed the space avail-
able scroll automatically to display the excess part:
read “Keypad > Scrolling Test” for more information.
2) Label of Arming Mode selected.
3) Description of Arming Mode selected.
+Arming Mode descriptions are programmed by the
installer.
10 Expandable Hybrid Control Panel ABSOLUTA

4) Current Arming Status The coloured box shows
current Partition status:
ØGREEN with the label Disarmed,if
ALL Keypad Partitions are DISARMED;
ØRED with the label Armed Global,if
ALL Keypad Partitions are ARMED;
ØRED with the label Armed if AT LEAST
ONE Keypad Partition is ARMED.
5) Arming/disarming key The grey key arms the Parti-
tions as selected or disarms them:
ØGREY with the label Arm Global,
ARMS ALL the Partitions of the Keypad and PIN
used;
ØGREY with the label Arm STAY type
A, ARMS/DISARMS the Partitions of the Keypad and
PIN used in the programmed mode;
+The label Arm STAY Type A Arming depends on
the Arming Mode selected and can be modified by
the installer.
ØGREY with the label Disarm,
DISARMS ALL the Partitions of the Keypad and PIN
used.
Here below you will find some possible combinations of
the box displaying the current status of Partitions and
the Arming Key:
ØALL Partitions DISARMED and an Arming Mode se-
lected (Global, in the following example):
ØPartitions ARMED is a Mode (Global, in the following
example) and SAME Arming Mode selected:
ØPartitions ARMED in a Mode (STAY Type A in the
following example) and DIFFERENT Arming Mode
selected (Global, in the following example):
nArming
Select the desired Arming Mode then press the Arming
Key:
If there are no Arming Block Conditions (see relative
paragraph), the keypad starts to scan Exit Delay (if pro-
grammed).
+Exit Delay is also signalled audibly increasing in
frequency when arming is in less than 10 seconds.
Leave the protected zones, along the preset route, be-
fore Exit Delay expires or disarm the Partitions.
At the end of Exit Delay (if programmed), the keypad
displays the Standby Screen.
nDisarming
If you violate a Delayed Zone, the keypad starts scan-
ning Entry Delay:
In that case, just enter a valid PIN and press , to dis-
arm the Partitions before Entry Delay expires.
In all other cases, enter the Home Screen as described
in “Entering the Home Screen” and press Disarm.
+Entry Delay is also signalled audibly increasing in
frequency when the alarm will go off in less than 10
seconds.
At the end of the disarming operation, the keypad dis-
plays the Standby Screen.
ABSOLUTA OPERATIONS FROM TOUCH KEYPAD 11

nDisarm under Duress
If you are forced to disarm the system under duress,
use the PIN the installer assigned for the purpose (ask
your installer for more information); in that way the con-
trol panel will send a silent alarm (NOT signalled by any
audible device and by the keypads) to competent
authorities.
nDisarm for patrol
Use the PIN assigned for this function (ask your installer
for more information) to disarm the Partitions for a lim-
ited period of time; Partitions will re-arm automatically
when the time programmed expires.
nDisarming with several PINs/Keys
If the installer has programmed disarming using several
PINs/Keys for a Partition, to disarm it you must en-
ter/use the PIN/Key number assigned before the pro-
grammed time expires, as described below (also read
the same paragraph under “OPERATIONS FROM LCD
KEYPAD > Basic (Arming) Commands” and “Reader
Operations”).
1. Disarm the Partitions as described in “Disarming”:

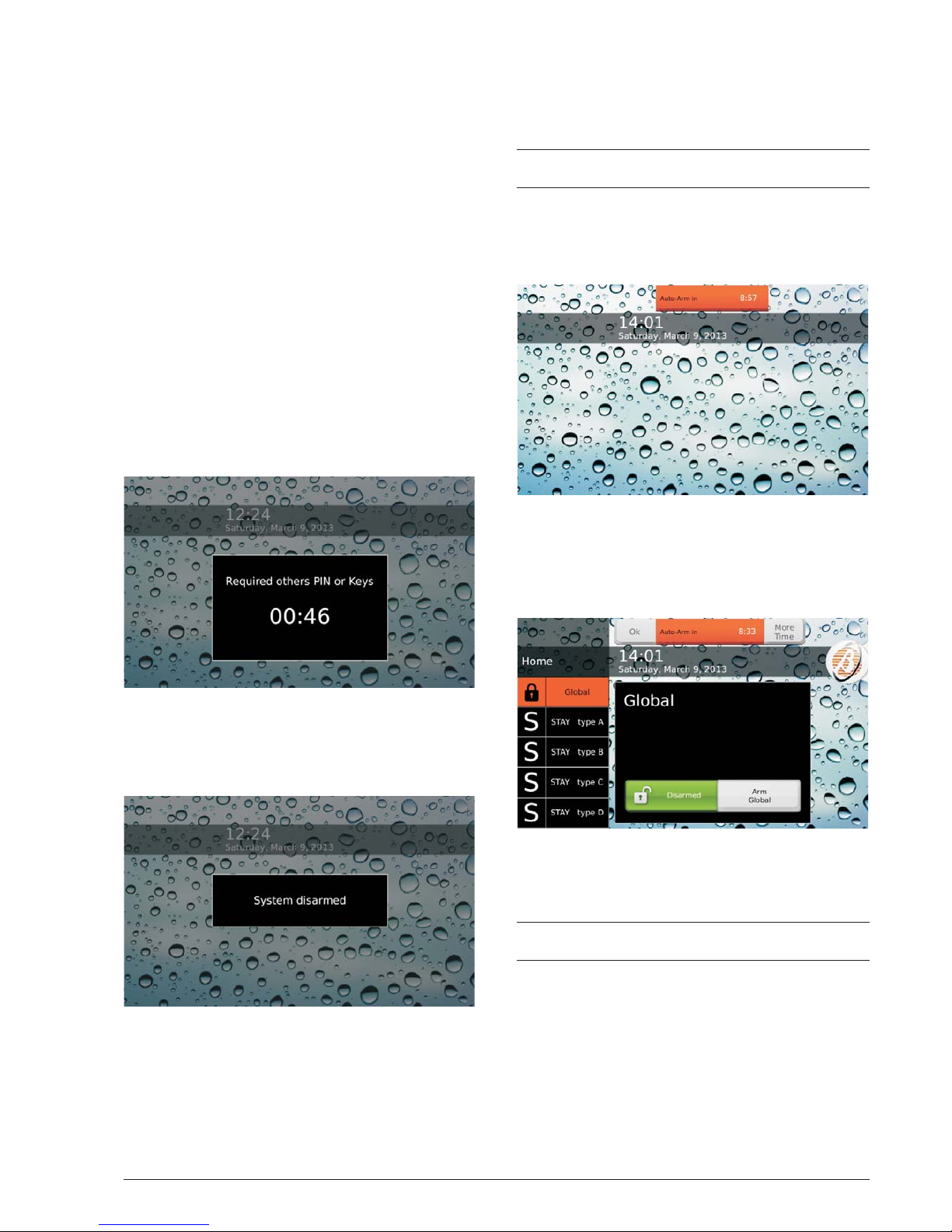

The display shows time available to use another PIN or
Key.
2. Disarm the Partitions again using a different PIN or
Key before time available expires:
The display message System Disarmed appears if
other PINs or Keys are NOT needed, otherwise it goes
back to the previous step.
nAuto-arming
If your installer has programmed the Partitions to arm
automatically, they will be armed/disarmed at sched-
uled times, in scheduled modes: ask your installer for
more information.
+Auto-arming can be enabled/disabled as de-
scribed in “System > Auto-arming”.
When there are just 10 minutes to go before a Partition
is armed automatically, the display, in Standby Status,
shows the auto-arming signalling bar with the count-
down of time remaining:
You can postpone automatic arming by 1 hour as fol-
lows.
1. Enter the Home Screen as described in “Entering
the Home Screen”:
2. Press More Time to postpone automatic arming by
1 hour or press OK to hide the auto-arming notifica-
tion bar.
+You can postpone automatic arming, up to 3 times
in a day.
See “Menu (User) > Extra Time” to postpone the
auto-arming when there are more than 10 minutes left
before the scheduled time.
12 Expandable Hybrid Control Panel ABSOLUTA

nArming Block Conditions

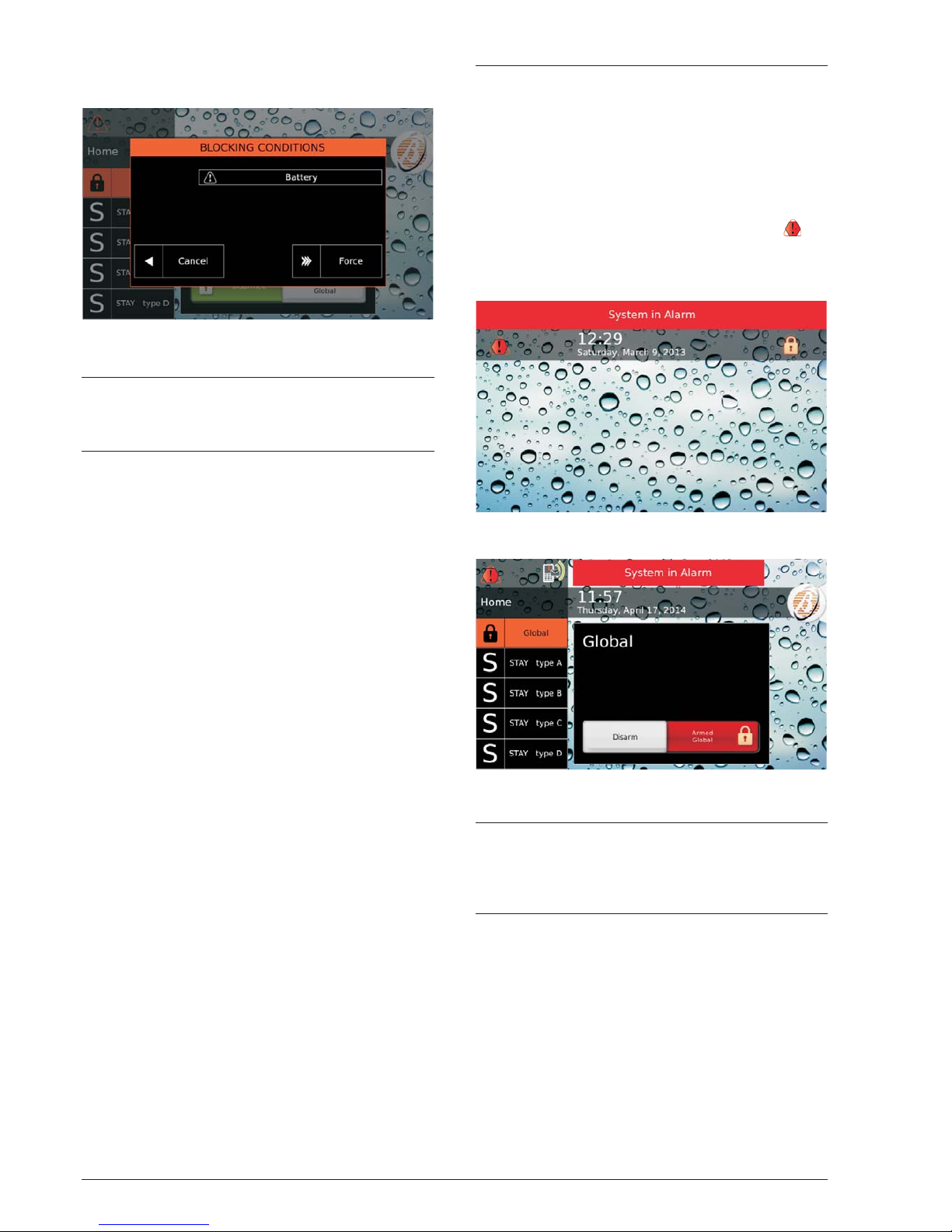

The display shows a screen like this one if there are any
conditions that prevent Partition arming:
Press Force to arm the Partitions in any case or Cancel
to cancel arming.
+Based on the Keypad function mode (EN50131 en-
abled/disabled) some Blocking Conditions
CANNOT be forced : read “APPENDIX > Arming
Block Conditions” for more information.
Some Blocking Conditions can be solved by the user,
others require installer intervention.
Alarm Status
The Alarm Status is signalled by means set by the in-
staller:
Øvisible and/or audible devices (sirens);
Øvoice calls and/or SMS sent to a programmed series
of numbers;
Øtransmission of events to central stations.
The Keypad signals the Alarm Status with the message
System in Alarm above a red bar and the icon .
If option EN50131 is disabled the Alarm Status is also
visible from the Standby Status:
Otherwise, if the EN50131 option is ENABLED, the
Alarm Status is ONLY visible in the Home Screen:
Disarm Partitions as described in “Arming/Disarming
Partitions” to end the Alarm Status.
+The Control panel carries on to transmit pro-
grammed events (voice calls, SMS and transmis-
sion of events to the Central Stations) even after
the Partitions have been disarmed: read the follow-
ing paragraph to cancel the transmission of events.
See “Menu (User) > Stop Alarms” if the disarming of the
Zones does NOT block the visual/audio (siren) signal-
ling devices.
ABSOLUTA OPERATIONS FROM TOUCH KEYPAD 13

nClear the transmission of events
1. Enter the Home Screen as described in “Entering
the Home Screen”:
2. Press to cancel the transmissions in progress
and any more queuing:
3. Press Yes to confirm.
Viewing Signals
The LED Gindicates a signal (alarm, tampering, fault
or zone bypass).
If all signals have ended, the LED Gblinks to indicate
that signals have occurred (memory).
+If the Keypad has the EN50131 option enabled, the
Gled ONLY displays system status when ALL
keypad Partitions are disarmed: ask your installer
for more information.
To view signals in progress and those memorised, fol-
low instructions below.
1. Enter the Home Screen as described in “Entering
the Home Screen”.
2. Press the icon in the top left on the display; this icon
can be as follows, with decreasing priority:
Øfixed, in an alarm;
Øfixed, with tampering or fault;
Øblinking, with an alarm memorised;
Øblinking, with tampering or a fault memorised;
Øfixed, with zones bypassed.
The display’s left side shows the signals category:
Alarms, Tampers, Faults and Bypasses; if a category
has no signals in progress or memorised, the relative
key is not displayed; the central part of the display
shows a list of signals for the category selected on the
left side.
3. Press Alarms to view alarms.
14 Expandable Hybrid Control Panel ABSOLUTA

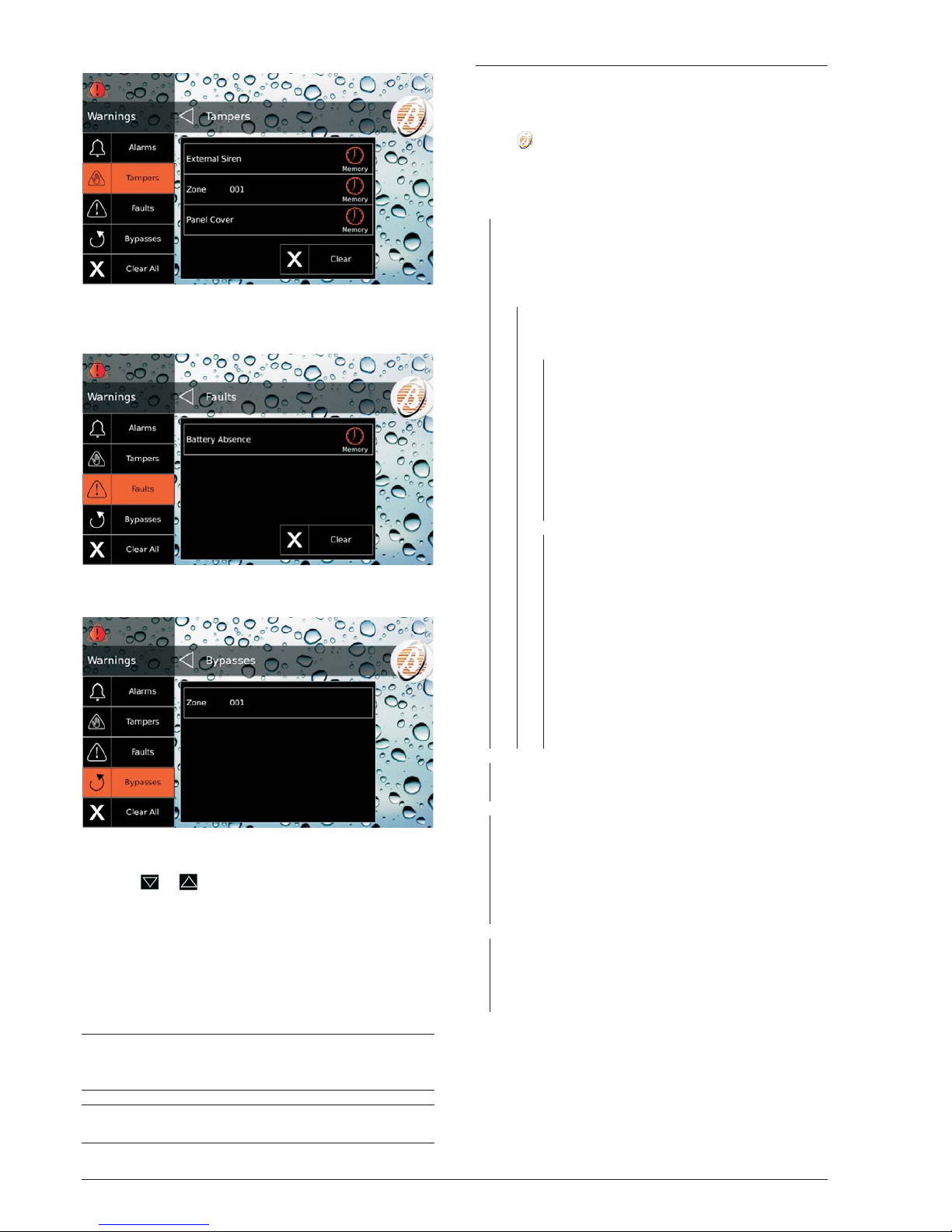

4. Press Tampers to view tampering:
5. Press Faults to view faults (see Table 11 on
page 66):
6. Press Bypasses to view zones bypassed:
ØThe icon mindicates that a signal occurred in the
past (memory).
ØPress or to scroll signals.
ØPress Clear to cancel the category signals (ONLY
Master User for Grade 2 Control Panels and for
Alarms in Grade 3 Control Panels or Super User for
Grade 3 Control Panels).
ØPress Clear All to cancel ALL the tampering and
fault signals (ONLY Master User for Grade 2 Control
Panels or Super User for Grade 3 Control Panels).
+The Clear key is not available for the bypassed
zones; see “Info > Zone status” to clear (re-include)
the bypassed areas.
+The Clear All key is NOT available if there are only
bypassed zones.
Menu Bar
To view the Menu Bar you must enter the Home Screen
as described in “Entering the Home Screen”.
Press to view/hide the Menu Bar.
The Menu Bar will allow you to select the following op-
tions.
Menu (1)
—PIN (2): setting, enabling/disabling PIN numbers.
—Number: programming Telephone Numbers.
—Keys: disabling Keys/Wireless keys.
—Teleservice: request for assistance remotely.
—Setting
—Alarm Test: tests signalling devices.
—Date/Time: setting date and time.
—System
—Privacy: installer enabled to set Tele-
phone Numbers and export.
—Answering: enabling management via
phone of the control panel.
—Installer: enabling installer.
—Auto arming: enabling automatic arming.
—GSM: enabling GSM.
—IP: enabling IP.
—Super User (3): Enable Super User.
—Keypad
—Backlight: regulation of display bright-
ness.
—Buzzer Control: regulation of buzzer vol-
ume.
—Picture Frame: choice of photo for the
Digital Frame.
—Clock Mode: display of 12/24 hour clock.
—Clean Mode: display cleaning.
—Background Image: select background
image.
—Language: select keypad language.
—Scrolling Test: disabling scrolling text.
Scenarios (4)
—Outputs: activate/deactivate outputs.
—Actions: activate/deactivate actions.
Info
—Partition Status (5): view and modify Partition status.
—Zone Status (6): view Zone status and bypass.
—Event Buffer (7): view events memorised.
—Installer: display master data installer.
—Bentel Security: display information about Bentel
Security.
GSM/IP (8)
—GSM: view GSM status; request remaining credit
and SMS reading.
—IP: display status and IP information.
—App: view info for App ABSOLUTA.
Exit
ABSOLUTA OPERATIONS FROM TOUCH KEYPAD 15

1) The Menu option is ONLY available to Master Us-
ers. This option is replaced by the PIN option for Normal,
Limited and Patrol Users.
2) The Limited and Patrol Users CANNOT change their
PIN.
3) The option Super User is ONLY available with
Grade 3 Control Panels for Master User.
4) The Limited and Patrol Users CANNOT select the
option Scenarios.
5) Normal, Limited and Patrol Users CANNOT change
status of a single Partition.
6) The Patrol User CANNOT bypass zones.
7) The option History is NOT visible to the Patrol User.
8) The Limited and Patrol Users CANNOT select the
GSM/IP option.
Select the desired option and read the corresponding
sub-paragraph:
1) Current Menu.
2) Press to go up a level in the menu structure.
3) Item selected.
Press Exit to quit the Home Screen.
Menu (User)
+This menu is ONLY accessible to Master Users.
This menu groups the following options:
ØPIN, to set, enable/disable PINs;
ØKeys, to disable/enable Keys and Wireless keys;
ØNumbers, to set Telephone Numbers;
ØSettings, groups the options Alarm Test, Date/Time,
System and Keypad;
ØTeleservice, to request installer assistance via
phone;
ØExtra Time, to postpone auto-arming;
ØStop Alarms, to disable visual/audio (sirens) signal-
ling devices;
ØRestore Alarms, to re-activate visual/audio (sirens)
signalling devices.
Select the desired option and read the corresponding
paragraph.
nPIN
This option allows you to set and enable/disable User
PINs.
+Default, ONLY User PIN no. 1 is Enabled, which is
0001 for the Grade 2 Control Panels and 00001 for
Grade 3 Control Panels.
The display’s left side shows available PINs with their
labels, in groups of four.
+Available PINs and labels are set by the installer.
16 Expandable Hybrid Control Panel ABSOLUTA

1. Press or to scroll the PIN list then select the
PIN to be changed.
+For Normal and Limited Users the PIN list only
shows the PIN used to login.
The display’s right side shows the PIN selected and its
status (Enabled/Disable).
2. Press Disable to disable the PIN or Enabled to en-
able the PIN.
3. If the PIN is enabled, press New PIN to change the
PIN and go to the next step if the installer has set
automatic PIN generation; otherwise go to step 5.
The display shows the PIN generated automatically:
4. Memorise the PIN and press Confirm.
5. The display shows the number keypad:
6. Enter the desired PIN and press to confirm:
7. Repeat PIN insertion and press to confirm: if PIN
numbers entered match, the new PIN is memorised
and the keypad returns to step 1, otherwise it goes
back to step 5.
PIN Duplicated If the existing PIN is entered at Step 6,
the display shows the message PIN Duplicated:
This means that the PIN was first used by another user:
for security reasons, the PIN is disabled and the user is
prompted to enter another PIN.
The PIN can be re-enabled by a Master User as de-
scribed above.
nKeys
This option allows you to disable/enable Keys and
Wireless keys.
+A Key/Wireless key can only be disabled/enabled
by PINs enabled in Partitions where the Key/Wire-
less key is enabled.
ABSOLUTA OPERATIONS FROM TOUCH KEYPAD 17

1. Press Keys to disable/enable the Keys or Key
Fobs to disable/enable the Wireless keys: the dis-
play’s left side shows the list of Keys/Wireless keys
available, with their labels and status, in groups of
three.
+Available Keys/Wireless keys and labels are set by
the installer.
2. Press or to scroll the list of Keys/Wireless
keys, then press the green rectangle Enabled to
disable the Key/Wireless key or the gray rectangle
Disabled to enable the Key/Wireless key.

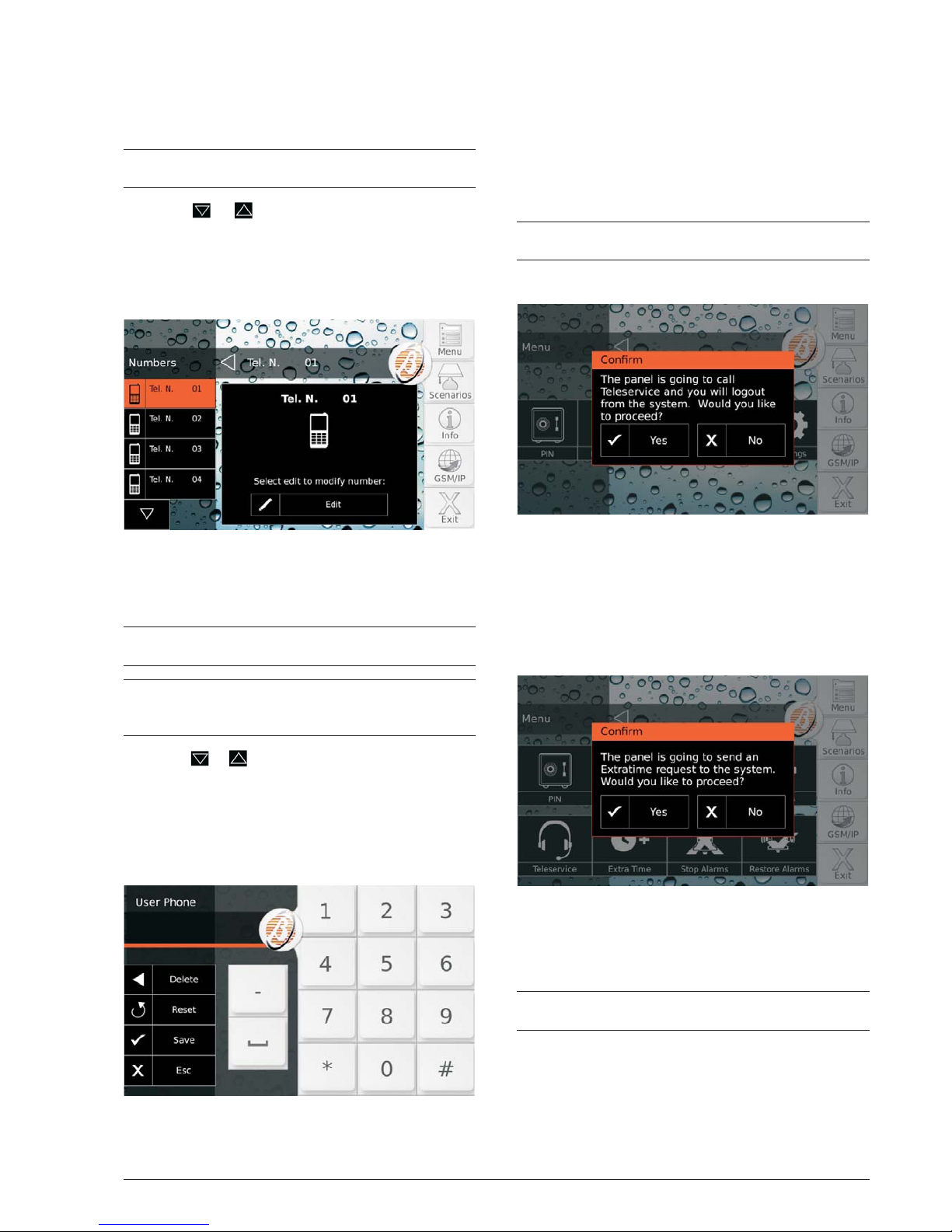

nNumbers
This option allows you to set Telephone Numbers.
The display’s left side shows Telephone Numbers avail-
able with their labels, in groups of four.
+Available Telephone Numbers and labels are set
by the installer.
+ONLY the Telephone Numbers that can be modi-
fied by the user are shown: the numbers of the
Central Stations are NOT shown.
1. Press or to scroll the list of Telephone Num-
bers, then select the Number to be changed: the
display’s right side shows the Telephone Number
selected.
2. Press Edit to change the Telephone Number se-
lected:
Type in the desired number:
Øpress -(dash) to enter a long 4 second pause, indi-
cated by the dash (-);
Øpress _(underscore) to enter a short 2 second
pause, indicated by the underscore (_);
Øpress Delete to cancel the last character;
Øpress Reset to cancel ALL characters;
Øpress Save to to save changes or ESC to maintain
the previous Number and go back to step 1.
+DO NOT insert pauses in numbers dialled via
GSM.
nTeleservice
If your installer has preset Teleservice, this option al-
lows you to request assistance remotely (maintenance
not requiring intervention on parts or connections).
Press Yes to confirm the request for Teleservice.
nExtra Time
This option allows you to delay the auto-arming by 1
hour: see “Arming/Disarming Partitions > Auto-Arming”
for more information.
Press Yes to confirm the extraordinary request.
+You can make up to 3 extraordinary requests in a
day.
18 Expandable Hybrid Control Panel ABSOLUTA

nStop Alarms
In general, to turn off the visual/audio (sirens) signalling
devices, simply disarm the partitions or clear the
alarms. If these two operations are not effective, due to
a permanent alarm condition or for some other reason,
the option Stop Alarms allows you to disable the
signalling devices.
Press Yes to confirm the stop alarms: the Control panel
disable all signalling devices.
+The telephone actions (voice calls, SMS) and the
transmission of events to the Central Stations will
NOT be disabled: see “Alarm Status > Clear the
transmission of events” to cancel the telephone
actions.
If option EN50131 is ENABLED on the keypad, the sig-
nalling devices will be disabled until a new event occurs
that activates them (alarm, tamper or fault).
If option EN50131 is disabled on the keypad, the sig-
nalling devices remain disabled until they are enabled
again using the option Restore Alarms, as described in
the following paragraph: in this case icon will signal
the permanent disarming of the signalling devices.
nRestore Alarms
This option allows you to re-activate the visual/audio
(sirens) signalling devices with the option Stop Alarms
disabled.
Press Yes to confirm the resetting of alarms: the signal-
ling devices will be reactivated if the alarm conditions
are still present.
Settings
Press:
ØAlarm Test, to check that signal devices operate
correctly;
ØDate/Time, to set the date and time of the control
panel;
ØSystem, to enable/disable the Privacy, the Answer-
ing, the Installer, the Auto arming, the GSM and
the IP;
ØKeypad, to adjust the Backlighting, and the keypad
Buzzer volume, to choose images for the Digital
Frame and Background, to set the Clock operating
mode and the keypad Language,toClean the
keypad.
Read the relevant section for more information.
ABSOLUTA OPERATIONS FROM TOUCH KEYPAD 19

nAlarm Test
This option allows you to check signal system opera-
tions (alarms).
When this option is selected, Panel Output no. 1 (gener-
ally connected to the external siren) is activated for
about 3 seconds, and Voice Messages and/ or Report-
ing Codes are sent to the Telephone Numbers as-
signed to the General System Alarm event (ask your
installer for more information).
The display will show the message << An alarm test will
be performed on the system. Would you like to pro-
ceed?>>.
Press Yes to carry out the test or No to close the popup
window without doing the test.
nDate and Time
This option allows you to change date and time on the
Panel clock.
Press or to make the desired change, then press
Save to memorise the change.
System
Press:
ØPrivacy, to enable/disable installer programming of
telephone numbers for voice calls and to export user
PINs and Keys;
ØAnswering, to enable/disable the Control Panel to
answer phone calls;
ØInstaller, to enable/disable installer access to the
Control Panel;
ØAuto Arming, to enable/disable arming/disarming
Partitions at scheduled times;
ØGSM, to enable/disable communication via GSM.
ØIP, to enable/disable communication via IP;
ØSuper User, to enable/disable the Super User.
Read the relevant section for more information.
nPrivacy
Enable this option to allow the installer to access the
phonebook for voice calls and to export user PINs and
Keys.
+This option is disabled and CANNOT be enabled if
the Installer option is disabled.
Press Enable to enable the option or Disable to disable
the option.
20 Expandable Hybrid Control Panel ABSOLUTA
