BSK9
Rectangular Fire damper
FIRE SAFETY

2BORÅS Tel +46 (0)33 - 23 67 80 STOCKHOLM Tel +46 (0)8 - 54 55 12 70

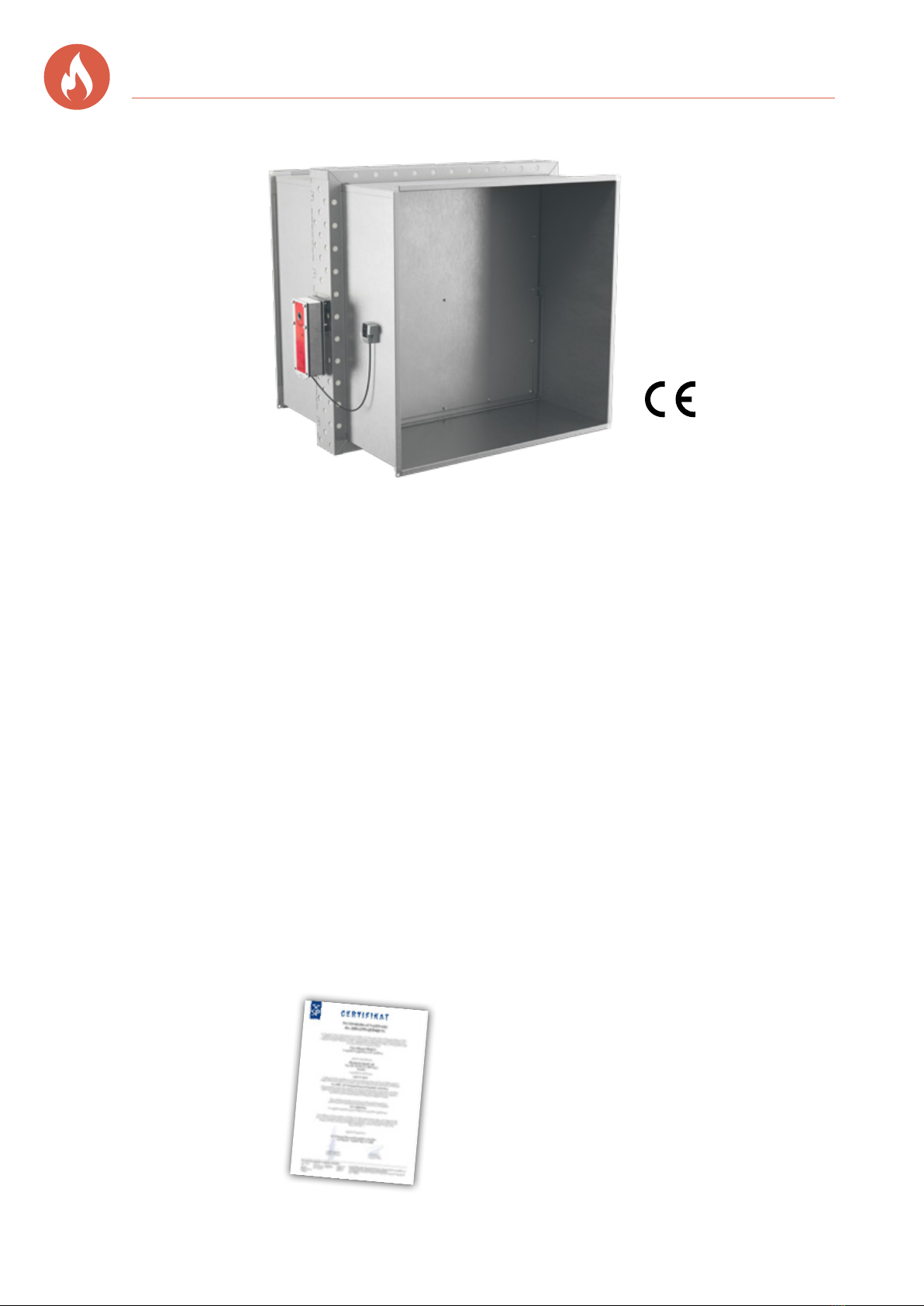

Fire damper BSK9 EI90
Installation
BSK9 is installed in fire cell separating walls or floors,
according to the adjoining installation instructions. Should
not be installed outdoors, in damp or high humidity areas.
Actuator
BSK9 is always supplied with an electric safety actuator
with spring return complete with thermal sensor equipped
with push button for local manual operating test. The sen-
sor breaks the power supply to the actuator device if the
temperature exceeds 72°C inside or outside the damper.
24V actuators are always used with the FENIX monitoring
system, MRB3 and MRB. The damper can also be supplied
with 230V electric actuator. The damper is always supplied
with a safety actuator.
Activation
The Boverket Building Regulations state a requirement
for smoke detectors verified in accordance with
SS-EN 54-7 for activation of dampers. The obligatory
thermal sensor closes the damper at 72°C in accordance
with ISO 10294-4.
Control and monitoring
Dampers for protection against the spread of fire and com-
bustion gases shall be closed via inputs from a smoke de-
tector. Smoke detectors are mounted in ventilation ducts
or monitored spaces. Fire dampers, smoke detectors and
ventilation units are connected to the FENIX, MRB3 or
MRB control unit for a complete ventilation fire protection.
FENIX, MRB3 and MRB perform functional checks of the
fire protection in accordance with current regulations.
3d party panels also possible. Please check compability first.
See www.bevent-rasch.se for further details.
Quick facts
• Fire classEI90 / EI90S
• Sizes from 200 x 200mm to 800 x 800mm
• Fitted safety actuator 24V or 230V
• Low weight
• Easy installation
• CE-marked building product in acc. with
EN 15650:2010
• Available in MagiCAD
Use
Damper in combination with walls or floors for ventilation
fire protection in buildings. In accordance with the har-
monised European Standard EN 15650:2010. In designs
according to associated documents, installation instruc-
tions and when the damper is used in combination with
smoke detectors and monitoring system (MRB, MRB3,
FENIX), or the like, the spread of fire/combustion gases
is prevented. No further action against the spread of fire/
combustion gases is required.
Performance
CoCP (Certificate of Constancy
of Performance) EN 15650:2010
0402-CPR-SC1299-13
Classification of fire resistance
in accordance with EN13501-3
EI90 (ve ho i <–> o) S
For complete classification,
refer to the Performance Declaration.

3BORÅS Tel +46 (0)33 - 23 67 80 STOCKHOLM Tel +46 (0)8 - 54 55 12 70
EI90 Fire damper BSK9
Size From 200 x 200 mm to 800 x 800 mm.
Design
The BSK9 comes complete with electrical safety actuator
and thermal sensor. The actuator is maintenance-free and
has integrated signal contacts for indication of the damper
blade position. The standard version of the damper is
supplied with a slip joint connection.
Material and surface finish
- Casing and details in hot-dip galvanized steel plate in
accordance with environmental classC3.
- Blade sealing of fibre glass reinforced canvas.
- Blades and casing of calcium silicate.
Accessories
BRAS Connection spigot for spiral duct
RBFS Extension connection for walls/floors
thicker than 280mm, and in
combination with BRAS or wire mesh
grilles
RCKB Junction box
RCDU MRB-system, max 2 dampers
RCBK4 MRB-system, max 4 dampers
RCMU8 MRB-system, max 8 dampers
RCKD/-RD Smoke detecors
BRTR Wire mesh grille, rectangular
RCTU/RCTC MRB3-system, max 236 dampers
FENIX2 max 2 dampers
FENIX4 / FENIX+ max 16 dampers
Specification
Installation options for BSK9
Size Fire class Wall of drywall
EI90 Group A,
SS-EN1363-1
Solid wall Solid Floor*
200 - 800 mm EI90S √ √ √
*125 mm lightweight concrete
Product data for BSK9
Size Pressure
class
Casing
tightness
SS-EN1751
Tightness
over damper
blades
SS-EN1751
2-position
actuator
On-Off
Regulating
actuator
0°-90°
Actuator
type
200 - 800 mm B B 2 √ √ Belimo BF-T
Pressure class B:
2500Pa
Example:
Fire damper BSK9 - 400 - 400 - 1 - 1
Size
Width x Height (W x H), mm
Material
Galvanized sheet steel = 1
Stainless EN 1.4301 = 2
Stainless EN 1.4404 = 3
Actuator
Electric 24V with thermal sensor = 1
Electric 230V with thermal sensor = 3
Electric 24V incl. RCTU = 5
Note Factory-fitted actuator device is always included.

4BORÅS Tel +46 (0)33 - 23 67 80 STOCKHOLM Tel +46 (0)8 - 54 55 12 70

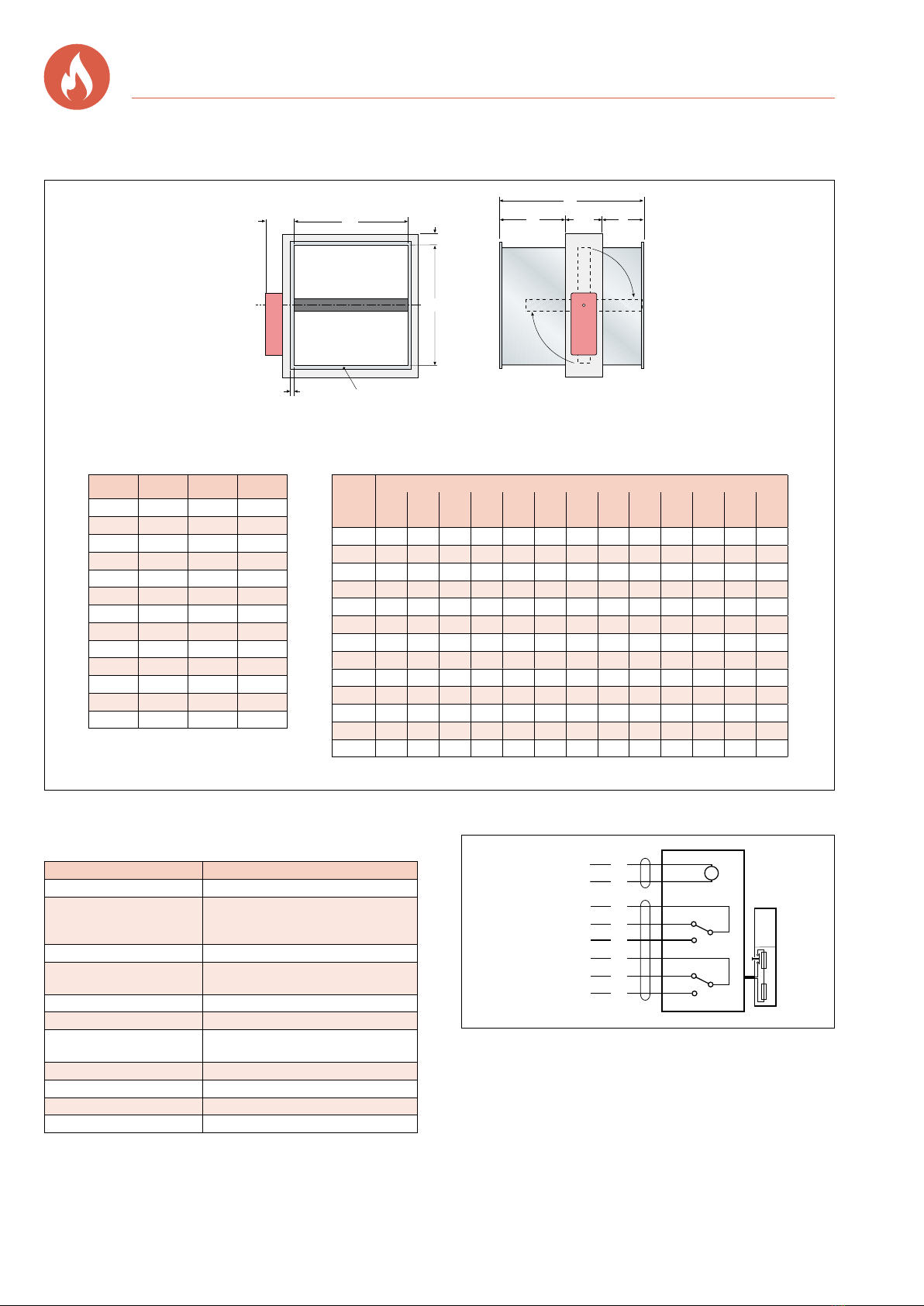

Fire damper BSK9 EI90
Illustrated in
de-energised
state
Wiring
diagram
Tf1 Tf2 BAT72
Actuator
S
Ö
N
L1
M
1
2
1
2
3
4
5
6
5°
80°
Thermal
sensor
Actuator
43
125C
D
A
max*)
128 W
H
Flanged connection19
*) applies to standard design
Dimensions and weight
H A C D
200 148 227 500
250 148 227 500
300 148 227 500
350 148 227 500
400 148 227 500
450 248 247 620
500 248 247 620
550 248 247 620
600 248 247 620
650 348 347 820
700 348 347 820
750 348 347 820
800 348 347 820
Dimensions, mm Weight incl. 24V actuator, kg
H
W
200 250 300 350 400 450 500 550 600 650 700 750 800
200 12 13 15 16 17 18 22 23 24 26 27 29 30
250 13 15 16 17 18 20 23 24 26 27 29 30 32
300 15 16 17 18 20 21 24 26 27 29 30 32 34
350 16 17 18 20 21 22 26 27 29 30 32 34 35
400 17 18 20 21 22 24 27 29 30 32 34 35 37
450 20 22 23 25 27 28 32 34 36 37 39 40 41
500 22 23 24 27 28 29 33 36 37 39 40 42 43
550 23 24 26 28 29 30 34 37 39 40 42 46 44
600 24 26 27 29 30 32 35 39 40 42 43 48 46
650 29 30 32 33 35 36 39 43 45 47 48 51 52
700 30 31 33 35 36 37 41 44 47 48 50 52 54
750 31 32 35 36 37 39 42 46 48 50 51 54 55
800 32 34 36 37 39 40 43 47 50 51 53 55 57
Electrical data (values in brackets refer to 230V)
Actuator type BF...
Sizing, max 10VA (12,5 VA)
Running time.
– motor opening, max;
– spring return, max
120s
approx. 20s
Protection class IP 54 in all installation positions
Supply voltage 24V~ ±20%, 50/60Hz
24V= ±10% (220-240V~, 50/60Hz)
Design Imax 8,3A @ 5ms
Ambient temperature -30° to +50°C
Thermal sensor tripping
temperature
72°C
Mode contacts (Load) 1mA...6A (3A inductive), AC250V
Sound level when opening < 45 dB (A)
Closing noise level < 63 dB (A)
Maintenance Maintenance-free

5BORÅS Tel +46 (0)33 - 23 67 80 STOCKHOLM Tel +46 (0)8 - 54 55 12 70
EI90 Fire damper BSK9
Mounting plate (included in delivery)
60 Duct dimensions W/H + 65 mm
60
Supplied unassembled
Ød
Ød
AA
AA
BRAS RBFS BRAS
BRAS RBFS BRAS
RBFS
Ød
A
Connection spigot
BRAS
Extension spigot
RBFS
Accessories
Note! For circular dampers first use the BSKC9.
BRAS Ød Min. damper size A
100 200 x 200 50
125 200 x 200 50
160 200 x 200 50
200 200 x 200 50
250 250 x 250 50
315 350 x 350 65
400 400 x 400 80
500 500 x 500 80
630 650 x 650 80
800 800 x 800 80

6BORÅS Tel +46 (0)33 - 23 67 80 STOCKHOLM Tel +46 (0)8 - 54 55 12 70
Fire damper BSK9 EI90
200924.0001_ENG / Sept. 2021 teamfront.se

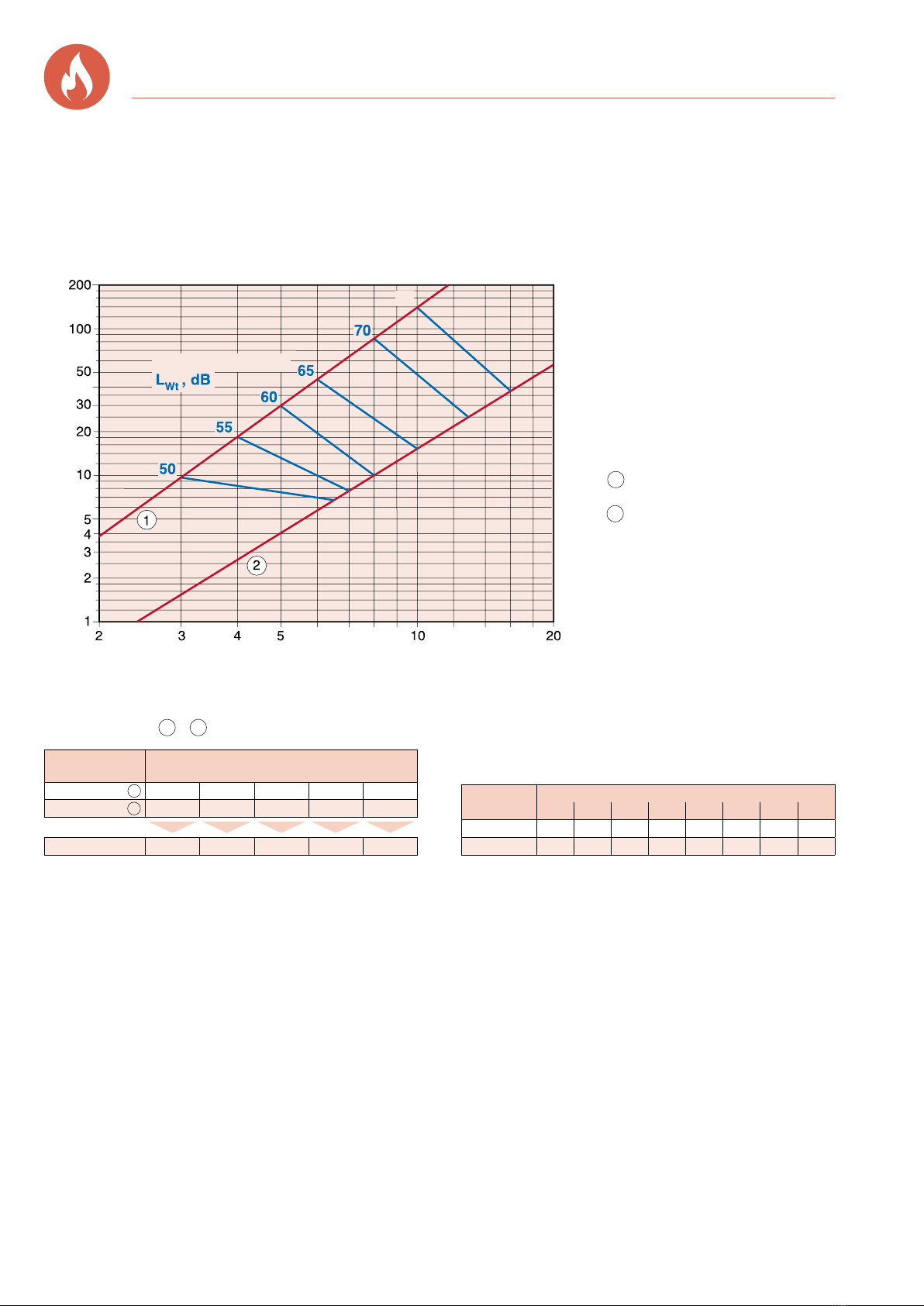

Sound data
The speed is calculated on the damper’s gross area, i.e.
one BSK9 - 400 x 400 has a gross area of 0.16m2.
The specified pressure drop applies to the damper without accessories.
Correction of sound power level, LWok, in octave band
LWok = LW+ Kok
Correction, Kok
75
Total pressure drop, Pa
Air speed, m/s
Sound power level
Technical data
1 Damper height < 400 mm
2 Damper height H ≥ 400 mm
Correction of sound power level, LW, for different
sizes use curves 1 - 2 according to: LW= LWt + K1
Damper height
mm Damper area, m2
< 400 acc. to 1 - 0,08 0,16 0,28 -
≥ 400 acc. to 2 0,08 0,16 0,32 0,64 1,28
K1-3 0 3 6 9
Opening
angle
Centre frequency Hz
63 125 250 500 1000 2000 4000 8000
90° -1 -11 -18 -23 -26 -28 -32 -38
Tol. ± dB 1 2 3 4 6 6 6 6

7BORÅS Tel +46 (0)33 - 23 67 80 STOCKHOLM Tel +46 (0)8 - 54 55 12 70
EI90 Fire damper BSK9
200924.0001_ENG / Sept. 2021 teamfront.se
Options 1 and 2
1. Create a hole, corresponding to the damper’s nominal
dimensions + 50 mm, in the building element.
If installing in plasterboard, a steel reinforcement frame
of 45x45 must be used.
2. The damper is secured flat and tight using fire-retardant
sealant between the damper and wall/joist structure
with all fastening lugs, which are opened out.
Screw Ø 5mm with a minimum length of 45mm to be
used when mounting in drywall. The screw is pulled
through the reinforcement stud.
3. Check that the gap between the damper and the wall
is 25 mm all the way round. Sealing is carried out by
caulking with mineral wool, min 40 kg/m3.
4. Fit the cover frame against the substrate with suitable
fixings. Now fasten the frame on the damper with steel
blind rivets Ø 5mm through the pre-punched holes in
the mounting frame. Fit with blind rivets from inside out.
Ensure that the damper blade runs freely.
Building element (wall or joist structure) in fire resistance class EI90.
Damper’s fire resistance class: EI90 (ve ho i <–> o) S.
EU certificate 0402-CPR-SC1299-13
Option 1 Option 2
5. When using a Fire damper as a transfer-air or end
device, a non-combustible louvre intended for the
damper must be mounted on the non-connected sides
of the damper.
The minimum distance between the damper blade in
the open position and the louvre is 50mm.
6. Connect the actuator device to the control unit and
carry out a function check.
7. Install the duct system according to applicable require-
ments. Ensure that connecting ducts systems do not
affect dampers during fire loading.
• The shortest distance between dampers must be
200 mm.
• The shortest distance to wall/floor must be 75 mm.
• The damper shaft must be mounted horizontally.
Damper’s nom.
dimensions
+ 50mm
Seal with
fir
e-retardant
sealant
Seal acc.
to section 3
(Possible
protective
grille, see
section 5)
Fastening
Ø8 x 65mm
for concrete
or lightweight
concrete.
Fastening
lugs
Assembly
plate RBMP
Steel blind
rivets fitted
from inside out
Min. thickness
125mm
Floor with fire
resistance class
=>EI90. Applies to
concrete or light-
weight concrete.
Duct
Duct
Installation instructions
Damper’s nom.
dimensions + 50mm
Seal acc.
to section 3
Seal with fire-
retardant sealant
(Possible protective
grille, see section 5)
Screw 5x45 mm
Fastening lugs
Assembly plate RBMP
Steel blind rivets
fitted from
inside out
Reinforcement joist,
refer to point 1
Min. thickness 95mm
Mineral wool-insulated
drywall ≥ 40kg/m3.
Or equivalent wall of
fire resistance
class ≥ EI90.
DuctDuct
