Mandik FDMB User manual

2
≥ 100
* Around the perimeter
≤75*
≥ 20*

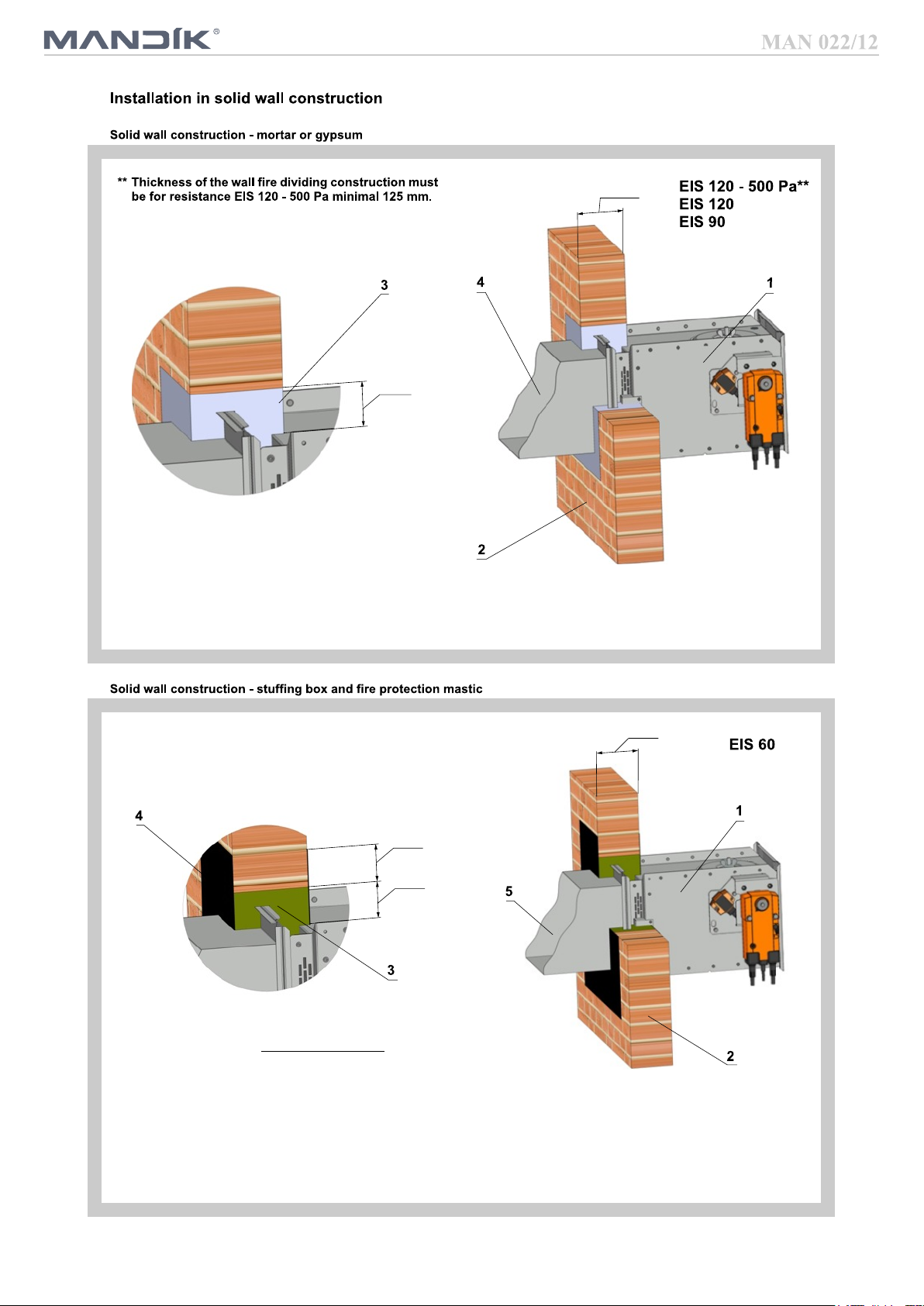

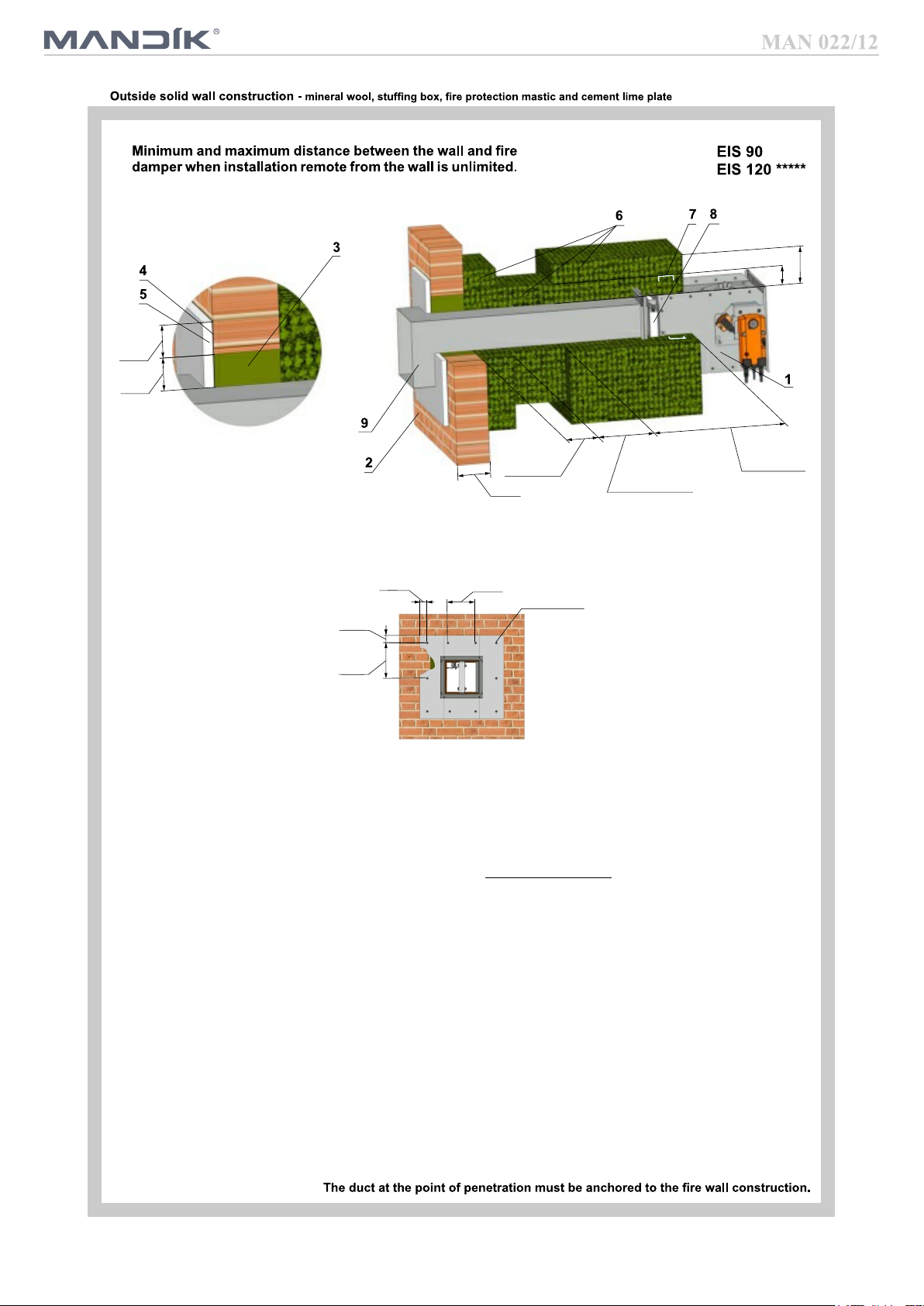

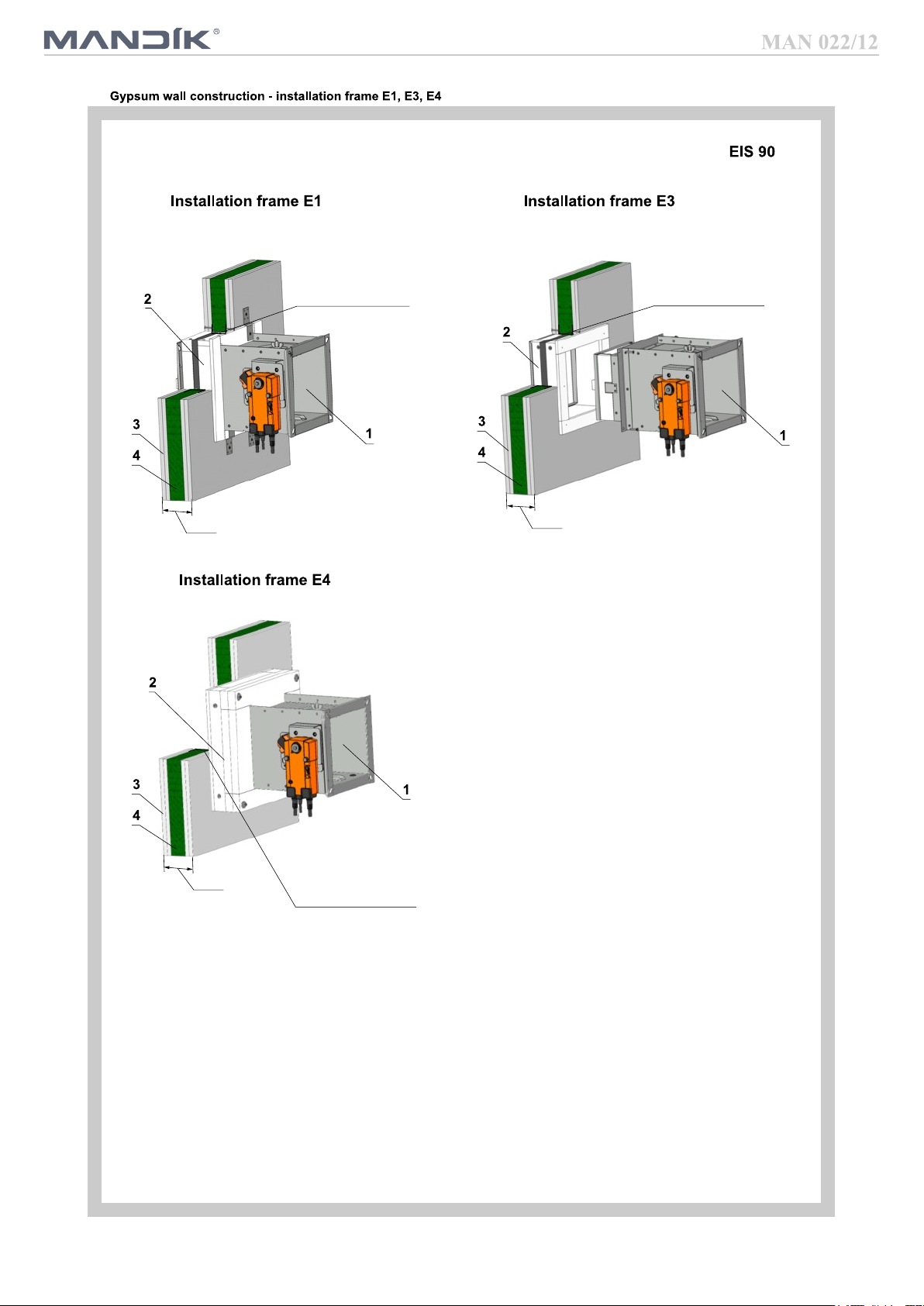

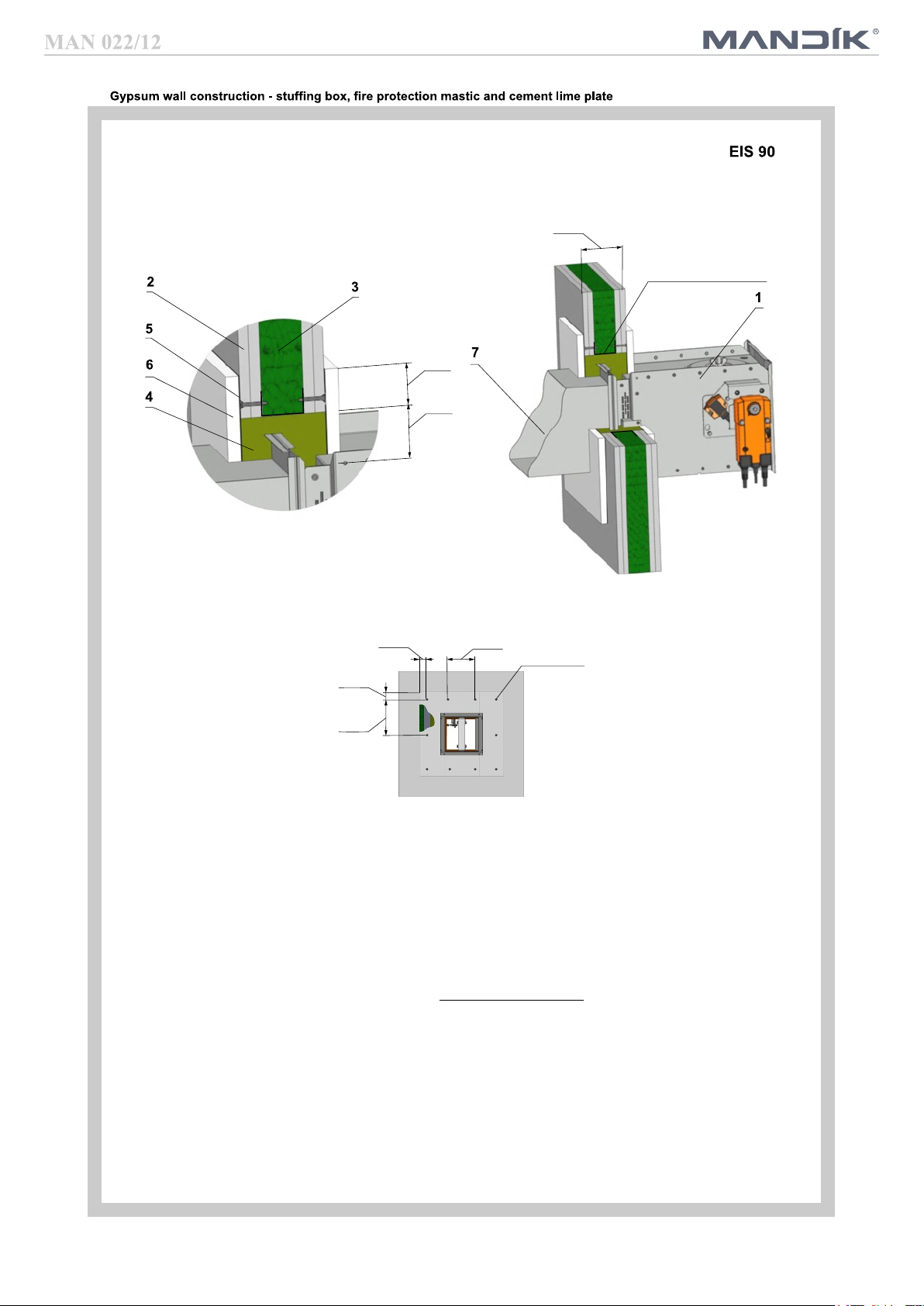

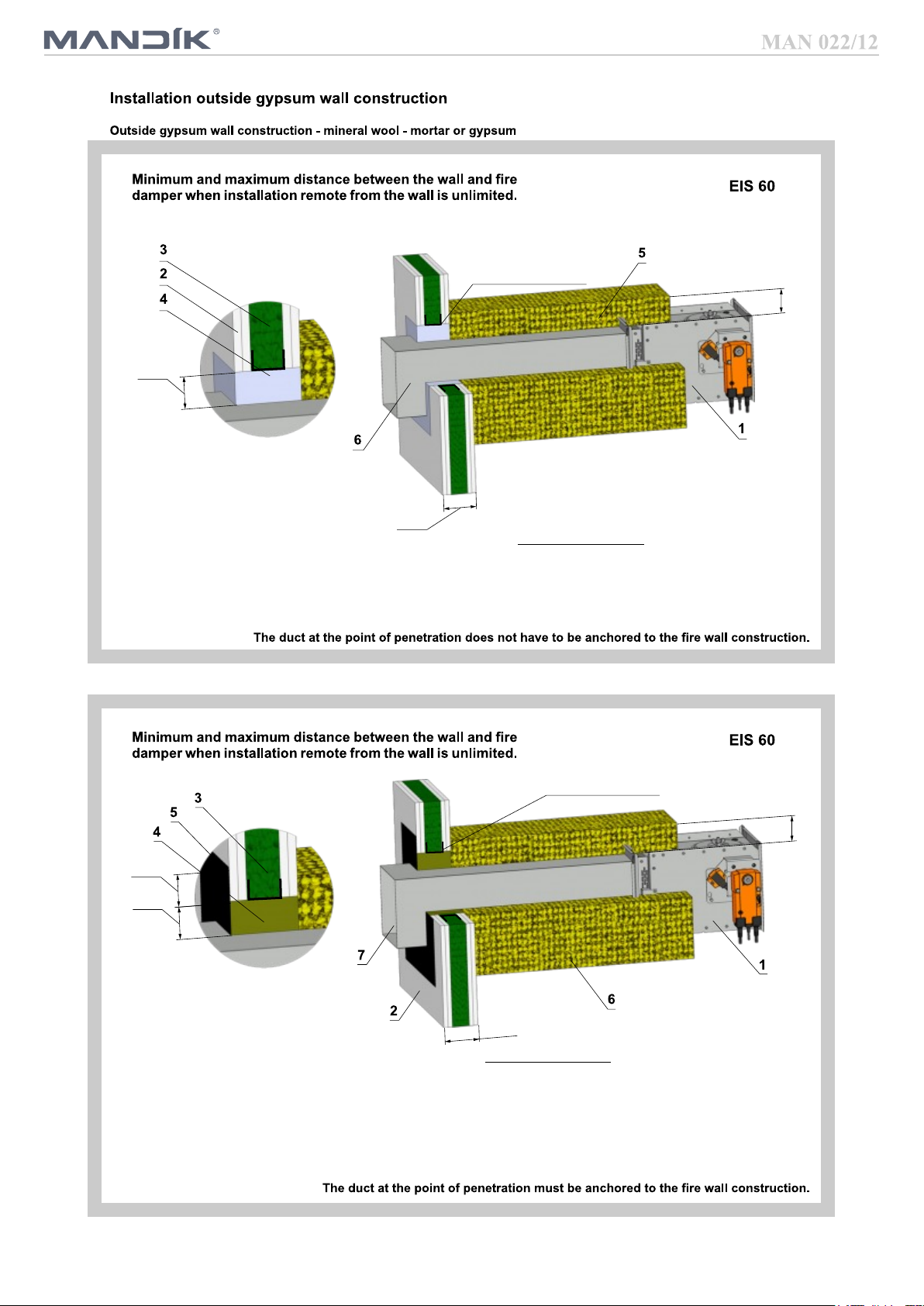

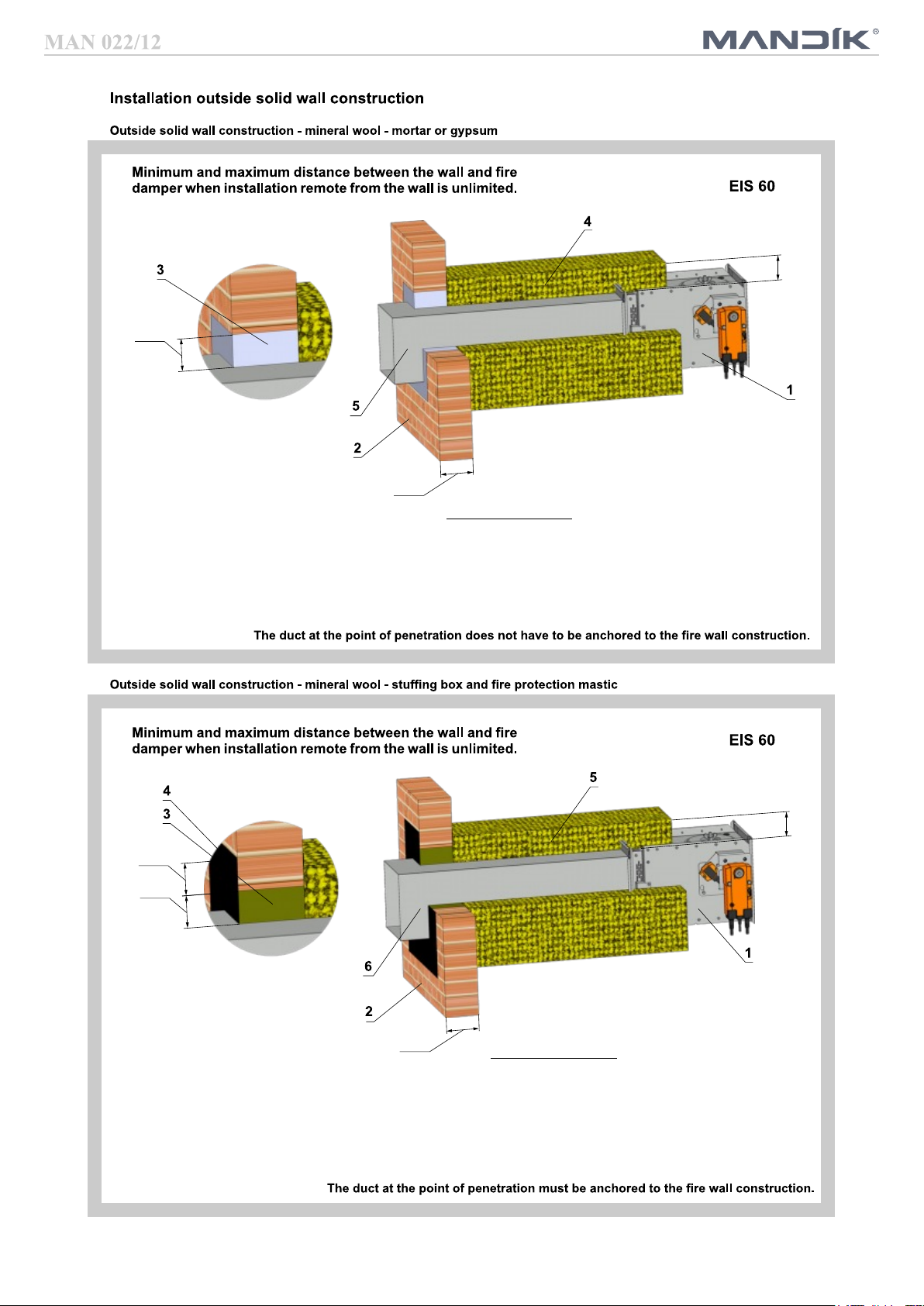

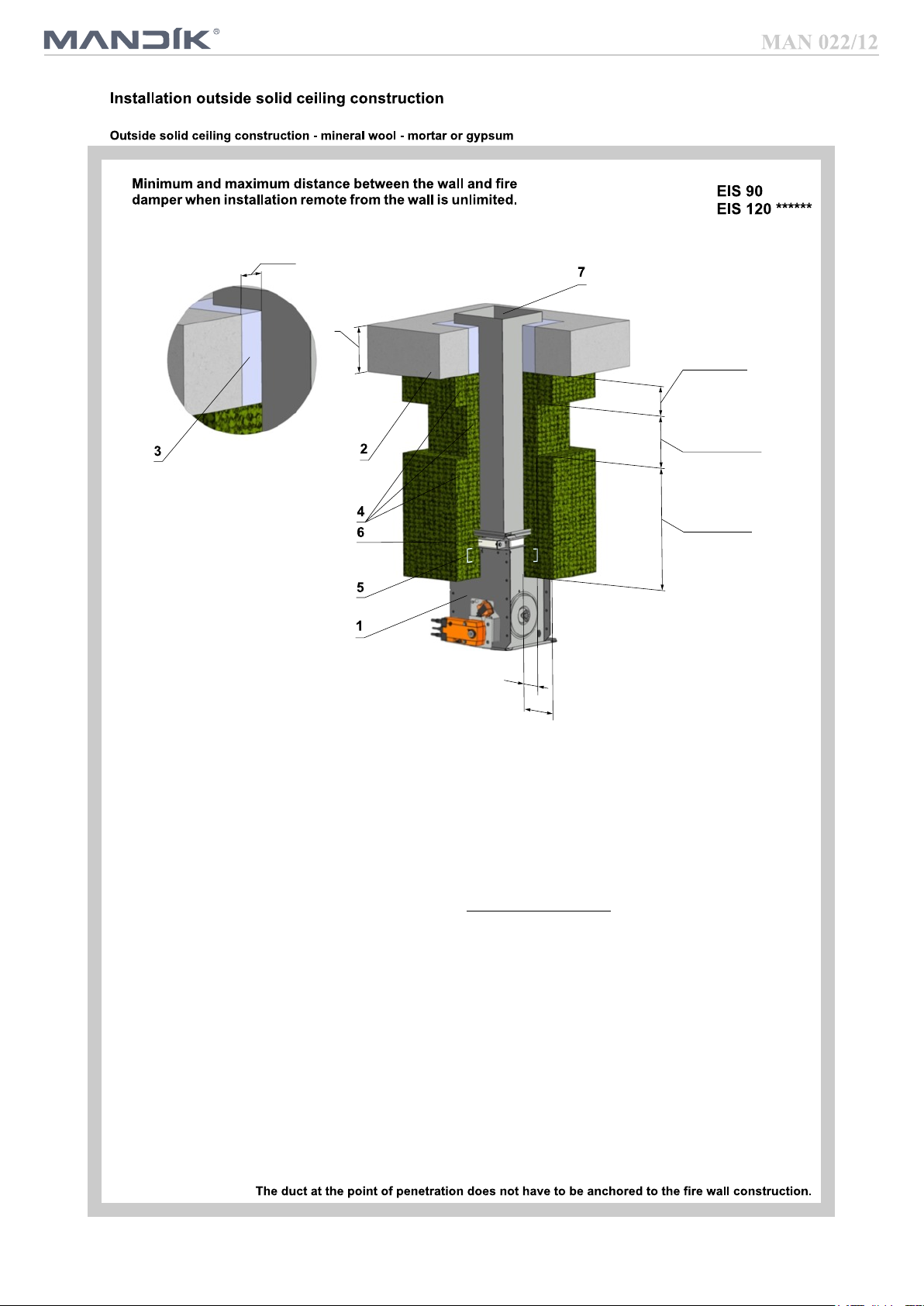

Position:
1 Fire damper
2 Solid wall construction
3
Stuffing box (mineral stone wool min. density 140 kg/m³)
4 Fire protection mastic min. thickness 1 mm
5 Duct
Used materials - example:
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
≤75*
* Around the perimeter
≥ 100**
Position:
1 Fire damper
2 Solid wall construction
3 Mortar or gypsum
4 Duct

3
≥ 20
≤75
≥ 100

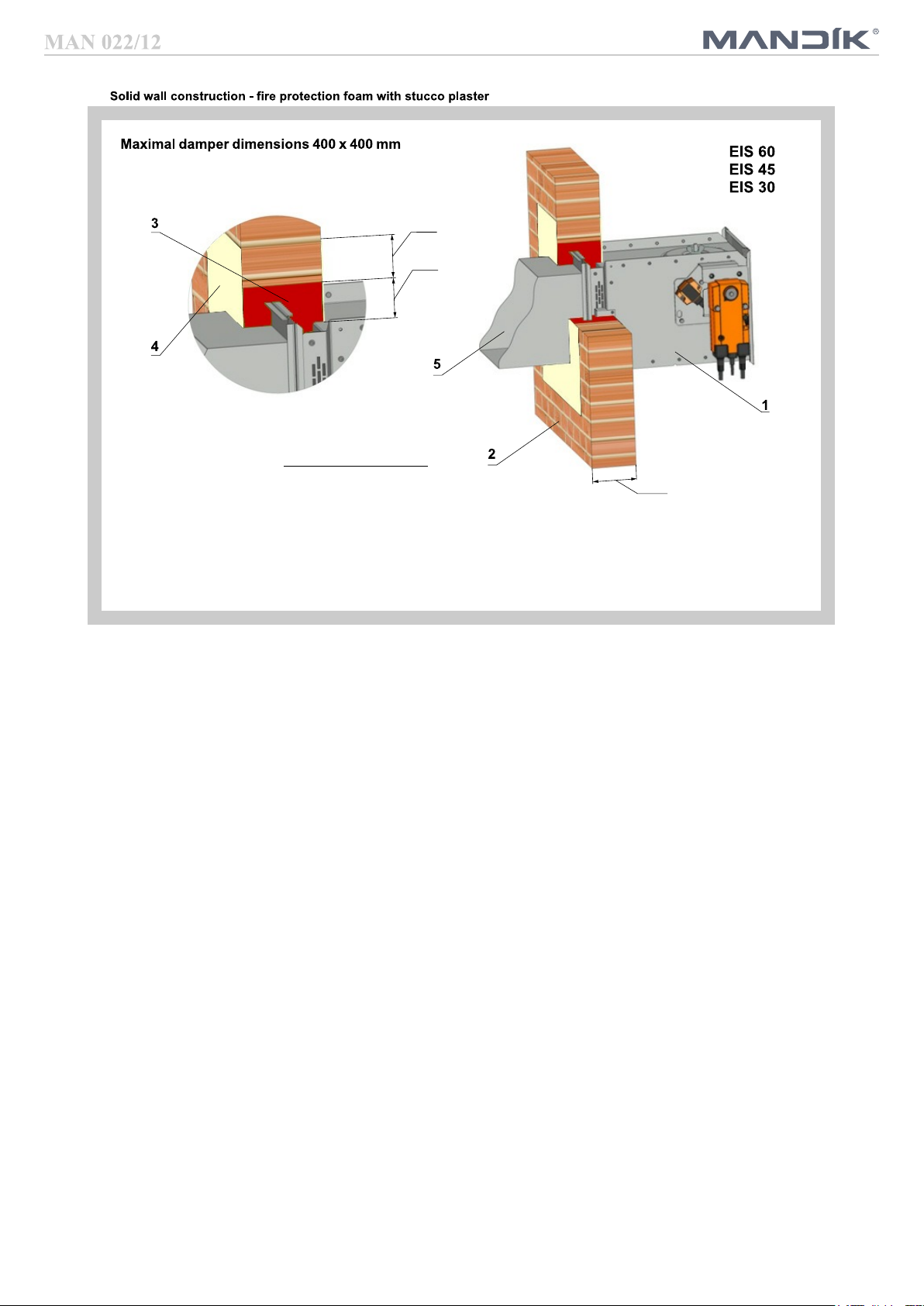

Used materials - example:
3 HILTI CFS-F FX - EIS 60
PROMAFOAM-C - EIS 45
SOUDAL, Soudafoam FR-B1 - EIS 30
DenBraven, Fire protection foam - EIS 30
Position:
1 Fire damper
2 Solid wall construction
3 Fire protection foam
4 Stucco plaster
5 Duct

4
≤75*
≥ 20*
≤ 300
≤ 300
≥ 25
≥ 25
* Around the perimeter
Screw
(min. 4x50)
Position:
1 Fire damper
2 Solid wall construction
3Stuffing box (mineral stone wool min. density 140 kg/m³)
4 Fire protection mastic min. thickness 1 mm
5Cement lime plate min. thickness 15 mm min. density 870 kg/m³
6 Duct
≥ 100
Screws has to be fixed in wall/ceiling construction.
(If it is needed use steel bracket).
Used materials - example:
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
5 Promatect - H

5
≥ 100
≥ 100
Position:
1 Fire damper
2 Installation frame
3 Solid wall construction
≥ 100

6
≥ 100
Used materials - example:
3
Hilti CFS-CT B 1S 140/50
4 Hilti CFS-CT
Position:
1 Fire damper
2 Solid wall construction
3 Fire resistant board
4
Fire stop coating thickness 1 mm
5 Duct
D+60 to 800
max. 2050
D+60 to 800
max. 1650

7
Used materials - example:**
4
Isover Ultimate Protect SLAB 4.0, th. 80 mm ALU1
Used materials - example:**
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
5 Isover Ultimate Protect SLAB 4.0, th. 80 mm ALU1
** Insulation materials can be replaced by another approved fire sealing
system with equivalent properties.
The maximum distance of the fire damper from the structure is not limited.
≥ 100
80
80
≥ 100
** Insulation materials can be replaced by another approved fire sealing
system with equivalent properties.
The maximum distance of the fire damper from the structure is not limited.
Position:
1 Fire damper
2 Solid wall construction
3 Mortar or gypsum
4
Stone wool with wired mat on
one side, density 66 kg/m³
5 Duct
Position:
1 Fire damper
2 Solid wall construction
3 Stuffing box (mineral stone wool min.
density 140 kg/m³)
4 Fire protection mastic min. thickness 1 mm
5 Stone wool with wired mat on one side,
density 66 kg/m³
6 Duct
≤75*
* Around the perimeter
* Around the perimeter
≤75*
≥ 20*

8
Position:
1 Fire damper
2 Solid wall construction
3Mineral stone wool min. density 140 kg/m³
4 Fire protection mastic min. thickness 1 mm
5 Cement lime plate min. thickness 15 mm
(min. density 870 kg/m³)
6
Stone wool bound with use of an organic resin
with crushed stone as a refrigerant, min. density
300 kg/m³ and min. thickness 60 mm
7 Profil U25x40x25
8 VRM****
9 Duct
≥ 20*
≥ 100
≤75*
60
120
** Stuffing box, fire protection mastic, cement lime plate and
insulation materials can be replaced by another approved
fire sealing system for damper installation with equivalent
material properties.
*** Depends on the distance of the flap from the construction,
when the maximum distance from the construct is not
limited and according to EN 15882-2 must use the
required number of hinges according to EN 1366-1:2014.
**** Reinforcement fixing VRM
Installation of profile U25x40x25
***** When using Rockwool Conlit Ductrock EIS 120, th. 60 mm,
the overall fire resistance of the EIS 120 can be achieved.
T - thickness of the insulation (mm)
* Around the perimeter
Screw
(min. 4x50)
≤ 300
≤ 300
≥ 25
≥ 25
Screws has to be fixed in wall/ceiling construction.
(If it is needed use steel bracket).
L=Min. 100
T=120 L=variable***
T=60
L=Min. 400
T=120
Used materials - example:**
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
5 Promatect - H
6Rockwool Conlit Ductrock EIS 90, th. 60 mm

9
≤75
≥ 20
≥ 100
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on the type of construction)
4 Mineral stone wool min. min. density 140 kg/m³
5 Fire protection mastic min. thickness 1 mm
6 Duct
Used materials - example:
4
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
5 Promastop - P, K, Hilti CFS-CT
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
≥ 100**
≤75*
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on the type of construction)
4 Mortar or gypsum
5 Duct
* Around the perimeter
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

10
≥ 20
≤75
≥ 100
Used materials - example:
4 HILTI CFS-F FX - EIS 60
PROMAFOAM-C - EIS 45
SOUDAL, Soudafoam FR-B1 - EIS 30
DenBraven, Fire protection foam - EIS 30
Position:
1 Fire damper
2 Gypsum plate
3 Mineral wool (type depending on the type of construction)
4 Fire protection foam
5 Stucco plaster
6 Duct
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

11
≤75*
≥ 20*
≥ 100
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on the type of construction)
4Mineral stone wool min. density 140 kg/m³
5 Fire protection mastic min. thickness 1 mm
6 Cement lime plate min. thickness 15 mm
(min. density 870 kg/m³)
7 Duct
* Around the perimeter
≤ 300
≤ 300
≥ 25
≥ 25 Screw
(min. 4x50)
Screws has to be fixed in wall/ceiling construction.
(If it is needed use steel bracket).
Used materials - example:
4
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
5 Promastop - P, K, Hilti CFS-CT
6 Promatect - H
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

12
Position:
1 Fire damper
2 Installation frame
3 Gypsum plate
4 Mineral wool (type depending
on the type of construction)
≥ 100
≥ 100
≥ 100
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

13
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on
the type of construction)
4 Fire resistant board
5
Fire stop coating thickness 1 mm
6 Duct
D+60 to 800
max. 2050
D+60 to 800
max. 1650
Used materials - example:
3
Hilti CFS-CT B 1S 140/50
4 Hilti CFS-CT
≥ 100
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

14
* Around the perimeter
80
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
* Around the perimeter
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending
on the type of construction)
4 Mortar or gypsum
5
Stone wool with wired mat on
one side, density 66 kg/m³
6 Duct
Used materials - example:**
5
Isover Ultimate Protect SLAB 4.0, th. 80 mm ALU1
Used materials - example:**
4
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
5 Promastop - P, K, Hilti CFS-CT
6 Isover Ultimate Protect SLAB 4.0, th. 80 mm ALU1
Position:
1 Fire damper
2 Gypsum plate
3 Mineral wool
(type depending on the type of construction)
4 Stuffing box (mineral stone wool min.
density 140 kg/m³)
5
Fire protection mastic min. thickness 1 mm
6 Stone wool with wired mat on one side,
density 66 kg/m³
7 Duct
** Insulation materials can be replaced by another approved fire sealing
system with equivalent properties.
The maximum distance of the fire damper from the structure is not limited.
** Insulation materials can be replaced by another approved fire sealing
system with equivalent properties.
The maximum distance of the fire damper from the structure is not limited.
≤75*
≥ 20*
≥ 100
≤75*
≥ 100
80
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.

15
Position:
1 Fire damper
2 Gypsum plate
3
Mineral wool (type depending on the type of construction)
4Mineral stone wool min. density 140 kg/m³
5 Fire protection mastic min. thickness 1 mm
6 Cement lime plate min. thickness 15 mm
(min. density 870 kg/m³)
7
Stone wool bound with use of an organic resin with
crushed stone as a refrigerant, min. density 300 kg/m³
and min. thickness 60 mm
8 Profil U25x40x25
9 VRM****
10 Duct
≥ 20*
≥ 100
≤75*
* Around the perimeter
≤ 300
≤ 300
≥ 25
≥ 25 Screw
(min. 4x50)
L=Min. 100
T=120 L=variable***
T=60
L=Min. 400
T=120
Screws has to be fixed in wall/ceiling construction.
(If it is needed use steel bracket).
** Stuffing box, fire protection mastic, cement lime plate and
insulation materials can be replaced by another approved
fire sealing system for damper installation with equivalent
material properties.
*** Depends on the distance of the flap from the construction,
when the maximum distance from the construct is not
limited and according to EN 15882-2 must use the
required number of hinges according to EN 1366-1:2014.
**** Reinforcement fixing VRM
Installation of profile U25x40x25
***** When using Rockwool Conlit Ductrock EIS 120, th. 60 mm,
the overall fire resistance of the EIS 120 can be achieved.
T - thickness of the insulation (mm)
Used materials - example:**
4
Promapyr. Rockwool Steprock HD. Hilti CFS-CT C 1S 140/50
5 Promastop - P, K, Hilti CFS-CT
6 Promatect - H
7 Rockwool Conlit Ductrock EIS 90, th. 60 mm
Installation opening has to
be reinforced by steel U-
profile. Profile is fixed by
screws ≥3,5 mm with corre-
sponding length. Distance
between screws ≤200 mm.
60
120

16
*
*

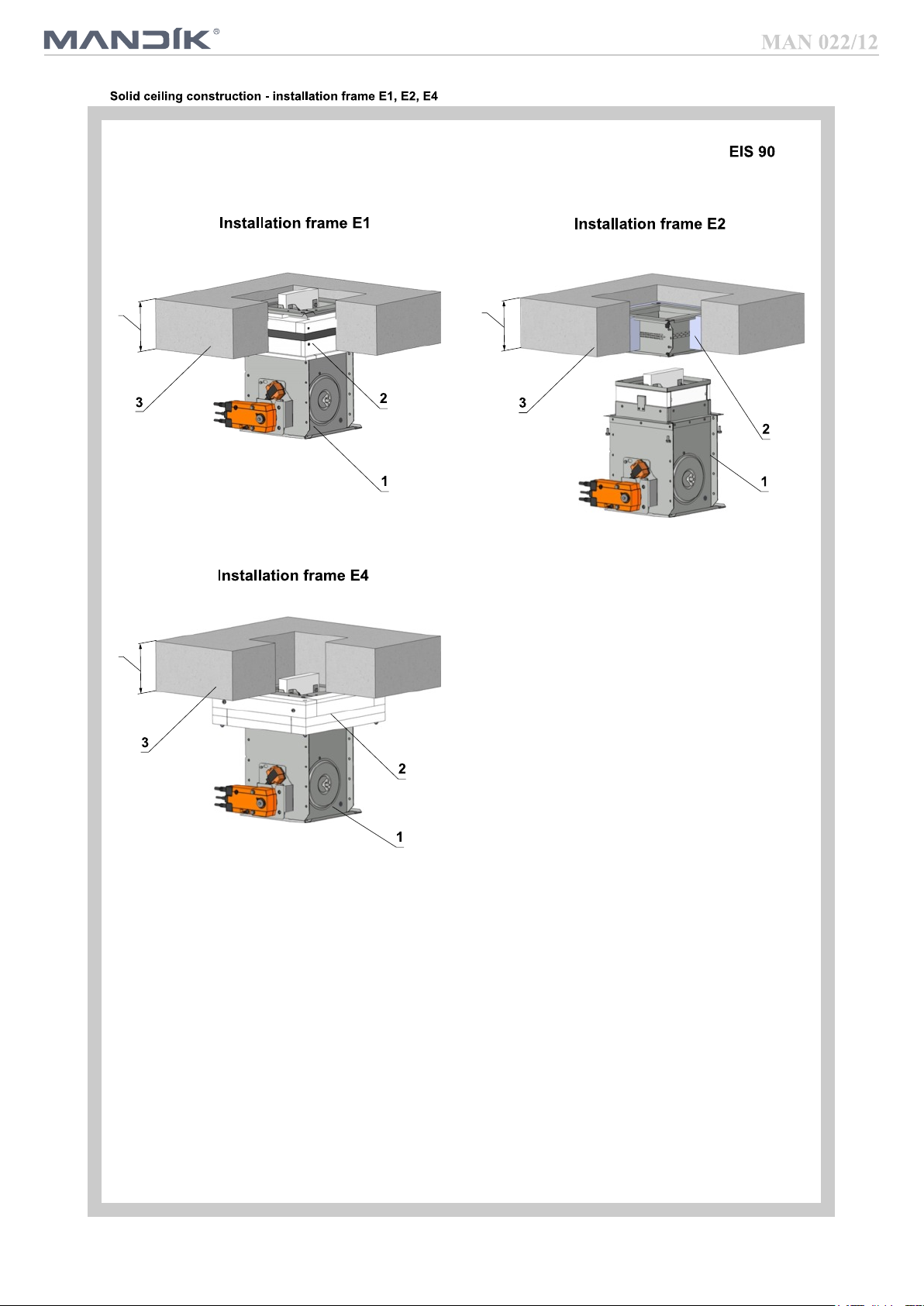

Position:
1Fire damper
2Solid ceiling construction
3
Stuffing box (mineral stone wool min. density 140 kg/m³)
4Fire protection mastic min. thickness 1 mm
5Duct
** Around the perimeter
* min. 110 - Concrete/ min. 125 - Aerated concrete
Used materials - example:
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
* min. 110 - Concrete/ min. 125 - Aerated concrete
≤75**
≤75
≥ 20
Position:
1 Fire damper
2 Solid ceiling construction
3 Mortar or gypsum
4 Duct

17
≤75**
≥ 20**
≤ 300
≤ 300
≥ 25
≥ 25 Screw
(min. 4x50)
*
Screws has to be fixed in wall/ceiling construction.
(If it is needed use steel bracket).
Used materials - example:
3
Promapyr, Rockwool Steprock HD, Hilti CFS-CT B 1S 140/50
4 Promastop - P, K, Hilti CFS-CT
5 Promatect - H
Position:
1 Fire damper
2 Solid ceiling construction
3Stuffing box (mineral stone wool min. density 140 kg/m³)
4 Fire protection mastic min. thickness 1 mm
5 Cement lime plate min. thickness 15 mm,
min. density 870 kg/m³
6 Duct
** Around the perimeter
* min. 110 - Concrete/ min. 125 - Aerated concrete

18
* min. 110 - Concrete/ min. 125 - Aerated concrete
*
*
*
Position:
1 Fire damper
2 Installation frame
3
Solid ceiling construction

19
D+60 to 800
max. 1650
* min. 110 - Concrete/ min. 125 - Aerated concrete
*
Position:
1 Fire damper
2 Solid ceiling construction
3 Fire resistant board
4
Fire stop coating thickness 1 mm
5 Duct
Used materials - example:
3
Hilti CFS-CT B 1S 140/50
4 Hilti CFS-CT
D+60 to 800
max. 2050

20
Used materials - example:***
4Rockwool Conlit Ductrock EIS 90, th. 60 mm
** Around the perimeter
* min. 110 - Concrete/ min. 125 - Aerated concrete
60
≤75**
120
*
*** Stuffing box, fire protection mastic, cement lime plate and
insulation materials can be replaced by another approved fire
sealing system for damper installation with equivalent material
properties.
**** Depends on the distance of the flap from the construction, when
the maximum distance from the construct is not limited and
according to EN 15882-2 must use the required number of
hinges according to EN 1366-1:2014.
***** Reinforcement fixing VRM
Installation of profile U25x40x25
****** When using Rockwool Conlit Ductrock EIS 120, th. 60 mm, the
overall fire resistance of the EIS 120 can be achieved.
T - thickness of the insulation (mm)
Position:
1 Fire damper
2 Solid ceiling construction
3 Mortar or gypsum
4 Stone wool bound with use of an organic resin with
crushed stone as a refrigerant, min. density 300 kg/m³
and min. thickness 60 mm
5 Profil U25x40x25
6 VRM*****
7 Duct
L=Min. 100
T=120
L=variabel****
T=60
L=Min. 400
T=120
