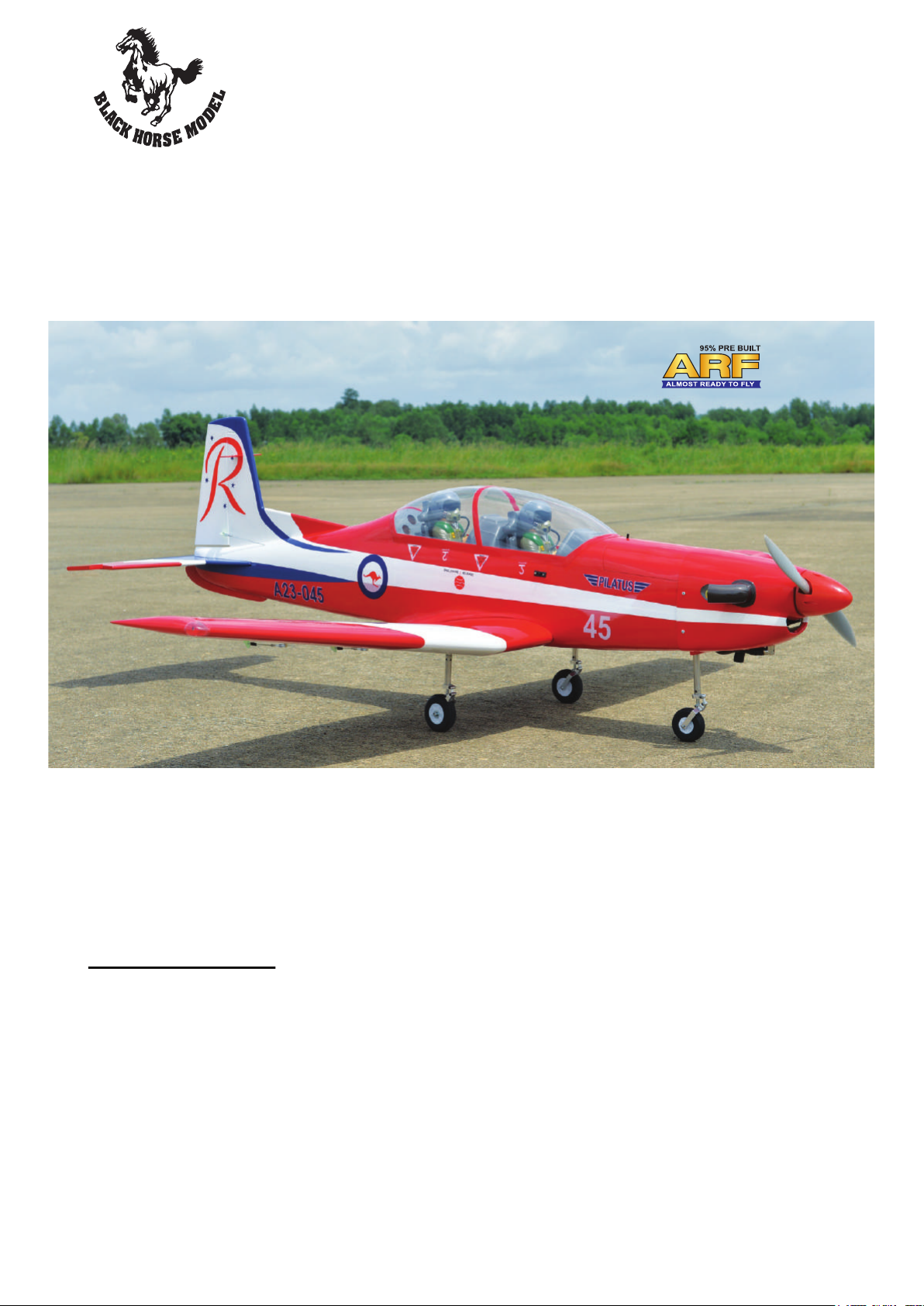

Black Horse Model PC-9 Owner's manual

Instruction Manual Book
PC-9
Item code: BH76
Made in Vietnam
OPTION ELECTRIC RETRACT GEAR (NOT INCLUDING).
ONLY INCLUDING CNC SUSPENSION METAL STRUTS.
ALL BALSA - PLYWOOD CONSTRUCTION.
COVERED WITH ORACOVER.
SPECIFICATION:
- Wingspan: 1,840 mm (72.44 in).
- Length: 1,850 mm (72.83 in).
- Weight: 5.3 - 5.6 kg (11.66 - 12.32 lbs).
- Wing area: 54.6 dm2.
- Wing loading: 97.07 g/dm2.
- Servo mount: 42mm x 21mm.
- Wing type: Naca Airfoil.
- Gear type: Electric retract gear,
size: (92.2 x 51 x 30.6)mm (not included).
CNC Suspension Metal Struts (included).
- Spinner: 80mm.
Parts listing required (not included):
- Radio: 07 channels.
- Servo: 08 servos.
- Engine: 120 - 2 stroke, 20 - 30cc gas.
- Motor: Brushless outrunner 1800-2300W, 250-450KV.
- Propeller: Suit with your engine.
Recommended motor and battery set up
(not included):
- Motor: Admiral GP20 6320-295kV
- Lipo cell: 6-8 cells 4,000-5,000mAh.
- Receiver battery: 6V/ 1200-2000mAh.
- ESC: 90-120A.
95% ALMOST READY TO FLY
Glow and EP

INSTRUCTION MANUAL PC-9 Item code: BH76
2
TABLE OF CONTENTS
Academy of Model Aeronautics: If you are not already a member of the AMA, please join! The AMA is the
governing body of model aviation and membership provides liability insurance coverage, protects modelers’
rights and interests and is required to fly at most R/C sites.
Academy of ModelAeronautics
5151 East Memorial Drive Muncie IN 47302-9252
Tele. [phone]
Fax. [phone]
Or via the Internet at: http://www.modelaircraft.org
INTRODUCTION
Thank you for purchasing Black Horse Model products. With over 18 years experience in production and fly
testing, Black Horse Model is committed to bring the best quality products and good service to customers. Along
with a team of creative engineers and skilled workers, we will always accompany with customers by our great
experiences, fully enthusiasm... which will burn our passion!! Joining with us to explore and conquer challenges
in the sky ...
Your satisfaction is our success. Please read through this manual before starting construction.
SINCE 1939
► Introduction............................................................2
► Warranty................................................................3
► Disclaimer..............................................................3
► Safety precaution...................................................3
►Important bulding notes.........................................3
►Suggestion.............................................................3
►Flight warnings......................................................3
►Covering tools........................................................4
►Adhesives and required tools................................4
►Academy of Model Aeronautics National Model
Aircraft Safety Code...................................................4
► Parts listing (not included).....................................6
► Tool & supplies needed.........................................6
► Symbols used throughout this instruction manual,
comprise.....................................................................6
► Preparations..........................................................8
► Installing the ailerons and flaps..............................8
► Installing the ailerons and flaps servos...................8
► Installing the control horns and linkages...............10
► Installing the wheel well........................................12
► Main gear struts...................................................13
► Electric gear retracts............................................14
► Installing the fuselage servos...............................16
► Installing horizontal stabilizer...............................17
► Installing the vertical stabilizer..............................19
► Installing the wheel well........................................21
► Installing the nose gear......................................22
► Nose gear strut.....................................................22
► Electric gear retracts............................................23
► Installing the engine ............................................26
► Installing the stopper............................................28
► Installing the fuel tank..........................................29
► Installing the throttle.............................................30
► Mounting the cowl................................................31
► Installing the receiver and battery........................32
► Installing the switch..............................................32
► Installing the electric motor ( ep version )............34
►Installing the cockpit fuselage...............................36
►Wing attachment...................................................37
► Installing the spinner, propeller............................39
► Balancing.............................................................41
► Control throws.....................................................41
► Pre-flight check....................................................41
► For your radio installation basic connection for
airplane and adjustment of servos...........................42
► Main gear dimensional detail...............................43
► Decoration...........................................................44
► Exploded view.....................................................45
► I/C Flying warning................................................46
► I/C Flying guide....................................................47

INSTRUCTION MANUAL PC-9 Item code: BH76
3
Black Horse Model guarantees the component parts in
this kit to be free from defects in both material and
workmanship at the date of purchase by the purchaser.
This warranty does not cover cosmetic damage or
damage due to acts of God, accident, misuse, abuse,
negligence, commercial use, or modication of or to any
part of the Product.
This warranty does not cover damage due to improper
installation, operation, maintenance, or attempted repair
by anyone other than Black Horse Model.
Further, Black Horse Model reserves the right to change
or modify this warranty without notice.
WARRANTY
Read this disclaimer carefully before using this product.
Please strictly follow the instruction manual to assemble
and use this.
In that Black Horse Model has no control over the nal
assembly or material used for nal assembly, Black Horse
Model is not responsible for loss of use , or other
incidental or consequential damages.
Furthermore, Black Horse Model cannot be held liable for
personal injury or property damage caused by the use or
misuse of Black Horse Model products. By the act of
using the user-assembled products, the user accepts all
resulting liability.
DISCLAIMER
Please trial t all the parts. Make sure you have the
correct parts and that they t and are aligned properly
before gluing! This will assure proper assembly. This kit is
hand made from natural materials, every plane is unique
and minor adjustments may have to be made. However,
you should nd the t superior and assembly simple.
The painted and plastic parts used in this kit are fuel
proof. However, they are not tolerant of many harsh
chemicals including the following: paint thinner, C/A glue
accelerator, C/A glue debonder and acetone. Do not let
these chemicals come in contact with the colors on the
covering and the plastic parts.
Some parts included in this kit such as the cowl or
wheel pants are made of berglass, the bers of which
may cause eye, skin and respiratory tract irritation. Never
blow into a part to remove berglass dust, as the dust will
blow back into your eyes. Always wear safety goggles, a
particle mask and rubber gloves when grinding, drilling
and sanding berglass parts. Vacuum the parts and the
work area thoroughly after working with berglass parts.
IMPORTANT BUILDING NOTES
To avoid scratching your new airplane, do not unwrap
the pieces until they are needed for assembly. Cover your
workbench with an old towel or brown paper, both to
protect the aircraft and to protect the table. Keep a
couple of jars or bowls handy to hold the small parts after
you open the bag.
SUGGESTION
ALWAYS operate in open areas, away from factories,
hospitals, schools, buildings and houses etc.
NEVER y your aircraft close to people or built up areas.
NEVER y near power lines, aerials or other dangerous
areas including airports, motorways etc.
NEVER y in wet conditions or on windy or stormy days.
ALWAYS adjust the engine from behind the propeller, and
do not allow any part of your body to be in line with the
propeller.
THE PROPELLER IS DANGEROUS Keep ngers, clothing
(ties, shirt sleeves, scarves) or any other loose objects that
could be caught or drawn in, away from the propeller.
Take care at ALL times.
NEVER use damaged or deformed propellers or spinners.
KEEP all onlookers (especially small children and animals)
well back from the area of operation. This is a ying
aircraft, which will cause serious injury in case of impact
with a person or animal.
DO NOT dispose of empty fuel containers on a re, this
can lead to an explosion.
FLIGHT WARNINGS
This is not a toy and pilots must be over the age of 14
Be sure that no other yers are using your radio
frequency.
Do not smoke near fuel
Store fuel in a cool, dry place, away from children and
pets.
Wear safety glasses.
The glow plug clip must be securely attached to the glow
plug.
Do not ip the propeller with your ngers.
Keep loose clothing and wires away from the propeller.
Do not start the engine if people are near. Do not stand in
line with the side of the propeller.
Make engine adjustments from behind the propeller only.
Do not reach around the spinning propeller.
Moisture causes damage to electronics.
Avoid water exposure to all equipment not specically
designed and protected for this purpose.
SAFETY PRECAUTION

INSTRUCTION MANUAL PC-9 Item code: BH76
4
When ready to y, rst extend the transmitter aerial.
Switch on the transmitter.
Switch on the receiver.
Check that the wings are correctly tted to the fuselage.
Operate the control sticks on the transmitter and check
that the control surfaces move freely and in the CORRECT
directions.
Check that the transmitter batteries have adequate
power.
ALWAYS take o into the wind.
If the model does not respond correctly to the controls,
land it as soon as possible and correct the fault.
ALWAYS land the model INTO the wind, this ensures
that the model lands at the slowest possible speed.
Switch o the receiver.
Switch o the transmitter.
Empty the fuel tank after ying, fuel left in the tank can
cause corrosion and lead to engine problems.
A. GENERAL: A model aircraft is a non-human-carrying aircraft capable of sustained ight in the atmosphere. It may not
exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition. All
model ights must be conducted in accordance with this safety code and anyadditional rules specic to the ying
site.
1. Model aircraft will not be own:
(a) In a careless or reckless manner.
(b) At a location where model aircraft activities are prohibited.
2. Model aircraft pilots will:
(a) Yield the right of way to all human-carrying aircraft.
(b) See and avoid all aircraft and a spotter must be used when appropriate. (AMA Document #540-D.)
(c) Not y higher than approximately 400 feet above ground level within three (3) miles of an airport without notifying
the airport operator.
(d) Not interfere with operations and trac patterns at any airport, heliport or seaplane base except where there is a
mixed use agreement.
(e) Not exceed a takeo weight, including fuel, of 55 pounds unless in compliance with the AMA Large Model Airplane
program. (AMA Document 520-A.)
(f) Ensure the aircraft is identied with the RYAN and address or AMA number of the owner on the inside or axed to the
outside of the model aircraft. (This does not apply to model aircraft own indoors.)
(g) Not operate aircraft with metal-blade propellers or with gaseous boosts except for helicopters operated under the
provisions of AMA Document #555.
(h) Not operate model aircraft while under the inuence of alcohol or while using any drug that could adversely aect the
pilot’s ability to safely control the model.
(i) Not operate model aircraft carrying pyrotechnic devices that explode or burn, or any device which propels a projectile
or drops any object that creates a hazard to persons or property.
Exceptions:
• Free Flight fuses or devices that burn producing smoke and are securely attached to the model aircraft during ight.
• Rocket motors (using solid propellant) up to a G-series size may be used provided they remain attached to the model
during ight. Model rockets may be own in accordance with the National Model Rocketry Safety Code but may not
be launched from model aircraft.
Eective January 1, 2014
Top Flite® MonoKote® Sealing Iron
Top Flite Hot Sock Iron Cover
Top Flite MonoKote Trim Seal Iron
Top Flite MonoKote Heat Gun
Thin CA
30-minute epoxy
6-minute epoxy
Threadlocker thread locking cement
Mixing sticks
Mixing cups (GPMR8056)
Epoxy brushes
Denatured alcohol
Canopy Glue
Felt-tipped pen or pencil
Flat screwdriver
Adjustable wrench
Drill
Hobby knife
Masking tape
Phillips screwdriver (large)
Phillips screwdriver (small)
Ruler
Sandpaper
Soldering iron
Solder
Hex wrench
Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm),
1/8-inch (3,2mm), 3/16-inch (4,8mm),11/64-inch
(4.5mm), 13/64-inch (5,2mm), 1/4-inch (6,4mm)
ADHESIVES AND REQUIRED TOOLS
FLIGHT WARNINGS
COVERING TOOLS
Academy of Model Aeronautics National Model Aircraft Safety Code

INSTRUCTION MANUAL PC-9 Item code: BH76
5
• Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within
the Team AMA Program Document. (AMA Document #718.)
(j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document
#510-A.)
3. Model aircraft will not be flown in AMA sanctioned events, air shows or model demonstrations unless:
(a) The aircraft, control system and pilot skills have successfully demonstrated all maneuvers intended or
anticipated prior to the specific event.
(b) An inexperienced pilot is assisted by an experienced pilot.
4. When and where required by rule, helmets must be properly worn and fastened. They must be OSHA, DOT,
ANSI, SNELL or NOCSAE approved or comply with comparable standards.
B. RADIO CONTROL (RC)
1. All pilots shall avoid flying directly over unprotected people, vessels, vehicles or structures and shall avoid
endangerment of life and property of others.
2. A successful radio equipment ground-range check in accordance with manufacturer’s recommendations will be
completed before the first flight of a new or repaired model aircraft.
3. At all flying sites a safety line(s) must be established in front of which all flying takes place. (AMA Document
#706.)
(a) Only personnel associated with flying the model aircraft are allowed at or in front of the safety line.
(b) At air shows or demonstrations, a straight safety line must be established.
(c) An area away from the safety line must be maintained for spectators.
(d) Intentional flying behind the safety line is prohibited.
4. RC model aircraft must use the radio-control frequencies currently allowed by the Federal Communications
Commission (FCC). Only individuals properly licensed by the FCC are authorized to operate equipment on
Amateur Band frequencies.
5. RC model aircraft will not knowingly operate within three (3) miles of any pre-existing flying site without a
frequency-management agreement. (AMA Documents #922 and #923.)
6. With the exception of events flown under official AMA Competition Regulations, excluding takeoff and landing,
no powered model may be flown outdoors closer than 25 feet to any individual, except for the pilot and the
pilot's helper(s) located at the flightline.
7. Under no circumstances may a pilot or other person touch an outdoor model aircraft in flight while it is still under
power, except to divert it from striking an individual.
8. RC night flying requires a lighting system providing the pilot with a clear view of the model’s attitude and
orientation at all times. Hand-held illumination systems are inadequate for night flying operations.
9. The pilot of an RC model aircraft shall:
(a) Maintain control during the entire flight, maintaining visual contact without enhancement other than by corrective
lenses prescribed for the pilot.
(b) Fly using the assistance of a camera or First-Person View (FPV) only in accordance with the procedures
outlined in AMA Document #550.
(c) Fly using the assistance of autopilot or stabilization system only in accordance with the procedures outlined in
AMA Document #560.
C. FREE FLIGHT
1. Must be at least 100 feet downwind of spectators and automobile parking when the model aircraft is launched.
2. Launch area must be clear of all individuals except mechanics, officials, and other fliers.
3. An effective device will be used to extinguish any fuse on the model aircraft after the fuse has completed its
function.
D. CONTROL LINE
1. The complete control system (including the safety thong where applicable) must have an inspection and pull test
prior to flying.
2. The pull test will be in accordance with the current Competition Regulations for the applicable model aircraft
category.
3. Model aircraft not fitting a specific category shall use those pull-test requirements as indicated for Control Line
Precision Aerobatics.
4. The flying area must be clear of all utility wires or poles and a model aircraft will not be flown closer than 50 feet
to any above-ground electric utility lines.
5. The flying area must be clear of all nonessential participants and spectators before the engine is started.

INSTRUCTION MANUAL PC-9 Item code: BH76
6
BApply epoxy glue.
Apply threadlocker
(screw cement).
C.A
Apply instant glue
(C.A glue, super glue).
carefully.
Assemble left and right
sides the same way
Must be purchased
separately!
Ensure smooth, non-binding
movement when assembling.
Pay close attention here. Drill holes using the stated
(in this case 1.5mm ø).
1.5mm
Take particular care here.
The number of times
the same way Assembly
(in this case twice).
2
Warning!
Set all screws securely . If they come off during
Symbols used throughout this instruction manual, comprise:
Use a pencil to mark
Wire cutters.
Hex Wrench.
Threadlocker
(screw cement).
Hand or
electric drill.
cm
12345678
910
Straight edge ruler.
Some more tools.
Assorted drill bits.
Masking tape.
Paper towels.
Rubbing alcohol
90° square or builder's triangle.
Screw driver
Medium C/A glue
EPOXY A
EPOXY B
30 minute epoxy.
5 minute epoxy.
Modeling knife.
2 bender plier

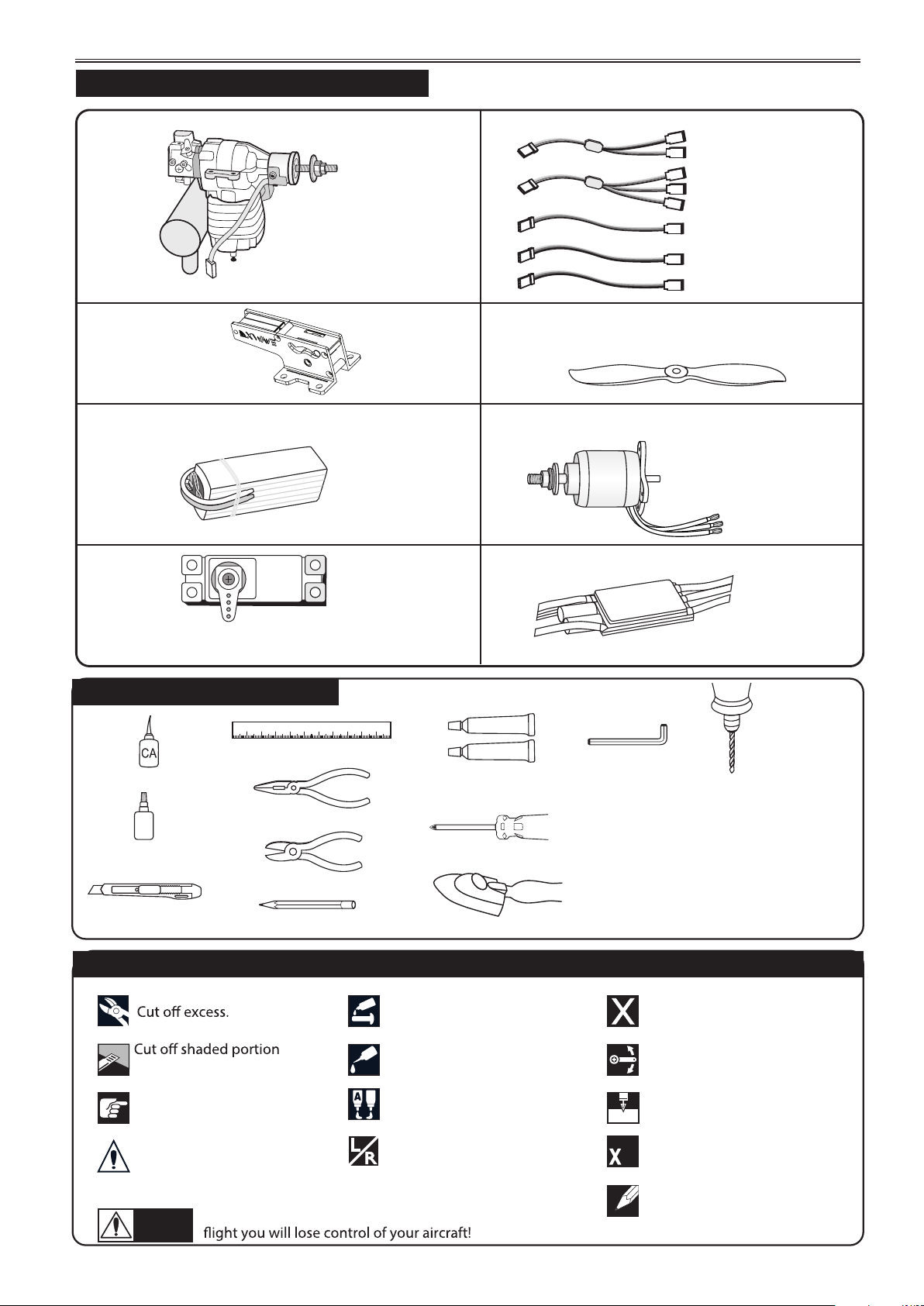

TOOLS AND SUPPLIES NEEDED
XWAVE RM400-90. 3 pcs.
Propeller. Suit with your engine
ESC
MOTOR
ESC: .90-120A .... 1pcs
PARTS LISTING (NOT INCLUDED)
Servo extension leads.
................. 2 pcs.
................. 1 pcs.
190mm ..... 3 pcs.
220mm .... 2 pcs.
540mm .... 4 pcs.
BATTERY
Servos size: (39.9 x 20.1 x 38.1)mm.
Torque servos: 4.8V(7.92kg/cm), 6V(9.43 kg/cm)..... 8pcs
Motor: Admiral GP20.
Engine: NGH GT-25cc 2 stroke
or NGH GF-30cc 4 stroke reccomended
Lipo: 6cells, 4,000 - 5,000mAh ..............1Packs
Lipo: 4cells, 4,000 - 5,000mAh ..............2 Packs
ELECTRIC NOT
INCLUDED.

INSTRUCTION MANUAL PC-9 Item code: BH76
7
3a
3
3b
3c
10
10a
- - - 4
3x12mm Tp Screw
- - 1
7
- - 1
9
4mm Spring Washer
4mm Flat Washer
- - - - - - - 4
- - - - - - - 8
4x30mm Cap Screw
- - - - - - - 8
- - 8
4mm Hex Nut
Connector - - 1
500mm Pushrod wire
- - 1
300mm Pushrod wire
- - 1
9b
9a
14
14a
14b
10b 10c
- - - - - 4
10x15mm Plastic
- - - - - 4
10x50mm Plastic
4mm Flat washer
- - - - - 4
4mm Spring Washer
- - - - - 8
M4 Blind Nut
- - - - - 4
4mm Flat Washer
- - - - - 8
- - 4
4x70mm Socket Head
Cap Screw
4x30mm Socket Head
Cap Screw
- - - - - 4
15
11

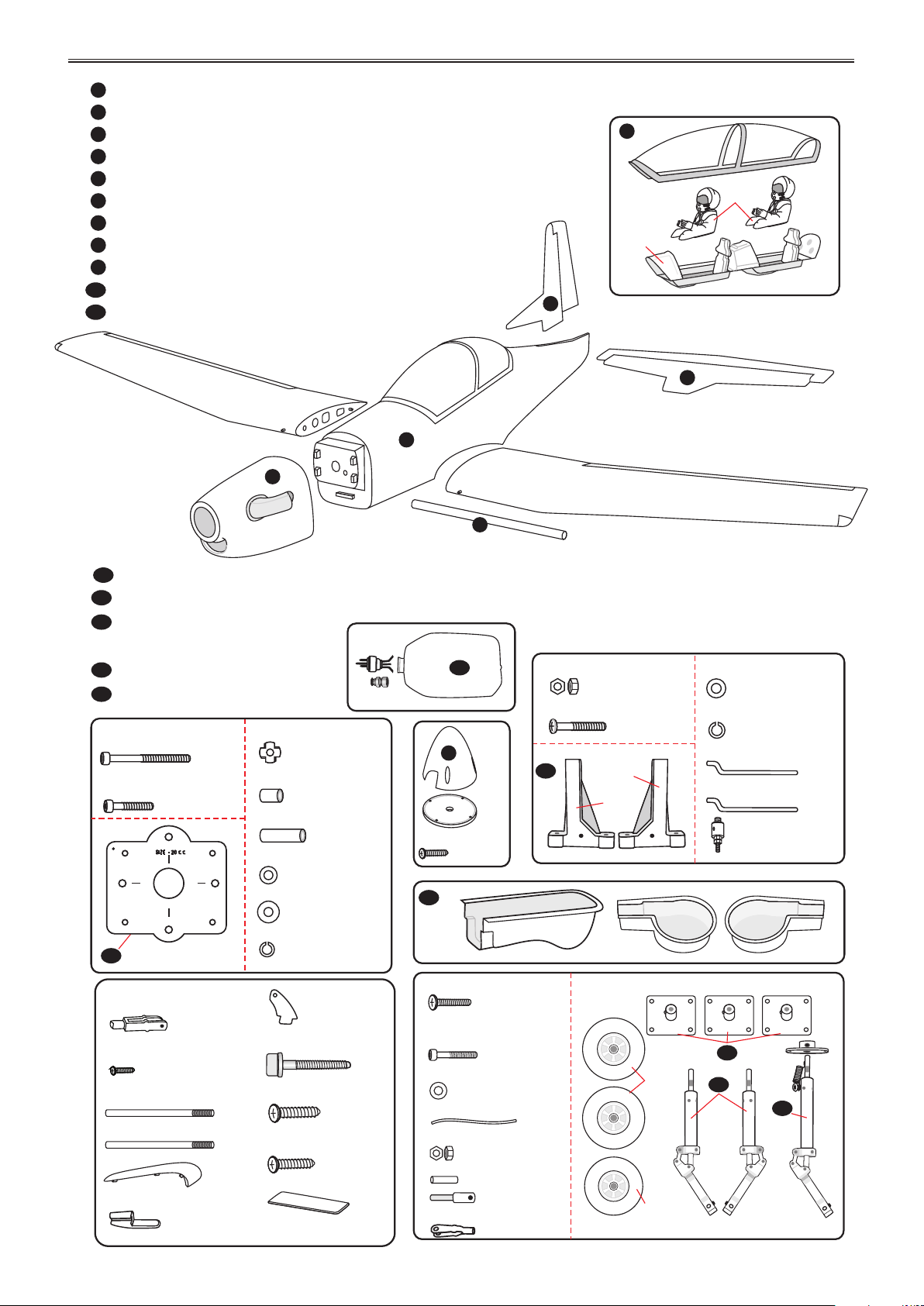

: Fuselage.
: Wing panel (2a, 2b).
: Cockpit fuselage (3a:: Pilot, 3c: Cockpit).Canopy, 3b
: Horizontal stabilizer.
: Vertical stabilizer.
: Cowling.
: Spinner ( 80mm ).
: Aluminium wing dihedral brace.
Plastic - engine mount (9a, 9b).:
: Wheel well (10a, 10b, 10c).
: Main gear struts.
1
2
3
4
5
6
7
8
7
9
10
12
13
14
15
: Nose gear truts.
: Wheels (13a, 13b).
: Fuel Tank (14a: Clunk,
14b: Stopper (three line)).
: Wood - motor mount
: Landing gear mount.
16
8
1
2a
2b
4
5
6
5x35mm Socket Head
Cap Screw
- - - - - 3
3x15mm Cap Screw
- - - - 12
5mm Flat washer
- - - - - 3
600mm Cable
- - 2
- - - 2
M3 Metal Clevis
- - - - - - - 4
Cab link - 2
- - 2
3mm Hex Nut
Lock Nut
12
13a
13b
11
16
100mm Push rod - - 4
Nylon Clevis
1.7x8mm Cap Screw
- - - - - - 6
- - - - - - 6
- - - - 6
Flaslink
900mm Push rod - - 2
Horn - - - - 6
2x10mm Tp Screw
- - - - 16
3x12mm Tp Screw
- - - - 4
6x45mm Plastic
- - 2
- - 1
- - - 1

INSTRUCTION MANUAL PC-9 Item code: BH76
8
Assemble left and right
sides the same way.
Use a covering iron with a
covering sock on hign heat to
tighten the covering if necessary.
Apply pressure over sheeted
areas to thoroughly bond the
covering to the wood
PREPARATIONS:
2) Apply drops of thin CA to the top and bottom
of each hinge. Do not use CA accelerator. After
the CA has fully hardened, test the hinges by
pulling on the aileron.
Temporary pin to
keep hinge centered.
1) Test fit the ailerons to the wing with the hinges. If
the hinges don’t remain centered, stick a pin through
the middle of the hinge to hold it in position.
Secure nylon hinges with instant glue, being
careful not to glue the wing and aileron together.
Align the center line of main wing with aileron.
1
2
Warning!
Make certain the hinges are
adequately secured with glue. if they come loose
in flight accidents may result.
1
2
C . A
C . A

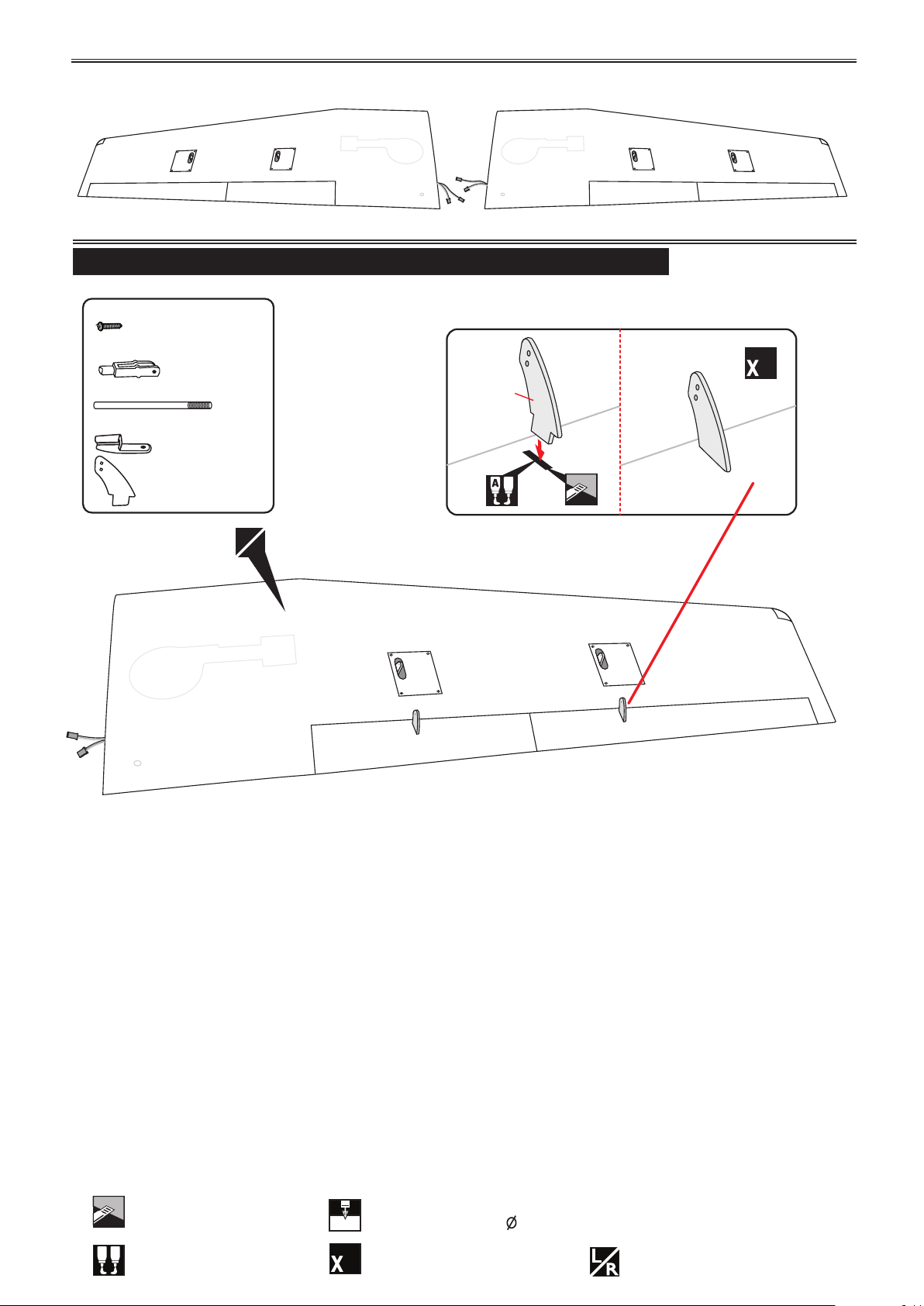

INSTALLING THE AILERONS AND FLAPS
Bottom view
Aileron
Flap
1. Install the rubber grommets and brass eyelets
onto the aileron servos.
2. Using a modeling knife, remove the covering
from over the pre-cut servo arm exit hole on the
aileron servo tray / hatch. This hole will allow the
servo arm to pass through when installing the
aileron pushrods.

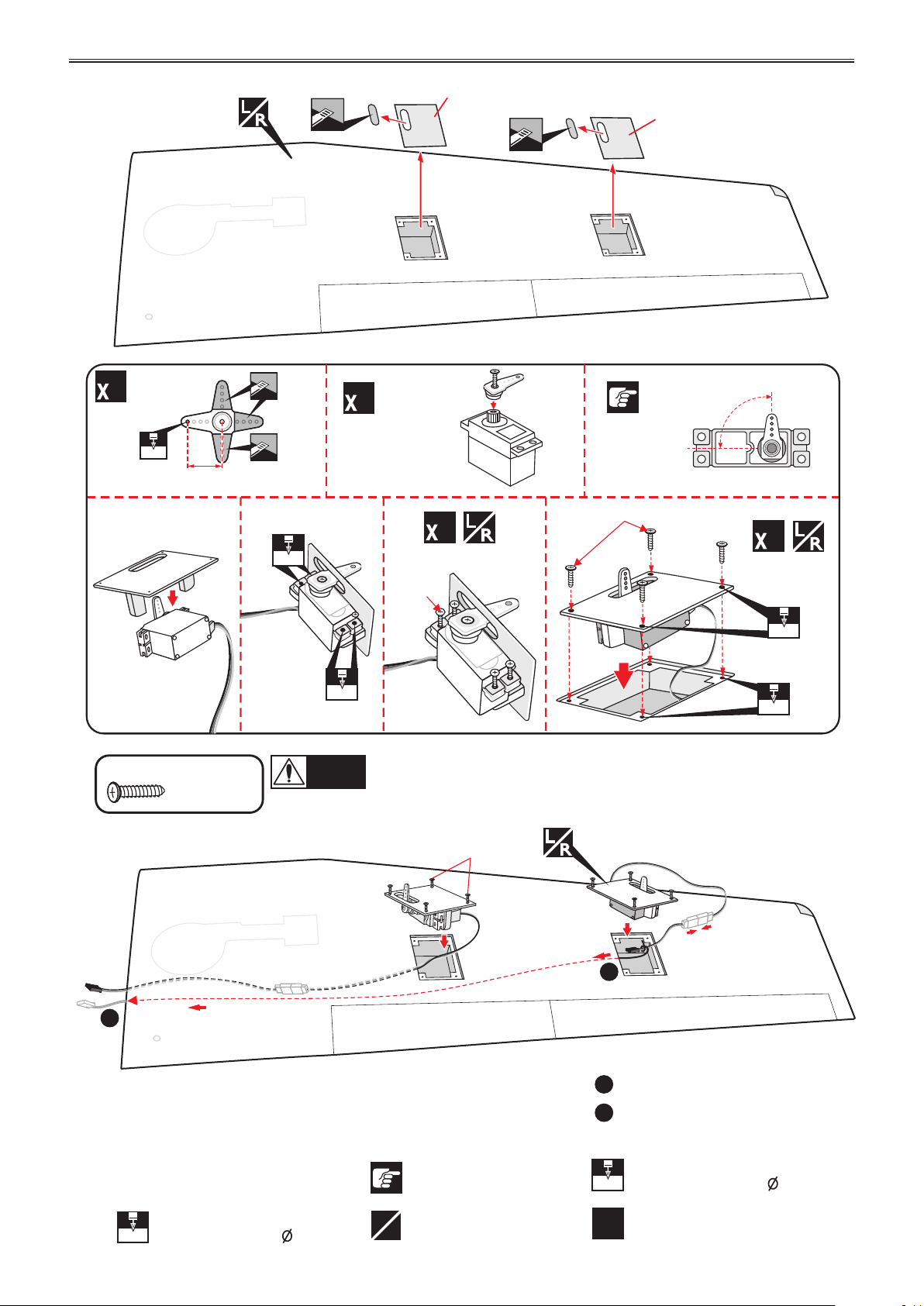

INSTALLING THE AILERONS AND FLAPS SERVOS
3. Place the servo into the servo tray. Center the
servo within the tray and drill 1.5mm pilot holes
through the block of wood for each of the four
mounting screws provided with the servo.
4. Using the thread as a guide and using masking
tape, tape the servo lead to the end of the thread:
carefully pull the thread out. When you have pulled
the servo lead out, remove the masking tape and the
servo lead from the thread.
5. Place the servo into the servo tray/ hatch into the
servo box on the bottom of the wing and drill 1.5mm
pilot holes through the tray and servo box for each of
the four mounting screws. Secure the servo tray in
place using the mounting screws provided
6. Repeat step # 2 - # 5 to install the second aileron
servo in the opposite wing half.
C
.
A
Apply instant glue
(C.A glue, super glue).
Ensure smooth, non-binding
movement when assembling.
Must be purchased
separately!
X

INSTRUCTION MANUAL PC-9 Item code: BH76
9
Bottom view
Bottom view
For Flap servo.
For Aileron servo.
o
90
Aileron
approx.16mm
2 mm
4
Aileron servos.
4
2x10mm Screw
2
For Aileron.
1.5mm
2mm
Screw
1.5 mm
2
For Aileron.
2x10mm Tp Screw
- - - - 16
Warning!
2x10mm
1
2
For Aileron.
Tie the string.
Pull out servo cord with string.
1
2
Pay close attention here. Drill holes using the stated.
(in this case 1.5mm ).
1.5mm
The number of times
the same way Assembly
(in this case twice).
2
X
Assemble left and right
sides the same way.
L
R
Drill holes using the stated.
(in this case 2mm ).
2mm
1.5 mm

INSTRUCTION MANUAL PC-9 Item code: BH76
10
Cut off shaded portion
carefully.
Assemble left and right
sides the same way.
Drill holes using the stated.
(in this case 1.5mm ).
1.5mm
The number of times
the same way Assembly
(in this case twice).
2
Bottom view
Bottom view
B
2
Horn

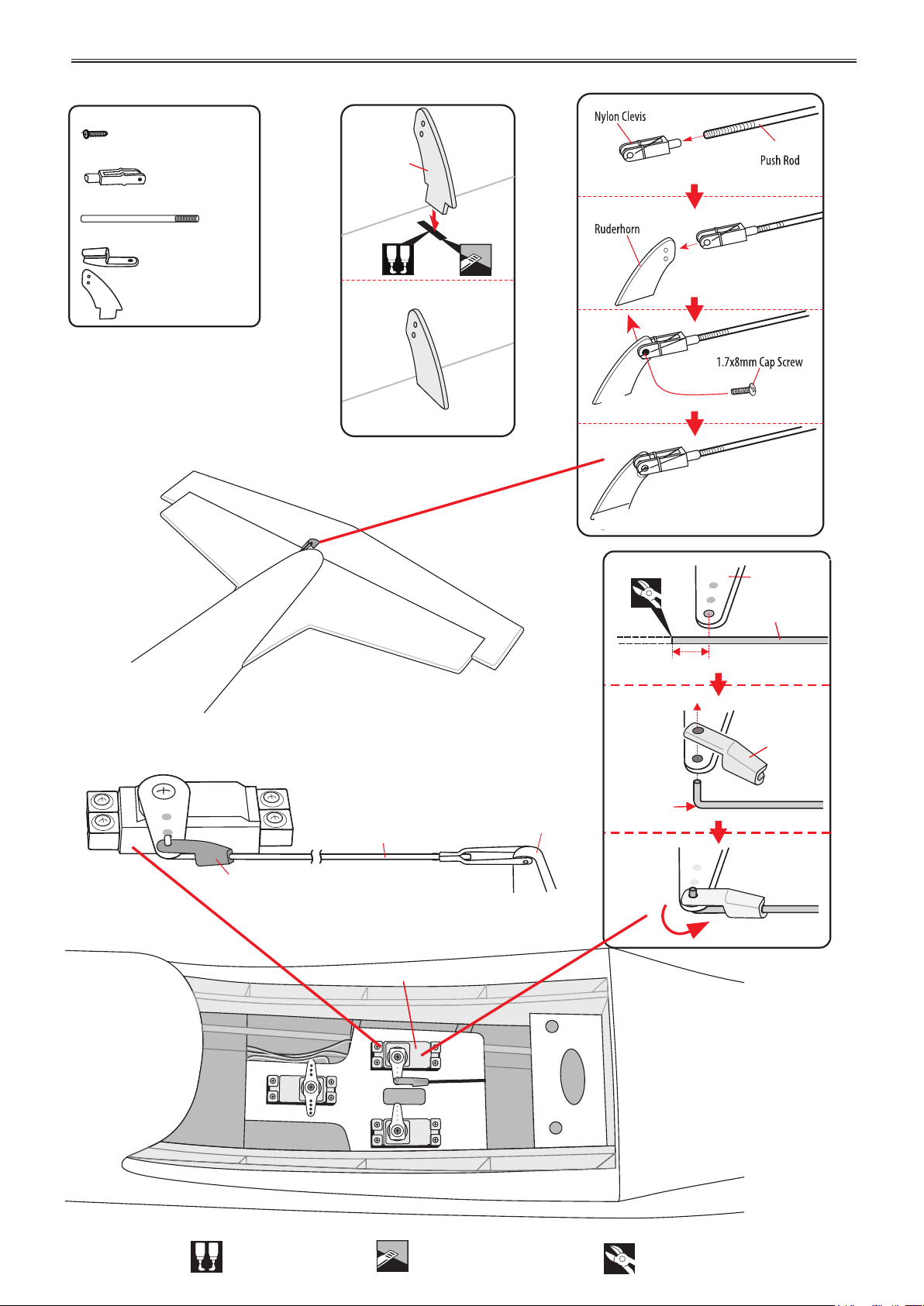

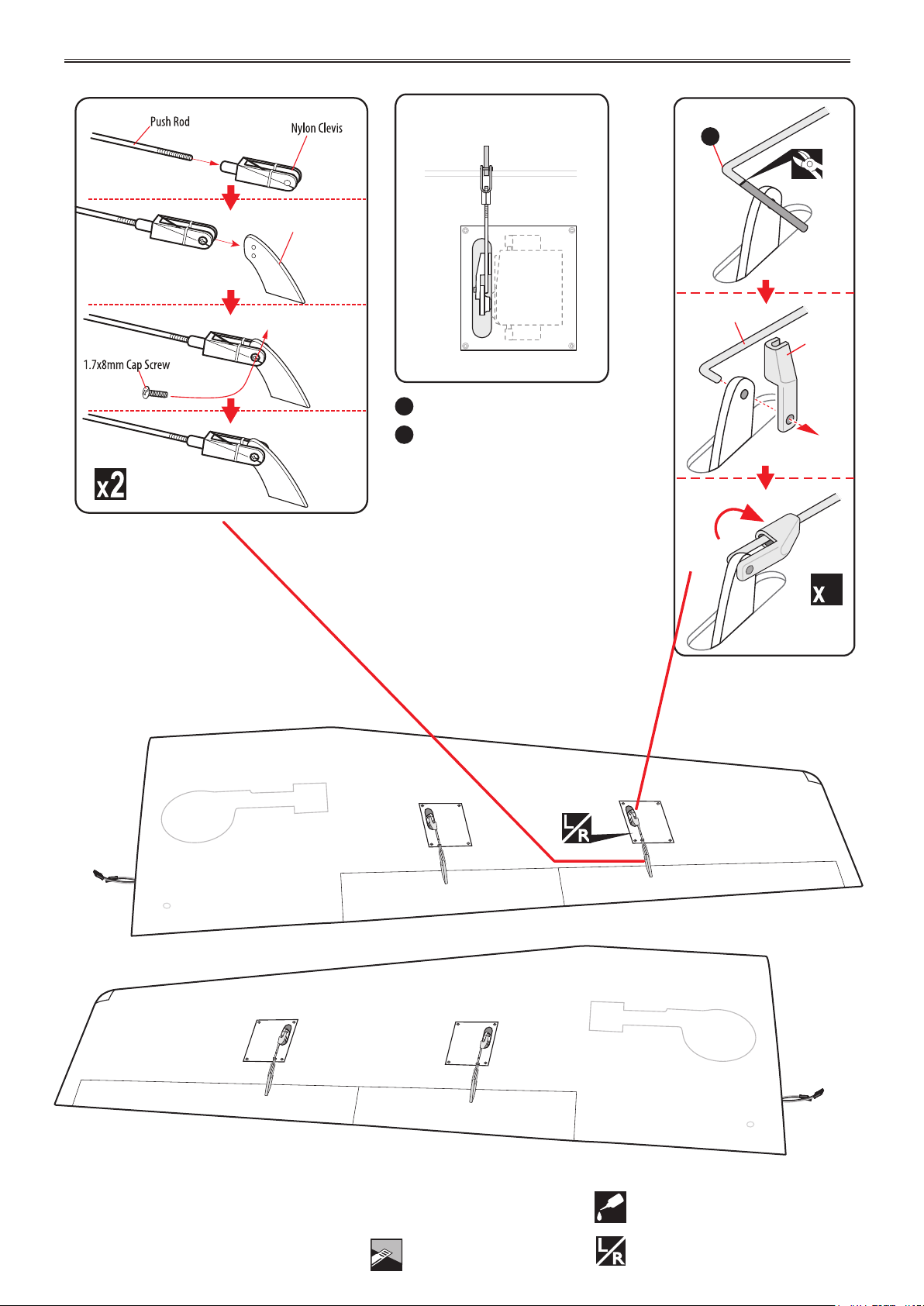

INSTALLING THE CONTROL HORNS AND LINKAGES
L
R
1) Working with the aileron linkage for now,
thread one nylon clevis at least 14 turns onto one
of the 2mm x 180mm threaded wires.
2) Attach the clevis to the outer hole in the control
horn. Install a silicone tube on the clevis.
3) Locate one nylon servo arm, and using wire
cutters, remove all but one of the arms. Using a
2mm drill bit, enlarge the third hole out from the
center of the arm to accommodate the aileron
pushrod wire.
4) Plug the aileron servo into the receiver and
center the servo. Install the servo arm onto the
servo. The servo arm should be perpendicular to
the servo and point toward the middle of the wing.
5) Center the aileron and hold it in place using a
couple of pieces of masking tape.
6) With the aileron and aileron servo centered,
carefully place a mark on the aileron pushrod wire
where it crosses the hole in the servo arm.
7) Using pliers, carefully make a 90 degree bend
down at the mark made. Cut off the excess wire,
leaving about 6mm beyond the bend
8) Insert the 90 degree bend down through the
hole in the servo arm. Install one nylon snap
keeper over the wire to secure it to the arm. Install
the servo arm retaining screw and remove the
masking tape from the aileron
9) Repeat step # 4 - # 8 to install the second
aileron linkage. After both linkages are completed,
connect both of the aileron servo leads using a Y-
harness you have purchased separately.
BA Apply epoxy glue.
100mm Push rod - - 4
Nylon Clevis
1.7x8mm Cap Screw
- - - 4
- - - 4
Horn - - - - - - 4
- - - - - - 4
Flaslink

Bottom view
INSTRUCTION MANUAL PC-9 Item code: BH76
11
Assemble left and right
sides the same way.
C . A
Apply instant glue
(C.A glue, super glue).
Cut off shaded portion
carefully.
Flaslink
Push rod
4
2
Servo arm
Mark the spot to attach
Bend 90o
1
2
Control Horn

INSTRUCTION MANUAL PC-9 Item code: BH76
12
INSTALLING THE WHEEL WELL
Wheel well
Cut the plastic
R
5mm
L
Cut the plastic
Top view
*** Using a modeling knife,
carefully remove the film covering
from the gear tray. Make sure that
you do not remove any wood.
Bottom view
C.A

INSTRUCTION MANUAL PC-9 Item code: BH76
13

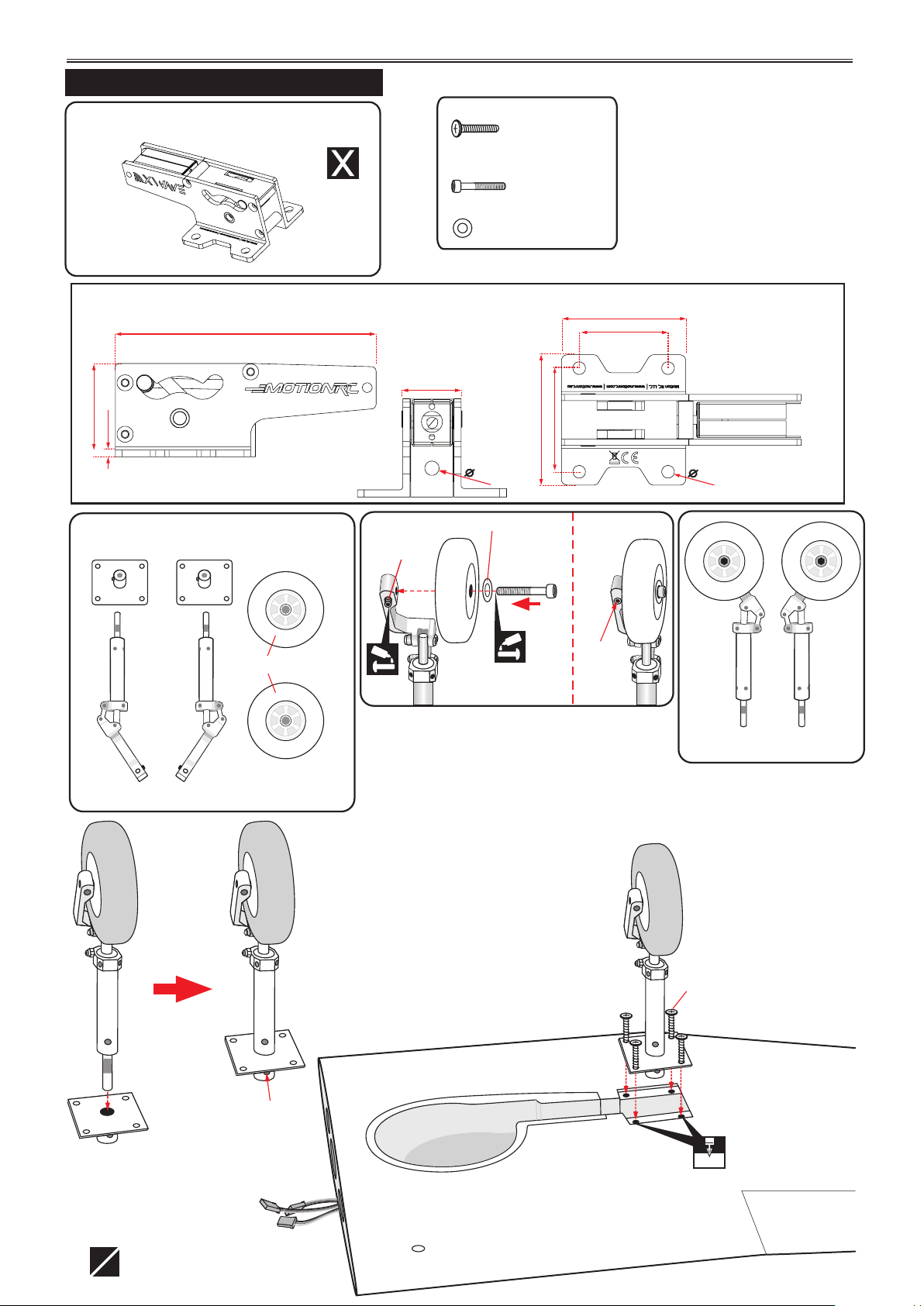

ELECTRIC NOT INCLUDED.
2 pcs.
5x35mm Socket Head
Cap Screw
- - - - - - 2
3x15mm Cap Screw
- - - - 8
5mm Flat washer
- - - - - - - - 2
MAIN GEAR STRUTS
42
30
35
44
4.20
29
81
2.5
17
ELECTRIC GEAR DIMENSIONAL DETAIL (mm)
Main gear
5x35mm
Socket Head
Cap Screw
5mm Flat Washer
4x4mm
Setscrew
Screw
ONLY INCLUDING OLEO STRUTS
Main gear
75mm Wheels.
Landing gear mount.
Screw
3x15mm
2.5mm
Bottom view
Assemble left and right
sides the same way.
L
R
5.1

INSTRUCTION MANUAL PC-9 Item code: BH76
14
ELECTRIC GEAR RETRACTS
Screw the gear in position
2
Screw
2.5mm
3x15mm
Bottom view
Assemble left and right
sides the same way.
L
R
L
R
L
R
Drill holes using the stated.
(in this case 2.5mm ).
2.5mm
The number of times
the same way Assembly
(in this case twice).
2
X

INSTRUCTION MANUAL PC-9 Item code: BH76
15
Screw the gear in position
2
Top view

INSTRUCTION MANUAL PC-9 Item code: BH76
16
Cut off shaded portion
carefully.
Drill holes using the stated.
(in this case 2mm ).
2mm
The number of times
the same way Assembly
(in this case twice).
3
1) Install the rubber grommets and brass collets into
the elevator, rudder and throttle servos. Test fit the
servos into the servo tray. Trim the tray if necessary to
fit your servos.
2) Mount the servo to the tray using the mounting
screws provided with your radio system.
90o
approx.16mm
2mm
3
2mm
2mm
For rudder servo

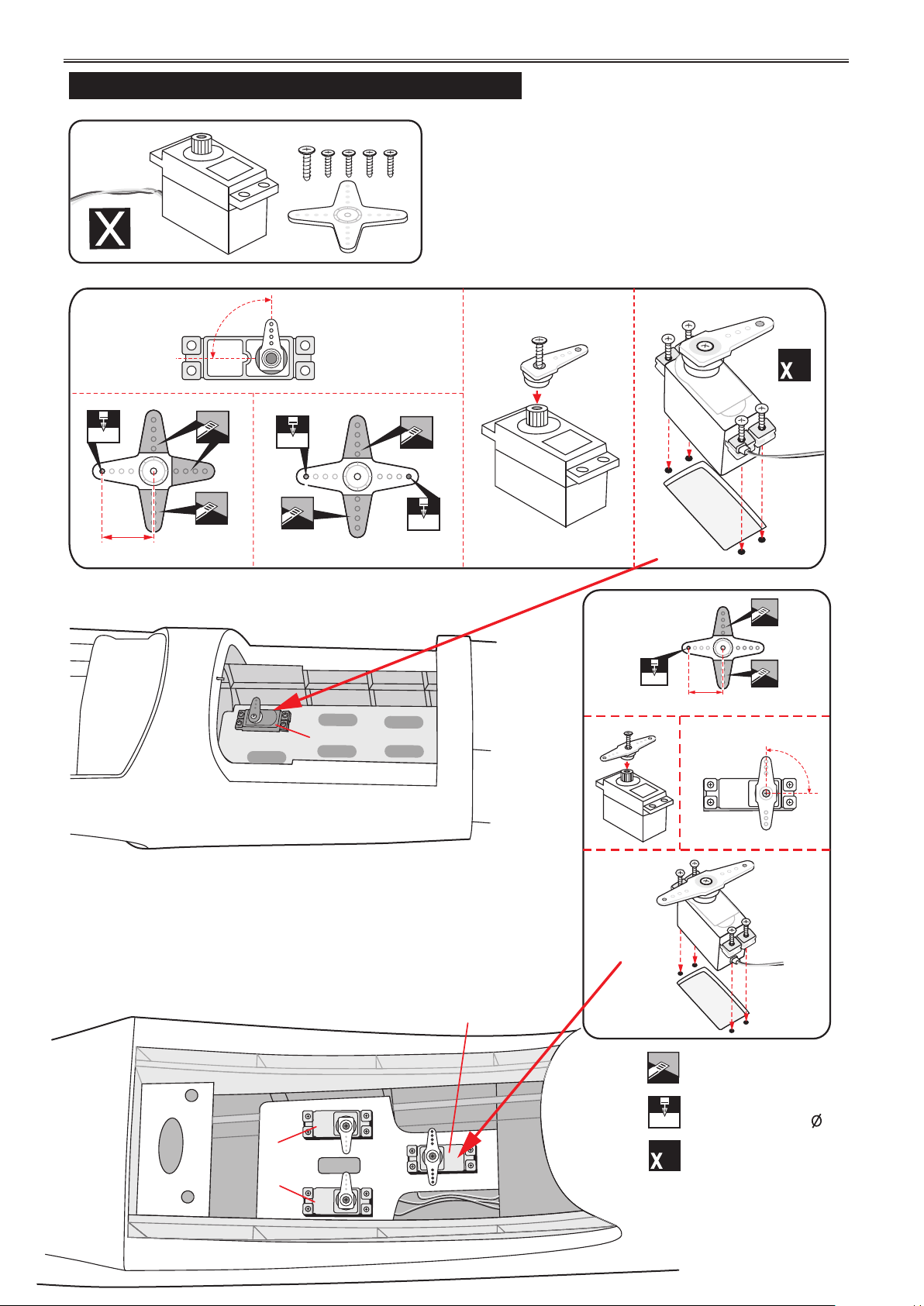

INSTALLING THE FUSELAGE SERVOS
Throttle servo
Fuselage top side
approx.16mm
2mm
Servo nose gear
o
90
Fuselage bottom side
Rudder servo
Servo nose gear
Elevator servo

INSTRUCTION MANUAL PC-9 Item code: BH76
17

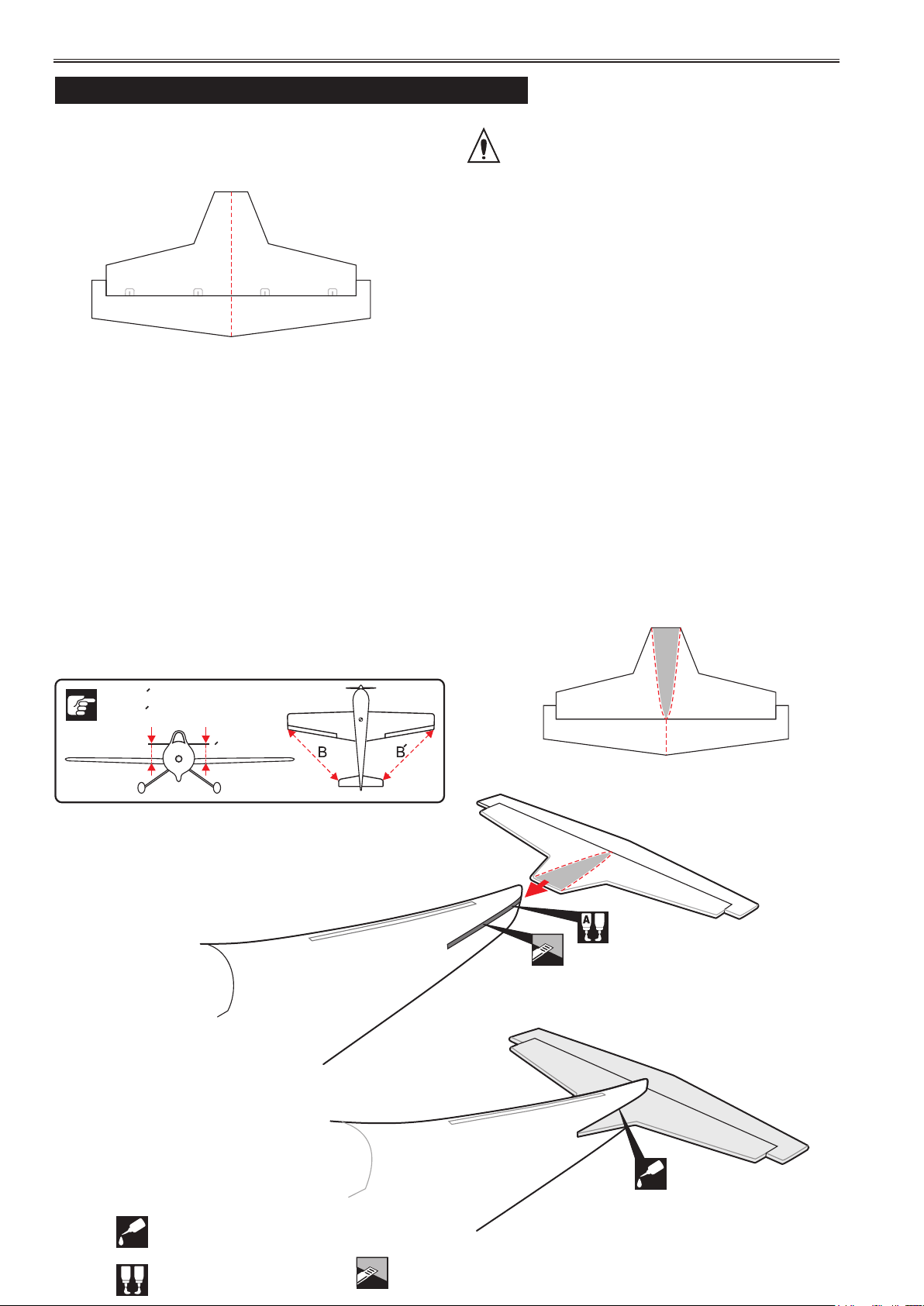

INSTALLING HORIZONTAL STABILIZER
Center line
C.A
A A
A = A
B = B
B
Top side
1) Hinges for Elevator are glued the same way as the
aileron before (see page 8).
2) Draw a center line onto the horizontal stabilizer
3) Using a modeling knife, cut away the covering
from the fuselage for the stabilizer and remove it.
7) When you are sure that everything is aligned
correctly, mix up a generous amount of 30 minute
epoxy.Apply a thin layer to the bottom and to the top
of the stabilizer mounting area and to the stabilizer
mounting platform sides in the fuselage. Slide the
stabilizer in place and re-align. Double check all of
your measurements one more time before the epoxy
cures. Remove any excess epoxy using a paper
towel and rubbing alcohol and hold the stabilizer in
place with T-pins or masking tape.
8) After the epoxy has fully cured, remove the
masking tape or T-pins used to hold the stabilizer in
place and carefully inspect the glue joints. Use more
epoxy to fill in any gaps that were not filled previously
and clean up the excess using a paper towel and
rubbing alcohol.
4) Check the fit of the horizontal stabilizer in its slot.
Make sure the horizontal stabilizer is square and
centered to the fuselage by taking measurements,
but don't glue anything yet.
5) With the horizontal stabilizer correctly aligned.
Apply a thin CA layer to the top and bottom of the
stabilizer in the fuselage
6) Remove the stabilizer. Using the lines you just
drew as a guide, carefully remove the covering
from between them using a modeling knife.
When cutting through the covering to
remove it, cut with only enough pressure to only
cut through the covering it's self. Cutting into the
balsa structure may weaken it. This could lead to
possible failure during flight.
BA Apply epoxy glue.
C
.
A
Apply instant glue
(C.A glue, super glue).
Cut off shaded portion
carefully.

INSTRUCTION MANUAL PC-9 Item code: BH76
18
Cut off shaded portion
carefully.
Bottom side
Servo arm
6mm
Push rod
Bend 90o
Flaslink
Horn
Flaslink
Elevator servo
Elevator pushrod
Fuselage bottom side
Elevator servo
900mm Push rod - - 1
Horn - - - - - - 1
- - - - - - 1
Flaslink
BA Apply epoxy glue.
Horn
BA
Cut off excess.
Nylon Clevis
1.7x8mm Cap Screw
- - - 1
- - -1

INSTRUCTION MANUAL PC-9 Item code: BH76
19

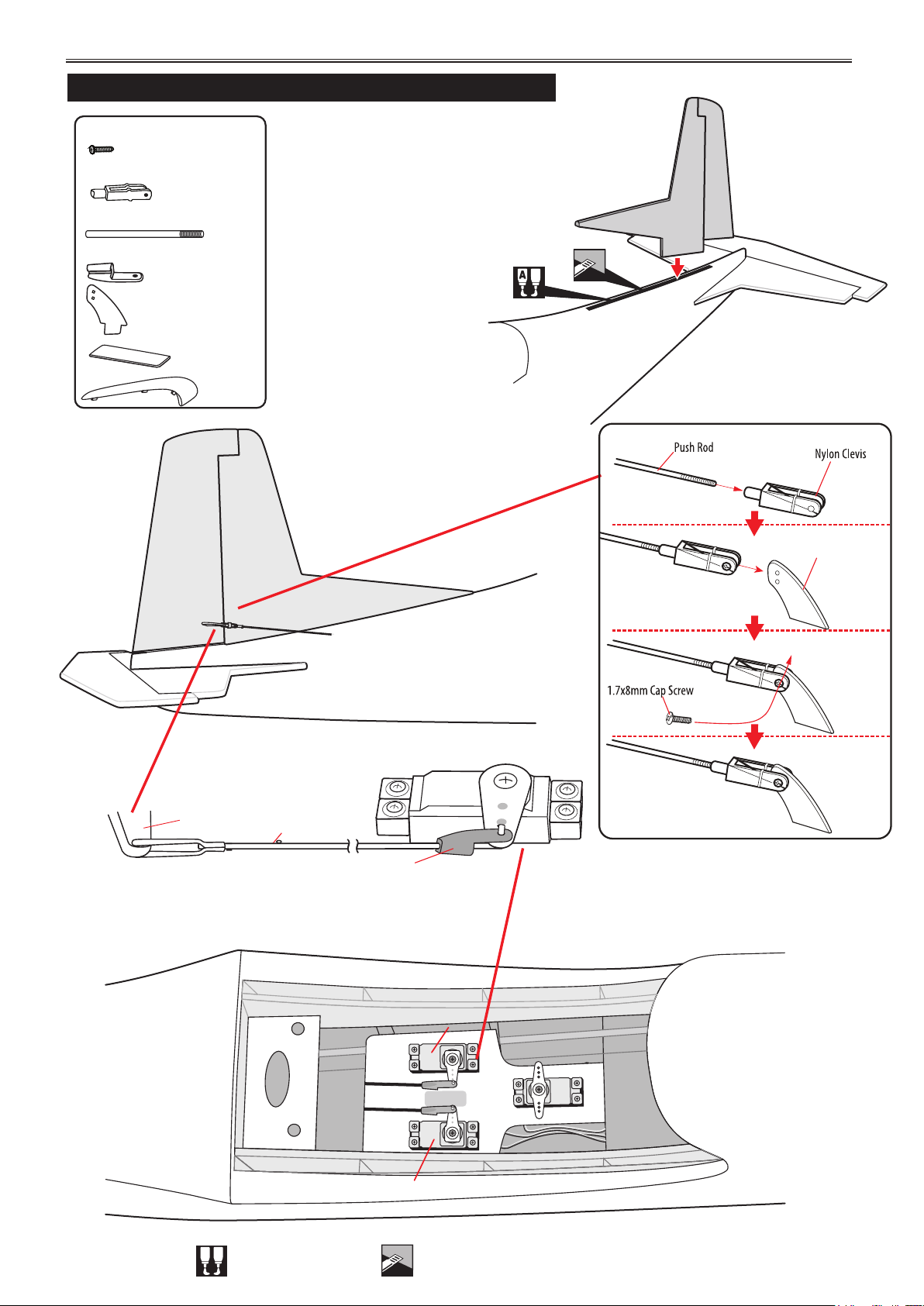

INSTALLATION THE VERTICAL STABILIZER
Elevator servo
900mm Push rod - - 1
Horn
- - - - - - 1
- - - - - - 1
Flaslink
Cut off shaded portion
carefully.
BA Apply epoxy glue.
- - - - - 1
- - - 1
Fuselage bottom side
Rudder servo
Rudder pushrod
Horn
Flaslink
Rudder servo
B
1) Hinges and servo for Rudder are
glued the same way as the aileron
before (see page 8).
2) Control horn and linkages for
Rudder are installed the same way as
the Elevator before (see page 10, 11).
Nylon Clevis
1.7x8mm Cap Screw
- - - 1
- - -1
Control Horn

INSTRUCTION MANUAL PC-9 Item code: BH76
20

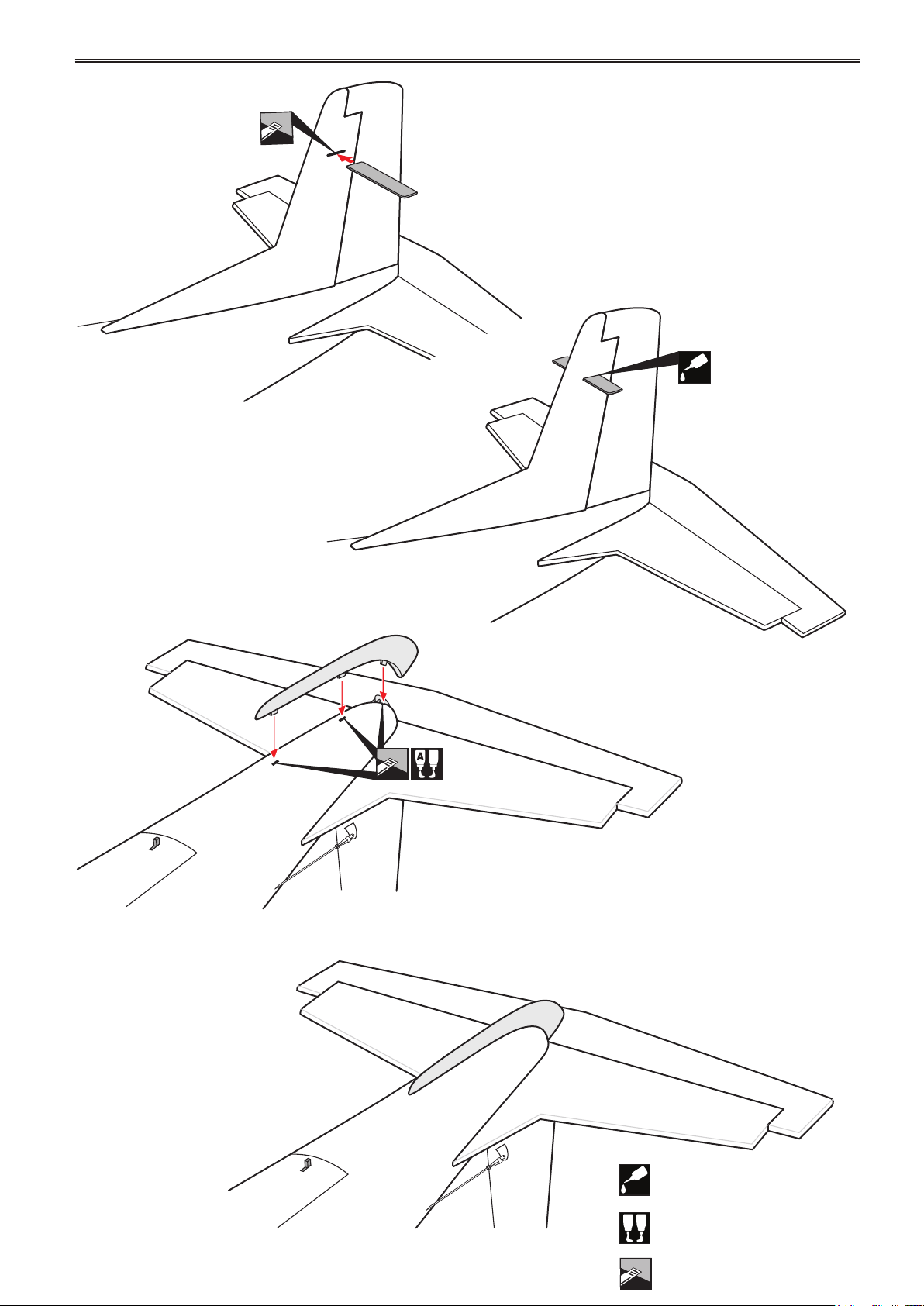

C.A
B
BA Apply epoxy glue.
C
.
A
Apply instant glue
(C.A glue, super glue).
Cut off shaded portion
carefully.
