Black Horse Model BIRD DOG Owner's manual

Instruction Manual book


Servo : 06-07 servos.


Radio: 05 channels.


ElectricMotor: KMS4120/05


Battery:4-5Cells-Li-Poly-14.8-18.5v-5.000mAh-20c.
SPECIFICATION
Madein Vietnam.


Wingspan : 1,890mm. 74.41 in.


Length : 1,400 mm. 55.12in.


Weight : 3.5kg. 7.7lbs.
Partlisting required(notincluded)


Glow Engine : 55 - 61 2 stroke.
91 4 stroke.

BIRD DOG - Item code:BH82 . Instruction Manual
2
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your BIRD DOG. Use the parts listing below to
identify all parts.
WARNING
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesignedtohelpthe newpilotonhisway tosuccessfulR/Cflight.They willalsobeable
to advise on any insurance and safety regulations that may apply.
TOOLS & SUPPLIES NEEDED
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modellingknife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
Some more parts.
HARDWAREPACK
COWLING.
Landinggear.....
Toavoid scratching yournewairplane, do not
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the air-
craftand to protectthetable. Keep acoupleof
jars or bowls handy to hold the small parts af-
ter you open the bag.
Pleasetrialfitallthe parts.Makesureyouhave
the correct parts and that they fit and are
alignedproperly beforegluing! Thiswillassure
properassembly.BIRDDOG ARFishandmade
from natural materials, every plane is unique
andminor adjustments may havetobe made.
However, you should find the fit superior and
assembly simple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the follow-
ing:paintthinner,C/Aglue accelerator,C/Aglue
debonderandacetone. Donotletthesechemi-
cals come in contact with the colors on the
covering and the plastic parts.

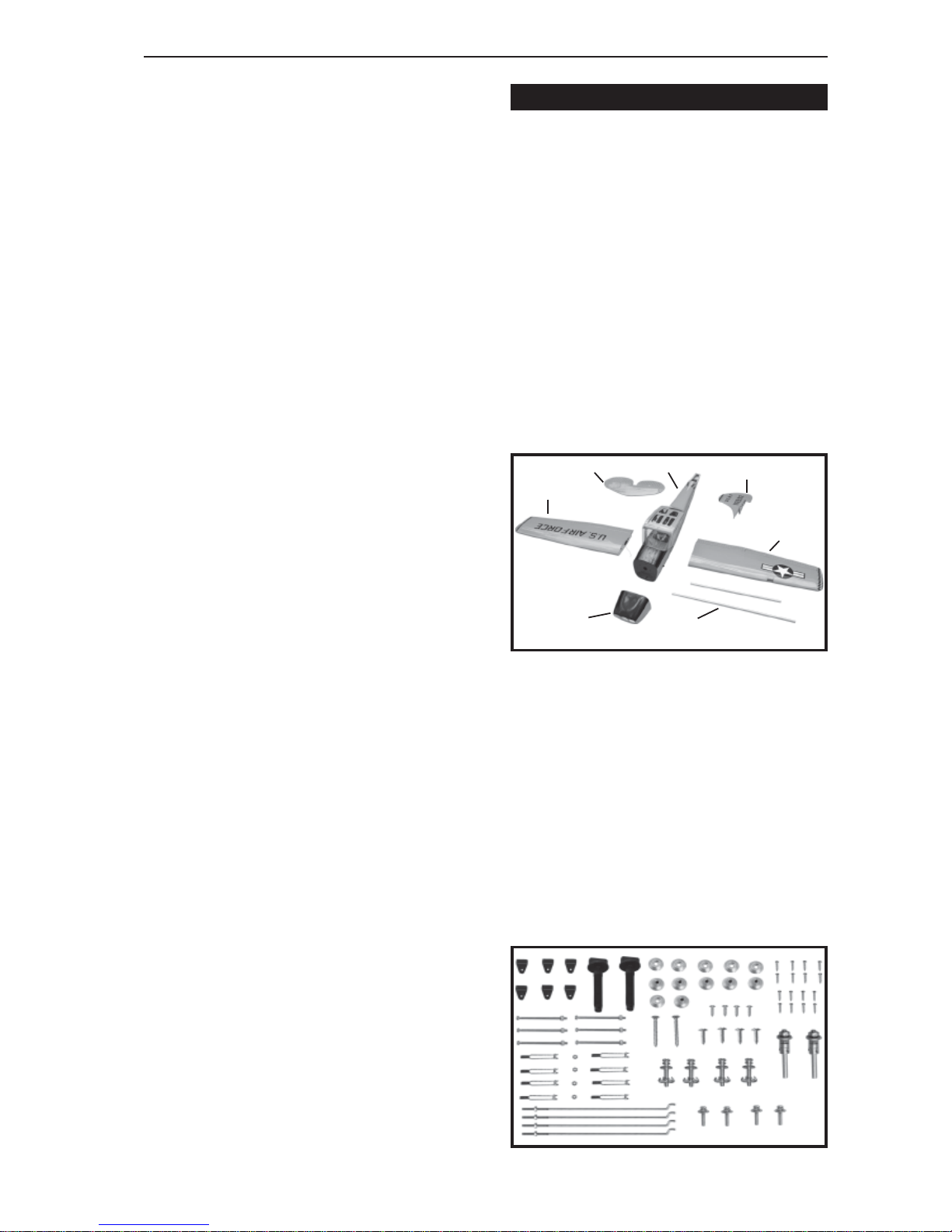

PARTS LISTING
FUSELAGE ASSEMBLY
(1) Fuselage.
WING ASSEMBLY
(1) Right wing half with pre-installed
aileron.
(1) Left wing half with pre-installed
aileron.
Tail section assembly
(1) Vertical stabilizer with pre-
installedrudder.
(1) Horizontal stabilizer with pre-
installedelevator halves.
SUGGESTION
NOTE.

BIRD DOG - Item code:BH82. INSTRUCTION MANUAL
3
Caution: this model is not a toy!
If you are a beginner to this type of powered
model,please askanexperienced modelflyer
forhelp and support. Ifyou attempt tooperate
themodel withoutknowing whatyou aredoing
you could easily injure yourself or somebody
else. Please keep your safety and well-being
in mind at all times.
Important: before you start construction
Evenifyouhave already built a large number
ofRC models please readrightthrough these
instructions and check all the kit components
against the parts list. We have taken great
trouble to keep construction as simple as
possible, without making any compromises
in the area of safety.
Note regarding the film covering
Minor creases or bubbles may develop in the
film covering due to major fluctuations in
weather conditions (temperature, humidity
etc.); in rare cases you may even find a slight
warp in a component. These minor faults are
in the nature of film-covered built-up wooden
structures, and can easily be corrected using
a heat gun, as commonly used for modelling.
Creases: Blowwarm airover thearea
and rub down with a soft
cloth.
Wing warp: Hold the panel twisted
gently in the opposite
direction to the warp, and
apply warm air to remove
the creases from the
covering.
Caution! do not heat the film more than is
absolutely necessary. If the air or the iron is
too hot, the film may melt and holes may be
formed.
This model is highly pre-fabricated and can
bebuilt inaveryshorttime.However,the work
which you have to carry out is important and
must be done carefully. The model will only
be strong and fly well if you complete your
tasks competently - so please work slowly
and accurately.
When self-tapping screws have to be
screwed into wood, apply a little white
glue to prevent them shaking loose: just
squirt white glue into the hole and fit the
screw.
+ This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Do not smoke near fuel
+ Store fuel in a cool, dry place, away from
children and pets.
+ Wear safety glasses.
+Theglow plugclipmust besecurelyattached
to the glow plug.
+ Do not flip the propeller with your fingers.
+ Keep loose clothing and wires away from
thepropeller.
+ Do not start the engine if people are near.
Donot stand in linewith the side ofthe propel-
ler.
+ Make engine adjustments from behind the
propeller only. Do not reach around the spin-
ningpropeller.
SAFETY PRECAUTION.
REPLACEMENT SMALL PARTS
B. Wing panel.
C. Fuselage.
A.Cowling.
D . Horizon stabilizer.
F. Aluminium wing dihedral brace.
E. Vertical stabilizer
A
B
B
ED
F
C

BIRD DOG - Item code:BH82 . Instruction Manual
4
Aileron
C/Aglue
C/Aglue
C/Aglue
Bottom side
Bottom side
Aileron
Flap
C/Aglue
C/Aglue
1.INSTALLING THE AILERON SERVOS.
I. AILERON.
2 .Plastic part for fuselage.
5. Fuel tank. .
4. Wheels.
7. Tail gear set.
6. Aluminium landing gear.
1. Elevator plastic light.
8. Electric light wing.
2. 4
5
6
7
8 9
10
1. 3.
3 .Plastic for fuselage top hatch.
9. Plastic for pushrod.
10. Wing truts.

BIRD DOG - Item code:BH82. INSTRUCTION MANUAL
5
Aileron
Flap
C/Aglue
 3. Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out, re-
move the masking tape and the servo lead
from the thread.
 4) Drill 1,6mmpilot holes through theblock
of wood for each of the four mounting screws
provided with the servo.
 2.Using a modelingknife,remove the cov-
ering servo tray.
 1) Install the rubber grommets and brass
eyelets onto the aileron servos.
Servo tray.
Removecovering
Aileron
Battery Electric wire
thread.

BIRD DOG - Item code:BH82 . Instruction Manual
6

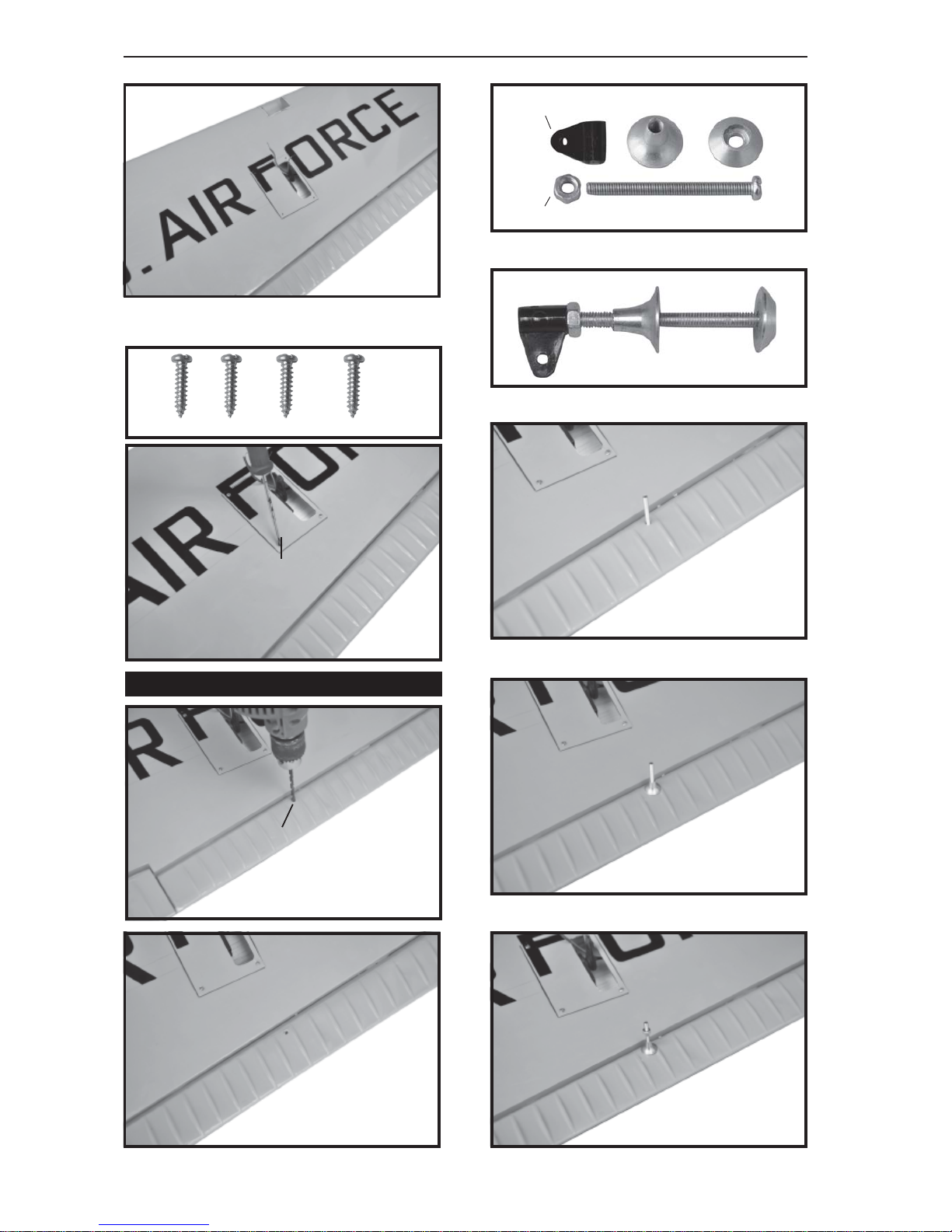

 5. Instal servo tray with aileron servo into
the wing as same as picture below.
2x10mm.
2.INSTALLING THE AILERON CONTROL HORN.
Secure
M3 lock nut. 3mm x 40mm.
Nilon control clasp.
Drill a hole 3mm
diameter

BIRD DOG - Item code:BH82. INSTRUCTION MANUAL
7
Control horn
of the aileron
Repeat the procedure for the other wing
half.
Installing the aileron linkages as pictures
below.
thread
3.INSTALLING THE AILERON
LINKAGES.
II. FLAP.
1.INSTALLING THE FLAP SERVOS.
Electric way
2x10mm.
M2locknut
90mm
C/Aglue Secure.
2. INSTALLING THE FLAP CONTROL HORN.
Drill a hole 3mm
diameter

BIRD DOG - Item code:BH82 . Instruction Manual
8
Repeat the procedure for the other wing
half.
Installing the aileron linkages as pictures
below.
M3 lock nut. 3mm x 40mm.
Nilon control clasp.
90mm
M2 lock nut
Flap control
horn.
C/Aglue
C/Aglue
3.INSTALLING THE FLAP
LINKAGES.

BIRD DOG - Item code:BH82. INSTRUCTION MANUAL
9
THERE ARE TWO OPTIONS:
1. ELECTRIC MOTOR
2. ENGINE MOUNT.
1. OPTION 1: ELECTRIC MOTOR

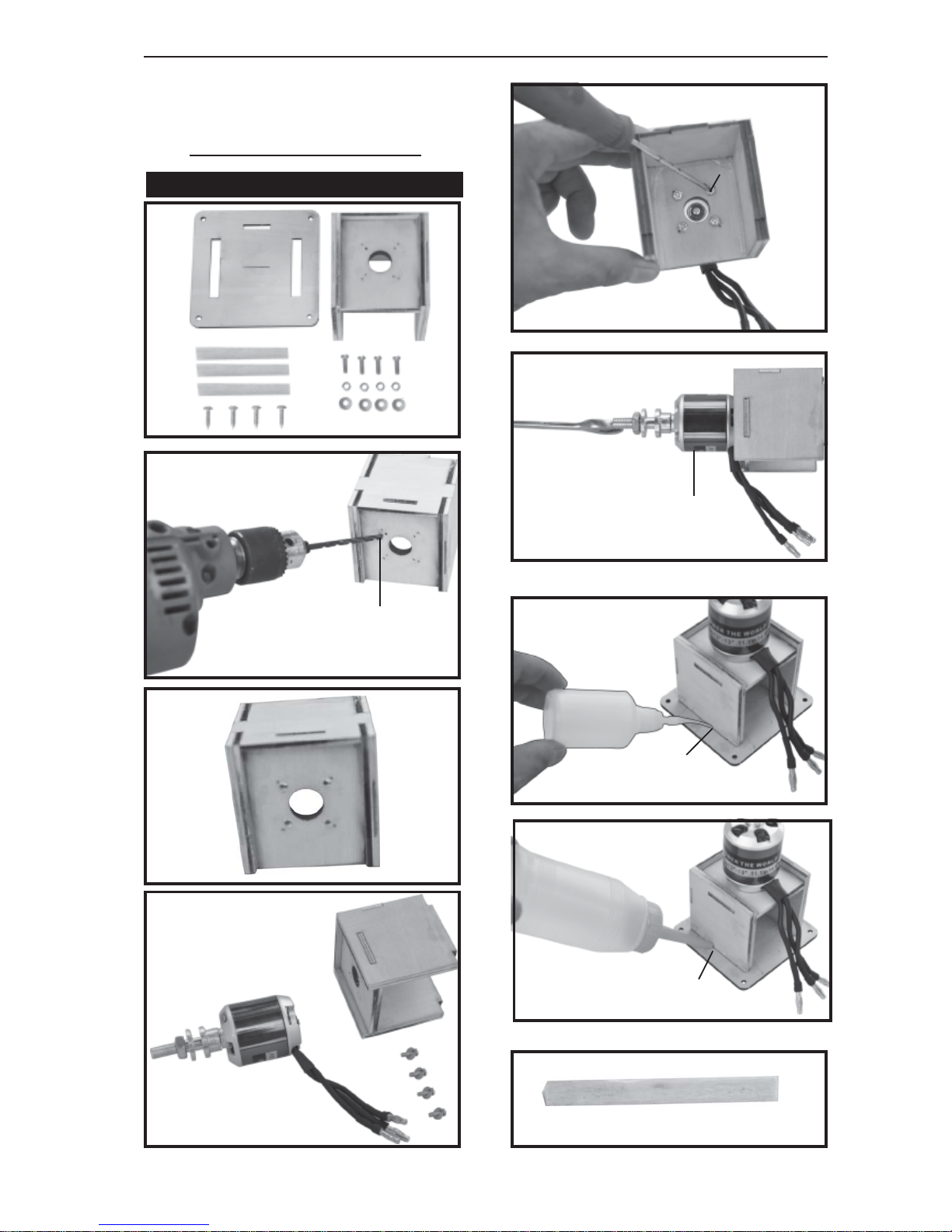

INSTALLING ELECTRIC MOTOR.
3 x 15mm
3 x 15mm
Drill a hole
3mm diameter.
Secure
Motor.
Epoxyglue
C/Aglue
balsa wood piece

BIRD DOG - Item code:BH82 . Instruction Manual
10
Secure
Push.
Battery.
Rotor sharft.
Motor.
Rubberband.

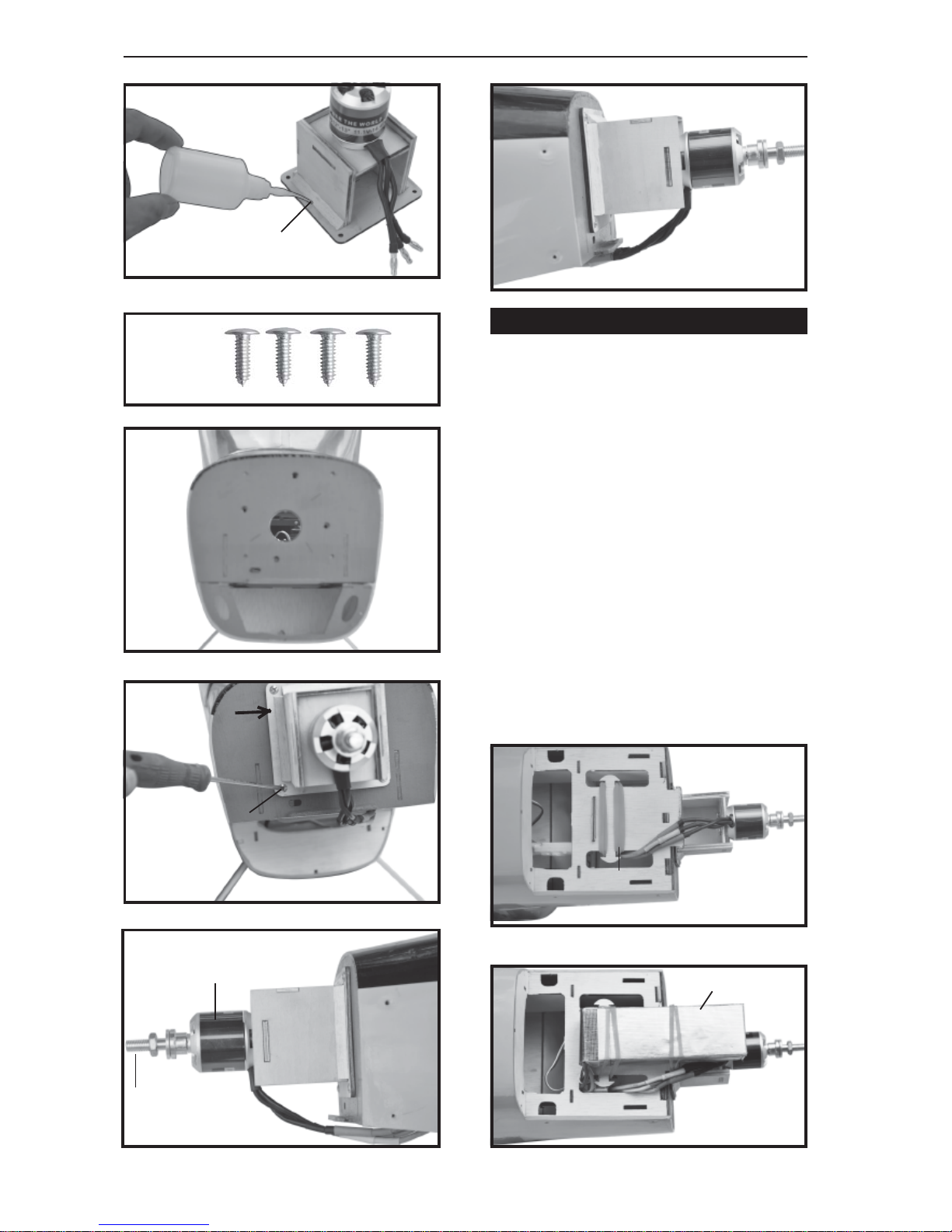

 1. Plug the servo leads and the switch
leadinto the receiver. You may want to plug
anaileronextensioninto the receiver to make
plugging in the aileron servo lead easier
when you are installing the wing . Plug the
battery pack lead into the switch.

2. Wrap the receiver and battery pack in
the protective foam to protect them from vi-
bration.Use a rubber bandor masking tape to
hold the foam in place.

3. Position the battery pack and receiver
behindthe fueltank.Use two tiewraps to hold
the battery and receiver securely in place as
pictures below
C/Aglue
3 x 15mm
INSTALLING THE RECEIVERAND BATTERY.

BIRD DOG - Item code:BH82. INSTRUCTION MANUAL
11
Frontview.

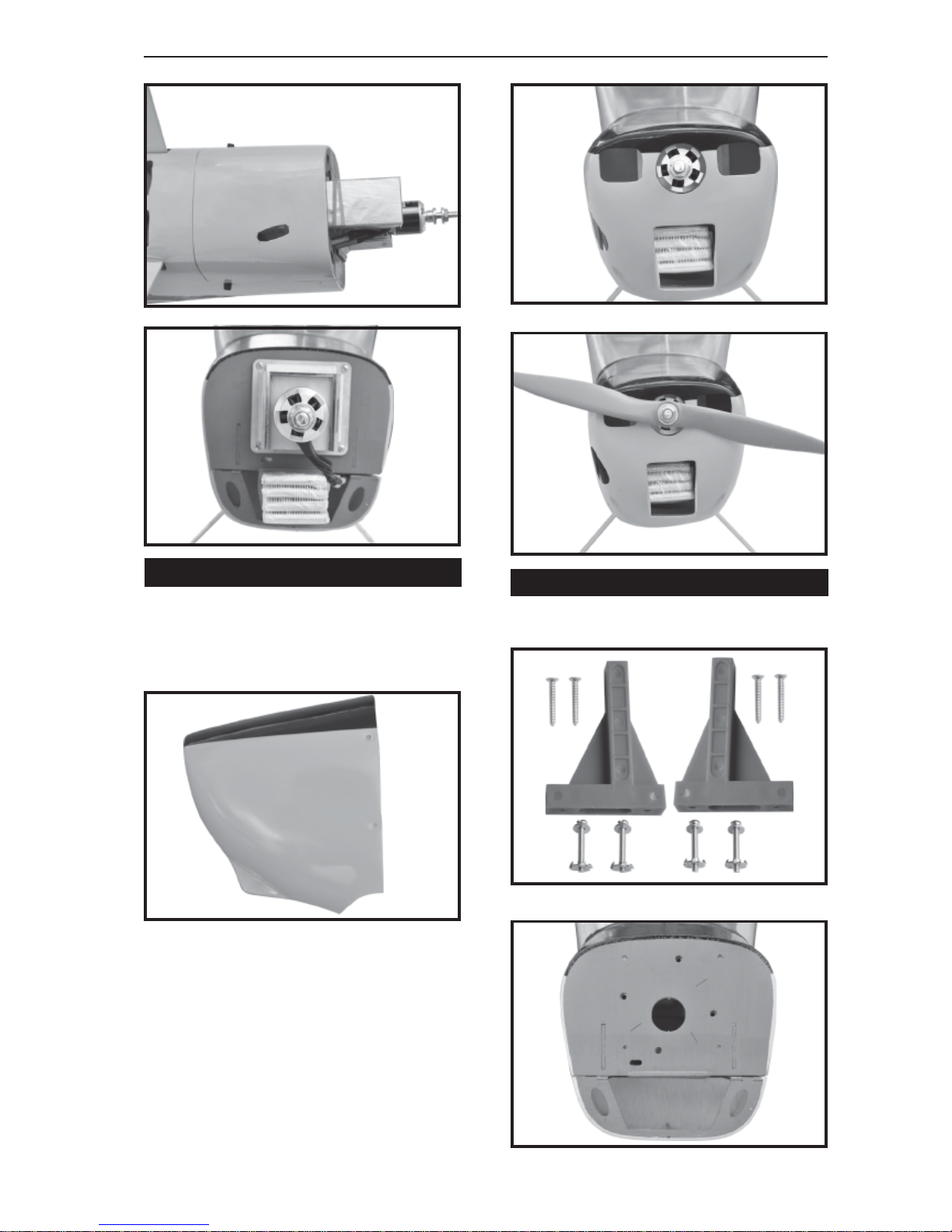

 1) Slide the cowl over the motor and line
up the back edge of the cowl with the marks
you made on the fuselage.
3) Slide the cowl back over the motor.
2) While keeping the back edge of the
cowl flush with the marks, align the front of
thecowlwith the crankshaft ofthemotor. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Hold the cowl firmly in place using
pieces of masking tape.
COWLING.
See pictures below:

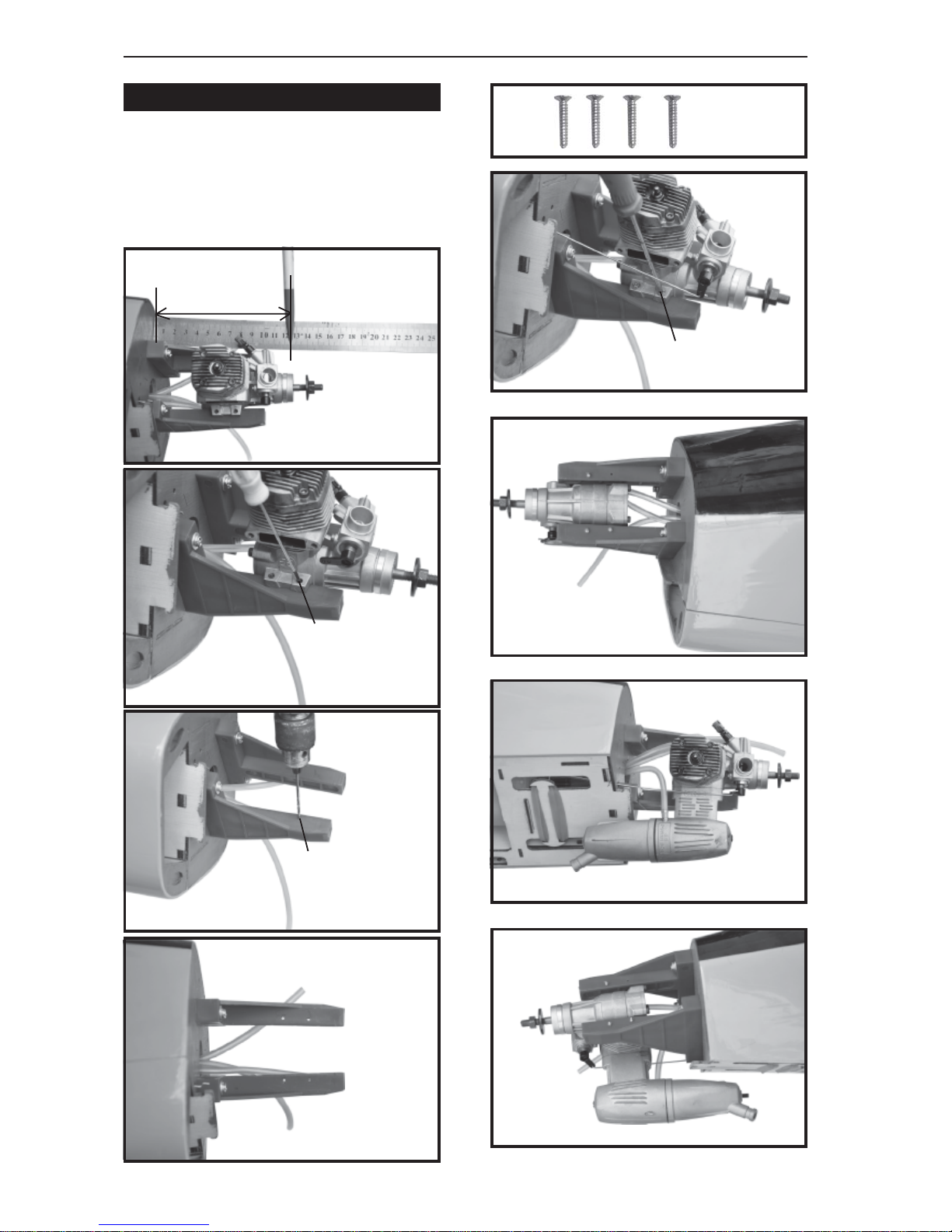

INSTALLING THE ENGINE MOUNT.
4x 30mm
3.5x 25mm

BIRD DOG - Item code:BH82 . Instruction Manual
12
 7) Using a modeling knife, cut 3 lengths of
fuel line 150mm long. Connect 2 lines to the 2
vent tubes and 1 line to the fuel pickup tube in
the stopper.
 5) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using
amodeling knife. Ifflashing is present, make
sure none of it falls into the tank.
 6) When satisfied with the alignment of
thestopperassemblytightenthe3mmx20mm
machine screw until the rubber stopper ex-
pandsand sealsthe tankopening. Donotover
tighten the assembly as this could cause the
tank to split.
 8) Feed three lines through the fuel tank
compartment and through the pre-drilled hole
in the firewall. Pull the lines out from behind
the engine, while guiding the fuel tank into
place. Push the fuel tank as far forward as
possible,the frontof thetankshould justabout
touch the back of the firewall.
Blow through one of the lines to ensure the
fuel lines have not become kinked inside the
fueltankcompartment.Air shouldflowthrough
easily.

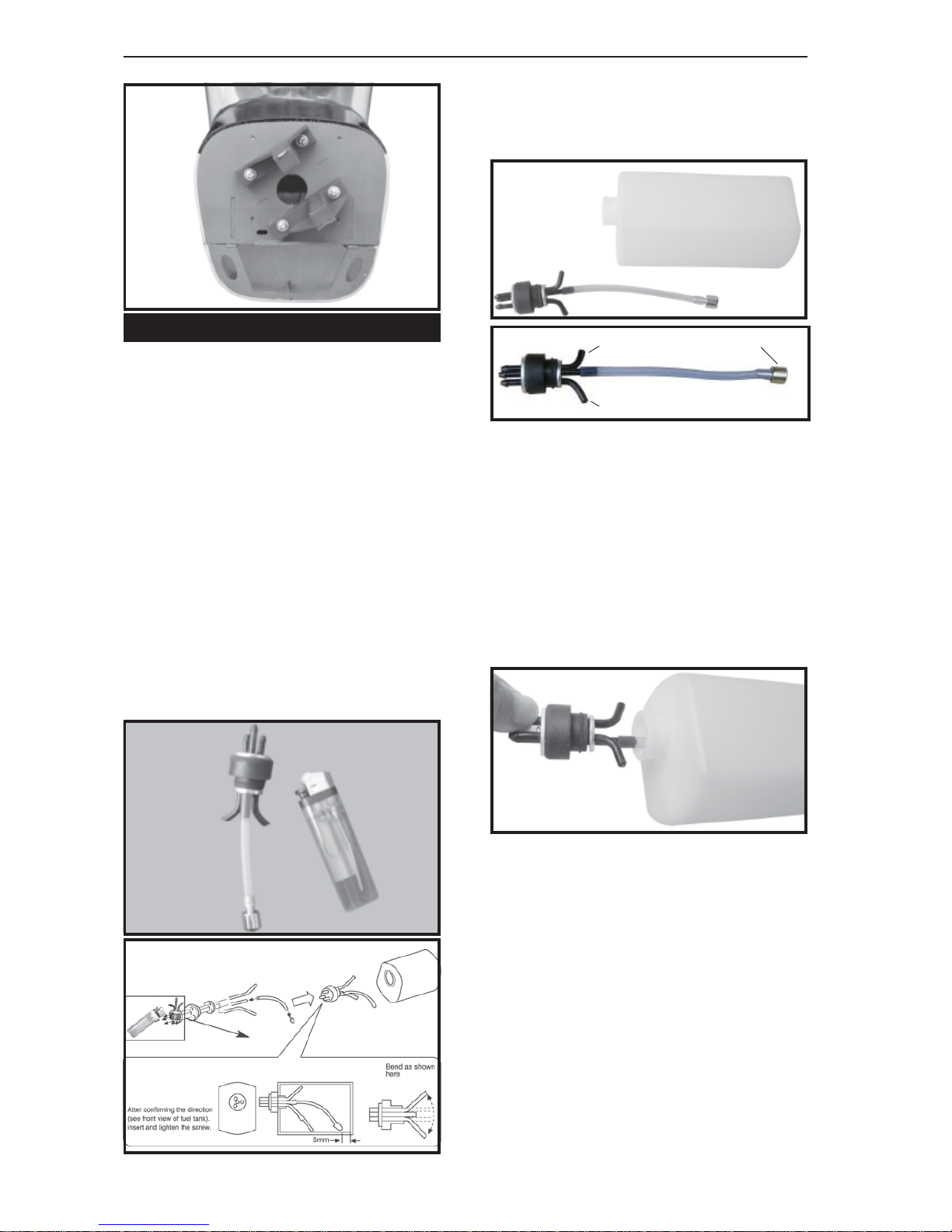

 1) The stopper has been pre-assembled
at the factory.
 2) Using a modeling knife, cut one length
ofsilicon fuel line (thelength of siliconfuelline
iscalculatedbyhowtheweightedclunk should
restabout 8mm awayfromthe rear ofthetank
andmove freely insidethe tank). Connectone
end of the line to the weighted clunk and the
otherend to the nylonpick up tubeinthe stop-
per.
INSTALLING THE STOPPER ASSEMBLY
FUEL TANK.
 3) Carefully bend the second nylon tube
up at a 45 degree angle (using a cigarette
lighter). This tube will be the vent tube to the
muffler.
 4) Carefully bendthe thirdnylon tubedown
ata 45degree angle(using acigarette lighter).
This tubewill beventtube tothefueling valve.
When the stopper assembly is installed in the
tank, the top of the vent tube should rest just
belowthe top surface ofthetank. It shouldnot
touch the top of the tank.
Vent tube
Fuelfilltube
Fuel pick- up tube

BIRD DOG - Item code:BH82. INSTRUCTION MANUAL
13
 9) To secure the fuel tank in place, ap-
plya bead of siliconsealerto the forwardarea
of the tank, where it exits the fuselage behind
theengine mounting boxandto the rearof the
tank at the forward bulkhead.
Do not secure the tank into place perma-
nently until after balancing the airplane. You
may need to remove the tank to mount the
battery in the fuel tank compartment
Fueltank
Fuel tank tray.
C/Aglue

BIRD DOG - Item code:BH82 . Instruction Manual
14
Secure
Locate the long piece of wire used for the
throttlepushrod. Oneend ofthewire hasbeen
pre-bend in to a “Z” bend at the factory. This
“Z” bend should be inserted into the throttle
armofthe enginewhenthe engineisfittedonto
theengine mount. Fit theengine to the engine
mount using the screws provided.
125mm
INSTALLING THE ENGINE.
Markpoint
2.5 x25mm.
Left side
Right side
Drill a hole 2.5mm
diameter

BIRD DOG - Item code:BH82. INSTRUCTION MANUAL
15
 1) Slide the fiberglass cowl over the en-
gineand lineupthe backedge of thecowl with
the marks you made on the fuselage.
3) Slide the cowl back over the engine
andsecure it inplaceusing four woodscrews.
See picture below.
2) While keeping the back edge of the
cowl flush with the marks, align the front of
thecowlwiththecrankshaftoftheengine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Hold the cowl firmly in place using
pieces of masking tape.
4) Installthe mufflerandmufflerextension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
andfuel filler valve.
Bottom side
COWLING.
Right side
Trim and cut
3 x 15mm
Left side
Machinescrew
Bottom side
Trim and cut

BIRD DOG - Item code:BH82 . Instruction Manual
16
Secure
Cut
 1. Install the rubber grommets and brass
colletsintotheelevatorservo.Testfittheservo
into the servo tray.
 2. Mount the servo to the tray using the
mountingscrews providedwith yourradiosys-
tem.
Install one adjustable metal connector
through the third hole out from the center of
one servo arm, enlarge the hole in the servo
arm using a 2mm drill bit to accommodate the
servo connector. Remove the excess mate-
rial from the arm.
After installing the adjustable metal con-
nector apply a small drop of thin C/A to
the bottom nut. This will prevent the con-
nector from loosening during flight.
Throttle servo
Servo arm.
Connector.
INSTALLING THE THROTTLE PUSHROD.
Front view
Right side
Machinescrew
SERVO INSTALLATION.
ELEVATOR INSTALLATION.

BIRD DOG - Item code:BH82. INSTRUCTION MANUAL
17
C/Aglue

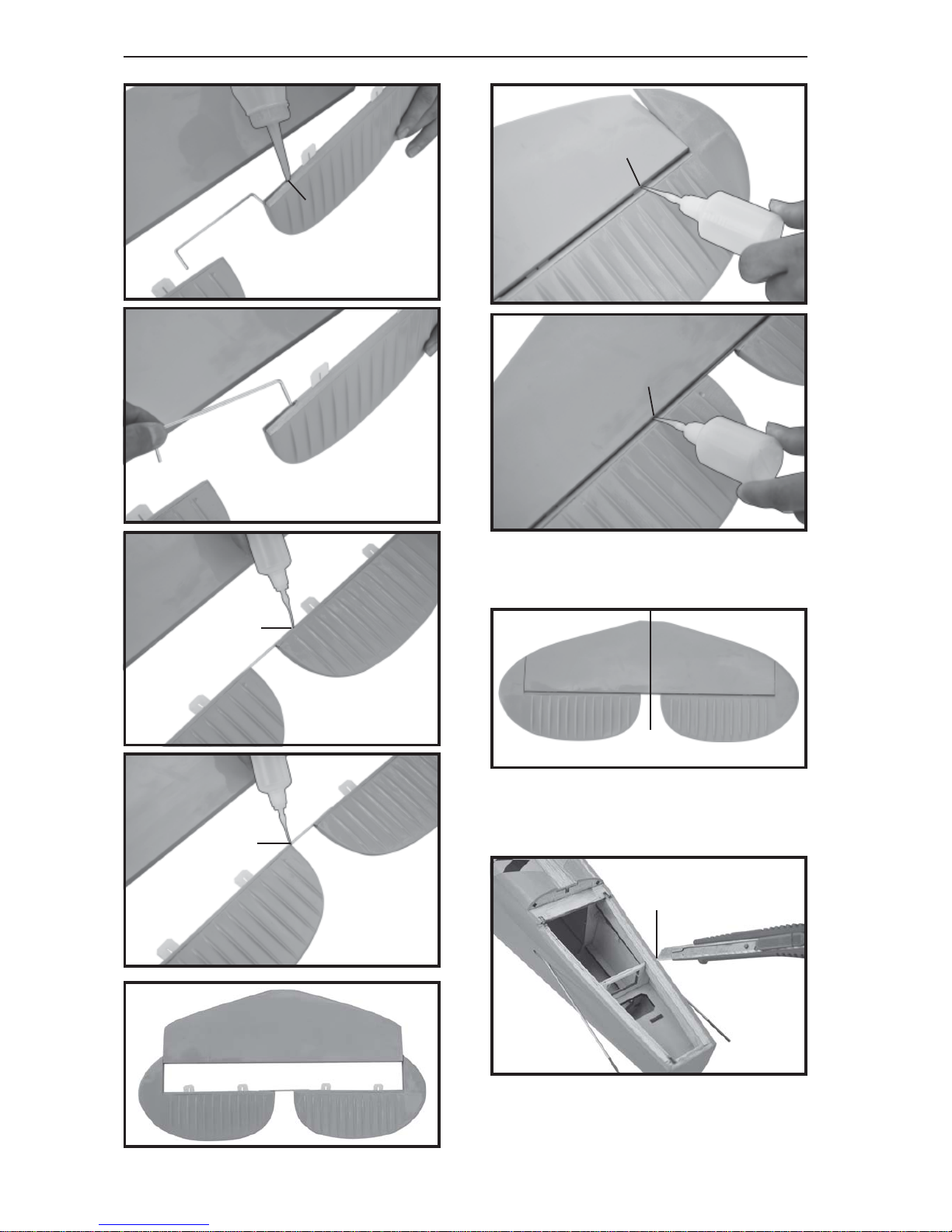

 Horizontalstabilize installation .
See picture below.
HORIZONTAL STABILIZER, VESTICAL
INSTALLATION.
Top side
C/Aglue
C/Aglue
C/Aglue

BIRD DOG - Item code:BH82 . Instruction Manual
18
 1. Draw a center line onto the horizontal
stabilizer. Then slide the horizontal into the
fuselage.
 2 Using a modeling knife, cut away the
covering from the fuselage for the stabilizer
and remove it.
 3. Mark theshape of the verticalon the left
and right sides onto the horizontal stabilizer
using a left-tip pen.
Epoxyglue
C/Aglue
C/Aglue
C/Aglue
C/Aglue
center line
Remove covering

BIRD DOG - Item code:BH82. INSTRUCTION MANUAL
19
Markpoint
Bottom side
6. Afterthe epoxy has fully cured, remove
the masking tape or T-pins used to hold the
stabilizer in place and carefully inspect the
glue joints. Use more epoxy to fill in any
gaps that were not filled previously and
clean up the excess using a paper towel and
rubbingalcohol.
5. When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
topand bottom of thestabilizer mounting area
and to the stabilizer mounting platform sides
inthefuselage.Slidethestabilizerinplaceand
re-align. Double check all of your measure-
ments one more time before the epoxy cures.
Remove any excess epoxy using a paper
towel and rubbing alcohol and hold the stabi-
lizer in place with T-pins or masking tape.
 4. Remove the stabilizer. Using the lines
youjustdrew as a guide,carefully remove the
coveringfrom betweenthemusing amodeling
knife.
When cutting through the covering to
remove it, cut with only enough pressure
to only cut through the covering it’s self.
Cutting into the balsa structure may
weaken it. This could lead to possible fail-
ure during flight.
Remove covering
Check to mark sure the wing and stabi-
lizer are paralell. If they are not, lightly sand
theopening in the fuselagefor the stabilizer
until the stabilizer is paralell to the wing.
Epoxyglue.
Epoxyglue

BIRD DOG - Item code:BH82 . Instruction Manual
20
Control horn of elevator.
Elevator control horn install as same as the
way of aileron control horn. Please see pic-
tures below.
C/Aglue
C/Aglue
ELEVATOR CONTROL HORN
PUSHROD INSTALLATION.
3mm x 40mm.
M3 lock nut.
Nilon control clasp.
Drill a hole
3mmdiameter
