Blodgett SC-10GH Owner's manual

1
SC-GH SERIES
HIGH EFFICIENCY GAS FIRED CONVECTION STEAMER
INSTALLATION – OPERATION –MAINTENANCE
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone [phone] Fax: [phone]
S00061 Rev B (2/05)

2
IMPORTANT NOTES FOR INSTALLATION AND OPERATION
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
WARNING: Improper installation, operation, adjustment, alteration, service
or maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing, operating or servicing this equipment.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any other appliance.
PURCHASER: Instructions to be followed in the event that the operator of this
appliance smells gas must be posted in a prominent location. This information shall be
obtained by consulting the local gas supplier.
Intended for commercial use only. Not for household use.
This manual should be retained for future reference.
Do not attempt to operate this unit in the event of power failure.
Adequate clearances must be maintained for safe and proper operation.
The appliance area must be kept free and clear of combustibles.
Do not obstruct the flow of combustion and ventilation air.
Contact the factory, the factory representative or a local service company to perform
maintenance and repairs should the appliance malfunction. Refer to warranty terms.

3
TABLE OF CONTENTS
DESCRIPTION PAGE
1.0 Service Connections ..................................................................................................4
2.0 Installation..................................................................................................................5
3.0 Performance Check .................................................................................................11
4.0 Operation Instructions..............................................................................................12
5.0 Maintenance.............................................................................................................14
6.0 Deliming Procedure..................................................................................................19
7.0 Troubleshooting .......................................................................................................20

4

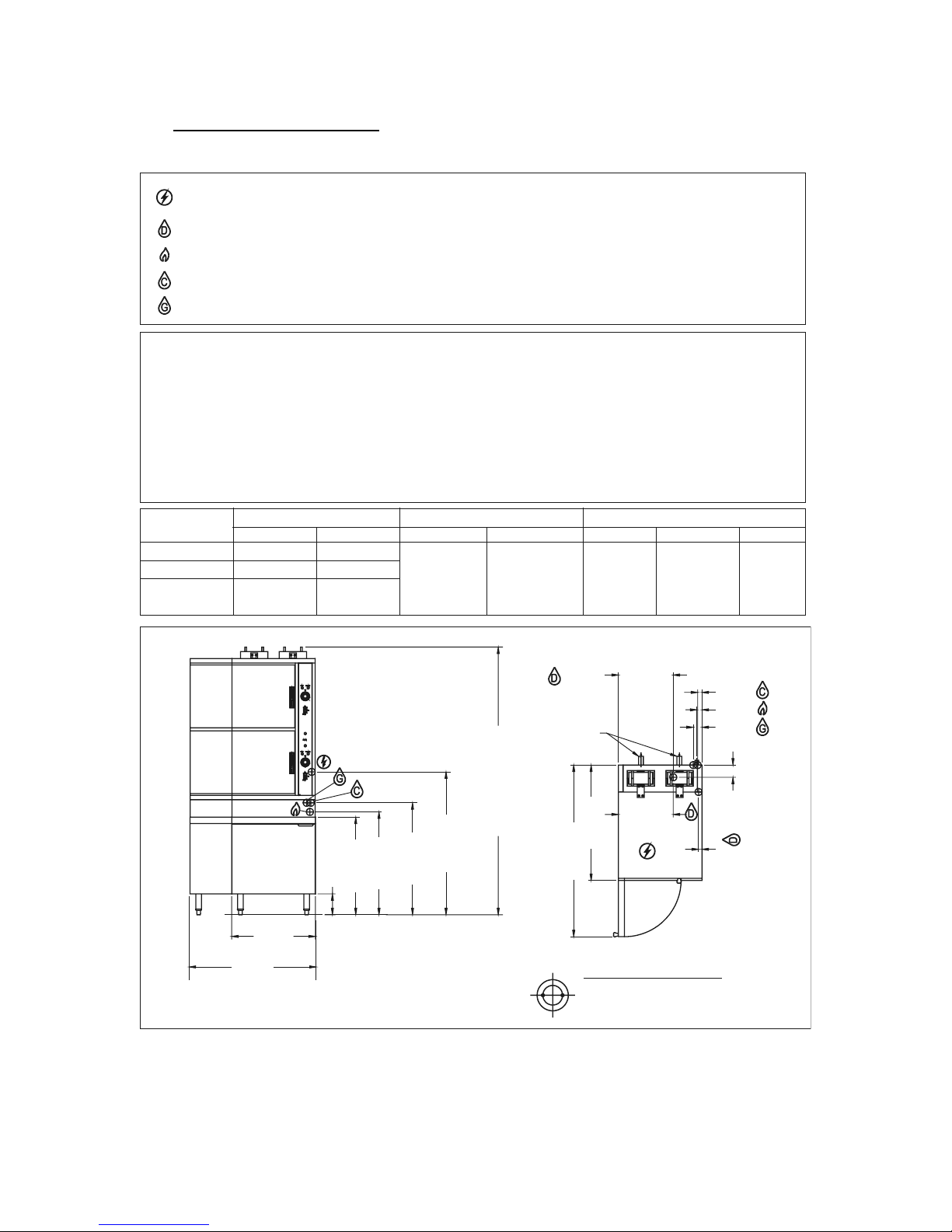

1.0 SERVICE CONNECTIONS
24 [610]
SC-5HE 59.13 [1502] SC-7GH 67.00 [1704]
SC-10GH 76.88 [1953] SC-16GH 70.38 [1788]
6.00 [152]
28.00 [711]
29.50 [749]
32.13 [816]
41.00 [1041]
36 [914]
SC-16GH ONLY
1.5 [38]
2.5 [64]
1.25 [32]
3.50 [89]
SAFETY RELIEF
VALVES
33.13 [841]
49.25 [1251]
18 [457]
SC-16GH
15.75 [400]
1 [25]
REAR FLANGED FOOT DETAIL
7/16" [11mm] HOLES
ON 2.5 [63] B.C.
2 EQUALLY SPACED
Ø
DIMENSIONS ARE IN INCHES [MM]
Unless otherwise specified, Electrical Connection to be 120 Volts, 60 Hertz single phase with ground. Furnished with 4 1/2 foot cord with 3 prong
plug. Maximum 4.0 amps.
DRAIN: 2"IPS piped to open floor drain. No Solid Connection. Maximum 24" length before open air gap opening. (No bends or elbows)
GAS CONNECTION: 3/4"IPS supply line required.
CONDENSING COLD WATER: 3/8" O.D. tubing at 25-50 PSI(170-345 kPa)
GENERATOR WATER: 3/8" O.D. tubing at 25-50 PSI(170-345 kPa)
Less than 1.5 PPM
Less than 13 PPM
Less than 20 PPM
Less than 60 PPM
WATER QUALITY STATEMENT FOR GENERATOR
7.0-8.5pH Factor
Chlorine
Silica
Total alkalinity
Total dissolved solids
FAILURE OR MALFUNCTION OF THIS APPLIANCE DUE TO POOR WATER QUALITY IS NOT COVERED UNDER WARRANTY.
Water which fails to meet these standards should be treated by installation of water conditioner.
local water treatment specialist and have the water analyzed. Your water supply must be within these general guidelines:
Water quality is the major factor affecting the performance of your appliance. If you are unsure of water quality, consult a
12 - 14 INCH6 - 14 INCH
MODEL
95,000
SC-5GH
BTU/HR. kW/HR.
28
41SC-7GH 140,000
190,000
SC-10GH 56 152 - 352mm 305 - 352mm
PROPANENATURAL LEFT
0
RIGHT BACK
6 INCH
152mm
SC-16GH
0
GAS SUPPLY PRESSURE (W.C.) INSTALLED CLEARANCE

5
2.0 INSTALLATION
WARNING: Do not connect the appliance to the electrical supply until
after the gas connection has been made.
Installation must conform to local codes, or in absence of local codes, with the National Fuel
Gas Code - ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA
B149.1, as applicable.
1. The appliance and its individual shut off valve must be disconnected from the gas supply
piping system during any pressure testing of that system at pressures in excess of ½ psi
(3.5 kPa).
2. The appliance must be isolated from the gas supply piping system by closing its
individual manual shut off valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than ½ psi (3.5 kPa).
Electrical grounding must be provided in accordance with local codes, or in the absence of
local codes, with the National Electrical Code ANSI/NFPA 70, OR THE Canadian Electrical
Code, CSA C22.2, as applicable.
Ventilation must be provided in accordance with local codes, or in the absence of local
codes, with ANSI/NFPA 96 Standard for Ventilation and Fire Protection of Commercial
Cooking Operations.
WARNING: ELECTRICAL GROUNDING INSTRUCTIONS
This appliance is equipped with a three-prong (grounding) plug for your
protection against shock hazard and should be plugged directly into a
properly grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. (120V units only).
WIRING DIAGRAM FOR APPLIANCE IS LOCATED ON RIGHT HAND SIDE PANEL OF
THE COOKER CABINET.

6
2.0 INSTALLATION (Continued)
2.1 EXHAUST FANS AND CANOPIES:
Canopies are set over ranges, ovens, kettles, etc., for ventilation purposes. It is
recommended that a canopy extend 6" past the appliance and be located 6' 6" from the
floor. Filters should be installed at an angle of 45 degrees or more with the horizontal.
This position prevents dripping of grease and facilitates collecting the run-off grease in
a drip pan, usually installed with the filter. A strong exhaust fan tends to create a
vacuum in the room and may interfere with burner performance or may extinguish pilot
flames. Makeup air openings approximately equal to the fan area will relieve such
vacuum. In case of unsatisfactory performance on any appliance, check with the
exhaust fan in the “OFF” position.
2.2 WALL EXHAUST FAN:
The exhaust fan should be installed at least two feet above the vent opening at the top
of the unit.
2.3 CLEARANCES:
Adequate clearance must be provided in aisle and at the side and back. Adequate
clearances for air openings into the combustion chamber must be provided, as well as
for serviceability for use on noncombustible floors. Minimum clearance from
combustible and noncombustible construction, 0" on left side, 0" on right side and 6"
from back.
WARNING: These procedures must be followed by qualified
personnel or warranty will be voided. An open gap floor drain is
required immediately below the appliance drain.

7
2.0 INSTALLATION (Continued)
To Install:
1. Uncrate carefully. Report any freight damage to the freight company immediately.
2. Set the unit in place. Be certain to maintain the minimum clearances from combustibles
and non-combustibles.
3. For an appliance supplied with legs, level the appliance using a spirit level. Should
flanged adjustable feet be provided, anchor to floor using proper anchoring devices.
4. Seal bolts and flanged feet with Silastic or other equivalent compound.
5. Be certain to leave adequate clearances for cleaning, maintenance and service.
WARNING: For an appliance equipped with casters, the installation
shall be made with a connector that complies with the standard for
connectors for moveable gas appliances, ANSI Z21.69-CSA 6.16 and a
quick-disconnect device that complies with the standard for quick-
disconnect devices for use with gas fuel, ANSI Z21.41-CSA 6.9;
adequate means must be provided to limit the movement of the
appliance without depending on the connector and the quick-
disconnect device or its associated piping to limit the appliance
movement; the location where the restraining means may be attached
to the appliance is on bottom of unit directly below relief valve.
If the unit is also equipped with an optional water fill valve it too must
be installed with a flexible water supply tube, a quick disconnect and
strain relief.
GAS CONNECTION:
CAUTION: The pipe thread compound used when installing pipes must
be a type that is resistant to the action of liquified petroleum or
propane gases.
NOTICE: If this equipment is being installed at over 2,000 feet altitude
and was not so specified on order, contact service department. Failure
to install with proper orifice sizing may void the warranty.

8
2.0 INSTALLATION (Continued)
1.0 The Serial and Rating Plate on the unit indicates the type of gas your unit is equipped to
burn. DO NOT connect to any other gas type.
2.0 A ¾” NPT line is provided at rear for the connection. Each compartment is equipped
with an internal pressure regulator set at 3.5" W.C. manifold pressure for natural gas and
10" W.C. for propane gas. Use c” pipe tap on the burner manifold for checking
pressure.
An adequate gas supply is imperative. Undersized or low pressure lines will restrict the
volume of gas required for satisfactory performance. A steady supply pressure, between 6"
W.C. and 14" W.C. for natural gas and 12" W.C. and 14" W.C. for propane gas is
recommended. With all units operating simultaneously, the manifold pressure on all units
should not show any appreciable drop. Fluctuations of more that 25% on natural gas and
10% on propane gas will create problems, affecting burner operation. Contact your gas
company for correct supply line sizes.
Purge the supply line to clean out any dust, dirt or other foreign matter before connecting the
line to the unit. Use pipe joint compound suitable for use with Liquid Propane on all
threaded connections.
Test pipe connections thoroughly for gas leaks.
WARNING: Never use an open flame to check for gas leaks. Check
all connections for leaks using soapy water before use.
ELECTRICAL CONNECTION:
120 VAC-60 Hz - Single Phase
Units with this electrical rating are factory supplied with a three-wire cord and three-prong
plug which fits any standard 120V, three-prong grounded receptacle. A separate 15 amp
supply is needed for each unit.

9
2.0 INSTALLATION (Continued)
PLUMBING CONNECTIONS:
Two water lines are provided. Connect water supply lines to the 3/8" copper tubes at the
rear of the steamer.
One line is for supply of water to the generator and one for cold condensate water to
condense live steam entering the drain line.
DRAIN CONNECTIONS:
Appliance drain is 2 inch pipe size. Provide open air gap type drain.
WARNING: An open gap floor drain is required immediately below the
appliance drain.
COLD WATER CONDENSER:
The steamer is equipped with a cold water condenser, in the rear of the cooking chamber,
which helps to condense the steam prior to discharge into the drain. The steamer freely
vents itself by the negative pressure created by the condensate water drainage. This
negative pressure prevents steam leakage around the door gasket and helps draw the
steam through the cooking compartment. Steam leakage at the door may indicate a
plugged or improperly installed drain.
Temperature of condensate water flowing through the drain is controlled by the thermostatic
cooling valve (TCV) located inside the controls compartment on the right side of the unit.
The valve has been factory set to keep condensate water flowing into the drain at or below
140EF. Depending on local plumbing code requirements, this setting may be changed to
obtain a different maximum drainage temperature. Refer to next section Performance
Check for instructions to set the (TCV).
NOTICE: Plumbing connections must comply with applicable sanitary, safety and
plumbing codes.

10
INSTALLATION (Continued)
WATER CONDITIONING:
It is important that the water supplied to the generator be softened to no more than 2.0
grains of hardness and have a pH of 6 to 7.5. This degree of hardness can be easily
obtained with the use of a properly maintained water softener. The use of a water meter will
determine the water consumption and when the water softener needs regeneration or
recharging. Failure to comply with these water condition standards may void the warranty.
Untreated water contains scale producing minerals which can precipitate onto the surfaces
in the steam generator. Due to the temperatures in the steam generator, the minerals can
bake onto the surfaces and components. This can result in early component failure and
reduced product life. Water level probes become coated with scale. Scale may bridge
across the probe insulator from the metal extension which senses the water level in the
steam generator shell. Once this scale becomes wet, the water level control is unable to
maintain the proper water level in the steam generator.
STRAINERS and FILTERS will NOT remove minerals from the water.

11
3.0 PERFORMANCE CHECK
CAUTION: The appliance and its parts are hot. Use care when operating,
cleaning and servicing the appliance.
Once the steamer is installed and all mechanical connections have been made, thoroughly
test the steamer before operation.
1. Check that proper water, drain and electrical and gas connections have been made.
2. Turn main power switch ON.
3. Check that “Ignition” light comes on and cycles “ON” and “OFF”.
4. After approximately 15 minutes, the “READY” light should come on, indicating that the
water temperature is 205º Fahrenheit (97º Celsius). When the “READY” light comes on,
set timer to the “5 minute” position. With door open, observe that no steam is entering
the compartment and that the “COOKING” light is OFF.
5. Close compartment door. The COOKING light should now illuminate and steam should
be heard entering the compartment after about 45 seconds.
6. After five minutes of operation check drain line to ensure that water from the cold water
condenser is flowing through the drain line.
7. Open compartment door and observe that steam supply to chamber is cut off. “READY”
light should again come on as “COOKING” light turns “OFF”.
8. Close compartment door and let cooking cycle finish. When the timer returns to “0"
position, a buzzer will sound signaling the end of the cooking cycle. Buzzer must be
manually turned off by setting the timer to its “OFF” position.
9. With all compartments of the steamer operating in the cooking cycle, check the
temperature of the condensate coming out the drain. If the drain temperature exceeds
local plumbing code requirements, adjust the Thermostatic Cooling Valve (TCV) out for a
lower drain temperature and in for a higher drain temperature. A TCV setting of
approximately 2.75 yields a drain temperature of 140EF. A setting of approximately 2.5
or 3 yields temperatures of 125EF and 155EF, respectively.

12
4.0 OPERATION INSTRUCTIONS
CAUTION: If you smell gas during the lighting procedure,
immediately shut off the gas supply until the leak has been
corrected.
LIGHTING
Do not attempt to operate this unit in the event of a power failure.
1. Ensure power, gas and water supply is on.
2. Turn power switch “ON”.
3. Steam generator tanks will begin filling with water.
4. Once proper water level has been reached, the ignition light will come on and should
remain on until the ready light comes on.
5. Cooker is now ready for use.
Your steamer has been factory set, when “ON” to maintain water temperature during the
READY phase at approximately 205º Fahrenheit (97º Celsius) just below water boiling point.
CAUTION: The appliance and its parts are hot. Use care when
operating, cleaning and servicing the appliance.
CAUTION: Live steam and accumulated hot water in the
compartment may be released when the door is opened.
CAUTION: An obstructed drain can cause personal injury or
property damage.
WARNING: In the event of main burner ignition failure, a 5 minute
purge period must be observed prior to re-establishing ignition
source.

13
4.0 OPERATION INSTRUCTIONS (Continued)
WARNING: In the event you smell gas, shut down equipment at
the main shut off valve and contact the local gas company or gas
supplier for service.
WARNING: When this appliance is installed with casters and is
connected to the supply piping by means of a connector for
moveable appliances, a restraint to prevent damage to the
connector or quick disconnect device should have been
installed. If disconnection of the restraint is necessary,
reconnect this restraint after the appliance has been returned to
its originally installed position.
Frequently check that the compartment drain and plumbing is free of all obstructions.
Never place food containers, food or food portion bags in the cooking compartment
in such a way that the compartment drain becomes obstructed.
Each compartment is equipped with a removable drain screen. Frequently check
the drain screen for accumulation of food particles. Should food particles
accumulate against, or clog the drain screen, remove it, clean it thoroughly and
then replace it in its original position.
CONTROLS
Ready Pilot Light When lit, indicates steam generator has reached 205º Fahrenheit
(97º Celsius) and is ready for the cooking cycle.
Cooking Pilot Light When lit, indicates that a cooking cycle is in progress.
Timer Set the cooking time (0 to 60 minutes) - steam cooking will begin
when the door is closed. The cooking cycle will be interrupted if the
door is opened during the cooking cycle; resume cooking by closing
the door.
ON The steam generator will automatically fill and begin heating to the
pre-set temperature. Red Pilot will light on the main power switch.
DELIME Closes the drain valve while CLR liquid is being poured into the
steam generator during the Delime procedure. Amber Pilot will light
on the main power switch.
OFF The steam generator will drain. No lights.

14
Ignition Light When lit, indicates burners have been ignited and are heating the
steam generator tank.
NOTE: Each cooking compartment has its own steam generator and controls
and can be operated independently.
SHUTDOWN
STAND BY
1. Set Timer to “OFF” position and leave door slightly open.
COMPLETE SHUTDOWN
1. Set timer to “OFF” and turn power switch “OFF”. Steam generator will drain
automatically.
2. Turn water supply “OFF”.
3. Close manual gas shut off valve.
4. Disconnect power supply
STEAM COOKING
Your steamer efficiently cooks vegetables or other foods for immediate serving. Steam
cooking should be carefully time controlled. Keep holding time of hot food to a minimum to
produce the most appetizing results. Prepare small batches, cook only enough to start
serving, then cook additional amounts to meet demand. Separate frozen foods into smaller
pieces to allow more efficient cooking.
Use a pan cover for pre-cooked frozen dishes that cannot be cooked in the covered
containers in which they are packed if they require more than 15 minutes of cooking time.
When cover is used, approximately one-third additional cooking time is necessary.
Cooking time for frozen foods depends on amount of defrosting required. If time permits,
allow frozen foods to partially thaw overnight in a refrigerator. This will reduce their cooking
time.

15
4.0 OPERATION INSTRUCTIONS (Continued)
PREPARATION
Prepare vegetables, fruits, meats, seafood and poultry normally by cleaning, separating,
cutting, removing stems, etc. Cook root vegetables in a perforated pan unless juices are
being saved. Liquids can be collected in a solid 12" x 20" pan placed under a perforated
pan. Perforated pans are used for frankfurters, wieners and similar items when juices do
not need to be preserved. Solid pans are good for cooking puddings, rice and hot breakfast
cereals. Vegetables and fruits are cooked in solid pans in their own juices. Meats and
poultry are cooked in solid pans to preserve their own juices or to retain broth. Canned
foods can be heated in their opened cans (cans placed in 12" x 20" solid pans) or the
contents may be poured into solid pans.
PANS
The steamer compartment is designed to accept combinations of 12 inches x 20 inches
pans (either solid or perforated). Each compartment will accommodate ten 1", five 2 ½",
three 4" or two 6" pans.

16
5.0 MAINTENANCE
NOTICE: Contact the factory, the factory representative or local service company
to perform maintenance and repairs.
WARNING: Disconnect the power supply to the appliance before
cleaning or servicing.
CAUTION: The appliance and its parts are hot. Use care when
operating, cleaning and servicing the appliance.
CAUTION: Live steam and accumulated hot water in the compartment
may be released when the door is opened.
DAILY:
CLEANING
At the end of each day, or between cooking cycles if necessary:
1. Turn main power switch OFF.
2. Remove pans and racks from compartment and wash in sink.
3. Wash compartment interior with clean water.
4. Use warm soapy water with a cloth or sponge to clean exposed bead of door gasket,
rinse with warm clear water and wipe with a dry cloth.
Wipe surfaces which touch door gasket with a cloth or sponge and warm soapy water,
rinse with warm clear water and wipe with a dry cloth. Do not apply food oils or
petroleum solvents or lubricants directly to door gasket or surfaces which touch
door gasket.
5. Wipe all solids away from drain opening in compartments to prevent clogging.
Keep cooking compartment drain working freely. After cooking grease producing foods,
operate steam with compartment empty for 30 minutes at end of the day, or pour ½
gallon of warm soapy water down the drain, followed by ½ gallon of warm clear water.
6. Leave door slightly open when steamer is not in use.

17
5.0 MAINTENANCE (Continued)
WEEKLY (or more often if necessary):
1. Clean exterior with a damp cloth and polish with a soft dry cloth.
2. Use a non-abrasive cleaner to remove discolorations.
3. Clean around burner air mixer and orifice if lint has accumulated.
It is NOT RECOMMENDED to use cleaning agents that are corrosive.
Use of cleaning agents that contain chloride, acids or salts which are corrosive may cause
pitting and corrosion when used over a period of time; this will reduce the life of the
appliance.
Should pitting or corrosion occur, this is not covered by the warranty.
Follow the recommended cleaning instructions. Use a mild detergent, warm water and rinse
thoroughly.
Never spray water into electric controls.
Following daily and period maintenance procedures will enhance the long-life for your
equipment. Climactic conditions - salt air - may require more thorough and frequent
cleaning otherwise the life of the equipment could be adversely affected.
STAINLESS STEEL
To remove normal dirt, grease or product residue from stainless steel, use ordinary soap
and water (with or without detergent) applied with a sponge or cloth. Dry thoroughly with a
clean cloth. Never use vinegar or any corrosive cleaner.
To remove grease and food splatter or condensed vapors that have baked on the
equipment, apply cleanser to a damp cloth or sponge and rub cleanser on the metal in the
direction of the polishing lines on the metal. Rubbing cleanser as gently as possible in the
direction of the polished lines will not mar the finish of the stainless steel. NEVER RUB
WITH A CIRCULAR MOTION.

18
5.0 MAINTENANCE (Continued)
Soil and burnt deposits which do not respond to the above procedure can usually be
removed by rubbing the surface with SCOTCH-BRITE scouring pads or STAINLESS
scouring pads. DO NOT USE ORDINARY STEEL WOOL as any particles left on the
surface will rust and further spoil the appearance of the finish. NEVER USE A WIRE
BRUSH, STEEL SCOURING PADS (EXCEPT STAINLESS), SCRAPPER, FILE OR
OTHER STEEL TOOLS. Surfaces which are marred collect dirt more rapidly and become
more difficult to clean. Marring also increases the possibility of corrosive attack. Refinishing
may then be required.
TO REMOVE HEAT TINT:
Darkened areas sometimes appear on the stainless steel surface where the area has been
subjected to excessive heat. These darkened areas are caused by thickening of the
protective surface of the stainless steel and are not harmful. Heat tint can normally be
removed by the foregoing, but tint which does not respond to this procedure calls for a
vigorous scouring in the direction of the polish lines using SCOTCH-BRITE scouring pads or
a STAINLESS scouring pad in combination with a powdered cleanser. Heat tint action may
be lessened by not applying or by reducing heat to equipment during slack periods.
MONTHLY:
REMOVAL OF SCALE DEPOSITS:
It is recommended that your steamer be delimed once a month, or more often if necessary.
Should your steamer develop a heavy build-up of lime scale deposits, use the CLR
TREATMENT KIT available from your authorized servicer.
Before beginning deliming procedures, ensure that water is not overflowing into the cooking
compartment.

19
6.0 DELIMING PROCEDURE
CAUTION: Read and follow instructions on the CLR bottle. Use plastic
or rubber gloves to avoid skin contact. If CLR comes in contact with
skin, rinse with clean water.
1. Completely drain steam generator by setting on/off switch to “OFF”. Set cooking timer to
0.
2. Set on/off switch to DELIME.
3. Unscrew deliming port located in front of generator. Screw in the supplied deliming
funnel. Make sure funnel is in upright position. Pour 20 ounces of solution into
generator slowly to avoid spillage. Remove funnel and screw in delime port cap
securely. Turn on/off switch to “ON”.
4. Operate steamer in READY cycle for ½ hour, then turn on/off switch “OFF” and allow
generator to drain.
5. Flush cycle. Turn on/off switch to “ON”. When ready light comes on, switch to “OFF” to
flush generator. Repeat this step three times to completely flush generator.
6. Clean exterior and interior. Use a mild solution of soap and water. Rinse with clean
water. Dry with a soft cloth. LEAVE COMPARTMENT DOOR OPEN WHEN NOT IN
USE.
The steamer is now ready for use. Turn off for overnight shutdown.
TWICE A YEAR:
At least twice a year, have an authorized service person clean and adjust the unit for
maximum performance.
All units are adjusted at the factory. In case of operation problems at initial installation,
check type of gas supply and manifold pressure and compare it with information on the
rating plate.
WARNING: Adjustments and service work may be performed only by a
qualified technician who is experienced in, and knowledgeable with the
operation of commercial gas cooking equipment. However, to assure
your confidence, contact your authorized service agency for reliable
service, dependable advice or other assistance and for genuine factory
parts.

20
7.0 TROUBLESHOOTING
Burners do not come on:
1. Gas supply to unit is “OFF”.
2. Power Switch is not turned “ON”.
3. Steam generator probe not sensing the water level, will not call for ignition.
4. Ignitor not functioning.
5. Gas combination supply valve not “Opening”.
Burners produce carbon deposits:
1. Wrong orifice size.
2. Wrong gas supply.
3. Incorrect pressure at supply.
Water flows into cooking compartment:
1. Short circuit between operating level probe and body inside steam generator.
2. Excessive scale build-up on operating probe.
3. Water fill solenoid valve is open, plugged or defective
These problems are an indication of severe harmful water conditions which should be
corrected immediately to avoid damage to the components and performance of the steamer.
Call your service agency for assistance.
Door leaks:
1. Check for damage to door gasket.
