Body Craft SW-95.0225-G User manual

TF
SW950225.01.02
SW-95.0225-G / SW-95.0226
max. 150 kg
L 177 | B 158/215 | H 210
~320 Min.
CM
278 kg/329 kg
SW-95.0225-G
SW-95.0226
Assembly and Operating Instructions
Elite Multi-Gym

2Elite

3
Content
1 GENERAL INFORMATION 6
1.1 Technical Data 6
1.2 Personal Safety 7
1.3 Set-Up Place 8
2 ASSEMBLY 9
2.1 General Instructions 9
2.2 Scope of Delivery - Multi-Gym 10
2.3 Assembly - Multi-Gym 13
2.4 Scope of Delivery - Leg Press 32
2.5 Assembly - Leg Press 33
3 STORAGE AND TRANSPORT 38
3.1 General Instructions 38
4 TROUBLESHOOTING, CARE AND MAINTENANCE 39
4.1 General Instructions 39
4.2 Faults and Fault Diagnosis 39
4.3 Cable Adjustment 40
4.3.1 Extend or Shorten the Cable 40
4.3.2 Fine Adjustment 40
4.4 Maintenance and Inspection Calendar 41
5 DISPOSAL 41
6 RECOMMENDED ACCESSORIES 42
7 ORDERING SPARE PARTS 43
7.1 Serial Number and Model Name 43
7.2 Parts List - Multi-Gym 44
7.3 Exploded Drawing - Multi-Gym 48
7.4 Parts List - Leg Press 49
7.5 Exploded Drawing - Leg Press 50
8 WARRANTY 51
9 CONTACT 53

4Elite
Dear customer,
Thank you for choosing a high-quality equipment of the brand BodyCraft®. BodyCraft® oers sports
and tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers. With BodyCraft® tness equipment, the focus is on what sport is all about:
maximum performance! Therefore, the equipment is developed in close consultation with athletes
and sports scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2010 BodyCraft® is a registered brand of the company SportTiedje GmbH. All
rights reserved. Any use of this trademark without the explicit written permission
of Sport-Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is suitable for home use and semi-professional use (e.g. hospitals, clubs, hotels,
schools, etc.). The equipment is not suitable for commercial or professional use (e.g. tness
studio).

5
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

6Elite
1 GENERAL INFORMATION
1.1 Technical Data
Dimensions and Weight
Multi-Gym Elite - SW-95.0225-G
Packaging dimensions (L x W x H) approx.:
Box 1: 178 cm x 70 cm x 24 cm
Box 2: 119 cm x 105 cm x 23 cm
Box 3: 197 cm x 38 cm x 10 cm
Box 4: 116 cm x 52 cm x 5 cm
Box 5: 27 cm x 14 cm x 14 cm
Box 6: 27 cm x 19 cm x 14 cm
Set-up dimensions (L x W x H) approx.: 177 cm x 158 cm x 210 cm
Article weight (net, excl. packaging) approx.: 278 kg
Weight block: 90 kg (20 x 4,5 kg)
Maximum user weight: 150 kg
Leg Press for Elite - SW-95.0226
Packaging dimensions (L x W x H) approx.: 168 cm x 63 cm x 18 cm
Set-up dimensions incl. Elite multi-gym (L x W x H) approx.: 176.7 cm x 215 cm x 210 cm
Article weight (net, without packaging) approx.: 51 kg
Maximum user weight: 150 kg

7
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

8Elite
1.3 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Choose a location in which to place the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

9
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

10 Elite

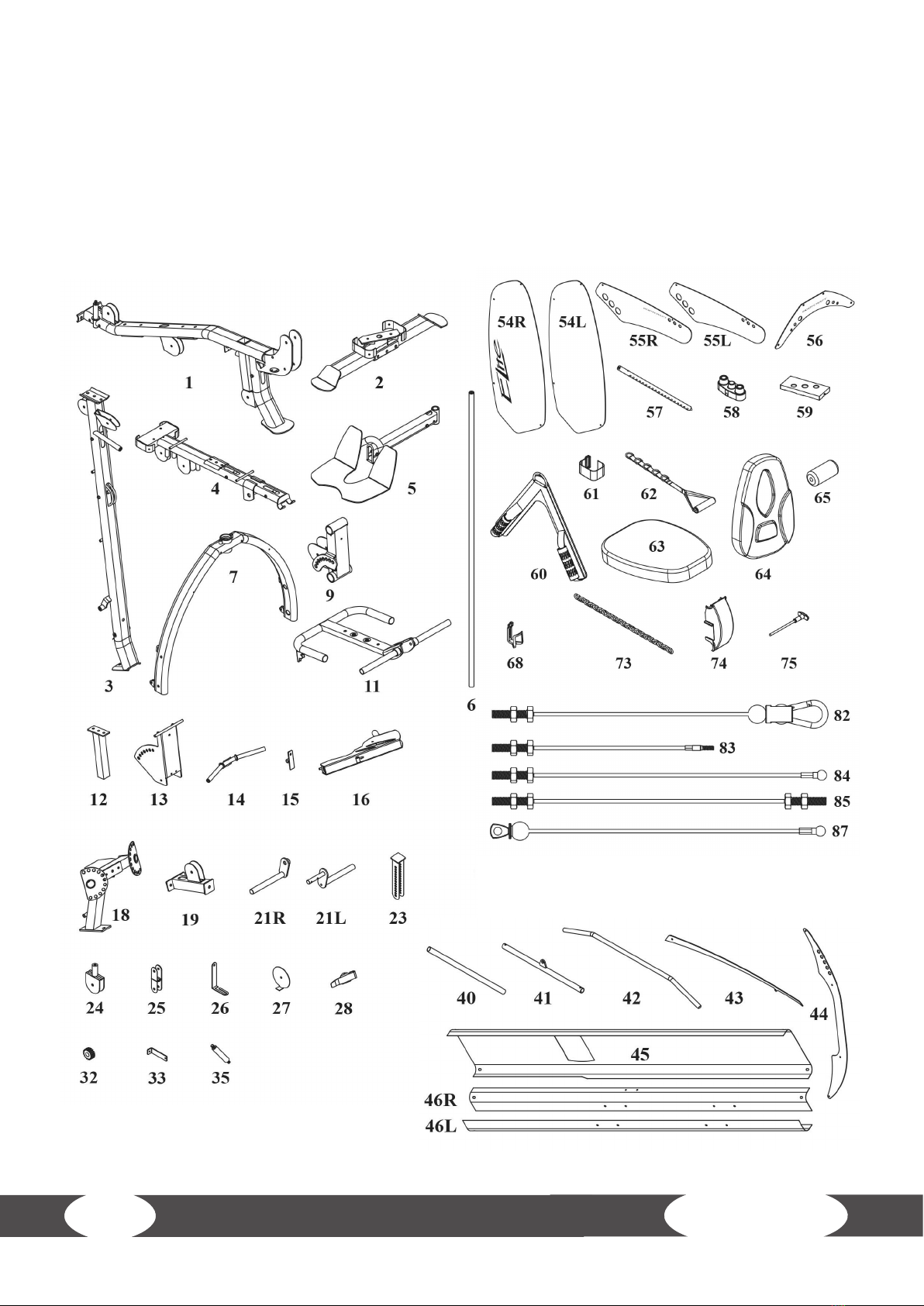

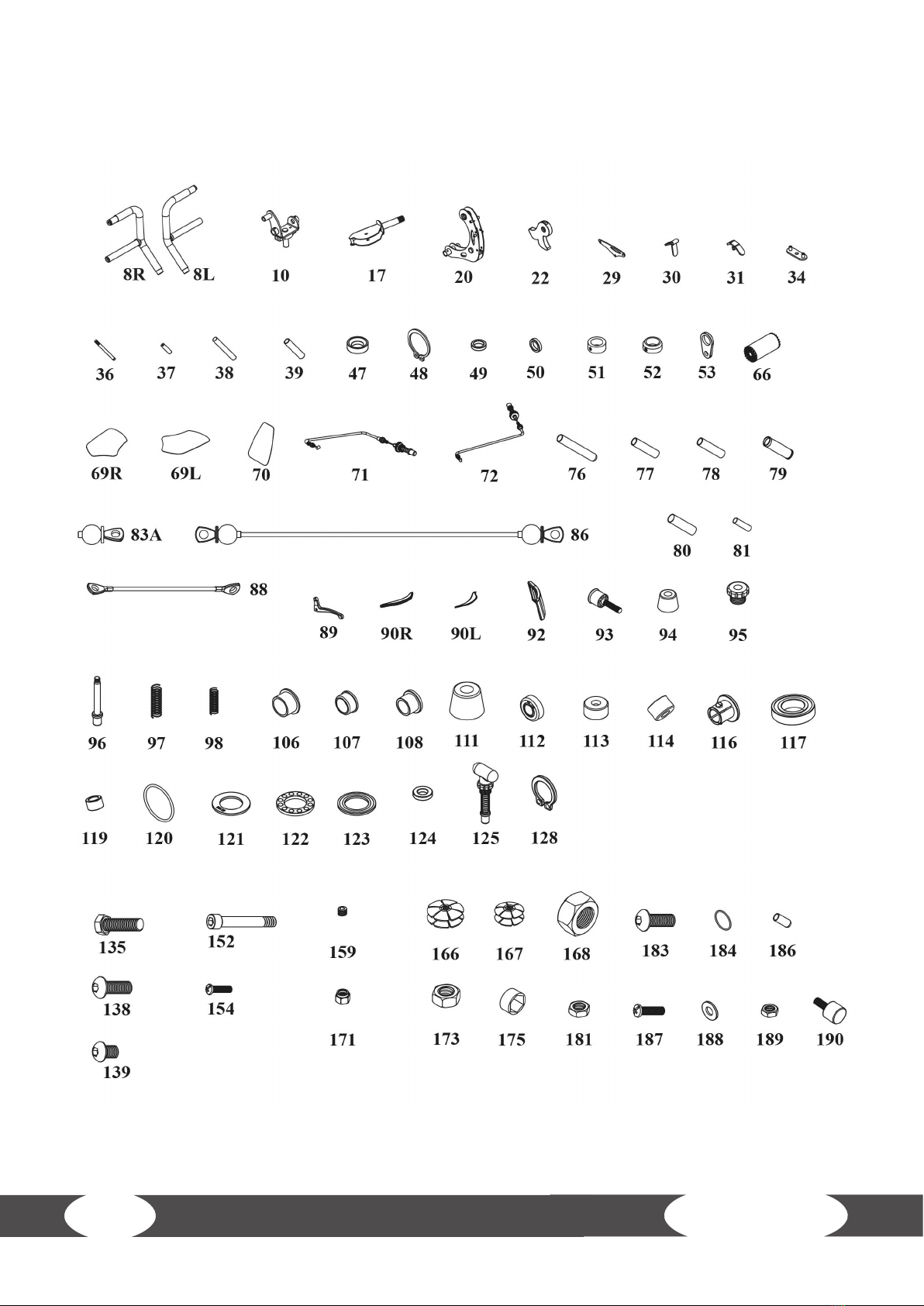

2.2 Scope of Delivery - Multi-Gym
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

11

12 Elite
Pre-assembled:

13
2.3 Assembly - Multi-Gym
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1: Assemble Main Frame
1. Attach the REAR STABILIZER (2) to the MAIN FRAME (1) using two 1/2”X 5”HEX BOLTS (129) and
two 1/2” NYLA-NUTS (169).
2. Attach the FRONT UPRIGHT (3) to the MAIN FRAME (1), using two 1/2” X 3-1/4” HEX BOLTS (130),
three 1/2”SMALLER WASHERS (161), and one 1/2” NYLA-NUT (169).

14 Elite
Step 2: Assemble Top Frame and Weight Stack
1. Attach the two GUIDE RODS (6) to the stack mount welded to the REAR STABILIZER (2) using two
3/8” X 3/4” HEX THREADED BOLTS (180). Tighten these bolts.
2. Slide one RUBBER CUSHION (110) onto each GUIDE ROD (6) and push to the bottom. Apply
silicone lubricant to the GUIDE RODS (6), then CAREFULLY slide a total of 19 WEIGHT PLATES
(59) one at a time onto the GUIDE RODS (6) making sure to orient the selector holes toward the
side and bottom.
3. Attach TOP PLATE (58) to the SELECTOR ROD (57) using the TOP PLATE BOLT (156). Tighten.
4. Slide the TOP PLATE Assembly onto the GUIDE RODS (6), running the SELECTOR ROD (57) down
into the center holes of the WEIGHT PLATES (59).
5. Insert the SELECTOR PIN (75) into any hole of a weight. It will be permanently xed when the
top cable is installed.
6. Insert two 1” GUIDE ROD HOLDERS (109) into the holes in the TOP FRAME (4) with a rubber
mallet. Install the TOP FRAME (4) onto the FRONT UPRIGHT (3) and GUIDE RODS (6) making sure
to align the GUIDE RODS (6) into the 1”GUIDE RODS HOLDERS (109).
7. Secure the TOP FRAME (4) to the FRONT UPRIGHT (3) using two 1/2” X 3-1/4” HEX BOLTS (130),
four 1/2”SMALLER WASHERS (161), and two 1/2” NYLA-NUTS (169).
8. Secure the TOP FRAME (4) to the GUIDE RODS (6) using two 3/8” X 3/4” HEX THREADED BOLTS
(180).

15

16 Elite

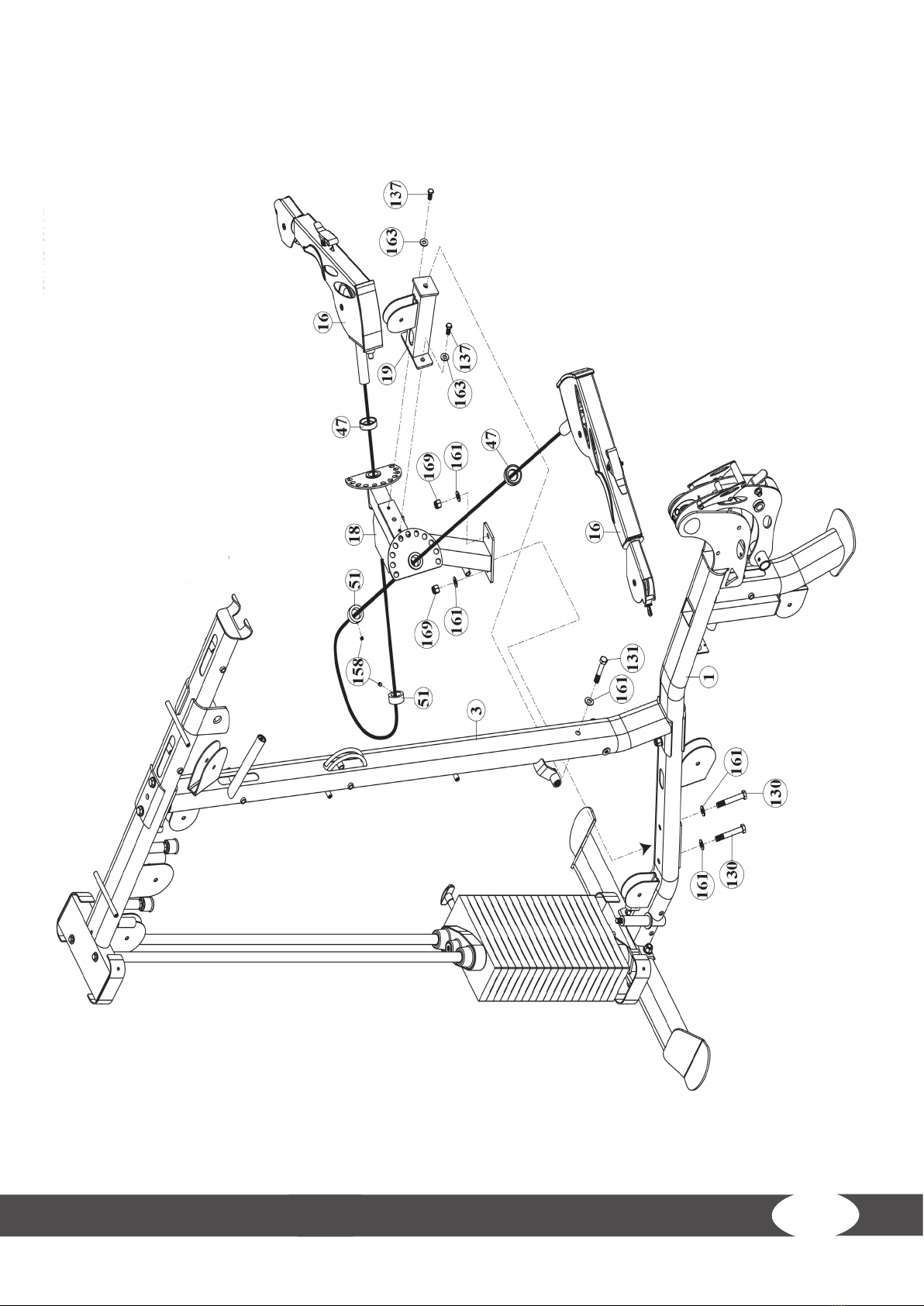

Step 3: Assemble Cable Arm
࣑ATTENTION
Remember to keep all BOLTS loose to ensure the holes will align easily.
1. Attach the CABLE ARM ASSEMBLY (18) to the MAIN FRAME (1), using two 1/2” X 3-1/4” HEX
BOLTS (130) four 1/2” SMALLER WASHERS (161) and two 1/2” NYLA-NUTS (169).
2. Attach CABLE ARM ASSEMBLY (18) to the CABLE ARM CONNECTOR (19), using two 3/8” X 1”
HEX THREADED BOLTS (137) and two 3/8” LARGER WASHERS (163). Then attach the CABLE ARM
CONNECTOR (19) to FRONT UPRIGHT (3), using one 1/2” X 2-3/4” HEX BOLT (131) and one 1/2”
SMALLER WASHER (161).
3. Completely Insert the AXLE of each CABLE ARM (16) into the holes of the axle plates on the
CABLE ARM ASSEMBLY (18) and secure by tightening the preinstalled 5/16” X 1/4” SET SCREW
(158) in the COLLARS (51).
࣑ATTENTION
Check to ensure that both Cable Arms (16) pivot freely and cables are not twisted.

17

18 Elite

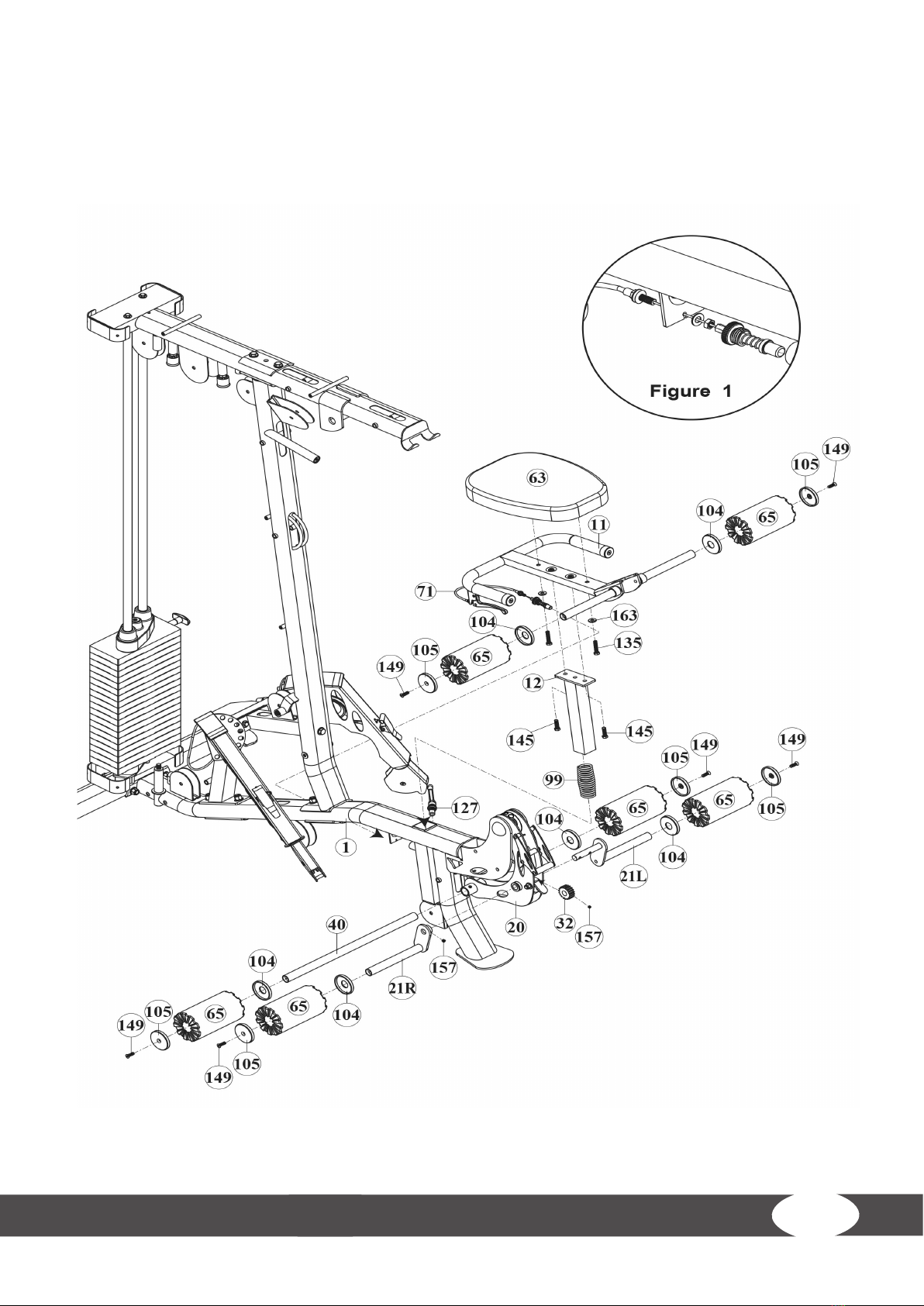

Step 4: Assemble Leg Extension and Seat
1. Attach the R and L LEG EXTENSION ARMS (21R & 21L) along with RATCHET (32) to the
preassembled LEG EXTENSION ASSEMBLY (20) as shown.
2. Secure by tightening both of the preinstalled 5/16” X 1/2” SET SCREW (157), one located in the
RATCHET (32) and one in the R LEG EXTENSION ARM (21R).
3. Slide a PLASTIC CAP (104) (domed side rst) and FOAM PAD (65) onto each side LEG EXTENSION
ARMS (21R & 21L).
4. Secure with ALUMINUM CAPS (105) and 5/16” X 1-1/4” COUNTER ALLEN BOLTS (149) on each
side. Tighten the bolts.
5. Insert and center the 1” FOAM ROLLER HOLDER (40) into the LEG EXTENSION ASSEMBLY (20).
Tighten the two preinstalled 5/16” X 1/2” SET SCREWS (157).
6. Slide a PLASTIC CAP (104) (domed side rst) and FOAM PAD (65) onto each side 1”FOAM ROLLER
HOLDER (40).
7. Secure with ALUMINUM CAPS (105) and 5/16” X 1-1/4” COUNTER ALLEN BOLTS (149) on each
side. Tighten the bolts.
8. Attach the SEAT PAD (63) to the SEAT ADJ. HANDLE (11), using two 3/8” X 1-3/4” HEX THREADED
BOLTS (135) and two 3/8”LARGER WASHERS (163).
9. Attach the SEAT ADJ. FRAME (12) to the SEAT ADJ. HANDLE (11) using two SPECIAL 3/8” X 1”
ROUND INNER ALLEN BOLTS (145). Tighten both sets of bolts.
10. Insert the SEAT SPRING (99) into the MAIN FRAME (1), then slide the SEAT ADJ. FRAME (12) over
top of the SEAT SPRING (99) and into the MAIN FRAME (1). You may need to loosen the pre-
installed TIGHTEN KNOB (127) to allow the SEAT ADJ. FRAME (12) into the MAIN FRAME (1).
LNOTICE
You can use TIGHTEN KNOB (127) to eliminate play in the seat after you have adjusted the seat to
the desired height. Screw the pin attached to the end of the long end of the cable
11. See Figure 1. Remove one of the two small nuts on the loose end of the LONG CLUTH CABLE
(71). Simultaneously slide the small threaded shaft through the opening in the L-Bracket welded
to the MAIN FRAME (1) and completely thread and tighten the large Pop-Pin into the Barrel
welded to the Seat Post Receiver. To start threading to get the pin to seat into one of the holes
in the SEAT ADJ. FRAME (11). Reinstall and tighten the small nut removed from the beginning
of the step.
12. Slide a PLASTIC CAP (104) (domed side rst) and FOAM PAD (65) onto each side of the 1” shafts
welded to the SEAT ADJ. HANDLE (11), and secure with ALUMINUM CAPS (105) and 5/16” X
1-1/4” COUNTER ALLEN BOLTS (149) on each side. Tighten.

19

20 Elite

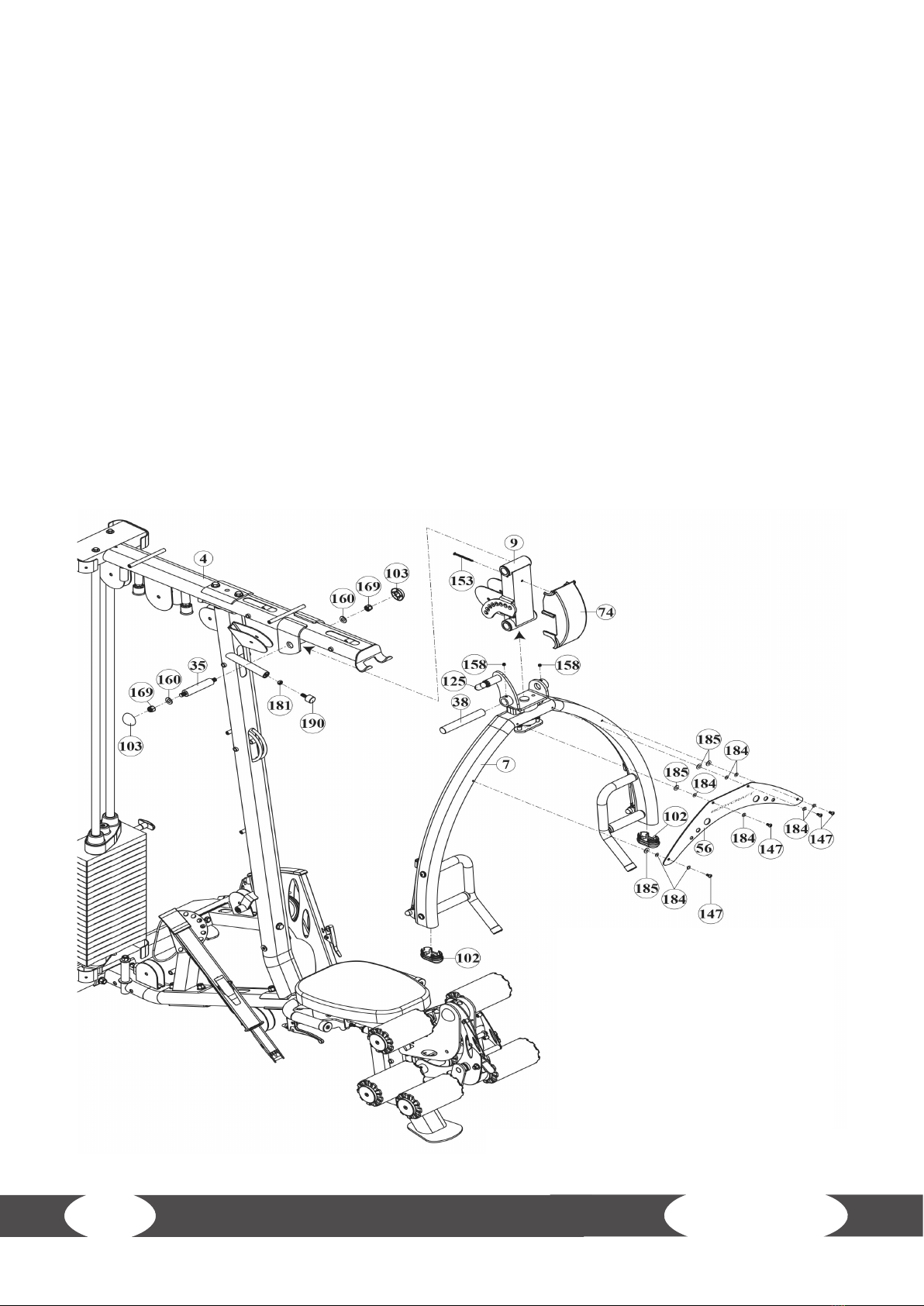

Step 5: Assemble Press Arm
1. Secure the PLASTIC COVER (74) to the front of the PRESS ARM SUPPORT (9) using one M5 X 63L
SCREW (153). Attach the PRESS ARM SUPPORT (9) to the TOP FRAME (4) by aligning the holes
and inserting the AXLE (35). Secure and tighten using two 1/2”LARGER WASHERS (160) and two
1/2” NYLA-NUTS (169). Cap with two 1/2”CAP NUTS (103).
2. Attach the PRESS ARM (7) to the PRESS ARM SUPPORT (9) by aligning the holes and inserting the
PRESS ARM AXLE (38). The LONGER POP PIN (125) should seat into one of the adjustment holes
in the PRESS ARM SUPPORT (9).
3. Secure the PRESS ARM AXLE (38) by tightening the preinstalled 5/16”X 1/4” SET SCREW (158).
4. Fasten the PLASTIC COVER (74) to the front side of the PRESS ARM SUPPORT (9) with the M5 X
63L SCREW (153).
5. Attach the PRESS ARM PANEL (56) to the PRESS ARM (7) using four M6 WASHERS (185), eight
SMALL SEALING RINGS (184) and four M6 X 12L MALE SCREWS (147).
6. Install two END CAPS (102) into the bottom of the PRESS ARM (7) using a rubber mallet.
