en TECHNICAL SPECIFICATIONS
Type designation BONECO H680
Power supply voltage 100–240 V, 50–60 Hz
Power consumption 30 W
Humidity output 1000 g/h* (6.340 gal/day)
Air purification performance 190 m3/h (112 CFM) (CADR)
For room sizes up to 100 m2(1080 sq ft)
Capacity 10 l (2.64 US gal)
Dimensions L 347 × W 435 × H 490 mm (13.6”x17.1”x19.3”)
Operating noise level < 25 dB(A)
Weight (empty) 10.4 kg (22.3 lbs)
Accessories Ionic Silver Stick®A7017, HYBRID filter
* For operation without HYBRID filter depending on temperature and humidity

41
en
INTRODUCTION
DEAR CUSTOMER,
Congratulations on your purchase of the BONECO H680.
Its hybrid design cleans and humidifies room air in one
step. Its smart control system keeps operating noise to a
minimum, even allowing you to use the BONECO H680 in
a bedroom or baby’s room.
The BONECO H680 is designed for convenient, fully
automated operation. However, you can adjust all of its
features according to your preferences and requirements.
This manual shows you how you can create your own
comfortable climate.
RELIEF FROM ALLERGIES
The BONECO H680 is equipped with a triple filter system
that rids the air of odors as well as dust, pollen and con-
taminants. The HYBRID filter also effectively alleviates
many forms of discomfort caused by allergies, such as
hay fever or allergic reactions to dust mites and house-
hold dust.
VALUABLE INFORMATION ABOUT HUMIDITY
The right humidity is very important for our health. Dry
room air in winter leads to skin that cracks and itches. It
makes your eyes and throat feel dry while significantly af-
fecting physical comfort. Not only does this affect adults,
it is especially true for babies, small children and even
pets. Dry mucous membranes in winter also make us
more prone to colds and other infections.
The BONECO H680 makes these problems a distant
memory. Its intelligent automatic controls always keep
the air clean and the humidity at the ideal level, even in
large rooms with an area of up to 100 square meters
(1080 square feet).
Regardless of whether it is summer or winter: You
will not want to give up your newly gained comfort.
SCOPE OF DELIVERY
BONECO H680
with HYBRID filter
Power supply unit with
country-specific adapter
OOOOOOO
OOOO
“CalcOff” cleaning and des-
caling powder A7417
CD with manuals in other
languages
Remote control
including CR 2025 battery

42
en OVERVIEW AND PART NAMES
1 2 3 4
5
1110 12 13 14
6 8 97 1Front cover
2Pre-filter
3HYBRID filter
4Filter holder
5Drum
6Evaporator mat
7Ionic Silver Stick®
8BONECO H680
9Water tank
10 Fragrance container
11 Water base
12 Remote control
13 Fan blade
14 Power supply

43
en
START-UP AND USE

44
en START-UP
1
4
2
5
3
6

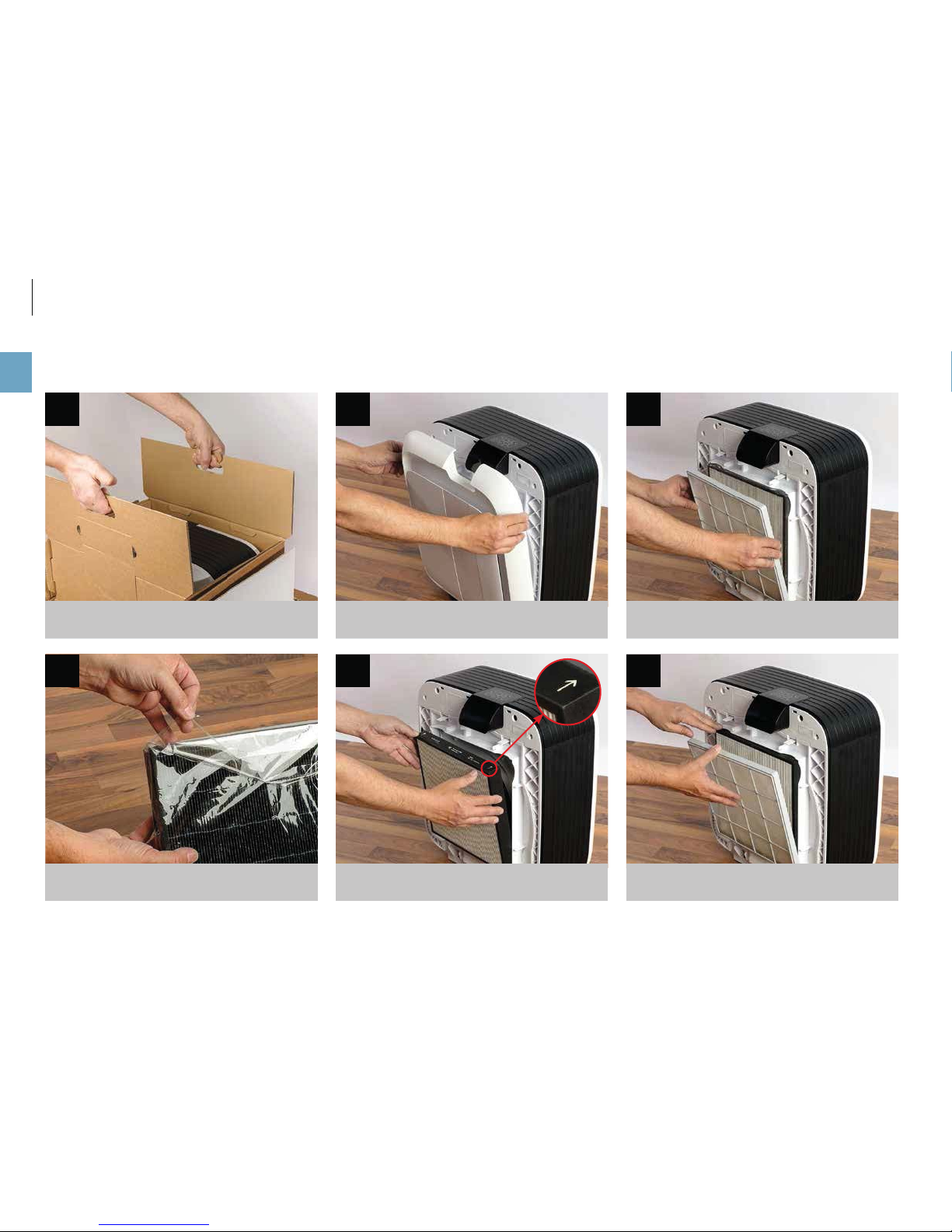

Lift the appliance out of the box
together with the inner packaging.
Take out the HYBRID filter and remove the
protective foil.
Remove the front cover using the tabs on the sides.
Insert the HYBRID filter
(note the direction the arrow is pointing).
Take off the pre-filter.
Put the pre-filter back on.

45
en
START-UP (CONTINUED)
7
10
8
11
9

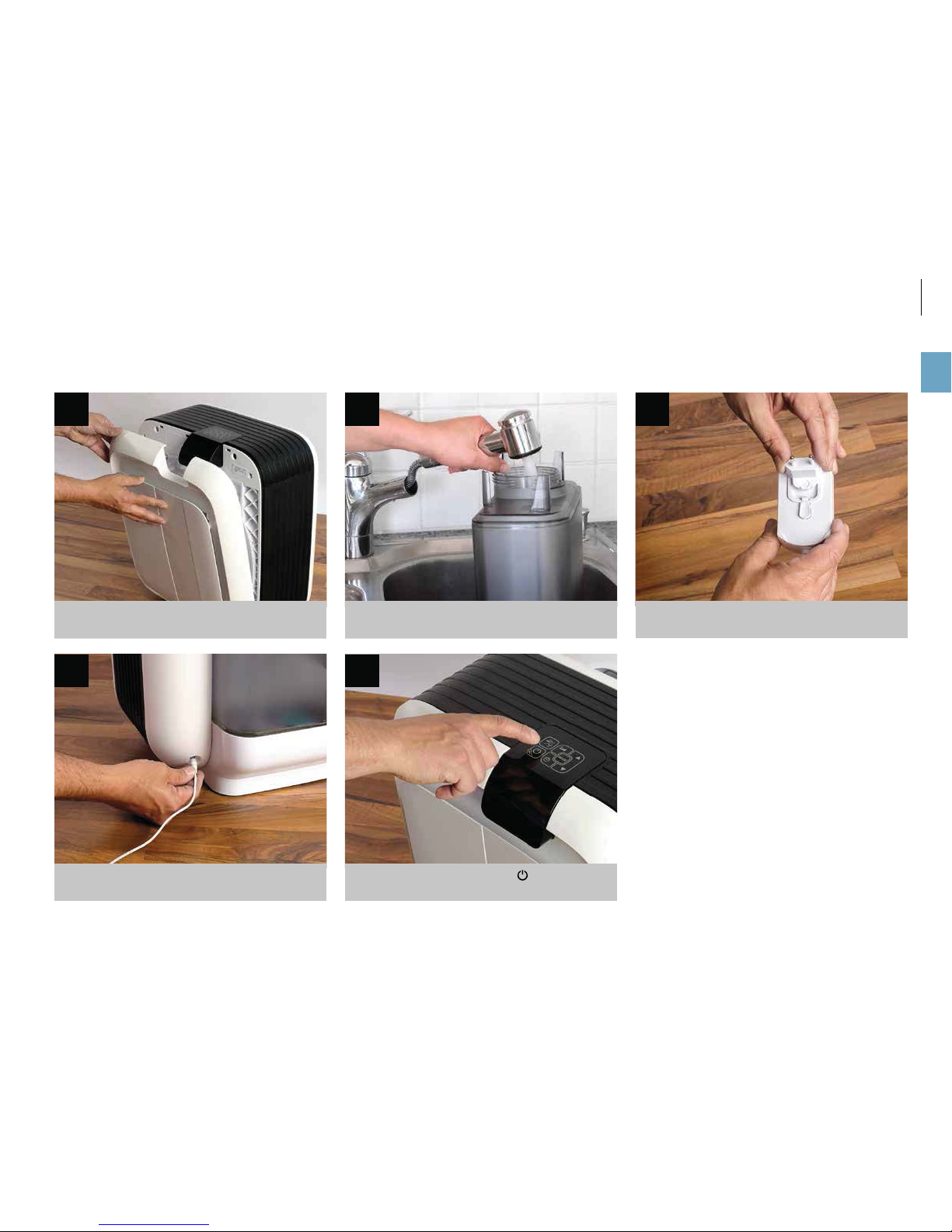

Reattach the front cover.
Connect the power supply to the BONECO H680 first
and then to the power outlet.
Fill the water tank with cold tap water.
Switch the appliance on using the button on the
display or on the remote control.
Connect the adapter provided to the power supply
unit.

46

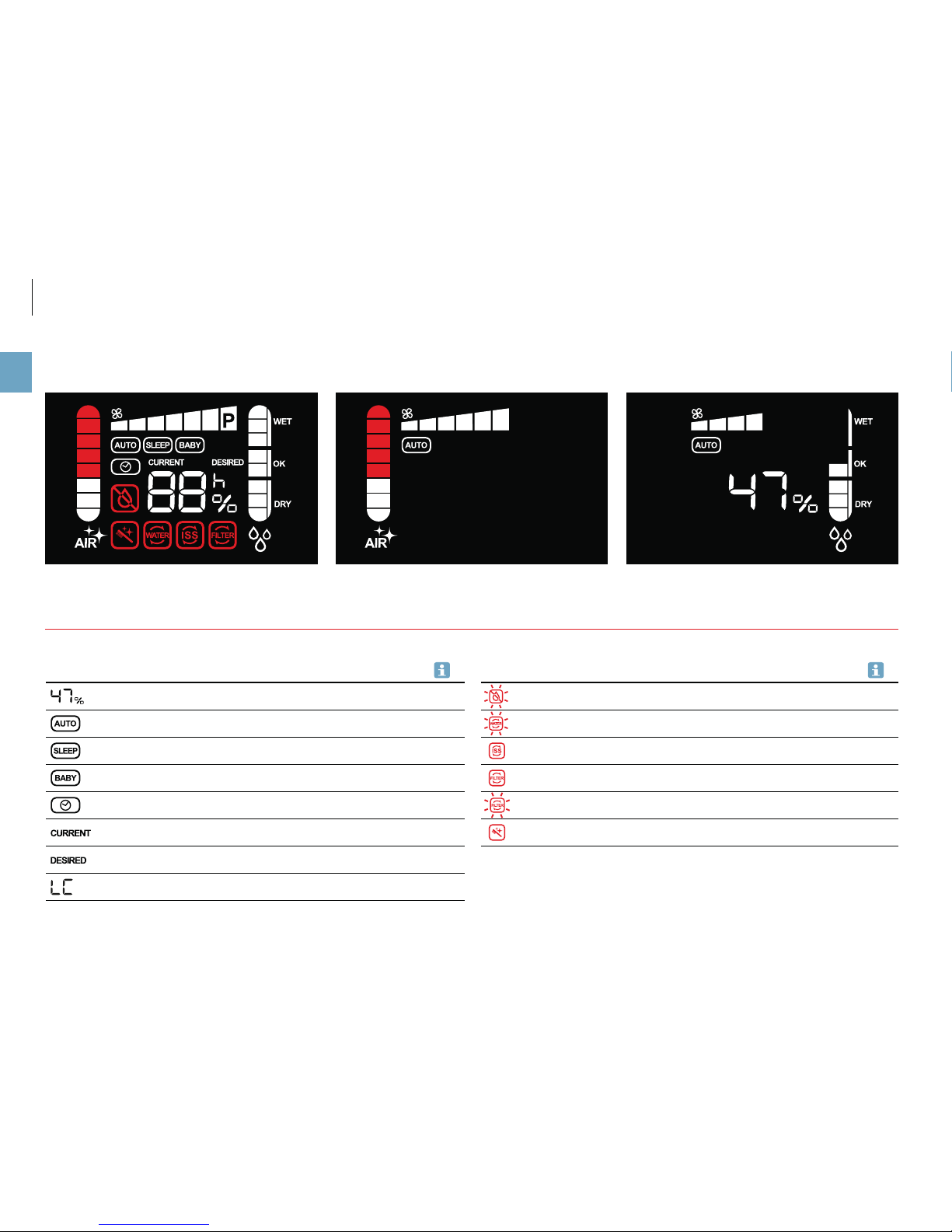

en INDICATORS ON THE DISPLAY
Overview of all indicators on the display Indicators for air purity (left) and fan level (top) Indicator for humidity (right, middle) and fan level (top)
Indicator Meaning
Current or desired humidity 51
Fully automated operation 50
Low-noise nighttime mode 50
Perfect for use in a nursery or baby’s room 50
Timer function 52
Value shows the current humidity 51
Value shows the desired humidity 51
Display lock has been activated 53
Indicator Required action
Refill the water 45
Change the water in the appliance 69
Replace the Ionic Silver Stick®58
HYBRID filter used up, replace 68
HYBRID filter missing, insert 49
Cleaning required 56

47
en
TWO TYPES OF OPERATION
The BONECO H680 can be controlled using the integrated
keypad or the included remote control. Operation remains
the same in both cases.
KEYPAD AND REMOTE CONTROL
Remote controlKeypad on the appliance
Indicator Function
Regulating the fan level 51
Toggling between modes (on the remote) 50
Toggling between modes (on the appliance) 50
Activating the “Display lock” 53
Calling up the timer function 52
Changing air humidity / timer / fan levels 51, 52
Switch the appliance on and off / start cleaning 56
Toggling between operating modes 49

48
en
AIR QUALITY INDICATOR
After being switched on, the BONECO H680 carries out
an initial air measurement and the symbol flashes.
After measuring the air, the display shows the current air
quality (see figure below).
The cleaner the air is, the more segments are shown in
white.
OPERATING MODE AT INITIAL START-UP
The BONECO H680 uses the “Hybrid” operating mode
when being switched on for the first time: This operating
mode cleans the air while humidifying it at the same time.
The humidity can be regulated at will (see page 51).
Air purification works automatically and without user
interaction.
The fan level is controlled by the electronics and adapts
to the environment to ensure the most efficient cleaning
and/or humidification possible.
Fan noise may be clearly audible at first; it will decrease
after a few minutes, however, once the humidity gets
closer to the desired value.
USING THE “HYBRID” OPERATING MODE
1. Switch the appliance on by tapping the button once.
The particle sensor automatically begins measuring the
amount of dirt in the air. The appliance starts the hu-
midifying process automatically if humidity is below 50%.
BASIC SETTINGS
The BONECO H680 saves all of the settings if you switch
off the appliance using the button.
The basic settings described here (“Hybrid” operating
mode, “AUTO” comfort mode, etc.) can be restored at
any time. Disconnect the appliance from the power grid
for about 10 seconds by unplugging the power cord from
the power outlet.
THE “HYBRID” OPERATING MODE

49
en
“AIR HUMIDIFICATION” OPERATING MODE
Use of the HYBRID filter is optional in the “Air humidifica-
tion” operating mode.
1. Press the button until just the indicator for humidity
and the fan level are shown.
2. To switch back to the “Hybrid” operating mode, press
the button until the air purifier and humidifier are
both shown as active at the same time.
“AIR PURIFICATION” OPERATING MODE
The air is not humidified in the “Air purification” operat-
ing mode.
1. Press the button until just the indicator for air qual-
ity and the fan level are shown.
2. To switch back to the “Hybrid” operating mode, press
the button until the air purifier and humidifier are
both shown as active at the same time.
USE WITHOUT WATER OR HYBRID FILTER
The BONECO H680 can also be used without a HYBRID
filter in the “Air humidification” operating mode. When
switching to the “Hybrid” or “Air purification” operating
mode, the following symbol flashes on the display if a
HYBRID filter is not inserted:
The BONECO H680 can also be used without water in
the “Air purification” operating mode. When switching to
the “Hybrid” or “Air humidification” operating mode, the
following symbol flashes on the display if the water tank
is empty:
ONLY AIR HUMIDIFICATION / ONLY AIR PURIFICATION

50
en
COMFORT MODES
There are three different comfort modes available in each
of the three “Hybrid”, “Air purification” and “Air humidifi-
cation” operating modes: , and .
SWITCHING THE COMFORT MODE
1. Switch between the , and comfort
modes by either:
• Pressing the button on the remote control repeat-
edly
• Pressing the button on the keypad on the appliance
repeatedly
“AUTO” COMFORT MODE
In comfort mode, the BONECO H680 uses all of the
fan levels between 1 and 6. The preset humidity is 50%.
“SLEEP” COMFORT MODE
In comfort mode, the BONECO H680 can even be
used in a bedroom at night. The appliance automatically
operates at the lowest fan level of 1 to keep operating
noise to a minimum. The preset humidity is 45%.
“BABY” COMFORT MODE
The comfort mode uses fan level 1 through 4 and
increases the humidity to 60 %. This value is ideal for
use in a nursery or baby’s room since higher humidity
is recommended for babies and small children. The fan
also operates quietly enough that it will not trigger a baby
monitor.
SELECTING THE VARIOUS COMFORT MODES

51
en
MANUALLY REGULATING HUMIDITY AND FAN LEVEL
PERFECT HUMIDITY
The recommended humidity level is between 40% and
60%. The default setting is 50%. The indicator for current
humidity should ideally be within the “OK” range:
The humidity you set then stays saved if you switch off
the appliance.
CONTROLLING HUMIDITY
1. Press the and buttons to set the humidity as de-
sired.
The notice is shown on the display. Once you
stop pressing the arrow keys, the notice switches to
after a few seconds. Now the display now
shows the current humidity again.
MAXIMUM HUMIDIFICATION
Press the button until the notice “Co” (for “Continu-
ous”) is displayed. Now the humidifier operates indepen-
dently of the measured humidity.
REGULATING THE FAN LEVEL
1. Press the button once. The indicator for the fan
level flashes.
2. Press the and buttons to adjust the fan level.
3. To switch back to the comfort mode, press the
button on the appliance until the notice is shown
on the display. Alternatively, you can also use the
button on the remote control.
POWER LEVEL (P)
The maximum power level (P) can only be selected manu-
ally. We recommend using it when room air has to be
cleaned and/or humidified in the shortest possible time.
To activate the maximum power level, press the button
repeatedly until “P” is shown in the indicator for the fan
level (see figure in the left column).

52
en
The timer function can be used in every operating mode
together with every comfort mode. The timer function lets
you determine how long the BONECO H680 should run
before it switches off automatically (OFF timer).
Alternatively, you can specify a time for when the ap-
pliance should switch on automatically (ON timer). Use
this function, for example, to activate the BONECO H680
before you return home, so that you have the perfect liv-
ing climate waiting for you.
SETTING THE OFF TIMER
1. Switch on the BONECO H680 using the button.
2. Select the desired operating setting and the desired
comfort mode.
3. Press the button once.
4. Use the and buttons to set how long the appli-
ance operates (1 to 12 hours).
The appliance then runs for the specified period and then
switches itself off.
5. To deactivate the OFF timer early, press the button
again and select . Alternatively, you can switch off
the BONECO H680 using the button.
SETTING THE ON TIMER
1. Select the desired operating setting and the desired
comfort mode.
2. Switch off the BONECO H680 using the button.
3. Press the button once.
4. Use the and buttons to set the start preselection
time (1 to 12 hours).
The BONECO H680 switches on after the defined time
and operates with the selected program.
5. To deactivate the ON timer early, press the button
again and select . Alternatively, you can switch on
the BONECO H680 using the button.
TIMER FUNCTION

53
en
The BONECO H680 display can be set up to prevent ac-
cidental entries. Use this function to prevent unintentional
entries, such as those from children playing near the ap-
pliance.
ACTIVATING THE DISPLAY LOCK
1. Press the button until you hear the indicator tone.
The display shows an “LC” (LOCK) notice for a few sec-
onds and then returns to the original displayed content.
The “LC” notice is displayed for a few seconds each time
the controls are pressed.
DEACTIVATING THE DISPLAY LOCK
1. Press the button until you hear the indicator tone.
The display is now unlocked. Changes can be made to the
settings once again.
DISPLAY LOCK

54
en

55
en
AUTOMATIC CLEANING
