Bornack TQR02 User manual

User Manual
EN
0123 EN 362:2004/T
TQR02

 | 
TQR02
Fast separation unit
INTENDED USE
The fast separation unit TQR is part of
personal protective equipment (PPE) of
category III to prevent falls from heights.
The product is part of the personal fall
prevention equipment and should be
assigned to a specific person. Avoid
alternating use by dierent people.
All other uses are deemed improper. The
company BORNACK will not be liable for
any ensuing damages. The user bears
the sole risk.
EQUIPMENT
• TQR Basic element made of
aluminium
• Fastener lock made of plastic
• Quickout made of stainless steel
INFORMATION
BORNACK recommends the use of
connectors that can be secured to
prevent them twisting.
USE
• Tactical intervention that requires fast
separation from the abseiling device or
anchor point. The fast separation unit
allows the release of loads of up to
 kg.
• It may only be used by trained persons
of operational and fighting forces.
Subject to technical changes

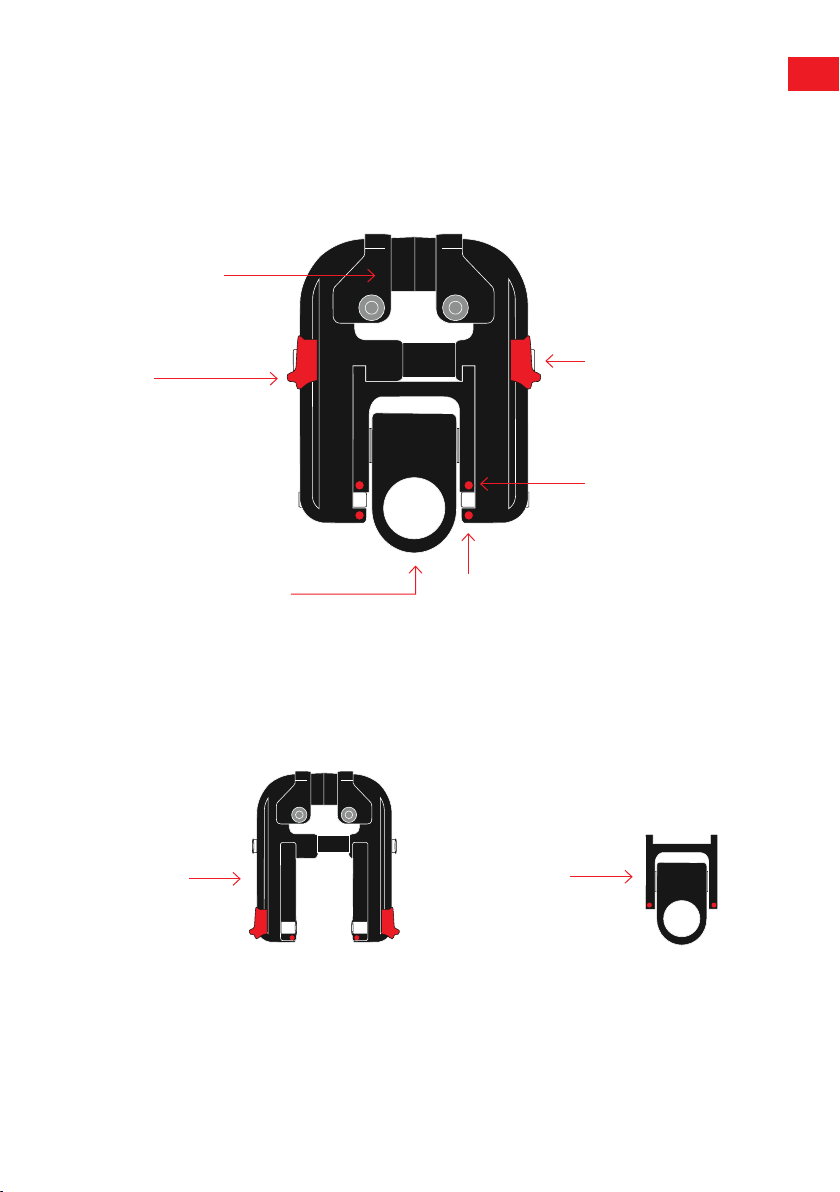

BRIEF DESCRIPTION

EN
Marking points on the
basic element
Marking points on
the Quickout
Lock slider
Quickout D-ring for
connection to the harness
Unlocking bolt
Karabiner centring
Basic element Quickout

 | 

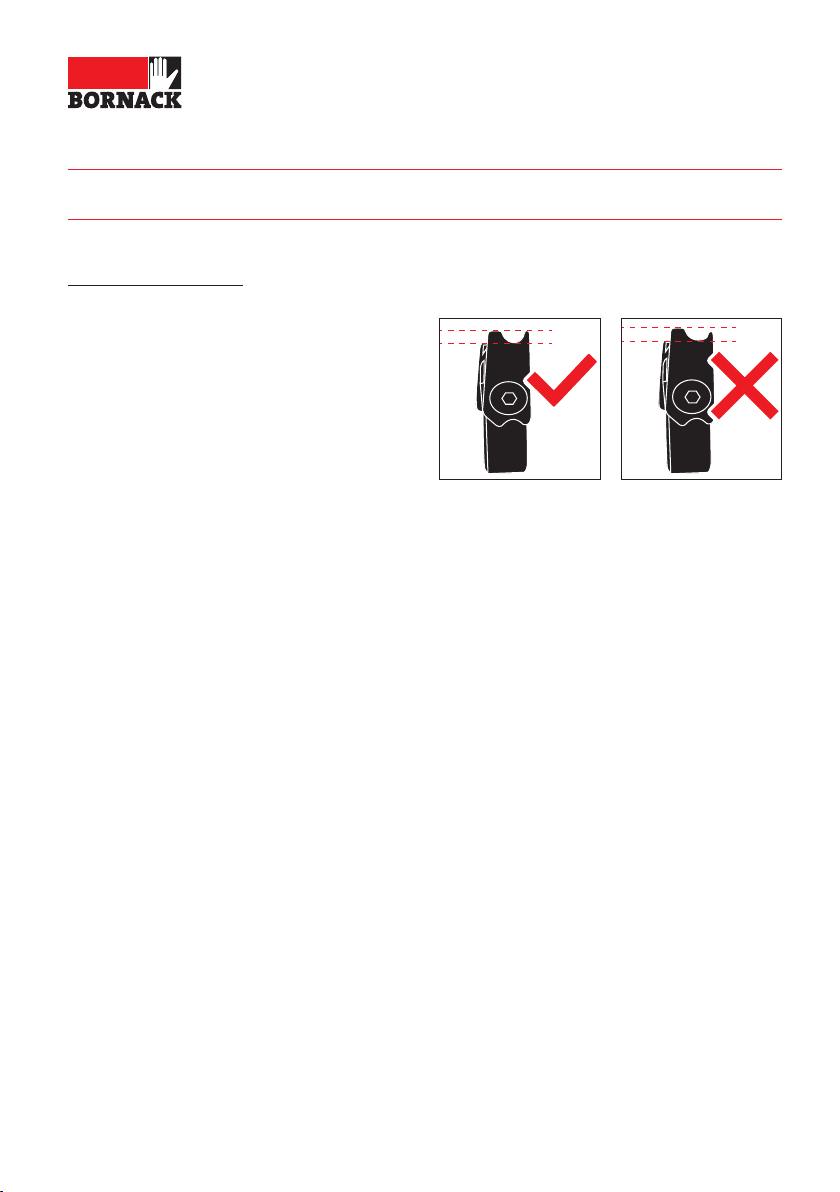

SIDE VIEW WEAR LEVEL
The wear level on the hollow fillets of
the TQR must be checked at regular
intervals. The device must be withdrawn
from use if heavily worn.
INFORMATION BEFORE USE

EN
Always check every time
before use!
• The personal protective equipment
(PPE) may no longer be used in the
case of even very minor faults.
• Faulty PPE components may only be
tested or repaired by BORNACK or in a
workshop authorised in writing by
BORNACK.
• Regular inspections are essential
because the safety of the user depends
on the eciency and durability of the
PPE.
• The user must have completely read
and understood the User Manual
before use.
VISUAL INSPECTION
• Product identification legible.
• The last inspection by an expert was
carried out within the past  months.
• No obvious damage or wear that could
impact on the safe function.
• Inside surface of the basic element is
free of dirt, foreign bodies, corrosion or
similar.
• The screws of the TQR are tightened.
• Plastic components are not aged or
worn.

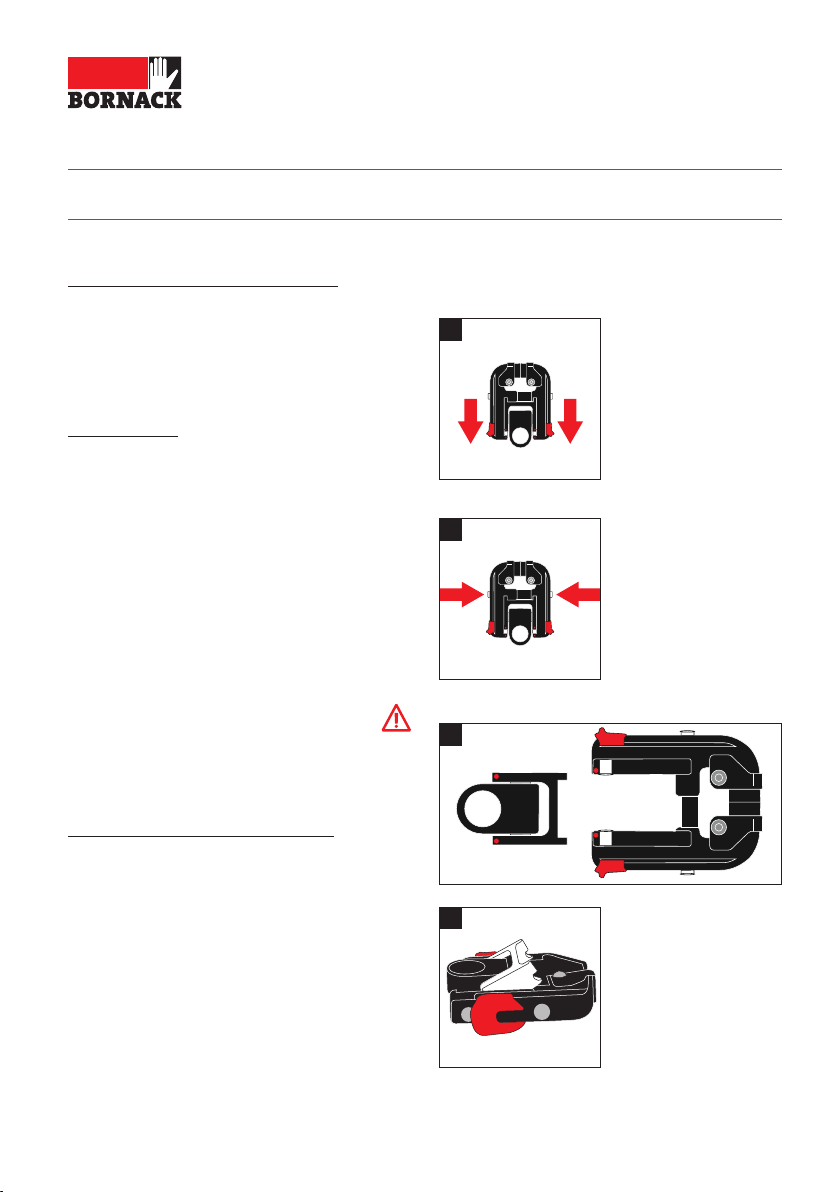

FUNCTION TEST
• Before and after it is used, the TQR
must be checked for damage; also,
steps must be taken to ensure that it is
serviceable and that it functions
correctly.
• The unlocking bolts only release the
Quickout, if the lock sliders are pushed
down and both unlocking bolts are
pressed.
• The lock sliders may not become lose
on their own.
• When released, the unlocking bolts
return to this locking position.
• When inserted, the Quickout D-ring
moves freely.
• The secured and locked Quickout will
not become released even under pres-
sure.
• Once the Quickout is inserted, the
unlocking bolts return to their initial
position.
INFORMATION BEFORE USE

 | 
RELEASING THE SAFETY CATCH

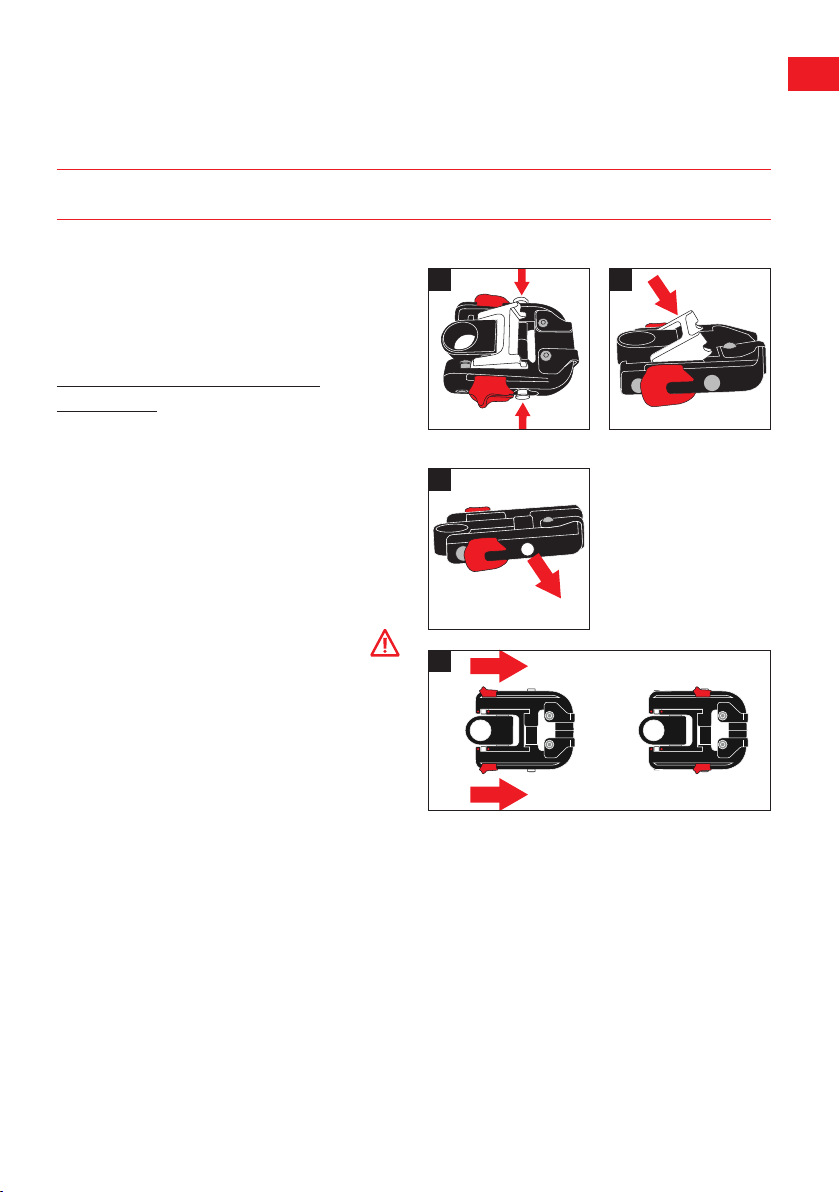

A To release, the two lock sliders are
pushed toward the Quickout D-ring to
uncover the two unlocking bolts.
UNLOCKING
B Pressing both unlocking bolts at the
same time releases the fastener
mechanism of the Quickout. The
Quickout can now be removed from
the TQR basic element. When
unlocking the Quickout when under
load, ensure that there is enough
space because the Quickout swings to
the side or downwards.
ATTENTION:
Only abseil with the Quickout is inserted
and secured.
INSERTION OF THE QUICKOUT
C Insert the Quickout into the basic
element from above so that the
marking points of the Quickout and
the basic element are opposite one
another.
TQR02 IN USE
A
C
B
C

EN
D After pressing the unlocking bolts at
the same time, the Quickout can be
inserted into the TQR basic element.
LOCKING AND SECURING THE
QUICKOUT
E Once inserted, the two unlocking bolts
need to return to their initial position
automatically and completely, and the
Quickout must lie evenly and
completely in the basic element. Then
the two lock sliders are pushed over
the two unlocking bolts again.
CAUTION: RISK TO LIFE!
Never use the device without first
checking that it functions, and locks
safely.
TQR02 IN USE
E
E
D D

 | 
CAUTION: RISK TO LIFE!
Using the lanyard with wide straps can
reduce the strength of the lanyard.
CAUTION: RISK TO LIFE!
The length of the lanyard needs to be
taken into account when used in an
arresting system because this impacts
on the fall path.
TQR02 IN USE

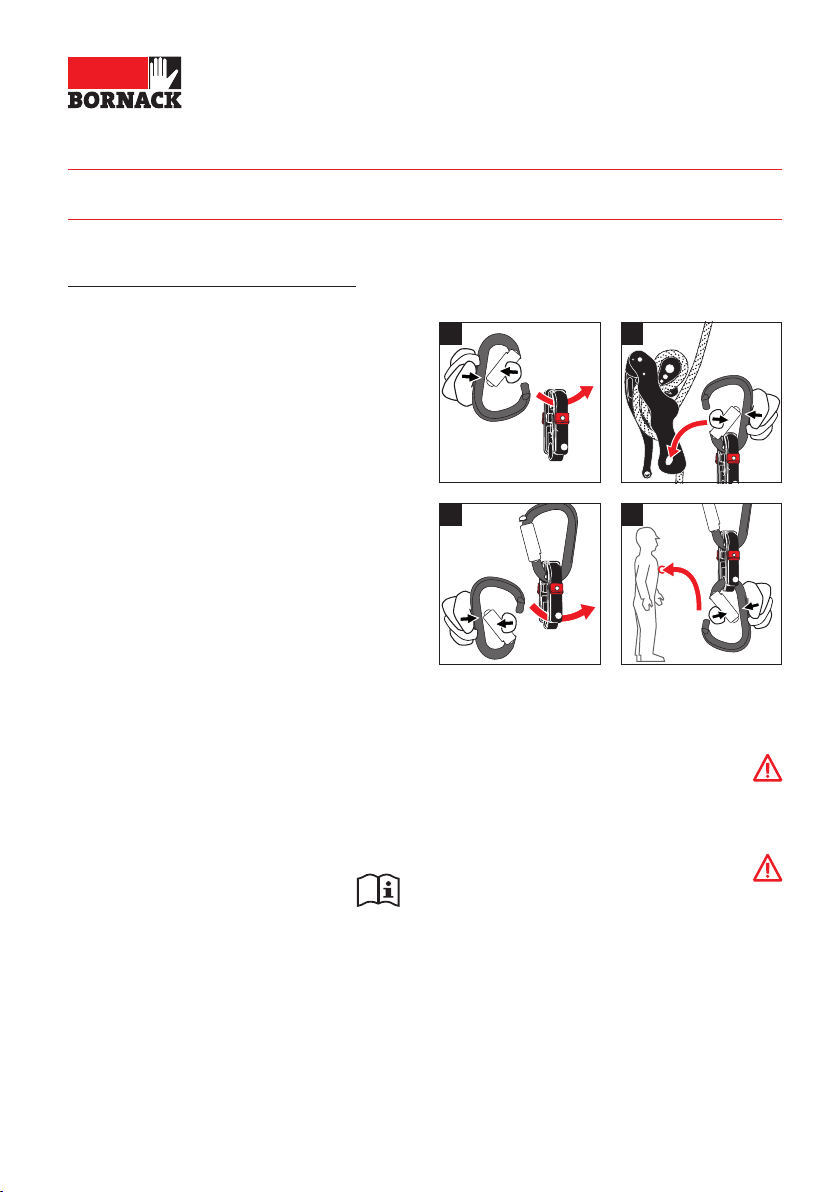

USE WITH AN ABSEILING DEVICE
BORNACK recommends the connectors
are secured against twisting or use
connectors with twistlocks to prevent
transverse loads.
F Attach the connector acc. to EN  to
the karabiner centring of the TQR.
G Attach the TQR basic element to the
D-ring of the abseiling system using
the connector acc. to EN .
H Attach the connector acc. to EN  to
the Quickout of the TQR.
I Attach the Quickout D-ring of the
TQR to the arresting D-ring/loop of
the full body harness using the
connector acc. to EN . Position the
TQR so that the Quickout can be
removed in the direction of the user.
Observe the User Manual of the
abseiling device and the full
body harness.
H
GF
I

EN
USE AS AN EMERGENCY RELEASE
SYSTEM ON AN ANCHOR POINT
During tactical abseiling manoeuvres, in
particular on helicopters, operational
considerations may make it necessary to
discharge the abseiling ropes.
The fast separation unit is only
connected to the helicopter using a
connector acc. to EN  on a specifically
designated anchor point on the aircraft.
This is based on the respective flight
operation manuals, operational proce-
dures and the specifications of the heli-
copter manufacturer.
Steps should be taken to ensure that
there is no tilting on the anchor point
and that the connector lies unhindered
in the karabiner centring of the fast
separation unit.
CAUTION: RISK TO LIFE!
Anchor points must be adequately strong
(observe  kN according to EN  and/
or DGUV Regulation -)!
CAUTION: RISK TO LIFE!
When selecting the attachment point,
minimise the fall height and/or the free
fall!
COMBINATION
When combining this product with
other parts, there is a risk of mutual
impairment with respect to the function
and safety. Compatibility must be
assessed during the risk analysis. Only
combine with personal protective equip-
ment that bears a CE symbol. If you have
any questions about compatibility or
you require help with the risk analyses,
feel free to contact BORNACK.
TQR02 IN USE

 | 
SAFETY REGULATIONS
There is a risk to life if these safety
instructions are not observed!
• The personal protective equipment
(PPE) may no longer be used even in
the case of very minor faults.
• Damaged, fall-stressed or dubious
personal protective equipment or
safety devices must be immediately
withdrawn and not used. The equip-
ment may only be inspected by an
expert in compliance with DGUV
(German Social Accident Insurance)
principle -, by BORNACK or by a
workshop authorised in writing by
BORNACK. This must be documented
in the test card.
• Independent modifications or repairs
are not allowed.
• Rope protection is part of the personal
fall prevention equipment and should
be assigned to a specific person.
• The personal protective equipment
may only be used by qualified staff
that are familiar with the material.
They must be proficient in handling
the personal protective equipment
and must have been briefed about the
possible risks associated with its use.
• In accordance with the accident preven-
tion guidelines (UVV), the users of
personal protective equipment against
falls (Category III) must attend a theo-
retical training course and a practical
training course. Make use of the
training competence of the BORNACK
training centres: [e-mail]
• Clothing and shoes must be suitable
for the task at hand and the weather
conditions.
• Only use if fully fit and healthy.
• Health impairments can jeopardise
the safety of the user when working at
heights or depths.
• If this PPE is used as an arrester system
(free fall is possible), only full body
harnesses that comply with EN 
may be used.
• Calculation of the possible fall path if
all necessary PPE components are used
correctly: (if necessary braking path
HSG) + surplus lanyard (situation-
dependent) + braking path energy
absorber (max. . m) + height of
D-ring (. m) + safety reserve . m.
• Before use, ensure adequate clearance
below the user to prevent impact on a
protruding object or the ground.
• Protect personal protective equipment
during storing, use and transportation
against the effects of heat (e.g.
welding flames or sparks, burning
cigarettes) and chemicals (e.g. acids,
alkalis, oils) and mechanical impact
(e.g. sharp edges).

EN
• The combinability and protective
eect of the PPE must be checked for
each hazard situation (risk assess-
ment).
• If a casualty hangs motionless in a full
body harness for a longer time, blood
cannot flow back from the legs and/or
the flow may be interrupted. This can
lead to a suspension trauma, a circula-
tory shock with serious to fatal conse-
quences.
• Before starting work, the responsible
person must draw up a plan of rescue
measures that defines how to rescue
casualties quickly and safely and
ensures first aid measures. The rescue
should be carried out as quickly as
possible, longer suspension times
(> min) can lead to medical prob-
lems. BORNACK can help you draw up
tailor-made rescue concepts and
includes these in the necessary
training courses.
E-mail hotline: [e-mail]
• The local safety guidelines (e.g. in
Germany, the DGUV Regulations
- and - issued by the
professional associations) and the
accident prevention guidelines for the
specific industry (UVV) must be
observed.
SAFETY REGULATIONS

 | 
OTHER

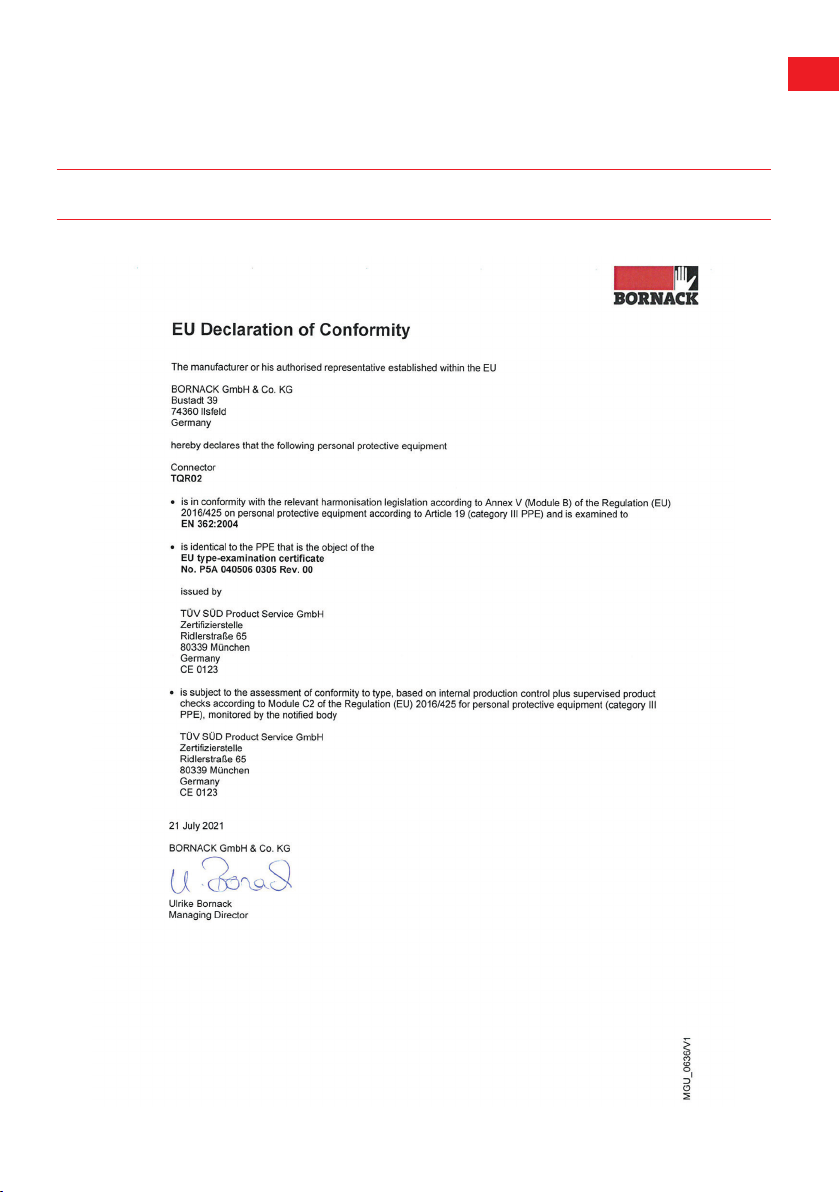

APPROVAL:
Complies with the Regulation (EU)
/ for PPE.
EU type testing (Module B) and produc-
tion monitoring (Module C) by:
TÜV SÜD Product Service GmbH
Ridlerstr. , D- München
CE 
Quality management system certified to
ISO :.
Production monitoring by notified oce
in accordance with Category III.
REGULAR INSPECTIONS
This personal protective equipment
must be inspected at least once a year
by an expert in compliance with DGUV
Principle -. The result must be
documented in the test card at the end
of this User Manual.
SALES
The dealer must ensure that the User
Manual is supplied in the language of
the designated country. The respective
translation must be authorised by
BORNACK.
SERVICE
If you have any further questions about
this PPE or other BORNACK services,
such as:
• Risk analyses
• Rescue concepts
• Training courses
• Expert inspections
• Technical inspections
• Maintenance + inspections
please contact our e-mail hotline:
[e-mail]
We will be happy to help!

EN
OTHER
MAINTENANCE
• If necessary, apply a small amount of
oil on the joints so that the moving
parts of the karabiner and other
devices run smoothly. Preferably, use
an acid-free oil or a Teflon or sili-
cone-based agent. Ensure that the oil
does not come into contact with
textile PPE components.
• Maintenance may only be carried out
by a qualified expert in compliance
with DGUV Principle -. All
instructions in this User Manual must
be strictly observed.
• Protective equipment that is clean and
well looked after will last longer!
CLEANING
• Dry damp personal protective equip-
ment in the air, not on artificial heat
sources. Dry metal components with
cloths.
• Clean soiled textile components (e.g.
arrester harnesses and ropes) with
lukewarm water and a little detergent
for delicates. Then rinse carefully and
allow to dry in the air. Other cleaning
agents are not allowed!
• Spray with an alcoholic disinfectant.
Observe the usage instructions
provided by the manufacturer.
• If the personal protective equipment
comes into contact with salt-water,
keep it wet until it can be rinsed with
plenty of distilled water.
• Use compressed air to blow on the
unit if necessary.
LIFE SPAN
The following recommendation applies
for the use of the TQR:
Maximum usage period after being
used for the first time:
x activation under load, as long as
the device shows no signs or damage or
malfunctions, and safe locking is guar-
anteed.
The red lock sliders of the TQR may
lose their colour over time as a result of
weathering, e.g. UV radiation. This is a
normal process. The TQR must be
withdrawn from use at the latest when
the plastic is visibly porous and a signif-
icant loss of strength is recognisable.
The expert makes a decision about these
parts based on his technical expertise.
Metal parts are not subject to age-
related life span deadlines. The expert
makes a decision based on his technical
expertise and the latest version of the
standard.

 | 
OTHER
For reasons of safety, intensive use and/
or extreme application conditions such
as sharp edges, chemical influences, UV
radiation etc. will reduce the usage
period. The company owner needs to
take this into account in the workplace
risk analysis.
The company owner must ensure
compliance with the maximum usage
period by documenting first-time use in
the test card.
The test card at the end of this User
Manual must be presented during the
regular expert inspections and be
completed by an expert.
For more details, please visit
www.bornack.de.
REPAIRS
• For reasons of liability, repairs may
only be carried out by BORNACK or in a
workshop authorised in writing by
BORNACK.
• Only original spare parts from the
manufacturer may be used.
STORAGE
• Dry wet PPE before storage.
• Store in a dry place away from direct
sunlight.
• Do not store PPE near radiators.
Permanent exposure to temperatures
below  °C or above + °C has a nega-
tive impact on the strength of the
textile material and shortens the life
span.
• Do not allow PPE to come into contact
with aggressive substances (e.g. oils,
grease, acids, chemicals). Precision
mechanics oils may be applied to
moving metallic parts during mainte-
nance. Always ensure that textile PPE
components do not come into contact
with the oil.
• Do not store personal protective
equipment close to aggressive
substances (see above) because even
the vapours of aggressive substances
can have a negative effect on the
strength of the PPE.
• Protected storage in the device case or
device bag.
TRANSPORT
• Protected transport in the device case
or device bag.

EN
14.11.2019
27.01.2020
27.01.2020
lschmidt
cmöck
ahohendahl
14.11.2019
27.01.2020
27.01.2020
lschmidt
cmöck
ahohendahl
OTHER
PRODUCT IDENTIFICATION
The following identification is on the product:
Logo
Product name
Product category
Item number
Charge
Serial number
Production date
Useful load
EN norms
CE symbol and number
of the test oce
Manufacturer
address
Data matrix
Observe/read the
User Manual

 | 
The test list must be
completed in full by the
expert during the annual
inspection.
This test list does not
claim to cover all test
criteria and does not
relieve the expert from
his decision about the
overall condition.
TEST CARD
FOR ANNUAL MONITORING
___________________________________________________________
___________________________________________________________
___________________________________________________________
___________________________________________________________
___________________________________________________________
___________________________________________________________
___________________________________________________________
___________________________________________________________
___________________________________________________________
___________________________________________________________
___________________________________________________________
Year 
Year 
Year 
Year 
Year 
Year 
Year 
Year 
Year 
th year
Date Signature
Next
inspection Reason for inspection
Type product name:
______________________
Production date:
_________________________
Charge:
________________
Serial no.:
_______
Purchase date:
__________________________
Date of first Use:
________________________
Maximum life span until:
__________________

EN
TEST CARD
FOR ANNUAL MONITORING
Please complete:
Year st nd rd th th th th th th th
Lock slider
functional?
No chemical soiling?
Unlocking bolt
functional?
No deformation of
metal parts?
Condition of the
springs/rivets/axles
OK?
No corrosion
damage?
Red marking points
on the TQR basic
element and on the
Quickout in place?
Continued on the next page

 | 
Year st nd rd th th th th th th th
No mechanical
damage?
Identification legible?
User Manual
available?
OK
Blocked
TEST CARD
FOR ANNUAL MONITORING
Please complete:

EN
EU DECLARATION OF CONFORMITY

BORNACK GmbH & Co. KG
Bustadt 39
74360 Ilsfeld
Germany
Tel + 49 (0) 70 62 / 26 90 0-0
Fax + 49 (0) 70 62 / 26 90 0-550
[e-mail]
www.bornack.de
FALLSTOP
Safety equipment for securing and
rescuing at heights and depths
SAFEPOINT
Planning and assembly of stationary
securing systems
© BORNACK – Subject to technical changes
Reprinting or duplication, even of excerpts, is only permitted
with written consent
Status: 07/2021 GAL Art.-No. 8000184_EN jba
