Dear customer,
congratulations on the purchase of your Riese & Müller E-bike with Bosch drive!
In this instruction manual the following original instructions from Bosch include:
EN-2 Bosch Drive System 20 mph
EN-13 Bosch Drive System 28 mph
EN-26 PowerPack 300|400|500, PowerTube 500 (battery)
EN-40 Charger
EN-49 Kiox Display
EN-64 Drive Unit Performance Line 20 mph
EN-71 Drive Unit Performance Line 28 mph
EN-77 Drive Unit Active Line Plus 20 mph
We hope you enjoy your new E-bike and that you always have a good ride.
Your Riese & Müller team
Chère cliente, cher client,
nous vous félicitons pour votre acquisition d’un nouveau Riese & Müller E-bike à assistance Bosch.
Dans ce manuel vous trouverez les modes d’emploi originaux diffusés par Bosch :
FR-2 Bosch Drive System 20 mph
FR-13 Bosch Drive System 28 mph
FR-26 PowerPack 300|400|500, PowerTube 500 (batterie)
FR-40 Charger (chargeur)
FR-49 Display Kiox
FR-68 Drive Unit Performance Line 20 mph
FR-75 Drive Unit Performance Line 28 mph
FR-82 Drive Unit Active Line Plus 20 mph
Nous vous souhaitons beaucoup de plaisir avec votre nouveau vélo et une bonne route.
Votre équipe Riese & Müller

Estimado cliente,
felicitaciones por su nueva E-Bike de Riese & Müller con Motor Bosch!
En este manual estan incluidas las siguientes instrucciones originales de Bosch:
ES-2 Bosch Drive System 20 mph
ES-13 Bosch Drive System 28 mph
ES-26 PowerPack 300|400|500, PowerTube 500 (batería)
ES-39 Charger (cargador)
ES-48 Display Kiox
ES-64 Drive Unit Performance Line 20 mph
ES-71 Drive Unit Performance Line 28 mph
ES-78 Drive Unit Active Line Plus 20 mph
Le deseamos un viaje seguro y que disfrute de su nueva E-Bike.
Su equipo de Riese & Müller.

English
EN-2 Bosch Drive System 20 mph
EN-13 Bosch Drive System 28 mph
EN-26 PowerPack 300|400|500, PowerTube 500 (battery)
EN-40 Charger
EN-49 Kiox Display
EN-64 Drive Unit Performance Line 20 mph
EN-71 Drive Unit Performance Line 28 mph
EN-77 Drive Unit Active Line Plus 20 mph

20 mph
EN
EN-2

20 mph English – 2
0 275 U07 XSC | (30.05.2018) Bosch eBike Systems
Introduction
Thank You for Purchasing a Bosch Drive System
Equipped Bicycle!
Your Bosch eBike Systems team appreciates having
you as a customer and wishes you many years of safe
and satisfied use of your bicycle.
About Warnings
This manual contains many DANGER, WARNING,
and CAUTION indicators concerning the conse-
quences of failure to use, assemble, maintain, store,
inspect and dispose of a Bosch-equipped eBike in a
safe manner.
– The combination of the safety alert symbol and the
word DANGER indicates a hazardous situation that,
if not avoided, will result in death or serious injury.
– The combination of the safety alert symbol and the
word WARNING indicates a hazardous situation
that, if not avoided, could result in death or serious
injury.
– The combination of the safety alert symbol and the
word CAUTION indicates a hazardous situation
that, if not avoided, could result in minor or moder-
ate injury.
General Warnings
Read all safety warnings and all in-
structions. Failure to follow the warn-
ings and instructions may result in
death or serious injury.
Save all safety warnings and instructions for fu-
ture reference.
The term battery pack used in these operating in-
structions refers to all original Bosch eBike battery
packs.
WARNING
uThe Bosch Drive System is intended for use by
persons 16 years of age and above. Riders must
have the physical coordination, reaction and mental
capabilities to control a bike and manage traffic,
road conditions, and sudden situations, as well as
to respect the laws and instructions governing bicy-
cle use.
uThis manual contains important safety, perfor-
mance and service information. Read it before
you take the first ride on your new bicycle, and keep
it for reference. The manual can also be found on-
line at www.bosch-ebike.com.
uThis manual is intended to be read together with
the separate user manual provided with your bi-
cycle. Be sure to read all provided documents in-
cluding labels on the product before your first ride.
uRead ALL accompanying manuals before riding
the bike for the first time. Your Bosch Drive Sys-
tem comes with additional manuals and documents
provided by the manufacturer of the bicycle and
other components. Failure to read and understand
safety information can result in death or serious in-
jury.
uTake responsibility for your own SAFETY. If you
have any questions or do not understand some-
thing, consult with your dealer or the bicycle or
component manufacturer.
uSome eBike accessories may present a choking
hazard to small children. Keep these accessories
away from children.
CAUTION
uThe Bosch Drive System adds weight to your bi-
cycle which you may not be used to lifting. Avoid
injury, use proper lifting techniques.
EN-3

Using Your Operator’s Manual
Your operator's manual consists of several parts:
– Operating instructions for the Bosch eBike system
(this manual)
– Operating instructions for the drive unit
– Operating instructions for the on-board computer
– Operating instructions for the charger
– Operating instructions for the battery
uRead and observe the safety warnings and in-
structions in all operating instructions of the
eBike system and your eBike.
Graphics
The bicycle shown in this manual may differ slightly
from your bicycle, but will be similar enough to help
you understand our instructions.
RIGHT-HAND and LEFT-HAND sides are determined
by facing in the direction the bicycle will travel when
going forward. When you see a broken line (------), the
item referred to is hidden from view.
English – 3
Bosch eBike Systems 0 275 U07 XSC | (30.05.2018)
EN-4

English – 4
0 275 U07 XSC | (30.05.2018) Bosch eBike Systems
Bosch Drive System Overview
Bicycle View (Standard)
(1)
(2)
(3)
(4)
Bosch Drive System Components
All representations of bike components are schematic
and can deviate from your eBike.
(1) On-board computer
(2) Standard battery "PowerPack"
(3) Drive unit
(4) Charger
EN-5

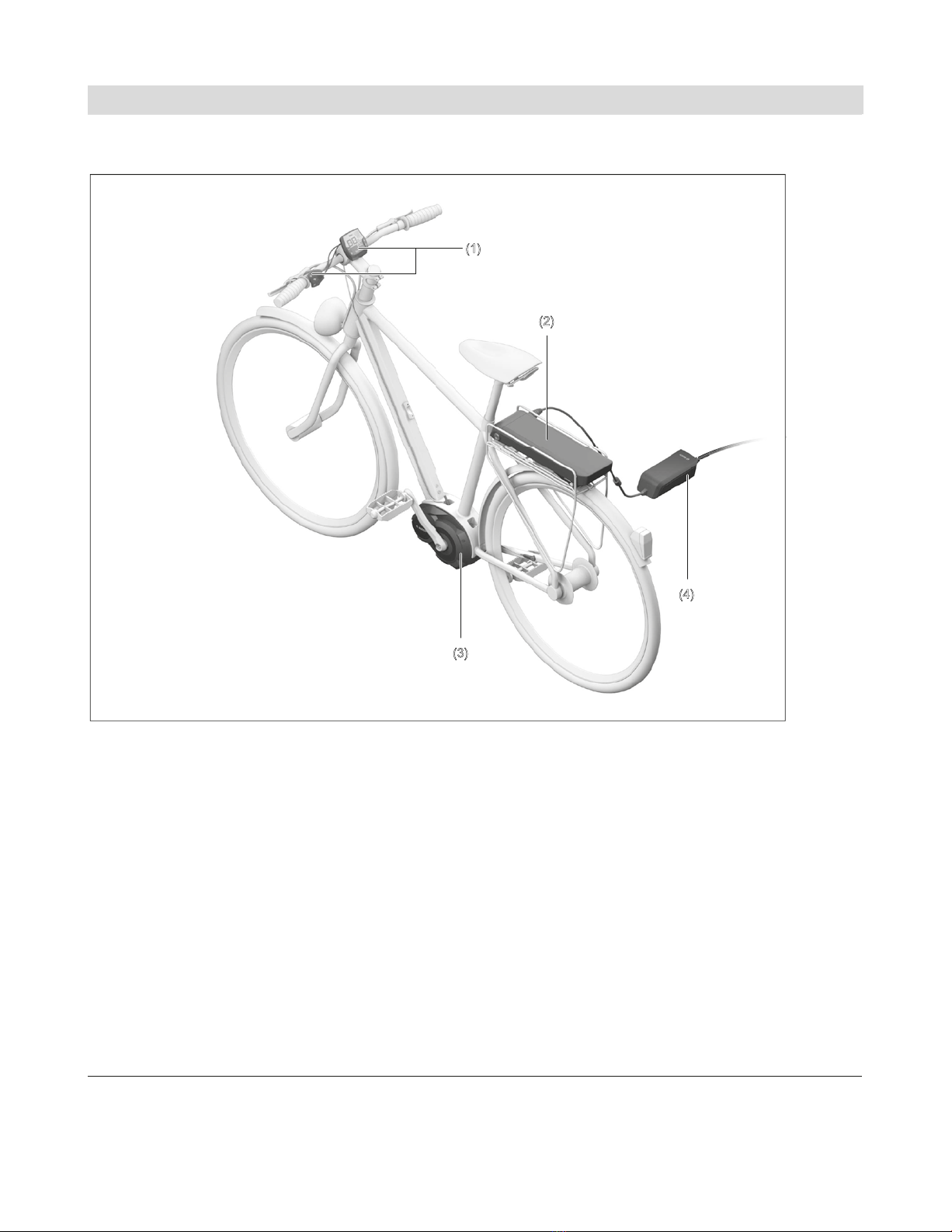

Bicycle View (Rack-Type)
(1)
(2)
(3)
(4)
Bosch Drive System Components
All representations of bike components are
schematic and can deviate from your eBike.
(1) On-board computer
(2) Rack-mounted battery "PowerPack"
(3) Drive unit
(4) Charger
English – 5
Bosch eBike Systems 0 275 U07 XSC | (30.05.2018)
EN-6

English – 6
0 275 U07 XSC | (30.05.2018) Bosch eBike Systems

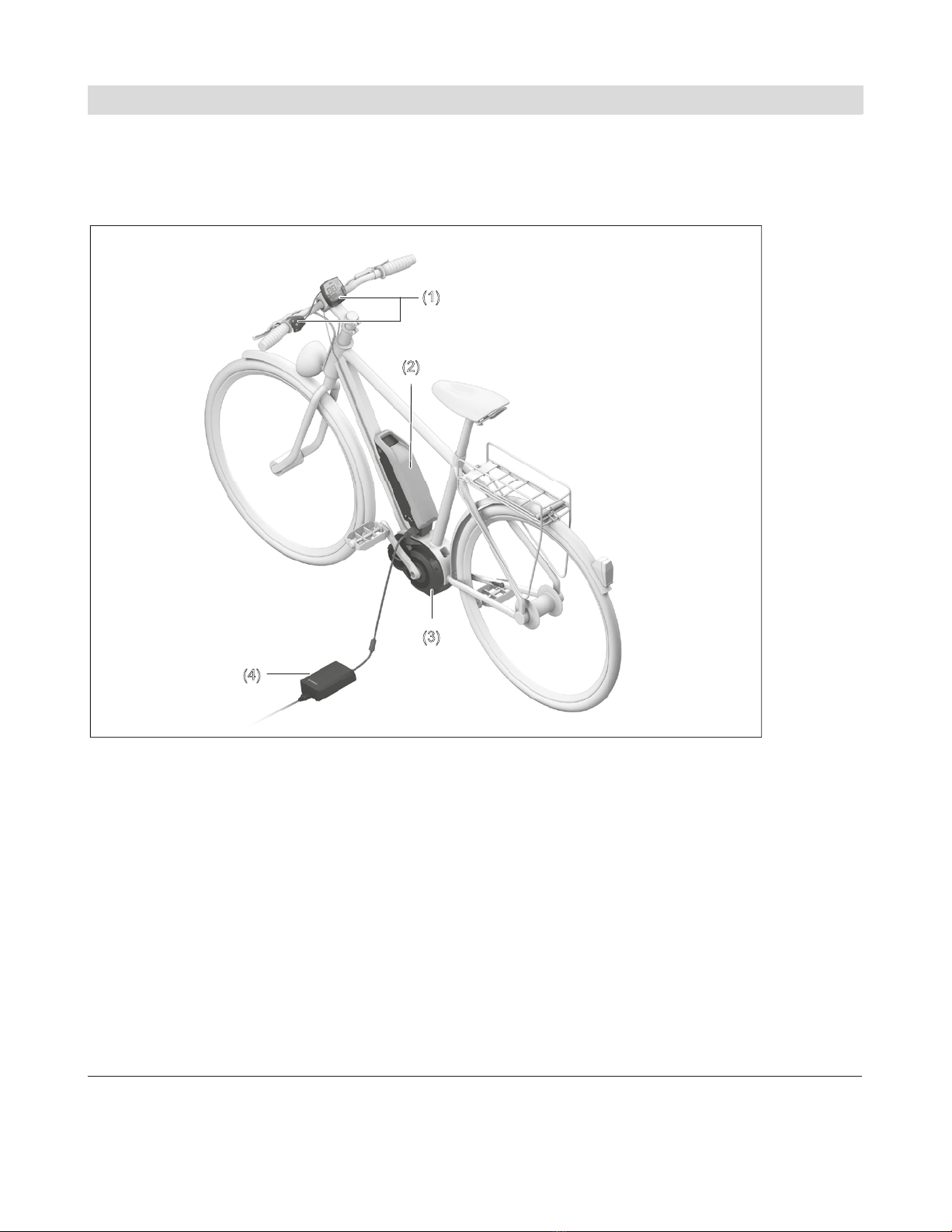

Bicycle View (PowerTube)
(1)
(2)
(3)
(4)
Bosch Drive System Components
All representations of bike components are schematic
and can deviate from your eBike.
(1) On-board computer
(2) Frame-mounted battery "PowerTube"
(3) Drive unit
(4) Charger
EN-7

Operating your Bosch Drive System
Getting Ready to Ride
WARNING
uRead and understand all safety warnings and in-
structions. Failure to follow the below warnings
could result in death or serious injury.
uProtect others from death or serious injury. Pre-
vent unauthorized use. Always remove battery
from the bicycle when not in use and store in a se-
cure location. Failure to secure your bicycle from
unauthorized use can result in death or serious in-
jury to others.
uRead and understand the influences on the oper-
ating range when planning your ride (see "Influ-
ences on range", pageEnglish–8).
Before your first ride
Check your bicycle owner’s manual for important in-
formation about the bike components like brakes,
pedals, gears, shifting, etc.
WARNING
uWhile riding, do not become distracted by the
onboard computer and always remain alert to all
riding conditions. The on-board computer should
only be used in a stationary and safe start-up posi-
tion. Utilize the operating unit to change motor as-
sistance levels while riding.
uCheck your bicycle manual for maximum riding
weight of your bicycle. Overloading your bicycle
can result in component failure which can result in
death or serious injury. Typically maximum riding
weight is defined by the sum of the rider’s weight
plus the weight of any luggage.
Intended Use
WARNING
uUnderstand your bike and its intended use by
consulting your bicycle owner’s manual. Using
your bike the wrong way and for a purpose it was
not designed can result in death or serious injury.
The Bosch Drive System components are intended
exclusively for your eBike and must not be used for
other purposes.
Your Bosch drive unit is not intended for towing an-
other bicycle. For trailer towing, consult your bicycle
owner’s manual and trailer owner’s manual for towing
instructions and towing compatibility.
Safe Start-up Procedure
WARNING
uFollow the safe startup procedure below. Failure
to follow safe startup procedure can result in death
or serious injury.
Preparations
Before starting check the following:
– Check that you have unplugged the battery charger
– Your battery pack is locked in place (Pull on the bat-
tery pack to ensure it is locked in place)
– Remove the battery pack key
Start Riding
– Sit in the saddle with both feet touching the ground
and two hands on the handlebars.
– Once you are in a stable position, turn on the Bosch
on-board computer. The Bosch Drive System will al-
ways start up in OFF mode.
– Place both hands on the handlebars and begin ped-
aling.
English – 7
Bosch eBike Systems 0 275 U07 XSC | (30.05.2018)
WARNING
EN-8

English – 8
0 275 U07 XSC | (30.05.2018) Bosch eBike Systems
Notes on cycling with the eBike
system
When does the eBike drive work?
The eBike drive assists your cycling only when you are
pedaling. If you do not pedal, the assistance will not
work. The motor output always depends on the pedal-
ing force you apply.
If you apply less force, you will receive less assistance
than if you apply a lot of force. This applies irrespec-
tive of the assistance level.
The eBike drive automatically switches off at speeds
over 20mph. When the speed falls below 20mph,
the drive automatically becomes available again.
An exception applies to the push assistance function,
in which the eBike can be pushed at low speed with-
out pedaling. The pedals may rotate when the push
assistance is in use.
You can also use the eBike as a normal bicycle with-
out assistance at any time, either by switching off the
eBike system or by setting the assistance level to
OFF. The same applies when the battery is drained.
Interaction between the eBike system and
gear-shifting
The gear-shifting should be used with an eBike drive
in the same way as with a normal bicycle (observe the
operating instructions of your eBike on this point).
Irrespective of the type of gear-shifting, it is advisable
to briefly stop pedaling when changing gear. This will
facilitate the gear change and reduce wear on the
powertrain.
By selecting the correct gear, you can increase your
speed and range while applying the same amount of
force.
Test the range of your eBike in different conditions
before planning longer and more demanding trips.
uRead and understand the influences on the oper-
ating range when planning your ride (see "Influ-
ences on range", pageEnglish–8).
Influences on range
The range is affected by a number of factors, such as:
– Assistance level
– Speed
– Gear shifting behavior
– Tire type and tire pressure
– Age and condition of the battery
– Route profile (gradients) and conditions (road sur-
face)
– Headwind and ambient temperature
– Weight of eBike, rider and luggage
For this reason, it is not possible to predict the range
accurately before and during a trip. However, as a
general rule:
– With the same assistance level on the eBike drive:
The less energy you need to exert in order to reach
a certain speed (e.g. by changing gears optimally),
the less energy the eBike drive will consume and
the higher the range per battery charge will be.
– The higher the selected assistance level under oth-
erwise constant conditions, the smaller the range
will be.
Note: Plan your routes so that you can always reach
your destination without motor assistance.
EN-9

Transport
WARNING
uIf you transport your eBike attached to the out-
side of your car, e.g. on a bike rack, remove the
on-board computer and the eBike battery to
avoid damaging them.
uAlways remove the battery pack from the bicy-
cle before transporting the bicycle on a vehicle
bike rack. Failure to remove the battery pack when
using a vehicle bike rack can lead to death or seri-
ous injury. The battery may detach during transport
and cause an accident to following vehicles.
uAlways use an approved and compatible bicycle
rack when transporting your eBike. The Bosch
drive system adds weight to the bicycle. Refer to
your bicycle rack manual to be sure your eBike is
compatible. Overloading a bike rack can result in
death or serious injury.
uUse proper lifting techniques as electric bikes
are generally heavier than bicycles.
Ship batteries only when the housing is undamaged.
Tape or mask off open contacts and pack up the bat-
tery in such a manner that it cannot move around in
the packaging. Inform your parcel service that the
package contains dangerous goods. Please also ob-
serve possibly more detailed national regulations. Al-
ways check state and federal regulations before at-
tempting to ship your battery.
If you have any questions about transporting the bat-
teries, contact an authorized bicycle dealer. You can
also order suitable transport packaging from the
dealer.
Maintenance/Cleaning
WARNING
uDo not open any of the components. Service
should only be carried out at an authorized
Bosch eBike dealer. Failure to follow above warn-
ing can cause death or serious injury. Refer to your
bicycle manual or component manual for all non-
Bosch drive system components.
uAlways remove the battery pack before perform-
ing any bicycle inspection, maintenance or re-
pair. Failure to remove the battery pack before per-
forming bicycle inspection, maintenance or repair
can lead to serious injury.
uIf you suspect that something is loose, do not
ride your bike. See your Bosch eBike dealer, only a
qualified service provider should perform work on
your Bosch Drive System. All nuts, bolts, screws re-
quire the correct tightening force. Too little force
and the fastener may not hold securely. Too much
force and the fastener can strip threads, stretch,
deform or break. Either way, incorrect tightening
force can result in component failure, which can
cause you to lose control and fall.
uIf replacing your battery, buy only a genuine
Bosch battery pack from an approved source.
See your Bosch eBike dealer for original Bosch
parts.
uAlways switch the battery pack off, when insert-
ing or removing it from the holder. Never attempt
to insert or remove the battery pack while riding the
bike.
uDo not charge or use your eBike in any area with
a potentially explosive atmosphere, such as at a
fueling area, or in areas where the air contains
chemicals or particles (such as grain, dust, or
metal powders). Obey all signs and instructions.
uDo not submerge your eBike components in wa-
ter, or wash with pressurized hose. Your Bosch
drive unit is designed to be water tight to rain water
or non-pressure hose washing.
uNote down the manufacturer and the number of
the key. In case of loss of the keys, please refer to
an authorised Bosch eBike dealer. Please provide
the name of the manufacturer and the number of
the key.
English – 9
Bosch eBike Systems 0 275 U07 XSC | (30.05.2018)
EN-10

English – 10
0 275 U07 XSC | (30.05.2018) Bosch eBike Systems
uDo not paint any components of the Bosch drive
system as they may cause premature failure of
the component.
Taking care of your eBike
Please observe the operating and storage tempera-
tures of the eBike components. Protect the drive unit,
on-board computer and battery against extreme tem-
peratures (e.g. from intense sunlight without ade-
quate ventilation). Extreme temperatures can cause
the components (especially the battery) to become
damaged.
Have your eBike system checked by an expert at least
once a year (including mechanical parts, up-to-date-
ness of system software).
Please have your eBike serviced and repaired by an
authorized bicycle dealer.
After-sales service and advice on using
products
If you have any questions about the eBike system and
its components, contact an authorized bicycle dealer.
For contact details of authorized bike dealerships,
please visit www.bosch-ebike.com
Please contact an authorized bicycle dealer if the bat-
tery is no longer working.
Cleaning
uDo not submerge your eBike components in wa-
ter, or wash with pressurized hose. Your Bosch
drive unit is designed to be water tight to rain water
or non-pressure hose washing.
Keep all components of your eBike clean, especially
the battery-pack contacts and corresponding holder
contacts. All components including the drive unit may
not be immersed in water or cleaned with a high-pres-
sure cleaner. Keep all components of your eBike
clean, especially the batterypack contacts and corre-
sponding holder contacts. Clean them carefully with a
soft, damp cloth (using only mild soap and water).
EN-11

Battery Recycling Program
The drive unit, on-board computer incl.
operating unit, battery, speed sensor, ac-
cessories and packaging should be disposed of in an
environmentally correct manner.
Do not dispose of eBikes and their components with
household waste.
You may recycle your Bosch battery
pack by calling 1.800.822.8837.
English – 11
Bosch eBike Systems 0 275 U07 XSC | (30.05.2018)
EN-12

28 mph
EN
EN-13

English – 2
0 275 U07 XSS | (30.05.2018) Bosch eBike Systems
Introduction
Thank You for Purchasing a Bosch Drive System
Equipped Bicycle!
Your Bosch eBike Systems team appreciates having
you as a customer and wishes you many years of safe
and satisfied use of your bicycle.
About Warnings
This manual contains many DANGER, WARNING,
and CAUTION indicators concerning the conse-
quences of failure to use, assemble, maintain, store,
inspect and dispose of a Bosch-equipped eBike in a
safe manner.
– The combination of the safety alert symbol and the
word DANGER indicates a hazardous situation that,
if not avoided, will result in death or serious injury.
– The combination of the safety alert symbol and the
word WARNING indicates a hazardous situation
that, if not avoided, could result in death or serious
injury.
– The combination of the safety alert symbol and the
word CAUTION indicates a hazardous situation
that, if not avoided, could result in minor or moder-
ate injury.
General Warnings
Read all safety warnings and all in-
structions. Failure to follow the warn-
ings and instructions may result in
death or serious injury.
Save all safety warnings and instructions for fu-
ture reference.
The term battery pack used in these operating in-
structions refers to all original Bosch eBike battery
packs.
WARNING
uThe Bosch Drive System is intended for use by
persons 18 years of age and above. Riders must
have the physical coordination, reaction and mental
capabilities to control a bike and manage traffic,
road conditions, and sudden situations, as well as
to respect the laws and instructions governing bicy-
cle use.
uThis manual contains important safety, perfor-
mance and service information. Read it before
you take the first ride on your new bicycle, and keep
it for reference. The manual can also be found on-
line at www.bosch-ebike.com.
uThis manual is intended to be read together with
the separate user manual provided with your bi-
cycle. Be sure to read all provided documents in-
cluding labels on the product before your first ride.
uRead ALL accompanying manuals before riding
the bike for the first time. Your Bosch Drive Sys-
tem comes with additional manuals and documents
provided by the manufacturer of the bicycle and
other components. Failure to read and understand
safety information can result in death or serious in-
jury.
uTake responsibility for your own SAFETY. If you
have any questions or do not understand some-
thing, consult with your dealer or the bicycle or
component manufacturer.
uSome eBike accessories may present a choking
hazard to small children. Keep these accessories
away from children.
CAUTION
uThe Bosch Drive System adds weight to your bi-
cycle which you may not be used to lifting. Avoid
injury, use proper lifting techniques.
EN-14

Using Your Operator’s Manual
Your operator's manual consists of several parts:
– Operating instructions for the Bosch eBike system
(this manual)
– Operating instructions for the drive unit
– Operating instructions for the on-board computer
– Operating instructions for the charger
– Operating instructions for the battery
uRead and observe the safety warnings and in-
structions in all operating instructions of the
eBike system and your eBike.
Graphics
The bicycle shown in this manual may differ slightly
from your bicycle, but will be similar enough to help
you understand our instructions.
RIGHT-HAND and LEFT-HAND sides are determined
by facing in the direction the bicycle will travel when
going forward. When you see a broken line (------), the
item referred to is hidden from view.
English – 3
Bosch eBike Systems 0 275 U07 XSS | (30.05.2018)
EN-15

English – 4
0 275 U07 XSS | (30.05.2018) Bosch eBike Systems
Bosch Drive System Overview
Bicycle View (Standard)
(1)
(2)
(3)
(4)
Bosch Drive System Components
All representations of bike components are schematic
and can deviate from your eBike.
(1) On-board computer
(2) Standard battery "PowerPack"
(3) Drive unit
(4) Charger
EN-16
