Communications Systems | CCSE-DL CCS700 Conference Delegate unit

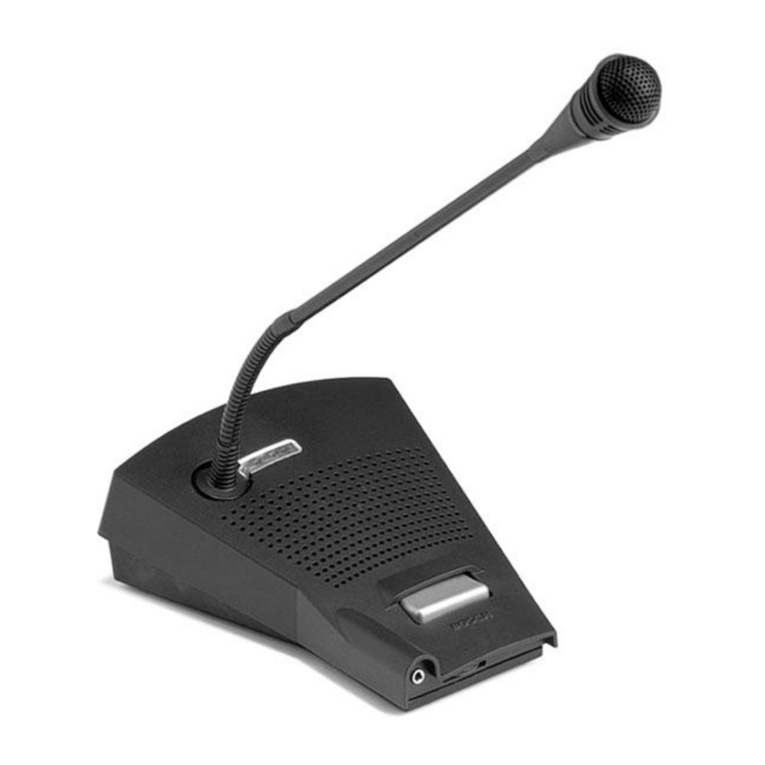

CCSE-DL CCS700 Conference Delegate
unit
www.boschsecurity.com
uCompact, attractive design
uBuilt-in volume control for headphones
uMicrophone with flexible stem and light ring
uTwo headphone sockets
The CCS700 Ultro discussion system is suitable for
use in meetings and conference venues with a limited
number of participants.
The CCSE-DL delegate units enable participants to
actively take part in the meeting proceedings. A built-
in microphone allows them to speak to the other
delegates, and they can listen to the discussion using
the built-in loudspeaker or (optional) personal
headphones.
Functions
Microphone with flexible stem and light ring
The microphone has a flexible stem, which is easily
adjustable to suit personal preferences. It also allows
two people to use the same delegate unit as they can
pull the microphone towards them, when it is required
to speak.The microphone is fixed to the base of the
delegate unit.Incorporated into the head of the
microphone is a light ring which illuminates red when
the microphone is on.
Built‑in loudspeaker
Loudspeaker volume is set centrally at the control unit
for all delegate units. To prevent acoustic feedback,
the built-in loudspeaker is automatically muted when
the microphone is on.
Two headphone sockets
Two 3.5 mm (0.14 in) stereo headphone sockets
(wired for mono) allow two pairs of headphones to be
connected so two delegates can simultaneously use
the unit.
Built‑in volume control for headphones
The headphone volume level can be adjusted by means
of a thumbwheel on the unit for maximum comfort.
Controls and Indicators
• Microphone on/off button.
• Rotary volume control for adjusting headphone
volume.
• Loudspeaker,automatically muted when microphone
is on.
• Microphone ‘on’ indicator (red LED).
• Light ring indicator on microphone stem, lights up red
when microphone is on.
Interconnections
• 1 x 2.7 m (106.3 in) cable terminated with a 8-pin
male connector for loop-through connection to other.
• 1 x 8-pin circular female connector for loop-through
connection to other delegate or chairman units.
• 2 x 3.5 mm (0.14 in) stereo headphone sockets.

Parts included
Quantit
y
Components
1CCSE-DL CCS700 Conference Delegate unit
Technical specifications
Electrical
Nominal Acoustic Input at the
microphone
85dB SPL
Frequency Response 400Hz to 10Khz
Mechanical
Dimensions (without
microphone) (H x W x D)
54x136x138mm
Length of the microphone from
the base of the stem
488mm
Weight 1.2 kg
Mounting Tabletop
Color Charcoal
Environmental
Operating temperature -5 ºC to +45 ºC
Storage temperature -40 ºC to +70 ºC
Ordering information
CCSE-DL CCS700 Conference Delegate unit
Order number CCSE-CML
2 | CCSE-DL CCS700 Conference Delegate unit
Represented by:
Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[email protected]
www.boschsecurity.us
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[email protected]
www.boschsecurity.com
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[email protected]
www.boschsecurity.asia
Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn
Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2015 | Data subject to change without notice
18097531403 | en, V1, 09. Jan 2015

Communications Systems | CCSE-CML CCS700 Conference Chairman unit
CCSE-CML CCS700 Conference Chairman
unit
www.boschsecurity.com
uPriority button for chairman microphone.
uOptional chime tone facility preceding chairman
announcements.
uModern, unobtrusive styling to match the CCSE-DL
Delegate Units.
uMicrophone with flexible stem and light ring.
uTwo headphone sockets.
The CCS700 Ultro Discussion System is a suitable for
use in meetings and conference venues with a limited
number of participants.
The CCSE-CML Chairman Units are equipped with
enhanced functionality that enables the user to take
the role of chairman in a conference or meeting. The
unit has a fixed microphone with flexible stem.
Headphone sockets can be used to listen to the
discussion in situations with excessive background
noise.
System overview
Priority button for chairman microphone
In addition to the ‘microphone on’ button the
chairman units feature a ‘chairman priority’ button.
When pressed the priority button causes all currently
active delegate microphones to be permanently
muted.
Optional chime tone facility for preceding chairman
announcements
A sliding switch is available on the rear of CCSE-CU
which can be used to activate the chime tone to
precede chairman priority calls.
Built‑in loudspeaker
Loudspeaker volume is set centrally at the Control
Unit for all delegate units. To prevent acoustic
feedback, the built-in loudspeaker is automatically
muted when the microphone is on.
Two headphone sockets
Two 3.5 mm (0.14 in) stereo headphone sockets
(wired for mono) allow two pairs of headphones to be
connected so two delegates can simultaneously use
the unit.
Built‑in volume control for headphones
The headphone volume level can be adjusted by means
of a thumbwheel on the unit for maximum comfort.
Controls and Indicators
• Microphone on/off button.
• Chairman priority button.
• Rotary volume control for adjusting headphone
volume.
• Loudspeaker, automatically muted when microphone
is on.
• Microphone ‘on’ indicator (red LED).
• Light ring indicator on microphone stem, lights up red
when microphone is on.

Interconnections
• 1 x 2.7 m (106.3 in) cable terminated with a 8-pin
male connector for loop-through connection to other.
• 1 x 8-pin circular female connector for loop-through
connection to other delegate or chairman units.
• 2 x 3.5 mm (0.14 in) stereo headphone sockets.
Parts included
Quantity Components
1CCSE-CML CCS700 Conference Chairman unit
Technical specifications
Electrical
Nominal Acoustic Input 85dB SPL
Frequency Response 400Hz to 10kHz
Mechanical
Dimensions (without
microphone) (H x W x D)
54x136x138mm
Length of the microphone from
the base of the stem
488mm
Weight 1.2 kg
Mounting Tabletop
Color Charcoal
Environmental
Operating temperature -5ºC to +45ºC
Storage temperature -40ºC to +70ºC
Ordering information
CCSE-CML CCS700 Conference Chairman unit
Order number CCSE-CML
2 | CCSE-CML CCS700 Conference Chairman unit
Represented by:
Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[email protected]
www.boschsecurity.us
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[email protected]
www.boschsecurity.com
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[email protected]
www.boschsecurity.asia
Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn
Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2015 | Data subject to change without notice
18097321995 | en, V1, 09. Jan 2015

Communications Systems | CCSE-CU CCS700 Conference Control unit
CCSE-CU CCS700 Conference Control unit
www.boschsecurity.com
uBetter discussion control
uControls up to 50 Discussion units
u3-Band equaliser for better sound performance
uAudio interfaces for connecting external audio
equipments
The CCS700 Ultro Discussion System is suitable for
use in meetings and conference venues with a limited
number of participants.
The Control Unit (CU) is the heart of the CCS700 Ultro
Discussion System and supplies the power for all
delegate and chairman units in the system. The unit
also controls the chairman and delegate unit
microphones, as well as providing interfaces for
external audio equipment. The CCS700 discussion
system is a plug and play solution for the audio
conference requirements.
Functions
Discussion control
The CCSE-CU(CU) supports almost any kind of small
or medium meeting. For business discussions and
small conferences, two to six microphones can be
active simultaneously, with the chairman always having
speaker priority.The active microphone selection knob
on the rear panel can be used to select the number of
active participants. Unused microphones are switched
off automatically after 65 seconds if delegates forget
to switch off their units.
Supplies power for up to 50 Discussion units
The CU has two trunk outputs for the loop through
connection of discussion units. It is possible to
connect a maximum of 25 discussion units to each
trunk output in open loop configuration.Maximum
trunk length supported by CU is 100m in open loop
configuration. For closed loop configuration with 50
discussion units the loop length can be extended upto
200meter. A maximum of 50 discussion units can be
connected to a CU.
Better sound
The conference controller has a 3-band equaliser for
tuning sound output of the system.This helps in
quickly tuning the system to compliment the hall
acoustics at different venues.This ensures optimum
performance at all times.
Audio Interfaces
The CU can be interfaced with different type of
devices like external audio recorder,sound
reinforcement system,external microphones and
external music player.The headphone output on the
front of the CU can be used by a secretary for taking
the minutes of the meeting, the headphone output
also has a volume control knob to adjust the volume of
the headphone.
To support external participants (during town-council
meetings, for example), extra microphones in any style
(wired, wireless, handheld or podium) can be
connected to the system through mic inputs.

Controls and Indicators
• Equaliser comprising of knobs at 250Hz, 2kHz and
8kHz
• Volume control for Mic 1 input
• Volume control for Mic 2 / Aux input
• Headphone input and volume control
• Master volume control
• Sliding switch for Equaliser On/Off
• Sliding switch to enable or disable the priority tone
for chairman units
• Number of Active microphone control knob
Interconnections
• Trunk input and output 8-pin DIN connectors for loop
through connection
• Microphone input with XLR connector
• Configurable Mic or Aux input with 6.5mm phono jack
• Cinch connectors for connecting to external PA
system and recorder
• Earth connection screw
• Mains socket
Certifications and approvals
Safety acc. to EN 60065
EMC emission acc. to EN 55103-1
EMC immunity acc. to EN 55103-2
Parts included
Quantity Components
1 CCSE-CU CCS700 Conference Control unit
1 Installation and operation manual
1 Power cord
Technical specifications
Electrical
Mains voltage 230VAC,50 Hz (±10%)
DC voltage supply to contribution
units
24V ± 1V DC
THD at rated output <1%
SNR >-50dB at rated output
(unweighted filter)
Inputs
Mic input sensitivity 1 mV (+1/-3dB)
Aux input sensitivity 100mV (+1/-3dB)
Frequency response 200 Hz to 12 kHz
Input Impedance 4.7 kohm
Equaliser
Center frequencies of filters 250Hz,2kHz and 8kHz
Filter bandwidth 1 octave
Boost/Cut at center frequencies +6dB to -6dB
Equaliser transfer gain ±1dB
PA Output
Rated output Impedance 100 ohm
SNR >-50dB at rated output
(unweighted filter)
REC out
Rated output Impedance 1 kohm
SNR >-50dB at rated output
(unweighted filter)
Mechanical
Dimensions (H x W x D) 88mm x 361mm x 252mm
Weight 5.5 kg
Color Charcoal(RAL 10736) and Grey
(for rear cover)
Environmental
Operating temperature -5ºC to 45ºC
Storage temperature -40ºC to +70ºC
Ordering information
CCSE-CU CCS700 Conference Control unit
Order number CCSE-DL
Accessories
CCSE-CA10 CCS700 Extension cable assembly 10m
Order number CCSE-CA10
2 | CCSE-CU CCS700 Conference Control unit

3 | CCSE-CU CCS700 Conference Control unit
Represented by:
Americas: Europe, Middle East, Africa: Asia-Pacific: China: America Latina:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: [phone]
Fax: [phone]
[email protected]
www.boschsecurity.us
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: [phone]
[email protected]
www.boschsecurity.com
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: [phone]
Fax: [phone]
[email protected]
www.boschsecurity.asia
Bosch (Shanghai) Security Systems Ltd.
201 Building, No. 333 Fuquan Road
North IBP
Changning District, Shanghai
200335 China
Phone [phone]
Fax: [phone]
www.boschsecurity.com.cn
Robert Bosch Ltda Security Systems Division
Via Anhanguera, Km 98
CEP 13065-900
Campinas, Sao Paulo, Brazil
Phone: [phone]
Fax: [phone]
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2015 | Data subject to change without notice
18097411083 | en, V1, 09. Jan 2015
