16 | English
2 609 140 621 | (18.7.11) Bosch Power Tools
Österreich
Tel.: [phone]
Fax: [phone]
E-Mail: service.elektrowe[email protected]osch.com
Schweiz
Tel.: [phone]
Fax: [phone]
Luxemburg
Tel.: [phone]
Fax: [phone]
E-Mail: [e-mail]
Entsorgung
Messwerkzeuge, Zubehör und Verpackungen sollen einer umweltgerechten Wie-
derverwertung zugeführt werden.
Werfen Sie Messwerkzeuge und Akkus/Batterien nicht in den Hausmüll!
Nur für EU-Länder:
Gemäß der europäischen Richtlinie 2002/96/EG müssen
nicht mehr gebrauchsfähige Messwerkzeuge und gemäß der
europäischen Richtlinie 2006/66/EG müssen defekte oder
verbrauchte Akkus/Batterien getrennt gesammelt und einer
umweltgerechten Wiederverwendung zugeführt werden.
Nicht mehr gebrauchsfähige Akkus/Batterien können direkt abgegeben werden
bei:
Deutschland
Recyclingzentrum Elektrowerkzeuge
Osteroder Landstraße 3
37589 Kalefeld
Schweiz
Batrec AG
3752 Wimmis BE
Änderungen vorbehalten.
English
Safety Notes
Workingsafelywiththemeasuringtoolispossibleonlywhen
the operating and safety information are read completely
and the instructions contained therein are strictly followed.
Never make warning labels on the measuring tool unrecog-
nisable. SAVE THESE INSTRUCTIONS.
fCaution – The use of other operating or adjusting equipment or the appli-
cation of other processing methods than those mentioned here, can lead
to dangerous radiation exposure.
OBJ_DOKU-27449-001.fm Page 16 Monday, July 18, 2011 10:31 AM

English | 17
Bosch Power Tools 2 609 140 621 | (18.7.11)
fThe measuring tool is delivered with a warning label in German language
(marked with the number 13 in the representation of the measuring tool
on the graphic page).
fBefore putting into operation for the first time, attach the supplied stick-
er in your national language over the German text on the warning label.
fDo not direct the laser beam at persons or animals and do not stare into
the laser beam yourself. This measuring tool produces laser class 2 laser ra-
diation according to IEC 60825-1. This can lead to persons being blinded.
fDo not use the laser viewing glasses as safety goggles. The laser viewing
glasses are used for improved visualisation of the laser beam, but they do not
protect against laser radiation.
fDo not use the laser viewing glasses as sun glasses or in traffic. The laser
viewing glasses do not afford complete UV protection and reduce colour per-
ception.
fHave the measuring tool repaired only through qualified specialists us-
ing original spare parts. This ensures that the safety of the measuring tool is
maintained.
fDo not allow children to use the laser measuring tool without supervi-
sion. They could unintentionally blind other persons or themselves.
fDo not operate the measuring tool in explosive environments, such as in
the presence of flammable liquids, gases or dusts. Sparks can be created
in the measuring tool which may ignite the dust or fumes.
Product Description and Specifications
Intended Use
The measuring tool is intended for measuring distances, lengths, heights, clear-
ances, and for the calculation of areas and volumes. The measuring tool is suita-
ble for measuring indoors and outdoors.

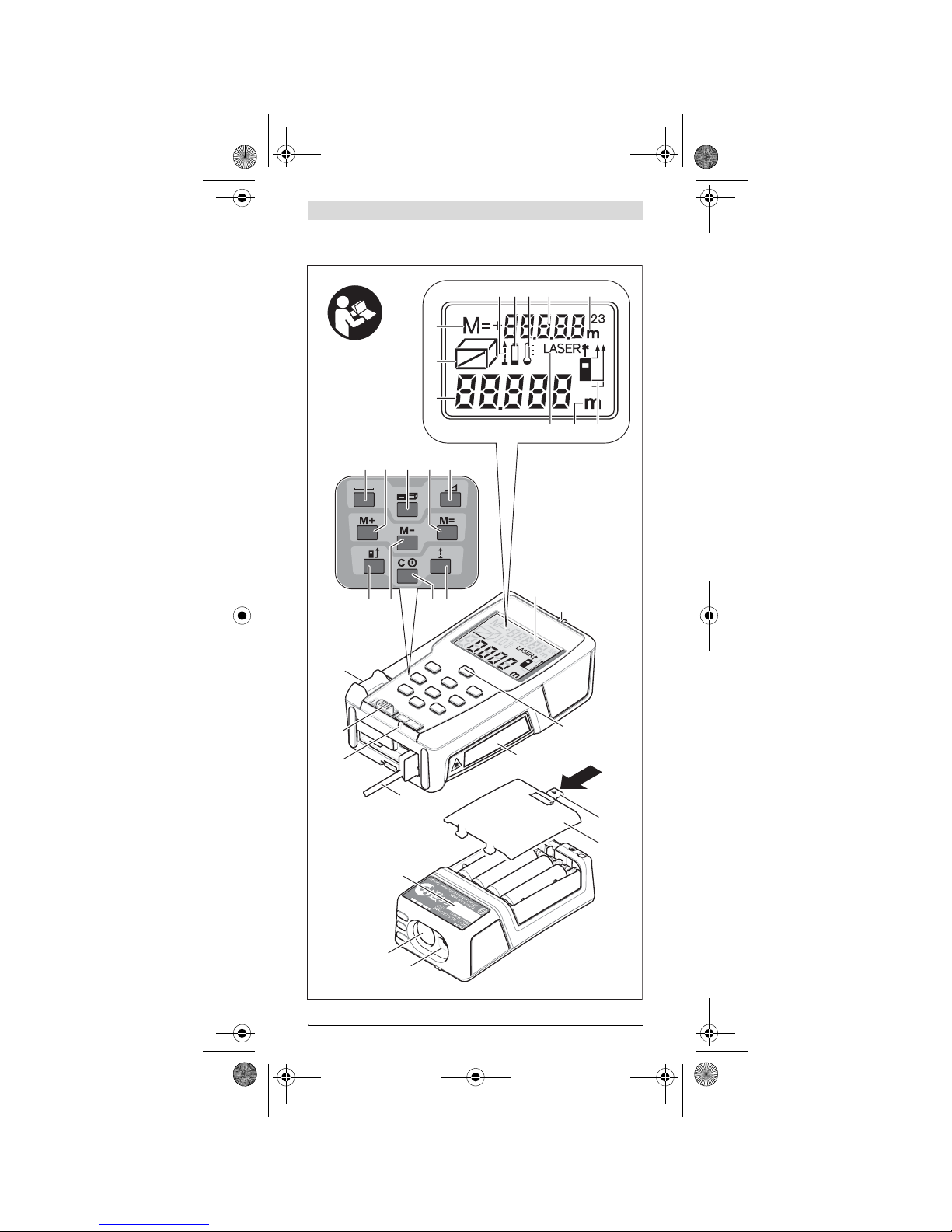

Product Features
The numbering of the product features shown refers to the illustration of the
measuring tool on the graphic page.
1Length measurement button
2Memory add button “M+”
3Button for area and volume measurement
4Memory retrieve button “M=”
5Button for indirect length measurement
6Tracking (continuous measurement) button
7On/Off and memory delete button
8Memory subtraction button “M–”
9Button for selection of the reference level
10 Display
11 Alignment aid
12 Measuring button
13 Laser warning label
OBJ_DOKU-27449-001.fm Page 17 Monday, July 18, 2011 10:31 AM

18 | English
2 609 140 621 | (18.7.11) Bosch Power Tools
14 Positioning pin
15 Latch of the positioning pin
16 Spirit level
17 Latch of battery lid
18 Battery lid
19 Laser beam outlet
20 Reception lens
21 Serial number
22 Laser viewing glasses*
23 Carrying strap
24 Laser target plate*
25 Protective pouch
* The accessories illustrated or described are not included as standard delivery.

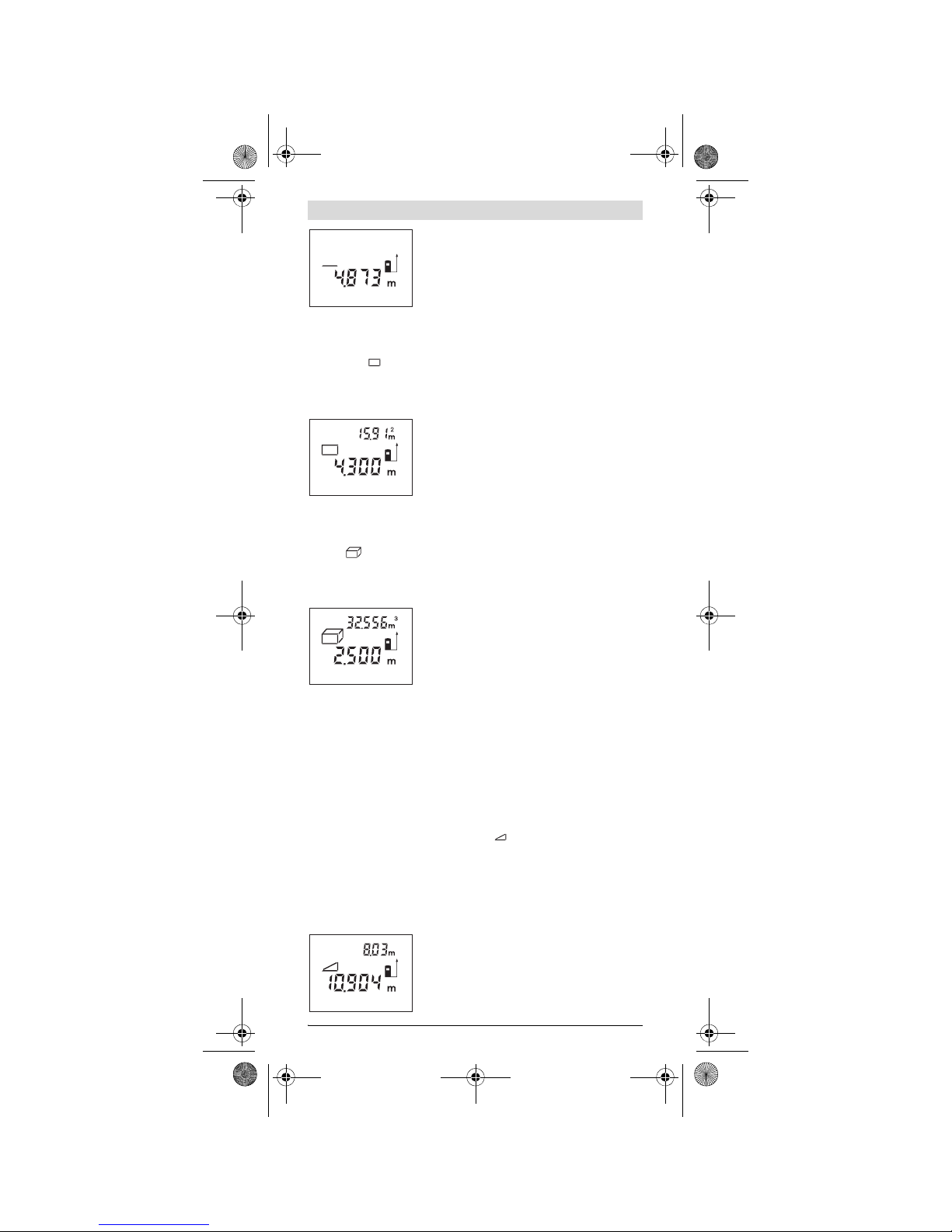

Display Elements
aVariable measuring functions
Length measurement
Continuous measurement
Area measurement
Volume measurement
Indirect length measurement
bBattery low indicator
cTemperature warning
dMeasured value/result
eUnit of measure
fMeasurement reference level
gLaser switched on
hIndividual measured value (for length measurement: result)
iMeasured values stored
Technical Data
Digital Laser Rangefinder PLR 50
Article number 3 603 K16 300
Measuring range 0.05–50mA)
Measuring accuracy (typically) ±2.0 mmB)
Lowest indication unit 1mm
Operating temperature – 10 °C ... +50 °CC)
Storage temperature – 20 °C ... +70 °C
Relative air humidity, max. 90 %
Laser class 2
Laser type 635 nm, <1 mW
Laser beam diameter (at 25 °C) and at 10 m dis-
tance, approx. 6mm
Batteries
Rechargeable batteries
4 x 1.5 V LR03 (AAA)
4 x 1.2 V HR03 (AAA)
Battery live, approximately
– Individual measurements
– Continuous measurement
30000D)
5hD)
Weight according to EPTA-Procedure 01/2003 0.18 kg
OBJ_DOKU-27449-001.fm Page 18 Monday, July 18, 2011 10:31 AM

English | 19
Bosch Power Tools 2 609 140 621 | (18.7.11)
Assembly
Inserting/Replacing the Battery
Usingalkali-manganeseorrechargeablebatteriesis recommended foroperation
of the measuring tool.
Less measurements are possible when using 1.2 V rechargeable batteries than
with 1.5 V batteries.
To open the battery lid 18, press the latch 17 in the direction of the arrow and
remove the battery lid. Insert the batteries/rechargeable batteries. When insert-
ing, pay attention to the correct polarity according to the representation on the
inside of the battery compartment.
When the battery symbol appears for the first time on the display, at least
100 measurements are still possible. When the battery symbol flashes, the bat-
teries/rechargeable batteries must be replaced; measurements are no longer
possible.
Always replace all batteries/rechargeable batteries at the same time. Do not use
different brands or types of batteries/rechargeable batteries together.
fRemove the batteries/rechargeable batteries from the measuring tool
when not using it for longer periods. When storing for longer periods, the
batteries/rechargeable batteries can corrode and discharge themselves.
Operation
Initial Operation
fDo not leave the switched on measuring tool unattended and switch the
measuringtooloffafteruse.Other persons could be blinded by the laser beam.
fProtect the measuring tool against moisture and direct sun light.
fDonotsubjectthe measuring tool to extreme temperatures orvariations
in temperature. As an example, do not leave it in vehicles for longer periods.
In case of large variations in temperature, allow the measuring tool to adjust
to the ambient temperature before putting it into operation. In case of ex-
tremetemperaturesor variations in temperature, the accuracy of the measur-
ing tool can be impaired.
fAvoid heavy impact to or falling down of the measuring tool. After severe
exterior effects to the measuring tool, it is recommended to carry out an accu-
racy check (see “Accuracy Check of the Measuring Tool”, page 24) each time
before continuing to work.
Dimensions 58 x 104 x 36 mm
Degree of protection (excluding battery com-
partment)
IP 54 (dust and splash water
protected)
A) The working range increases depending on how well the laser light is reflected from the sur-
face of the target (scattered, not reflective) and with increased brightness of the laser point to
the ambient light intensity (interior spaces, twilight). In unfavourable conditions (e.g. when
measuring outdoors at intense sunlight), it may be necessary to use the target plate.
B) In unfavourable conditions (e.g. at intense sunlight or an insufficiently reflecting surface),
the maximum deviation is ±10mm per 50 m. In favourable conditions, adeviation influence
of ±0.05 mm/m must be taken into account.
C) In the continuous measurement function, the maximum operating temperature is +40 °C.
D) Less measurements are possible when using 1.2 V rechargeable batteries than with 1.5 V
batteries.
Please observe the article number on the type plate of your measuring tool. The trade names
of the individual measuring tools may vary.
The measuring tool can be clearly identified with the serial number 21 on the type plate.
Digital Laser Rangefinder PLR 50
OBJ_DOKU-27449-001.fm Page 19 Monday, July 18, 2011 10:31 AM

20 | English
2 609 140 621 | (18.7.11) Bosch Power Tools
Switching On and Off
To switch on the measuring tool, briefly press the On/Off button 7or measuring
button12.When switchingon themeasuringtool,thelaserbeamis notswitched
on yet.
To switch off the measuring tool, press the On/Off button 7for a few seconds.
If none of the measuring tool buttons are pressed for approx. 5 minutes, the
measuring tool switches off automatically in order to extend the service life of
the battery.
When a measured value has been stored, it is retained in automatic switch-off
mode. When switching on the measuring tool again, “M” is indicated in the dis-
play.
Measuring Procedure
Afterswitchingon, themeasuringtool isinthelength measurementmode.Other
measuring modes can be switched to by pressing the respective function/mode
button (see “Measuring Functions”, page 20).
After switching on, the rear edge of the measuring tool is preset as the reference
level for the measurement. To change the reference level, see “Selecting the Ref-
erence Level”, page 20.
Upon selection of the measuring function and the reference level, all further
steps are carried out by pushing the measuring button 12.
With the reference level selected, place the measuring tool against the desired
measuring line (e.g. a wall).
Push the measuring button 12 to switch on the laser beam.
fDonotpointthelaser beam at personsoranimalsanddonot look into the
laser beam yourself, not even from a large distance.
Aim the laser beam at the targetsurface. Push the measuring button 12 again to
initiate the measurement.
In the tracking function, the measurement already starts upon first actuation of
the measuring button 12.
Typically, the measured value appears after 0.5 and latest after 4 seconds. The
duration of the measurement depends on the distance, the light conditions and
the reflection properties of the target surface. The end of the measurement is in-
dicated by a signal tone. The laser beam is switched off automatically upon com-
pletion of the measurement.
When no measurement has taken place approx. 20 seconds after sighting, the
laser beam is switched off automatically to save the batteries.
Selecting the Reference Level (see figures A–C)
For measuring, you can select between three different reference levels:
– The rear measuring-tool edge (e.g. when measuring onward from a wall),
– The rear positioning-pin edge 14 (e.g. when measuring from a corner),
– The front measuring-tool edge (e.g. when measuring onward from a table
edge).
To change the reference level, press button 9until the requested reference level
is indicated on the display. Each time after switching on the measuring tool, the
rear end of the measuring tool is preset as the reference level.
Measuring Functions
Length Measurement
For length measurement, push button1. The indicator for length measurement
appears in the display .
OBJ_DOKU-27449-001.fm Page 20 Monday, July 18, 2011 10:31 AM

English | 21
Bosch Power Tools 2 609 140 621 | (18.7.11)
Push the measuring button 12 once for sighting and
once more to take the measurement.
The measured value is indicated at the bottom in the
display.
Area Measurement
For area/surface measurements, press button 3until the indicator for area
measurement appears on the display.
Afterwards, measure the length and the width, one after another, in the same
manner as a length measurement. The laser beam remains switched on between
both measurements.
After taking the second measurement, the area/sur-
face is automatically calculated and displayed. The
last individual measured value is indicated at the bot-
tom in the display, while the final result is shown at
the top.
Volume Measurement
For volume measurements, press button 3until the indicator for volume meas-
urement appears on the display.
Afterwards, measure the length, width and the height, one after another, in the
same manner as for a length measurement. The laser beam remains switched on
between all three measurements.
After taking the third measurement, the volume is au-
tomatically calculated and displayed. The last individ-
ual measured value is indicated at the bottom in the
display, while the final result is shown at the top.
Indirect Length Measurement (see figure D)
The indirect length measurement is used to measure distances that cannot be
measured directly because an obstacle would obstruct the laser beam or no tar-
get surface is available as a reflector. Correct results are achieved only when the
laser beam and the sought distance form an exact right angle (Pythagorean The-
orem).
In the illustrated example, the length Bis to be determined. For this purpose, A
and Cmust be measured. Aand Bmust form a right angle.
For indirect length measurements, press button 5. The indicator for indirect
length measurement appears on the display .
Measure the distance Aas for a length measurement. Pay attention that the line
segement Aand the sought distance Bform a right angle. Afterwards, measure
the distance C. The laser beam remains switched on between both measure-
ments.
Payattentionthat thereferencepoint ofthemeasurement (e.g.,the rear edge of
the measuring tool) is at the exact same location for both measurements.
After completing the second measurement, the dis-
tance Bis calculated automatically. The last individu-
al measured value is indicated at the bottom in the
display, while the final result Bis indicated at the top.
OBJ_DOKU-27449-001.fm Page 21 Monday, July 18, 2011 10:31 AM

22 | English
2 609 140 621 | (18.7.11) Bosch Power Tools
Continuous Measurement (Tracking) (see figure E)
For continuous measurements, the measuring tool can be moved relative to the
target, whereby the measuring value is updated approx. every 0.5 seconds. In
this manner, as an example, you can move a certain distance away from a wall,
while the actual distance can always be read.
For continuous measurements, push button 6. The indicator for continuous
measurement (tracking) appears in the display .
Press the measuring button 12to initiate the measur-
ing procedure. Move the measuring tool until the re-
quireddistancevalueis indicatedatthe bottomofthe
display.
Pushing the measuring button 12 interrupts the con-
tinuous measurement. The current measured value is
indicated in the display. Repeated pushing of the measuring button 12 starts the
continuous measuring again.
Continuous measurement automatically switches off after 5 min. The last meas-
ured value remains indicated on the display. To cancel continuous measure-
ment, you can change the measuring function by pressing button 1, 3or 5.
Deleting Measured Values
Briefly pressing button 7deletes the last individual measuring value determined
in all measuring functions. Briefly pressing the button repeatedly deletes the in-
dividual measured values in reverse order.
Memory Functions
When switching off the measuring tool, the value in the memory is retained.
Storing/Adding Measured Values
Push the memory add button 2in order to store the
current measured value – a length, area or volume
value, depending on the current measuring function.
As soon as a value has been stored, “M” is indicated
in the display and the “+” behind it briefly flashes.
If a value is already stored in the memory, the new value is added to the memory
contents, however, only when the measures of unit correspond.
As an example, when an area value is in the memory and the current measured
value is a volume value, the addition cannot take place. “Error” briefly flashes in
the display.
Subtracting Measured Values
Pushthememorysubtractionbutton 8inordertosubtractthe current measured
value from the memory value. As soon as a value has been subtracted, “M” is in-
dicated in the display and the “–” behind it briefly flashes.
If a value is already stored in the memory, the new measured value can be sub-
tracted only when the measures of unit correspond (see “Storing/Adding Meas-
ured Values”).
Displaying the Stored Value
Pushthememory retrievebutton4in ordertodisplay
the value stored in the memory. “M=” is indicated in
the display. When the memory contents “M=” is indi-
cated in the display, it can be doubled by pushing the
memory add button 2or set to zero by pushing the
memory subtract button 8.
OBJ_DOKU-27449-001.fm Page 22 Monday, July 18, 2011 10:31 AM

English | 23
Bosch Power Tools 2 609 140 621 | (18.7.11)
Deleting the Memory
To delete the memory contents, first push the memory retrieve button 4, so that
“M=” is indicated in the display. Then briefly press button 7; “M” is no longer in-
dicated in the display.
Working Advice
General Information
The reception lens 20 and the laser beam outlet 19 must not be covered when
taking a measurement.
The measuring tool must not be moved while taking a measurement (with the ex-
ception of the continuous measurement function). Therefore, place the measur-
ing tool, as far as this is possible, against or on the measuring points.
Measurement takes place at the centre of the laser beam, even when target sur-
faces are sighted at an incline.
Influence Effects on the Measuring Range
The measuring range depends upon the light conditions and the reflection prop-
erties of the target surface. For improved visibility of the laser beam when work-
ing outdoors and when the sunlight is intense, use the laser viewing glasses 22
(accessory) and the laser target plate 24 (accessory),orshadeoff thetargetsur-
face.
Influence Effects on the Measuring Result
Due to physical effects, faulty measurements cannot be excluded when measur-
ing on different surfaces. Included here are:
– Transparent surfaces (e.g., glass, water),
– Reflecting surfaces (e.g., polished metal, glass),
– Porous surfaces (e.g. insulation materials),
– Structured surfaces (e.g., roughcast, natural stone).
If required, use the laser target plate 24 (accessory) on these surfaces.
Also, air layers with varying temperatures or indirectly received reflections can
affect the measured value.
Measuring with the Positioning Pin (see figures B and F)
The positioning pin 14 is suitable for measuring out of corners (diagonal within a
space) or from hard to reach areas, such as from roller-shutter rails.
Slide the latch 15 of the positioning pin sideward in order to swivel out the pin.
Set thecorresponding referencelevelformeasurements with the positioningpin
by pushing button 9.
The positioning pin 14 swivels back in again by pushing it toward the housing to
the stop. The pin automatically locks in place.
Aligning with the Spirit Level
The spirit level 16 allows for simple levelling of the measuring tool. This allows
for easier sighting of target surfaces, especially over longer distances.
In combination with the laserbeam, thespiritlevel16is not suitable for levelling.
Sighting with the Alingment Aid (see figure G)
With the alignment aid 11, sighting over larger distances is a lot easier. For this,
look alongside the aligning aid on the top side of the measuring tool. The laser
beam runs parallel to this line of sight.
OBJ_DOKU-27449-001.fm Page 23 Monday, July 18, 2011 10:31 AM

24 | English
2 609 140 621 | (18.7.11) Bosch Power Tools
Troubleshooting –Causes and Corrective Measures
The measuring tool monitors the correct function for each
measurement. When a defect is determined, only the symbol
shown aside flashes in the display. In this case, or when the
above mentioned corrective measures cannot correct an er-
ror, have the measuring tool checked by an after-sales service
agent for Bosch power tools.
Accuracy Check of the Measuring Tool
The accuracy of the measuring tool can be checked as follows:
– Select a permanently unchangeable measuring section with a length of ap-
prox. 3 to 10 metres; its length must be precisely known (e.g. the width of a
room or a door opening). The measuring distance must be indoors; the target
surface for the measurement must be smooth and reflect well.
– Measure the distance 10 times after another.
Cause Corrective Measure
Temperature warning indicator (c) flashing; measurement not possible
The measuring tool is outside the oper-
ating temperature range from – 10 °C
to + 50 °C (in the function continuous
measurement up to +40 °C).
Wait until the measuring tool has
reached the operating temperature
Battery low indicator (b) appears
Battery voltage decreasing (measure-
ment still possible)
Replace batteries/rechargeable bat-
teries
Battery low indicator (b) flashing; measurement not possible
Battery voltage too low Replace batteries/rechargeable bat-
teries
“Error”and“––––”indicationindisplay
The angle between the laser beam and
the target is too acute.
Enlarge the angle between the laser
beam and the target
The target surface reflects too intense-
ly (e.g. a mirror) or insufficiently (e.g.
blackfabric),ortheambientlightis too
bright.
Work with the laser target plate 24 (ac-
cessory)
The laser beam outlet 19 or the recep-
tion lens 20 are misted up (e.g. due to
a rapid temperature change).
Wipe the laser beam outlet 19 and/or
the reception lens 20 dry using a soft
cloth
Calculated value is greater than
99999 m/m2/m3.
Divide calculation into intermediate
steps
“Error” indication flashes at in display (top)
Addition/Subtraction of measured val-
ues with different units of measure
Only add/subtract measured values
with the same units of measure
Unreliable measuring result
The target surface does not reflect cor-
rectly (e.g. water, glass).
Cover off the target surface
The laser beam outlet 19 or the recep-
tion lens 20 are covered.
Make sure that the laser beam outlet
19 or the reception lens 20 are unob-
structed
Measuring result not plausible
Wrong reference level set Select reference level that corre-
sponds to measurement
Obstruction in path of laser beam Laser point must be completely on tar-
get surface.
OBJ_DOKU-27449-001.fm Page 24 Monday, July 18, 2011 10:31 AM

English | 25
Bosch Power Tools 2 609 140 621 | (18.7.11)
The deviation of the individual measurements from the mean value must not ex-
ceed ±3 mm (max.). Log the measurements, so that you can compare their ac-
curacy at a later point of time.
Maintenance and Service
Maintenance and Cleaning
Store and transport the measuring tool only in the supplied protective pouch.
Keep the measuring tool clean at all times.
Do not immerse the measuring tool in water or other fluids.
Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or
solvents.
Maintain the reception lens 20 in particular, with the same care as required for
eye glasses or the lens of a camera.
If the measuring tool should fail despite the care taken in manufacturing and test-
ing procedures, repair shouldbe carried out by an authorised after-sales service
centre for Bosch power tools. Do not open the measuring tool yourself.
In all correspondence and spare parts orders, please always include the 10-digit
article number given on the type plate of the measuring tool.
In case of repairs, send in the measuring tool packed in its protective pouch 25.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concerning maintenance and
repair of your product as well as spare parts. Exploded views and information on
spare parts can also be found under:
www.bosch-pt.com
Our customer service representatives can answer your questions concerning
possible applications and adjustment of products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: [phone]
Fax: [phone]
E-Mail: [email protected]
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: [phone]
Fax: [phone]
OBJ_DOKU-27449-001.fm Page 25 Monday, July 18, 2011 10:31 AM

26 | English
2 609 140 621 | (18.7.11) Bosch Power Tools
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: [phone]
Fax: [phone]
Inside New Zealand:
Phone: [phone]
Fax: [phone]
Outside AU and NZ:
Phone: [phone]
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: [phone]
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Bosch Headquarters
Midrand, Gauteng
Tel.: [phone]
Fax: [phone]
E-Mail: rbsa-hq.pt[email protected]
Disposal
Measuring tools, accessories and packagingshould be sorted for environmental-
friendly recycling.
Do not dispose of measuring tools and batteries/rechargeable batteries into
household waste!
Only for EC countries:
AccordingtotheEuropean Guideline2002/96/EC,measuring
tools that are no longer usable, and according to the European
Guideline 2006/66/EC, defective or used battery packs/bat-
teries, must be collected separately and disposed of in an en-
vironmentally correct manner.
OBJ_DOKU-27449-001.fm Page 26 Monday, July 18, 2011 10:31 AM
