Boyo VTK601HD User manual

BOYO ®
~
Reor View Camero
USER'S MANUAL
MODEL: VTK601HD
6 IN 1 CAMERA SYSTEM
1. BILL OF MATERIAL
HD CAMERA
FLUSH MOUNT
VIDEO /POWER CABLE
METAL ANGLE MOU NT
...
~~ fit
., .. :1 I~?
.. 0 0
24 ft RCA VIDEO CABLE SQUARE BRACKET MOUNT
RUBBER ANGLE MOU NT UCENSE PLATE MOUNT
I I I
3M MOUNTINGTAPE MeUNTINGHARDWARE HOLE SAW FOR FLUSH MOUNT CAMERA ADJUSTTOOLS SUPER SLIMBAR TYPE MOUNT
2. SPECIFICATIONS
1/3" HD Color CMOS Image Sensor (1058)
976 (H) x 592 (V) Resoluti on
700 TV Lines
0.1 LUX Minimum Illumination
170 Degree Viewing Angle (D)
12VDC~16VDC Power Source
I P68 Waterproof Rating
Selectable Reverse or Non-Rerverse Image
Selectable On/Off Fixed Parking Guidelines
Ball Mount camera with 6ft (1.8m) Camera Cable
Metal Square Bracket Mount
Metal Flush Mount
Metal Angle Mount
RubberAngle Mount
Concealed License Plate Mount
Super Slim Bar Type Mount
24ft (7 .2m) RCA Video Cable with tr i gge r wi re
0. 984 " (25mm) Hole Saw for Flush Mount
3M Brand Mounting Tape for Mounts
WWW. VISIONTECHAMERICA . COM 1

BOYO ®
<Ill"'
Real ViewCa mero

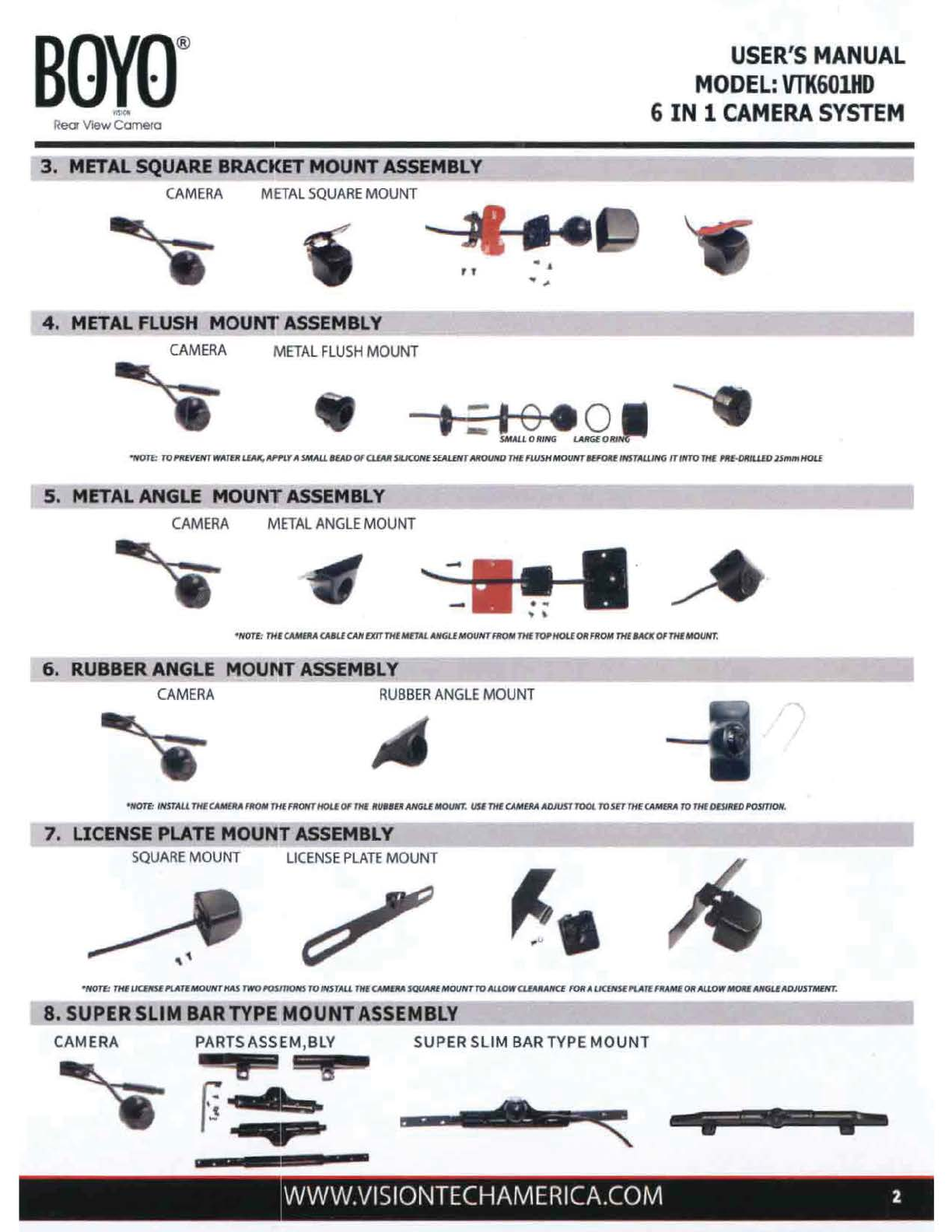

3. METAL SQUARE BRACKET MOUNTASSEMBLY
CAMERA METAL SQUARE MOUNT
4. METAL FLUSH MOUNT ASSEMBLY
CAMERA
METAL FLUSH MOUNT
USER 'S MANUAL
MODEL: VTK601HD
6 IN 1 CAMERA SYSTEM
·= 1Vl'!IEVENTWATQ WI(, Al'f'LYA SMALL BEADOFCUAII SIIJCONE SEAJ.ENTAltOIJND THEIWSHMOUNTIHOIIEINSTALUNG (TINTO THE MU>RJU.EO wnmHOU
5. METAL ANGLE MOUNTASSEMBLY
CAMERA METAL ANGLE MOUNT
'NOTL THlCAMIJIAC.UUCANf/UTTHEME1ALANGUMOt/NTRIOMJHE1WHOU0'1111.0MTHEMCJCOl'THlMOU"1,
6. RUBBER ANGLE MOUNT ASSEMBLY
CAMERA RUBBER ANG LE MOUNT
•Nan: INSTAU THE CAMlM IIIOM THE FROHT HOU Ol l'HI 11.1/tllll ANGU MOUNT. I/SI THE CAMEIIA AD.JUST rooc. ro SET THE CAM[RA ro TH~ OUJ/lfD POSITION .
7. UCENSE PLATE MOUNT ASSEMBLY
SQUARE MOUNT
LICENSE PLATE MOUNT
'NOTf.: THI IICLNSf l'lATli MOUNTHASTWOl'OSITIONS!'ti IHSTALL l'HICAMIAA fOUAIIIMOUNTTOAUDWCLIAIIANCE IOR A UCENSll'I.Alt RIAME Oll Al.I.OW MOoVMtJUADJUSTMtNT .
8. SUPER SLIM BAR TYPE MOUNT ASSEMBLY
CAM E RA PA RT SASSEM,B LY S UPER SLIM BAR TY PE MOU NT
a
r
t
..
rt
• I
WWW . VISIONTECHAMERICA.COM 2

BOYO ®
Ill,,
Reor View Camero
8. WIRING (POWER AND RCA CONNECTORS)
USER'S MANUAL
MODEL: VTK601HD
6 IN 1 CAMERA SYSTEM
A) RED WIRE CONNECTS TO ( +) POWER SOURCE (Example • Reverse Light Wire +when in reverse gear, Ignition On Switch +)
B) BLACK/R ED WI RE CONNECTS TO CHASSIS GROUND (NOT t he oth er wire at rev e rse ligh t)
C) YELLOW RCA VID EO CABLE CONNECTOR PLUGS INTO CAMERA CABLE YELLOW RCA CONNECTOR AT THE CAMERA SIDE
D) ( OPTIONAL ) 4" R ED WIRE ON YELLOW RCA CABLE CONNECTS TO REVERSE LIGHT WIRE + (CAMERA SID E)
E) ( OPTIONAL ) 4" RED WIRE ON YELLOW RCA CABLE CONNECTS TO REVERSE TRIGGER INPUT (MONITOR SIDE)
F) YEU.OW RCA VIDEO CABLE CONNECTOR PLUGS INTO CAMERA lNPUT AT THE MONITOR SIDE
A&B
C &F
D&E
I
9. WIRE LOOPS (BLUE AND WHITE)
-----------~-------
A) BLUE LOOP CUT = NO PARKING GUIDELINES
B) BL UE LOOP NOT CUT = PARKING GUIDELINES
C) WHITE LOOP CUT = NON-REVERSE IMAGE
D) WHITE LOOP NOT C UT= REVERSE IMAGE
ForTechnical Support, Call 888-941-3060 or Email [email protected]
WWW.VISIONTECHAMERICA.COM 3

REV08302013
