Boyo VTL17AI User manual

For technical support, call [phone] or email [email protected]om www.VisionTechAmerica.com
USER MANUAL
VTL17AI
Concealed License Plate Backup Camera
With Intelligent Pedestrian and Vehicle Detection and Warning

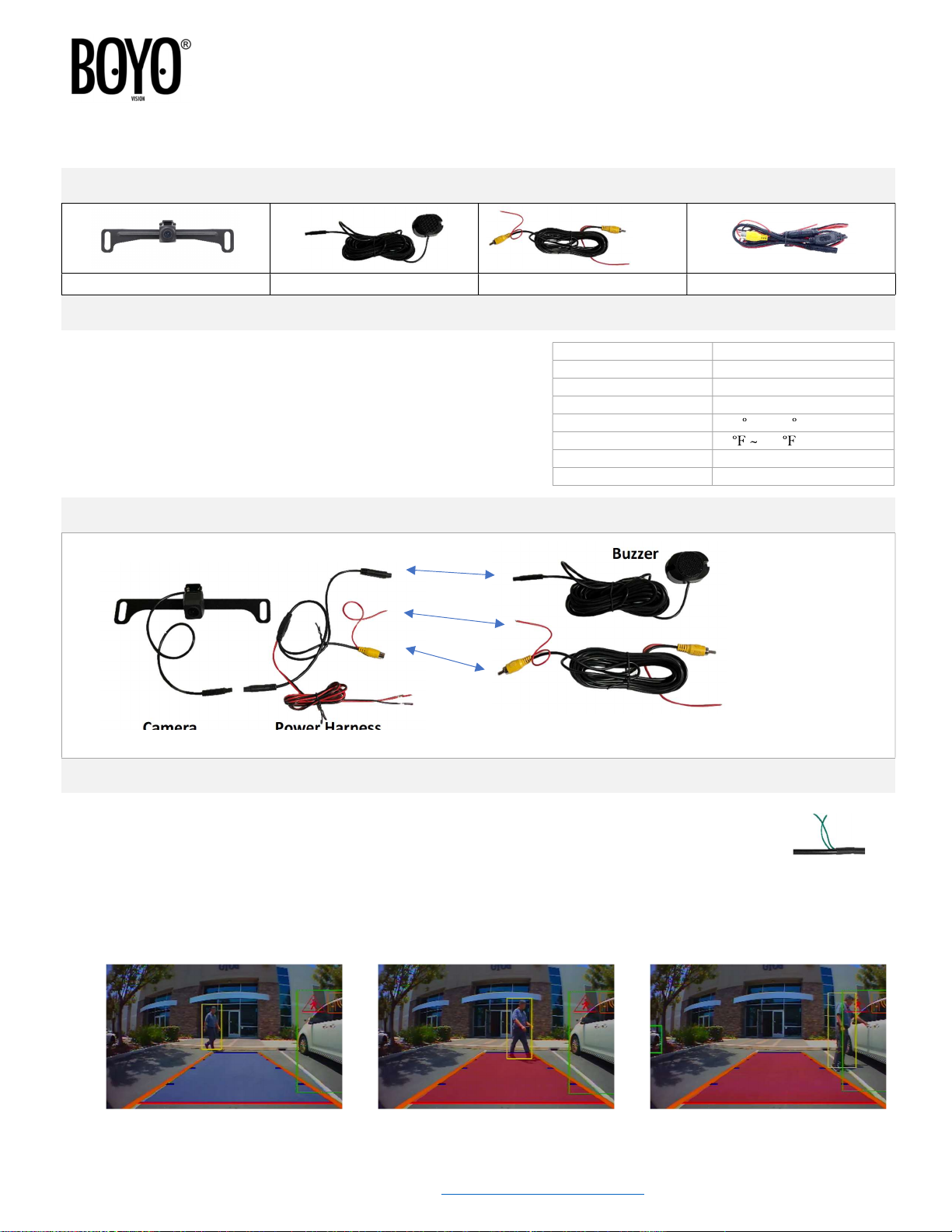

1. Part List
Camera
Buzzer
Video Extension
Power Harness
2. Features 3. Specification
Concealed license plate mount
ed camera
Intelligent object detection
Detects: pedestrians, vehicles (cars, trucks, motorcycles, …)
Audible warning buzzer when object is in warning area
High, low, and off - buzzer volume control
Buzzer, cables, and mounting screws included.
Images Sensor CVBS- 1/2.9” GC2053
TV System NTSC
Effective Pixels 976 (H) x 592 (V)
Minimum Illumination 0.1Lux
Viewing Angles 130 (H), 170 (D)
Operating Temperature -4 158
Operating Voltage 6V ~ 15V DC
Video Ext. / Buzzer Cable 24 feet
4. Wiring
Camera Power Harness
Buzzer
Video Extension
5. Pedestrian and Vehicle Detection Area Adjustment
 The green loop on the camera pigtail.
o If uncut, the AI detects all persons and vehicles in the camera view, no parking guidelines will
be displayed, and no alarm will occur.
o If cut, the alarm area will be shown, and alarm will sound when object(s) is in the alarm area. Alarm sound
can be turned off using the volume control on the speaker.
 The alarm area is shaded in BLUE. When an object is in the alarm area, the alarm area color changes to RED and
alarm sounds.
 To adjust the detection area, loosen the two screws next to the camera and tilt the camera up or down.
RED: Backup Light (+)
BLACK: Ground (Chassis)
RED wire: To Monitor
Reverse Trigger
RCA: To Monitor
Backup Camera
Volume Control: on
the speaker
Backup Camera
