Bristan smile Mounting instructions

Please keep this booklet for future reference.
Installer, when you have read these instructions
please ensure you leave them with the user.
Installation Instructions
and User Guide
Smile Electric Shower

2
2 3
Contents
Important Safety Information............................................ 3
Product Features...............................................................4
Electrical Requirements ...................................................5-6
Water Requirements .........................................................7
Fixing Your Shower to the Wall .........................................8

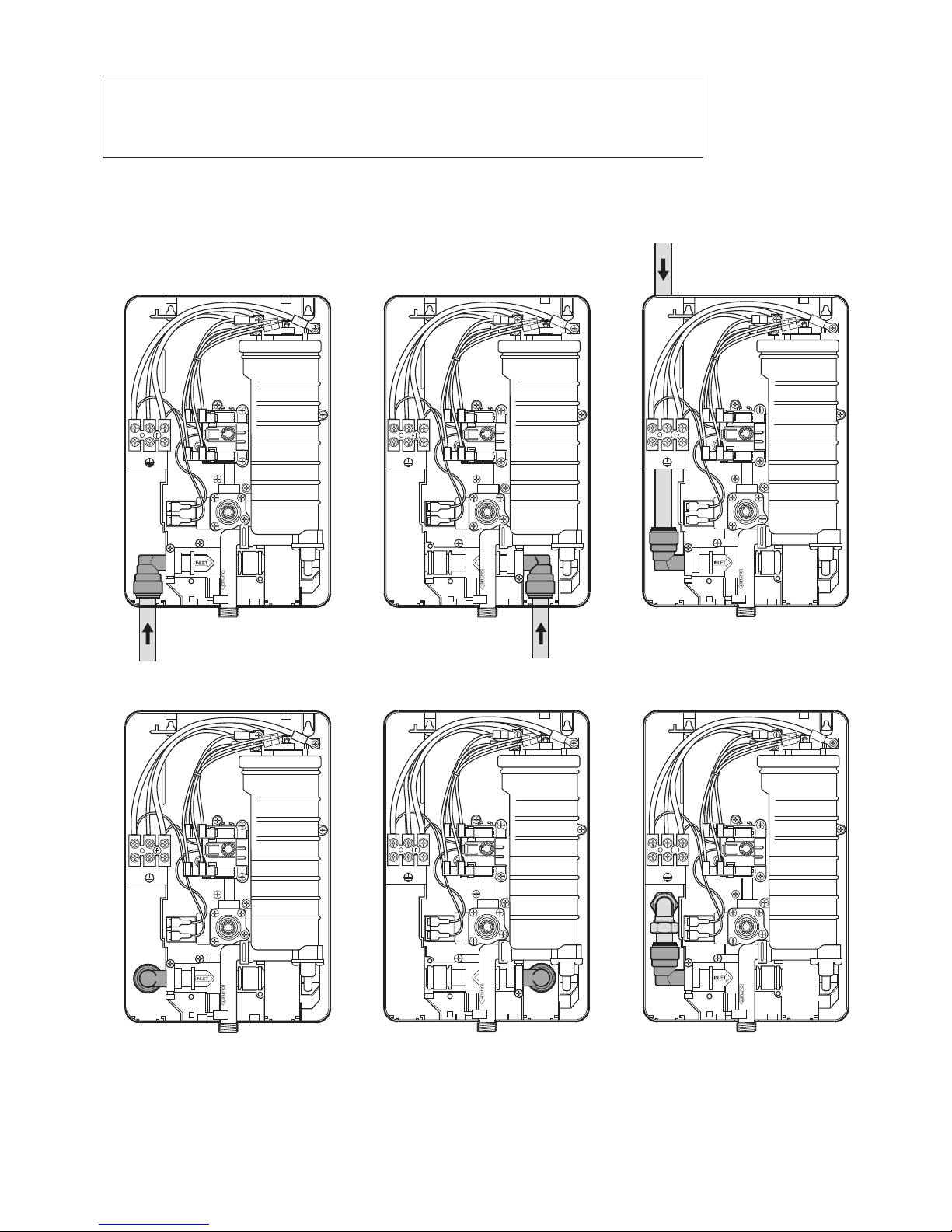

Plumbing Connections......................................................9-11
Electrical Connections ......................................................12-13
Fitting Your Riser Rail to the Wall.....................................14
Commissioning - Testing the System............................... 15

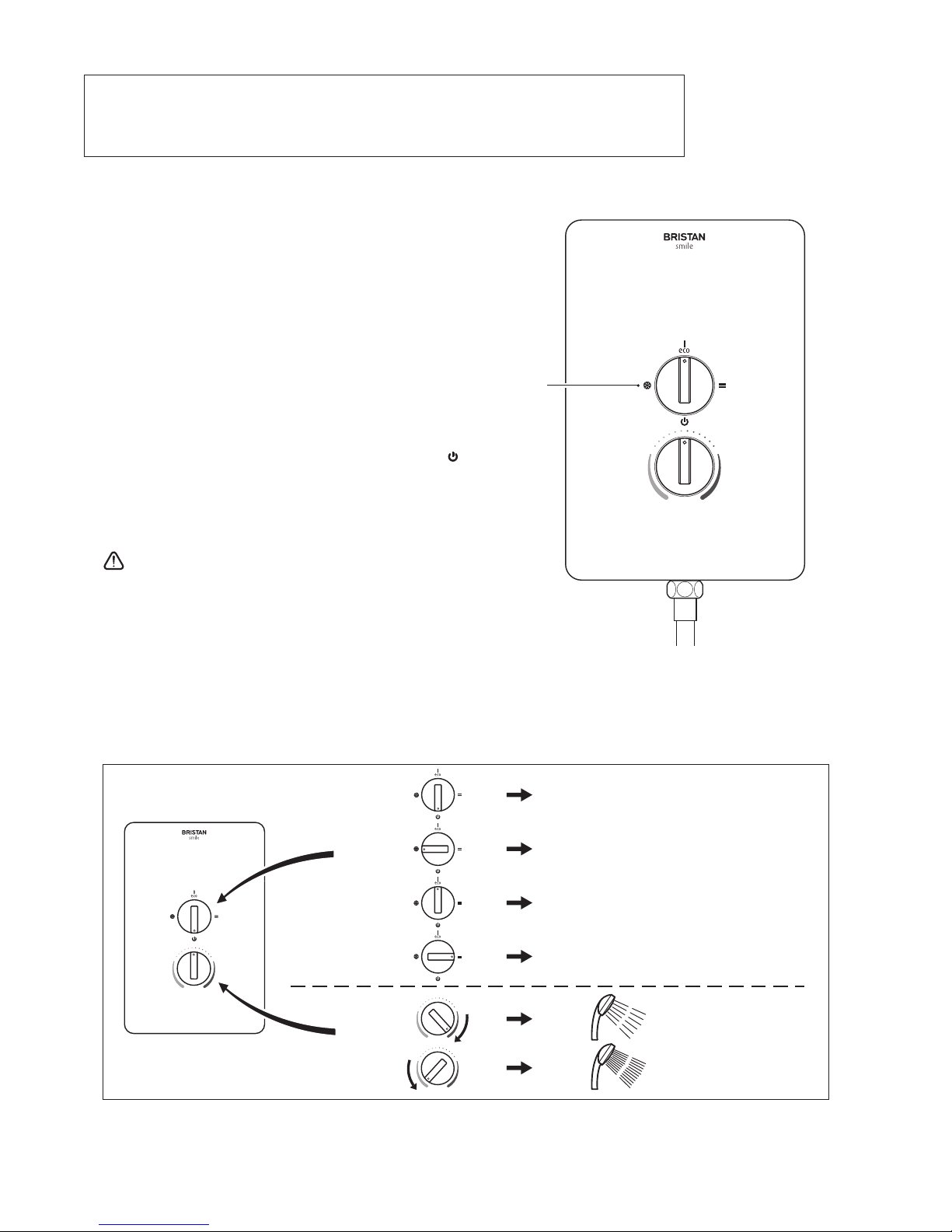

Operating the Shower .......................................................16

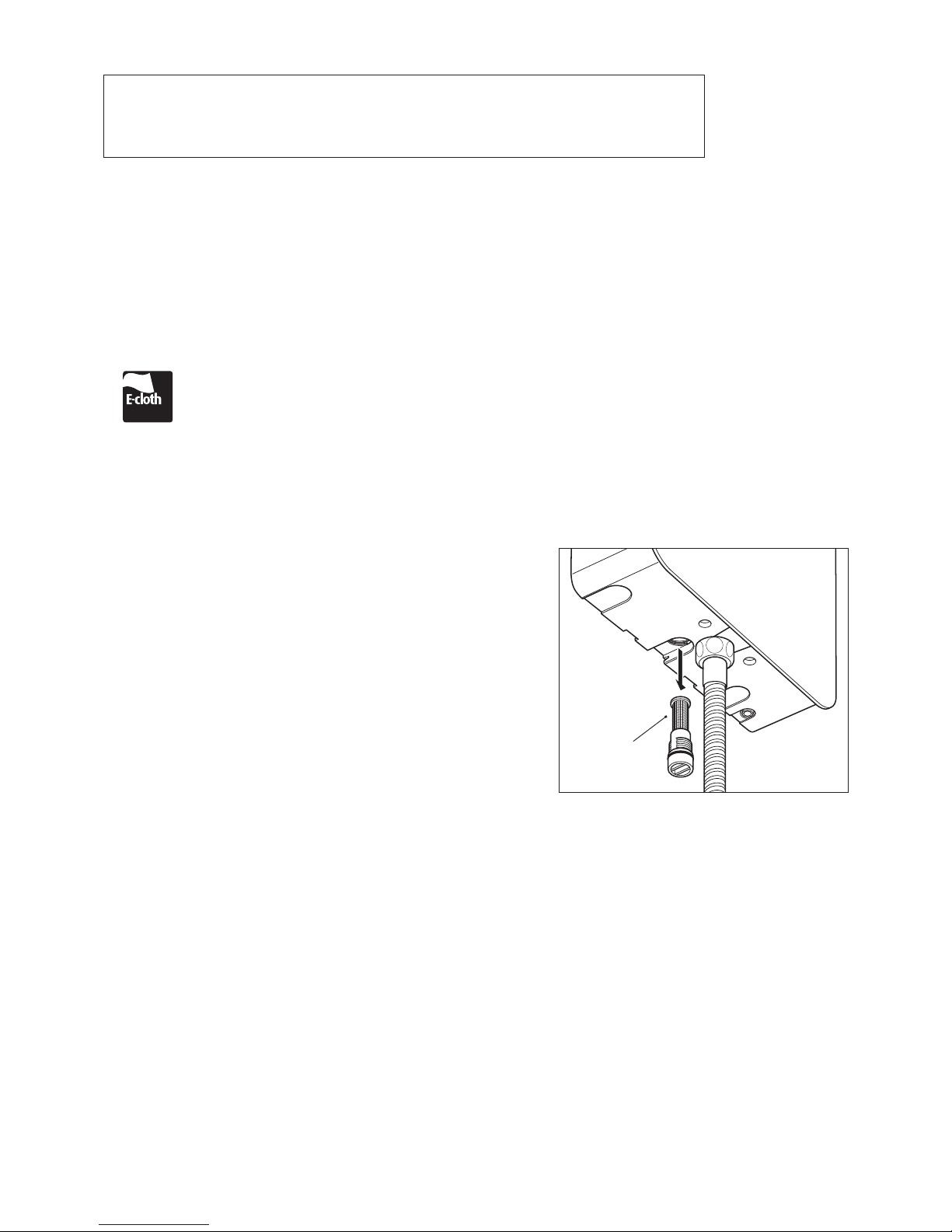

Maintenance ......................................................................17
Troubleshooting................................................................. 18
Guarantee ..........................................................................19
Service Policy.....................................................................19

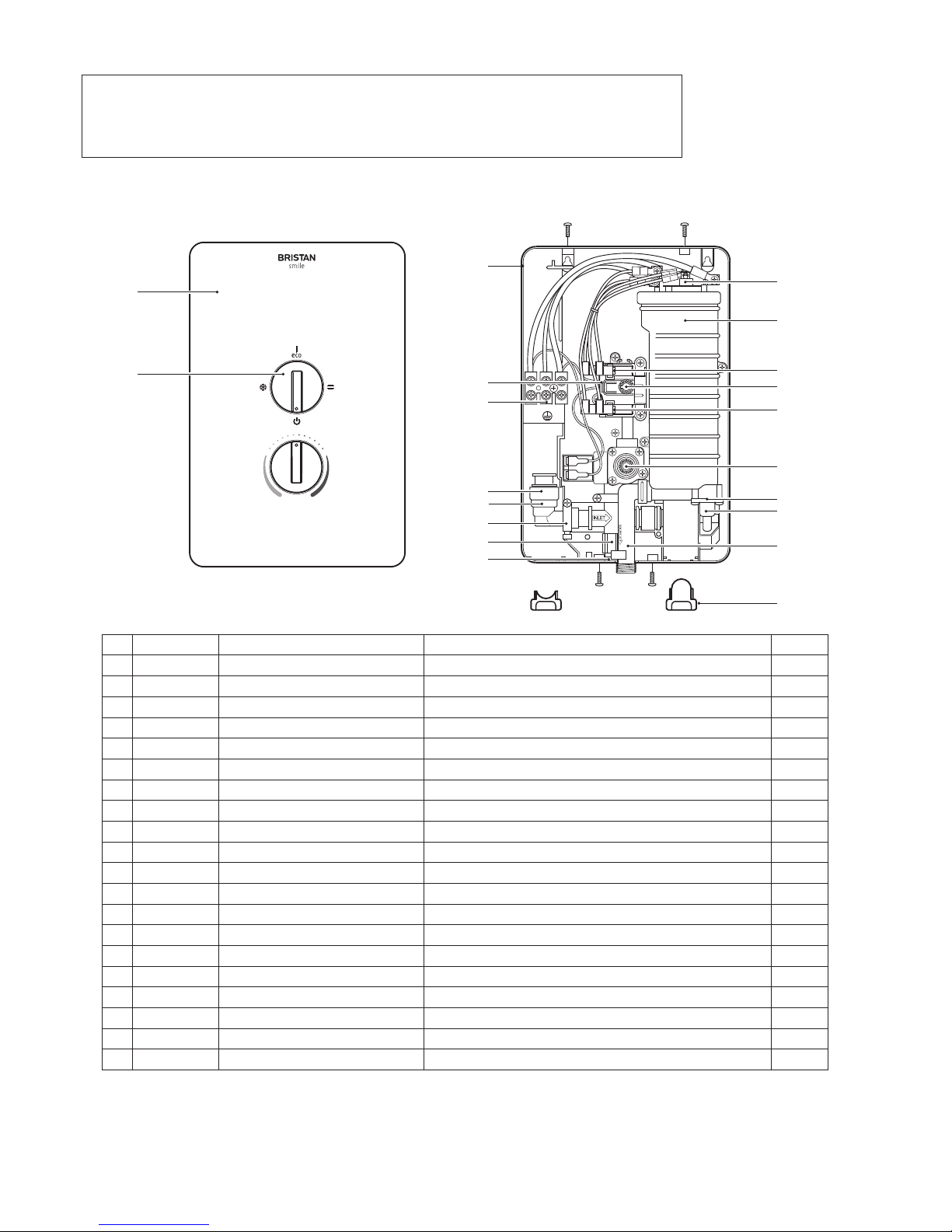

Spare Parts........................................................................20-22
Welcome to your new Bristan electric shower.
Featuring a contemporary design with lots of fun features,
Bristan’s electric shower collection has been designed to be
enjoyable to fit and to use.
It has also been designed and tested in the UK to all of the
relevant British Standards.
These instructions contain all of the necessary installation
and operating information, so please read them thoroughly
and keep for future reference.
These instructions are for your guidance to a safe and
successful installation which must be carried out by a
suitably qualified person and conform with current I.E.E
Regulations.
Note: An Installation Template is provided in the centre pages
of this booklet.
Recommended Usage
Domestic Heavy Commercial
Light Commercial Health Care
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

2
2 3
•Please read these instructions thoroughly and retain for future use.
•All products manufactured and supplied by Bristan are safe
provided they are installed, used correctly and receive regular
maintenance in accordance with these instructions.
• If you are in any doubt about your ability to install this product
safely you must employ the services of an experienced qualified
plumber/electrically qualified person.
•Warning: Do not operate the shower unit if you suspect it is
frozen. Do not site the shower unit where it might be subjected to
freezing conditions.
• Do not install this shower unit in a room/environment without
adequate ventilation or an extractor fitted. This is required to
prevent condensation forming within the unit.
•Do not operate the shower unit if the showerhead or spray hose
has been damaged or is blocked.
•Do not block the flow of water from the showerhead, by placing it
(smothering it) on your hand or any other part of your body or
foreign object.
•Do not operate the shower if the water stops flowing during use
or if the water is leaking from the shower unit itself. Turn off at the
mains electrical supply and refer to the Troubleshooting section
(see page 18) or contact Bristan Customer Services (see page 19).
•Do not crush or kink the shower hose, this could damage the
hose, cause leaks and activate the pressure relief device (PRD).
General Safety
•Always switch off the power at the consumer unit and isolate the
electrical supply before making any electrical connections or if you
have to remove the cover of an installed unit.
•The unit must be mounted on the finished wall surface (usually
tiled). Under no circumstances must you tile up to or seal around
the unit as this may prevent air circulating and condensation
escaping.
•This shower unit must not be modified* in any way as this will
invalidate the guarantee.
* Except for top left pipe entry (see page 9) where the product has
been designed to be modified by the installer.
Important Safety Information
BEAB (British Electrotechnical Approvals Board) approval of safety.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

4
4 5
Product Features
1
2
1. Power Control
STOP ( ) and adjustable power settings:
Cold ( ), Medium (eco ) and High ( ).
2. Temperature Control
Adjustable temperature control.
Temperature Control Device
The Temperature Control Device will activate
when the temperature is set too high and the
water inside the water heater gets too hot. The
Temperature Control Device will switch off the
power to the heating elements. Once the unit
cools down to a safe temperature the elements
will come on again and reheat the water within
the water heater and the whole cycle will repeat
itself until the temperature is manually reduced.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

4
4 5
Electrical Requirements
Mains electrical
supply
Consumer
unit
30mA RCD.
For ampage
of fuse see
table on page 6
Double pole
switch
Shower unit
Mains water
supply
Isolating
valve
For cable
capacity
see table
Warning: This appliance MUST
be earthed!
The Electrical Installation and Circuit Protection of this shower
must comply with current I.E.E Wiring Regulations and should be
installed by a qualified electrician prior to use.
Important: You must switch off the power at the consumer unit,
isolate the electrical circuit and verify the earth before making any
electrical connections.
The shower must only be connected to a 230-240V AC supply. The
electrical rating of your shower is on the pack or on the rating plate
label.
The shower must be connected to its own independent electrical
supply. It must not be connected to a ring main, spur, power socket,
or lighting circuit.
If you don’t have a spare fuse way or the rating at the main fuse box
is below 80A, you should seek advice from an electrician and may
need a new consumer unit - specifically for the shower.
A separate and permanently connected cable must be taken from
the consumer unit directly to the shower via a double pole switch
with a minimum contact separation gap of 3mm in live (L) and
neutral (N) poles.
Note: Voltage drop in the supply to the premises, due to heavy local
demand, will affect the performance of your shower.
To gain the optimum power possible from this shower unit try to find
the shortest possible route from the consumer unit to the shower to
run your cable.
Rating at 240V Rating at 230V Cable Size
8.5kW 7.8kW 6mm²
9.5kW 8.7kW 10mm²
10.5kW 9.5kW 10mm²
continued on next page
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

6
6 7
It is a requirement that a residual current device (RCD) formerly
known as an earth leakage circuit breaker (ELCB) with a tripping
current of 30mA, is incorporated in the circuit. This may be part of
the existing consumer unit or a separate unit. Please refer to the
table below.
The isolating switch can be a ceiling mounted pull cord switch
within the bathroom or wall mounted in an adjacent room. The
power switch must be easily accessible and identifiable as the
supply to the shower.
The current carrying capacity of the cable must be at least that of
the shower circuit. Please refer to the table below.
In domestic installations you must ensure that the electrical supply
and existing fuse board are adequately rated.
Do not turn on the electrical supply until the plumbing has been
completed and the shower cover re-fitted.
Twin and Earth PVC Insulated Cable
Current Carrying Capacity
In an insulated wall In conduit or
trunking
Clipped direct or
buried in a non
insulated wall
6mm²
32A
6mm²
38A
6mm²
46A
10mm²
43A
10mm²
52A
10mm²
63A
Note: Cable selection is dependant on derating factors
Electrical Requirements cont.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

6
6 7
The installation must comply with all Water and Building
Regulations (England) and Water By-laws (Scotland).
If the shower is to be installed in a hard water area, we recommend
that an in-line scale inhibitor is fitted which will prolong the life of
the shower. Please refer to your supplier for advice.
Warning: The shower must not be installed in an area subject
to freezing conditions. Do not use if you suspect the shower is
frozen, this will damage the shower unit.
The shower must be connected to a mains water supply only
with a minimum working inlet pressure of 0.07MPa (0.7bar) at a
minimum flow rate of 8 litres per minute. The maximum static
inlet pressure must not exceed 1.0MPa (10bar).
If it is intended to operate the shower at pressures above the
maximum stated, a suitable pressure reducing valve (PRV) should
be used.
Water regulations stipulate that the showerhead be ‘constrained
by a fixed or sliding attachment (hose retainer) so that it can only
discharge water at a point not less than 20mm above the spill over
level of the bath or shower tray or other fixed appliance’.
If a showerhead can sit within a bath, basin or shower tray, you
must fit a double check valve in the supply pipe work to prevent back
siphonage. If the showerhead can sit within a WC then the air gap
should be a type AUK3 not less than 20mm or twice the diameter of
the inlet pipe to the fitting, whichever is the greater.
Pressure Relief Device (PRD)
A pressure relief device is designed into this shower. The pressure
relief device provides protection should an excessive build up of
pressure occur within the shower unit. It is advisable to position
the shower unit over a bath or shower tray in the unlikely event the
device should discharge.
Do not use the shower with a damaged or kinked shower hose or
blocked handset. This may trigger the PRD which will discharge
through the vent in the bottom right hand corner (shown).
In the event of the PRD activating, water will be discharged from the
vent. If this happens, switch off the electricity and water supplies to
the shower and contact Customer Services (see page 19).
Water Requirements
Double pole
switch
Shower
unit
Shower tray
spillover level
Bath spillover
level
Hose
retainer
Minimum 20mm
between
showerhead
and spillover
1m minimum
height from
shower unit
to floor
PRD Vent
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

8
8 9
Warning: Please check for any hidden pipes and cables before
drilling holes in the wall.
Remove the 4 cover retaining screws and lift off the cover.
Do not try to remove the control knobs from the cover. They are an
integral part of the cover and must not be removed.
If you are fitting the unit to a partition wall or a wall of particularly
friable (crumbly) substrate, you will need appropriate fixings for the
wall type.
Select the position for the shower unit over a bath or shower tray
using the installation template provided in the centre pages of this
booklet.
Important: The shower unit must be fitted to a flat, waterproof
surface. Under no circumstances should the shower unit be
attached to a wall and then tiled up to the edges. The unit must be
fixed on top of the wall surface.
Important: Use a spirit level to ensure the template is level.
Mark the 3 fixing points with a suitable pencil through the paper.
Remove the template from the wall and drill the wall to suit the wall
fixings to be used.
LN
Fixing Your Shower to the Wall
Tips:
A piece of insulation or masking tape positioned where holes
are to be drilled and before marking out the exact position
for the fixing holes will help stop the drill bit from wandering,
particularly on a tiled surface.
When working near a basin, bath or shower insert plug or cover
waste to prevent losing small parts.
Take care not to drop tools/equipment into basin, bath or
shower during shower installation.
Note: The unit can be hung temporarily on the top screws to help
with the positioning of the pipe work etc.
* The bottom screw should only be fitted during final installation.
Important: Under no circumstances should this shower unit be
recessed (it must be fitted onto the finished wall surface) or tiled up
to or sealed around the unit as this may prevent air circulating and
any condensation escaping.
*
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
Remove
cover screws
Wall fixing points

8
8 9
Plumbing Connections
Inlet Entry Options
Select the inlet option most suited to your situation.
LN
LN
LN
LN
LN
LN
Bottom left inlet entry Bottom right inlet entry Top left inlet entry
Rear left inlet entry -
using a 15mm compression elbow
(not supplied)
Rear left inlet entry -
requiring rear access
Rear right inlet entry -
requiring rear access
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

10
10 11
Plumbing Connections cont.
Inlet connector elbow (right side down or rear)
5
4
3
Inlet connector elbow (left side, up, down or rear)
Outlet connection 5
3
4
Warning: The outlet of the shower acts as a vent and must not
be blocked, restricted or connected to any tap/closure device other
than the handset supplied.
Do not solder within 300mm of the shower unit or allow solder or
flux to fall onto the casings.
Important: An additional independent stop valve complying with the
current water regulations must be fitted in the mains water supply
as a means of isolating the supply to the unit for servicing and/or
maintenance work.
It is essential that all pipe work is flushed through to remove debris
and swarf that could otherwise damage the unit. Once the pipe
work has been flushed through, turn off the water supply at the stop
valve.
Remove the blanking plug
from the inlet connector elbow.
Press and hold the collet
against the elbow and pull
the blanking plug out of
the elbow.
Please note: Some water
from factory testing may
escape.
Connect the mains water supply to the inlet port of the shower using
15mm copper pipe (BS EN1057) or 15mm plastic pipe (with insert).
Do not use stainless steel pipe work. If using chrome plated pipe
ensure that the first 25mm of plating is carefully removed to allow
push-fit fitting to grip the inlet pipe.
Inlet Entry Options
The pipe work can enter the shower unit from 6 different positions.
Bottom left, Bottom right, Top left, Rear left, Rear right or Rear left -
using an elbow (as shown on page 9).
To top or bottom left positions
The shower unit should come supplied with the inlet connection set
for a bottom left position. To change it to a top left position: swivel
the inlet connector elbow from facing downward to facing upward.
To bottom right position
Unfasten the screw (3) securing the inlet connector elbow clamp
(4), remove the tab from the slot and keep until the inlet pipe is
repositioned. Lift the outlet connection (5) up out of the way from
its position at the bottom of the unit. Pull the inlet connector elbow
towards you and over to the right hand side with the inlet entry
point facing down. Refit the clamp tab (4) into the slot on the right,
refasten the screw (3) and replace the outlet connection (5).
To rear entry positions
Swivel the inlet connector elbow to face a rear entry pipe
connection. If the pipe work entry is from the rear, ensure that
there is space left around the push-fit elbow for future servicing or
alternatively access is possible from the rear. Bring the cold water
pipe to the shower position and connect to the inlet elbow.
Pull collet
back towards
elbow
Pull blanking
plug from elbow
Collet
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

10
10 11
Hole Cover Fitting
Top left entry: Depending on your choice of cold-water entry
direction, you may need to remove thin areas of plastic cover to
facilitate pipe work entry down through the top left of the unit.
Bottom entry: Depending on your choice of cold-water entry
direction, fit ‘hole covers’ to the pipe work slots at the bottom of the
unit.
Note: The grey areas shown are tabs that can be removed to allow
6mm cable entry only.
Water Connection
The inlet pipe connection into the elbow is a self-seal push-fit type.
All burrs and rough edges must be removed from the end of the
pipe before connecting.
To release the pipe work from the push-fit type fitting, press and
hold the collet against the elbow and pull the pipe out of the elbow.
Turn on the water supply and inspect for water leaks at the shower
inlet. Once inspected-turn off the water supply.
Plumbing Connections cont.
Pipe
cover
Blanking
cover
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
Back of unit
Pull collet
back towards
elbow
Pull pipe
from elbow
Collet

12
12 13
Electrical Connections
Warning: This appliance and all connecting metal pipe work
must be earthed.
•Ensure that an earth continuity conductor is securely and
permanently connected to all exposed metal parts of other
services and appliances within the room where the shower is
installed.
•All cables must conform to the relevant tables within the current
I.E.E Regulations. The electrical supply cable must be either
recessed or in a conduit/trunking as detailed in the current I.E.E
Regulations. Refer to pages 5 and 6.
Electrical Connection Entry Point Options
Select the cable inlet option most suited to your situation.
L
N
L
N
L
N
Rear bottom left
cable entry
Top left cable entryRear bottom right
cable entry
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
Note: Depending on cable size and entry point
used it may be necessary to strip back outer cable
sheath sufficiently to allow cables to be directed
to the terminal connection block within the unit.
L
N
L
N
Bottom left
cable entry *Bottom right cable entry *
*Note: When feeding cable
through bottom entry points
remove highlighted grey tab
on pipe/blanking cover if using
6mm cable.
For 10mm cable remove the
pipe/blanking cover entirely.
Pipe
cover
Blanking
cover

12
12 13
Switch OFF the electricity supply at the consumer unit.
The power cable entry point is shown on the diagram.
Electrical connection to be made at the terminal block as follows:
Earth cable to the terminal marked with the Earth symbol
Neutral cable to the terminal marked N
Live cable to the terminal marked L
Important: Terminals must be fully tightened onto the cables
ensuring that no cable insulation is trapped under the screws.
It must be metal to metal. Loose connections can result in the
cables overheating, ensure all terminal screws are fully tightened.
The supply cable earth conductor must be sleeved. The supply
cable must be secured by routing through conduit or in trunking
or by being embedded in the wall in accordance with current I.E.E
Regulations.
Warning: Do not switch on power to the shower unit until the
cover has been fully fitted.
•Set the power control knob (1) at 9 o’clock.
•Rotate the power control spindle (1a) so that the notch is at 9
o’clock.
•Rotate the temperature control knob (2) fully clockwise (full hot).
•Rotate the splined temperature control spindle (2a) fully
clockwise.
•Locate cover in position ensuring wiring is not trapped.
Note: slight adjustment of the knobs may be required to locate
cover correctly.
•Secure using the 4 cover fixing screws supplied.
Electrical Connections cont.
LL
N
L N
L N
1
2
1a
2a
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

14
14 15
Fixing Your Riser Rail to the Wall
Fitting the Riser Rail
Before proceeding with fitting the rail, identify each of the items
supplied using the illustration on the right.
The Slider should not be removed from the rail during fitting. The
underside of the slider has a button to release the slider and allows
the height to be adjusted.
Slide the hose retainer onto the bottom end of the rail. Position a
wall bracket onto each end of the rail, ensuring the hole through the
top of the rail lines up with the hole in a wall bracket.
Position the rail on the wall, bearing in mind the different heights
of people likely to use the shower and the length of the hose when
connected to the shower and passed through the hose retainer.
Mark the wall to indicate the upper fixing screw position.
Warning: Please check for any hidden pipes and cables before
drilling holes in the wall.
Tips:
A piece of insulation or masking tape positioned where holes
are to be drilled and before marking out the exact position
for the fixing holes will help stop the drill bit from wandering,
particularly on a tiled surface.
When working near a basin, bath or shower insert plug or cover
waste to prevent losing small parts.
Take care not to drop tools/equipment into basin, bath or
shower during shower installation.
Drill the wall at the marked fixing position to suit the wall fixings to
be used, loosely fix the rail (with the large hole on the side shown)
and wall bracket. Check that the rail is hanging vertically using a
spirit level.
Slide the lower wall bracket onto the rail and mark its required
position onto the wall.
Note: The lower wall bracket does not fix to the riser tube and can
be positioned along the riser tube so as to cover either an existing
riser hole in the wall or over a tile joint.
Remove the lower bracket from the rail and unscrew the upper
bracket from the wall. Mark and drill the lower wall bracket fixing
position and fix the bracket to the wall. Slide the rail down through
the lower wall bracket and reattach the upper bracket.
Check that the rail is perfectly vertical and tighten the upper fixing
screw. Insert end caps into the wall brackets at both ends of the rail.
When fitting the hose, it should pass through the hose retainer.
Note: The conical hose end and not the handset handle, fits into the
slider. The slider moves more freely on the rail if gripped next to the
rail, rather than at the handset.
Conical
hose end
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
Slider
Slider release
button
Hose
retainer
Large hole

14
14 15
Commissioning - Testing the System
Warning: Before using the shower for the first time, it should
receive a final flush through to remove any remaining debris that
may be in the pipe work or hose and to ensure the heater unit
contains water before the electrical elements are switched on.
Remove the showerhead from the hose and if not already attached,
attach the hose to the outlet port. The power control knob (1)
must be switched to the cold ( - 9’oclock) position ‘blue’ (heating
elements will not be on).
The temperature control knob (2) must be set fully clockwise to
minimum flow. (This is to prevent the PRD activating when water is
first turned on).
Turn on the water supply and inspect for water tightness.
Turn on the mains electrical supply to the shower.
Wait approximately 30 seconds for the water to flow correctly.
Once the water has flowed for a further 10 seconds, rotate the
temperature control knob (2) from the fully clockwise position to the
fully anti-clockwise position. Repeat this procedure several times
until a continuous flow of water (with no air bubbles) is obtained
from the shower hose.
Once you are satisfied that the system has been flushed through
thoroughly, turn the power control knob (1) to the STOP ( ) position
to stop the flow.
Re-fit the showerhead to the hose, insert hose rubber washer to
seal the joint; please ensure that the hose passes through the hose
retainer. The showerhead is attached to the riser rail by inserting
the conical hose end into the movable slider.
Your shower is now ready for first use.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
1
2

16
16 17
Operating the Shower
Please ensure the commissioning procedure has been carried out.
If you did not fit this shower yourself and you are about to use it for
the first time, check with the installer to ensure he or she has run
the commissioning procedure as described on page 15.
To Start the Shower
Turn the power control knob (1) clockwise to required position.
During periods of high ambient temperatures (e.g. hot summer
days), it may be necessary to select a lower power setting in order to
achieve your ideal shower temperature.
To Stop the Shower
Turn the power control knob (1) anti-clockwise to the STOP ( )
position.
It is always advisable to test the water temperature with your hand
before stepping under the shower. Please note that there is always a
delay of a few seconds between you selecting a temperature setting
and the selected water temperature starting to flow.
Warning: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Important: Children should be supervised to ensure that they do not
play with the appliance.
Important: The shower unit must be switched off at the isolating
switch (pull cord) when not in use.
1
OFF
COLD Water
Medium
Temperature Water
NO Heater
Elements ON
1 Heater
Element ON
2 Heater
Elements ON
NO Heater
Elements ON
HOT Water
HOT (reduced flow)
COLD (increased flow)
Power Control
Temperature Control
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
Operating the Controls

16
16 17
Maintenance
General Cleaning
Before attempting to clean your shower unit you must switch off
the power at the isolating switch. Do not remove the cover.
Do not use abrasive cleaners or solvents to clean this unit. The
shower unit and accessories should be cleaned with a soft, clean,
damp cloth.
Bristan recommend E-cloth for cleaning all of our bathroom and
Kitchen products. Using just water, E-cloth gives smear
free, deep clean by breaking up and holding dirt, which
normal cloths leave behind. Order through your Bristan
stockist (Order code: Ecloth).
Cleaning the Showerhead
Your Bristan showerhead has a rub-clean pad for easy cleaning.
Simply rub your fingers across the rubber spray jets regularly and
before you turn the shower on to remove any scale or debris.
The hardness of the water in your area will determine how often
you should clean your showerhead. Build up of scale in particularly
hard water areas combined with constant use means you may
need to clean your showerhead once a week. To ensure continued
performance of your electric shower the showerhead needs to be
regularly descaled.
Cleaning the Filter
Periodically remove the inlet filter and rinse under clean running
water.
First isolate the electrical and water supply to the unit.
To remove: Turn anti-clockwise using a large flatblade screwdriver.
Note: A small amount of water will be discharged when the filter is
removed - this is normal.
To clean: Wash under clean running water.
Refit the filter and gently tighten.
Filter
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

18
18 19
Troubleshooting
Symptom Likely Cause/s Action/Remedy
No water flow. Water isolating valve in off position.
Filter blocked.
Power supply not on.
Turn on.
Turn off water supply, remove filter
and clean.
Turn on.
Water temperature too hot. Insufficient water flowing
through the shower.
Clean the handset.
Increase the flow by adjusting the
temperature control knob to cooler setting.
Reduce the power setting.
Shower runs hot and cold
during use.
Water pressure is at minimum requirement. Check running pressure (minimum of
0.7bar).
Wait until pressure increases.
Shower temperature cycles
between hot and cold.
Shower temperature is set too high causing
the thermal cut out to turn off the heating
elements to reduce the water temperature.
Turn shower temperature control anti-
clockwise to reduce the water temperature.
Water from pressure relief
outlet-PRD activated.
Obstruction in hose or handset. Call Customer Services.
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

18
18 19
Guarantee
Thank you for purchasing a Bristan product. This product
has been designed and tested, in the UK, to the highest
standards.
Guarantee: 2 Year parts.
1 Year labour (subject to registration).
This guarantee applies to products purchased within the
United Kingdom or Republic of Ireland, but does not apply
to products used commercially.
This is provided that:
1. The guarantee registration card is completed and
returned within ten days complete with a copy of proof of
purchase. Proof of purchase is required for any servicing
requirements.
2. The product is installed and operated in accordance with
our instructions and has not been misused or damaged.
This in no way affects your statutory rights as a consumer.
The information on the Guarantee card helps Bristan to
process any claims and contact you about your product
and its maintenance if required. The registration of your
personal details is purely for Bristan use and the remaining
information helps us to make products for the future.
Should a complaint arise, products are guaranteed against
faulty workmanship and materials for a period of 12
months from the date of purchase, when in domestic use
(second year guarantee is parts only). For your guarantee
to be valid, your shower must be installed by a competent
person, in accordance with the instruction manual.
Bristan will repair or replace (at our option), free of
charge, any faulty components during the guarantee
period, provided it has been maintained and operated
in accordance with our instructions, and has not been
misused or damaged.
Modification or repair of this product by person(s) not
authorised by Bristan will invalidate this guarantee.
This guarantee does not affect your statutory rights.
Guarantee
Service Policy
Replacement Parts Policy
Important:
In the event of product or component malfunction,
DO NOT tamper with or remove the product from site.
Telephone the Customer Services Department and be
prepared with the date of purchase, model number and
a clear description of the complaint.
Our service staff are fully qualified to advise on correct
installation procedures and will be able to diagnose
whether the fault will require a replacement part or a visit
from a Bristan engineer.
If required, a service call will be booked and either yourself
or an appointed representative (who should be a person of
18 years or over) must be present during the visit.
All site visits to product within the guarantee period will
be carried out free of any parts or labour charges provided
the conditions of the guarantee have been adhered to (the
second year guarantee is parts only).
All site visits to product out of guarantee will be subject to
charges for parts and labour. Charges will also be levied on
cancelled appointments, unless advised to Bristan at least
24 hours in advance of the agreed date and time.
Should a product be discontinued, spare parts stocks
will be maintained, but in the event of a part becoming
unavailable Bristan reserve the right to supply a substitute
of equal quality.
For spare parts please contact Customer Services or via
the Bristan website.
Opening times: Please refer to the Bristan website.
Customer Service:
Tel: [phone] • Fax: [phone]
E-mail: enquir[email protected]
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.

20
20 21
Spare Parts
LN
No. Part No. Description Parts List Quantity
01 131-100-S Stabiliser Valve Ass. Stabiliser Valve x1, inc. O-rings x3 1
02 131-200-S On/Off Pressure Switch Ass. Power Switch x1, inc. O-ring x1 1
03 131-208 Power Microswitch Power Microswitch x1 2
04 131-209B Auxiliary Microswitch Auxiliary Microswitch x1 1
05 131-300-8.5 Heat Exchange Unit Ass. 8.5 kW Heat Exchange Unit 8.5 kW x1, Metal Clip x1, inc. O-rings x2 1
05 131-300-9.5 Heat Exchange Unit Ass. 9.5 kW Heat Exchange Unit 9.5 kW x1, Metal Clip x1, inc. O-rings x2 1
06 131-307-S Thermal Cut Out Ass. Thermal Cut Out x1, inc. Screws x2 1
07 131-315-S Outlet Pipe Ass. Outlet Pipe x1, Metal Clip x1, inc. O-ring x1 1
08 131-309-S Pressure Relief Diaphragm Housing Ass. Pressure Relief Diaphragm Housing x1, inc. Screws x2 1
09 131-308 Pressure Relief Diaphragm Pressure Relief Diaphragm x1 1
10 131-400-S Water Inlet Elbow Ass. Inlet Elbow x1, Swivel Inlet Pipe x1, Filter x1, inc. O-rings x3 1
11 131-406-S Inlet Elbow Ass. Inlet Elbow x1, inc. O-ring x1 1
12 131-404-S Filter Ass. Filter x1, inc. O-ring x1 1
13 131-402-S Swivel Inlet Pipe Ass. Swivel Inlet Pipe x1, inc. O-ring x1 1
14 131-401 Inlet Pipe Clamp Inlet Pipe Clamp x1 2
15 131-503-SMILE Smile Front Cover Front Cover x1 1
16 131-500-S Control Dial Ass. Control Dial x1, Dial Drive x1, inc. O-ring x1, Screw x1 2
17 131-600-S-W Fixing Kit Ass. - WHITE Full Shield x2, Half Shield x1, Wall Screw x3, Wall plug x3, Cover Screw x4 1
18 131-607 Wire Terminal Block Mains Terminal Block x1 1
19 131-501 Front Cover Seal Front Cover Seal x1 1
15
19
06
05
03
03
02
01
08
07
17
18
04
14
13
10
11
12
16
09
Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
