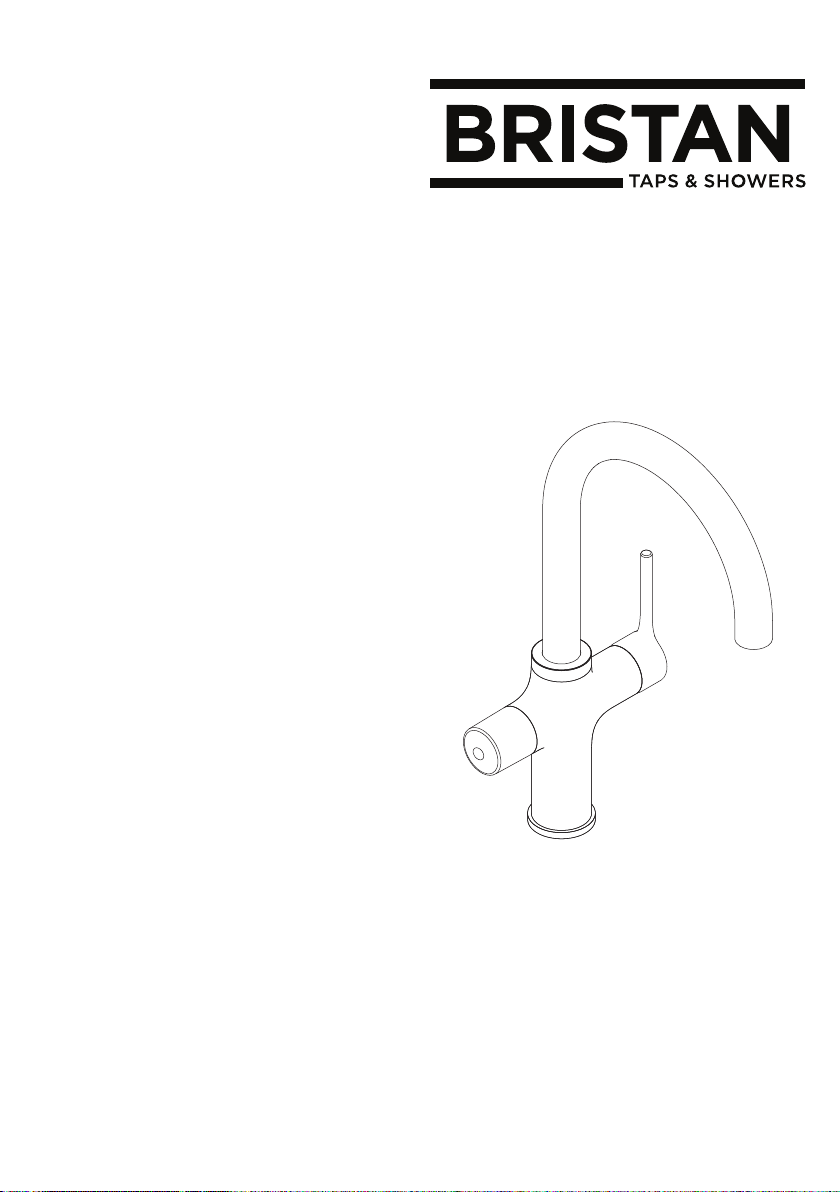

Bristan GLL RAPSNK4 C Mounting instructions

Installation Instructions
and User Guide
Gallery Rapid Boiling
4-in-1 Sink Mixer Chrome
Models Covered:
GLL RAPSNK4 C
Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.

Contents
• Important Safety Information 3-4
• Specification 5
• Installation Requirements 6-7
• Installation 8-9
• Preparation for Use 9
• Operation 10-11
• General Cleaning 11
• Maintenance 12-13
• Troubleshooting 14
• Notes 15
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Contents
2
Thank you for choosing Bristan, the UK’s leading tap and shower expert.
We have designed this product to be easy to install and use. It has also
been assessed to all of the relevant British Standards, and conforms to
CE Regulations.
These instructions are for your guidance to a safe and successful installation,
so please read them thoroughly and retain for future reference.

• Please read these instructions thoroughly
and retain for future use.
• All products manufactured and supplied by Bristan
are safe provided they are installed, used correctly
and receive regular maintenance in accordance
with these instructions.
• If you are in any doubt about your ability to install
this product safely you must employ the services
of an experienced qualified plumber/electrician.
• Warning: The Boiling Water Tank is intended
for domestic use only. Do not install the unit
outdoors or where it might be subjected to
damp or freezing conditions.
• Check the power rating of the Boiling Water Tank
is suitable for the power rating of the electrical
circuit that it is being installed on
• Check that no parts are missing or damaged on
the Boiling Water Tank or Tap as per the
instructions. If parts are missing or damaged,
do not install and contact Customer Services
• Do not install this Boiling Water Tank in a
room/environment without adequate ventilation
or an extractor fitted. This is required to prevent
condensation forming within the unit.
• This Boiling Water Tank is only intended for use
with the Boiling Water Tap supplied. Using this tank
with any other tap will invalidate the guarantee.
• Do not attempt to open or modify the Boiling
Water Tank as this will invalidate the guarantee.
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Important Safety Information
3

• The filter supplied has to be replaced every six
months for protection of your Boiling Water Tank.
Failure to do so will invalidate your guarantee.
• To protect against electric shock, do not place
the cord, plugs or Boiling Water Tank near or in
water/other liquids. Do not operate the appliance
or touch the plug with wet hands.
• The power lead is an integral part of the Boiling
Water Tank. If the power lead is damaged, stop
using immediately and contact Customer Services.
Do not attempt to fix as this can result in
serious injury or death.
• Do not remove the earthing terminal, reconstruct
the plug, or disassemble the main box or any
part for the power.
• The appliance must be installed vertically with
the inlet and outlet connections at the top of the
unit.
• Warning: This appliance is not intended for
use by children or persons with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge; unless
they have been given supervision or
instruction concerning use of appliance in
a safe way, and understand the hazards
involved.
• Children should not play with the appliance.
Cleaning and maintenance should not be
undertaken by children without supervision.
• Turn o all controls before unplugging. Unplug
the Boiling Water Tank by grasping the plug, not
the cable.
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Important Safety Information
4

Heavy
Commercial
5°C
20°C
Light
Commercial
Maximum Static Pressure: 3.0 Bar
Inlet Water Temperatures
Min: 1.5 Bar Max: 3.0 Bar
Working Pressures
Suitable for high pressure
systems only
4 Temperature Settings
Cold Water Supply
Flexible Tails
Min: 5°C Max: 20°C
Min: 80°C Max: 98°C
Tools You’ll Need
1/2” BSP
3L
Recommended Usage
Healthcare
Pack Contents
Flat-head Screwdriver Cross-head ScrewdriverPencil Drill PliersPipe & Wire Detector
Domestic Electrical Requirements
Supply Requirements
Inlet Connections Tank Capacity
IMPORTANT
Specifications
x2
x1
x1
x1
Prior to Installation
All products manufactured and supplied by Bristan are safe to use
provided they are installed, operated correctly and receive regular
maintenance in accordance with these instructions.
This product has been designed to comply with the Water Supply
(Water Fittings) Regulations 1999 and current bylaws.
For full Installation Requirements & Notes (IRN) please visit
wras.co.uk/directory.
Remove all packaging and check the contents for damage before
starting any installation.
Fitting isolation valves (not supplied) to the inlet feeds is required
as close as is practical to the inlet connections for ease of
maintenance.
Before installing this product the water supply must be
thoroughly flushed in order to remove any swarf, solder etc.
Ensure an electric socket is near the place of installation; if a
socket needs to be installed, please request the services of a
qualified electrician.
Adjustable Spanner
x2
x1
x1
220-240V AC
2.0kW
50/60 Hz~
IPX3 Protection
The Pressure Reducing
Valve (PRV) supplied
is pre-set at 3bar and is
required on the Domestic
Cold Supply.
x1
x3
x1
x1*
x1
Pipe Cutter
52°C
65°C
Hot Water Supply
Tap Only
Min: 52°C Max: 65°C
Conforms to
CE Regulations
Not Required
Slight
bend
90°
angle
Kinks Twists
x1
x1
x1
x1
* Note: PRV may not look
exactly as pictured
1.0
5.0
4.0
3.02.0
Pressure
BAR
0
1.0
5.0
4.0
3.02.0
Pressure
BAR
0
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 5
Specification

25mm
Place the tank in a suitable, well ventilated
location that will not fall below 0°C.
Ensure that the tank is installed vertically on
a level surface with adequate space around the
tank. Keep away from direct sunlight.
We recommend installing a Drain Pan and waste
(not supplied) to protect against water damage
and for ease of emptying the tank.
Also ensure that the
Filter is in an easily
accessible place for
replacement purposes.
Ensure that the
tap tails and filter
connections can reach
the connection points.

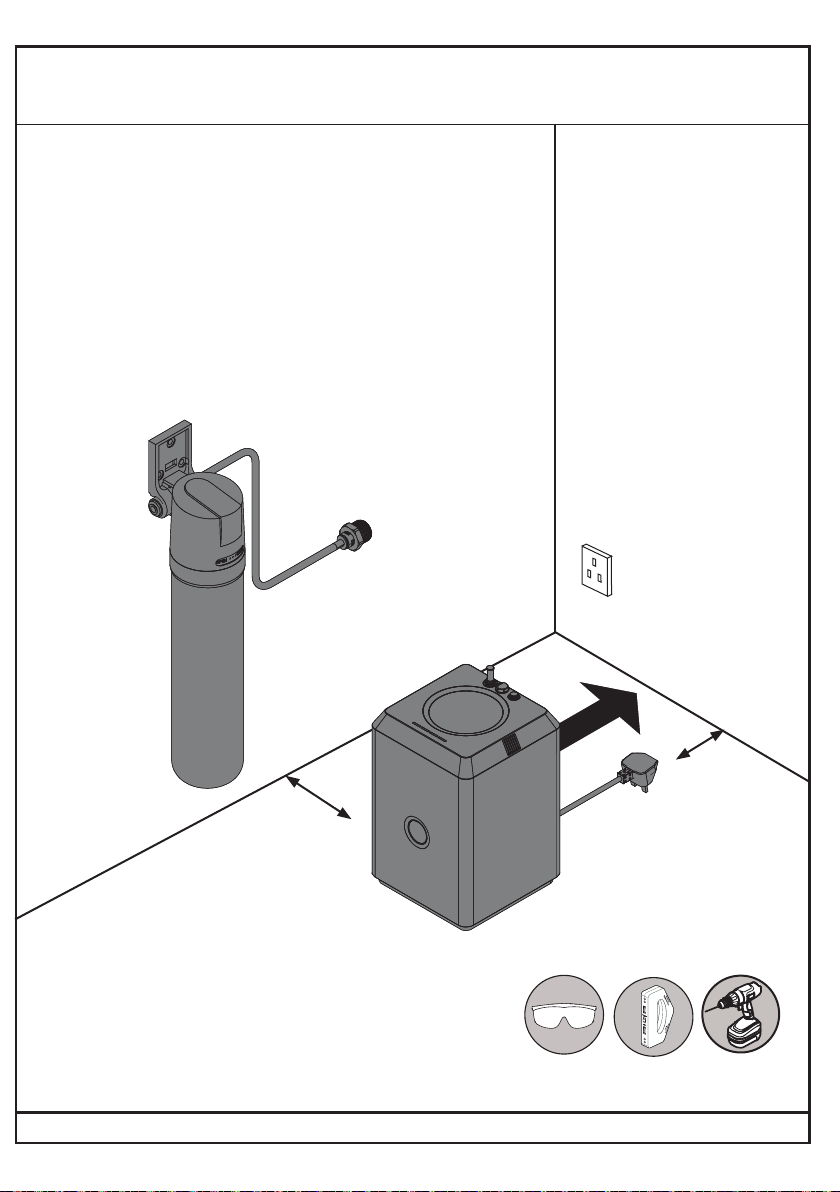

Positioning the Boiling Water Tank
150mm
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Installation Requirements
6

Connection Diagram
IMPORTANT
The PRV, filter and
isolation valves, are
required for optimum
performance and
maintenance of your
product.
Filter Out
Filter In
Boiling Water
Supply
4-in-1 Boiling
Water Tank
Hot Supply
Cold Supply
Pressure
Reducing Valve
Household Pipework
Isolation Valves
(not supplied)
T-Piece
(not supplied)
Electric
Connection
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 7
Installation Requirements

1 2
45
Position the
Boiling Water
Tank in a suitable
location. (See
Installation
Requirements).
Feed the pipes
through the sink
hole and place
the tap body.
Secure the tap
in place using
the fixing kit.
Fix the filter
mounting bracket
to the wall/surface.
3
Ensure easy
access, and that
the connecting
pipes from the
tap and
tank can reach.
Ensure the
filter is easily
accessible
for filter
replacements.
IMPORTANT
Do not tamper
with the PRV as
this will aect the
performance of
your tap.
IMPORTANT
A single check
valve on the cold
supply is required
as per IRN R150.
Plumb the
domestic
pipework to
the location,
splitting o
the cold
supply.
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
8
Installation
Ensure the
tap tails
and cables
can reach
connection
points.

7
8
9
Connect the
Electrical cable.
Push on the silicon
hose, trimming o
any excess. Slide
down the spring to
secure in place.
Place a jug
under the spout
and expel all air
from the system.
Check connections
for any leaks.
Attach the
Filter Sump to the
Mounting Bracket.
Connect the tap
connections to the
domestic water supplies.
Hot
Cold
IMPORTANT
Ensure the plastic
shroud covers
the silicon hose
connector. This is
a safety feature to
prevent accidental
scalding.
Filter In
6
Press
1
2
Switch on the Boiling Water Tank.
Run o at least 20 litres of water from
the Boiling Water handle, resting the
system every 30 seconds.
Your Tap is now Ready for Use.

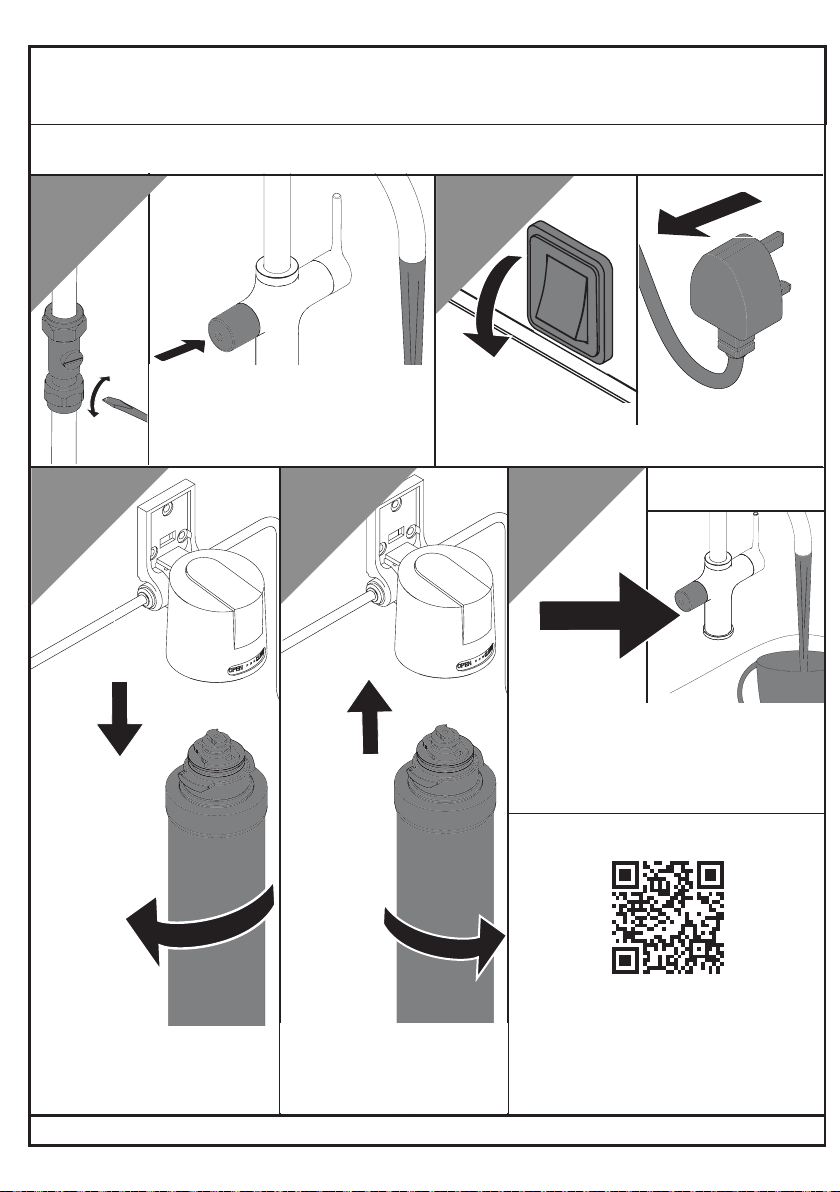

Connect the
Filter connections
to the Boiling
Water Tank.
Installation
Preparation for Use
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 9
Cut the
filter pipe
tube to size.

1
34
2
The water will be at the set
temperature once the Temperature
Setting Bar stays lit.
Tap the Touch Sensitive Ring to select
your desired Temperature Setting.
See the above table for
Temperature Settings.
Start-Up/Change Temperature
Plug in the Power Supply.
Flip the power switch to
turn on the tank.
The Temperature Setting Bar will flash
whilst the water is heating up.
Touch Sensitive Ring:
Touch and Tap to select through
4 dierent temperature settings.
Temperature
Setting Bars
No Bars Lit Temperature Range Nominal Temperature
1 75-80°C80°C
2 81-86°C86°C
387-92°C92°C
4 93-98°C98°C
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
10
Operation

Your fitting has a high quality finish and should
be treated with care to preserve the visible
surfaces. All surfaces will wear if not cleaned
correctly, the only safe way to clean your
product is to wipe with a soft damp cloth.
Stains can be removed using washing up
liquid.
All bath cleaning powders and liquids will
damage the surface of your fitting, even the
non-scratch cleaners.
Note: Never use abrasive detergents or
disinfectants or those containing alcohol,
hydrochloric acid or phosphoric acid.
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 11
Hot
On
Boiling Water
illuminates red
(Press and Hold)
Filtered Water
illuminates
blue (Press
On/O)
Operation
General Cleaning

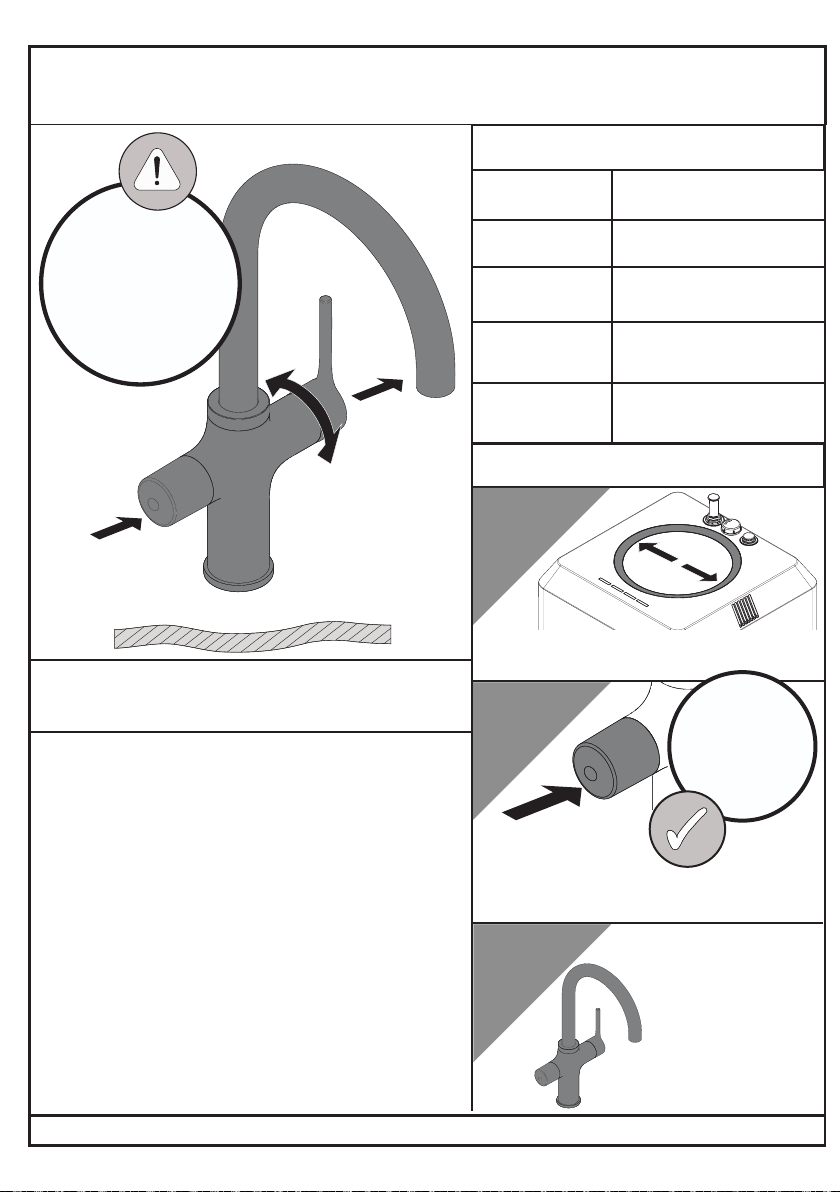

For Filtered/Boiling Water
Optimum Temperatures
1
When switching
between the
Filtered or Boiling
Water functions,
there will be a slight
delay before water
starts flowing.
2
3
Set up the Boiling Water Tank
temperature (see pg10).
IMPORTANT
There will be a slight
delay before the
Boiling Water is
dispensed. This is
a Safety Feature to
prevent accidental
scalding.
Press for Filtered Water or Press and
Hold for Boiling Water.
Nominal
Temperature Suitable For
80°C Green Tea
86°CInstant Coee,
Oolong Tea
92°COolong Tea,
Brewing Coee
98°C Black Tea, Herbal Tea
Filtered
Water
automatically
stops running
after 2mins.

2
Isolate the water supply
and draw o all
remaining water.
Cleaning Outlet
Emptying the Boiling Water Tank
3
1
4
2
Make sure the
Tank doesn’t
get wet.
Switch o the Boiling Water Tank
and unplug.
Empty the
tank if the tap
isn’t in use for
long periods
of time.
Preparation for
Use
To re-fill, turn on
the water supply
and follow the
Preparation for
Use section to
re-prime the filter. Set up the Boiling Water Tank
temperature (see pg10).
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
12
1
Maintenance
23
Remove the
aerator.
Put the
aerator
together
and screw
in place.
Using a
suitable
solution,
scrub and
wash
the aerator
until fully
de-scaled.
Rinse
thoroughly.
IMPORTANT
Isolate the
water supply
before starting!
Press

Preparation for
Use
1
35
4
2
Changing the Filter
Switch o the Boiling Water Tank.
Isolate the water supply
and draw o all
remaining water.
Place a small bowl
underneath the filter
sump and remove it.
Dispose of the old
filter and replace with
the new filter.
Spare Parts
To replace any spare parts
for your tap, why not scan
the QR Code or visit
www.bristan.com and
search for your product.
Turn on the water supply.
Follow the Preparation
for Use section to
re-prime the filter.
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 13
Maintenance
Press

Symptom Cause Remedy
No flow from the Boiling
Water Function.
Boiling Water Tank is empty at
first switch-on. Follow the Preparation for Use section.
Boiling Water Tank isn’t
holding water.
Check connections for any leaks.
Contact Customer Services.
Water/Steam is spitting
from the spout. Unit is boiling.
Turn the Instant Hot Water Tap
handle and release the water.
Adjust the water temperature to a
lower setting - See Operation.
Check the aerator isn’t blocked.
Follow the Preparation for Use section
to remove any airlocks.
Water is not hot.
The Boiling Water Tank is
unplugged.
Make sure the appliance is plugged in
and the display is lit.
Make sure the circuit breaker and fuse
are working correctly.
The Boiling Water Tank is not
switched on. Follow the Start-Up steps (pg10) and
wait until the Temperature Setting Bar
stays lit before use.
Water hasn’t finished
heating up.
Water is too hot. The water temperature is set
too high.
Set the water temperature to a
lower setting - See Operation.
Water is dripping
from the spout.
The Expansion Chamber isn’t
draining correctly.
Draw o 500ml of water to clear and
prime the system. Avoid
drawing o less than 150ml per use.
Blocked spout. See Maintenance Section to
Clean Aerator.
Slow flow from the spout. Water Filter needs changing.
Refer to the Maintenance Steps to
change the water filter. This must be
changed every 6 months or it will
invalidate the guarantee.
Water doesn’t flow straight
away.
As a safety feature, water is
drawn into the tank after each
use to prevent accidental
scalding. There will be a slight
delay until the instant hot
water appears.
After a large volume of water has
been drawn o, there may be a
slightly longer delay in water
appearing from the Instant
Hot Water spout.
No water flowing.
Closed/Partially closed
isolation valves.
Make sure isolation valves are fully
open.
Flexible tails kinked/blocked. Ensure pipes are not twisted or kinked
to restrict flow.
Boiling Water Tank may be
blocked. Contact Customer Services.
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
Troubleshooting
14

Notes
Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. 15

Bristan Group Ltd.
Birch Coppice Business Park
Dordon
Tamworth
Staordshire
B78 1SG
Web: www.bristan.com
Email: enquir[email protected]
A Masco Company
At Bristan, we want to make things as easy as possible for our customers. That’s why we oer solid
guarantees on all our products, eective from the date of purchase, to give you peace of mind.
To start your free guarantee simply scan the QR code and register your product.
Alternatively visit www.bristan.com/register.
For any other queries, please call our Customer Service on 0330 026 6273 where our expert team of
advisors
will beable to oer you any help and advice
For full guarantee terms and conditions visit www.bristan.com/guarantees.
Part Number: FI GLL RAPSNK4 C
Issue: D1

Check out our full range of Kitchen Products
Kitchen Sinks
Stainless Steel Kitchen Sinks
Granite Composite Kitchen Sinks
Glass Kitchen Sinks
Ceramic Kitchen Sinks
Franke Kitchen Sinks
Kitchen Taps
Contemporary Kitchen Taps
Traditional Kitchen Taps
Franke Kitchen Taps
Pull out Rinser Kitchen Taps
Instant Boiling Water Taps
Insinkerator Waste Disposal Units
