Bristan ALP Series Wiring diagram

IMPORTANT: Please keep this booklet for future reference and request of replacement parts.
Installation Instructions & User Guide
ALP RANGE: ALP BAS C, ALP 1HBF C, ALP 4HBSM C,
ALP WMBAS C, ALP WMBF C, ALP 2HBF C

2
Contents
Thank you for choosing Bristan, the UK’s leading taps and showers expert.
We have designed this product with your enjoyment in mind. To ensure that it works
to its full potential, it needs to be fitted correctly. These fitting instructions have been
created to give you all of the information you need and, if you need any further help,
please do not hesitate to contact us.
Important Safety Information................................................... 3
General Information ................................................................. 4
Specifications ........................................................................... 5
Dimensions............................................................................... 6-8
Installation Requirements ....................................................... 9
Installation................................................................................ 10-14
Basin Mixer & 1 Hole Bath Filler ............................................. 10
Bath Shower Mixer................................................................... 11-12
Wall Mounted Basin Mixer and Bath Filler.............................. 13
2 Hole Bath Filler .................................................................... 14
Maintenance ............................................................................. 15
Troubleshooting........................................................................ 16
Notes......................................................................................... 17
Guarantee ................................................................................. 18-19

3
Important Safety Information
•Please read these instructions thoroughly and retain for future use.
•All products manufactured and supplied by Bristan are safe provided they are
installed, used correctly and receive regular maintenance in accordance with these
instructions.
•If you are in any doubt about your ability to install this product safely you must
employ the services of an experienced qualified plumber.
•This product needs to be installed in accordance with, and meet the requirements of
the Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004.
•Remove all packaging and check the fitting for damage before starting installation.
•Warning: Before starting any installation please consider the following: before
drilling into walls, check that there are no hidden electrical wires, cables or water
supply pipes. This can be checked with the aid of an electronic detector.
•If power tools are used do not forget to: - Wear eye protection
- Unplug equipment after use
•Important: Remember to turn off the mains water supply before connecting to any
existing pipe work. Fitting isolating valves to the inlet feeds is recommended for ease
of maintenance.
•Warning: Before installing this product it is essential that you thoroughly flush
through the pipework in order to remove any remaining swarf, solder, etc.
Failure to carry out this procedure could cause problems or damage to the workings of
the tap.
•Take care when handling the ‘flexible connecting pipes’, do not bend, twist or crush
them. Only tighten the pipes by hand.
•Do not crush or kink the shower hose, this could damage the hose and cause leaks.
• This product must not be modified in any way as this will invalidate the guarantee.

4
General Information
This product has been tested to the Water Regulations Advisory Scheme (WRAS) and
satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and
current bylaws. For full Installation Requirements & Notes (IRN) please visit
www.wras.co.uk/directory.
Designed to comply with BS EN 200 for combination taps to be used within systems
designed to BS 6700.
BS 6700 recommends the temperature of stored water should never exceed 65°C.
A stored water temperature of 60°C is considered sufficient to meet all normal
requirements and will minimise the build up of lime scale in hard water areas.
If installing this product on a low pressure (tank fed) system please see specifications
table on page 5 to determine the minimum distance required from undeside of the cold
water tank to the outlet.
These taps and mixers should be installed in compliance with the Water Regulations.
Where the supplies are unbalanced, i.e. Hot water from cylinder tank / cold from the
mains, approved check valves must be fitted in the supply pipes.
For further details contact your Local Water Authority.

5
Specifications
Product Code
Working pressure
Inlet
Minimum
distance from
cold water tank to
outlet (metres)
Min Max
ALP BAS C 0.3 5.0 M10 15mm Compression Flexible Tails 3
ALP 1HBF C 0.3 5.0 M16 22mm Compression Flexible Tails 3
ALP 4HBSM C 1.0 5.0 M16 22mm Compression Flexible Tails 10
ALP WMBAS C 0.2 5.0 15mm Compression Threaded Tail 2
ALP WMBF C 0.3 5.0 15mm Compression Threaded Tail 3
ALP 2HBF C 0.4 5.0 M16 22mm Compression Flexible Tails 4
Maximum static pressure- 10.0 bar
System Requirements:
Gravity fed hot & cold (Equal pressures)
Gravity fed hot & cold (Differential pressure, maximum ratio 5:1)
Unvented systems
Instantaneous water heater (Combination boiler)

6
Dimensions
Dimensions are approximate and in millimetres.
46
134
99
92
134
52
150
104
106
150
95
80
Basin Mixer
1 Hole Bath Filler
Basin Mixer

7
Dimensions Cont.
Wall Mounted Basin Mixer
Dimensions are approximate and in millimetres.
115 135
33
217
55 52 52 52
106
105
155
200
90
60
40
120 135
245
207
180
35
30
Bath Shower MixerBath Shower Mixer

8
Dimensions Cont.
Dimensions are approximate and in millimetres.
Wall Mounted Bath Filler
2 Hole Bath Filler
135
115
55 52
154
109
106
240
100 120 140
60
40
160
185
230
30
40

9
Installation Requirements
Flexible Connecting Pipes
Care must be taken when connecting the flexible connection pipes to the household pipework to
ensure they do not bend sharply and kink or twist.
See below for recommended ways to fit the flexible connecting pipes.
Slight
bend
90°
Angle
Kink Curved
round
Twists
Important: Failure to follow these guidelines may result in poor performance and damage
to the flexible connecting pipes.
Important: Full access must be made available on installation for future maintenance/
servicing purposes.

10
Installation
Basin Mixer / 1 Hole Bath Filler

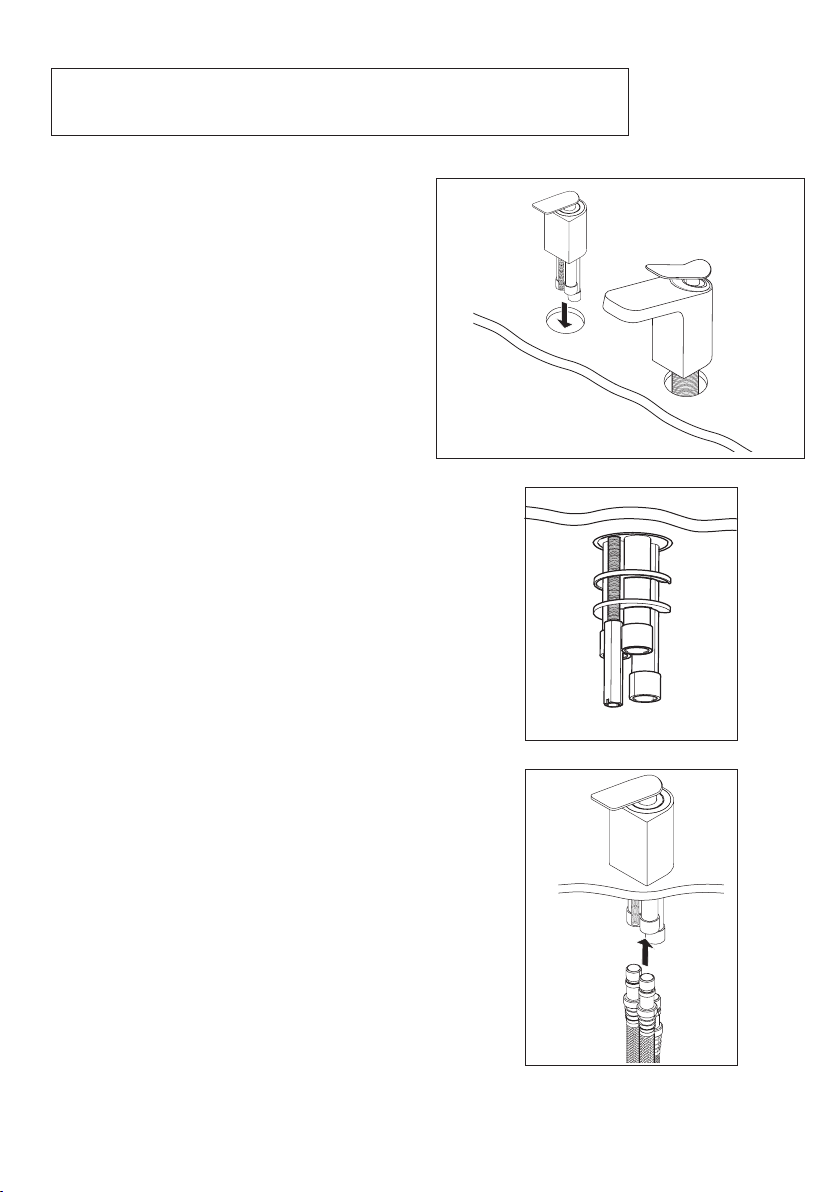

1. Screw the flexi tails into the bottom of
the mixer body / bath filler by hand only
(DO NOT OVERTIGHTEN).
2. Feed the flexi tails through the hole in
the basin/bath, ensuring the washer is
fitted between the body and the basin/
bath to create a water tight seal.
3. Screw the fixing rod into the bottom
of the tap. Slide the 'C' shaped rubber
washer and 'C' shaped metal washer onto
the fixing rod up to the underside of the
basin/ bath.
4. To secure the mixer/bath filler in place
tighten the fixing nut onto the fixing rod
until it is fully tightened against the 'C'
shaped metal washer. The fixing nut can
be tightened with a suitable spanner.
5. Connect the flexi tails to the hot and
cold water supplies.
6. Turn on both water supplies, fully open
both valves, letting the water run for a few
minutes to flush out the system.
7. Fit the clicker waste (basin mixer only)
ensuring the rubber washer is fitted
between the basin and the waste. Place
the other rubber washer under the basin
and secure by tightening the backnut, in
order to fill the basin, the button in the
middle of the waste needs to be pressed
down. To release the water, press the but-
ton again.
8. Check all joints and connections for any
leaks.

11
Installation Cont.
1. Fit the spout and the side body to the
bath ensuring that the washers are fitted
between the bodies and the fixing surface
to create a water tight seal.
2. Secure the spout to the bath using the
washer and metal backnut. Tighten the
backnut onto the threaded tail. A suitable
spanner may be required to fully tighten
the backnut.
3. Screw the fixing rod into the bottom of
the side body. Slide the 'C' shaped rubber
washer and 'C' shaped metal washer
onto the fixing rod up to the underside of
the bath.
4. To secure the side body in place
tighten the fixing nut onto the fixing rod
until it is fully tightened against the 'C'
shaped metal washer. The fixing nut can
be tighten with a suitable spanner.
5. Fit the diverter to the bath. Unscrew the
diverter knob, remove the shroud by
loosening the grub screw and remove the
locking nut. Push the diverter body up
through the underside of the bath and
screw the locking nut onto the thread.
Tighten the backnut underneath to secure
the diverter body in position. Replace the
shroud, tightening the grub screw and
screw the diverter knob back on.
6. Screw the flexi tails into the bottom of
the side body by hand only (DO NOT
OVERTIGHTEN), hot on the left, cold on
the right when viewed from the front and
connect to the water supplies.
Bath Shower Mixer

12
7. Connect the side body to the diverter
using the flexi tail supplied.
8. Connect the spout to the diverter using
the flexi tail supplied.
9. Fit the shower head holder to the bath.
Remove the backnut and the washers and
feed the threaded tail through the hole in
the bath. Secure in place by screwing the
backnut onto the threaded tail ensuring the
washers are fitted.
10. Feed the shower hose through the
shower head holder and screw the
connecting nut onto the bottom of the hose.
Connect the hose to the diverter body.
11. Fit the shower head to the hose
ensuring the small sealing washer is fitted.
12. Turn on both water supplies, operate
the handle in both directions, letting the
water flow for a few minutes to flush
through the system.
13. Check all joints and connections for
leaks.
Installation Cont.
Bath Shower Mixer Cont.

13
Installation Cont.
Wall Mounted Basin Mixer and Bath Filler
1. Remove the spout from the basin mixer / bath
filler by loosing the grub screw.
2. Decide on the final position of the basin mixer/
bath filler. Install suitable battons into the wall
cavity if required.
3. Secure the mixer body using the screws and wall
plugs supplied.
4. Plumb the hot and cold water supply pipes to
the required position and flush through to remove
any debris. Attach pipework to the hot and cold
inlets (hot on the bottom and cold on the right when
viewed from the front) ensuring the olive is fitted to
the copper pipe work. Tighten the compression nut
to secure pipework and create a water tight seal.
Note: Before finishing the wall surface turn on the
water supplies to check for any leaking connections.
5. Finish the wall surface.
Note, it is important sufficient thread is left exposed
to allow the spout to connect.
6. Attach the spout to the concealing plate using the
screws supplied.
7. Push the concealing plate / spout over the valve
shroud ensuring the O-rings on the spout
connecting tube have located inside the spout.
Tighten the grub screw on the under side of the
spout to secure in position.
8. Place the cartridge shroud over the cartridge and
push the shroud cover onto the cartridge shroud.
Tighten the grub screw.
10. Push the handle onto the cartridge and tighten
the grub screw.
11. Operate the basin mixer / bath filler to ensure it
is functioning correctly.
Cold
Hot
Shroud
Cover
Cartridge
Shroud

14
Installation Cont.
1. Fit the spout and the side body to the
bath ensuring that the washers are fitted
between the bodies and the fixing surface
to create a water tight seal.
2. Secure the spout to the bath using the
washer and metal backnut. Tighten the
backnut onto the threaded tail. A suitable
spanner may be required to fully tighten
the backnut.
3. Screw the fixing rod into the bottom of
the side body. Slide the 'C' shaped rubber
washer and 'C' shaped metal washer
onto the fixing rod up to the underside of
the bath.
4. To secure the side body in place
tighten the fixing nut onto the fixing rod
until it is fully tightened against the 'C'
shaped metal washer. The fixing nut can
be tighten with a suitable spanner.
5. Screw the flexi tails into the bottom of
the side body by hand only
(DO NOT OVERTIGHTEN).
6. Connect the flexi tails to the side body
(hot on the left, cold on the right when
viewed from the front) and connect to the
water supplies.
7. Connect the spout to the side body by
using flexi tails supplied.
8. Turn on both water supplies, operate
the handle in both directions, letting the
water flow for a few minutes to flush
through the system.
9. Check all joints and connections for
leaks.
2 Hole Bath Filler

15
Maintenance
Your product has a high quality finish
and should be treated with care to
preserve the visible surfaces. All
surfaces will wear if not cleaned
correctly, the only safe way to clean your
mixer is to wipe with a soft damp cloth.
Stains can be removed using washing
up liquid. All bath cleaning powders and
liquids will damage the surface of your
fitting, even the non-scratch cleaners.
Note: Never use abrasive detergents
or disinfectants or those containing
alcohol, hydrochloric acid or phosphoric
acid.
Before carrying out any maintenance,
turn off the both water supplies or close
any isolating valves.
Loosen the grub screw using a 2.5mm
hexagonal key. Remove the handle,
prise out the shroud cover and remove
the cartridge shroud. Remove the
cartridge.
Clean the cartridge thoroughly under
cold water to remove any build up of
limescale or debris.
If necessary replace the cartridge using
parts supplied by Bristan only.
Replace the cartridge into the body.
Replace the cartridge shroud, shroud
cover and the handle. Tighten the grub
screw.
Cleaning the Cartridge
General Cleaning
2.5mm hexagonal
key
Grub Screw
Handle
Shroud
Cover
Cartridge
Shroud
Tap Body

16
Troubleshooting
Symptom Cause Remedy
No flow or low
flow rate
Partially closed isolation valve. Open isolation valve.
Instantaneous water heater
cycles on and off as flow rate or
pressure is too low.
Increase water flow rate or
pressure through system to
meet required minimum working
pressure of tap.
Head of water is below the
minimum distance required.
Refer to 'Specifications' on page
5.
Hot or cold water being drawn
off elsewhere causing pressure
changes or instantaneous boiler
temperature changes.
Do not use other water outlets
when using the taps.
Airlock or partial blockage in the
supply pipework.
Flush through pipework to
ensure removal of debris and
any airlocks.
Water dripping
from taps
This is normal for a short time
after using the taps.
This is caused by capilary action,
the build up of water in the tap
body.
If water continues to drip,
possible build up of debris /
limescale in the cartridge.
Remove and clean the cartridge,
refer to 'Maintenance' section
on page 15 before removing the
cartridge.
Taps do not
turn on
Closed isolation valve. Open isolation valve.
Water supplies to the tap turned
off.
Turn on both water supplies to
the tap.

17
Notes
Please use this space to add any notes you or your installer may have
regarding the plumbing system / installation of this product.

18
Bristan Guarantee
At Bristan, we want to make things as easy as possible
for our customers.
That’s why we oer solid guarantees on all our
products, eective from the date of purchase, to give
you peace of mind.
To start your free guarantee, simply scan the QR code
and register your product. Alternatively, visit
www.bristan.com/registerto register your product via a
computer
For full guarantee terms and conditions visit, www.
bristan.com/guarantees

19

20
Bristan Group Ltd.
Birch Coppice Business Park
Dordon
Tamworth
Staordshire
B78 1SG
A Masco Company
Web: www.bristan.com
Email: [e-mail]
Telephone: [phone]
This Booklet covers product codes
ALP BAS C, ALP 1HBF C,
ALP 4HBSM C, ALP WMBAS C,
ALP WMBF C, ALP 2HBF C
Helpline
0330 026 6273
FI REV.D5
