Bristan Zing Safe Touch Bar Mixer Multi Mode Kit Wiring diagram

Please keep these instructions for future reference and request of replacement parts
Zing Safe Touch Bar Mixer Multi Mode Kit
Installation Instructions & User Guide

Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed
these products with your enjoyment in mind. To ensure that they work to their full potential, they
need to be fitted correctly. These fitting instructions have been created to give you all of the
Information you need and, if you need any further help, please do not hesitate to give us acall on
0330 026 6273.
Contents Page
02
1. Important Safety information 03
2. General Information 04
3. Specifications 05
4. Dimensions 06
5. Features 07
6. Installation Requirements 08 – 11
7. Installation 12 –15
8. Commissioning 16
9. In Service Testing 17
10. Annex F 18
11. Maintenance 19
12. Troubleshooting 20 –21
13. Guarantee 22

Important Safety Information
•
•
•Please read these instructions thoroughly and retain for future use.
•All products manufactured and supplied by Bristan are safe provided they are installed
correctly, used correctly and receive regular maintenance in accordance with these
instructions.
•If you are in any doubt about your ability to install this shower valve safely you must
employ the services of an experienced qualified plumber.
•This shower valve needs to be installed in accordance with, and meet the requirements of
the Water Supply (Water Fittings) Regulations 1999 and ScottishByelaws 2004.
Warning: Do not operate the shower valve if you suspect it is frozen. Do not site the
shower valve where it might be subjected to freezingconditions.
•Do not crush or kink the shower hose (where supplied) as this could damage the hose and
cause leaks.
•Remove all packaging and check the contents for damage before startinginstallation.
Warning: Before starting any installationplease consider the following:before drilling
into walls, check that there are no hidden electrical wires, cables or water supply pipes.
This can be checked with the aid of an electronicdetector.
•If power tools are used do not forget to; -Wear eye protection
-Unplug equipment afteruse
•
•Fitting Isolating valves to the inlet feeds is required for ease of maintenance.
Warning: Before installing the new shower valve it is essential that you thoroughly
flush through the pipework in order to remove any remaining swarf, solder, etc. Failure to
carry out this procedure could cause problems or damage to the workings of the shower
valve.
•It is recommended that when installing the shower valve, full access is provided for
servicing purposes.
•This shower valve must not be modified in any way as this will invalidate theguarantee.
03

General Information
This product complies with the BS EN 1111:1999 (HP) thermostatic mixing valve standards and
satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current
bylaws.
Designed to be used within systems designed to BS 6700.
BS 6700 recommends the temperature of stored water should never exceed 65ºC. A stored water
temperature of 60ºC is considered sufficient to meet all normal requirements and will minimise
the build up of lime scale in hard water areas (see Map of Hard Water Regions in the UK on page
24).
If the shower valve is installed at low pressure (tank fed), then the minimum distance from the
highest installed position of the showerhead to the underside of the cold tank should be at least
2 metres to ensure adequate performance.
These shower valves should be installed in compliance with the Water Regulations. For further
details contact you Local Water Authority.
04

Specifications
Inlet Connections: G ½" male thread with 135-165mm centres
Operating Pressure Range: Minimum. 0.2bar, Maximum5.0bar.
Maximum Static Pressure:10.0bar.
Note: Nominally equal (balanced) inlet supply pressures are required for optimum performance. If
pressures are unequal, then apressure reducing valve should be used.
Maximum recommended imbalance between hot and cold supply should not exceed aratio of 5:1
Maximum Outlet Temperature: Factory pre-set to 38ºC with push button override to46ºC (can
be re-set to suit site conditions or personal preference).
Supply Requirements:
Minimum cold water supply temperature: 5ºC
Maximum cold water supply temperature: 25ºC
Maximum hot water supply temperature: 80ºC
(a maximum hot water supply of 55-65ºC is recommended for ablutionarypurposes).
Note: The inlet hot water temperature must be at least 10ºC above the required blend
temperature (e.g. outlet temperature 43ºC: Minimum hot supply53ºC).
Note: Valves operating outside these conditionscannot be guaranteed by the Scheme to operate
as Type 2valves.
05

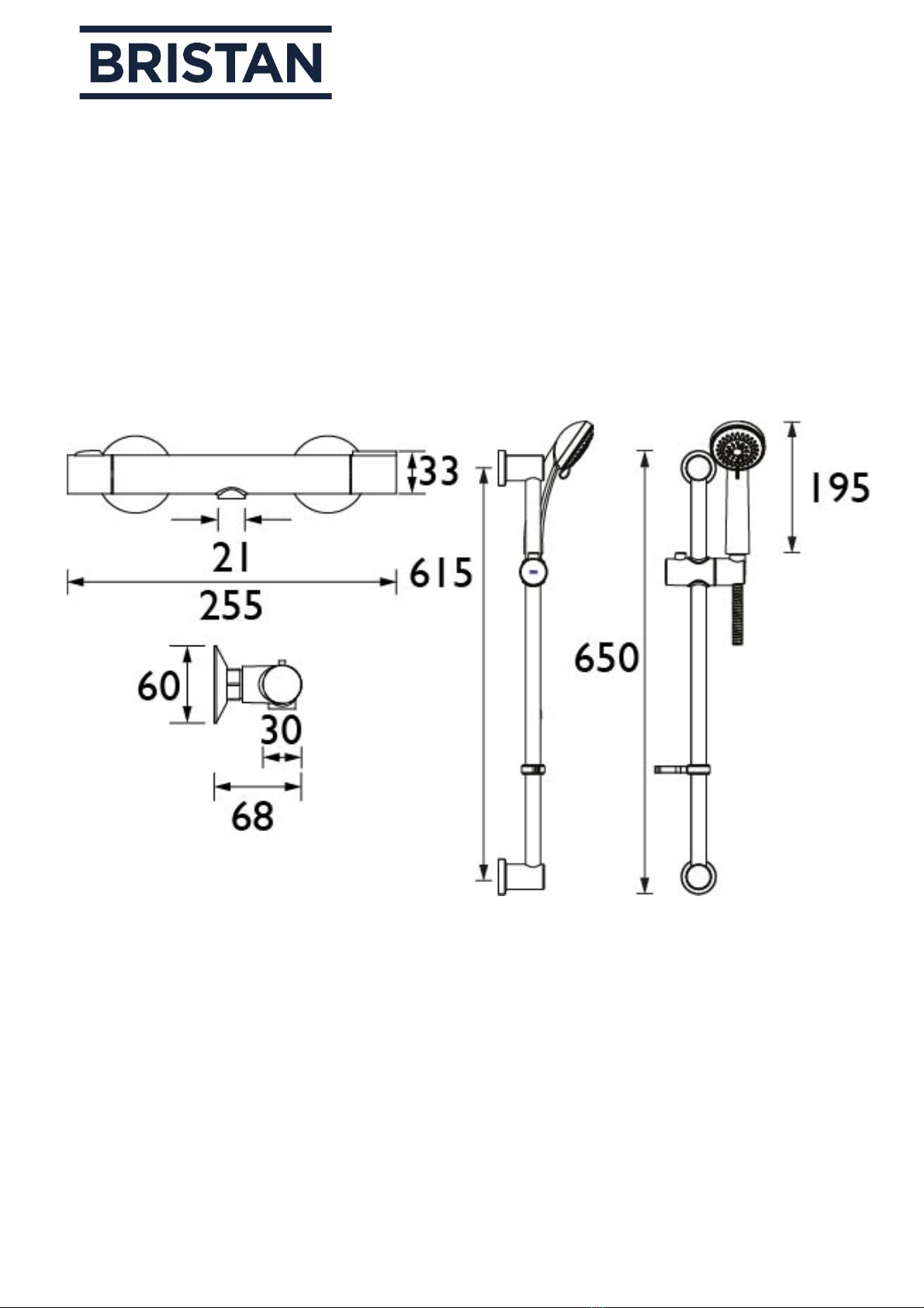

All dimensions are in mm’s and are approximate.
Dimensions
06

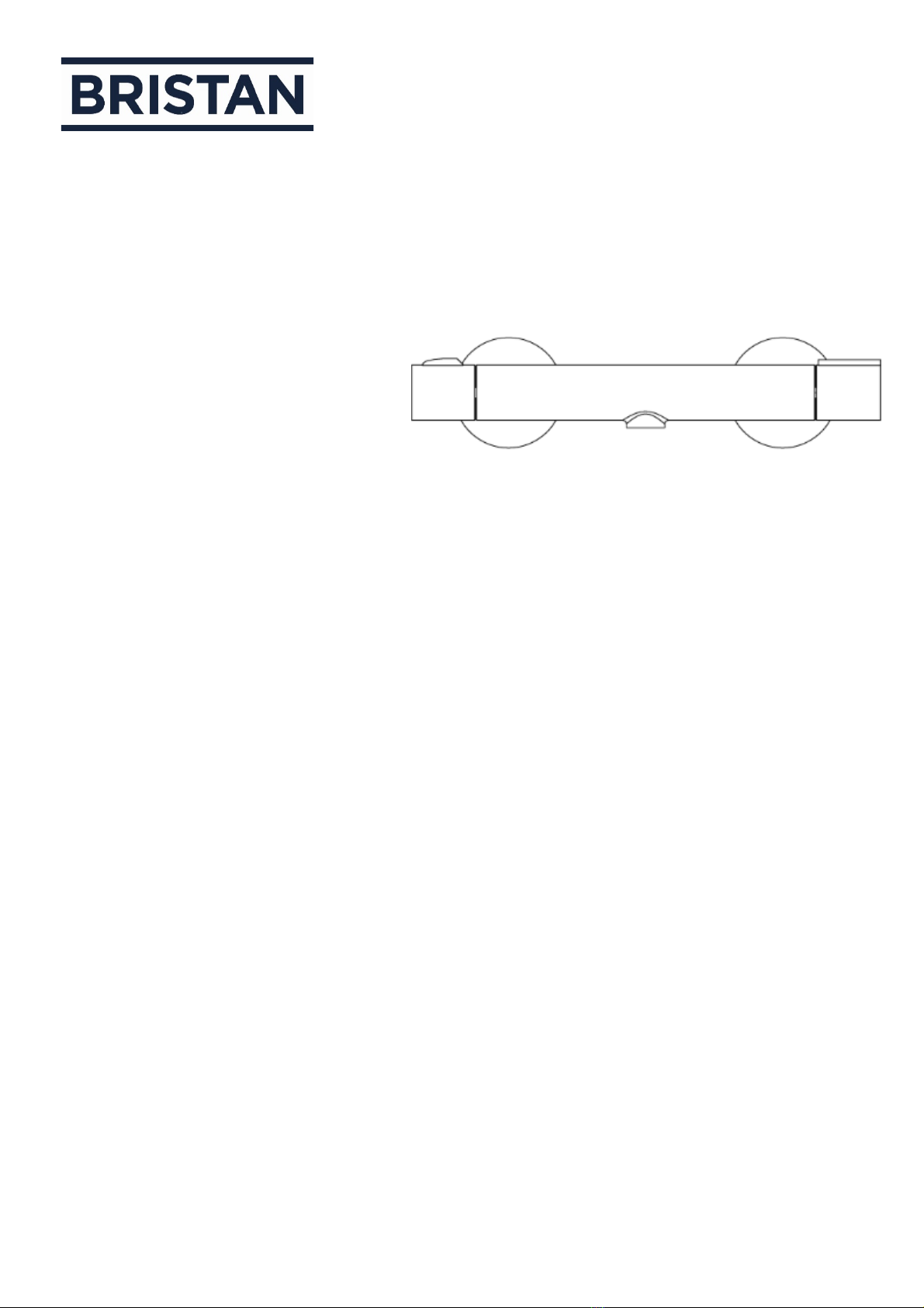

Product Features
1. Water Flow Control
Controls the amount or flow of water from
the multi mode handset.
2. Temperature Control
Adjustable temperature control.
The temperature control incorporates
asafety stop facility limiting the water
temperature to 38ºC.
To obtain ahigher water temperature,
press / slide the button on handle (2)
and continue to turn the controlto the
desired temperature.
Safe Touch Feature
This shower valve incorporatesa
safe touch feature. When the shower
valve is in use,the body of the shower
will not get hot and will remain cool.
Shower Handset
The shower handset supplied has 3
spray modes –spray, jet spray and
combination.Simply rotate the spray
head one way or the other until it
‘clicks’ into the desired spray pattern.
07
21

Installation Requirements
Cold mainssupply
2m
min
This shower valve must be installed in
compliance with currentwaterregulations.
If you have any doubts about the water
regulation requirements contact yourlocal
water services provider or usethe services
of a professionalplumber.
This shower valve is suitable for use with
the following water supply systems.
•Gravity Fed Hot and Cold
(pressure Balanced)
•Gravity Fed Hot and Mains Cold
(differential pressure –seeSpecification
section on page5.
•Instantaneous Water Heater
(combination boiler)
•Unvented System
•Pumped System
Gravity Fed Hot and Cold
Important: If you install this shower
valve with a gravity fed system, there must
be a minimum head (vertical distance)
from the underside of the cold water
storage tank to the showerhead positionof
at least 2metres.
Note: Pumped system (with Essex flange)
If you install this shower valve to a pumped
gravity fed system where the minimum
head (vertical distance) fromthe underside
of the cold water storagetankto the top of
the hot water cylinder is less than 1 metre
we recommend an Essex flange is used as
shown on page 10.
Flushing Pipework
Important: Before connecting the
shower valve (see Installation on pages 13-
20), supply pipework must be flushed to
clear debris before connecting the shower
valve. Debris will reduce the performance
and life of theshower.
Gravity Fed Hot and MainsCold
08
2mmin
Cold mainssupply

Installation Requirements
Instantaneous Water Heater Unvented System
Cold mainssupply Cold mains supply
Pumped System Pumped System (with Essex flange)
2m min
If less
than 1m
seenote.
Cold mainssupply Cold mains supply
Key: PumpIsolating
Valve
Reducin
g Valve
Shower
Valve
Essex
Flang
e
09
2m min
50mm

Installation Requirements
These fittings need to be installed in
accordance with the following Installation
Requirements and Notes (IRN) to ensure
they meet the requirements of the Water
Supply (Water Fittings) Regulations 1999
and the Scottish Byelaws 2004.
IRN R001: See text of entry forInstallation
Requirements or Notes.
IRN R040 -Schedule 2-15 (1): The fitting shall
be installed so that its outlet discharges above
the spill-over level ofany fixedappliance as
indicatedbelow:-
For backflow protection in domestic or
installations up to, and including, Fluid
Category 3.
If the fitting cannot be installed as indicated in
the table opposite it shall be installed aseither
aor bbelow:
a: with an approved double check valve
assembly or some other no less
effective backflow prevention device
immediately upstream of theinlet.
b: so that it draws water by gravity only froma
cistern, or cylinder havinga
permanently open vent pipe, and the
distributing pipe supplies no otherfitting
(other than draining tap) at a lowerlevel.
For backflow protection in premises or
installations up to, and including Fluid
Category 5.
The vertical distance of the outlet above the
spill-over level shall be not less than 20mm or
twice the diameter of the inlet pipe to the
fitting, which ever is the greater. If the fitting
cannot be installed as indicated it shall be
installed with a backflow prevention
arrangement suitable for the FluidCategory.
10
Size of tap or
combination fitting.
Vertical distance
of outlet above
spill-over level.
1. Not exceeding 1/2
in 20mm
2. Exceeding 1/2 in
but not exceeding
3/4 in
25mm
3. Exceeding 3/4 in 70mm

Installation Requirements
Valves operating outside these conditions
cannot be guaranteed by the Scheme to
operate as Type 2valves.
If awater supply is fed by gravity thenthe
supply pressure should be verified to
ensure the conditions of use are
appropriate for thevalve.
Recommended Outlet temperatures
We recommend the following set maximum
mixed water outlet temperatures for use in
all premises:
41ºC for showers;
The mixed water temperatures must
never exceed 46ºC.
The maximum mixed water temperature
can be 2ºC above the recommended
maximum set outlet temperatures.
Note: 46ºC is the maximum mixed water
temperature from the bath tap. The
maximum temperature takes account ofthe
allowable temperature tolerances inherent
in thermostatic mixing valves and
temperature losses in metalbaths.
Warning: It is not a safebathing
temperature for adults orchildren.
The British Burns Association recommends
37 to 37.5ºC as a comfortable bathing
temperature for children. In premises
covered by the Care Standards Act 2000,the
maximum mixed water outlet temperature is
43ºC.
The thermostatic mixing valve (TMV) will be
installed in such a position that
maintenance of the TMV and its valves and
the commissioning and testing of the TMV
can be undertaken.
The fitting of isolation valves is required as
close as is practical to the water supply
inlets of the thermostatic mixingvalve.
11
This valve has been approved for use in the
following designations:
Code Operating Pressure Application
HP-S High Pressure Shower
HP-W High Pressure Wash Basin
Conditions of Use for ThermostaticMixer
Valves
High Pressure
Maximum Static Pressure (Bar) 10
Flow Pressure, Hot &Cold (Bar) 0.5 to 5
Hot Supply Temperature (ºC) 55 to 65
Cold Supply Temperature (ºC) Equal to orLess
than 25

Installation –Zing Shower Valve with Multi Mode Kit
This Thermostatic Mixer Valve should be installed in compliance with Water Regulations (refer to
General Information section). For further details contact your Local Water Authority.
This TMV is suitable for use with the following systems:
•Gravity Fed Hot &Cold (Nominally EqualPressure)
•Gravity Fed Hot &Mains Cold (Differential Pressure, Max ration5:1)
•Unvented Systems
•Instantaneous Water Heater (CombinationBoiler)
•Pumped System
Note: On Gravity systems the minimum distance from the underside of the cold water storage
tank to the shower handset must be at least2 metres.
Warning: Before installing the thermostatic mixer valve it is essential that you thoroughly
flush through the pipework in order to remove any remaining swarf, solder, etc. Failure to carry
out this procedure could cause problems or damage to the workings of the mixer valve.

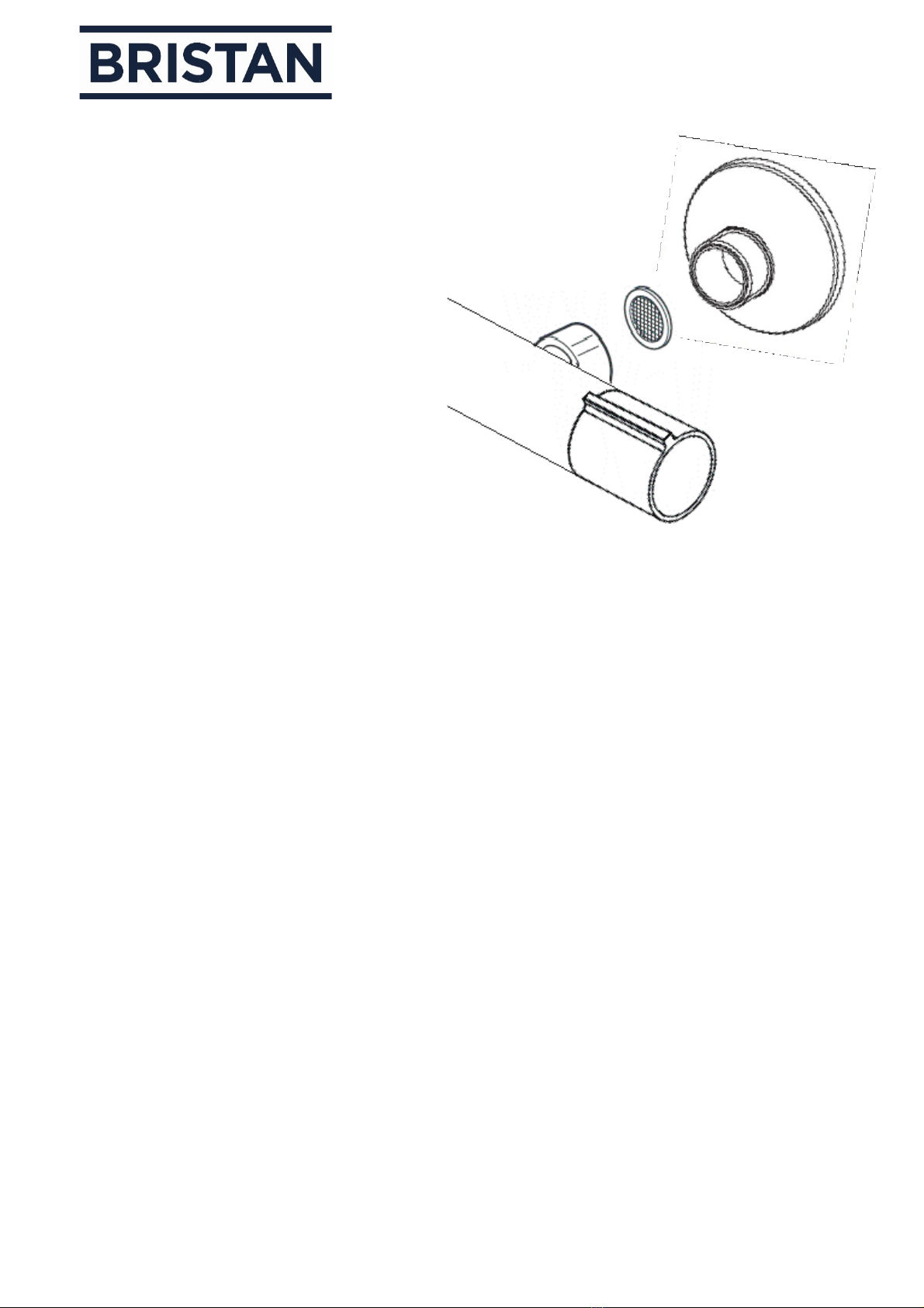

Installing the Connectors
1. Identify all components are present prior to starting installation (see overleaf).
2. Attach the connectors (1) to the shower valve and mark out the position for the pipework.
Note: The Pipe centres required for this Thermostatic Mixing Valve are variable between 135-
165mm.
Before drilling into walls, check that there are no hidden electrical wires, cables or water
supply pipes. This can be checked with the aid of an electronic detector.
•If power tools are used do not forgetto;
-Wear eye protection
-Unplug equipment after use
12

6. Screw the shrouds (2) onto the connectors(1)
see (Fig 3). Fig.2
3.Drill suitable holes in the wall surface atthe
marked positions to accommodate the supply
pipework.
4.Terminate the pipework in thewallensuring
that the pipework is sunk in the wall.
IMPORTANT: The water supply pipes to the
thermostatic Mixer Valve must be withthe Hot on
the left and the Cold on the right when viewed
from the front.
5. Secure the connectors (1) to the pipework
using ½" BSP female connectors (not supplied)
ensuring the connectors protrude out of the wall
Surface as shown inFig.1.
Fig.1
13

Installing the Thermostatic Mixer Valve
1.Place the filter washers (3) into the
connectors (1)
2. Position the shower valve (4) againstthe
2
31
connectors (1) and carefullytighten the
shower valve fixing nuts onto the
connectors (1). Do not overtighten.
4
Note: Ta ke care not to damage the finish
of the shower valve fixing nuts. Protectthe
chromium plated surfaces with acloth.

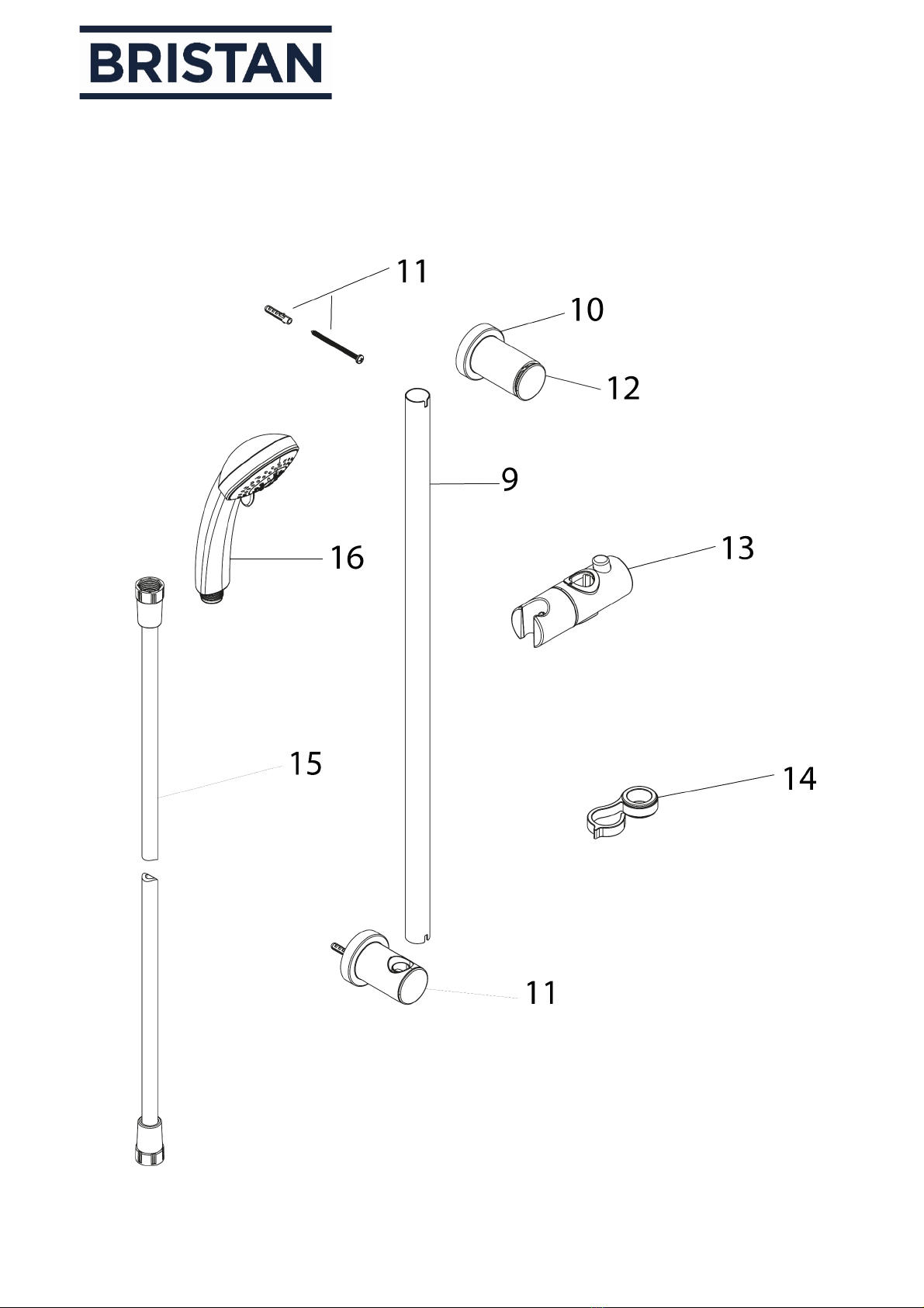

Installing the Multi Mode kit
(See diagram overleaf)
1.Offer the adjustable riser (9) with the riser brackets (10) attached on to the wall surface and
mark the position of the brackets (10) ensuring that the handset and hose will reach the
handset holder when it is in its highest position.
2. Using the positions marked on the wall surface drill suitable holes for the fixings (11).
3.Fix the bottom riser bracket (10) to the wall using the fixings (11) supplied, the top riser
bracket (10) is fixed at a laterstage.
4.Slide the handset holder (13) and the hose retainer (14) onto the adjustable riser (9). The top of the
adjustable riser (9) has a hole throughthemiddle.
5. Fit the bottom of the adjustable riser (9) into the bottom bracket (10).
6.Push the top bracket (10) onto the top of the riser (9) ensuring the hole in the top of the riser is in
the centre of the bracket (10) when viewed from thefront.
7. Fix the top bracket (10) to the wall using the fixings (11)supplied.
8. Push the bracket end caps (12) onto the riser brackets(10).
9.Attach the shower hose (15) onto the outlet of the shower valve using the small washer provided
and attach the conical end of the shower hose (15) onto the handset (16) using the small washer
provided. The conical end of the shower hose (15) fits into the handset holder (13) and not the
handset(16).
14

15
Installing the Multi Mode kit

Commissioning
Commissioning notes for
Thermostatic Mixing Valves
The first step in commissioning a
thermostatic mixing valve is to checkthe
following:
1. The designation of the thermostaticmixing
valve matches theapplication.
2. The supply pressures are within thevalves
operating range.
3. The supply temperatures are withinthe
valves operating range.
4. Isolating valves (and strainers preferred) are
provided.
If allthese conditions are met, proceed to set
the temperature as stipulated inthe
setting section.
The mixed water temperature at the
terminal fitting must never exceed46ºC.
When commissioning / testing is due the
following performance checks shallbecarried
out:
•Measure the mixed water temperature at
the outlet.
•Carry out the cold water supply isolation
test by isolating the cold water supply to
the T M V, wait for five seconds, ifthewater
is still flowing check that the temperature
is below46ºC.
If there is no significant change to the set
outlet temperature (+/-2ºC or less change
from the original setting) and the fail –safe
shut off is functioning, then the valve is
working correctly and no further service work
is required.
Notes: If there is a residual flow during the
commissioning or the annual verification(cold
water supply isolation test), then this is
acceptable providing the temperature of the
water seeping from the valve is no more than
2ºC above the designated maximum mixed
water outlet temperature setting of thevalve.
Temperature readings should be taken at the
normal flow rate after allowing for the system
to stabilise.
The sensing part of the thermometer probe
must be fully submerged in the water that is to
be tested.
Any TMV that has been adjusted or serviced
must be re-commissioned and re-tested in
accordance with the instructions in thesetting
section.
The installation of thermostaticmixing valves
must comply with the requirements of the
Water Supply (Water Fittings) Regulations
1999.
16

In-Service Testing
Purpose
The purpose of in service tests is to regularly monitor and record the performance of the thermostatic
mixing valve.
Deterioration in performance can indicate the need for service work on the valve and /or water supplies.
Servicing Intervals
To reduce the buildup of lime scale and to ensure this shower works to its maximum performance, we
recommend this shower isserviced every 6 –12 months depending on the hardness of your water.
Procedure
Using the same measuring equipment or equipment to the same specification as used in the
commissioning section, adjust the temperature of the mixed water in accordance with the manufactures
instructions and the requirement of the application, Carry out the following sequence.
a) Record the temperature of the hot and cold water supplies.
b)Record the temperature of the mixed water at the largest draw-off flow rate.
c)Record the temperature of the mixed water at asmaller draw-off flow rate, which shall be measured. If
the mixed water temperature has changed significantly from the previous test results (e.g. >1K), record the
change and before re-adjusting the mixed water temperature check:
d)That any in-line or integral strainers areclean.
e) Any in-line or integral check valves or other anti-back siphonage devices are in good working order.
f) Any isolating valves are fullyopen.
With an acceptable mixed water temperature, complete the following procedure:
a) Record the temperature of the hot and cold water supplies.
b)Record the temperature of the mixed water at the largest draw-off flow rate.
c) Record the temperature of the mixed water at asmaller draw-off flow rate, which shall be measured.
d) Isolate the cold water supply to the mixing valve and monitor the mixed water temperature.
e) Record the maximum temperature achieved as aresult of (d) and the final stabilised temperature.
f) Record the equipment, thermometer etc.used for themeasurements.
If at step (e) the final mixed water temperature is greater than 41ºC and /or the maximum temperature
exceeds the corresponding value from the previous results by more than about 2K, the need for service
work is indicated.
Note: In-service tests should be carried out with a frequency, which identifies a need for service work
before an unsafe water temperature can result. In the absence of any other instruction or guidance, the
procedure described in Annex Fof D 08 may be used.
17

Annex F of D 08 (informative)
Frequency of In-service tests
General
In the absence of any other instruction or guidance on the means of determining the appropriate
frequency of in-service testing, the following proceduremay be used:
a) 6to 8weeks after commissioning carry out the tests in ‘In-Service Tests’.
b)12 to 15 weeks after commissioning carry out the tests detailed in ‘In-ServiceTests’.
Depending on the results of the above tests, several possibilities exist:
c)If no significant changes (e.g. <1K) in mixed water temperatures are recorded between commissioning
and 6to 8week testing, or between commissioning and 12 to 15 week testing the next in-service test can
be deferred to 24 to 28 weeks after commissioning.
d)If small changes (e.g. 1 to 2K) in mixed water temperatures are recorded in only one of these periods,
necessitating adjustment of the mixed water temperature, then the next in-service test can be deferred
to 24 to 28 weeks after commissioning.
e)If small changes (e.g. 1 to 2K) in mixed water temperatures are recorded in both these periods,
necessitating adjustment of the mixed water temperature, then the next in-service test should be
carried out at 18 to 21 weeks after commissioning.
f)If significant changes (e.g. >2K) in mixed water temperatures are recorded in either of these periods,
necessitating service work, then the next in-service test should be carried out at 18 to 21 weeks after
commissioning.
18

Maintenance
General Cleaning
Your fitting has ahigh quality finish and should
be treated with care to preserve the visible
surfaces. All surfaces will wear if not cleaned
correctly, the only safe way to clean yourmixer
valve is to wipe with a soft damp cloth. Stains
can be removed using washing up liquid. All
bath cleaning powders and liquids willdamage
the surface of your fitting, even the non –
scratch cleaners.
Note: Never use abrasive detergents or
disinfectants or those containingalcohol,
hydrochloric acid or phosphoricacid.
Flow Valve Maintenance
If your shower valve begins to drip it maybe
due to the flow valve letting water pass
through the valve.
Isolate both hot and cold water suppliesto the
mixer valve by either:
•Turning the water supply off atthemains
stopcock or
•Turning off the isolation valves to themixer
valve.
1.Remove the flow control cover cap, loosen
the screw and pull the handle offthe valve
spindle.
2.Using a suitable spannerunscrewthe
valve out from the body and check its
condition.
3. Clean the valve and replace ifnecessary.
4. Push the handle back onto the valvespindle
and replace the handle, screw and handle
cover cap.
Cartridge Maintenance
We advise that the shower valve is regularly
serviced in hard water areas to maintain
optimum performance (see Map of HardWater
Regions in the UKoverleaf).
Isolate both hot and cold water suppliesto the
mixer valve by either:
•Turning the water supply off atthemains
stop cockor
•Turning off the isolation valves to themixer
valve.
1.Remove the temperature control cover cap,
loosen the screw and pull the handle off the
cartridge spindle
2. Remove the plastic stop.Important:
Take note of the position of the plastic stop and
handle –they must be refitted in the same
positions.
3.Unscrew the thermostaticcartridge from
the body.
4.Place the cartridge in a bowl and carefully
add hot water (just off the boil) and vinegar to
de-scale the cartridge. Leave in the solution
until the water has cooled and rinse withclean
water.
5.Grease the seals with a silicon grease
6.Reset the maximum temperature and
refit the handle, screw and handle cover
cap.
19

Troubleshooting
Symptom Cause Remedy
No flow or low flow rate
and / or varying
temperatures.
Partially closed stop or service
valve in water supply pipework to
the mixer valve.
Open stop or service valve.
Instantaneous water heater
cycles on and off as the flow rate
or pressure is toolow.
Increase water flow rate or
pressure through system
Contact the boiler manufacturer.
Head of water is below the
minimum distance required.
Refer to the specifications
section.
Inlet filter is partially blocked. Clean or replace, flush through
pipework before refitting.
Hot or coldwater being drawn off
elsewhere causing pressure
changes or instantaneous boiler
changes.
Do not use other water outlets
when using the shower valve.
Make sure the maintained inlet
pressures are nominally
balanced and sufficient.
If pressures are unbalanced
then a pressure reducing valve
should be used.
Airlock or partial blockage of the
pipework.
Flush through pipework to
ensure removal of debris and
any airlocks.
No hot or cold water reaching the
shower valve.
Check hot and cold feeds (the
valve willshut down if either the
hot or cold supply fails).
Water leaking from
showerhead.
This is normal for ashort time
after turning off.
Adjust the angle of the
showerhead as necessary to
vary draining time.
Shower flow control valve failing
to close fully, possibly due to
water borne debris.
Remove flow control valve
assembly and check. Refer to
maintenance section (page 23)
before dismantling shower
valve.
Flow control valve seals
damaged.
Check condition of flow control
valve and replace as necessary
(refer to maintenance section
(page 23).
20
