BT Inspiration Instruction Manual

Page 1
BT Inspiration
Installation & Maintenance
Manual
Version 2
September 1999

Page 2
INTRODUCTION..........................................................................................................................................4
GENERAL OVERVIEW......................................................................................................................................4
SAFETY AND PRECAUTIONS............................................................................................................................5
Safety precautions and switch on................................................................................................................5
Electrostatic precaution (ESP)...................................................................................................................5
INITIAL INSTALLATION PROCEDURES...............................................................................................5
INDIVIDUAL ITEMS...................................................................................................................................6
MAINTENANCE KIT...................................................................................................................................7
INSTALLING THE CCU..............................................................................................................................8
LOCATION FOR CENTRAL CONTROL UNIT (CCU)............................................................................................8
MOUNTING THE CCU.....................................................................................................................................8
CCU Mounting bracket..............................................................................................................................8
SECURING THE CCU TO THE WALL...............................................................................................................10
BASE MOTHERBOARD..................................................................................................................................11
BASE MOTHERBOARD CONNECTOR DEFINITION TABLE....................................................................................12
SYSTEM MODULES AND EXPANSION CARDS...................................................................................................12
There are a number of modules which can be installed onto the Base Motherboard:...................................12
EXTENSION EXPANSION CARD.......................................................................................................................13
Extension expansion board column support..............................................................................................14
Allowed extension expansion card locations..............................................................................................14
PSTN EXPANSION CARD..............................................................................................................................15
Allowed PSTN Expansion card locations.................................................................................................16
ISDN CLOCKING CARD.................................................................................................................................17
ISDN clocking card location.....................................................................................................................18
ISDN EXPANSION CARD...............................................................................................................................19
Allowed locations of ISDN expansion card................................................................................................20
SYSTEM ISDN SETTINGS..............................................................................................................................21
Terminating resistors..............................................................................................................................21
BASE MOTHERBOARD CONNECTIONS............................................................................................................21
EXTENSION EXPANSION CARD CONNECTIONS................................................................................................22
S/T operation...........................................................................................................................................23
VOICE MAIL.................................................................................................................................................24
EXTERNAL SERIAL PORT..............................................................................................................................25
External serial port cable and connectors..................................................................................................26
External serial port Pin-out......................................................................................................................27
DOOR INTERCOM.........................................................................................................................................28
REPLACEMENT OF SYSTEM PRINTED CIRCUIT BOARD (PCB) MODULES.........................................................29
POWER SUPPLY.........................................................................................................................................30
Replacing a power supply unit..................................................................................................................31
CONNECTING THE BATTERY BACKUP UNIT TO THE SYSTEM.........................................................................32
Mounting the Battery Backup unit...........................................................................................................34
EXTENSION PORT (22).................................................................................................................................36
CENTRAL BELL............................................................................................................................................36
DOORSTRIKE................................................................................................................................................36
GENERAL CABLING AND WIRING INFORMATION........................................................................37
MDF WIRING TECHNIQUE............................................................................................................................38
CONNECTING THE EXTENSIONS.....................................................................................................................39
FEATUREPHONE......................................................................................................................................40
FEATUREPHONE CONNECTIONS....................................................................................................................41
ATTACHING THE FEATUREPHONE DESK PLINTH...........................................................................................42
WALL MOUNTING A FEATUREPHONE............................................................................................................43

Page 3
POWER FAIL...............................................................................................................................................44
PSTN..........................................................................................................................................................44
ISDN...........................................................................................................................................................44
CALL MANAGER.......................................................................................................................................45
Environment...........................................................................................................................................45
HOTEL UPGRADE.....................................................................................................................................46
CONNECTING TO THE NETWORK.......................................................................................................48
ANALOGUE/PSTN LINES..............................................................................................................................48
4 LINE PSTN TERMINATION........................................................................................................................48
5 TO 8 LINE 12- 18 EXTENSION SYSTEM.......................................................................................................49
ISDN LINES.................................................................................................................................................50
S-Bus terminating socket.........................................................................................................................51
INSTALLATION COMPLETION & POWER UP...................................................................................52
REFITTING THE CCU COVER.......................................................................................................................53
Power up and test....................................................................................................................................54
Switch on.................................................................................................................................................54
COMMISSIONING......................................................................................................................................54
RECOMMENDATIONS FOR CUSTOMER TRAINING........................................................................55
MAINTENANCE.........................................................................................................................................56
TROUBLESHOOTING...............................................................................................................................56
TECHNICAL SPECIFICATION................................................................................................................57
CONFIGURATION TABLE.......................................................................................................................59
POWER & ENVIRONMENTAL REQUIREMENTS...............................................................................................60

Page 4
Introduction
This document describes the practices to be adopted by field engineers during installation and maintenance
of BT Inspiration. A more detailed description of the product, along with customer programmable facilities
and features, may be found in the Owner’s Manual, which should be read in conjunction with this document.
General overview
•The BT Inspiration can be connected to both PSTN and ISDN networks
•The BT Inspiration is a hybrid PABX / key-system, which may be equipped with a Featurephone, or
approved apparatus
•The BT Inspiration is modular in construction and can be upgraded by adding various system expansion
modules
•The BT Inspiration allows connection to ISDN 2 and analogue MF or LD exchange lines.
•The BT Inspiration may be configured with one or two internal S-Bus interfaces for connection to
approved ISDN apparatus.
•The BT Inspiration is a versatile easy to use system which is easy to install and maintain
2+6
4+12
6+18
1 ISDN2+6
PSTN ISDN
2+1 ISDN2+12
4+1 ISDN2+18

Page 5
Safety and Precautions
Safety precautions and switch on
After installing the CCU and all cabling, ensure that the following points are checked before switching the
mains power on:
•The mains socket outlet shall be installed near the equipment and shall be easily accessible.
•There is a reliable earth at the mains supply socket earth pin.
•The cabled extensions have a telephone or Featurephone connected.
•The CCU PCB cover has been replaced, if it was previously removed.
•Switch on the mains power and allow at least eight seconds for the CCU to go through its power up
routine.
Electrostatic precaution (ESP)
The BT Inspiration contains electrostatic components. To ensure long term reliability of the system,
electrostatic precautions should be taken when handling any of the system module PCB’s.
A connector is provided on the MDF for connection of ESP straps.
If a functional earth is connected to the system it can be used for electrostatic precautions (ESP).
CAUTION
The mains protective earth should not be used for electrostatic precautions (ESP)
Initial installation procedures
Basic equipment required
Item Quantity Item code Description
BT Inspiration 2+6
CCU
1455385 Analogue system with 2 analogue
lines and 6 extensions
BT Inspiration 4+12
CCU
1455386 Analogue system with 4 analogue
lines and 12 extensions
BT Inspiration 6+18
CCU
1455387 Analogue system with 6 analogue
lines and 18 extensions
BT Inspiration
1xISDN +6 CCU
1455388 ISDN system with 1 ISDN2 line
and 6 extensions
BT Inspiration
2+1xISDN +12 CCU
1455389 Mixed system with 2 analogue
lines, 1 ISDN2 line and 12
extensions
BT Inspiration
4+1xISDN + 18 CCU
1455340 Mixed system with 4 analogue
lines, 1 ISDN2 line and 18
extensions

Page 6
Individual Items
Individual Item
Description
Max.
Number
allowed per
system
Item code
Description
BT Inspiration
Featurephone 18 455371 Fully handsfree Featurephone which may be connected to every
extension position
PSTN Expansion Card 4455379 A card which provides 2 analogue
exchange lines
ISDN Expansion Card 5455380 A card which provides 1 ISDN 2e
line. It can also be used to provide
internal ISDN interfaces.
Extension Expansion
Card 2455378 The card provides 6 additional extension positions. It also
provides a connector for the PSTN
or ISDN expansion card.
BT Inspiration
Voice Mail 1455373 This provides up to 80 minutes of voice storage for extension voice
boxes and the system answering
machine.
BT Inspiration Base
Motherboard 1463218 Main circuit board for the system
BT Inspiration Door
Intercom 1455375 A door intercom unit which can be connected to extension position 23
External serial port V24 1455376 This provides an interface to a
printer or PC for Call logging
BT Inspiration ISDN
Clocking Card 1455492 This card allows the system to operate on the ISDN network
Used in conjunction with the ISDN
Expansion Card
Battery Back up 1455382 An externally mounted unit which
can house a battery to give one
hours full back up in the event of a
power failure
BT Inspiration Call
Manager 18 455372 One can be provided for each Featurephone and it allows the
phone to be controlled from a PC.
BT Inspiration Hotel
Software upgrade 1 463073
Pack containing V24 module, serial
cable, 9-25 way D-type adapter
and Hotel upgrade user
documentation

Page 7
Power Supply Unit P.S.U 1455384 Mains connected power
supply unit
CCU Cover Kit 1455493 Replacement for damaged CCU
covers
Apparatus approved
for connection to the
BT Inspiration
As required Description
Master line jack units
without GDTs 1 per extension
and Central
bell
6 wire 0.5 mm cable As required
BT 80A Doorstrike
and Public
Address
(PA)
systems
Doorstrike and PA Not available
from BT
Maintenance Kit
All maintenance parts are available in as individual items. A kit containing the following items is also
available:-
BT INSPIRATION MTC KIT (Item code 462913)
Inspiration PSU, Inspiration Base Motherboard, Inspiration ISDN Clocking Card, Inspiration ISDN
Expansion Card, Inspiration PSTN Expansion Card and the Inspiration Extension Expansion Card.

Page 8
Installing the CCU
Location for Central Control Unit (CCU)
The CCU is intended for installation in a residential or office-type environment. It needs to be mounted at a
convenient working height on a dry flat wall. The normal height is 1 metre from the floor to the bottom of
the CCU case.

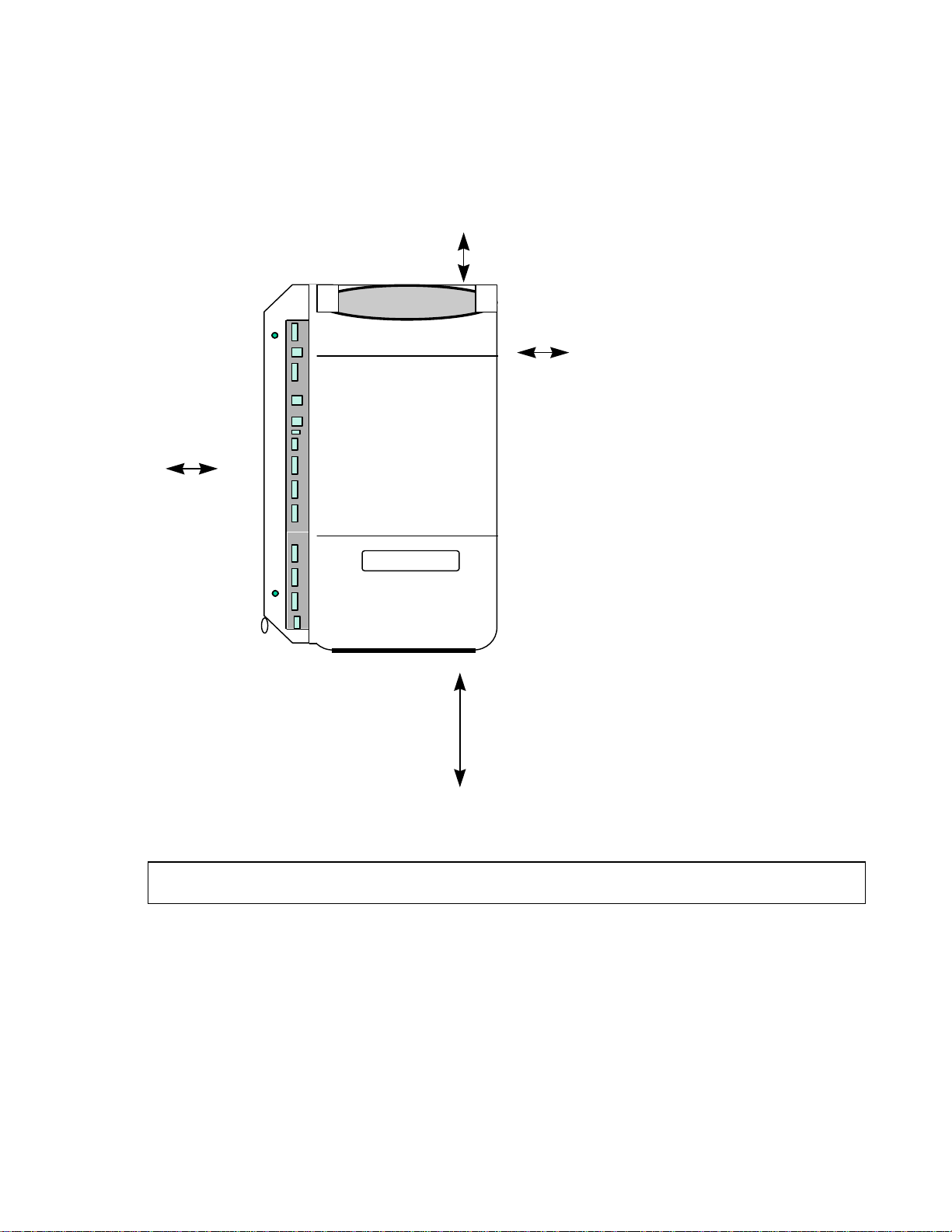

Allow at least 100 mm of free space all around the CCU for ventilation and 310 mm to the right or
underneath the CCU for the addition of the Battery Back Up unit.
The CCU needs to be within approximately two meters, of a dedicated mains power supply outlet. The CCU
must not share the same mains supply socket with any other electrical appliance.
Mounting the CCU
When a suitable location has been found, mark the screw locations on the mounting surface using the
mounting bracket provided.
If the CCU is being mounted on masonry or plasterboard, suitable wall plugs must be used. Drill and plug
four holes in the wall at the marked locations. The holes should be deep enough to accept a 2.5cm screw.

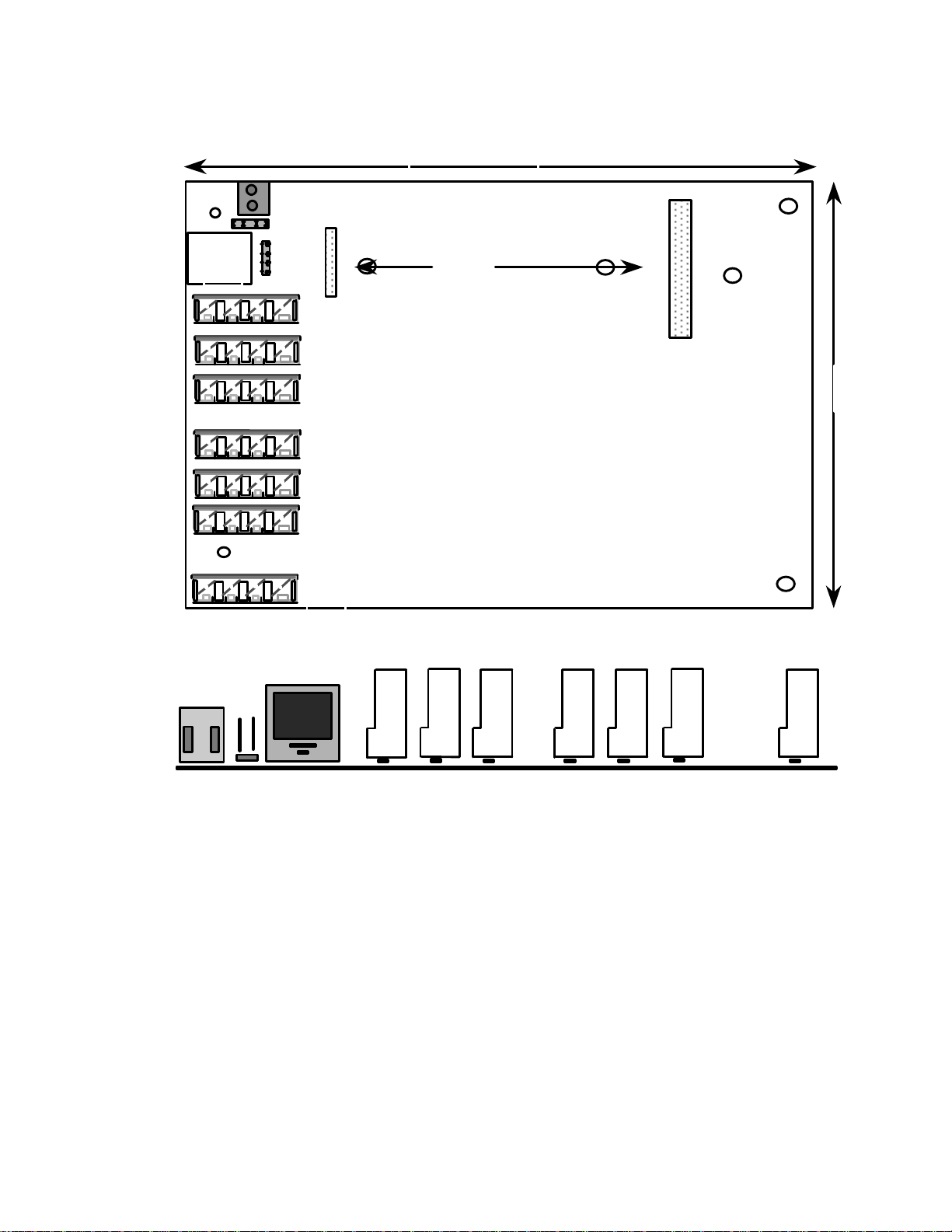

CCU Mounting bracket
The main unit is mounted on a wall using the bracket supplied and should have top and side clearance as
shown.
CAUTION
Do not site the CCU where it will be subjected to excessive levels of heat, dust damp or high humidity.
Locating the equipment near sources of electromagnetic radiation such as heavy electrical switch-gear, lift
machinery or electric arc welders should be specifically avoided.
280 mm
54
mm
145 mm
Clearance
450 mm
Clearance
145 mm
Clearance
125 mm
Clearance

Page 9
Locate the CCU onto the wall-
mounting bracket
by sliding it down into position
Slide the MDF cover
off, by moving it upwards
BT Inspiration
Remove the MDF cover Connect the system to the mains supply
retaining screw.

Page 10
Securing the CCU to the wall
Locate and mark the position of the Fixing screws at the top and bottom of the MDF area. Remove the unit.
Drill and plug the screw holes, deep enough to accept a 2.5cm (one inch) No. 8 round-head screw. Relocate
the unit on the bracket and screw home the fixing screws. Ensure that there is sufficient space around the
CCU to allow adequate ventilation.
100mm
BT Inspiration
100mm
310mm
For Battery
Back up unit
100mm
Screw
# 1
Screw
# 2
Caution
At no time should any system module be removed or inserted when power is applied to the system.
Always isolate the mains supply when installing and/or upgrading system module hardware
Note: When fitting a Battery Backup Unit (BBU), there are two similar screw holes to those on the main
CCU, located on the left hand side of the BBU base. These screw holes are used to secure the BBU to the
wall when it has been positioned correctly on the wall-mounting bracket. Please refer to the Battery Backup
Unit section of this guide.

Page 11
Base Motherboard
1
2
3
4
5
6
7
8
9
10
11
12
13 14
16
15
17
18
19
20
21
22
ESP Pillar X is the system
Functional Earth
Y is the Vital
activity LED
X
Y

Page 12
Base motherboard connector definition table
1. Krone IDC connection Extension 20 position
2. Krone IDC connection Extension 21 position
3. Krone IDC connection Extension 22 position/long line extension
4. Krone IDC connection Extension 23 position/Door Intercom
5. Krone IDC connection Extension 24 position
6. Krone IDC connection Extension 25 position
7. Krone IDC connection Central Bell connection
8. RJ11 connection V24 call logging interface connection
9. RJ45 connection Internal S-Bus connection
10. RJ45 connection Second To connection
11. Krone IDC connection PSTN line 3&4 connection
12. RJ45 connection First To connection
13. Krone IDC connection PSTN line 1&2 connection
14. Main board connector PSTN/ISDN expansion card connection
15. Main board connector PSTN/ISDN expansion card connection
16. Main board connector Internal So expansion card (ISDN) connection
17. Main board connector ISDN clocking card connection
18. Main board connector Voice Module connection
19 & 20. Main board connector Extension expansion card connection
21. Main board connection Secondary connection ( for future use)
22. Krone IDC connection Door strike relay connection
System Modules and expansion cards
There are a number of modules which can be installed onto the Base Motherboard:
•Extension expansion card. This provides six extensions and a connector for a network expansion card,
ISDN or PSTN.
•PSTN expansion card. This card provides two analogue exchange lines.
•ISDN Expansion card. This card provides one ISDN2 interface. The same card is used for the network T0
and the internal S bus. Links located on the ISDN Expansion card must be relocated to change the
interface from T0to S bus operation.
•Voice module single channel. Only one of these modules can be inserted in a unit. It provides up to 80
minutes voice storage. When equipped a system answering machine can be enabled and each extension
can be provided with a voice box. A minimum of two minutes storage is allocated automatically to each
programmed extension. The remaining capacity is dynamically allocated.

Page 13
Extension expansion card
1. Krone IDC connection First Extension position
2. Krone IDC connection Second Extension position
3. Krone IDC connection Third Extension position
4. Krone IDC connection Fourth Extension position
5. Krone IDC connection Fifth Extension position
6. Krone IDC connection Sixth Extension position
7. Krone IDC connection PSTN line connector ( Supports 2 lines)
8. RJ45 connection ISDN connector
9. Interface socket ISDN/PSTN expansion module position
10. Screw terminal connector Functional Earth connector
11. Jumper straps ISDN options
1
2
3
4
5
6
7
89
1
2
3
4
56
7
8
Plan
view
Side
view
230mm
142mm
10
11
10 11

Page 14
Extension expansion board column support
Ensure the Extension expansion card is fitted with the column support located under the line termination
points.
Allowed extension expansion card locations

Page 15
PSTN Expansion card
NOTE :
This card allows the BT Inspiration to utilize two analogue trunk lines. Unless this card is fitted no analogue
line access is possible when using the switch. There are no single line cards available on the BT Inspiration.
When only one line is in use the second line must be disabled using system programming.
A
TOP
Insert
this way
ETAL
ETAL
12
155mm
57mm
Locate the PSTN expansion card into connectors 14 and 15 on the Base Motherboard or connector 9 on the
Extension Expansion board

Page 16
Allowed PSTN Expansion card locations
Locate PSTN card
here
Locate PSTN card
here
Locate PSTN card
here
Locate PSTN card
here

Page 17
ISDN clocking card
A system, originally supplied as an analogue system, can be upgraded to an ISDN unit by installing the ISDN
clocking card
A
TOP
Insert
this way
12
45mm
110mm
Locate the ISDN clocking card into slot 17 on the Base Motherboard, observing the insertion keys on the
Base Motherboard connectors

Page 18
ISDN clocking card location
ISDN clocking card. Must be
fitted when using ISDN.
The module connects to the
Base Motherboard in one
direction only.
This is determined by keys
on the edge connectors.

Page 19
ISDN Expansion card
A
TOP
Insert
this way
ETAL
Board
ident
12
135mm
57mm
ETAL
Locate the ISDN expansion card into connectors 14,15 and 16 on the Base Motherboard, or connector 9 on
the extension expansion card

Page 20
Allowed locations of ISDN expansion card
Locate ISDN card
here
ISDN Clocking
card.
Locate ISDN card
here
Locate ISDN card
here
Locate ISDN card
here Locate ISDN card
here
The ISDN clocking card must be fitted when using the ISDN network
