Bticino 391696 User manual

Part. LE03104AA
Indoor/Outdoor Speed Dome camera
391696391695
391715 391716/391717
Instructions manual

391695 / 391696 / 391715 / 391716 / 391717 2
IMPORTANT SAFETY GUIDE
Read, heed and follow all the Instructions
Read all the safety and operating instructions before using the product.
Keep this manual
Keep this manual for reference in future.
Attachments / Accessories
Use only the attachments or accessories specified by the manufacturer.
Installation
 Do not install near any heat resources such as radiators, heat registers, stoves, or other appratus including amplifiers
that product heat. Improperly installed product may fall, cause serious injury to a child or adult and damage the
product.
 Do not block any ventilation holes or openings. Install in accordance with the manufacturer’s instructions.
 Use only with the cart, stand, tripod, bracket, mounting devices, or table specified by the manufacturer.
 Installation should be done only by qualified personnel and conform to all the instructions by the manufacturer.
 Refer all servicing to qualified service personnel.
 Unless the product is specifically marked as IP67, more than IP67 or confirmed by the manufacturer, it is designed for
indoor use only and it must not be installed where exposed to rain and moisture.
 Do not load on the product.
 Use stainless steel hardware to fasten the mount.
 To prevent damage from water leakage when installing a mount outdoors on a roof or wall, apply sealant properly
around holes.
 These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not
perform any servicing other that contained in the operationg instructions unless you are qualified to do so.
 Use only replacement parts specified by the manufacturer.
Power source
This product should be operated only from the type of the power source indicated on the marking label.

3
CAUTION
Operating
 Before using, make sure that the power supply and others are properly installed.
 While operating, if any abnormal condition or malfunction is observed, stop using the product immediately and then contact
your local dealer.
Handling
 Do not disassemble or tamper with the parts inside the product.
 Do not drop or subject the product to shock and vibration as this can damage the product.
 Care must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin the quality of the product.
Installation and Storage
 Do not install the product in areas of extreme temperature, which exceed the allowable range.
 Avoid installing in humid or dusty places.
 Avoid installing in places where radiation is present.
 Avoid installing in places where there are strong magnetic fields and electric signals.
 Avoid installing in places where the product would be subject to strong vibrations.

391695 / 391696 / 391715 / 391716 / 391717 4
TABLE OF CONTENTS
1 Introduction
1.1 Model Code 5
1.2 Features 6
1.3 Package Components 8
1.4 Main Part Description 11
2 Installation
2.1 DIP Switch Setup 15
2.2 In-Ceiling Mount Installation (MPS) 21
2.3 Installation with Surface Mount Bracket (MPS) 22
2.4 Direct Installation on the Ceiling Mount Bracket(MPS) 23
2.5 Installation using Wall Mount Bracket(MPS) 26
2.6 Installation with Ceiling Mount Bracket(MAO/MAI) 27
2.7 Installation with Wall Mount Bracket(MAO/MAI) 28
2.8 Wiring and Cabling 29
3 Operation
3.1 Check Point before Operation 34
3.2 Check Points for Preset and Pattern Function before Operation 34
3.3 OSD Menu 35
3.4 Reserved Presets (Hot Keys) 35
3.5 Preset 36
3.6 Swing 36
3.7 Pattern 37
3.8 Group 38
3.9 Other Functions 39
3.10 OSD Display 40
4 OSD Menu
4.1 Quick Programming Guide 41
4.2 Main Menu 41
4.3 Display Setup 42
4.4 Privacy Zone Mask Setup 44
4.5 Camera Setup 46
4.6 Motion Setup 50
4.7 Preset Setup 53
4.8 Swing Setup 57
4.9 Pattern Setup 58
4.10 Group Setup 59
4.11 System Initialization 62
5 Specifications 63
5.1 Dimension 68

5
1. INTRODUCTION
1.1 MODEL CODE
Ref. 391695 391696 391715 391716 391717
Serie
Mini plastic
small
Mini Aluminium
with fan/heater
Mini Aluminium
with fan/heater
Aluminium with
fan/heater
Aluminium
with fan/heater
Outdoor serie NO YES
Video signal PAL
Wall mount
bracket NO YES
Rated power :
12 VDC
Sensor
3 In / 1 Out 4 In / 2 Out 3 In / 1 Out

391695 / 391696 / 391715 / 391716 / 391717 6
1.2. FEATURES
Powerful Zoom Camera & Setup Options
391695 391696 391715 391716 391716
Optical Zoom ×10 x27 x10 x27 x37
Digital Zoom ×10 x12 x10 x12 x12
Max. zoom magnification ×100 ×324 x100 x324 x444
High light compensation NO NO YES YES YES
Privacy Masks 4 8 4 8 8
Day & Night YES
WDR NO YES
Focus Mode Auto-Focus, Manual Focus, Semi-Auto Focus
OSD Menu YES
Image Sensor ¼” CCD Sony interline
Transfer CCD
super HAD color
CCD
Sony Interline
Transfer CCD super HAD color CCD
Powerful Pan/Tilt Functions
 MAX. 360°/sec High Speed Pan/Tilt Motion
 With the Vector Drive Technology, Pan/Tilt motions are accomplished along the shortest path. As a result, the time to
target view is remarkably short and the video on the monitor is very natural in monitoring.
 With the Micro-Stepping Control Technology, the video looks very natural at high zoom magnification during a jog
operation on a controller since the camera can be controlled by 0.05°/sec. Hence it is very easy to make the camera
focus on desired target views at high zoom magnification. Additionally it is easy to make the camera focus on desired
positions with zoom-proportional pan/tilt movement.
Preset, Pattern, Swing, Group, Privacy Mask and More…
 MAX. 127 Presets are programmable and each preset can have its own parameter values independently from the
other presets.
For an example, refer to the below table.
Preset No. White Balance Auto Exposure ••• Label Remarks
Preset 1 Case A Case 3 “ENTRANCE”
Preset 2 Case C Case 5 “WAREHOUSE”
Preset 3 Case V Case 2 “OFFICE”
•••
Preset 95 −−−−Reserved for OSD Menu
•••
Preset 128 Case K Case 9 “TERRACE”

7
 MAX. 4 Patterns are programmable. This function is that the camera memorizes the path (mostly curve path) by the
joystick of the controller and revives the trajectory operated by the joystick as closely as possible.
 MAX. 8 sets of Group are programmable. This function is that the camera memorizes the combination of Presets,
Pattern and/or Swings sequently and runs Presets, Pattern and/or Swings repetitively. A Group can be combined upto
20 functions with any of Preset/Pattern/Swing.
 Privacy Masks are programmable, not to intrude on any other’s privacy :
391696/391716/391717 : 8 privacy zones
391695/391715 : 4 privacy zones
PTZ (Pan/Tilt/Zoom) Control
 With the RS-485 communication connection, MAX. 255 units of cameras can be connected to a single controller.
 Pelco-D or Pelco-P protocols can be selected as a control protocol in the current firmware version.
OSD (On Screen Display) Menu
 OSD menu is provided to display the status of camera and to configure the functions interactively.
 The information such as Camera ID, Pan/Tilt Angle, Direction, Alarm Input and Preset is displayed on screen.
Alarm In/Out Function
 391696 : 4 alarm sensor inputs and 2 alarm output relays
391695/391715/391716/391717 : 3 alarm sensor inputs and 1 alarm sensor outputs
 Alarm sensor input is decoupled with photo-couplers to avoid external electric noise and shock perfectly.
 Both of N.O.(Normal Open) sensors and N.C.(Normal Close) sensors can be used and the signal range of the sensor
input is from DC 5.0V to 12.0V for various applications.
 The camera can be set to move to a Preset position or to run functions such as Pattern, Swing and Group when there
are external sensor activations. Also “Post Alarm” function is possible, which is supposed to activate after user-defined
time period and sequentially in succession to the action by external sensor activations.
Reserved Presets (Hot Keys)
 Most camera setup options can be set up easily and directly with the reserved presets (Hot Keys), without entering
into OSD menu. For more information, refer to “Reserved Presets(Hot Keys)” in this manual.
Perfect Outdoor Environment Compatibility and Easy Installation
 391715/391716/391717 : The fans and heaters are built-in in the camera for cold and hot temperature environment.
Also idealistic mechanical design protects the camera from water and dust. (IP67 when installed properly with wall
mount bracket only)
 It is easy to install the camera.

391695 / 391696 / 391715 / 391716 / 391717 8

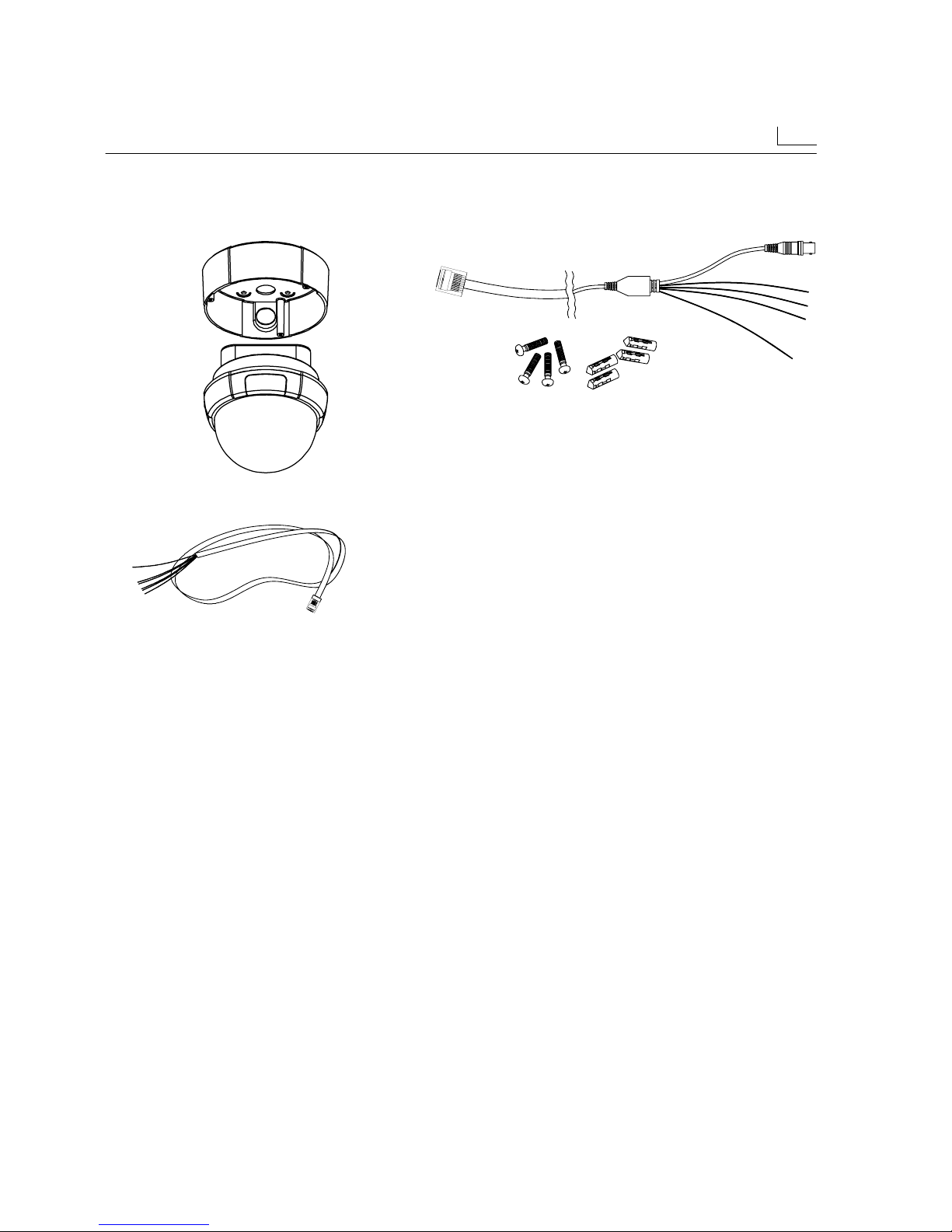

1.3. Package Component (391695 Model)
Product & Accessories
Main Body & Surface Mount Bracket Default Accessories
[Main Cable, Calblock, Screws : Tapping M4×16, Tapping M4×25,
Machine M3×6, Machine M3×8]
I/O Cable

9
Package Component (391696 Model)
Product & Accessories
Main Body / Terminal Cover Dome Cover Screws
Optional brackets
In-Ceiling Mount Bracket
391885
Ceiling Mount Bracket
391883
Corner bracket
391849
Wall mount bracket
391847

391695 / 391696 / 391715 / 391716 / 391717 10

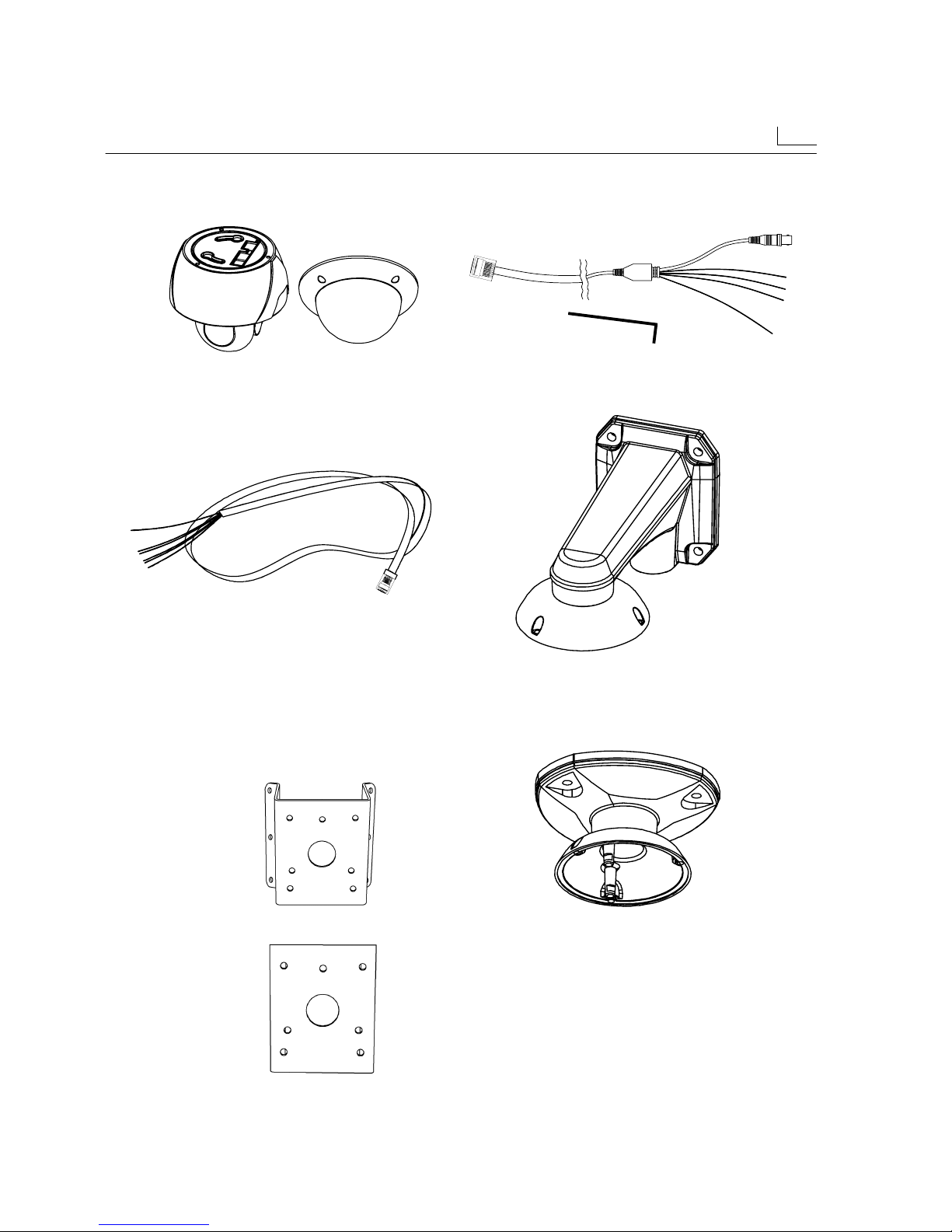

Package Component (391715/391716/391717 Models)
Product & Accessories
Main Body & Surface Mount Bracket Default Accessories
[Main Cable, Wrench]
Accessories for The Models with Alarm In/Out Function
[I/O Cable]
Wall Mount Bracket
[Screws : Machine M5×15, Hex Lag #14×50]
Optional Brackets
Corner bracket 391849 Ceiling Mount Bracket 391848
Pole bracket 391850

11
1.4. Main Part Description (391695 Model)
Surface Mount Bracket
Mounting Screw Hole
Dome Cover
Assembly Stud
DIP Switch
Sensor I/P Port
Main Connector
Dome Cover
Dome Cover Lock-up Screw
Dome Cover Do not detach the protection vinyl from the dome cover before finishing all the
installation process to protect the dome cover from scratches or dust.
Used to lock up the dome cover after assembling the dome cover with the main
body.
Dome Cover Lock-up
Screw
Used to line up the stud on the main body and the stud on the dome cover when
assembling the dome cover with the main body.
Dome Cover Assembly
Stud
Used to set up camera IDs and protocols.
DIP Switch
Used for surface mount type, wall mount type and ceiling mount type. They are not
used for in-ceiling mount type.
Surface Mount Bracket
& Mounting Screw Hole
Used for the power wire, the video cable and the RS-485 communication cable
connection.
Main Connector
Used for the sensor in/out connection.
Sensor I/O Port

391695 / 391696 / 391715 / 391716 / 391717 12
Main Part Description (391696 Model)
Dome Cover
Lockup Screw
Drop Prevention
Spring
Terminal Cover
Drop Prevention
Hook
Fuse
Cabling
Terminal Block
Main Body
Connector
Mounting Hole
Main Body / Terminal Cover Terminal Cover
Dome Cover Do not detach protection vinyl from dome cover before finishing all installation
process to protect dome cover from scratches or dust
This is used to install the camera directly on the ceiling or attach to the other
brackets such as in-ceiling, ceiling and wall mount. After separating this cover first
and then attach this directly to ceiling or to the other bracket. Camera must be
assembled at the last stage.
Terminal Cover
This part keeps the camera from dropping during installation and maintenance.
After install the Terminal Cover, please, hang the spring to the drop prevention
hook of main body as shown in picture for further tasks.
Drop Prevention Spring
Drop Prevention Hook
After assembling Terminal Cover to main body, screw Terminal Cover to main body
to protect them from separation by vibration and so on.
Lockup Screw
If the fuse is burnt to protect your came from over-current damage, the fuse have to
be replace with new one. The fuse specification is 250V 2A. However, we
recommend consulting with supplier to remove the cause of over-current.
Fuse
During installation, Power, Video, Communication, Alarm I/O cables are connected
on to this cabling terminal block.
Cabling Terminal Block

13
Main Part Description (391715 Model)
Mounting Hook
DIP Switch
Main Connector
Sensor I/ O Port
Dome Cover
Mounting Screw Hole
Main Body / Terminal Cover
Dome Cover Do not detach the protection vinyl from the dome cover before finishing all the
installation process to protect the dome cover from scratches or dust.
Used to set up camera IDs and protocols.
DIP Switch
Used to assemble the main body with wall mount bracket or ceiling mount bracket.
Insert the mounting hooks into the holes on the surface of the main body and turn
the main body.
Mounting Hook
Used to assemble the main body with a bracket with screws.
Mounting Screw Hole
Used for the power wire, the video cable and the RS-485 communication cable
connection.
Main Connector
Used for the sensor in/out connection.
Sensor I/O Port

391695 / 391696 / 391715 / 391716 / 391717 14
Terminal Cover Disassembling
①Remove the Lockup Screw as shown bellow. ②Turn main body on its axis in CCW(Counter-clockwise)
direction and separate it from Terminal Cover.
Terminal Cover Assembling
①Check if the summit of the Plate Spring is located at the
arrow mark as shown in the dotted circle.
②Check the 2 mold line for assembly before starting
assembly. Line up the mold lines as shown in the
dotted circle and turn main body on its axis in
CW(Clockwise) direction and assemble main body to
Terminal Cover. After assembling them, screw main
body to Terminal Cover to protect them from
separation by vibration and so on.

15
2. INSTALLATION
2.1 DIP Switch Setup (391695/391715/391716/391717 models)
Before installing the camera, set up the DIP switch to configure the camera ID and the communication protocol.
ON
ON
12345678
Camera ID Setup
 ID numbers of cameras are set up with binary numbers. See the examples shown below.
Pin 1 2 3 4 5 6 7 8
Binary Value 1 2 4 8 16 32 64 128
Ex : ID=5 on off on off off off off off
Ex : ID=10 off on off on off off off off
 The camera ID range is “1~255”. Camera ID must not be “0”!
 The factory default of the camera ID is “1”.
 Match the camera ID with the Cam ID setting of your DVR or Controller to control the camera.
 If you are connecting a single camera to a controller, terminate the camera. When connecting more than one camera to a
single controller, terminate the last camera on the communication line. The last camera means the camera farthest in cable
length from the controller.
 Note that the total length of the communication cable between a controller and the camera(s) on the same communication
line must be less than 1.2Km.

391695 / 391696 / 391715 / 391716 / 391717 16
Communication Protocol Setup
1234
ON
ON
 Select an appropriate Protocol with the DIP switch combination.
Switch Mode
P0
(Pin 1)
P1
(Pin 2)
P2
(Pin 3)
Protocol
OFF OFF OFF PELCO-D, 2400 bps
ON OFF OFF PELCO-D, 9600 bps
OFF ON OFF PELCO-P, 4800 bps
ON ON OFF PELCO-P, 9600 bps
Others Reserved
 Match the camera protocol with the camera protocol in the setting of your DVR or controller to control the camera.
 Adjust the DIP switch after turning off the camera. If you changed the camera protocol by changing the DIP S/W, the change
will be effective after you reboot the camera.
 The factory default protocol is “Pelco-D, 2400 bps”.

17
Terminal Resistor Setup
1234
ON
ON
The terminal resistor is used for the following cases.
 Case 1 : In case that the control cable length between a camera and a controller is relatively very long (1:1
Connection)
If the communication cable length is very long, the electrical signal will bound in the terminal point. This reflected signal
causes distortion of original signal. Accordingly, the camera can be out of control. In this case, the terminal resistor of both
sides i.e. the camera and the controller must be set to ‘ON’ state.
 Case 2 : In case that multiple cameras are connected to a controller.
Due to similar reasons with the case 1, the terminal resister of the controller and the last camera must be set to ‘ON’ state. The
last camera means the camera farthest in cable length from the controller. Do not turn on the terminal resistor of all the
cameras on the same communication cable.

391695 / 391696 / 391715 / 391716 / 391717 18
DIP Switch Setup (391696 model)
Before you install the camera, you should set the DIP switches to configure the camera ID, communication protocol. Do
not use the ISP connector. (Authorized person only !)
Communication
Protocol Camera ID
ON ON
ADDRESS (ID) OPTIONS
1 2 4 8 16 32 64 128
00000000
Refer to
the Manual N.C
N.O
ISP connector
(for System Upgrade)
(Normal Close)
(Normal Open)
Terminal
Resistor
Camera ID Setup
123456
ON
ON
78
 ID number of camera is set using binary number. The example is shown bellow.
Pin 1 2 3 4 5 6 7 8
ID Value 1 2 4 8 16 32 64 128
ex: ID=5 on off on off off off off off
ex: ID=10 off on off on off off off off
 The range of ID is 1~255. Do not use 0 as camera ID. Factory default of Camera ID is 1.
 If you want to control a certain camera, you must match the camera ID with Cam ID setting of DVR or Controller.

19
Communication Protocol Setup
123456
ON
ON
78
 Select the appropriate Protocol with DIP switch combination.
Switch State
P0
(Pin 1)
P1
(Pin 2)
P2
(Pin 3)
Protocol/Baud rate
OFF OFF OFF PELCO-D, 2400 bps
ON OFF OFF PELCO-D, 9600 bps
OFF ON OFF PELCO-P, 4800 bps
ON ON OFF PELCO-P, 9600 bps
Otherwise Reserved
 If you want to control using DVR or P/T controller, their protocol must be identical to camera. Otherwise, you can not control
the camera.
 If you changed camera protocol by changing DIP S/W, the change will be effective after you reboot the camera.
 Factory default of protocol is “Pelco-D, 2400 bps”.
Sensor Type Setup
 If you want to use Alarm Input, the types of sensor must be selected. The sensor types are Normal Open and Normal.
Normal Open Output Voltage is high state when sensor is activated.
Normal Close Output Voltage is high state when sensor is not activated.
Pin No Switch State Sensor Type
ON Sensor 1 : Normal Close Type
ST1 (Pin 4)
OFF Sensor 1 : Normal Open Type
ON Sensor 2 : Normal Close Type
ST2 (Pin 5)
OFF Sensor 2 : Normal Open Type
ON Sensor 3 : Normal Close Type
ST3 (Pin 6)
OFF Sensor 3 : Normal Open Type
ON Sensor 4 : Normal Close Type
ST4 (Pin 7)
OFF Sensor 4 : Normal Open Type
 If sensor type is not selected properly, the alarm can be activated reversely.

391695 / 391696 / 391715 / 391716 / 391717 20
Terminal resistor Setup
Terminal resistor is used if your system is one of following two cases.
 Case1: Control cable between camera and controller is relatively very long (1:1 connection)
If communication cable is very long, the electrical signal will bound in the terminal point. This reflected signal cause
distortion of original signal. Accordingly, the camera can be out of control. In this case, the terminal resistor of both sides
i.e. camera and controller must be set to ‘ON’ state.
 Case2: Multiple cameras are controlled at the same time
Due to similar reasons with case 1, the terminal resisters of controller and the last camera must be set to ‘ON’ state. Last
camera means decided by cable length. Do not turn on the terminal resistor of all cameras.
Controller
#1 #2 #n
Terminal Resistor ON
RS-485
Terminal Resistor
OFF Terminal Resistor OFF Terminal Resistor ON
