Bticino LE06585AA-01AT-13W27 User manual

391 792
Outdoor dome IP camera varifocal 2MP
User Manuall
LE06585AA-01AT-13W27
EN

2
Indice
1General introduction............................................................................................................................3
1.1 Accessories......................................................................................................................................................3
1.2 Specifications...................................................................................................................................................4
1.3 Default network configuration........................................................................................................................5
2Structure...............................................................................................................................................6
2.1 Dimensions.......................................................................................................................................................6
2.2 System ..............................................................................................................................................................7
3Simplified..............................................................................................................................................8
3.1 Installation of the device.................................................................................................................................8
3.2SD card installation .......................................................................................................................................10
4Connecting the device and opening the Web application...............................................................11
4.1 IE configuration options: configuration tools & IE.....................................................................................11
4.1.1 Connecting with the search tool (Config Tool).............................................................................................12
4.1.2 Connecting with Internet Explorer................................................................................................................12
4.2 Connecting with Mozilla Firefox or Google Chrome..................................................................................12
5Quick configuration tool (Config Tool).............................................................................................13
5.1 Presentation ...................................................................................................................................................13
5.2 Searching/Connecting...................................................................................................................................13
5.2.1 Connecting to the device's Web interface....................................................................................................13
5.2.2 Modifying the network parameters...............................................................................................................14
6Resetting the camera.........................................................................................................................16
7Smartphone and Tablet Application.................................................................................................17
7.1 Apple (iOS)......................................................................................................................................................17
7.2 Android ...........................................................................................................................................................17

User Manuall
Outdoor dome IP camera varifocal 2MP
3
1 General introduction
1.1 Accessories
Accessory name
Quantity
IP Camera
1
Accessories bag (screws
and connection diagrams)
1
Quick start guide
1
CD
1

4
1.2 Specifications
Parameters
IP Camera
System
Processor
TI Davinci
Operating system
Embedded LINUX
Video settings
Sensor
CMOS 1/2, 8’’ Sony Exmor
Resolution
2 MP: 1920 (H) x 1080 (V)
Compression
H264/MJPEG
Max. image frequency
Main flow (Full HD 1080p @ 25 fps)
Secondary flow (D1 @ 25 fps)
Speed
H.264: 64 to 8,192 Kbps.
MJPEG: 64 to 10,240 Kbps.
Adjustable speed.
Capture
1 f/s (JPEG).
Privacy mask
4 areas
Lens
3.3 - 12 mm Megapixel
Lens interface
M14
Day/Night
Yes, switches automatically (ICR)
Backlight
compensation
Yes (BLC, DWDR, HLC)
Mirror & Flip
Yes
Event
Motion detection
396 detection zones (18 x 22): level of sensitivity from 1 to 6
(Level 6 is the most sensitive).
Video storage, image capture, diary,
e-mail, etc… can be activated from event.
Video Loss/Masking
Video storage, image capture, diary,
e-mail, etc… can be activated from event.
Saving
Saving priority
Manual > Video detect > Schedule
Local storage
SD card
Network
Wired network
Ethernet 10/100 Base-T
Network protocol
HTTP standard, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP,
UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP,
Bonjour, SNMP.

User Manuall
Outdoor dome IP camera varifocal 2MP
5
Parameters
IP Camera
Network
Standard
ONVIF 2 / Profile S
Web access
Live streams, recordings, system configuration, diary, maintenance,
updates, etc.
Number of
simultaneous
connections
10
General settings
Reset
Integral "RESET" button
Power supply voltage
12V in CC; 24V in AC; PoE 802.5af.
Power consumption
10 W MAXIMUM
Operating temperature
-30℃to +70℃
Operating humidity
10% to 90%
Dimensions (mm)
151 × 119
Weight
1.25 Kg
Mounting
Wall or ceiling, interior or exterior
Protection Rating
IP 66
1.3 Default network configuration
Network settings
Default configuration
TCP/IP
Mode
Static
IP address
192.168.1.108
Subnet mask
255.255.255.0
Default gateway
192.168.1.1
Connection
TCP port
37777
UDP port
37778
HTTP port
80
RTSP port
554
Authentication
Username
admin
Password
admin

6
2 Structure

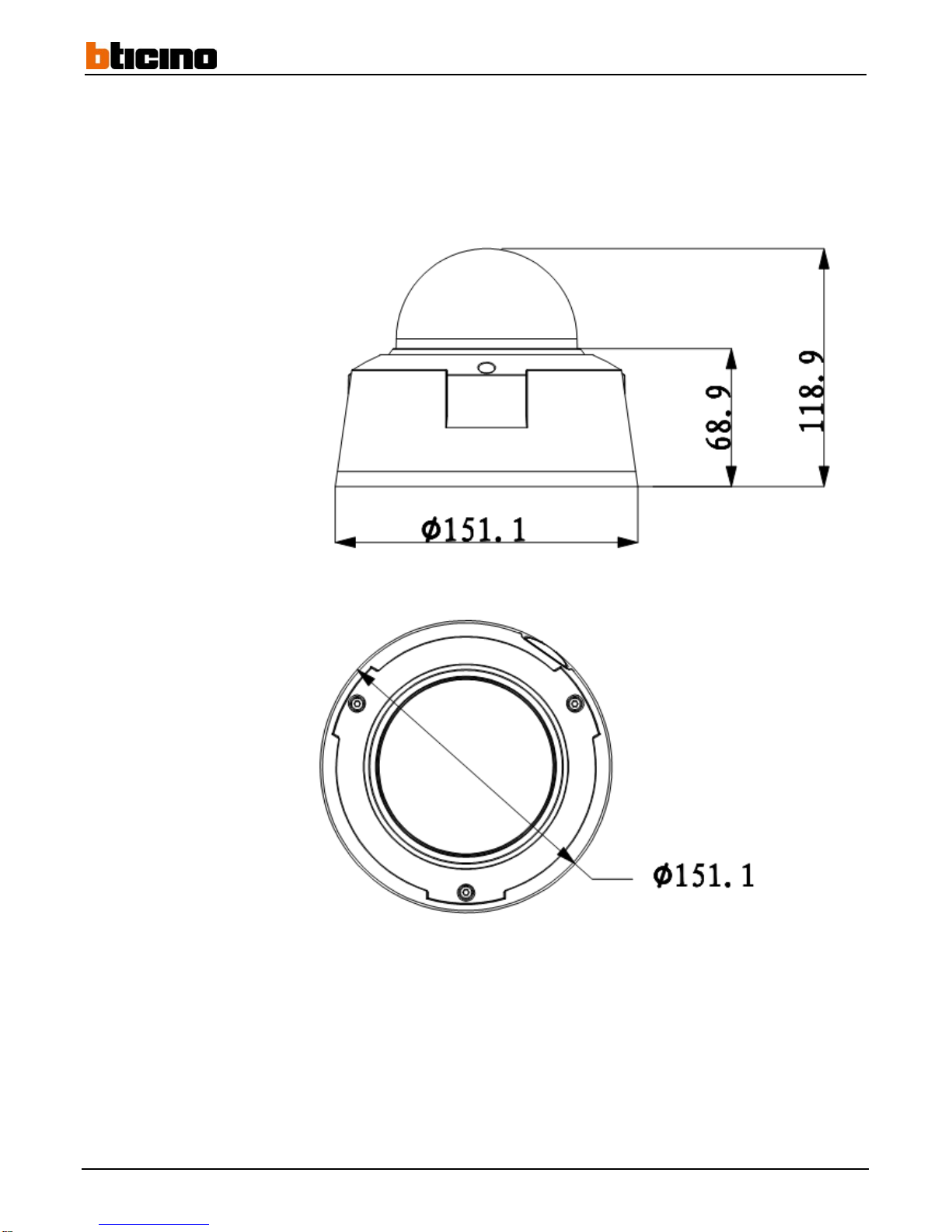

2.1 Dimensions

User Manuall
Outdoor dome IP camera varifocal 2MP
7
2.2 System
Port numbers
Port name
Connection
Function
1
AC24V
Terminal block
Camera power supply
2
DC12V
Terminal block
Camera power supply
3
LAN
RJ -45
Network connection & PoE
4
I/O ports
Terminal block
Alarm input and output
Audio input and output
Video Output
5
RESET
/
Default settings reset
6
FS
/
SD card port
7
Not used
/
Not used
8
LED
/
Status indicator
Green indicator:
the camera is switched on
Continuous red indicator:
the camera is recording to
the SD card
Flashing red indicator:
the camera is detecting
movement

8
3 Simplified
3.1 Installation of the device
Step 1:
Use the Allen key to loosen the three screws on the dome and open the cover.
Step 2:
Position the base on a wall or on a ceiling using the connection diagram .
Step 3:
Drill three mounting holes and one hole for the cable.
Insert the expansion plugs into the mounting holes.
Step 4:
Fix the base in place using three screws.

User Manuall
Outdoor dome IP camera varifocal 2MP
9

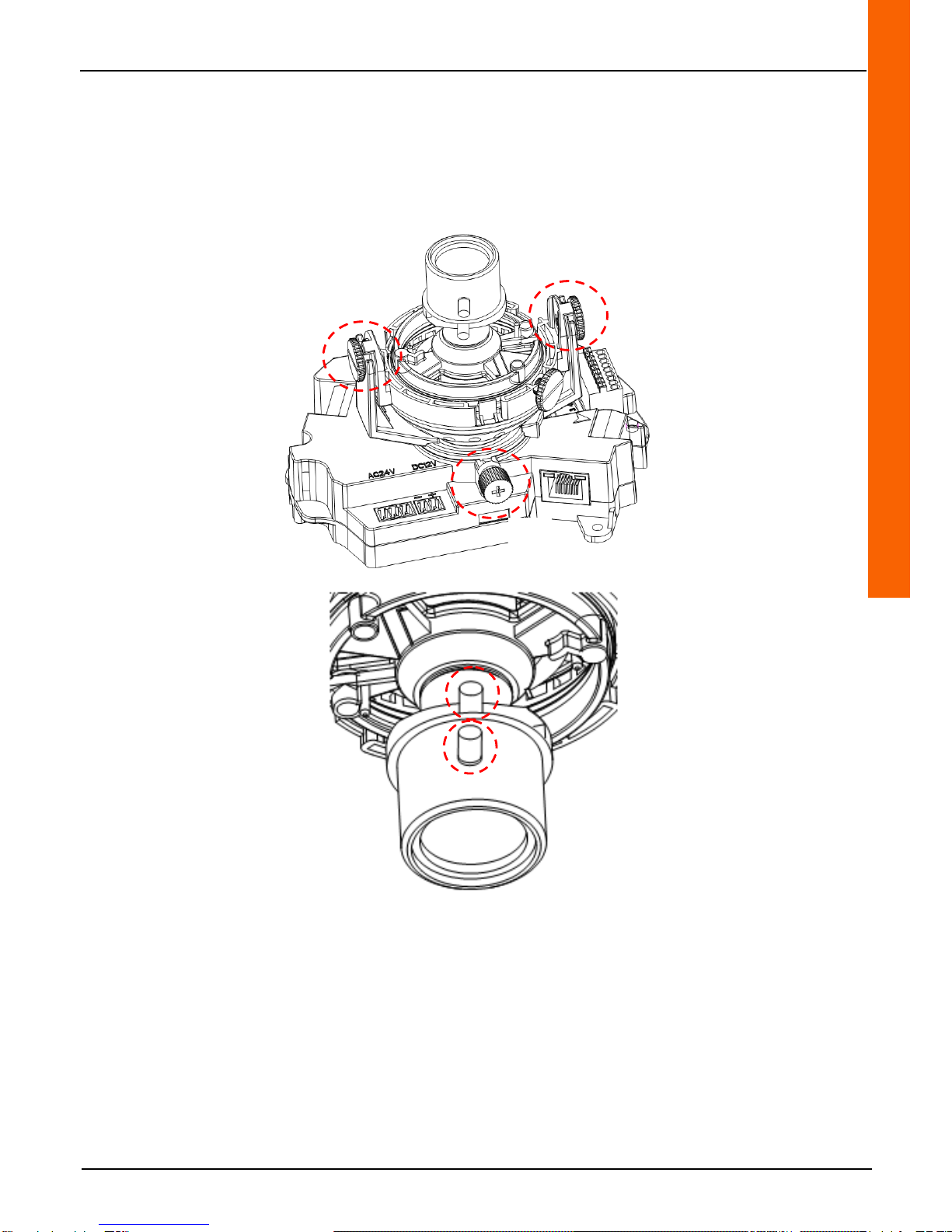

Step 5:
Position the device at the appropriate monitoring angle:
- Manually loosen the screws on both sides of the module (1), adjust the angle of inclination of the module.
- Manually loosen the central screw at the bottom of the module (2), adjust the angle of rotation of the module.
- Adjust the zoom (3) and focus (4) of the lens
Step 6:
Reattach the cover to the base using the three screws on the dome and the Allen key.
(1)
(1)
(2)
(4)
(3)

10

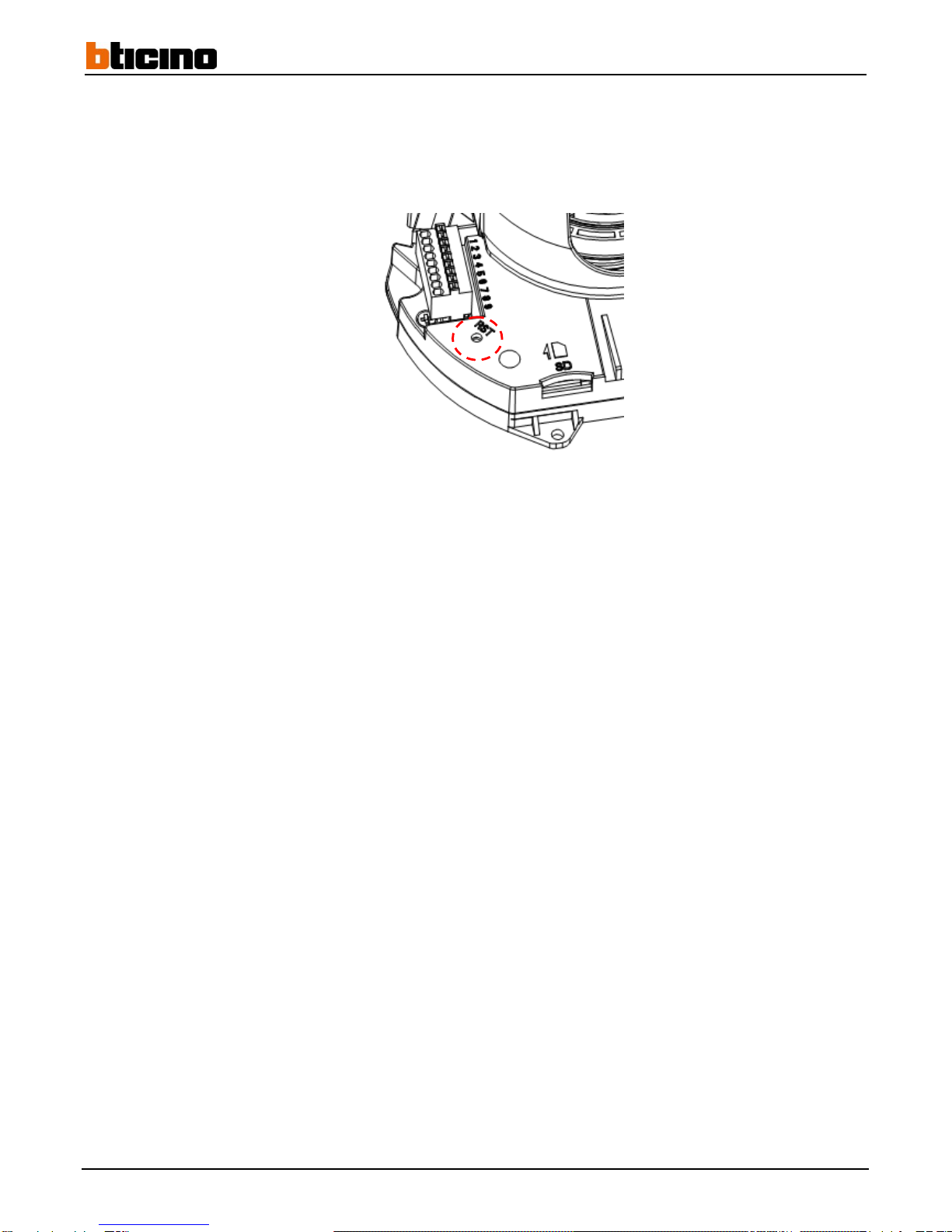

3.2 SD card installation
Important: Before installing the SD card, disconnect the electric power cable to power down the device.
Open the dome cover, as explained in step 1, chapter 3.1, to access the SD card port.

User Manuall
Outdoor dome IP camera varifocal 2MP
11
4 Connecting the device and opening the Web application
4.1 IE configuration options: configuration tools & IE
This device is accessible via the Internet Explorer web browser.
If the system displays a warning message asking if you want to install the webrec.cab control, click the "OK" button and
the system will automatically install it.

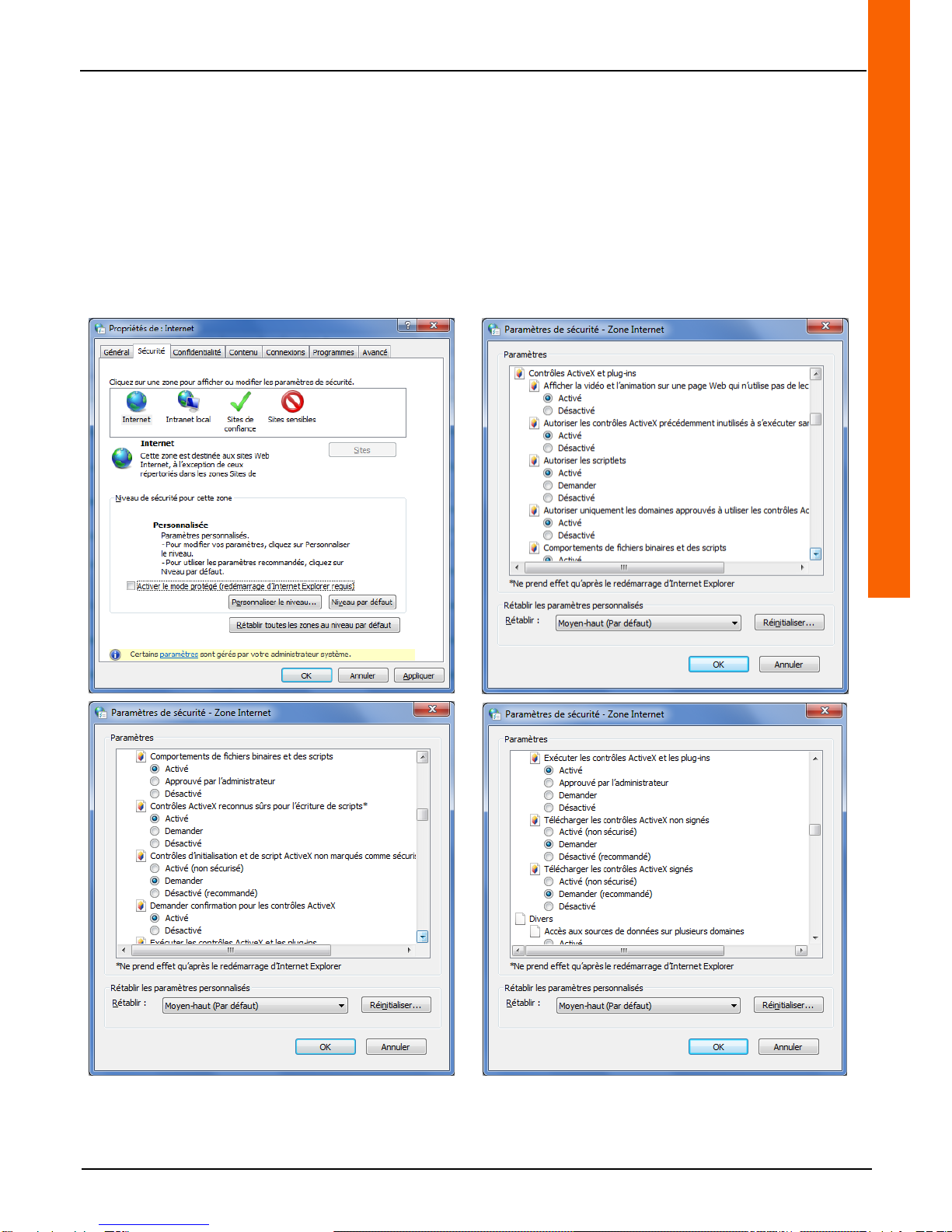

If you are unable to install the file, you can lower the security level in Internet Explorer (see example above) or disable
the phishing filter. Make sure you have administrator rights on your Windows session.

12
4.1.1 Connecting with the search tool (Config Tool)
See chapter "5.2.1 Connecting to the device's Web interface"
4.1.2 Connecting with Internet Explorer
The camera's default IP settings are as follows:
- IP address: 192.168.1.108
- User name: admin
- Password: admin
Open Internet Explorer 32 Bits in administrator mode.
Enter the camera's IP address into the address bar.
Thus, if your camera's IP address is 192.168.1.108, enter "http://192.168.1.108" in the address bar.
4.2 Connecting with Mozilla Firefox or Google Chrome
Go to the Apple website, then download and install QuickTime (www.apple.com/quicktime/download).
Then open Firefox or Chrome and enter your device's IP address into the browser's URL bar.
Note: The appearance of the interface may be different when using these browsers and certain buttons may not appear.
If necessary, you can use IE tab extensions for your browser.

User Manuall
Outdoor dome IP camera varifocal 2MP
13
5 Quick configuration tool (Config Tool)
5.1 Presentation
The quick configuration tool is used to search for or modify an IP address. It also lets you modify settings. You will find
this tool on the CD supplied with your camera.
Before using the quick configuration tool, please ensure you have the latest version.
5.2 Searching/Connecting
In the application directory, select "ConfigTool.exe", then double-click it.
You must have at least version 1.07.0.R.121203 of the configuration tool.
5.2.1 Connecting to the device's Web interface
To see the list of devices connected to the same network segment, click the "Refresh" button. The tool searches for
connected devices and then displays a list of results with the corresponding IPv4 and IPv6 versions.
In the "Device list" interface, you can view the devices' IP addresses (IPv4 et IPv6), port number, subnet mask, default
gateway and MAC address.
1 - Select the IPv4 addresses (the IPv6 addresses will disappear) and then right-click the highlighted line.

14
2- Select "Open Device Web" to access the device's Web interface:
If you are unable to connect, check the security settings of Internet Explorer as described in Chapter 4.
5.2.2 Modifying the network parameters
1 - Select the IPv4 addresses (the IPv6 addresses will disappear) and then left-click to select your camera.

User Manuall
Outdoor dome IP camera varifocal 2MP
15
2- Click on the "Login" button, or double-click on the highlighted line. The following page will open:
The connection settings are pre-filled.
3- Click on the "Login" button. The main interface will appear.
Functions
Description
DHCP
Enable
Allows you to enable or disable the
DHCP function.
IPv4/IPv6
Allows you to choose "IPv4" or "IPv6"
from the drop-down list. The IP
addresses can be modified.
IP Address
The device's IP address.
Subnet
Mask
The device's subnet mask
Gateway
The device's gateway.
Mac
Address
The device's MAC address.
Save
Allows you to save any changes.
Return
Allows you to return to the previous
interface.

16
6 Resetting the camera
Push the "RST" button located on the inside of the camera for 10 seconds.
Wait for the camera to restart automatically.
The cameras default settings will have been reset.

User Manuall
Outdoor dome IP camera varifocal 2MP
17
7 Smartphone and Tablet Application
7.1 Apple (iOS)
The "URA Camera Viewer" available on Appstore allows you to view your CCTV system locally or remotely via an
EDGE, 3G or Wi-Fi connection.
The functionality includes: live streaming, taking instant photos and viewing recordings.
An installation wizard, tutorials and help pages are available within the application.
The application is compatible with:
- iPhone 4 or above (iOS 5 minimum)
- iPad 2 or above, iPad mini (iOS 5 minimum)
7.2 Android
The "URA Camera Viewer" available on Google Play allows you to view your CCTV system locally or remotely via an
EDGE, 3G or Wi-Fi connection.
The functionality includes: live streaming, taking instant photos and viewing recordings.
An installation wizard, tutorials and help pages are available within the application.
The application is compatible with the following Smartphones:
Samsung Galaxy S 2 ( Android 2.3 minimum)
Samsung Galaxy S (Android 2.3 minimum)
Samsung Galaxy Note (Android 4.0 minimum)
Samsung Galaxy S 3 (Android 4.0 minimum)
Samsung Galaxy Ace (Android 2.3 minimum)
Samsung Galaxy Nexus (Android 4.0 minimum)
Sony Xperia ray (Android 2.3 minimum)
Sony Xperia mini pro (Android 2.3 minimum)
Sony Xperia Arc S (Android 2.3 minimum)
Sony Xperia X10 (Android 2.3 minimum)
Sony Xperia mini (Android 2.2 minimum)
Google Nexus S (Android 2.3 minimum)
Google Nexus One (Android 2.1 minimum)
HTC Desire (Android 2.2 minimum)
HTC Sensation (Android 2.3 minimum)
HTC Hero (Android 2.1 minimum)
Motorola Defy (Android 2.3 minimum)
Motorola Atrix (Android 2.3 minimum)
Acer Liquid Gallant (Android 4.0 minimum)
The application is compatible with the following Tablets:
Samsung Galaxy Tab (Android 3.1 minimum)
Samsung Galaxy Tab 2 (Android 4.0 minimum)
Amazon Kindle Fire (Android 2.3 minimum)
Asus Transformer Pad (Android 3.1 minimum)
Asus EEEPad (Android 4.0 minimum)
Google Nexus 7 (Android 4.1 minimum)
Acer Iconia Tab (Android 4.0 minimum)
