Bticino 391769 User manual

391769
IP Box camera full HD
User manual
LE09927AA-01GSJ-17W10
NB: This camera is specically intended for use in conjunction with a Bticino network video recorder.
en

2
Contents
1 Overview ........................................................................................................................................... 4
1.1 Accessories ................................................................................................................................... 4
1.2 Dimensions................................................................................................................................... 4
1.3 Specications ............................................................................................................................... 5
2 Installation ............................................................................................................................................ 6
2.1 Wall-mounted with bracket Cat. No. 391845 or Cat. No. 391846 ............................................ 6
2.2 In a compartment Cat.No. 391384 or Cat. No. 391385 ............................................................. 6
3 Wiring ................................................................................................................................................ 6
3.1 Description ................................................................................................................................... 6
3.2 Connecting the camera to the NVR ............................................................................................ 6
4 IP conguration ................................................................................................................................ 7
4.1 Default network conguration................................................................................................... 7
5 PC conguration............................................................................................................................... 7
5.1 IP Search tool for Windows only ................................................................................................. 7
5.1.1 Overview .............................................................................................................................. 7
5.1.2 Installation ........................................................................................................................... 7
5.1.3 Finding a camera and changing its network settings....................................................... 7
5.2 Internet Explorer settings ........................................................................................................... 8
6 Connecting to the camera ............................................................................................................... 9
7 Changing the camera administrator password ........................................................................... 10

3
User manual
8 Association with the NVR (network video recorder) ................................................................... 11
9 Types of use .................................................................................................................................... 11
10 Live video ........................................................................................................................................ 12
10.1 Image adjustment...................................................................................................................... 12
11 Playback .......................................................................................................................................... 15
12 Camera conguration .................................................................................................................... 15
12.1 Information about the camera.................................................................................................. 15
12.2 Stream......................................................................................................................................... 15
12.3 Device ......................................................................................................................................... 16
12.4 Privacy masking......................................................................................................................... 19
12.5 Protocol ...................................................................................................................................... 19
12.6 Maintenance............................................................................................................................... 20
13 Updating the rmware................................................................................................................... 20
13.1 Installation ................................................................................................................................. 20
13.2 Updating..................................................................................................................................... 21

4
1 Overview
1.1 Accessories
Name Quantity
IP camera 1
Bag for accessories (screws and connection diagram) 1
CD-ROM 1
1.2 Dimension (mm)
64
74
145
NB: The camera is supplied without a lens.
You can use the following lenses:
- Cat. No. 319017: 3 - 10.5 mm
- Cat. No. 391018: 5 - 60 mm

5
User manual
1.3 Specications
Settings IP camera
Processor Hi3516C
Operating system Embedded Linux
Sensor CMOS 1/2.9”
Resolution 2 MP: 1920 (H) x 1080 (V)/max 25 fps, by default 12 fps
Compression H264
Stream Stream 1: 1920 x 1080 Stream 2: 1280 x 720
Bitrate 500 to 12,000 kbps
Privacy masking 4 zones
Day/Night Yes, automatic switchover
Backlight compensation Yes (DWDR)
Mirror ip image Yes
Event Alarm trip Motion detection
Wired network Ethernet10/100Base-T
Network protocol HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, PPoE, NTP, Unicast & Multicast
Standard ONVIF 2.6
WEB access Live, system conguration, log, maintenance, etc.
Number of concurrent
connections 10
Power supply 12 VDC/PoE
Power consumption 30 W max.
Operating temperature -10°C to +50°C
Operating humidity 0% to 90%
Dimensions (mm) 145 x 74 x 64
Weight 360 g
Protection class IP 40

6
2 Installation
2.1 Wall-mounted with bracket Cat. No. 391845 or Cat. No. 391846
2.2 In a compartment Cat.No. 391834 or Cat. No. 391835
3 Wiring
3.1 Description
COM IN COM OUT
ALAR MRS485
AUDIO OUTAUDIO IN
SD PWR ALM RUN
DC12V NICVIDE O OUT
RESET
FACTORY
Internet/Intranet
Loudspeaker
Microphone
Alarm output device
Alarm input device
Slot for SD card
Monitor
FACTORY RESET: press the button for 5 seconds
3.2 Connecting the camera to the NVR (network video recorder)
Example:
ROUTER SWITCH
Remote PC
Local PC NVR
Camera
POWER SUPPLY
Two options for cabling the camera
: IP network cabling
+ 12 VDC external power supply - - - - - - - : PoE cabling
The camera can be connected to the network NVR either directly to a port on the NVR’s built-in switch if it has one, or to an
external switch port.
Since the camera is congured as DHCP by default, the NVR’s internal or external switch will automatically supply its installation
network IP address.
NB: The NVR rmware version must be at least V5.2.0 - 20170227, or more recent.
If not, update the rmware via www.legrandoc.com or www.bticino.com

7
User manual
4 IP conguration
You can congure the camera with your network settings, using a PC.
4.1 Default network conguration
Network settings Default conguration
TCP/IP
Mode DHCP
IP address 192.168.1.168
Subnet mask 255.255.255.0
Gateway 192.168.1.1
Connection
Client port 30001
HTTP port 80
RTSP port 554
Authentication
User name admin
Password admin
5 PC conguration
The PC should be equipped with Windows 7 or Windows 10 and Internet Explorer 11 (or more recent version) or Mozilla Firefox V51
(or more recent version).
5.1 IP Search tool, for Windows only
5.1.1 Overview
The IPSearch tool is used to nd a camera on the network or to change its IP address. You will nd this tool on the CD supplied
with the camera or on the website www.Bticino.com or www.bticino.it.
5.1.2 Installation
Launch the IPSearch.exe executable le from: Tool/IPSearch/IPSearch (3.2).
5.1.3 Finding a camera and changing its network settings
Click on the Start button in the MulticastSearch tab.
Select the camera and make
a note of the camera network settings.

8
If necessary, you can change them.
If the camera is connected to a PoE port on
anNVR, change the following parameters:
Device IP: 10.10.25.1xx
Subnet mask: 255.255.0.0
Default gateway: 10.10.25.100.
Click “Modify” to save them.
5.2 Internet Explorer settings
Open the browser.
To make sure the real-time video can be played correctly, you should perform the following operation on connecting to Internet
Explorer for the rst time:
1. Choose Tools
> Internet Options> Security> Trusted sites> Sites.
In the displayed dialogue box, enter the camera address, e.g: 192.168.0.120 and click“Add”.

9
User manual
2. In Internet Explorer, choose Tools> Internet Options> Security> Custom level, then dene the unsigned ActiveX control
andinitialise and enable ActiveX controls not marked as safe for scripting in ActiveX controls and plug-ins to be Enabled.
6 Connecting to the camera
Enter the device IP address in the address bar, for example:
http://192.168.1.168
http://192.168.1.168
Select the language, enter the user name (admin by default) and password (admin by default) then click.

10
If the system displays the message“Please download the latest expansion modules”, click Download and install them.
7 Changing the camera administrator password
We recommend that you change the camera administrator password (admin by default).
Connect to the camera via your browser using the previously dened IP address for example:
http://192.168.1.168
http://192.168.1.168
Select the language, enter the user name (admin by default) and password (admin by default) then click.
Click and change the administrator password.
The new password should be 8 characters minimum and made up of upper and lower case letters, numbers and special
characters.
To be sure the new password is valid and
suciently secure, the icon should change
from red (complex weak) to green (complex
strong).

11
User manual
8 Association with the NVR
The camera is used with NVRs in the Bticino catalogue with rmware version V5.2.0, - 20170227 or more recent.
If the rmware is older, update it by following the procedure described in the NVR manual.
In the NVR “SETTINGS/CAMERA IP” menu, click on +next to a free channel and the following window appears:
Select the ONVIF protocol
Password: admin by default
Click Search and the camera appears in the list of cameras present.
Click ADD to associate the camera with the NVR and make it appear in the live display
9 Types of use
The camera is normally used in association with an NVR.
The following functions are possible:
Local Remote
Interface NVR + mouse
+ monitor
PC in Web
access mode
(Internet
Explorer
orFirefox)
PC and
Bticino
Customer
CCTV
rmware
+NVR
PC in Web
access mode
(IE browser)
PC and
Bticino
Customer
CCTV
rmware
+NVR
Live viewing and playing back
recordings Yes Yes Yes Yes Yes
Detect the camera in the same
subnet
YES with
IPSearch (3.2)
Change the camera’s IP address YES with
IPSearch (3.2)
Adjust picture settings YES
Update the camera’s rmware
YES with
Customer
update
(V1.2.0.36)
See NVR
manual
LE08916xx
See Web
interface
usermanual
LE09927xx
See Bticino
Customer
CCTV manual
LE08970xx
See Web
interface
usermanual
LE09927xx
See Bticino
Customer
CCTV manual
LE08970xx

12
10 Live video
,

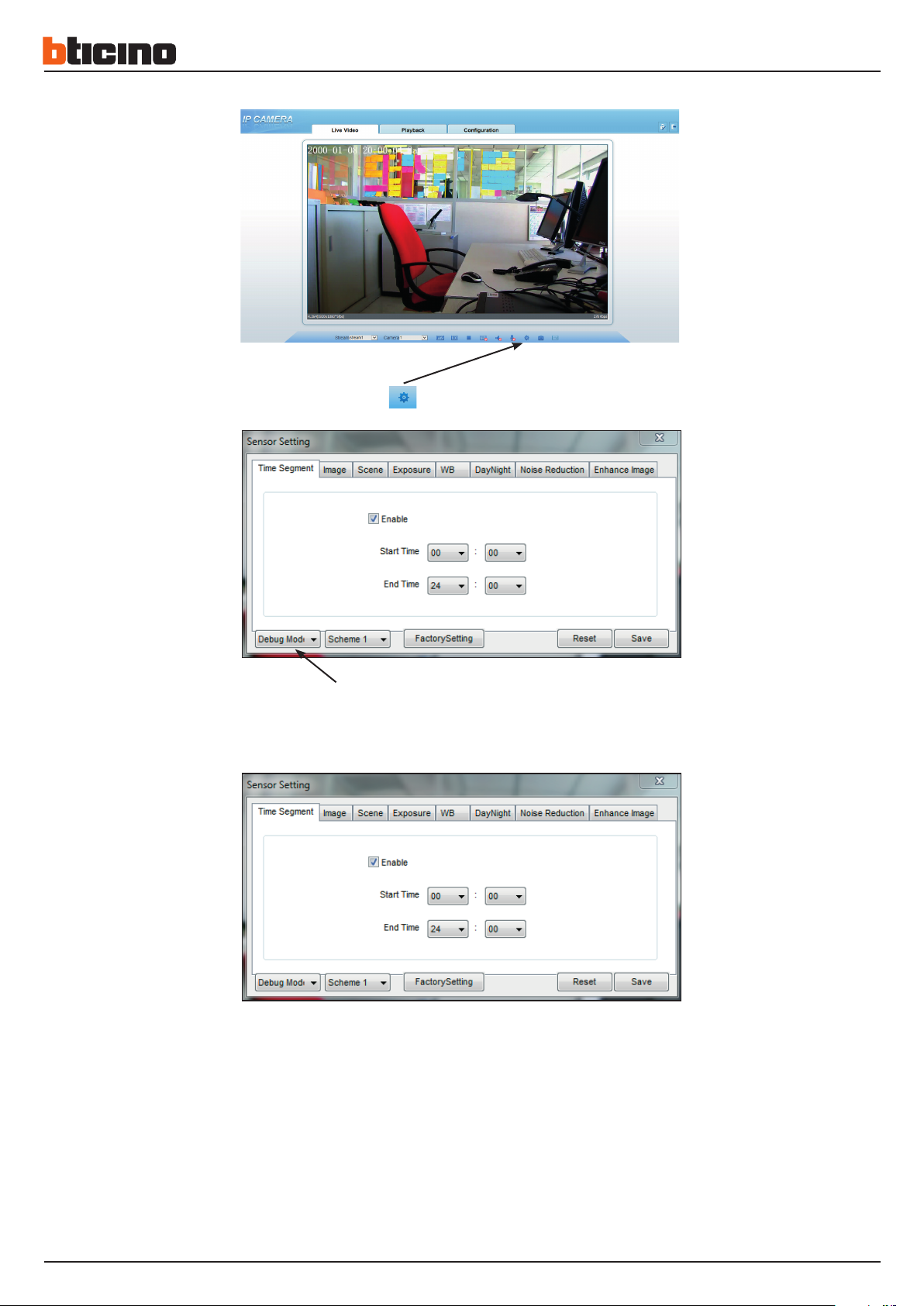

10.1 Image Adjustment:click on the icon to display the menu
To change the default settings, select “Debug mode”. You can dene and save 4 dierent settings. Restoring the factory settings
will delete all the settings.
Time Segment: Limits how long the camera operates for (by default 24/7).

13
User manual

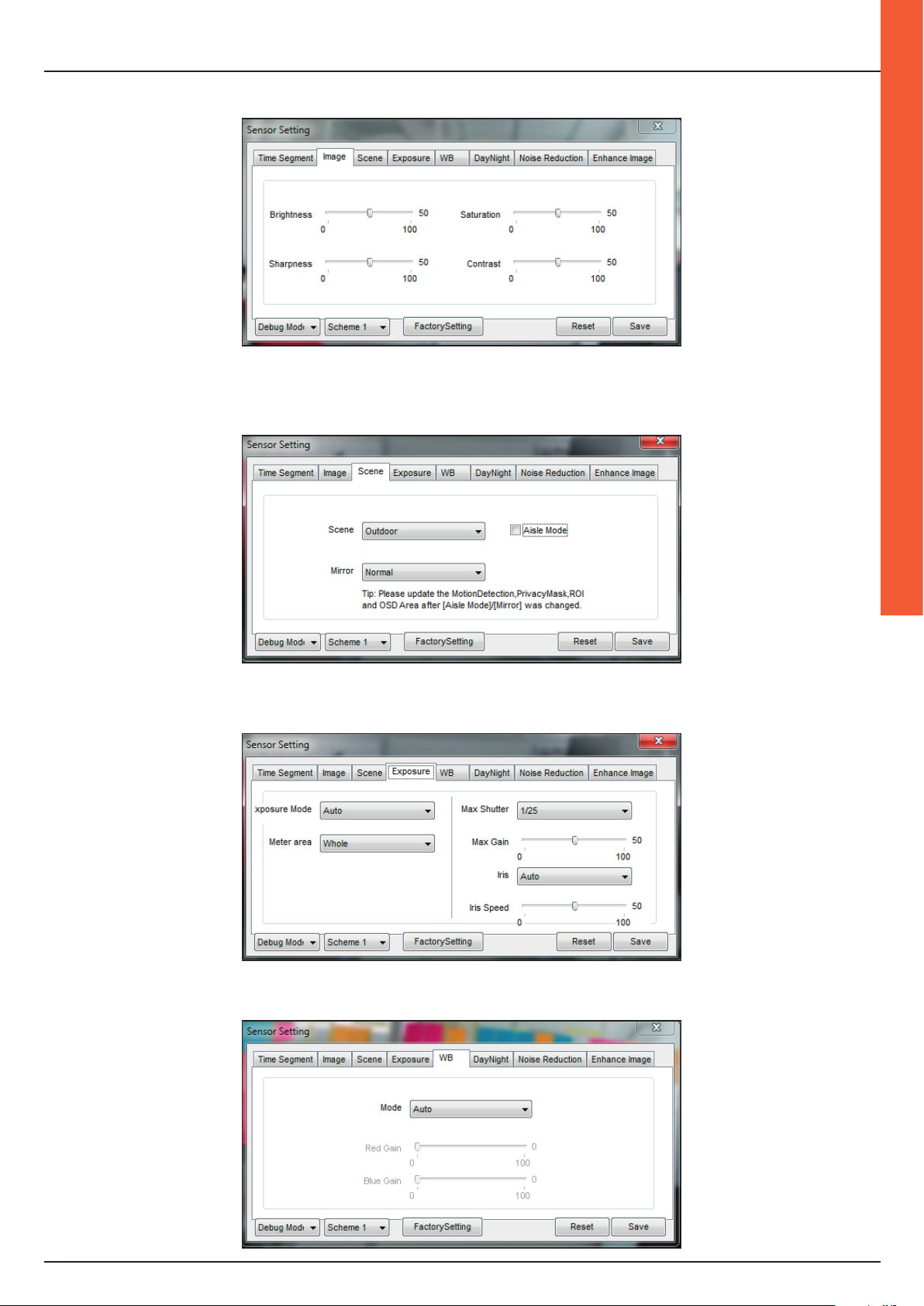

Image adjust: Sets the brightness, contrast, saturation, sharpness.
Scene: Scene: Used to dene whether the scene is indoor or outdoor.
Mirror: Used to ip the image (horizontal/vertical/horizontal + vertical).
Aisle Mode: Portrait mode.
Exposure: Sets the exposure, surface, shutter speed (1 to 1/5000th second), gain (0 to 100) and iris (by default in
automaticmode).
WB (Lighting): Sets the lighting type (by default in automatic mode).

14
DayNight: Sets day mode, night mode and day/night switching.
Noise reduction: Used to reduce background noise.
Enhance image: WDR is used to improve backlit scenes.
HLC and BLC are used to adjust backlighting.
Defog can adjust the image in misty weather

15
User manual
11 Playback
Not applicable. To play back recordings, refer to your network video recorder manual.
12 Camera conguration
The “Alarm”, “Local Record”, “Network Service”, “Privilege Manager” and “Device Log” functions will not be discussed in this manual.
To use these types of function, refer to your network video recorder manual.
12.1 Device Info (Information about the camera)
Gives various information about the camera and is used to give it a name.
12.2 Stream
Base Stream: possibility of having 2 streams with dierent types of encoding, resolution, bit rate, etc.
ID 1 Stream: main stream which will be recorded on the NVR.
ID 2 Stream: can be used for live video in web access if the bandwidth is restricted.

16
SVC Stream (Scalable Video Codec): Used to add the proportion (1/2, 1/4, 1/8) of predictive images (which only contain
modications) compared to the main stream (1/1).
ROI (Region of interest): Up to 5 regions of interest with 5 image quality levels (1 lowest, 5 highest).
12.3 Device
Local Network: IP settings.

17
User manual
Device Port: Control port, HTTP port, RTSP port.
Date and Time: Time zone, daylight saving time settings (start and end date).
The 5th Sunday, for example, means the last Sunday of the month.
Camera: Video channel settings.
OSD: 4 information display zone settings.

18
Microphone: Microphone settings (connected to the camera).
CVBS: Analogue video output (to be connected to the camera) with coaxial cable and BNC connector.
System: Language and internet mode if language changed, click .
Voice Denoise: Improves the sound signal.

19
User manual
12.4 Privacy Masking
Possibility of dening 4 privacy masking zones.
12.5 Protocol
Protocol info: name and version.
Security: Enables/disables user control.

20
12.6 Maintenance
Restart: Restarts the camera
Reserve IP setting: Used to keep the IP address, when restoring the factory settings, so as to avoid having to repeat the
identication procedure on the network.
Restore: Restores the factory settings.
13 Updating the rmware
13.1 Installation
Copy the directory for the “Update tool V1.2.0.36”executable le (MANDATORY) into the computer root directory (C:)
Launch the “NewUpdateTool.exe” executable le.
