BURY CC 9045 User manual

CC 9045
Index
Introductory information 22
1. General 22
2. Security guidelines 22
Installation of the hands-free car kit 24
3. Scope of supply 24
4. Positioning of the 3-button remote control 26
5. Connecting the Electronic box 27
6. Installation of the audio switchbox AC 5120 30
7. Installation instructions for the fuses 34
Operating guidelines 35
8. Switch-on 35
9. Establishing a
Bluetooth
®connection 35
10. 3-Button Remote Control 37
11. Play music with A2DP 39
Further Information 40
12. Service 40

22 Introductory information
1. General
Dear customer,
Congratulation on purchasing a BURY hands-free car kit. You have cho-
sen a high quality product that is extremely easy to use. All aspects of
BURY production through to sales and service are subject to strict qua-
lity management according to DIN EN ISO 9001. All BURY hands-free
car kits meet CE and e1 security standards. Furthermore, we provide a
two-year warranty on all components.
Please read the operating manual carefully so that you can fully enjoy
your BURY hands-free car kit. If you have any further questions concer-
ning installation or operation of your car kit, please contact your dealer.
He will be happy to give you reliable advice. You can also contact our
hotline. Our phone and fax numbers are listed in the chapter Service at
the end of the operating instructions.
Have a good trip!
2. Security guidelines
Installation – who and where
The installation of this system can be carried out by yourself but please
observe the installation requirements of the automotive manufacturer
(VAS 1978). During the installation, park the car at a place where the
road traffic is not impaired. We recommend to let a specialised work-
shop perform the installation.
Power supply
This system has been designed for the use in vehicles with an on-board
supply system of 12 volts (passenger car). If you intend to install the
device in a vehicle with an on-board supply system of 24 volts (lorry),
please use a voltage converter. If you have queries regarding this sub-
ject, please contact our hotline.

23
Position, volume
Install the components of the device in the vehicle so that your field of
vision is not impaired and the components are not mounted in the im-
pact zone of the passenger compartment or in the airbag inflation
zones. The removal of coverings (with and without airbags) or compo-
nents of the dashboard requires – in some cases – special tools and
special knowledge.
Intended use
We shall not be liable for damages or malfunctions due to improper use
of the navigation system. Therefore, do not expose the device to moi-
sture, extreme temperatures or shocks and carefully follow the proce-
dure described in the installation and operating guidelines.
Use while driving
Operate the system only when the situation allows it and when you do
not endanger, harm, constrain, or annoy other road users. The volume
of the device has to be set in a way that exterior noise is still audible.
Faults
Do not commission the device if you detect or assume a defect. In this
case, contact a Bury specialised dealer or our hotline. Improper repair
efforts can be dangerous for you. Therefore, only skilled personnel may
perform inspections.
Important:
The driver is ultimately responsible for the safe operation
and control of their vehicle at all times. You should never
use a hand held phone, including sending or reading text or
picture messages, while driving.
Research indicates that there is a risk to safety when the
driver of a motor vehicle is distracted and using a mobile
phone while driving can be a distriction.
The manufacturer strongly recommends that you use a
hands-free solution when driving.

24 Installation of the hands-free car kit

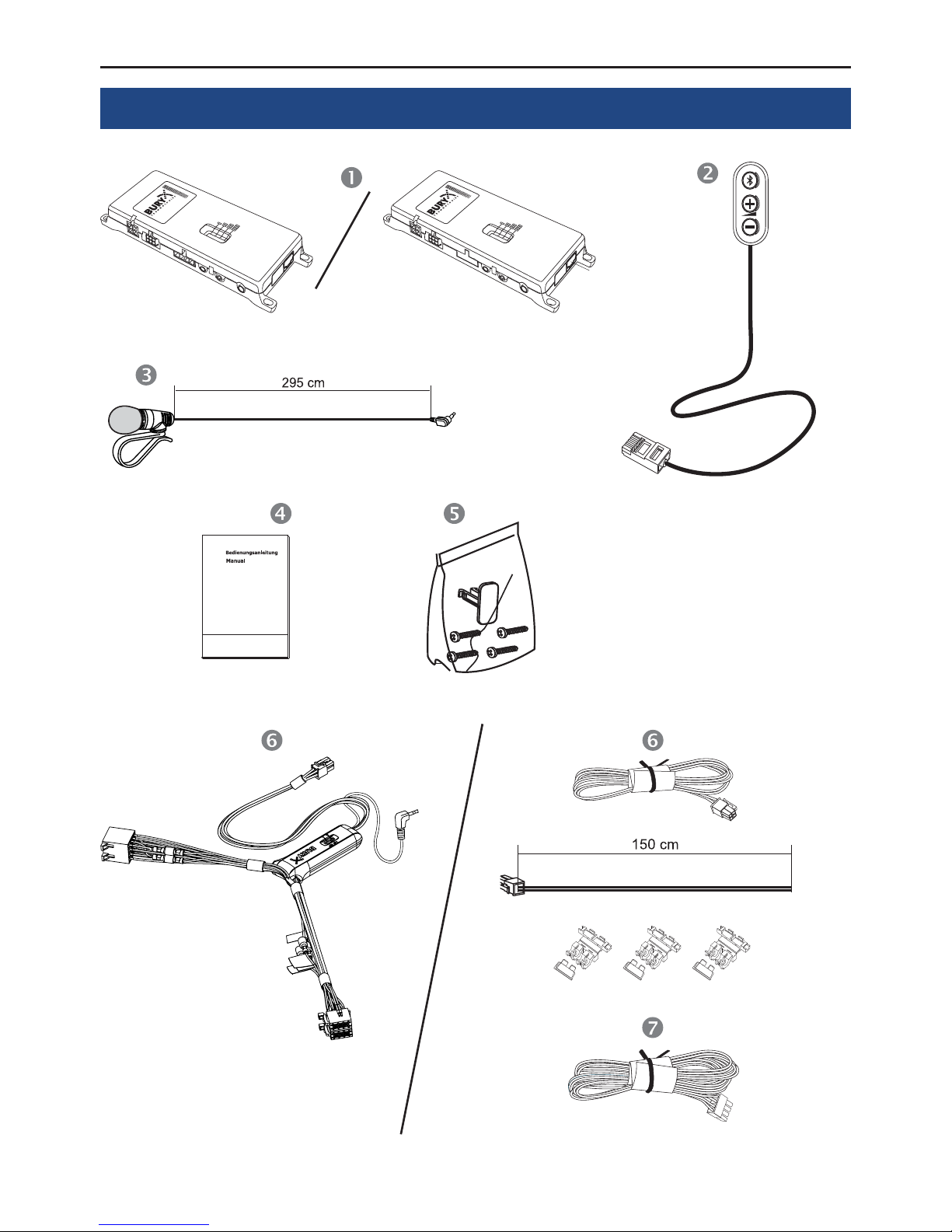

3. Scope of supply

25
Description of the components:
1) Electronics box
(with or without an internal switch box, depending on version)
2) Remote control
3) Microphone
4) Installation and Operating manual
5) Fixing screws for electronics box, rider
Variant 1:
6) External loudspeaker switch-box AC 5120
Variant 2:
6) Power supply cable with fuses
7) Cable for internal loudspeaker switch box
Please note:
If certain components are added or omitted you will recei-
ve the corresponding information on a separate enclosure.

26 Installation of the hands-free car kit
4. Positioning of the 3-button remote control
Step 1:
First of all, choose the most suitable location for the 3-button remote
control by positioning it or holding it at different locations in the vehicle
yourself. Once you have found a suitable position for the remote con-
trol, you can attach it / mount it appropriately. Please use the cleaning
cloth provided to remove any grease or dirt from the surfaces. Please
remember that in the event of strong temperature variations, depen-
ding on the structure and quality, the colours of the surfaces may fade
during subsequent use.
Important:
The remote control can only be stuck down once. Damage
to its adhesive surface may occur when it is removed.
Step 2:
Depending on the vehicle type and its equipment (e.g. airbags), it is
reasonable to install the microphone either at the A-pillar, at the sun
shield or at the roof interior. For details about the equipment features
please refer to the vehicle documents.
Step 3:
Please lay the cables in a way that they do not lie/hang unsecured in
the vehicle and that they may not influence the conducting of the vehi-
cle. When laying a cable, please take care that it is not under traction
stress but that it has some tolerance. Avoid crushing the cable as da-
mages of the insulation can be caused by friction/rubbing.
Step 4:
Install the electronics box at a convenient place in the vehicle. This can
e.g. be behind the radio, in the glove box, or in the centre console.
Please mind that you can access the connections of the box without

27
difficulty. Before connecting the components to the electronics box you
should branch off the battery for safety reasons. In doing so, take into
account that there might be a radio coding (confer radio manual).
Important:
Please install the electronics box behind a cover or so-
mewhere you can only reach by opening or unfastening a
protective cover / a cover. The terminal box must not hang
loosely in the vehicle.

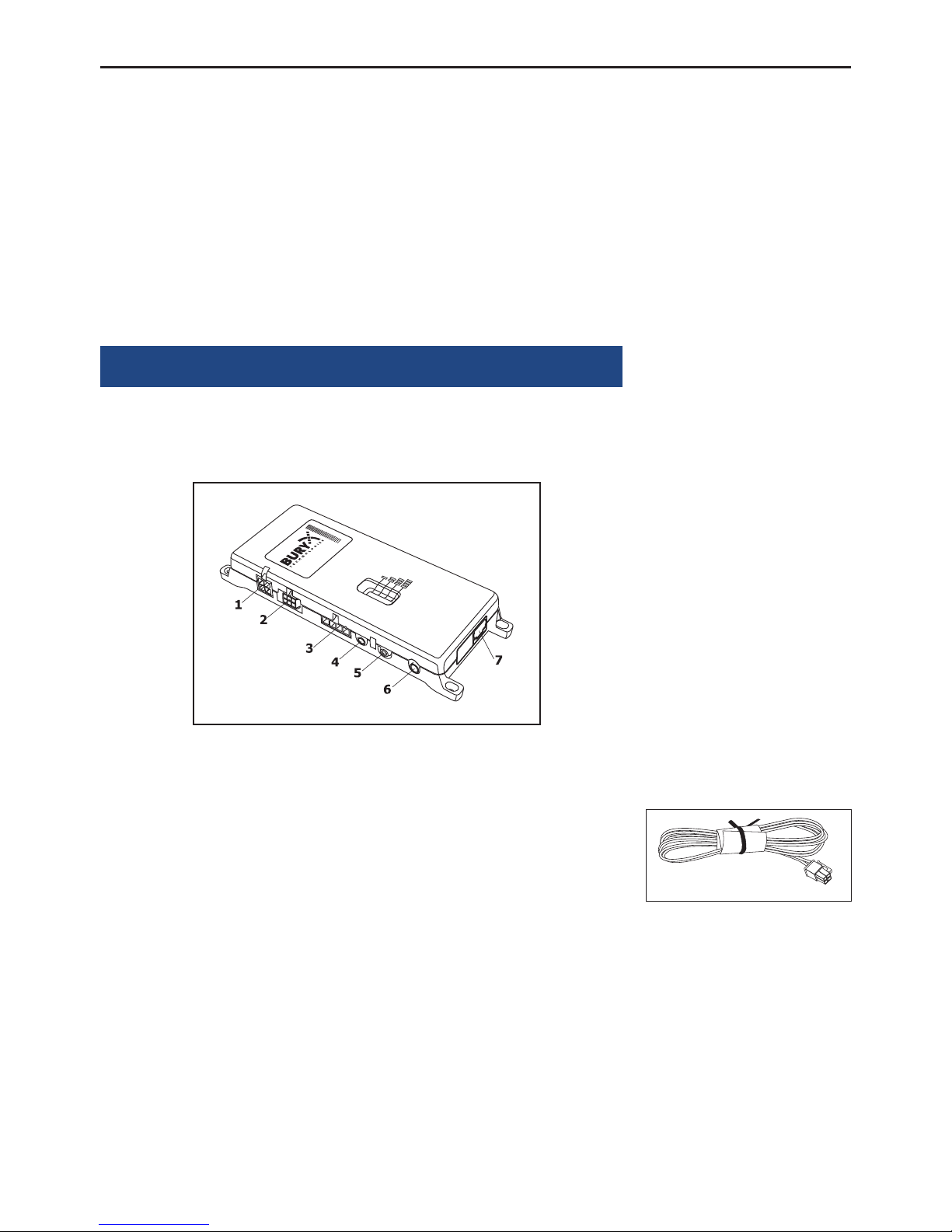

5. Connecting the Electronic box
The additional components of the hands-free car kit are connected to
the electronics box. The following connections are provided:
1 - Power supply
Version 1, with integrated loudspeaker switch box:
The power supply of the hands-free car kit is established via a 4-core
cable. Connect the black (clamp 31 – minus), the red (clamp 30 – stea-
dy plus) and the blue cable (clamp 15 – ignition plus) to the power
supply of your radio (where required via the cigarette lighter or the fuse
box). After connection to the counterpart, the yellow cable provides for
radio muting during a phone conversation. Please connect the white
Molex connector with connection 1.
Attention:
If you also connect the blue cable to clamp 30, the hands-
free car kit will be permanently supplied with power. If the
vehicle is not running for a longer period, this could lead to
a discharge of the car battery.

28 Installation of the hands-free car kit
Version 2, with external loudspeaker switch box:
Refer to the separate chapter:
Installation of the audio switch box AC 5120
2 - System 9 Socket
Socket for connection of the basePlate suitable for the CC 9045 from
the System 9.
3 - Voice output of the hands-free car kit

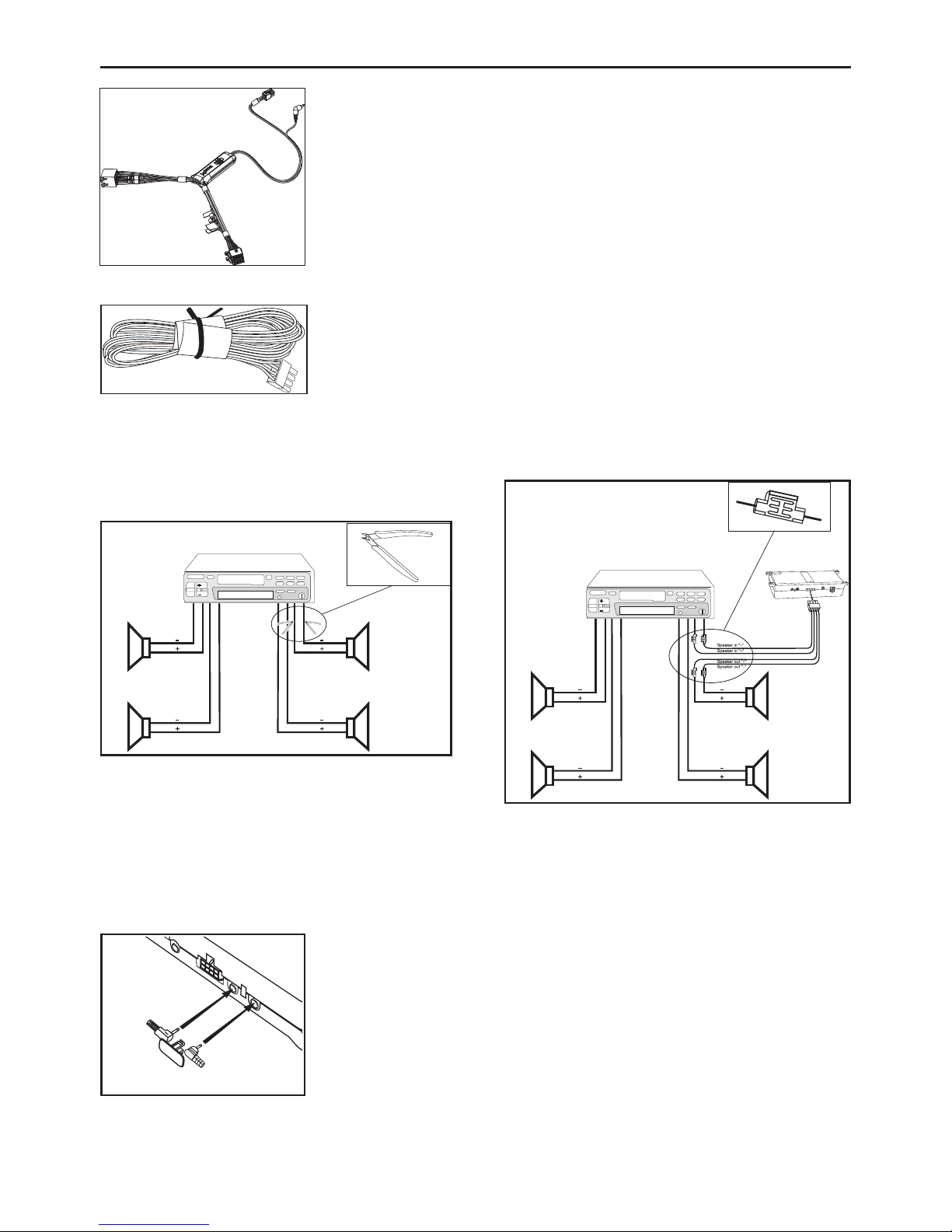

Version 1, with integrated loudspeaker switch box:
The cable provided serves the purpose of transferring the voice output
to one of the loudspeakers in the car. In the best case scenario, this
speaker should be on the passenger side of the vehicle in order to pro-
vide sufficient distance from the microphone and to prevent possible
echoes from occurring. The jack plug remains unused during the use of
the internal loudspeaker switch box.
Version 2, with external loudspeaker switch box:
Refer to separate chapter:
Installation of the audio switch box AC 5120
4 - Microphone input
This is where you plug in the microphone jack. After connection 3 has
already been occupied use the rider. This ensures that neither of the
jacks is able to loosen as a result of vibrations.
RR
FL
RL
FR
RR
FL
RL
FR

29
5 - Speaker output
Please connect the 3.5 mm jack plug of the external BURY loudspeaker
(available as an accessory) to this socket.
6 - AUX-Out connection
Stereo music is output at connection 2. Here you can connect the AUX-
In input of your radio (if existent) via adapters available at local retai-
lers. For the connection to the hands-free car kit, the adapter must
have a 3.5 mm stereo jack. Depending on the car radio, the other end
must be selected otherwise. If your radio does not have an AUX-In, you
can use the car CD/MP3 adapter from the BURY accessories programme
to enable the reproduction of music via your radio.
7 - Input for the remote control
Please connect the remote control jack to this socket. Tighten at least
one of the two fixing screws hand-tight so that this plug cannot become
unplugged as a result of vibrations.

30 Installation of the hands-free car kit

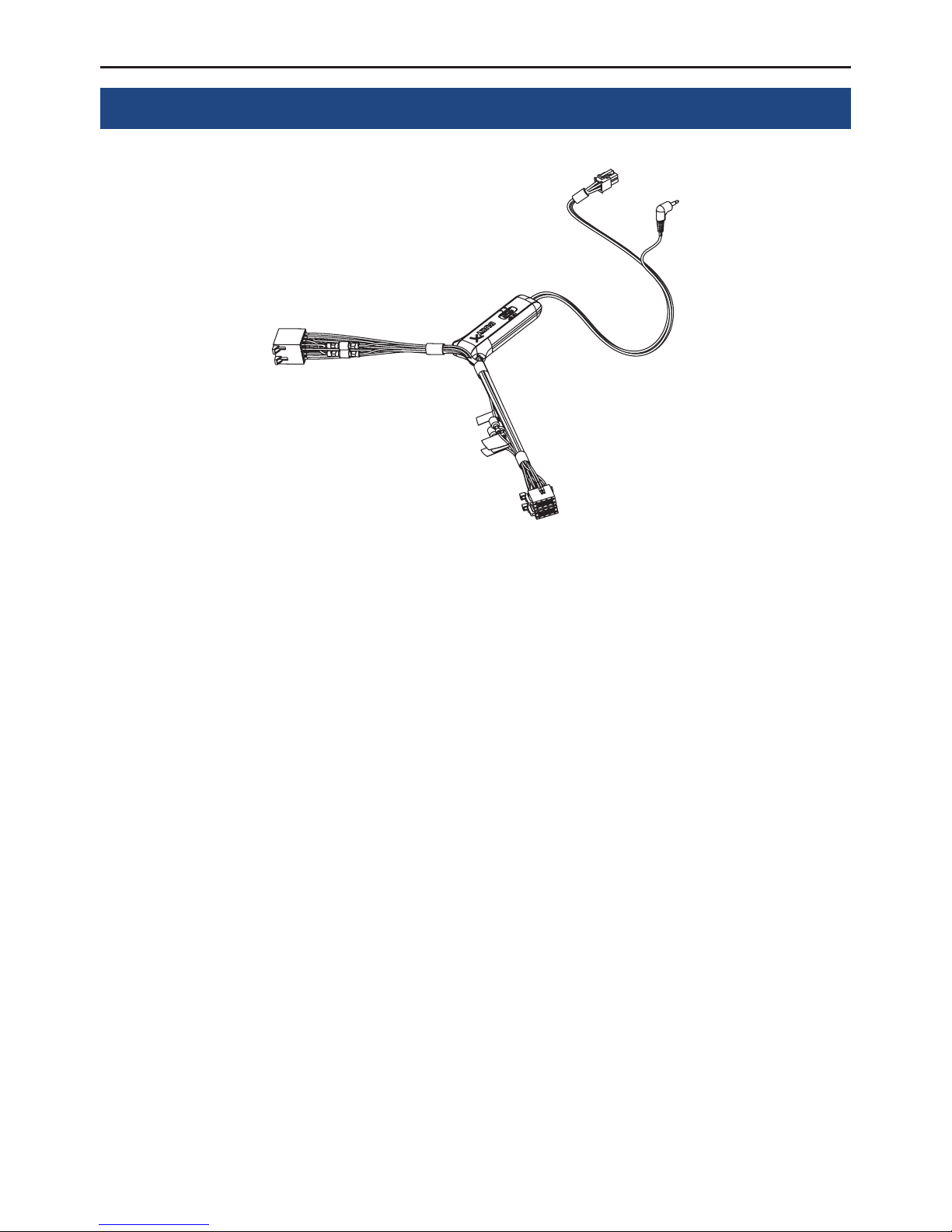

6. Installation instructions switching box AC 5120
With the AC 5120 speaker switchbox, you get the possibility of being able to mute the feedback of your
car radio / CD player etc. and to transfer the voice output of your conversation partner during a tele-
phone call to your vehicle’s speakers. This means that the installation of additional speakers isn‘t re-
quired. If your radio has a mute function, then the vehicle speakers are turned onto mute using the
radio. If your car radio doesn‘t have this function, then the signals will be suppressed by the speaker
switchbox. You can use the AC 5120 through the connections that your BURY hands free car kit offers,
which guarantee voltage supply via molex plugs and also have a speaker output.
If you want to make a telephone call in the hands-free mode, your car radio will be automatically swit-
ched on to mute (for the exact operation of your hands free car kit, please read your HFCK user ma-
nual). The Audio switchbox now uses one or two loudspeakers in your car for the telephone conversa-
tion, even if your radio is switched off. This function will be automatically activated after the installati-
on of the unit, there are no subsequent manual settings required.
Some mobile phones do not support a radio mute function. Please read your telephone user manual
for more details. You can find out more detailed information at your specialist retailer, in the internet
under www.bury.com, or over our telephone hotline.

31
After checking that all the cable lengths are sufficient, decide where you are able to attach the Audio
switchbox. Now secure the Audio switchbox so that it isn’t able to flap about and/or rattle against other
parts of your vehicle.

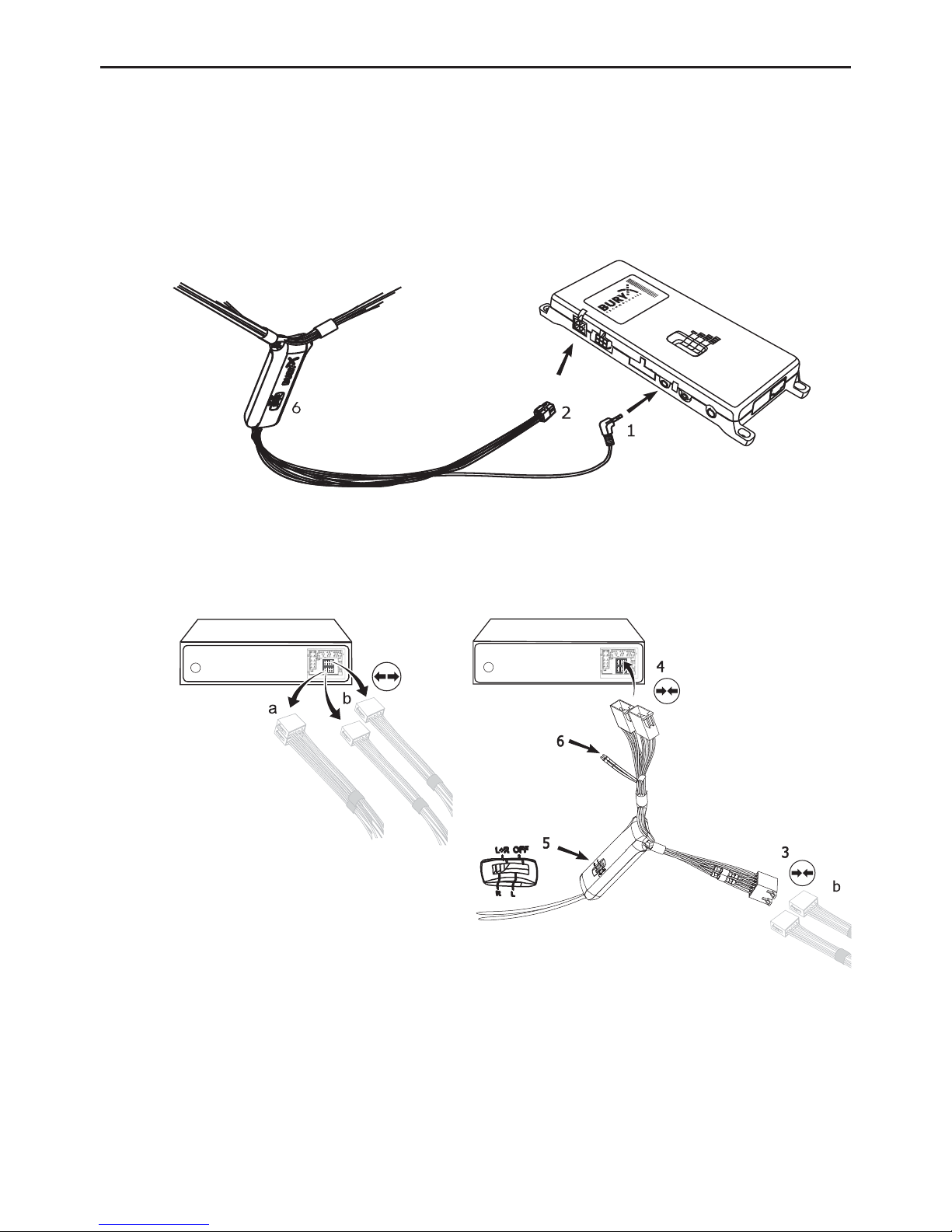

Now connect the audio switchbox plug (1) to the hands-free car kit. (The other, smaller box is used by
the audio switchbox plug for the microphone.) Now connect the white power out cable connector (2)
of your Audio switchbox to the power supply socket of your hands-free kit.
Now disconnect the (a) and/or the (b) loudspeaker connector from the speaker socket on the radio at
the back. Connect this connector with the suitable socket (3) on the AC 5120. Now connect the plug
(4) with the radio.
Depending on the switcher position (5), the voice of your conversation partner will be fed back through
either the front right speaker, the front left speaker, or through both of the front loudspeakers. The ‘OFF’
position is to be selected if you connect the switchbox to the radio using the ‘Phone-IN’ cable (6).

32 Installation of the hands-free car kit

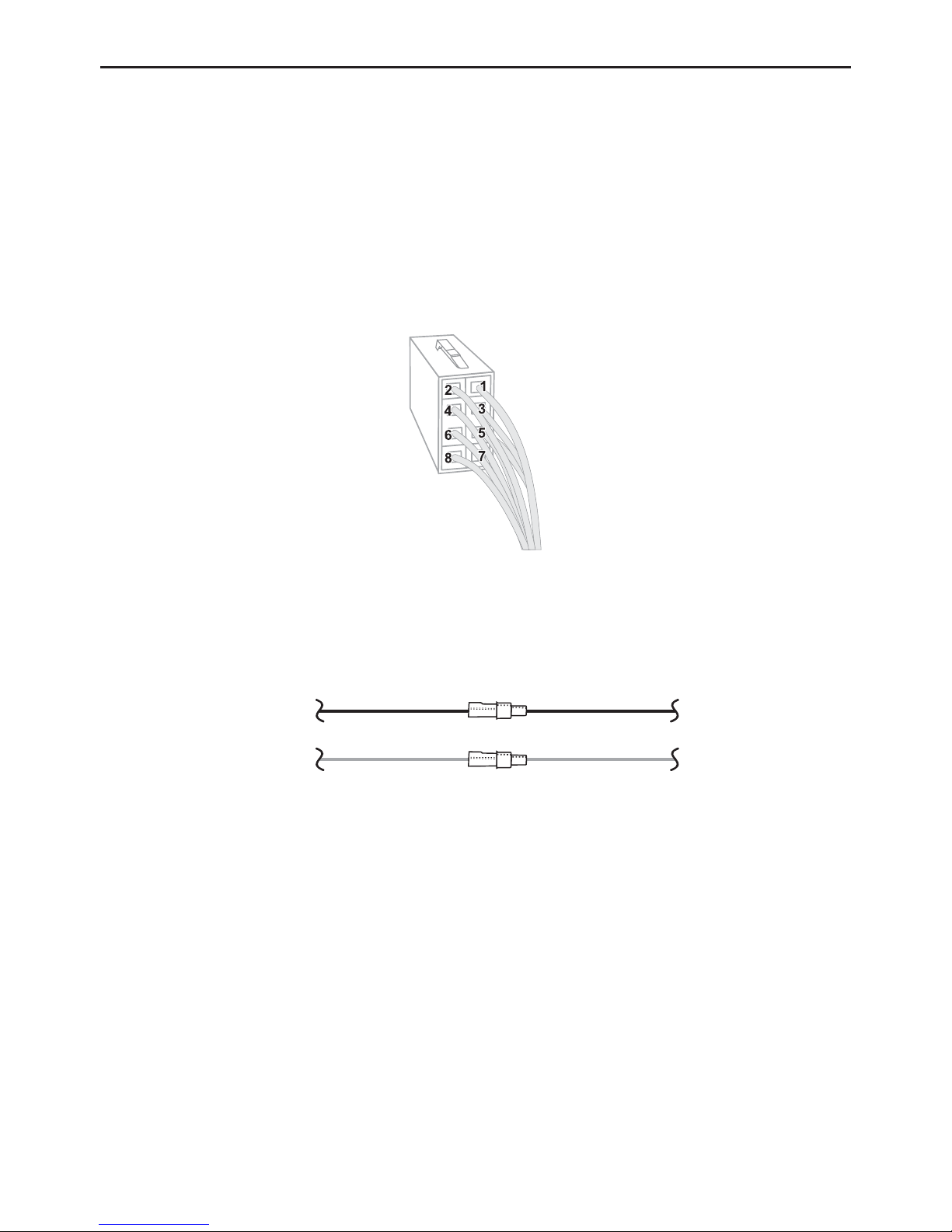

The two ‘Phone-In’ cables are marked accordingly and must be plugged into the appropriate
connections on the radio (blue, green or yellow). In this regard, please refer to the instructions
concerning the connection configuration of your car radio in your car radio handbook. In lots of
radios, the volume level (feedback of your conversation partner) can be controlled via the phone
input and the selection of the loudspeaker.
Different connections of the ISO plug on the radio
The layout of the pins on the ISO plug used in a car depends on the type of car. Before using the
switchbox, you should make sure that the connections are correct in order to prevent possible
damage to the device.
Configuration I
If the assignment of pin 7 of the ISO plug is connected to the DC Power Supply, and pin 4 is
connected to the ignition, you should check if the connection looks like the connection presented
on the drawing below.
Switchbox Vehicle
red 7 (red)
blue 4 (blue)

33
Configuration II
If the configuration of pin 7 of the ISO plug is connected to the ignition and pin 4 is connected to the
power supply, you should check to see whether the connection looks like the illustration below.
In the operating manual of the radio device, you can find the pin assignment for the “mute” signal. This
signal can occur on one of three cables marked with “mute1”, “mute2”, or “mute3”.
Connect the yellow “mute” cable to the switchbox using the correct cable from the car radio: “mute 1”,
“mute 2” or “mute3”.
Attention:
The positive wires and ignition wires are protected in the casing of the switchbox with
3A fuses. For this reason a separate fuse, as shown in the next chapter, is not necessa-
ry.
red 7 (red)
blue 4 (blue)
Switchbox
red 7 (red)
blue 4 (blue)
Switchbox
Vehicle
Vehicle
mute 1
radio device Switchbox
mute 2
mute 3
mute (yellow)

34 Installation of the hands-free car kit
7. Installation instructions for the fuses
If you install the CC 9045 without the AC 5120 switch box then the power supply must be secured with
a fuse in the way described below.
Please cut through the red, the black and the blue cable by means of a wire cutter or scissors. Now
insert the two endings of the red cable resulting from the cut into one of the binders, then close it. If
you hear two clicking noises, the clamp snapped in properly. Now insert one of the fuses and then
repeat the procedure with the other cables.

35
Operating guidelines
8. Switch-on
When providing the hands-free car-kit (HFCK) with power, a long signal
is audible. The HFCK tries to establish a connection for 90 seconds
(depending on the number of connected telephones) to the last con-
nected mobile telephone within reach.
9. Establishing a Bluetooth
®connection
If you wish to establish a Bluetooth
®connection for the first time, you
have to activate the
Bluetooth
®function of your mobile phone and
search for
Bluetooth
®devices. In this case search for a device labelled
„comf_comp V...”. If several devices were identified, please select the
HFCK and enter the PIN number 1234. The
Bluetooth
®connection (pai-
ring) will then be established between your mobile phone and the
HFCK.
If a connection has been set up, a message appears in the display of
the mobile phone. If it is not possible to establish a connection, please
check and update the software release of your mobile phone or of the
HFCK. An overview dealing with this subject can be found on the Inter-
net at www.bury.com. If you have questions with regard to the menu
navigation, functions and operation of your mobile phone, please refer
to the operating guidelines of your mobile phone. Depending on the
manufacturer and type, this considerably differs from each other.
The HFCK has a memory for the storage of the identification of up to 6
mobile telephones. When the next mobile phone is connected, the
oldest entry in the HFCK memory is deleted respectively.
If you wish to cancel a
Bluetooth
®connection, you can either discon-
nect it conveniently at the HFCK or at your mobile phone. In addition,
the connection is disconnected, if you move too far away from the ve-
hicle while taking your mobile phone with you and thus leave the recep-
tion radius of the HFCK.
Please note:
If you disconnect the power supply of a Plug & Play hands-
free car kit by unplugging the cigarette lighter jack or the fixed
installation device, an active
Bluetooth
®connection is also dis-
connected.

36 Operating guidelines
The Bluetooth
®connection is automatically re-established only if you
re-enter the reception area of the HFCK (approx. 10 metres) and if you
want to perform or receive a phone call. Exceptions hereto are some
mobile telephones which only re-establish the
Bluetooth
®connection
after the confirmation of a message. It is only possible to establish one
Bluetooth
®connection with a mobile telephone even if several mobile
telephones which can be identified by the HFCK may be nearby. After
activation of the HFCK, the kit connects to the last connected mobile
phone, provided that it is in the vehicle, that the
Bluetooth
®function is
activated, and that the pairing identification to the HFCK has not been
deleted. If you want to repeat the pairing of a mobile telephone which
can be identified by the HFCK but is not the last connected mobile te-
lephone, please select the pairing identification of the HFCK in the
Bluetooth
®menu of the mobile phone and establish the connection.
This only works after the HFCK having terminated the automatic search
for the last connected mobile phone (see above).
Please note:
Please note that the capacity of your mobile phone‘s storage
battery can quickly decrease when the
Bluetooth
®function
is active. If you do not want to use the
Bluetooth
®function
anymore, e.g. if you leave the vehicle for a longer period, it is
recommended to deactivate this function.
In order to be able to use the voice dialling functions (Voice-
Tags) of your mobile phone with the HFCK, the phone numbers
must have been marked previously on your mobile phone in a
corresponding way.

37
10. 3-Button Remote Control
 








































  


 












    





  














 






"#

38 Operating guidelines
Status Status
description
Press Plus key
ones
Press Minus key
ones
Press Bluetooth
key ones
Hold Bluetooth
key for 2
seconds
Press Bluetooth
key twices
Hold Plus and
Minus key for 4
seconds
Hold minus key
for 10 seconds
Stand-by
Phone is not
connected to
device with HFP,
only with A2DP
Volume up Volume down
Connecting with
last connected
phone, if not
available try to
connect to a
phone from phone
list
Disconnect A2DP - - -
Pairing
Phone is
connecting to
device with HFP
and connected
with A2DP
Volume up Volume down -----
Connected
Phone is
connected to
device with HFP
and with A2DP, no
call
Volume up Volume down Calls phone
voice tags
Disconnect HFCK
and phone (both
profile: HFP and
A2DP)
Redial
Turn on / off
DSP* in the phone
(1 Beep is off, 2
Beeps is on)**
-
Ring
Phone is
connected to
device with HFP
and with A2DP,
incoming call
Volume up Volume down Accept call Rejects call ---
Active call
Phone is
connected to
device with HFP
and with A2DP,
active call
Volume up Volume down Quit call
Change car kit
mode to
private mode or
private mode to
car kit mode
Mute microphone
of HFCK
Turn on / off
DSP* in the HFCK
(1 Beep is off, 2
Beeps is on)
-
* DSP = to filter out echoes and back
g
round noise ** de
p
endin
g
on mobile
p
hone
HFP = Hands-free Profile A2DP = Advanced Audio Distribution Profile
CC 9045 (A2DP connected)

39
11. Play music with A2DP
If your mobile telephone possesses the Bluetooth
®profile A2DP, you
can play music (e.g. MP3 files) in stereo quality via the HFCK. It is im-
portant to play the music title selected respectively on the HFCK via the
function ‚play via...‘.
As the menu navigation of the manufacturers of mobile telephones
differs considerably, the designation of the selection ‚...
Bluetooth
®-
stereo-headset‘ may vary. Please read the mobile‘s user manual to
know how to establish an A2DP connection with another system.
If you want to use a second mobile phone for music playback only, then
this phone must also be connected to the hands-free car kit before-
hand.
Note:
You have to install a special adapter cable to the AUX-Out
connector (2) of the hands-free car kit electronic box and
the sound system of the car.

40 Further Information
12. Service
In case of general or technical queries, suggestions and comments,
please do not hesitate to contact our team at any time. Suggestions
and feedback are always welcomed:
BURY GmbH & Co. KG
Robert-Koch-Straße 1-7
32584 Löhne
Hotline: [phone] - 842 468*
Faxline: +49(0)180 5 - 842 329*
* 0.14 €/min. Deutsche Telekom AG landline
E-Mail: [e-mail]
Service desk:
In case of complaints, please return the product directly to our service
desk:
BURY GmbH & Co. KG
Im Hause DPD Depot 103
Robinienweg
D-03222 Lübbenau
Notes on the disposal of electronic devices
In compliance with the German law on electric and electronic devices,
old electric and electronic devices must not be disposed of together
with domestic garbage in Germany, beginning March 24, 2006. If you
want to dispose of an old electric or electronic device you are required
to take it to a designated collection point (“point of acceptance” or
“communal collection point”). There old electric and electronic devices
are taken back free of charge.
Version 06/2009
25.1150.0-01-220609
Subject to change. Errors and omissions excepted.
