BURY CC 9060 Music User manual

Index
Introductory information 2
1. General 2
2. Security guidelines 2
Installation of the hands-free car kit 4
3. Scope of supply 4
4. Positioning and mounting 6
5. Connections on the electronics box 9
Operating guidelines 15
6. Using the hands-free car kit for the first time 15
7. Handling possibilities 16
8. Voice control 16
9. Handling via Touch screen 17
10. Establishing a Bluetooth connection 18
11. Menu navigation 19
12. Accepting, making, ending calls 40
13. Transferring Calls 41
14. Conference Mode 42
Further Information 43
15. Service 43
16. Appropriate use of this system 44
17. Approvals and declaration of conformity 44
CC 9060 Music

2
1. General
Dear customer,
Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that
is extremely easy to use.
Please read the operating manual carefully so that you can fully enjoy your BURY hands-free car kit. If
you have any further questions concerning installation or operation of your car kit, please contact your
dealer. He will be happy to give you reliable advice.
You can also contact our hotline. Our phone and fax numbers are listed in the chapter Service at the
end of the operating instructions.
Have a good trip!
2. Security guidelines
Installation - who should do it
We recommend to let a specialised workshop perform the installation.
Only professionals will observe the installation requirements of the au-
tomotive manufacturer (VAS 1978) correctly.
Power supply
This system has been designed for the use in vehicles with an on-board
supply system of 12 volts (passenger car). If you intend to install the
device in a vehicle with an on-board supply system of 24 volts (lorry),
please use a voltage converter. If you have queries regarding this sub-
ject, please contact our hotline.
Position, volume
Install the components of the device in the vehicle so that your field of
vision is not impaired and the components are not mounted in the im-
pact zone of the passenger compartment or in the airbag inflation
zones. The removal of coverings (with and without airbags) or compo-
nents of the dashboard requires – in some cases – special tools and
special knowledge.
Introductory information

3
Intended use
We shall not be liable for damages or malfunctions due to improper use
of the hands-free system. Therefore, do not expose the device to moi-
sture, extreme temperatures or shocks and carefully follow the proce-
dure described in the installation and operating guidelines.
Use while driving
Operate the system only when the situation allows it and when you do
not endanger, harm, constrain, or annoy other road users. The volume
of the device has to be set in a way that exterior noise is still audible.
Faults
Do not commission the device if you detect or assume a defect. In this
case, contact a Bury specialised dealer or our hotline. Improper repair
efforts can be dangerous for you. Therefore, only skilled personnel may
perform inspections.
Important:
The driver is ultimately responsible for the safe operationX
and control of their vehicle at all times. You should never
use a hand held phone, including sending or reading text or
picture messages, while driving.
Research indicates that there is a risk to safety when theX
driver of a motor vehicle is distracted and using a mobile
phone while driving can be a distraction.
The manufacturer strongly recommends that you use aX
hands-free solution when driving.

4
SYS 9
PHONE OUT
MIC
LINE OUT
DISP
RC
iPOD / iPHONE
150 cm
98
Installation of the hands-free car kit

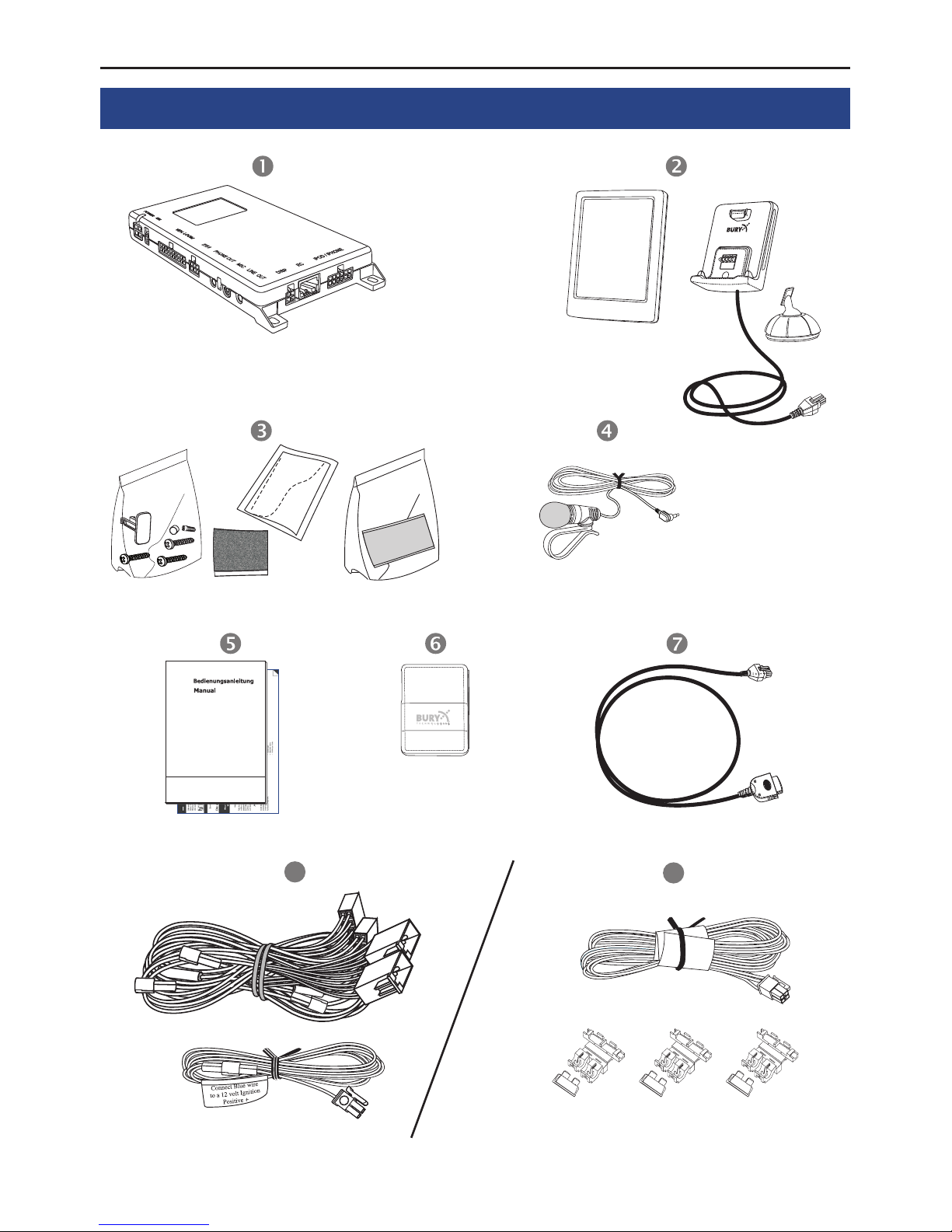

3. Scope of supply
molex

5
The hands-free car kit (HFCK) is supplied with different combinations of components, depending on
the sales regions (countries). The operating manual refers to all versions.
Description of the components:
1) Electronics box
2) Monitor, holder and installation pad
3) Mounting accessories
Fixing screws for electronics box, rider, screws for the holder and rubber cover,
adhesive tape, cleaning cloth
4) Microphone
5) Printed installation and operating manual, Quick user guide
6) Case
7) iPod/iPhone cable
8) Vehicle Interface Lead (ISO)
9) Power supply cable with fuses
Version 1:
- with Vehicle Interface Lead (ISO)
Version 2:
- without Vehicle Interface Lead (ISO)
- with power supply cable
Note:
If certain components are added or omitted you will receive the correspondingX
information on a separate enclosure.

6Installation of the hands-free car kit
4. Positioning and mounting
Step 1:
First of all, please choose the most convenient position for the attached
monitor on the holder and the installation pad in your vehicle by che-
cking different positions in the vehicle.
If you would like to use the device during your journey, positioning it in
the front area on the driver’s side is advisable. Sit in the vehicle and
check whether you can reach the device without difficulty.
After having found a suitable position for the monitor in the vehicle you
can now mount / attach the installation pad / the holder with or without
the installation pad accordingly. Please use a cleaning cloth for degre-
asing the surfaces to which you want to attach the corresponding
adhesive surface of either the holder or the installation pad.
The end of the cable with the small Molex connector on the holder is
ideally suited for placing through small openings in the dashboard area.
This facilitates a practically invisible installation of the cable. Take the
length of the cable into account and make sure that it is of sufficient
length to reach the intended location of the electronics box.
Important:
When positioning the monitor please take care that theX
monitor does not impair the view onto the road, that it will
not be installed in the impact zone of the passenger com-
partment (amongst others in the airbag inflation zones) and
that the cable may be laid without any problems.
The installation pad can be affixed just once, removingX
could damage the adhesive area. In case of high variations
in temperatures - depending on the structure and the fea-
tures - decolourisations of the surfaces can occur during the
subsequent utilization.
Please avoid direct sunlight on the monitor or high inter-X
nal temperatures, which can be rapidly reached in parked
vehicles. In such cases, remove the monitor of the hands-
free car kit from the cradle and put it in the car glove pocket
or glove box for instance.

7

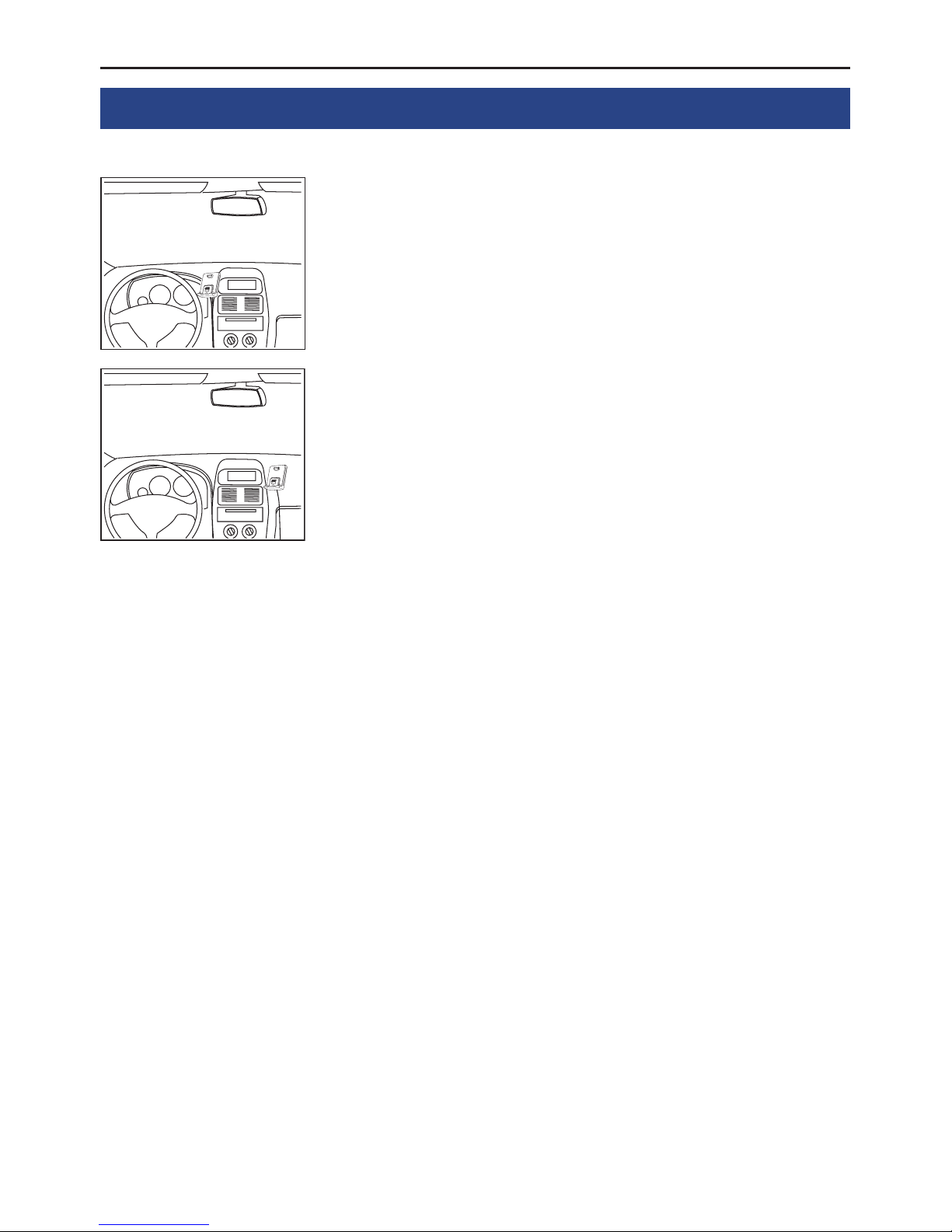

Example of installation 1:
1 2 3 4
5 6
123
4 5 6
Example of installation 2:

8Installation of the hands-free car kit
Step 2:
Depending on the vehicle type and its equipment (e.g. airbags), it is
reasonable to install the microphone either at the A-pillar, at the sun
shield or at the roof interior. For details about the equipment features
please refer to the vehicle documents.
Step 3:
Remove or loosen up cladding and covers to be able to install all of the
cables in the vehicle as comfortably as possible. Please lay the cables
in a way that they do not lie/hang unsecured in the vehicle and that
they may not influence the conducting of the vehicle. When laying a
cable, please take care that it is not under traction stress but that it has
some tolerance. Avoid crushing the cable as damages of the insulation
can be caused by friction/rubbing.
Step 4:
Install the electronics box at a convenient place in the vehicle. This can
e.g. be behind the radio, in the glove box, or in the centre console.
Please mind that you can access the connections of the box without
difficulty. It is possible that you will have to connect the components
before attaching the electronics box, if it isn’t possible to do this after-
wards due to a lack of space. A description of the connections is provi-
ded in the next section.
Before connecting the components to the electronics box you should
branch off the battery for safety reasons. In doing so, take into account
that there might be a radio coding (confer radio manual).
Important:
Please install the electronics box behind a cover or so-X
mewhere you can only reach by opening or unfastening a
protective cover / a cover. The terminal box must not hang
loosely in the vehicle.

9
5. Connections on the electronics box
The additional components of the HFCK are connected to the electronics box. The following connec-
tions are provided:
Connection options:
1 Power supply / Mute
2 Ignition
3 Vehicle Interface Lead (ISO)
4 basePlate System 9 adapted for CC 9060
5 Phone-OUT (Jack 3,5 mono)
6 Microphone input
7 LINE-OUT (Jack 3,5mm stereo)
8 Monitor / Touch screen
9 Accessories / Remote control
10 iPod/iPhone Connection
Connection 1 - Power supply / Mute
Version 1:
This connection is not used with version 1. Refer to connection 3.
Version 2:
The power supply of the HFCK is established via a 4-core cable (scope of supply no. 9). Connect the
black (clamp 31 – minus), the red (clamp 30 – steady plus) and the blue cable (clamp 15 – ignition plus)
to the power supply of your radio (where required via the cigarette lighter or the fuse box). After con-
nection to the counterpart, the yellow cable provides for radio muting during a phone conversation.
Please connect the white Molex connector with connection 1.
If you connect additional adapter cables or accessories to connections 5 and 7 to play back music and
for voice feedback, then when you subsequently activate the HFCK, you will have to select Option 3
in the Settings -> Audio -> Installation menu.
SYS 9
PHONE OUT
MIC
LINE OUT
DISP
RC
iPOD / iPHONE

10 Installation of the hands-free car kit
Attention:
If you also connect the blue cable to clamp 30 (steadyX
positive), the HFCK will be permanently supplied with
power. If the vehicle is not running for a longer period, this
could lead to a discharge of the car battery.
If you deviate from the specified connection descrip-X
tions it may be the case that certain functions on the HFCK
(e.g. the on-call duty) will not function correctly.
Installation instructions for the fuses
Please cut through the red, the black and the blue cable by means of a wire cutter or scissors. Now
insert the two endings of the red cable resulting from the cut into one of the binders, then close it. If
you hear two clicking noises, the clamp snapped in properly. Now insert one of the fuses and then
repeat the procedure with the other cables.

11
Connection 2 - Ignition
Version 1:
See connection 3.
Version 2:
This connection is not used with version 2.
Connection 3 - Vehicle Interface Lead (ISO)
Version 1:
The power supply to the HFCK and functions such as the muting of the
car radio as well as the voice feedback and playback of music on the car
speakers are guaranteed through the ISO cable harness from Elan.
**********************************************************
Elan Europe is a leading manufacturer of audio integration products
and have developed and manufactured a comprehensive vehicle speci-
fic cable harness range that enables the installer to connect this HFCK
straight into the vehicle audio system without the need to use vehicle
converter cables.
This cable harness range has been designed to provide the installer
with a high quality integration product that is quick and easy to install
providing the perfect Plug & Play installation.
BURY Technologies in partnership with Elan Europe can now offer this
comprehensive vehicle harness range to this HFCK customers to com-
pliment their installation.
The full product range and vehicle database is available on our website:
www.elan-eu.com/bury
Contact details:
Elan Europe
11-14 Kempton Road
Keytec 7 Business Park
Pershore
Worcestershire
United Kingdom
WR10 2TA
Website: www.elan-eu.com
Sales: [e-mail]
Technical Support: [e-mail]
**********************************************************
molex

12 Installation of the hands-free car kit
The pin-assignment of the ISO-connectors can vary depending on the type of vehicle / car radio. To
prevent damage from occurring, before using the ISO cable harness, make sure that the assignment
is correct. Information is provided about this in the description of the car radio.
Remove the (a) or the (b) ISO-connector at the back of the radio. Connect this and/or these connectors
with the matching jack (5) on the ISO-cable harness. Now connect the connector (4) from the ISO-
cable tree with the radio again.
Starting from the black 20-pole Molex connector (connector 1, which is plugged into connection 3 on
the electronics box), you will find one yellow (radio muting) and one red (steady plus) cable with plug
connectors. Please plug the red cable that comes from the ISO-connectors to the red cable (2) which
also contains the steady positive signal (clamp 30). If available, check using a Multimeter to see
whether any voltage is present on the cable.
a
b
SYS 9
PHONE OUT
MIC
LINE OUT
DISP
RC
iPOD / iPHONE

13
The second red cable coming from the ISO-connectors contains the ignition plus signal (clamp 15).
Please connect this with the separate blue cable, whose black Molex connector you subsequently plug
into connection 2 on the electronics box. If you are not able to tap the ignition signal via the second
red cable, then please check in your vehicle documents and find a different cable which carries this
signal.
Three other cables are positioned opposite to the single yellow cable (3) for the radio muting. You can
also find the correct cable here via Multimeter. If either this or another measuring tool isn’t available,
you can use a test, e.g. through activating the voice control, to ascertain as to whether the radio is
muted or not. You may find the pin assignment for the ‘mute’ signal in the radio handbook.
Using the ISO-cable harness, you are able to assign the playback of music and voice feedback during
a telephone call to the vehicle’s speakers. With incoming telephone calls, the playback of music (by the
HFCK or the car radio) is automatically interrupted. Select the Option 1 in the menu
Settings -> Audio -> Installation when the HFCK is activated.
If you use the ISO cable harness and an additional adapter cable at the LINE OUT output
(connection 7) of the HFCK, then Option 2 is to be selected in the menu
Settings -> Audio -> Installation when the HFCK is activated. This installation option is available
if the car radio which is installed in the vehicle has a LINE-IN input but no PHONE-IN input and/or does
not have its own radio muting.
Attention:
The factory setting is Option 1.X
If you also connect the blue cable to clamp 30 (steady positive), the HFCK will be per-X
manently supplied with power. If the vehicle is not running for a longer period, this could
lead to a discharge of the car battery.
If you deviate from the stated description of the connections, it is possible that certainX
functions on the HFCK (e.g. the on-call duty) will not function correctly.
Version 2:
This connection is not used with version 2.

14 Installation of the hands-free car kit
Connection 4 - Connection for System 9 basePlate compatible
with the CC 9060
This is where you connect the basePlate for the System 9. This base-
Plate is specially adapted for the electronics box of the HFCK. The
basePlate is supplied with power via the electronics box. You can char-
ge your mobile phone here and also leave it here for safekeeping.
Connection 5 - Phone-OUT
If you do not use the ISO-cable harness to play back the voice output
of the HFCK on the vehicle’s speakers, then you can connect, for exa-
mple, a separate BURY speaker or another adapted cable here. The
connection on the HFCK is suitable for a 3.5 mm sized mono jack. De-
pending on the type of car radio, the other connection is to be selected
separately.
Connection 6 - Microphone input
This is where you plug in the microphone jack. After connection 3 has
already been occupied use the rider. This ensures that neither of the
jacks is able to loosen as a result of vibrations.
Connection 7 - LINE-OUT
If you do not use the ISO-cable harness to play back the voice output
of the HFCK on the vehicle’s speakers, then you can connect, for exa-
mple, a different adapter cable here. The connection on the HFCK is
suitable for a 3.5 mm sized stereo jack. Depending on the type of car
radio, the other connection is to be selected separately.
Connection 8 - Monitor
Please plug the 9 pole plug of the monitor connection cable into this
jack. Tighten at least one of the two fixing screws hand-tight so that
this plug cannot become unplugged as a result of vibrations.
Connection 9 - Connection for additional accessories
Not currently available.
Connection 10 - for Apple iPod/iPhone
Please plug in the supplied cable (scope of supply no. 7) here. You can
connect an Apple product at the other end of it via the Apple Dock
Connector in order to play back music.

15
6. Using the hands-free car kit for the first time
Headmenu with paired telephone
Operating guidelines
Afterwards you will reach the head menu. Different symbols will appear in the top row - before and
after you have connected a phone. These symbols have following meaning:
The loading status of the battery of the mobile telephone
Missed calls / New messages
Bluetooth
®
profile / Notice of activated Multipoint function
Active Bluetooth connection
Mobile telephone in the A2DP mode / iPod or iPhone is connected
Volume
Signal strength of the mobile telephone network
After the power supply of the hands free car kit (HFCK) is successfully
connected, the HFCK is activated when you have started the vehicle.
After this, you have to select the menu language if several are available
for you to select. Regional differences may occur in this context. If the
HFCK is only equipped with one language then this should load auto-
matically.
You can change the menu language again by selecting the More touch-
screen field, then selecting the Settings in the Head menu, and then
changing the Language in the Device menu item.

16 Operating guidelines
7. Handling possibilities
Die System lässt sich auf zwei Arten bedienen:
1. Operation using voice control
2. Handling via the touch screen
8. Voice control
The menu items of the HFCK can be selected using voice commands once this function has been acti-
vated. There are exceptions, however, when you still have to use the touchscreen. During an active
telephone call, for instance, you can’t use voice commands. You have to select any additional functions
using the touchscreen.
To start the voice control feature, briefly press the head symbol down on the main menu. If the Magic
Word function is activated, you can also start the voice control by stating the
„ACTIVATE VOICE DIAL“ command. In certain situations, however, with an incoming call and acti-
vated voice recognition for instance, the HFCK will start the voice control system automatically. The
HFCK signals that it is ready to receive a command by emitting an acoustic signal.
If you aren’t sure of the right command to use, then simply state „HELP / WHAT CAN I SAY“. The
HFCK will then read out the commands available for the particular menu in which you currently find
yourself. If the HFCK fails to understand one of your commands, or the particular option isn’t available,
the help function will start automatically and list the possible commands.
Please remember that certain commands are only available if a telephone is connected with the HFCK.
When entering voice commands, please ensure you speak naturally, clearly and at a regular speed.
Note:
With the use of the voice control it is recommended to turn down the volume of compo-X
nents which are independent of the audio system (e.g. a navigation system) or to switch
off the broadcast of traffic jam warnings in order to avoid unintended voice entries.
Touch screen
Voice dial
commands
The „VOICE COMMANDS“ are
highlighted in the further explana-
tory notes.

17
In addition to these commands, the HFCK recognises the numbers from zero to nine. Numbers which
are larger than nine must be spoken individually (e.g. 10 = one, zero). To search in the phone book,
the HFCK recognises the letters „A“ to „Z“ as well as the NATO alphabet. For the entry of telephone
numbers abroad, the command „PLUS“ is also available.
When using voice control, in all menus these four commands are always available:
9. Handling via Touch screen
The functions of the HFCK can also be called via the touchscreen. Every available command is presen-
ted as text (sometimes with supporting graphics) on the display.
The operation can be carried out via possibly existing arrow keys. With the red symbols you can cancel
an action or go a step back. If you press long you will return to the main menu. With the green symbols
you can confirm actions.
Cancel
Help
Back
Head menu
breaks off the current action
back to head menu
one step back
names all commands which are available
Headmenu with paired telephone
You can enter a telephone
number here
You can start the voice
control here
You can open the telephone book
here
You can flick through more
functions here

18 Operating guidelines
If you operate the system via the touch screen function, it will become dirty over time and both the
readability of the information on the display and its input functionality will deteriorate. Therefore,
please be sure to clean the display as necessary using a damp lint free cloth. Please do not use any
detergent.
10. Establishing a Bluetooth connection
If you wish to establish a Bluetooth connection between your mobile and the HFCK for the first time,
you have to activate the Bluetooth function of your mobile phone and search for Bluetooth®devices.
In this case, search for a device labelled „CC 9060…“. If several devices were identified, please select
the HFCK and enter the PIN number „1234“. The Bluetooth connection (pairing) will then be esta-
blished between your mobile phone and the HFCK. It is possible that you will also have to click on
‘connect’ or ‘allow data transfer’ on your mobile phone if you want to be able to make a connection.
With a connection which has successfully been made, the name of the coupled mobile telephone and
of the provider will be shown and the data from the telephone book (SIM card) and the address book
(storage of the telephone) are transmitted to the HFCK. Depending on the amount of stored data, this
can take a few seconds. If the synchronisation of the phone book is interrupted, e.g. though an inco-
ming call, it is possible that all entries will not be transmitted. If this happens, the phone book should
once again be manually synchronised.
Note:
The telephone book on your mobile phone is generally synchronised by the hands-freeX
car kit at regular intervals. For the duration of this short moment, the voice control will
not be available to you and you will receive a corresponding message.
If it is not possible to establish a connection, please check and update the software release (firmware)
of your mobile phone or of the HFCK. You will find an overview dealing with this subject on the Internet
at www.bury.com.
Note:
In the internet you can find an overview with a large number of mobile telephonesX
which have been tested with this hands-free car kit. Please note, however, the use of
firmware which deviates from the list and is installed on a listed mobile telephone can
lead to the fact that certain displays and functions are no longer possible or only possible
to a limited extent.

19
In addition it is possible that you must delete all devices connected to your mobile phone first in
order to enable a correct identification of the HFCK and the establishment of a connection. If you
have queries regarding the menu navigation, functions and operation of your mobile phone,
please refer to the operating guidelines of your mobile phone. Depending on the manufacturer
and type, this can differ considerably between phones.
Note:
If the rechargeable battery of the mobile phone is low, it is sometimes not possible toX
establish a Bluetooth connection.
The HFCK has a memory for the storage of the identification of up to 10 mobile phones. In case
an eleventh mobile phone is connected, the oldest entry in the HFCK memory will be cancelled.
If you wish to cancel a Bluetooth connection, you can either disconnect it conveniently at the
HFCK or at your mobile phone. In addition, the connection is disconnected, if you move too far
away from the vehicle while taking your mobile phone with you and thus leave the reception ra-
dius of the HFCK.
Please note that the capacity of your mobile phone‘s storage battery can quickly decrease when
the Bluetooth function is active. If you do not want to use the Bluetooth function anymore, e.g. if
you leave the vehicle for a longer period, it is recommended to deactivate this function.
11. Menu navigation
Here you will find all menus which are necessary for the operation and configuration of the system.
These can be selected through the touch screen or using voice control.
The menu items which are used most frequently are displayed on the main screen via text and sym-
bols, all of the subsequent ones are displayed in text and table form. The first two functions change
as soon as a mobile phone connects with the HFCK in hands-free mode.
If no mobile phone is connected: If a mobile phone is connected:
Day/Night mode Dial number
Auto connect Phone book
This means you are able to quickly initialise important functions simply by touching the Touchscreen.
You are also able to select additional frequently used commands via voice control which otherwise first
appear later in the menu tree. These are as follows:
„DIAL JOE BLOGGS“,
„READ NEW TEXT MESSAGE“ and
„READ NEW EMAILS“.

20 Operating guidelines
If the voice control function is active then the corresponding menu ap-
pears in the display, or the details of the particular function that has
been activated. In the following the individual menu points will be ex-
plained.
Dial Joe Bloggs
With this voice command (is not shown on the display) you can immedi-
ately call a contact from your telephone book with active voice control.
Note:
When doing so, it is important that the stated name ex-X
actly corresponds with the entry stored in the phonebook.
Please note that telephone book entries, which are only
shown in capital letters must be spelt out. Example: ADAC.
If the names have been reversed then the command changes to:
„DIAL BLOGGS JOE“.
Dial Joe Bloggs
