Index
Introductory information 2
1. General 2
2. Security guidelines 2
Installation of the hands-free car kit 4
3. Scope of supply 4
4. Positioning and mounting 6
5. Connections at electronic box 9
Operating guidelines 14
6. Using the hands-free car kit for the first time 14
7. Operating with the touch screen 15
8. Establishing a
Bluetooth connection 15
9. Menu navigation 17
10. Accepting, making, ending calls 21
11. Playing music 24
Further Information 25
12. Service 25
13. Appropriate use of this system 26
14. Approvals and declaration of conformity 26

2Introductory information
Installation - who should do it
The installation of this system can be carried out by yourself but please
observe the installation requirements of the automotive manufacturer.
During the installation, park the car at a place where the road traffic is
not impaired. We recommend to let a specialised workshop perform the
installation.
Power supply
This system has been designed for the use in vehicles with an on-board
supply system of 12 volts (passenger car). If you intend to install the
device in a vehicle with an on-board supply system of 24 volts (lorry),
please use a voltage converter. If you have queries regarding this sub-
ject, please contact our hotline.
Position, volume
Install the components of the device in the vehicle so that your field of
vision is not impaired and the components are not mounted in the im-
pact zone of the passenger compartment or in the airbag inflation
zones. The removal of coverings (with and without airbags) or compo-
nents of the dashboard requires – in some cases – special tools and
special knowledge.
1. General
Dear customer,
Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that
is extremely easy to use.
Please read the operating manual carefully so that you can fully enjoy your BURY hands-free car kit.
If you have any further questions concerning installation or operation of your car kit, please contact
your dealer. He will be happy to give you reliable advice.
You can also contact our hotline. Our phone and fax numbers are listed in the chapter Service at the
end of the operating instructions.
Have a good trip!
2. Security guidelines

Introductory information 3
Intended use
We shall not be liable for damages or malfunctions due to improper use
of the hands-free system. Therefore, do not expose the device to mois-
ture, extreme temperatures or shocks and carefully follow the proce-
dure described in the installation and operating guidelines.
Use while driving
Operate the system only when the situation allows it and when you do
not endanger, harm, constrain, or annoy other road users. The volume
of the device has to be set in a way that exterior noise is still audible.
Faults
Do not commission the device if you detect or assume a defect. In this
case, contact a Bury specialised dealer or our hotline. Improper repair
efforts can be dangerous for you. Therefore, only skilled personnel may
perform inspections.
Important:
The driver is ultimately responsible for the safe operationX
and control of their vehicle at all times. You should never
use a hand held phone, including sending or reading text or
picture messages, while driving.
Research indicates that there is a risk to safety when theX
driver of a motor vehicle is distracted and using a mobile
phone while driving can be a distraction.
The manufacturer strongly recommends that you useX
a hands-free solution when driving.

4Installation of the hands-free car kit
3. Scope of supply
8
11910

5

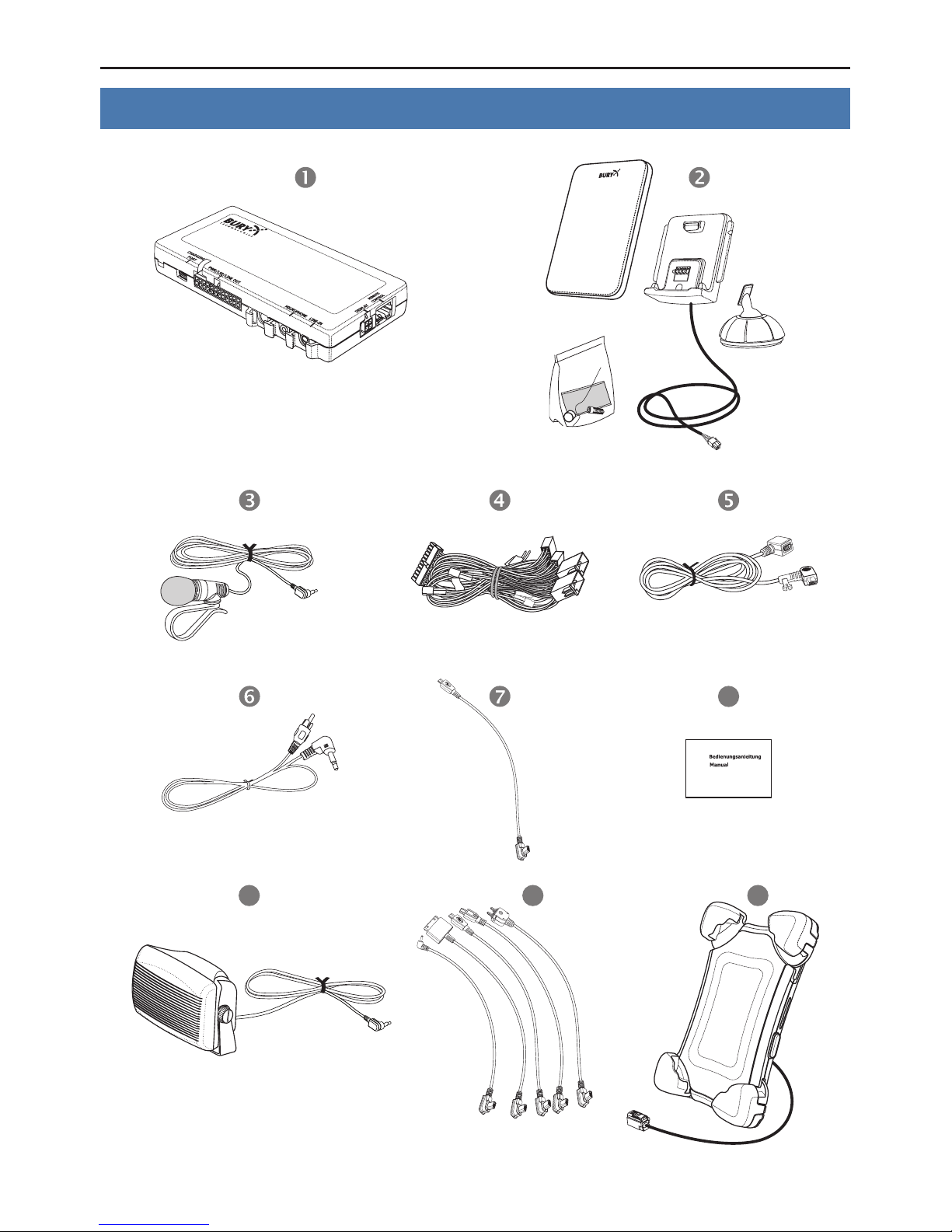

The hands-free car kit (HFCK) is supplied with different combinations of components, depending on
the sales regions (countries). The operating manual refers to all versions.
Description of the components:
1) Electronics box
2) Multifunction display with cradle and mount, screws for the holder and rubber cover,
adhesive tape
3) Microphone
4) ISO-cable harness
5) Extension cord
6) AUX-In cable
7) Micro USB charging cable
8) Quick user guide
Accessories:
9) External loudspeaker
10) Mobile phone and Smartphone-specific charging cable
11) BURY ChargingCradle Universal
Note:
If certain components are added or omitted you will receive the correspondingX
information on a separate enclosure.

6Installation of the hands-free car kit
4. Positioning and mounting
Step 1:
First of all, please choose the most convenient position for the attached
display on the holder and the installation pad in your vehicle by check-
ing different positions in the vehicle.
If you would like to use the device during your journey, positioning it in
the front area on the driver’s side is advisable. Sit in the vehicle and
check whether you can reach the device without difficulty.
After having found a suitable position for the display in the vehicle you
can now mount / attach the installation pad / the holder with or without
the installation pad accordingly. Please use a cleaning cloth for degreas-
ing the surfaces to which you want to attach the corresponding adhe-
sive surface of either the holder or the installation pad.
The end of the cable with the small Molex connector on the holder is
ideally suited for placing through small openings in the dashboard area.
This facilitates a practically invisible installation of the cable. Take the
length of the cable into account and make sure that it is of sufficient
length to reach the intended location of the electronics box.
Important:
When positioning the monitor please take care that theX
monitor does not impair the view onto the road, that it will
not be installed in the impact zone of the passenger com-
partment (amongst others in the airbag inflation zones) and
that the cable may be laid without any problems.
The installation pad can be affixed just once, removingX
could damage the adhesive area. In case of high variations
in temperatures - depending on the structure and the fea-
tures - decolourisations of the surfaces can occur during the
subsequent utilization.
Please avoid direct sunlight on the monitor or high inter-X
nal temperatures, which can be rapidly reached in parked
vehicles. In such cases, remove the monitor of the hands-
free car kit from the cradle and put it in the car glove pocket
or glove box for instance.

7
Example of installation 1:
1 2 3 4
5 6
123
4 5 6
Example of installation 2:

8Installation of the hands-free car kit
Step 2:
Depending on the vehicle type and its equipment (e.g. airbags), it is
reasonable to install the microphone either at the A-pillar, at the sun
shield or at the roof interior. For details about the equipment features
please refer to the vehicle documents.
Step 3:
Remove or loosen up cladding and covers to be able to install all of the
cables in the vehicle as comfortably as possible. Please lay the cables
in a way that they do not lie/hang unsecured in the vehicle and that
they may not influence the conducting of the vehicle. When laying
a cable, please take care that it is not under traction stress but that it
has some tolerance. Avoid crushing the cable as damages of the insula-
tion can be caused by friction/rubbing.
Step 4:
Install the electronics box at a convenient place in the vehicle. This can
e.g. be behind the radio, in the glove box, or in the centre console.
Please mind that you can access the connections of the box without
difficulty. It is possible that you will have to connect the components
before attaching the electronics box, if it isn’t possible to do this after-
wards due to a lack of space. A description of the connections is pro-
vided in the next section.
Before connecting the components to the electronics box you should
branch off the battery for safety reasons. In doing so, take into account
that there might be a radio coding (confer radio manual).
Important:
Please install the electronics box behind a cover or some-X
where you can only reach by opening or unfastening a pro-
tective cover / a cover. The terminal box must not hang
loosely in the vehicle.

9
5. Connections at electronic box
The other components of the hands-free car kit are connected to the electronic box. You can find the
following connections:
Connection possibilities:
1 CHARGING PORT: Micro USB socket to connect the extension cable - the charging cable
or an optional update cable can be connected there
2 PWR/LSP/LINE OUT: 24-pin socket for the connection of the molex jack from the ISO cable harness,
used as power supply of the hands-free car kit outputs music and voice (telephone)
3 MICROPHONE: Connection for external microphone
4 LINE IN: Connection for AUX-IN cable for inputting of music
5 DISPLAY: Connection for display (if present)
6 REMOTE CONTROL: Connection for remote control with 3 buttons display (if present)
1 - CHARGING PORT
An extension cable is connected to connection no. 1 (micro USB socket). You can connect a charger or
your mobile phone to the other end of the cable. Connection of the BURY ChargingCradle Universal
isoptional.
2 - PWR/LSP/LINE OUT
The hands-free car kit in the vehicle is connected to the car radio with the ISO cable harness. If the
radio has ISO socket at its backside, the installation can be done without additional installation mate-
rial. If not, certain adapters, e.g. ISO2CAR or AUDIO2CAR, can be ordered from an authorised dealer
for the respective radio or vehicle make.

10 Installation of the hands-free car kit
Using the ISO cable harness, you can input music and voice signals (telephone) of different types into
the radio or play them back via the radio. If the present radio has a LINE-IN or AUX-IN input at the
front side or backside, the four open LINE cables of the ISO cable harness can be connected to them
using appropriate adapters (e.g. 3.5 mm stereo jacks or cinch connectors). The radio amplifier is used
for music playback in that case. Please observe the notes in the instruction manual of the radio con-
cerning “AUX input”. Generally, voice signals are only output in the two front loudspeakers while music
is played back on all four loudspeakers (front and rear). Different installation options can be selected
with the hands-free car kit for that purpose.
Toggling between the installation options 1, 2 and 3 is done in the menu. You must open the options
in the menu in order to toggle between the installation options:
Menu -> Settings -> Audio -> Installation -> Option 1, 2 and 3
Option 1 is the standard setting upon delivery of the hands-free car kit. Music and voice are output via
the loudspeakers using the ISO jacks. The amplifiers of the hands-free car kit are used for playback.
Option 2 feeds music to the radio via the four LINE cables, and voice signals are fed to the loudspeak-
ers via the ISO jacks.
Option 3 feeds music and voice signals to the radio via the four LINE cables.
Output of voice (telephone) via Output of music via
ISO LINE ISO LINE
Option 1 
Option 2   -
Option 3 - -
Installation of the hands-free car kit
Step 1:
Pull the ISO jacks at the back of the radio off and replace them with the jacks at the ISO cable harness.
Connect the now free ISO jacks with both sockets from the ISO cable harness (see picture).

11
If you want music or voice signals to be fed via the four LINE cables, you must adjust them accord-
ingly to the respective type of radio and its connections (PHONE-IN or AUX-IN). Appropriate adapters
are available from specialists shops.
Step 2:
The hands-free car kit supports the radio mute function, if this function is also supported by the radio.
The mute signal is then fed to the radio via the yellow cable of the ISO cable harness. The cable is
labelled with “mute” and must be connected to one of the three sockets (mute1, mute2, mute3). Please
observe the notes on this topic in the instruction manual of the radio concerning “Pin allocation for
mute / radio mute”. Then, connect the mute cable to the corresponding socket.
Step 3:
Insert the 24-pole molex jack (A) into the connection of the electronic box (see picture).

12 Installation of the hands-free car kit

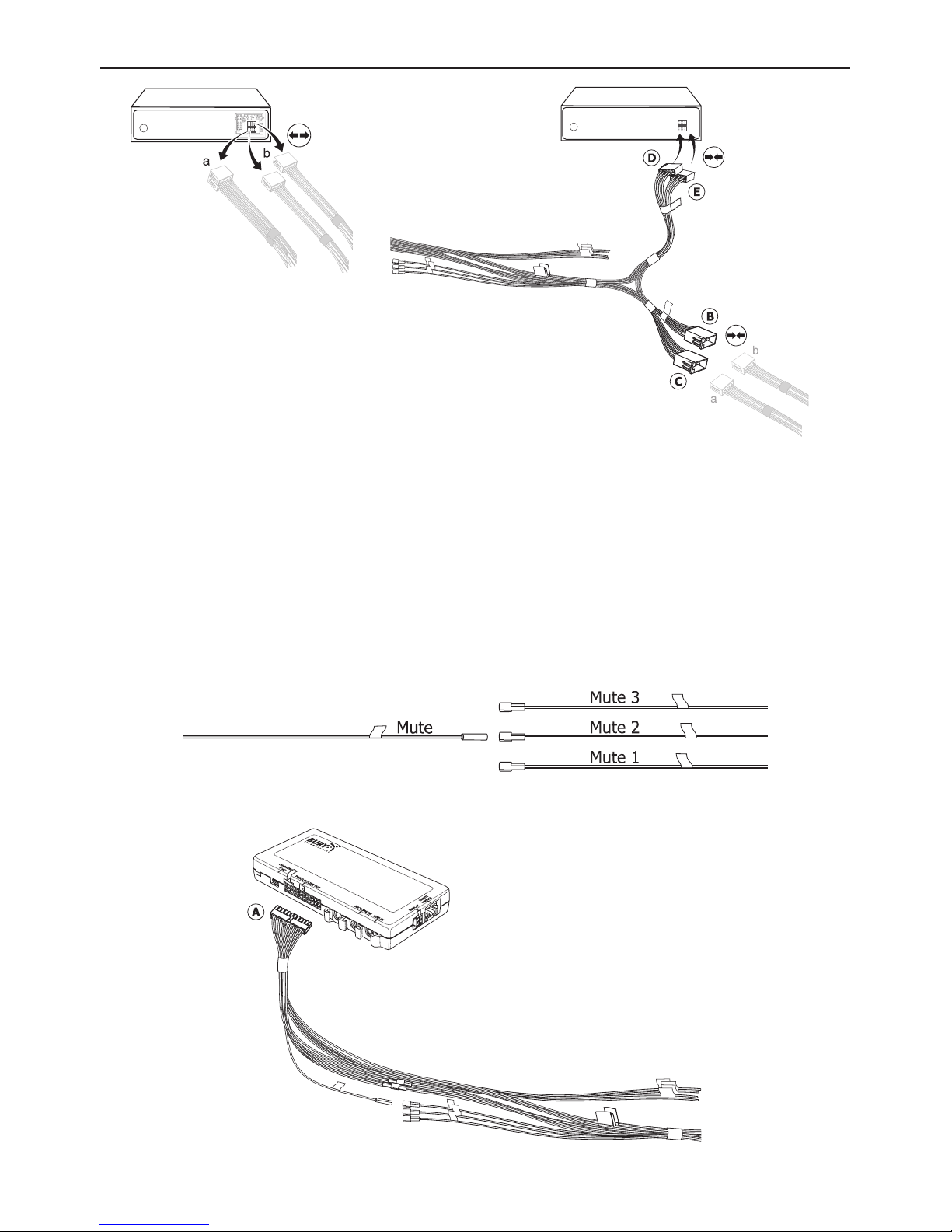

Connection diagram for ISO cable harness
- Micro Molex 24 - ISO - connection to the electronic box (HFCK)
- connection to the vehicle’s speakers
- connection to the vehicle’s power supply
- connection to the car radio
- connection to the car radio
1 - Mute 3
2 - Mute 2
3 - Mute 1
4 - Ignition
5 - Antenna
6 - Illumination
7 - Power
8 - Ground
- 12V Power
- 12/24V Ignition
- Ground
- Line-out 1 - Line-out 2
1-Line L + / Phone L + 1-Line R + / Phone R +
2-Line L - / Phone L - 2-Line R - / Phone R -
1 - C RR-
2 - C RF-
3 - C LF-
4 - C LR-
5 - R LR-
6 - R LF-
7 - R RF-
8 - R RR-
9 - LINE R+
10 - LINE L+
11 - R-Mute
12 - Ground
13 - C RR+
14 - C RF+
15 - C LF+
16 - C LR+
17 - R LR+
18 - R LF+
19 - R RF+
20 - R RR+
21 - LINE R-
22 - LINE L-
23 - Ignition
24 - Power

13
3 - MICROPHONE
This is where you plug in the microphone jack.
4 - LINE-IN
AUX-IN socket for music.
5 - MULTIFUNCTION DISPLAY
Please plug the 5 pole plug of the monitor connection cable into this
jack.
6 - RJ45 - socket for possible system expansions

14 Operating guidelines
6. Using the hands-free car kit for the first time
Main menu with connected phone
Mobile network signal strength
Bluetooth profile / Indication of multipoint function being activated
Missed calls
Mobile phone in A2DP mode
State of charge of the battery of the mobile phone
After the power supply of the hands free car kit (HFCK) is successfully
connected, the HFCK is activated when you have started the vehicle.
After this, you have to select the menu language.
You can change the menu language by going to Settings in the Menu
and selecting the desired language using the horizontal buttons in the
language menu. When you select the desired Language with the call
button, the language is loaded.
Then link your mobile phone to CC 9058. If a telephone has been linked
to CC 9058 the device says: Phone is connected.
Then you come to the main menu. In the top line, some symbols may
appear both before and after a telephone has been connected. These
indicate the following:

15
7. Operating with the touch screen
Navigation is done using different buttons. With the end button you can cancel actions or go back one
step. When you press and hold the home button you will go directly back to the main menu. Actions
are confirmed or executed with the call button.
Use the horizontal buttons to navigate within the menus.
If you operate the system with the touch screen then it gets dirty over time. As a result the readability
of the information on the display and the input functionality is impaired. Please clean the display as re-
quired with a damp, lint-free cloth. Please do not use any liquid cleaners.
8. Establishing a Bluetooth connection
first time, you have to activate the Bluetooth function of your mobile phone and search for Bluetooth
devices. In this case, search for a device labelled „CC 9058“.If several devices were identified, please
select the HFCK and enter the PIN number „1234“. The
Bluetooth connection (pairing) will then be
established between your mobile phone and the HFCK. It is possible that you will also have to click on
‚connect‘ or ‚allow data transfer‘ on your mobile phone if you want to be able to make
a connection.
With a connection which has successfully been made, the name of the coupled mobile telephone and
of the provider will be shown. Depending on the amount of stored data, this can take a few seconds.
If the synchronisation of the phone book is interrupted, e.g. though an incoming call, it is possible that
all entries will not be transmitted. If this happens, the phone book should once again be manually
synchronised.
Main menu with connected phone

16 Operating guidelines
If it is not possible to establish a connection, please check and update the software release (firmware)
of your mobile phone or of the HFCK. You will find an overview dealing with this subject on the Internet
at www.bury.com.
Note:
In the internet you can find an overview with a large number of mobile telephonesX
which have been tested with this hands-free car kit. Please note, however, the use of
firmware which deviates from the list and is installed on a listed mobile telephone can
lead to the fact that certain displays and functions are no longer possible or only possible
to a limited extent.
In addition it is possible that you must delete all devices connected to your mobile phone first in
order to enable a correct identification of the HFCK and the establishment of a connection. If you
have queries regarding the menu navigation, functions and operation of your mobile phone,
please refer to the operating guidelines of your mobile phone. Depending on the manufacturer
and type, this can differ considerably between phones.
Note:
If the rechargeable battery of the mobile phone is low, it is sometimes not possible toX
establish a
Bluetooth connection.
The HFCK has a memory for the storage of the identification of up to 8 mobile phones. In case
a ninth mobile phone is connected, the oldest entry in the HFCK memory will be cancelled.
If you wish to cancel a
Bluetooth connection, you can either disconnect it conveniently at the
HFCK or at your mobile phone. In addition, the connection is disconnected, if you move too far
away from the vehicle while taking your mobile phone with you and thus leave the reception ra-
dius of the HFCK.
Please note that the capacity of your mobile phone‘s storage battery can quickly decrease when
the
Bluetooth function is active. If you do not want to use the Bluetooth function anymore, e.g.
if you leave the vehicle for a longer period, it is recommended to deactivate this function.

17
9. Menu navigation
Operating the CC 9058 is done using the touch keys on the device. The
function of the keys can differ for each menu item. To open the menu,
press the home button. To navigate within the menus use the horizon-
tal buttons. The selected menu item will then be highlighted in blue.
To select this menu item press the call button. To close this menu press
the end button.
Note:
Please take note of the country-specific legislation re-X
garding making phone calls whilst driving.
Phone book
With Loading phone book in the Synchronisation menu, you can in-
put your phonebook into the device and you can delete this with De-
lete phone book. Use the horizontal buttons to navigate within the
phone book. To phone a contact, press the call button.
Note:
Depending on the type of mobile phone, after the phoneX
book has been transferred first names and surnames of con-
tacts may be switched.
In case you have assigned several phone numbers to one contact of
your contact list, after the synchronisation of the FSE this contact will
appear several times with the various numbers in your contact list.
Unfortunately the details can not be read out. Therefore you will not be
able to recognise which category the number was assigned to (Work,
Private, Mobile).
If you have created an individual category (e.g. work mobile), it is pos-
sible that the entry will appear in the downloaded contact list but you
can not select it. This means that a call will not be established.
Call lists
All calls which have been made, received and missed are listed here in
chronological order. The callers name / the name of the person called
and the respective phone number are displayed. If the phone number
cannot be allocated to a contact from the phone book then the number
appears on its own, with no further information. You can navigate the
lists in the same way you navigate the phone book.

18 Operating guidelines
Synchronisation
You can Load the phone book in this menu. With Upload phone book
you can save your phone book on the CC 9058. To delete the phone
book again, simply go to Delete phone book.
Note:
Lots of mobile phones save contact details consecutive-X
ly. If you now delete one or more contacts then there will
be memory gaps if you do not reorganise the contacts. If,
whilst synchronising the contacts, the CC 9058 finds gaps
which are too big then the process will be terminated. It
is therefore possible that the phone book will not be com-
pletely synchronised.
Settings
The menu items are: Bluetooth (submenus Switch phones,
Multipoint, Automatic connect.), Audio (submenus TTS, AUX-IN,
Mobile audio, Installation, Equalizer), Display (submenus Sleep
mode, Brightness), Device (submenus Language, Factory set-
tings, Version info).
With the Switch phones function, you can change the priorities of
both connected telephones. Both mobile phones are disconnected and
are then connected again the other way round. This can take a few
seconds. Press the home button once to activate the CC 9058. Press
and hold the home button to switch the priority of the phones. Once
the phones have been successfully switched you will hear a beep.
Note:
This function is only available if the multipoint function hasX
been activated.
Thanks to the Multipoint function, you can connect two mobile tele-
phones simultaneously to CC 9058 via
Bluetooth . You can operate this
function with the home button. The phone which is connected first gets
priority, this means that only its phone books, call lists and voice tags
are uploaded and can be retrieved from the HFCK memory.
This is the same situation as if only one mobile phone was connected
to the HFCK. However, if the secondary mobile receives a call then this
call is also taken via the HFCK.
