Buyers SaltDogg SHPE3000 User manual

1
TM
Safety Precautions
1. Read this entire Owners Manual before operating this
spreader.
2. Read all safety decals on the spreader before operating.
3. Check to make sure all safety guards are securely
mounted into place before operating this spreader.
4. Verify that all personnel are clear of the spreader spray
area before starting or operating this spreader.
5. Do not over-load your vehicle beyond payload limits. If
there are any questions, contact the vehicle manufacturer.
6. Do not adjust, clean, lubricate or unclog material jambs
without first turning off the spreader.
7. Do not climb on or in the spreader during operation. Do not
ride on the spreader while the vehicle is in motion.
8. Make sure the spreader is securely fastened to the vehicle
in accordance with this manual.
9. Do not operate a spreader that is in need of maintenance
or repairs.
10. Batteries normally produce explosive gases which can
cause personal injury. Always disconnect the battery before
removing or replacing electrical components.
11. Do not leave unused material in hopper. Material can
freeze or solidify, causing spreader to not work properly, and/
or damage the unit. Empty and clean after each use.
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone [phone] • Fax [phone]
Toll-Free Fax [phone] • saltdogg.com
Installation Instructions
SaltDogg® Electric Drive
Poly Hopper Spreader
3.0 cubic yards
starting with Serial Number 00500
—continued inside
Table of Contents
General Information ........................................1
Safety Precautions ...........................................1
Warranty Information ......................................2
Installation Instructions ............................. 2-4
Spreader Operation .......................................... 5
Spreader Maintenance ....................................5
Repair Parts & Drawings ...........................6-10
General Information
Overall Length: 123.7 inches
Overall Width: 49.6 inches
Overall Height: 52.7 inches
Empty Weight: 945 lbs
Capacity Struck: 3.0 cu. yd.
Vehicle Requirements
Trucks with minimum GVWR 13,000 lbs.
150 AMP or higher alternator is recommended.
Average Material Weights
Materials to use Weight (pounds per cubic yard)
Fine Salt-Dry 2,250
Coarse Salt-Dry 1,431
Sand Coarse-Dry 2,565
Note: To calculate the total spreader weight (including ice
control material), add the empty spreader weight plus the ice
control material and spreader accessories.
CAUTION
Do not overload vehicle beyond the vehicle’s GVWR or GAWR.
Check vehicle’s load rating certification sticker for maximum
vehicle capacity.
WARNING
Improper installation and operation could cause personal
injury, and/or property damage. Observe the following Safety
Precautions before, during and after operating this spreader.
By following these precautions and common sense, possible
injury to persons and potential damage to this machine may be
avoided.
CAUTION
It is recommended to install Backup Alarm on trucks to be up
fitted with spreaders.

2
TM

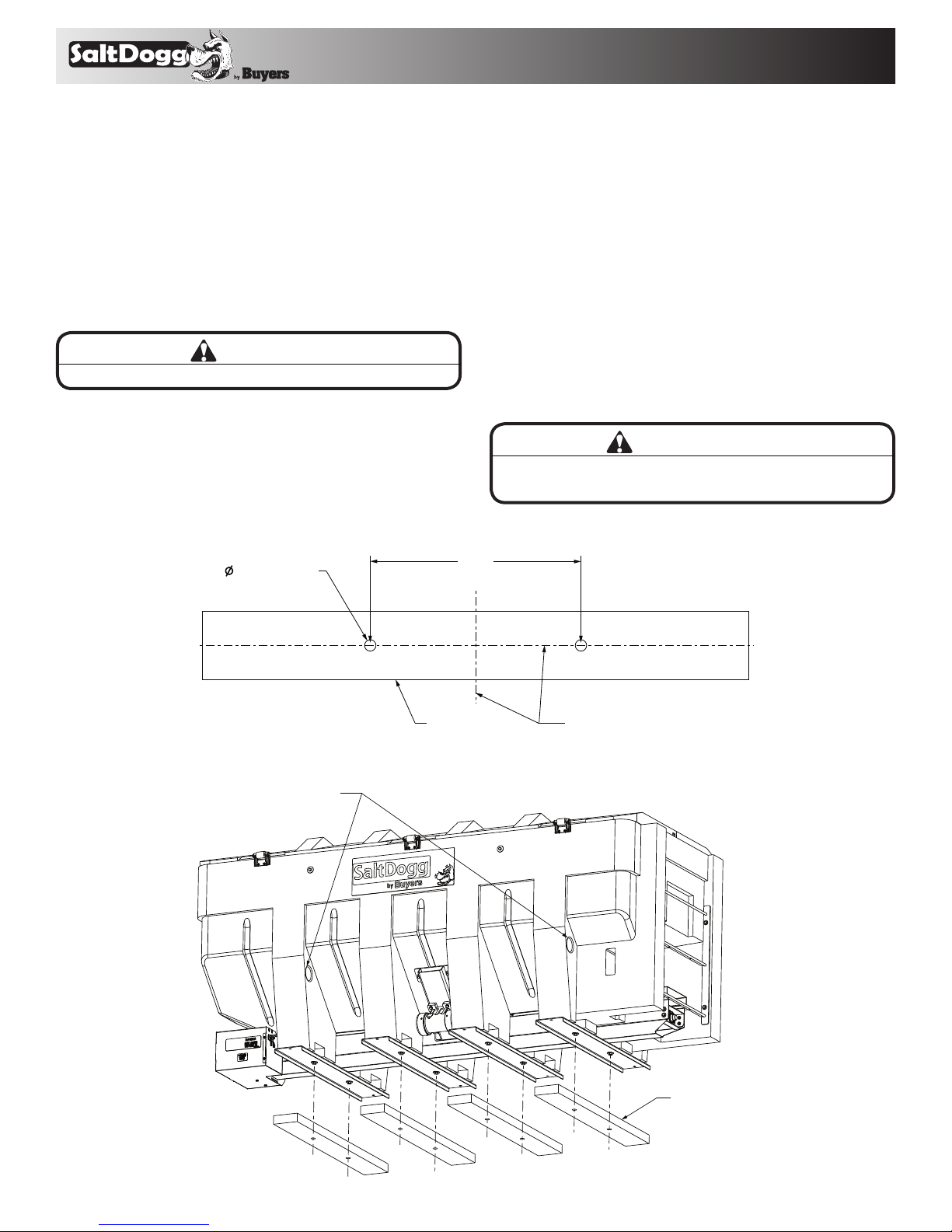

CENTER LINES
2 X 6 BOARD
18.5"
MIN. HOLE1.0
Installation Instructions
1. Mounting the Spreader onto the Vehicle:
A. Remove the tailgate from the vehicle (if equipped) as well
as any other object which will interfere with the spreader.
B. Check truck’s bed for all kinds of sharp debris or foreign
objects. They can cut and seriously damage poly hopper.
C. Remove chute, hardware box from inside spreader. If
spreader has been used make sure there is no material left
in the hopper.
Fig. 1
Fig. 2
E. Next, set the spreader in the truck body. Use four tie-
downs to lift the spreader (Fig.1). Rectangular openings on
the bottom of support legs can also be used to lift spreader
using fork lift.
F. Lower spreader onto 2” x 6” boards positioned in truck
bed. Make sure that bolt heads in stainless steel cross
members would go into boards openings. (Fig. 2)
Attach chute to the spreader. If necessary, slide spreader
rearward to have at least 2" clearance between chute and
rear most vertical obstruction. (Fig. 3)
G. Make sure the spreader is centered from side to side and
rear legs rest fully on trucks body.
H. Using holes in cross members fasten spreader to the
boards and vehicles body.
2 X 6 BOARDS
MOLDED-IN OPENINGS
CAUTION
Never lift spreader with material in the hopper.
WARNING!
Do not drill holes into fuel tanks, fuel lines, thru electrical
wiring, etc that may be damaged by drilling.
D. Prepare 4 boards as shown in FIG.1. A board size is
2” x 6”, 49” long minimum (cross boards from shipping pallet
can be used). Boards can be as long as width of inside width
of trucks body.

3
TM

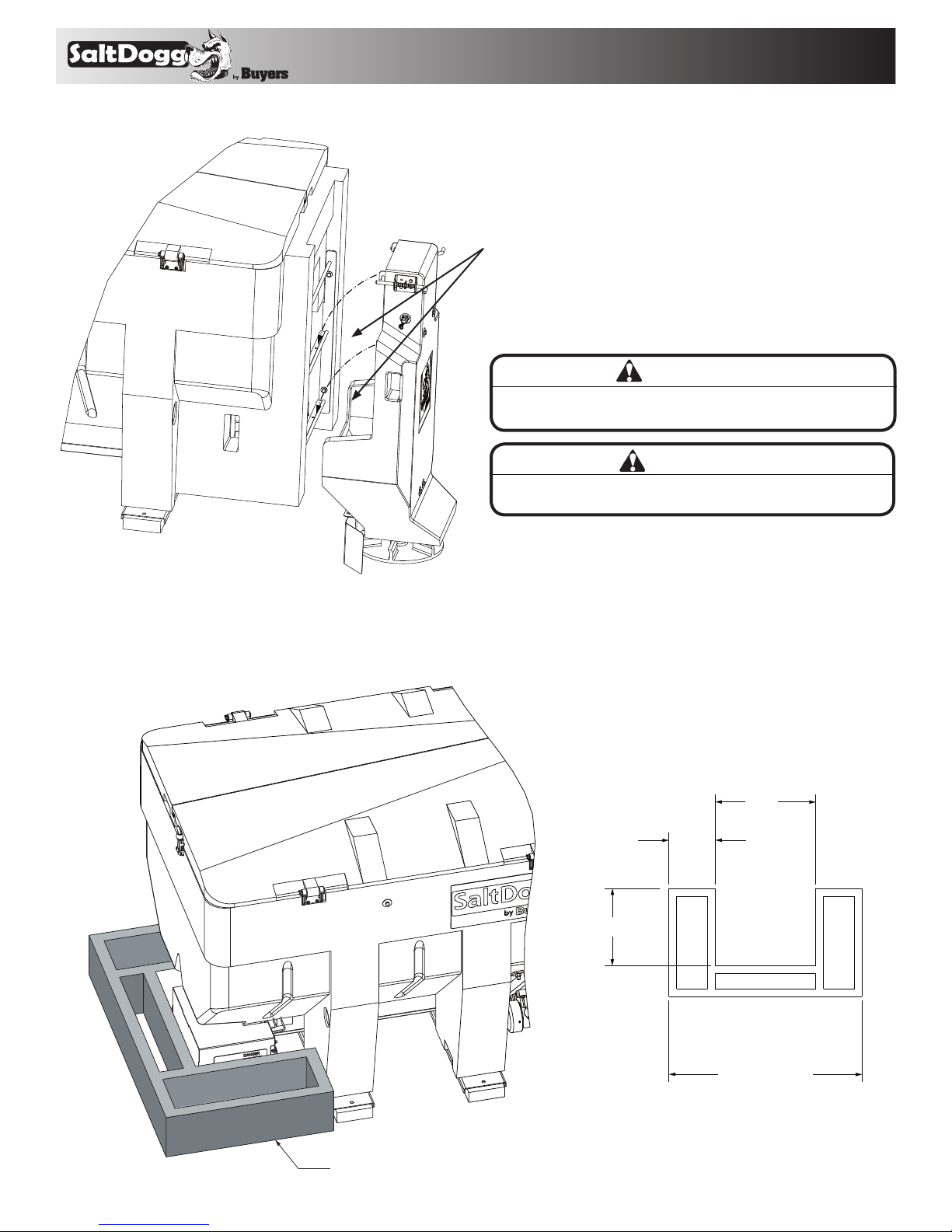

SPACER
26.0
12.0
20.0
TRUCK WIDTH
Fig. 4
Insert Hooks Into Slots.
Secure Chute with Latches
CAUTION!
Inspect straps and hardware after each time spreader is loaded.
Tighten straps and hardware if necessary.
WARNING!
Important! Do not use ratchet straps or tailgate latch exclusively!
Always fasten spreader to the vehicle!
Fig. 3
I. Measure the distance from the front of the truck bed to
the front of the hoppers front legs. Fabricate spacer to fit
between front of the spreader and front of the bed using
2 x 8 boards and install it between the spreader and truck
bed front wall as shown in Fig. 4.
J. In addition, secure spreader using four ratchet straps.
Attach straps to tie-downs. Tighten straps evenly.

4
TM

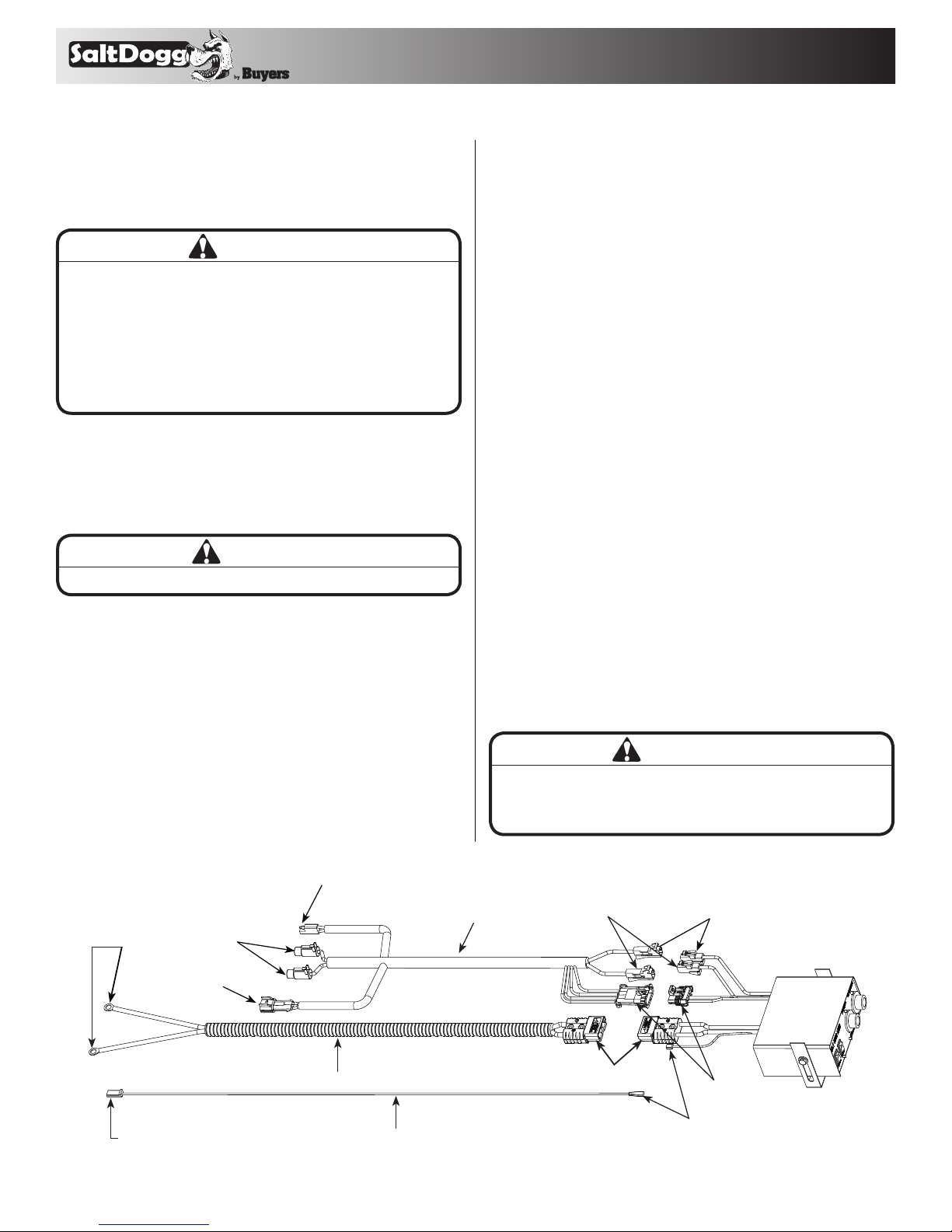

2. Control Box and Vehicle Wiring Harness Installation
MAKE SURE YOU HAVE CONNECTED THE PROPER WIRE
COLOR. THIS IS WIRE GROUND ELECTRICAL SYSTEM! NO
CONNECTIONS TO TRUCK’S FRAME OR BODY ALLOWED!
WARNING
Do not drill holes into fuel tanks, fuel lines, through electrical
wiring, etc that may be damaged by drilling. To insure good
performance of your spreader, check the condition of truck’s
electrical system. Using digital voltmeter, check alternator and
battery voltage. With engine running and head lights and heater
fan ON good voltage reading should fall between 13.0 and 15.3
volts. If voltage reading falls out of this range, check and adjust
your electric system.
CAUTION
Do not mount controller in the way of air bag deployment!
IMPORTANT
Make sure all wires securely attached to vehicle or spreader. Use
wire ties and/or wire clamps to attach wires. All excess wires
must be rolled into bungles and attached to vehicle or spreader.
E. Connect the 2-pin connector on the power cable to the
control box mating connector.
F. Connect wire harness single connectors to control box
connectors.
G. Connect fuse connector to the fuse terminal or ignition
switch (5 AMP max) if equipped.
H. Lay out a path for the power cable to the battery, use quick
ties to secure power cable.
DO NOT CONNECT TO BATTERY AT THIS TIME!
I. Lay out path for wire harness to the rear of the vehicle. It
is recommended to stay clear of the exhaust system. Excess
heat can damage the wire harnesses. Use quick ties to secure
harness to underbody.
J. Connect the wire harness to the motors and vibrator.
Make sure wire colors on wire harness match colors on the
motor.
Thoroughly clean battery terminals. Make sure battery
terminals have no tarnish or corrosion. DO NOT CONNECT
WIRE HARNESS TO DAMAGED OR CORRODED
TERMINALS! IT MAY RESULT IN OVERHEATING, LOST
POWER AND POTENTIAL CONTROLLER DAMAGE!
K. Connect the power cable directly to the battery.
L. Insure all functions of the controller are
working properly.
M. Observe auger moving in proper direction. If direction is
wrong reverse wires between Motor and Wire Harness.
N. Optional spot light (5 AMP max) can be installed on
spreader. Remove cap from single capped wire. Connect light
to this wire and trucks frame.
Connect
to battery
terminals only
Connect to
chute motor
Connect to
chain/auger
gear motor
Connect to vibrator
Connect Connect
#3016934 Controller
Connect
Connect (if equipped)
Connect
#3016943
Connect to fuse or wire in fuse panel
controlled by ignition switch - 5 amp max #0203700
#3016944
NOTE: Always disconnect battery before attempting to
install electrical components on your vehicle.
A. Mount the controller in a convenient location in the truck
cab. It is recommended not to mount the controller directly in
front of heat vents. Allow ample air space around controller.
B. Route both wire harnesses into truck cab through firewall
(it maybe necessary to drill holes). Insulate hole to avoid
water leaks.
C. Insure no wires are nicked or damaged during
installation.
D. Connect the 4-pin connector on the wire harness to the
control box 4-pin connector.

5
TM
GREASE EVERY 10 HOURS
REMOVE COVER.
GREASE EVERY 20-25 HOURS.
Fig. 5
O. SHPE3000 is equipped with CHMSL. Route red (positive)
and white (ground) wires to connect them into vehicles stop
light connector. Extend wires as necessary. If OEM tap is not
provided, make sure to tap in after the first OEM splice from
the stop light switch in the CHMSL circuit.
Always use the tap provided by the OEM manufacturer.
DO NOT splice the white wire into the wire coming off the
stoplight switch by the brake pedal. Splicing at the stop light
switch may affect transmission shifting, cruise control, or
other vehicle functions.
(Check with the vehicle manufacturer or dealer to verify that
the CHMSL circuti is capable of powering the extra 2 AMP
load and for the location of the vehicle tap.)
3. Spreader operation.
A. SHPE3000 is equipped with a dual independent speed
controller. To start spreader, press “POWER” switch. Switch
will be illuminated. Auger and spinner will start rotating.
Auger and spinner can be adjusted independently.
B. To activate vibrator press “VIBRATOR” switch, vibrator
switch will illuminate.
C. To stop spreader press “ON-OFF” switch again.
D. SHPE3000 controller is equipped with electronic overload
and current spikes protection. Controller is not serviceable.
Controller has “Jam” light. If auger becomes jammed by
chunk of material or foreign debris “Jam” light will be
illuminated and controller will turn it self “OFF”. Controller
can be restarted normally after jam removal.
Controller is equipped with internal vibrator circuit breaker.
Vibrator circuit breaker will trip and vibrator switch light
will turn “OFF” if vibrator becomes overloaded. To reset
vibrator circuit breaker turn vibrator switch off for 30 sec
then turn it on again.
Vibrator can operate continuously for 30 min max with 15
min brakes to avoid overheating.
Controller manufacturers constantly update and modify
their product. Please check controller box for manuals and/
or updates.
E. Spreading pattern can be controlled by repositioning of
spinner shield on the shield bracket. Loose two screws and
slide shield into desired position, then tighten screws.
Spreader Maintenance.
A. Use dielectric grease on all electrical connectors.
B. Grease bearings according to FIG.5.
C. Empty spreader of all ice control materials after each use.
D. Wash spreader after each use to prevent material build up
in trough.
WARNING
Never attempt to lift spreader with material in hopper!
WARNING
Never leave material in hopper for extended period of time.
Material can freeze, solidify and seriously damage the spreader.

6
TM
Repair Parts-Hopper Assembly
Bill of Materials
ITEM PART NO. QT Y. DESCRIPTION
2 3015951 1 HOPPER POLY 3.0 CU YA
3 – 10 WASHER FLAT .5 ID 1.5 OD SST
4 – 8 SCREW, HHC-1/2-13 X 1 SST
5 3017371 2 SHIELD TROUGH, SHPE3000
6 – 28 WASHER, FLAT 3/8 USS SST
7 – 16 SCREW, HHC-3/8-16 X 3/4 SST
8 3016696 1 BRACKET, VIBRATOR WELDMENT
9 – 4 NUT, NYLOCK 1/2-13 ZINC
10 – 2 SCREW, HHC-1/2-13 X 3 SST
11 3012081 1 VIBRATOR 450 LBS, 12 VDC
12 – 4 WASHER, EXTERNAL TOOTH LOCK 3/8 SS
ITEM PART NO. QT Y. DESCRIPTION
13 – 4 SCREW, HX HD CAP 3/8-16 X 1-1/2 SST
14 3016701 2 BRACKET WELDMENT, INVERTED VEE
15 – 4 WASHER, FLAT 3/8 X 1.5 X.048 SST
16 – 4 CAP SCREW, HX HD-3/8-16X3 SST
17 – 8 NUT, NYLOCK 3/8-16 X 7/16 SST
18 3017393 1 INVERTED VEE, SHPE300
19 –10 SCREW, HHC 3/8-16 X 1 304 SST
20 3015999 1 TOP SCREEN SHPE3000
21 3012795 2 RETAINER, SCREEN
22 3017439 1 CHUTE HANGER, WELDMENT
23 3025124 1 COVER DISCHARGE
3
4
8
9
10
11
12
13
15
16 17
18 19
20 21
22
23
23
2
5

7
TM
Repair Parts-Trough Assembly
Bill of Materials
Repair Parts-Doors Assembly
Bill of Materials
23
4
5
6
7
8
9
10
11
121314
15
16
17
1
2
3
4
5
6 7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
ITEM PART NO. QT Y. DESCRIPTION
1 3016165 1 TROUGH AUGER, WELDMENT
2 1410200 1 BEARING, FLANGED 1-1/8"
3 3013821 1 GEAR MOTOR CONVEYOR 12 VDC
4 – 12 WASHER, FLAT 3/8 USS SST
5 – 6 SCREW, HHC 3/8-16 X 1 304 SST
6 3017358 1 AUGER SHPE3000
7 3016192 1 BEARING BRACKET ASSEMBLY
8 – 8 SCREW, HHC-3/8-16 X 3/4 SST
9 9240086 1 BEARING, 1-1/4 FLANGE 2 HOLE
10 455 1 GREASE FITTING 1/4-28 TAPERED
11 3017356 2 WASHER, EXTERNAL TOOTH LOCK 3/8 SS
12 3017370 1 COVER, TROUGH SHPE3000
ITEM PART NO. QT Y. DESCRIPTION
1 3015951 1 HOPPER POLY 3.0 CU YA
2 3016023 1 LID, TOP LOCK
3 3015996 1 LID, LOWER LOCK
4 3016098 6 HINGE, LID
5 3017896 6 PIN,CLEVIS,7/16 X 4.00 SST
6 3014994 6 PIN,COTTER,1/8IN X 1IN SST
7 3018073 6 WASHER FLAT 7/16 SST
8 3015925 12 SCREW #14X1.25 SST
9 3017849 6 BRACE, HINGE
10 3017932 12 SCREW, CAP HEX HD 1/4-20X2.0 SST
11 – 12 NUT, NYLON INSERT 1/4-20 SST
12 3018079 1 CATCH, STAINLESS A-BRACKET
13 3007522 4 SCREW, SHEET MTL #12x1.0 HEX
WASHER HD SS
14 3002398 1 STRAP, HOOD LATCH
15 3018078 1 BRACKET, STAINLESS PIVOT
16 3002390 1 PIN, CLEVIS 3/16" X 1-11/16" SST
17 3002392 1 PIN, COTTER 1/16" X 1/2" SST
ITEM PART NO. QT Y. DESCRIPTION
13 3017379 1 COVER GEAR MOTOR, WELDMENT
14 – 4 SCREW, HHC 5/16-18 X 5/8 SST
15 3015873 2 SCREW #12-14x.74 SS SELF DRIL HEX WASHER HD
16 3017121 2 BRACKET, RECEPTACLE SZ8 DEUTSCH
17 – 2 NUT, NYLOCK 3/8-16 X 7/16 SST
18 9240132 1 DECAL #2, DANGER BEFORE SVCE
19 3017933 1 LABEL,SERIAL NUMBER, SHPE3000
20 3017982 2 WIRE BUSHING OPEN/CLOSED HEYCO 2867
21 3017979 1 LABEL: MULTIBLE PATENTS PENDING
22 3014858 1 SLEEVE, AUGER ADAPTER
23 3001250 1 SCREW, HHC-1/2-13 X 3 SST
24 – 1 NUT, NYLOCK 1/2-13 ZINC

8
TM
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone [phone] • Fax [phone]
Toll-Free Fax [phone] • saltdogg.com
3017942 Rev. E
SHPE3000 SALTDOGG®SPREADER
WARRANTY INFORMATION
This warranty replaces all previous warranties and no employee of this
company is authorized to extend additional warranties, or agreements, or
implications not explicitly covered herein.
Buyers Products Company warrants all parts of the product to be free from
defects in material and workmanship for a period of one (1) year. Parts must be
properly installed and used under normal conditions. Normal wear is excluded.
Any part, which has been altered, including modifications, misuse, accident, or
lack of maintenance will not be considered under this warranty.
The sole responsibility of Buyers Products Company under this warranty is
limited to repairing or replacing any part(s), which are returned, prepaid,
30 days after such defect is discovered, and returned part(s) are found to be
defective by Buyers Products Company.
Authorization from Buyers Products Company must be obtained before
returning any part. The following information must accompany defective parts
returned to Buyers Products Company: RMA #, spreader model, serial number,
date installed, and distributor from whom purchased.
Buyers Products Company shall not be liable for damage arising out of
failure of any unit to operate properly, or failure, or delay in work, or for any
consequential damages. No charges for transportation or labor performed on
any part will be allowed under this warranty.
Repair Parts- Chute
Bill of Materials
ITEM PART NO. QT Y. DESCRIPTION
13014078 1 MOTOR 12 VDC, .5 HP SPINNER
23017448 1 MOTOR FRAME, CHUTE
33017356 4 WASHER, EXTERNAL TOOTH LOCK 3/8 SS
4 FCS038016075SS 6 SCREW, HHC-3/8-16 X 3/4 SST
53015953 1 CHUTE, POLY ADJUSTABLE
63007115 2 WASHER, FLAT 3/8 X 1.5 X.048 SST
7 FNE038016044SS 10 NUT, NYLOCK 3/8-16 X 7/16 SST
8 FCS038016100SS 6 SCREW, HHC 3/8-16 X 1 304 SST
9 3009988 2 LATCH, SPRING
10 FCS025020100SS 4 SCREW, CAP HEX HD 1/4-20 X 1 SST
11 FNE025020031SS 4 NUT, NYLON INSERT 1/4-20 SST
12 3006753 1 WIRE HARNESS, CHUTE
13 3017974 1 COUPLER SHAFT ADJUSTABLE
14 3018106 1 SHAFT CHUTE ADJUSTABLE
15 FCS031018175SS 2 SCREW, HHC 5/16-18 X 1 3/4 SS
16 FNE031018034SS 2 NUT, NYLOCK 5/16-18 SS
17 3018286 1 BRACKET, SPINNER BEARING
18 2F12SCR 1 BEARING, 2-HOLE FLANGED .75 ID
19 FCS038016125SS 2 SCREW, HHC-3/8-16 X 1.25 SST
20 FWF038100007SS 4 WASHER, FLAT 3/8 USS SST
21 3017443 1 BRACKET, SHIELD CHUTE
22 3017444 1 SHIELD, CHUTE
23 455 1 GREASE FITTING 1/4-28 TAPERED
24 3012393 1 SPINNER, 14" POLY CW
25 3 0 07113 1 PIN, CLEVIS, 5/16 X 2-1/2, .141 HOLE ZN
26 FPC013000100 1 COTTER PIN, 1/8 X 1, ZINC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 25 26
Repair Parts-Spreader Assembly
ITEM PART NO. QT Y. DESCRIPTION
1 3017357 1 HOPPER AUGER ASSEMBLY SHPE3000
2 3015954 1 CHUTE ASSEMBLY
3 3017939 1 HARDWARE KIT SHPE3000
4 3016934 1 CONTROLLER SPEED 12 VDC, 60 AMP
5 3016943 1 POWER CORD
6 3016944 1 WIRE HARNESS MAIN
7 0203700 1 WIRE ASSEMBLY, 36 LONG
8 1496505 1 HOLD DOWN KIT, SPREADER (4 STRAPS)
1
4
5
6
7
8
3
2
