BZB Gear BG-CYCLOPS-4K User manual

BG-CYCLOPS-4K
Intelligent 4K All-in-One Video Bar
User Manual

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 6
Packing List 6
Specifications 7
Interface 8
Device Startup 9
How to Use 10
Menu Setting 11
Maintenance and Troubleshooting 14
Tech Support 15
Warranty 15
Mission Statement 15
Copyright 16
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
●Please use a soft dry cloth to clean the camera. If the camera is very dirty, clean it with
diluted neutral detergent; do not use any type of solvents, which may damage the
surface.
●Do not rotate the camera head violently, otherwise it may cause mechanical failure.
●This product should be placed on a stable desktop or other horizontal surface. Do not
install the product obliquely, otherwise it may display an inclined image.
●Ensure there are no obstacles within the rotation range of the holder.
●Do not power on before completely installation.
●Electromagnetic fields at specific frequencies may affect the video image. This product
is Class A. It may cause radio interference in household application. Appropriate
measures are required.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
Introduction
The BG-CYCLOPS-4K’s all-in-one design encompasses several devices in one sleek unit
great for video conferencing. The unit features a 4K UHD camera with auto-tracking
functionality, a sophisticated 6 MEMS microphone array, high-fidelity speakers, and an
automatic electric privacy cover. The BG-CYCLOPS-4K also includes powerful and accurate
software for facial recognition, voice localization and tracking, as well as intelligent noise
reduction.
The BG-CYCLOPS-4K can automatically adjust the image size based on the number of
participants in frame to provide the optimal picture. The unit is also capable of utilizing its
complex microphone array to detect the current presenter’s position in real time and lock in
on the subject to provide a close-up image. This allows users to remain hands-free during
its operation and focus on the task at hand.
The BG-CYCLOPS-4K also includes Bluetooth 5.0 capabilities so a mobile device can
connect and the unit can be used as a Bluetooth speaker and microphone. It is compatible
with a variety of platforms such as Windows 7, Windows 10, Mac OS 10.10 or higher. It is
also compatible with most major cloud-based video conferencing platforms such as ZOOM,
Skype, Microsoft Teams, etc.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
Features
●All-in-One Design: 4K UHD camera, microphone array, high fidelity speakers and
electric privacy cover.
●Ultra HD: 0.8 M high quality CMOS image sensor able to capture 4K Ultra HD
images providing excellent image clarity.
●Distortion-less Wide-Angle Lens: 120° wide angle lens with no distortion ensures
every participant is in the frame with no need to adjust the camera.
●Automatic Privacy Cover: The privacy cover automatically closes when no output
device/software is detected.
●Microphone Array: Complex microphone array enables presenters to be tracked in
real time.
●Built-in Speakers: Dual 10W high quality studio speakers ensure every participant
can hear clearly.
●Audio Processing: The audio processing algorithm adopts a high-fidelity 48K audio
sampling rate with lossless audio transmission technology. It supports AEC, AGC,
ANS signal processing, providing high-quality audio up to 6 meters away.
●Auto Framing: A face detection algorithm automatically detects participants and
provides optimal framing.
●Bluetooth 5.0: Connect a mobile device through Bluetooth for the unit to be used as
Bluetooth speaker and microphone.
●Low Noise and High SNR: Low noise CMOS sensor ensures a high signal to noise
ratio (SNR) image. The advanced 2D/3D noise reduction technology further
decreases noise ensuring the image clarity.
●Compatibility: Compatible with Windows 7, Windows10, Mac OS 10.10 or higher and
it is compatible with most major cloud-based video conferencing platforms such as
ZOOM, Skype, Microsoft Teams, etc.
Packing List
●1 x BG-CYCLOPS-4K Video Bar
●1 x USB Cable
●1 x Remote Control
●1 x Power Adapter
●1 x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
Specifications
Camera
Lens
Field of View
120°（D） /106°（H）/ 72°（V）
Iris
F2.0
Focal Length
1.89mm
Digital Zoom
10X
Sensor
High quality CMOS sensor; Effective pixels: 8 million; Aspect Ratio: 16:9
Minimum Illumination
0.5 Lux
DNR
2D & 3D
Focus
Auto/Manual
BLC
On/Off
Exposure
Parameters can be adjusted, and AE(Auto Exposure) is
also available
Video Adjustment
Brightness, sharpness, saturation, contrast, white
balance, gain, anti-flicker, low brightness compensation,
and other parameters can be adjusted
SNR
≥50dB
Video Format
HDMI: 4K@30Hz,1080p@60Hz with downscaling
USB：4K@30Hz,1080p@60Hz with downscaling
Video Compression
Format
MJPEG, YUY2, H.264, H.265, NV12
Privacy Cover
Automatic privacy cover will close when no image output is detected
and open when an output is detected.
Audio
Microphone
Microphone
6 MEMS Microphones
Pickup Distance
6 meters (20ft)
Frequency Response
120 Hz–16 kHz
Speaker
Speakers
Built in dual speakers
Voltage
2*10W
Output Voice Pressure
80±3 dB 1.0M/1.0W
Frequency Response
100 Hz-20 KHz
Audio Processing
AEC, AGC, ANS
A.I. Functions
Group Framing
Automatically adjusts the screen size according to the number of participants to
provide the best framing
Speaker Tracking
Track each speaker in real time and ensure that the speaker is in the center of the
screen.
Remote Control
Remote Control
Infrared remote control
Physical Interfaces
USB Type-C
USB 3.0 audio/video output interface, Support UVC1.1, UAC1.0 and higher
HDMI
HDMI video output interface compatible with HDMI 2.0 standard
LINE IN
3.5mm audio line input interface (when an external pickup is connected, the audio
input is automatically switched to the external pickup)
LINE OUT
3.5mm line output, can be connected to external speakers (when connecting to
external speakers, the audio output will automatically switch to external speakers)
Expansion Mic Interface
RJ45 interface, connect to expansion microphone.
Power Interface
HEC3800 power socket (DC12V), input AC110V-AC220V output DC12V/2.5A
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
Indicator
Bar- shaped Indicator
Displays current working status and can also be lit to show where the speaker's
voice detection is originating from.
Bluetooth
Bluetooth 5.0
Can be connected to a mobile phone or other device via Bluetooth as a
Bluetooth microphone and speaker
Compatibility
Available System
Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Power Supply Method
AC power
Supply power through power adapter
Working Condition
Storage Temperature
-10℃～+70℃
Storage Humidity
20%～95%
Working Temperature
-10℃～+50℃
Working Humidity
20%～80%
Environment
Indoor
Installation Method
Walling Mount
Walling mount bracket included. When wall mounting, the camera needs to be
as close to the wall as possible.
Desktop
Desktop mounting bracket included
Installed on monitor
Bracket for monitor installation(optional)
Interface
Interfaces
USB
USB Type-C Audio & Video Output
HDMI
HDMI Video Output
LINE IN
3.5mm Stereo Mini Input
LINE OUT
3.5mm Stereo Mini Output
Extension Mic
RJ45 Extension Mic
Power
HEC3800 power socket (DC12V), Input AC110V-AC220V, Output DC12V/2A
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
Device Startup
Power on
Connect the BG-CYCLOPS-4K to power using the provided DC12V power adapter.
Statue Indicator Light
Green Lights Run Continuously from Left to Right
Boot initialization in progress
Blue Light Flashing
Bluetooth pairing mode
Blue Light On (3 Sec)
Bluetooth pairing completed
Solid Green Light
All lights turn green when auto-framing and voice tracking is off
Partial lights turn green when auto-framing and voice tracking is on
Flashing Green Light
Standby mode
Solid Red Light
Microphone is muted
Green Indicators Light Up/Off
Volume up/down
Partial Light Turns Green
Partial light turns green according to the voice source
Video Output
1. USB: Connect the BG-CYCLOPS-4K to a computer using the provided USB Type-C cable.
Open the video software on the computer and select the BG-CYCLOPS-4K as the video
source.
2. HDMI: Connect the BG-CYCLOPS-4K to a display device using an HDMI cable. Select the
correct input source on the display device to output.
Audio Input
1. Built-in microphone: The BG-CYCLOPS-4K will use its built-in microphones by default.
2. Audio input through the 3.5mm stereo mini jack: Connect the BG-CYCLOPS-4K to an
external microphone using a 3.5mm audio cable. The audio input will automatically switch
to the external microphone.
Audio Output
1. Built-in Speakers: The BG-CYCLOPS-4K will use its built-in speakers by default.
2. Audio output through the 3.5mm stereo mini jack: Connect the BG-CYCLOPS-4K to an
external speaker using a 3.5mm audio cable. The audio output will automatically switch to
the external speaker.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 9

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
How to Use
No.
Function Description
1
Bluetooth
2
Auto Framing & Voice Tracking
3
Menu
4
HOME
5
Up, down, left, right
6
Answer call
7
Microphone muted
8
Hang up the incoming call
9
Volume up/down
10
Set/call out preset #1 (Long press 3 sec to set preset, short press to call out preset)
11
Set/call out preset #2 (Long press 3 sec to set preset, short press to call out preset)
12
Zoom in/out
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 10

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
Menu Setting
Main Menu
Press the menu key on the remote control and use up/down arrows to point to an item to be
selected.
1. Language
Move the arrow to (Language), and press【← →】to change the option
2. Setting
Move the arrow to (Setting), and press【HOME】to enter the exposure interface.
Image Style: Default/standard/clear/bright/soft
Auto Framing: On/off
Auto Framing Sen: High/medium/low
Max Framing: 3X/5X/10X
Voice Tracking: On/off
Voice Tracking Sen: High/medium/low
Locate Mode: Smart mode/pan mode/movie mode/discussion mode
Prompt Info: On/off
Menu Mirror: On/off
Transfers Mode: Bulk/synchronization
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 11

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL

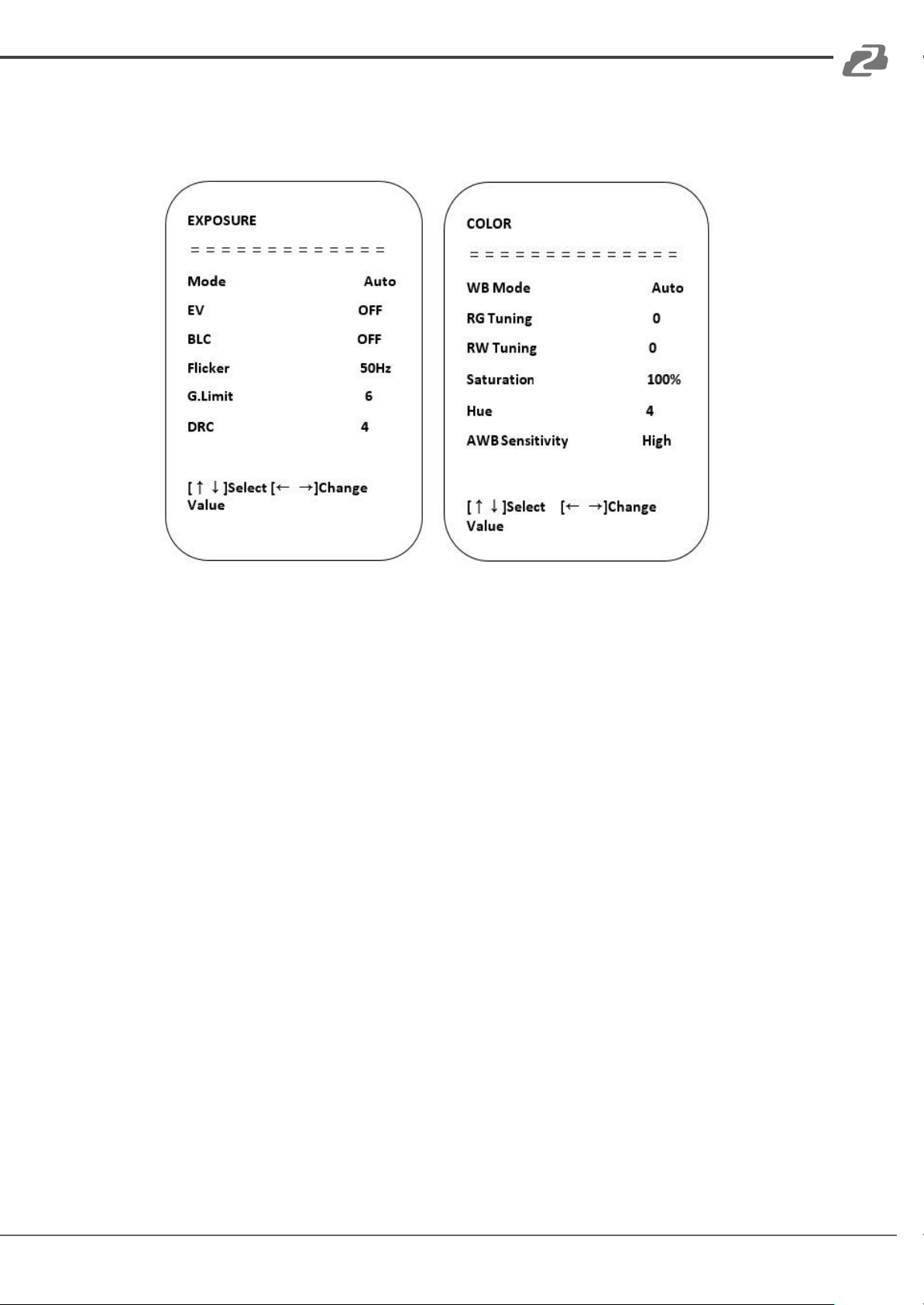

3. EXPOSURE
Move the arrow to (exposure), press【HOME】to enter the exposure interface.
Exposure mode: Auto/manual/shutter priority/bright priority
Exposure Compensation(EV): On/off
Compensation Level: -7 – 7 (only available in EV mode on)
BLC: On/off (only available in auto mode)
Anti-Flicker: 50Hz, 60Hz, off (only available in auto, iris priority, bright priority mode)
Gain Limit: 0 – 15 (only available in auto, iris priority, bright priority mode)
Dynamic Range: 1 – 8, off
Shutter Priority: 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/1000, 1/2000,
1/3000, 1/4000, 1/6000, 1/10000(only available in manual, and shutter priority mode)
Bright: 0 – 23 (only available in bright priority)
4. COLOR
Move the arrow to (color), and press【HOME】to enter the color page.
WB Mode: Auto/manual/one-push/specified temperature
RG Tuning：-10～10
Saturation：0～127
Blue Tuning：-10～10
AWB Sensitivity: High/medium/low(only available in auto mode)
Hue：0～8
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 12

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL

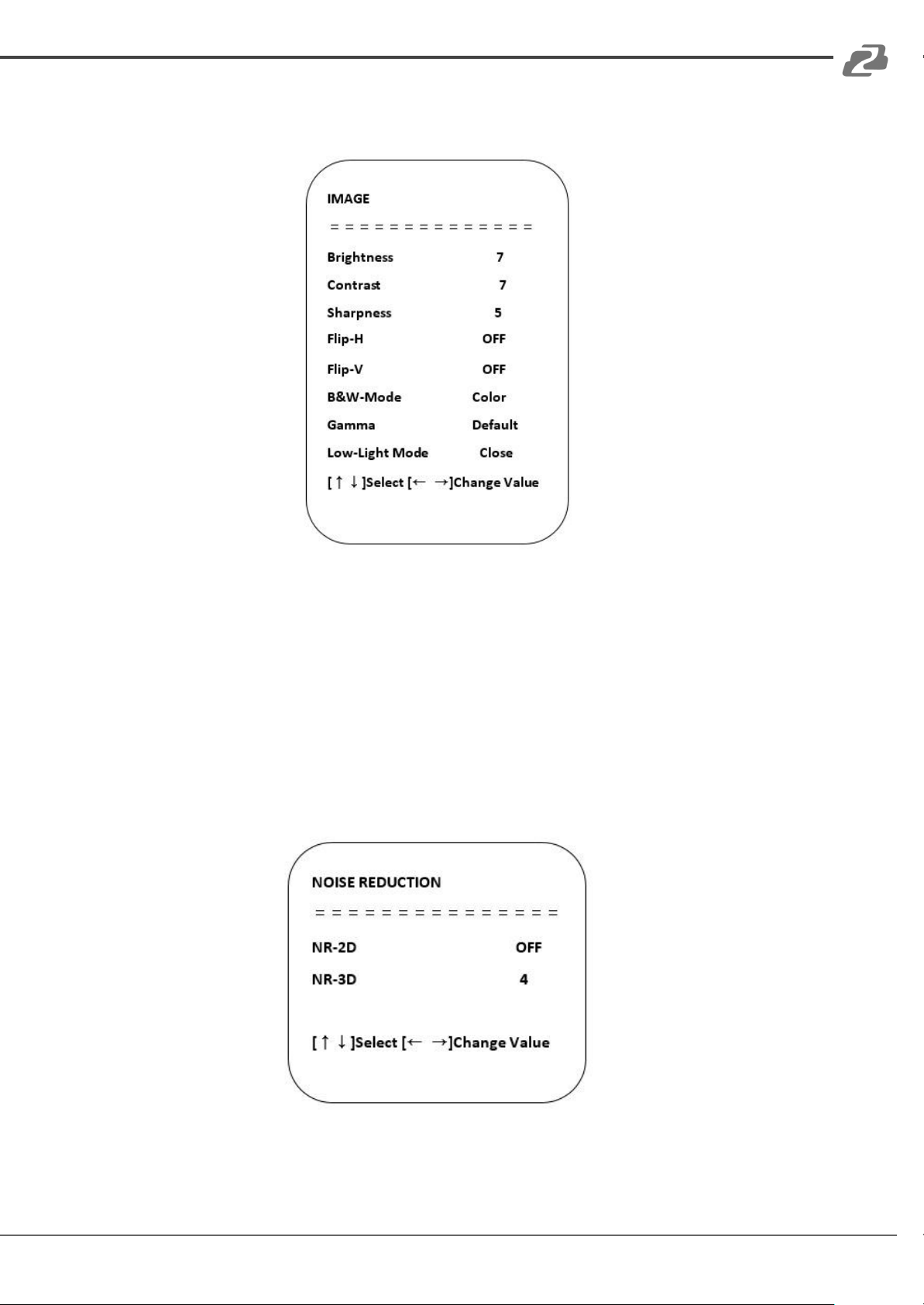

5. IMAGE
Move the arrow to (image), and press【HOME】to enter the image page.
Brightness：0～14
Contrast：0～14
Sharpness：0～15
Flip-H: On/off
Flip-V: On/off B&W-Mode: Color/B&W
Gamma: Default, 0.34,0.39, 0.47, 0.50
Low-Light Mode: On/off
6. NOISE REDUCTION
Move the arrow to (Noise Reduction), and press【HOME】to enter the Noise Reduction page.
2D NR: Auto, manual 1～7
3DNR：Off, 1～8
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 13

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
7. VERSION
Move arrow to (version)
8. RESTORE DEFAULT
Move the arrow to (restore default), and press【HOME】to enter the RESTORE DEFAULT
page.
Restore default: Yes/no (color style and video format cannot be restored)
Maintenance and Troubleshooting
Maintenance:
1. If the camera will not be used for a long time, please turn off the power switch.
2. Use a soft cloth or lotion-free tissue to clean the camera body.
3. Use a soft dry lint-free cloth to clean the lens. If the camera is very dirty, clean it with a
diluted neutral detergent. Do not use any type of solvent or harsh detergent, which may
damage the surface.
Troubleshooting:
No image
1. Check whether the power cord is connected, voltage is OK, power LED is lit.
2. Check whether the camera can “self-test” after startup
3. Check that the rotary dial on rear works normally
4. Check that the HDMI/USB cable is connected correctly
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 14

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
Image is shaky or vibrating.
1. Check that the video output/video monitor cable is working normally.
Remote controller does not control the camera
1. Check that the battery of the remote control is placed properly and has a charge
2. Check that the working state of the device is normal
3. Check whether the menu has been exited. Only after exiting the menu can the remote
control work normally; if an output image is detected then the menu will automatically exit
and the remote control will work after 30 seconds.
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips
regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base)
with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or
explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,
configuring, and other helpful how-to videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
[e-mail]
Live Chat
bzbgear.com
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year
warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming
solutions. We pride ourselves on unparalleled customer support and services. Our team offers
system design consultation, and highly reviewed technical support for all the products in our
catalog. BZBGEAR delivers quality products designed with users in mind.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 15

BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to
imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no
guarantee, standpoint expression or other implies in any form. Product specification and
information in this manual is for reference only and subject to change without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 16
