BZB Gear BG-SC-GRHU User manual

BG-SC-GRHU
HDMI/USB 3.0 Table Grommets for BZBGEAR BG-UHD-KVM41
User Manual

BZBGEAR BG-SC-GRHU PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-SC-GRHU PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Packing List 5
Technical Specifications 5
Operation Controls and Functions 6
Table Grommet Control 7
Application Example 7
Tech Support 8
Warranty 8
Mission Statement 8
Copyright 8
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-SC-GRHU PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
●Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to
persons.
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●Do not dismantle the housing or modify the module.
●Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
●Do not put any heavy items on the extension cable in case of extrusion.
●Install the device in a place with fine ventilation to avoid damage caused by overheat.
●Do not twist or pull by force ends of the optical cable. It can cause malfunction.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Unplug this device during lightning storms.
●Do not use liquid or aerosol cleaners to clean this unit. Clean only with a soft dry
microfiber cloth.
●Always unplug the power to the device before cleaning.
●If an object or liquid falls or spills on to the housing, unplug the module immediately.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
●Product specifications may be subject to technical upgrades without further notice.
●Unplug the power cord when left unused for a long period of time.
●Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-SC-GRHU PRODUCT MANUAL
Introduction
The BG-SC-GRHU is a table grommet for BZBGEAR’s BG-UHD-KVM41 switcher. Each
grommet supports resolutions up to 4K2K@60Hz 4:4:4 and features an HDMI input, USB
3.0 connection, and controls for source selection and video mute.
Users can connect their devices via the HDMI or Type B USB inputs. The HDMI and Type-A
USB outputs provide the direct connection to the switcher.
Each grommet additionally has a 3-pin terminal control block to connect to the GR1~GR4
ports of the BG-UHD-KVM41 switcher, providing support for workstations or conferencing
setups with the need to easily switch between and control multiple computers.
Packing List
●1 x BG-SC-GRHU Table Grommets
●1 x 3-pin Terminal Block
●1 x 2 Mounting Screws (PM3*8mm)
●1 x 2 Mounting Screws (PM3*16mm)
●1 x 2 Mounting Screws
(PM3*25mm)
●1x User Manual
●1х Quick Start Guide
Technical Specifications
Video Input
Input
(1) HDMI
Input Connector
(1) Female type-A HDMI
Video Output
Output
(1) HDMI
Output Connector
(1) Female type-A HDMI
Control
Control Connector
(1) Type-B USB, (1) Type-A USB, (1) 3-pin Terminal Block
General
Resolution Range
Up to 4Kx2K@60Hz 4:4:4, HDR10, Dolby Vision
Operation Temperature
14-25°F ~ +131-25°F / -10°C ~ +55°C
Storage Temperature
-25-25°F ~ +158-25°F / -25°C ~ +70°C
Relative Humidity
10%-90%
Dimension (W*H*D)
3.0" x 1.2" x 3.0" [76mm x 29.6mm x 76mm]
Net Weight (g)
0.23lbs [105g]
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-SC-GRHU PRODUCT MANUAL
Operation Controls and Functions

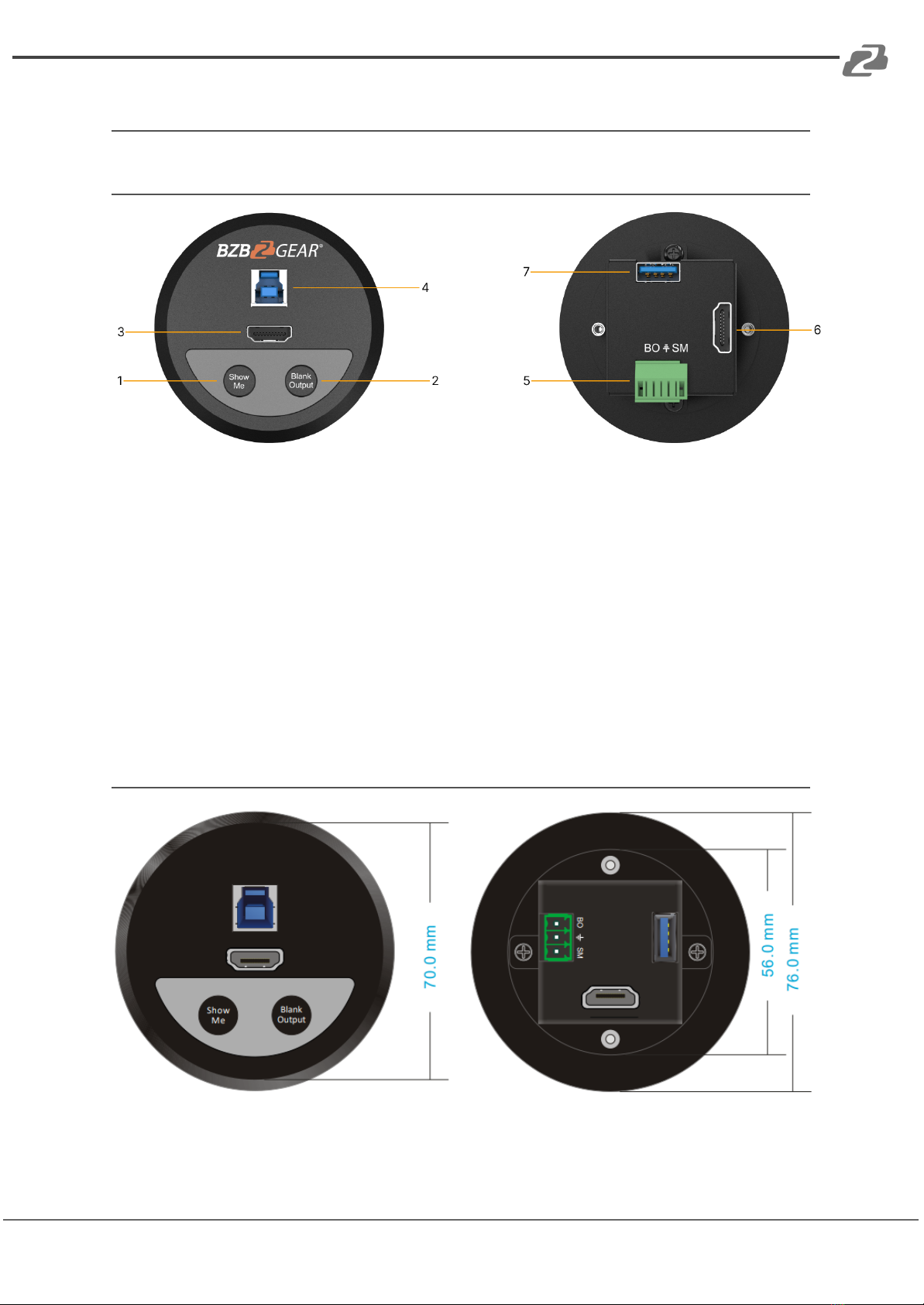

BG-SC-GRHU Table Grommet panels
1. Show Me button: Press the button to select the HDMI input source.
2. Black Output: Press the button to output black screen for display.
3. HDMI Input: Connect to HDMI source device (e.g. PC).
4. USB 3.0 Type-B: Connect the PC to the port.
5. 3-pin terminal block: Connect to the GR1-GR4 port of the switcher.
6. HDMI Output: HDMI output port to connect the HDMI input port of the switcher.
7. USB 3.0 Type-A: Connect to the port of the switcher.
Panels Drawing
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-SC-GRHU PRODUCT MANUAL
Table Grommet Control
The BG-SC-GRHU table grommet can be used for input source selection and blank screen.
Press Show Me on table grommet to select HDMI source.
Press Blank Output on the table grommet to display a black screen.
Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-SC-GRHU PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
[e-mail]
Live Chat
bzbgear.com
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended
two-year warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
