BZB Gear BG-MIC-U1 User manual

BG-MIC-U1
Compact USB Huddle/Conference Room Microphone
User Manual

BZBGEAR BG-MIC-U1 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-MIC-U1 PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 5
Operation Controls and Functions 6
Tech Support 8
Warranty 8
Mission Statement 8
Copyright 8
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-MIC-U1 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
●Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to
persons.
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●Do not dismantle the housing or modify the module.
●Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
●Do not put any heavy items on the extension cable in case of extrusion.
●Install the device in a place with fine ventilation to avoid damage caused by overheat.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not use liquid or aerosol cleaners to clean this unit. Clean only with a soft dry
microfiber cloth.
●Always unplug the power to the device before cleaning.
●If an object or liquid falls or spills on to the housing, unplug the module immediately.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Product specifications may be subject to technical upgrades without further notice.
●Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-MIC-U1 PRODUCT MANUAL
Introduction
The BG-MIC-U1 is a USB conferencing microphone. It features a dual color LED indicator, a
push ON/OFF switch, and an electret cardioid condenser capsule. The internal shock
mount minimizes mechanical noise for crystal-clear sound reproduction. Integrated
mounting holes allow for wall or ceiling placement for a clean installation. Simply connect
with a USB type B to USB type A cable for plug and play operation.
Features
●The microphone is designed for conference, house of worship, and theater
applications.
●Internal shock mount minimizes mechanical noise.
●The BG-MIC-U1 features dual color LED indicator, membrane ON / OFF switch and
back electric cardioid condenser capsule.
Packing List
●1x BG-MIC-U1 Microphone
●1x USB Type B Cable (host to device)
●1x User Manual
●1х Quick Start Guide
Technical Specifications
Technical
Capsule Type
Electret Condenser
USB Connector
B type, Digital audio interface Indicator
Indicator
USB (Mic OFF) - Green
Mic ON - Red
Switch
Push control: ON/OFF
Sensitivity (at 1000Hz)
-53 ± 3 dB * (2.23mV) 0dB = 1V / μbar
Max. SPL For 1% T.H.D.
125dB
Frequency Response
30~12,000 Hz
Directional Pattern
Half-Cardioid
Power consumption
0.4W
Dimension (mm)
73mm(W) * 24mm(H) * 110mm(L)
Weight
0.17 lbs [75g]
DAC
32, 44.1, 48KHz
ADC
8, 11.025, 16, 22.05, 32, 44.1, 48KHz
Bit Depth
16-Bit
USB Type
USB 1.1 / USB 2.0 / USB3.0
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-MIC-U1 PRODUCT MANUAL

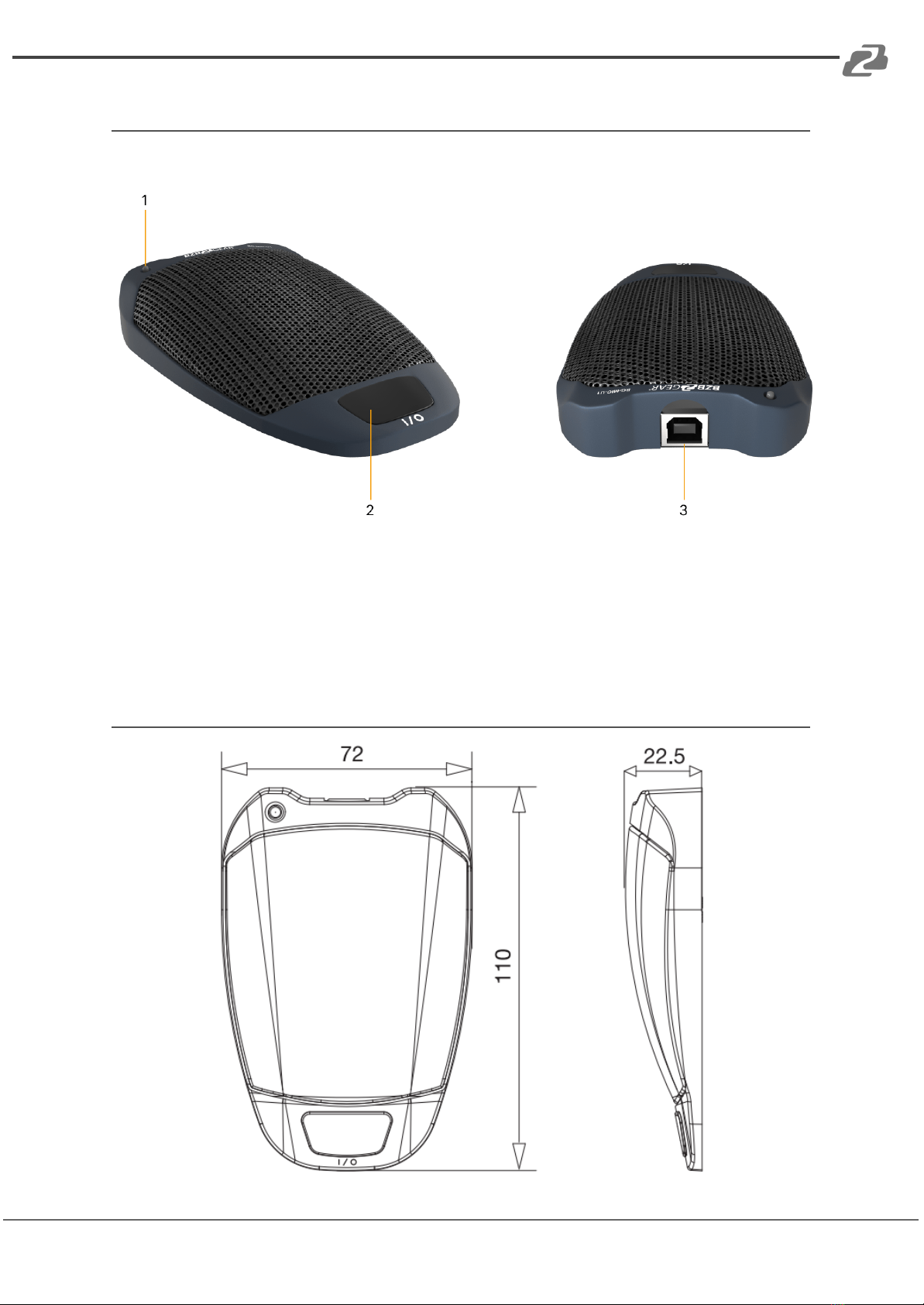

Operation Controls and Functions
1. Power On/Off LED Indicator - Illuminates when mic is powered on.
2. On/Off Switch.
3. USB Type-B Connector (audio and power).
Dimension
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-MIC-U1 PRODUCT MANUAL
USB connection
Connect to a powered USB port using USB Type B cable.
Push On / Push Off
Press the On / Off
Switch for sound pickup; press again to mute.
LED Indicator
Green : MIC OFF (or when USB connected to a powered computer)
Red : MIC ON
Recommendation
1. The microphone should be placed on a flat and unobstructed mounting surface.
2. The sound source should not be below or higher than 60 degrees above the level of
the mounting surface for efficient miking.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-MIC-U1 PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
[e-mail]
Live Chat
bzbgear.com
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended
two-year warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
