C.T.M. HS-855 User manual

C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
8-Series Instruction Booklet
HS-855
HS-895

Instruction Booklet8-Series
TABLE OF CONTENTS
INTRODUCTION
IMPORTANT PRECAUTIONS
ELECTROMAGNETIC INTERFERENCE AND WARNINGS
IDENTIFICATION OF PARTS
OPERATING YOUR SCOOTER

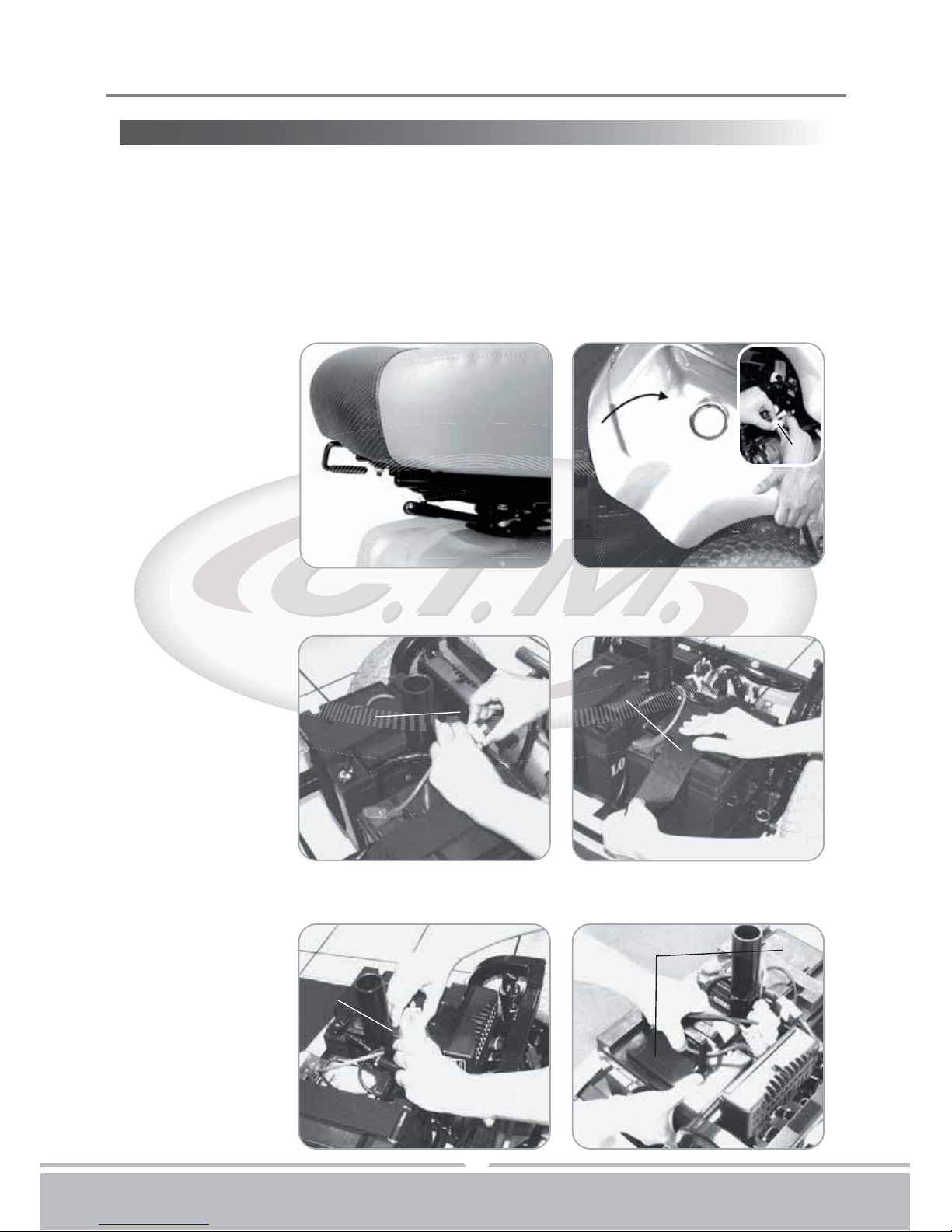

DISASSEMBLING YOUR SCOOTER
ASSEMBLING YOUR SCOOTER
CHARGING THE BATTERIES
CARE AND MAINTENANCE
TROUBLESHOOTING
TECHNICAL SPECIFICATIONS
--------------------------------------------------------1
----------------------------------------2
----3
----------------------------------------5
-------------------------------------8
-------------------------------10
----------------------------------12
--------------------------------------13
----------------------------------------14
------------------------------------------------15
------------------------------------17

Instruction Booklet8-Series
If you have any question, you can contact :
CHIEN TI ENTERPRISE CO., LTD.
No.13, Lane 227, Fu Ying Rd., Hsin Chuang,Taipei, Taiwan,
Tel : [phone] Fax : [phone]
E-Mail : [email protected] http : //www.chienti.com.tw
or your local dealer:
INTRODUCTION
1
Thank you and congratulation on purchasing your new C.T.M. Mobility Scooter.
It is designed to provide you with transportation ability indoors and outdoors.
We pride ourselves on providing safe and comfortable products. Our goal is to ensure your
complete satisfaction. We sincerely hope you enjoy your C.T.M. Mobility Scooter.
Please read and observe all warning and instruction provided in owner's manual before you
operate with various convenient function of this scooter. Also, please retain this booklet for
future reference.

Instruction Booklet8-Series
IMPORTANT PRECAUTIONS
2
•Only one person at a time could ride a C.T.M. Mobility Scooter.
•Maximum load is 205 kgs/ 450 lbs.
•Turn key off before getting on or off.
•Always drive carefully and be aware of others using the same area.
•Always use pedestrian crossings wherever possible. Take extreme care when crossing
roads.
•
Do not drive on slope exceeding 12 degree, and take extreme care when turning on slope.
•Do not use full power when turning to sharp corner.
•Take great care and drive in low speed when backing up, riding downhill or on uneven
surface, and climbing curb.
•Scooter may not operate well in high humidity.
•If you are caught in rain, it is handy to carry a scooter canopy. It offers complete
protection for your and scooter.
•Never put scooter in neutral when staying on slopes.
•Follow traffic laws when riding outside.

Instruction Booklet8-Series
2.Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances, and taxis. These usually have the antenna mounted on the outside of the
vehicle; and
3.Long-range transmitters and transceivers such as commercial broadcast transmitters
(radio and TV broadcast antenna towers) and amateur (HAM) radios
Other types of hand-held devices, such as cordless phones, laptop
computers, AM/FM radios, TV sets, CD players, and cassette players,
and small appliances, such as electric shavers and hair dryers, so far as.
we know, are not likely to cause EMI problems to your motorized scooter.
ELECTROMAGNETIC INTERFERENCE
AND WARNINGS
3
CAUTION: It is very important that you read this information regarding the possible
effects of Electromagnetic Interference on your motorized scooter.
Powered wheelchairs and motorized scooters may be susceptible to electromagnetic
interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources
such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and
cellular phones. The interference (from radio wave sources) can cause the motorized
scooter to release its brakes, move by itself, or move in unintended directions. It can also
permanently damage the motorized scooter control system. The intensity of the interfering
EM energy can be measured in volts per meter (V/m). Each motorized scooter can resist
EMI up to a certain intensity. This is called its "immunity level." The higher the immunity
level, the greater the protection. At this time, current technology is capable of achieving
at least a 20 V/m immunity level, which would provide useful protection from the more
common sources of radiated EMI. The immunity level of this motorized scooter model is
not known.
There are a number of sources of relatively intense electromagnetic fields in the everyday
environment. Some of these sources are obvious and easy to avoid. Others are not
apparent and exposure is unavoidable. However, we believe that by following the warnings
listed below, your risk to EMI will be minimized.
Some cellular telephones and similar devices transmit signals while
they are ON, even when not being used
The sources of radiated EMI can be broadly classified into three types :
1.Hand-held portable transceivers (transmitters-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios, "walkie
talkie," security, fire, and police transceivers, cellular telephones, and other personal
communication devices

Instruction Booklet8-Series
4
There is no easy way to evaluate their effect on the overall immunity of
the motorized scooter.
Because EM energy rapidly becomes more intense as one moves closer to the transmitting
antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of
special concern. It is possible to unintentionally bring high levels of EM energy very close
to the motorized scooter control system while using these devices. This can affect
motorized scooter movement and braking. Therefore, the warnings listed below are
recommended to prevent possible interference with the control system of the motorized
scooter.
Motorized Scooter Electromagnetic Interference：
Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur
radio (HAM) transmitters, two-way radios, and cellular phones can affect motorized scooters.
Following the warnings listed below should reduce the chance of unintended brake release
or motorized scooter movement which could result in serious injury.
1.Do not operate hand-held transceivers (transmitters-receivers), such as citizens band
(CB) radios, or turn ON personal communication devices, such as cellular phones, while
the motorized scooter is turned ON;
2.Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming
close to them;
3.If unintended movement or brake release occurs, turn the motorized scooter OFF as
soon as it is safe;
4.Be aware that adding accessories or components, or modifying the motorized scooter,
may make it more susceptible to EMI; and
Warnings：
1.20 volts per meter (V/m) is a generally achievable and useful immunity level against
EMI (as of May 1994). The higher the level, the greater the protection.
2.The immunity level of this product is at least 20/Vm.
5.Report all incidents of unintended movement or brake release to the distributor listed
on the inside front cover of this manual. Note whether there is a source of EMI nearby.
Important Information：

Instruction Booklet8-Series
Front
Basket
Thumb Lever
Delta Handle Bar
Tilting Armrest
13" Rear Wheels
Side Reflectors
Front Bumper
13" Front
Wheels
Self-diagnostic
Warning Light
High/Lo Speed Switch
Armrest Width
Adjustment
Thumbscrews
Rear Turn Signals
and Tail Lights
Free-wheeling
Lever
Anti-tip Wheels
Rear Bumper
Headlight
Button Headight
Indicator
Right Turn
Signal
Indicator
Right Turn
Signal
Indicator
Storage
Cover
Left Turn
Signal
Indicator
Left Turn
Signal
Indicator
Horn Button
Turn Signal Button
Hazard
Light Button Speed Control Knob
Power Reserve
Indicator
Hand brake
Front Turn Signals
Headlight
Figure 1 - HS-895 Front View
Figure 2 - HS-895 Control Panel
Figure 3 - HS-895 Rear View
IDENTIFICATION OF PARTS
5
Before attempting to drive this scooter on your own, it is important that you familiarize
yourself with the controls, and how to operate
Seat Sliding Lever
Swivel Seat
with Headrest
Seat Rotation
Lever
Tiller Angle
Adjustment

Instruction Booklet8-Series
Figure 4
Figure 4
6
FUNCTION OF PARTS：
TOP CONTROL PANEL
•Speed Control Knob
The Rabbit means fast and Turtle is slow. By turning this you control total speed
transferred to thumb controls.
•Power Reserve Indicator
When the scooter is turned on, the needle on the power reserve indicator will move to
the right to indicate the amount of battery charge. If the charge is full, the needle will
be to the right, in the GREEN area. When the needle is in the YELLOW or RED areas,
batteries need to be recharged.
•Self-diagnostic Warning Light
Flashing indicates problems with the scooter. See page 17 for more information.
•High/Lo Speed Switch (See Fig. 4)
When the High/Lo Speed Switch is in the High location, the scooter speed is performed
normally. If it is in the Lo location, the scooter speed will become only half of the normal
speed which is convenient for the side-walk use.
•Hazard Light Button
All the front and rear turn signals will blink together when you turn on the hazard light button.
BENEATH TOP CONTROL PANEL
•Thumb Lever
Pushing the right thumb lever moves the scooter forward. Pushing the left thumb lever
moves the scooter backward. (This can be reversed if required by local dealer.) Releasing
both engages the automatic brake. This is also your accelerator. The further you depress
them, the faster you go. (Subject to the position of the Rabbit/Turtle control).
AT BASE OF TILLER
•Tiller Angle Adjustment
Pull downward the tiller adjustment to adjust tiller angle and release to lock at
comfortable position.

Instruction Booklet8-Series
7
FUNCTION OF PARTS：
BELOW SEAT
•Seat Rotation Lever
Pull the seat rotation lever up to adjust seat's turning angle, also can lift up the seat.
•Seat Sliding Lever
Pull the seat sliding lever up to adjust the seat to either go forward or backward to an
appropriate position.
•Armrest Width Adjustment Thumbscrews
Loosen the two thumbscrews to adjust the arm width; tighten again to lock the desired
position.
REAR BODY
•Rear Shroud
Protects batteries from damage.
•Anti-tip Wheels
Helps keep the scooter from tipping over.
•Free-wheeling Lever
When lever is in N (Neutral) position, scooter can be moved without power.
When lever is in D (Drive) position, scooter can be driven. Normal position is D.
•Storage Cover / Area
This is situated above the rear bumper for charger.

Instruction Booklet8-Series
OPERATING YOUR SCOOTER
8
Figure 5
Figure 5
Before beginning your journey with your new scooter, make sure that the scooter
is on a level surface and clear of any obstacles. Although your scooter is able to
climb slopes. It is safer to practice on a level surface.
You could make the following adjustments to increase your comfort when driving.
•adjust seat height and location.
•adjust tiller angle.
•adjust armrest width.
This scooter has automatic braking system. Release the lever control
and brake will stop scooter.
1.Before operating your scooter, check the following:
•Free-wheeling lever in D
•Speed dial is at turtle picture.
•High/Low speed switch is in the high location
2.Sit on scooter and turn on key. The power reserve indicator needle should be in the
green, yellow, or red area. The self-diagnostic warning light should not be blinking.
3.When your hands rest comfortably on the handlebars, the thumb levers should be within
easy reach. The right lever moves the scooter forward, the left one moves it backward.
When you release both levers the scooter will stop.
4.Steer scooter by turning toward the way you want to go.
5.Practice driving where there is no obstacles. Start at the slowest speed and drive
forward and backward; make some turns. As you get more comfortable you can
increase speed by turning speed dial toward picture of the rabbit.
6.If the power reserve indicator needle is in the yellow or red area, you should plan to
recharge batteries very soon.

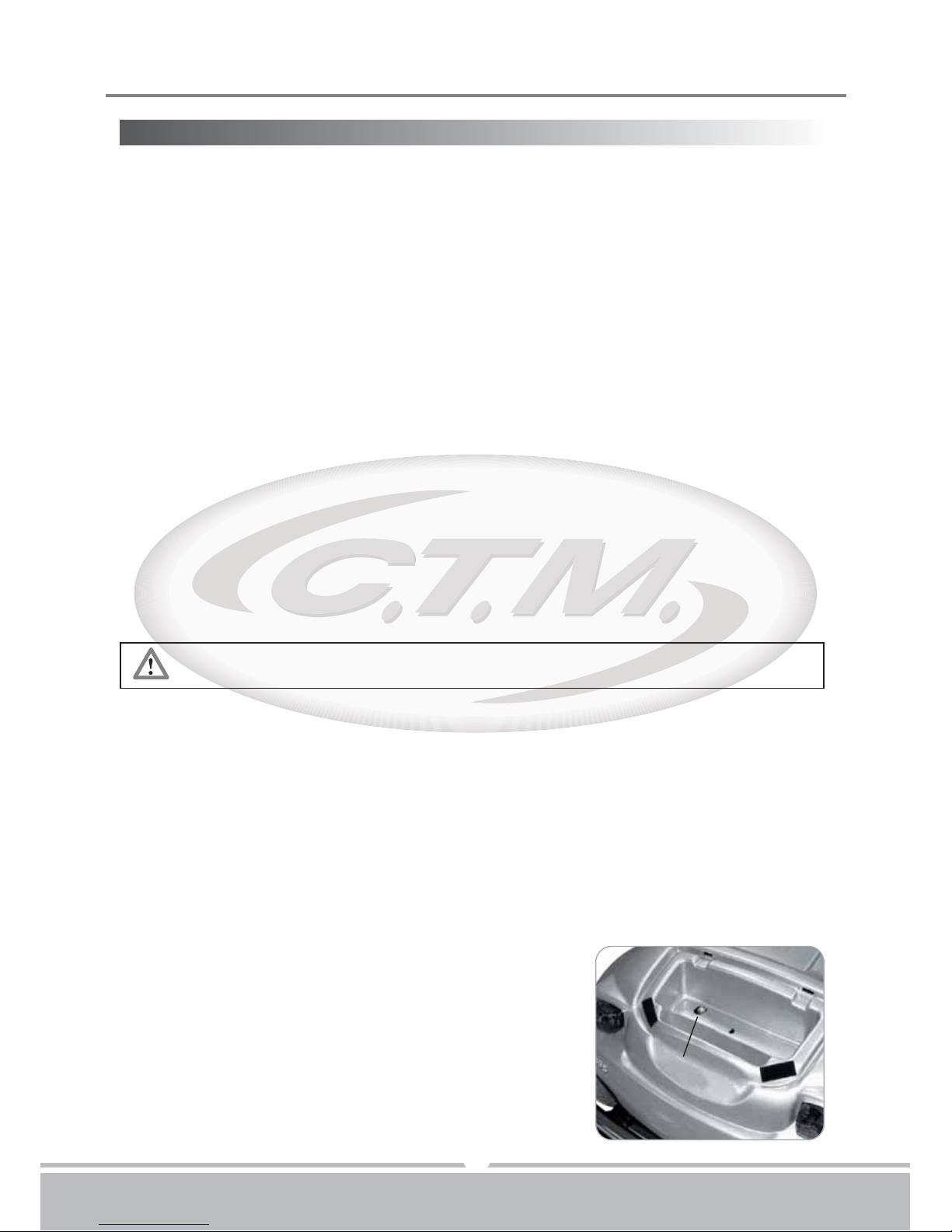

7.If scooter stops, locate the circuit breaker (A) in the storage area. Push it and try driving
again. (See Fig 5)
8.When you are finished riding, turn off the key before
getting off.
9.If you are finished riding for the day, immediately
recharge batteries.
See CHARGING THE BATTERIES, page 13.
(A)

Instruction Booklet8-Series
Figure 6
Figure 6
Figure 7
Figure 7
In unlikely event of a control panel display error, you need to re-set the
display
system by cycling the on/off main switch. The display circuitry is
independent
of the motor control system. A display console error does not
affect scooter speed control.
9
Keep in mind these rules：
•Release thumb levers and allow scooter to stop completely before changing from
forward to reverse, or reverse to forward.
•When turning a corner, swing front wheels wide, because back wheels will turn more
tightly.
•Use scooter only where it would be safe to walk.
•Use low speeds for reverse, downhill, ramps, curbs,or uneven surfaces.
Other Operating Information：
Hill Climbing: You may need to use a higher speed. For a higher speed, set the speed
control knob in the proximity of the rabbit.
Down Slopes: To proceed with downward slopes slowly, set speed control in proximity
of the turtle. This enables driver control, as the closer the speed control
is set toward the turtle, the slower scooter travels. However, this scooter
will not self accelerate down hills due to the automatic braking taking effect
should you attempt to drive too fast.
Curd Climbing: Approach slowly at right angles to the curb. A slight angle is permissible
with a 4-wheel scooter, but a direct approach is needed on a 3-wheel
scooter. Do not attempt greater than a 60mm curb.
If Self-Diagnostic Warning Light starts to blink, identify problem from
chart on page 15 and take action.
If the scooter breaks down and must be moved, get off scooter, pull the
free-wheeling lever up to disable the drive system and brake system,
move the scooter slowly to a safe location, and push the free-wheeling
lever down to take the scooter out of freewheel mode.
Vertical limit approach approximately : 9cm
Acceptable gap width approximately : 24cm

Instruction Booklet8-Series
Figure 8
Figure 8
Figure 9
Figure 9
Figure 10
Figure 10
Figure 11
Figure 11
Figure 13
Figure 13
Figure 12
Figure 12
(B)
(C) (D)
(G)
(H)
(F)
(E)
10
DISASSEMBLING YOUR SCOOTER
Extreme care must be taken when assembling or disassembling the scooter. Please take
care near any moring parts and finger traps,between opening and closing parts. Taking
apart your scooter enables you to save space when keeping it in storage or to carry it
along in your vehicle when going away from home. Having the scooter disassembled is
easier than ever since no tools are required. please follow these steps:
Remove seat by pulling Seat Rotation Lever (B) up and then lift seat off. (See Fig. 8)
Before remove Rear Shroud (C) off scooter, detach the rear lighting wiring harnesses
(D). (See Fig. 9)
Unscrew Main Wire Harness (E) between front and rear units. (See Fig. 10)
R
emove Battery Fixing Velcro (F). (See Fig. 11)
Detach Battery Power Plugs (G). (See Fig. 12)
Remove Batteries (H). (See Fig. 13)

Instruction Booklet8-Series
Figure 14
Figure 14
Figure 15
Figure 15
(I)
(J)
11
Remove Front Basket (I) and push down the Tiller Angle Adjustment (J) to fold the tiller
in a lower position. (See Fig. 14)
Once all the parts have been disassembled, you are now able to put the pieces in storage
or in a vehicle for transportation.

Instruction Booklet8-Series
12
ASSEMBLING YOUR SCOOTER
To assemble scooter, you can repeat disassembly directions in reverse. Abbreviated
directions are given below. Refer to Figures on pages 10 - 11 to locate parts.
1.Using the tiller angle adjustment, unfold the tiller in an upright position. Place the front
basket on the tiller.
2.Attach the main wire harness.
3.Place the two batteries and use the Velcro strap to secure them in place.
4.Attach the battery cable plugs.
5.Attach the rear lighting harness before place the rear shroud on.
6.Install the seat by pulling the seat rotation lever up to allow the seat to drop into the
locked position.

Instruction Booklet8-Series
Keep in mind these rules：
•Fully charge batteries at least once a month, or more if you use scooter regularly.
Charge after each trip exceeding 3 kilometers.
•If storing your scooter for some time (1 month or more), make sure that batteries are
fully charged, and on returning, charge them again before using scooter.
•
Batteries will only give maximum performance after scooter has been used, and batteries
have been recharged up to 10 times. A bit like breaking in a new car.
Batteries must be charged before using the scooter for the first time and should be
recharged after each day use. You will need the scooter and the battery charger.
1.Insert battery charger cord into the charger connector on the charger output. Refer to
above figure for correct position
2.Plug the other end of the battery charger cable into a standard electrical outlet.
3.Turn the power on. Normally, The LED (Power) Light will turn on when electric current
passes.
4.Charging starts. During charging, LED (Charge) will indicate orange light, when it turns
to green light, that means well-charged.
5.LED indication
•LED(POWER) - GREEN LIGHT ON : Power On.
•LED(CHARGE) - ORANGE LIGHT ON : Charging / GREEN LIGHT ON : Fully Charged
6.Charger Trouble Shooting
(A)If LED (POWER) light is off
•Check the input voltage (115V/230V) is the same as you adjust.
•If light is still off, please check and repair the battery charger.
(B)If LED (CHARGE) light is off
•Check to see clips connection is correct.
•If the battery is fully charged, the LED (CHARGE) light will be off.
•If light is still off, the battery may be defective.
(C)If ORANGE light can turn to GREEN
•The battery can not be charged. Please check and recover it.
(D)If ORANGE light turns to GREEN immediately
•Check to see the battery is fully charged, if not, The battery may be defective
Check and recover it.
Each country may supply different
charger. The charging procedure
may be different from below.
If you require more details, please
contact your authorized dealer.
Be sure the scooter key is in the
OFF position
The time needed to recharge will vary depending on the depletion of the
batteries. Charging for longer than necessary will not harm the batteries.
They can not be overcharged.
13
CHARGING THE BATTERIES
Figure 16
Figure 16

Instruction Booklet8-Series
Taking care of your scooter will keep it in top-notch condition. It is recommended that
you have your dealer to provide preventative maintenance service of your scooter on a
regularly basis. Here are a few maintenance guidelines:
BODY COVER: If your scooter is dirty, use a damp or lightly soapy cloth to wipe it down.
Do not use running water to wash or rinse the scooter in order to protect
the electrical parts. Polish with an automotive liquid polish.
SEAT AND ARMREST: Using a damp cloth helps clean the upholstery. Please note that
using the scooter outdoors can lead to sun damage of the
upholstery material. Since this is a normal wear and tear condition,
it is not covered under the warranty.
An authorized dealer should do all maintenance and repair of your scooter that relates
to electronics, batteries, motor parts, and tires.
Also between uses, your scooter is best stored in a dry location at room temperature.
14
CARE AND MAINTENANCE

Instruction Booklet8-Series
Flash Code/Fault Impact
on Scooter Notes
1. Battery needs
recharging
Will drive
Battery charge is running Iow.
Recharge the batteries as soon as possible.
6. Out of neutral at
power-up
Drive
inhibited
Thumb lever not in neutral position when turning
key switch on. Return Thumb lever to neutral, turn
power off, and back on again. Throttle may need
to be re-calibrated (see Section 4.2.3). Check
throttle wiring.
7. Speed VR error
Drive
inhibited
Thumb lever or its wiring is faulty. Check for open
or short circuits. Thumb lever may not be correctly
set up. Contact your service agent.
8. Motor volts error
Drive
inhibited
The motor or its wiring is faulty. Check for
open or shot circuits. Contact your service
agent.
9. Other internal
errors
Drive
inhibited
Contact your service agent.
Drive
inhibited
Battery charge is empty. Recharge the batteries.
If the scooter is left off for a few minutes, battery
charge might recover enough to allow driving
for a short time.
2. Battery voltage
too Iow
Drive
inhibited
The scooter has drawn too much current for
too long, possibly because the motor has been
over-worked, jammed or stalled. Turn the scooter
power off, leave for a few minutes, and then
turn the power back on again. The controller
has detected a shorted motor. Check the loom
for shorts and check the motor. Contact your
service agent.
4. Current limit
time-out
Drive
inhibited
Battery charge is too high. If a charger is
plugged in, unplug it or turn the Charge/Run
switch to Run. Scooters powered by RHINO
charge the batteries when travelling down
slopes or decelerating. Excessive charging
in this manner can cause this fault. Turn the
scooter power off then on again. If necessary,
reduce speed when descending the slope.
3. Battery voltage
too high
Drive
inhibited
Check that the park-brake release lever is in
the engaged position. Check that the motor/
park-brake connector is plugged in firmly. The
park-brake coil or wiring is fauly. Check the
park brake and wiring for open or short circuits
If necessary, unplug the motor/park-brake
connector and check that all four pins are in the
correct position. If this flash code does not
appear until the throttle has been moved out of
neutral, check for a short in the park-brake
circuit. If this flash code appears at power-up,
check for an open circuit in the park-brake
circuit. Contact your service agent.
5. Brake fault
To check the Self-Diagnostic Warning Light, turn on the key and count the number of flashes.
15
TROUBLESHOOTING

Instruction Booklet8-Series
Other Problems：
•Scooter will not move when the key is turned on:
1.Check the power reserve indicator on the control panel. The needle should be in
the green, yellow or red area.
2.Check the Self-diagnostic Warning Light. It should be steady. If it is flashing, see
chart on page 18 for problem identification.
3.Check all electrical connections to be sure they are tight.
4.If none of these correct the problem, contact your authorized dealer.
•If you have charged your scooter for over 10 hours and the light on the charger does
not change to green, then please contact your authorized dealer.
Please note that your scooter is equipped with a controller that constantly checks the
drive system for a safe and enjoyable ride. If an error occurs, the control panel will
provide you an indication of the problem by way of blinking lights.
16

Instruction Booklet8-Series
*Subject to change without notice.
Overall Length
Overall Width
Overall Height
Wheels: Front
Wheels: Rear
Weight w/ Batteries
Max. Speed
Weight Capacity
Ground Clearance
Grade Climbable
Curb Climbing
Turning Radius
Suspension
Brake
Seat Type
Seat Width
Motor Size
Battery Size
Battery Weight
Travel Range
Battery Charger
Electronics
1420 mm / 55.9"
685 mm / 27"
1120 mm / 44.1"
290 mm / 11"
320 mm / 13"
95.36 kg / 210.2 Ibs
15 kmph / 9.3 mph
205 kg / 450 Ibs
85 mm / 3.3"
12 degree
60 mm / 2.4"
1325 mm / 52.2"
Front & Rear
Electro-Mechanical
480 mm / 19"
700W, 5400 r.p.m.
(2) 12V. 50Ah
31.3 kg / 68.9 lbs
37.5 km / 23.4 Miles
5AOff Board
1445 mm / 56.9"
685 mm / 27"
1095 mm / 43.1"
320 mm / 13"
320 mm / 13"
110.26 kg / 243.1 Ibs
15 kmph / 9.3 mph
205 kg / 450 Ibs
85 mm / 3.3"
12 degree
60 mm / 2.4"
1640 mm / 64.6"
Front & Rear
Electro-Mechanical
480 mm / 19"
700W, 5400 r.p.m.
(2) 12V. 50Ah
31.3 kg / 68.9 lbs
37.5 km / 23.4 Miles
5AOff Board
SPECIFICATIONS HS-855 HS-895
On/Off Key Switch, Battery Level Indicator,
Speed Control Knob
SPECIFICATION
17
Sliding and Swivel RecliningCaptain W/Headrest
