CaddyLite 15.3 V2
User's Manual

CaddyTek Inc.
20175 S. Atlantic Blvd., # C
Monterey Park, CA 9175 , USA
www.caddytek.net

WARNING:
FOR YOUR OWN SAFETY, PLEASE REVIEW THESE WARNINGS AND
KEEP THIS USER GUIDE FOR FUTURE REFERENCE.
●Before using this golf cart, please read and understand the important
instructions and warnings in this user guide.
●AVOID injury by always following the folding and unfolding the cart
instructions carefully
●AVOID INJURY by keeping clear of moving parts while adjusting, folding
or unfolding this cart.
●ALWAYS make sure the cart is fully extended and locked before use.
●ALWAYS make sure the cart is folded and locked properly before lifting or
transporting.
●ALWAYS use the brake when parking the cart.
●DO NOT run while using this cart.
●DO NOT use accessories other than those designed specifically for this
cart.
●Keep hands and fingers away from moving parts or sliding sections of the
cart!

Pa kage ontents:
1. The main frame of the cart with the front wheel
2. Two main wheels
3. Umbrella holder
. Drink holder
5. This user manual
6. Tools for adjustment
In case any of above item is missing or damaged, please call 800-906-6918 or email
[email protected] to report.
Parts identification:
A: TPE handle grip
B: Umbrella holder base
C. Scorecard holder assembly
D: Handle frame
E: Umbrella holder storage rack
F: Upper bag holder bracket
G: Handle height adjusting knob assembly
H: Main upper frame tube
I: Leg frame bracket
J: 2 holes right leg frame
K: holes right leg frame
L: Supporting cable
M: Front connection Rod
N: Right stabilization bar
N1: Left stabilization bar
O: Right wheel lock mechanism
O1: Left wheel lock mechanism
P: Lower frame lock mechanism
Q: Lower bag holder bracket
R: Front wheel fork assembly
S: Front wheel assembly
T: Main wheel
U: Umbrella holder
V: Drink holder
W: Handle mesh net
1

Assembly the ar
Release the buckle, push the front wheel fork downward to fully extend the front
wheel frame fork and the two leg frames, then lock the buckle as in Fig. 3 and .
Lift the upper bag bracket till
it click to position as in Fig.1
Release the buckle by the upper bag holder, lift the
handle to desired position, then tighten the buckle as
in Fig. 2 and 2-1.
Press the button and insert both
rear wheels as in Fig. 6 The cart is fully extended
as shown in Fig. 7
Fig. 1
Fig. 2
Fig. 5 Fig. 6 Fig. 7
2
As shown in Fig 5, press the
button and rotate the front
wheel 180 degree clockwise
so the front wheel is at center
of the cart.
button
buckle
Fig. 3
Fig.
buckle
button
Fig. 2-1

Press the button and rotate
the front wheel 180 degree
counterclockwise so the front
wheel is on the right of the
front wheel fork (when you
stand in front of the cart).
Release the lower buckle, fold the front wheel folk till it click
to position. Lock the buckle as in Fig. 9 & 10.
Fold down the top
bracket as in Fig.12
Fig. 8
3
Folding the art
Release the buckle by the
upper bag holder to fold the
handle downward, then tighten
the buckle as in Fig.11
Fig. 9
Fig. 10
Fig. 11
button
buckle
Fig. 12 Fig. 13
The cart is fully
folded as in Fig.13
buckle
. CAUSION: Please hold on to the
handle when releasing the handle
frame locking buckle to avoid the
frame dropping abruptly and
causing injury.

Umbrella Holder
To put in use:
Simply attach the umbrella holder
onto the cart as in fig. 16/17
Fig. 16 Fig. 18
4
Fig. 17
To store:
Attach the umbrella holder to
the storage rack on the right
leg frame as in Fig. 18.
U
se the brake
Install the drink holder
Press the foot brake to brake, Lift
it up to release as Fig.19
Fig. 1
Fig. 13
Fig. 15
Fig. 19
Hole 2
Fixed
block on base notch
When installing the drink holder as Fig.13, align the smallest part of the slot on the
holder with the fixed blocks. Then pull horizontally to fit the holder on the base as
Fig.1 & 15.
Hole 1
Slot on
Hole 2
Press the button to open the scorecard
holder cover as Fig. 19-1
T
o
open
the s ore ard holder over
Fig. 19-1
button

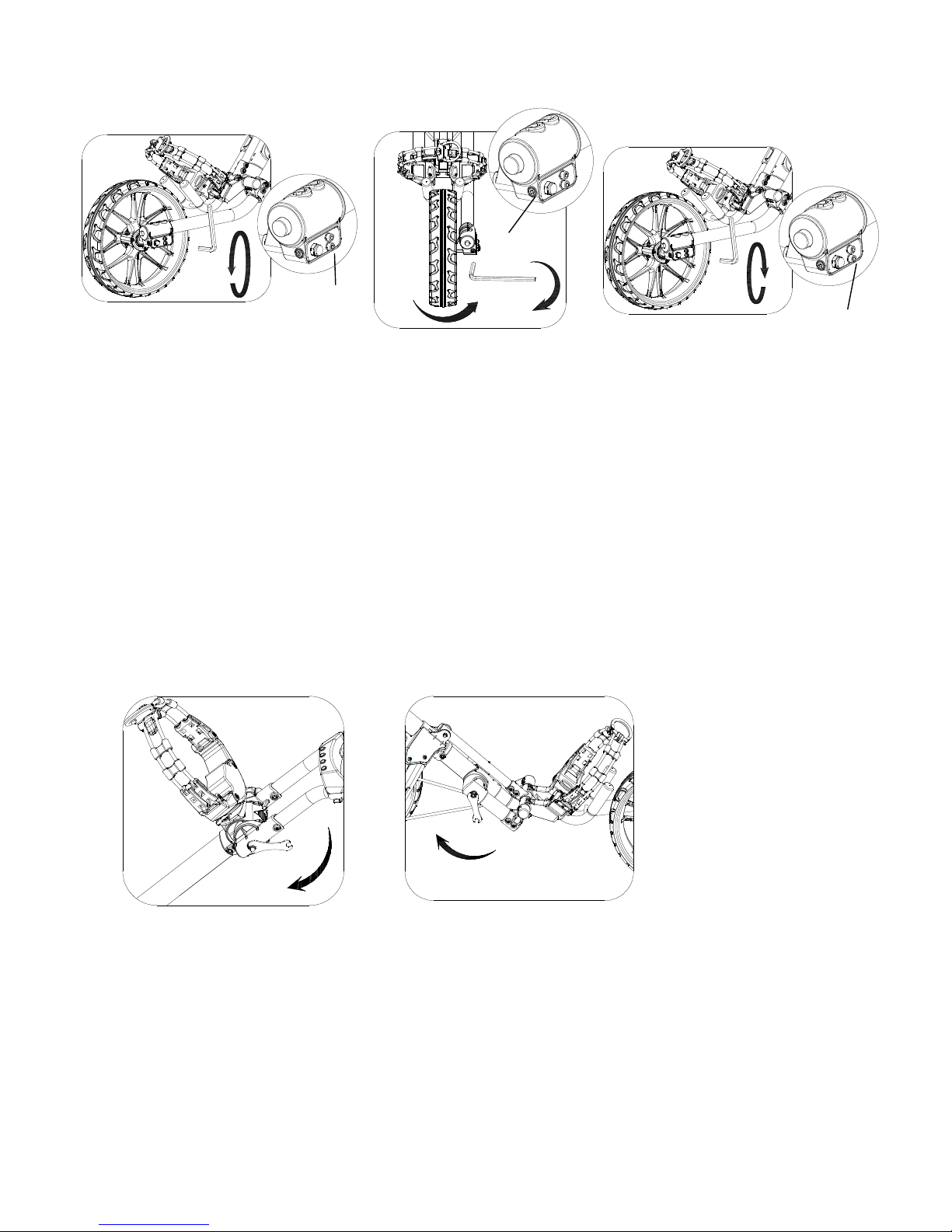

Front Wheel Alignment
If the cart veers to the right:
Step 1: Face the front wheel of the cart and use the provided Allen
wrench to loose the two side screws as in fig. 20.
Step 2: Then use the Allen wrench to adjust the front bolt clockwise until
the front wheel is centered as in Fig. 21. Then tighten the two side
screws as in fig. 22.
If the cart veers to the left:
Step1: The same as above.
Step 2: Adjust the front bolt counterclockwise until the front wheel is
centered as in fig.21. Then tighten the two side screws as in fig. 22.
Fig. 21
Fig. 20
5
Fig. 22
bolt
screws
scre
ws
If the handle becomes
loose during normal use,
please use the supplied
tool to tighten the handle
as in fig.23
If the lower joint plastic
becomes loose during
normal use, please use the
supplied tool to tighten the
Joint as in fig. 2 .
Fig. 23 Fig. 2
Tighten Handle Bolt Tighten Lower Joint Bolt

WARRANTY
CaddyTek Inc. warrants its products to be free of defects and workmanship
for one year from the date of purchase. We will either repair or replace
defective products at our option.
Normal wear and fading of products are not considered manufacturer's
defect. This warranty does not apply to claim of damage to items used in
connection with CaddyTek Inc. products. In the case of deterioration due to
normal use we will repair the item for a normal charge. CaddyTek Inc. is the
sole judge of any claim or warranty.
For customers in North America, please contact CaddyTek Inc. for the
service. For customers outside of North America, please contact with your
dealer for the warranty service or you are welcome to contact CaddyTek Inc.
directly.

PRODUCT REGISTRATION
I have read and understand this product's operation and warranty, and wish to record
my purchase:
Model: ______________________________
Name (Mr./Mrs./Miss):________________________________
Address: ______________________________________________
City: ______________ State: ____________ ZIP: ______________
Tel:____________ E-Mail____________________
Date of Purchase: ______________Name of Store/Dealer: __________________
Round of Golf per Month: _______________ HCAP_______________________
Signed: ________________________ Date:________________________
Failure to return this card may result in delayed response to you warranty claim

Caddytek In .
20175 S. Atlanti Blvd., # C
Monterey Park, CA 91754
USA
You can also register your golf cart on www.caddytek.net
Stamp
