CaddyLite ONE V3
User’s Manual

CaddyTek Inc.
20175 S. Atlantic Blvd., # C
Monterey Park, CA 9175 , USA
www.caddytek.net

WARNING:
FOR YOUR OWN SAFETY, PLEASE REVIEW THESE WARNINGS AND
KEEP THIS USER GUIDE FOR FUTURE REFERENCE.
●Before using this golf cart, please read and understand the important
instructions and warnings in this user guide.
●AVOID injury by always following the folding and unfolding the cart
instructions carefully
●AVOID INJURY by keeping clear of moving parts while adjusting, folding
or unfolding this cart.
●ALWAYS make sure the cart is fully extended and locked before use.
●ALWAYS make sure the cart is folded and locked properly before lifting or
transporting.
●ALWAYS use the brake when parking the cart.
●DO NOT run while using this cart.
●DO NOT use accessories other than those designed specifically for this
cart.
●Keep hands and fingers away from moving parts or sliding sections of the
cart!

Packa e contents:
1. The main frame of the cart
2. Two main wheels, front wheel
3. Umbrella holder
. Drink holder
5. This user manual
6. Tools for adjustment
In case any of above item is missing or damaged, please call 800-906-6918 or email
caddytek@ mail.com to report.
Parts identification:
A: TPE handle grip
B: Umbrella holder
C. Umbrella holder base
D: Scorecard holder assembly
E: Basket with cooler
F: Handle frame
G: Upper bag holder bracket assembly
H: Handle height adjusting knob assembly
I: Main frame
J: Front connection Rod
J1: Main connection Rod
K: Leg frame bracket
L: 2 holes right leg frame
L1: 2 holes left leg frame
M: holes right leg frame
N: Lower bag holder bracket assembly
O: Weight stabilizer
P: Supporting cable
Q: Main lower frame tube
R: Right wheel lock mechanism
R1: Left wheel lock mechanism
S: Rear wheel assembly
T: Lower bag holder bracket
U: Front wheel assembly
V: Foot brake assembly
W: Handle mesh net
1

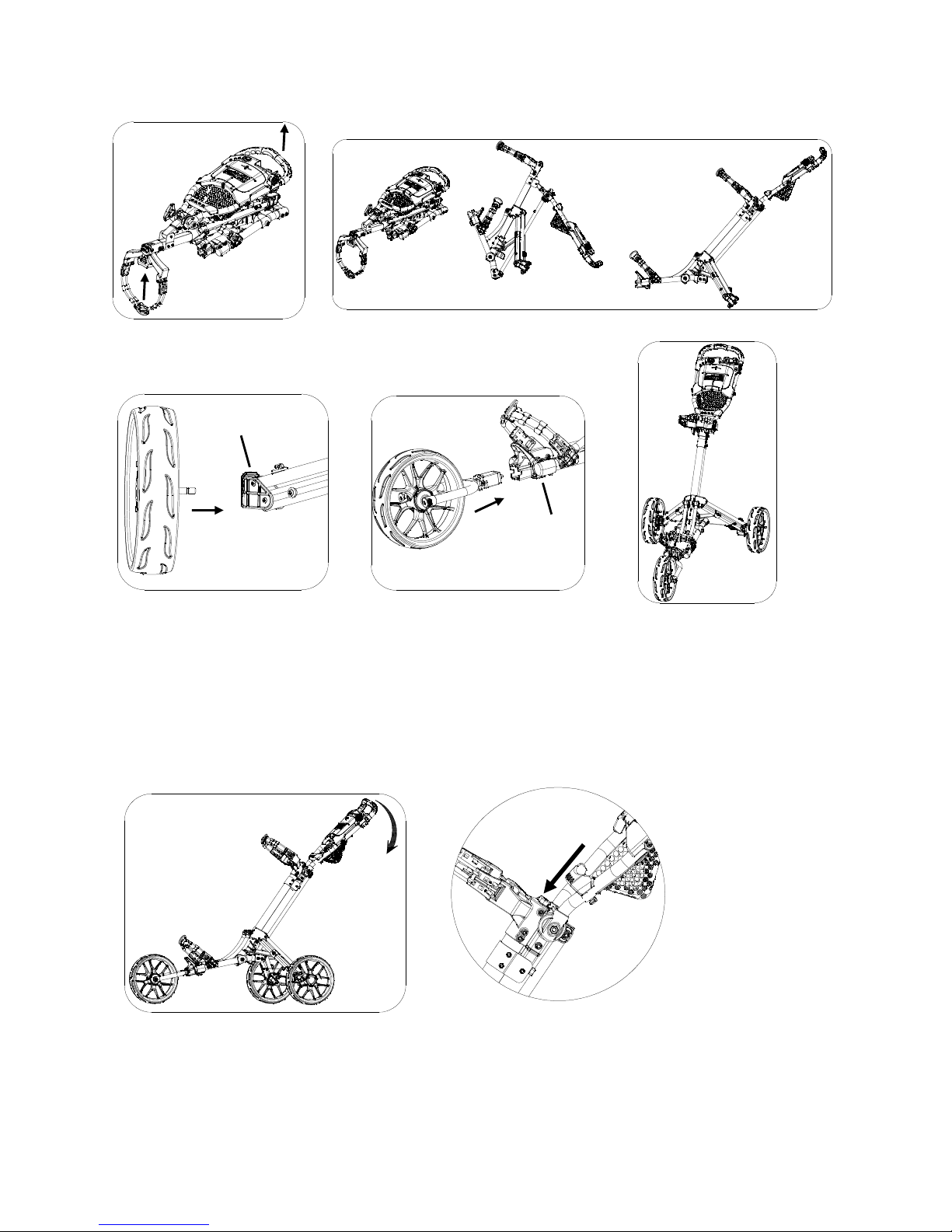

Assembly the car
Press the button and fold the cart in the direction of the arrow as in
Fig.5/6.
Fig. 5
Foldin the cart
Folding button
Fig. 1
Fig. 6
2
Unfolding motion
Press the button and insert
the rear wheels as in Fig.2
Open the handle up until you
hear the cart 'Click' as in Fig.1
Fig. 2
Button
Press the button and insert
the front wheel assembly as
in Fig.3
Fig. 3
Button
The cart is fully extended
as shown in Fig.
Fig.

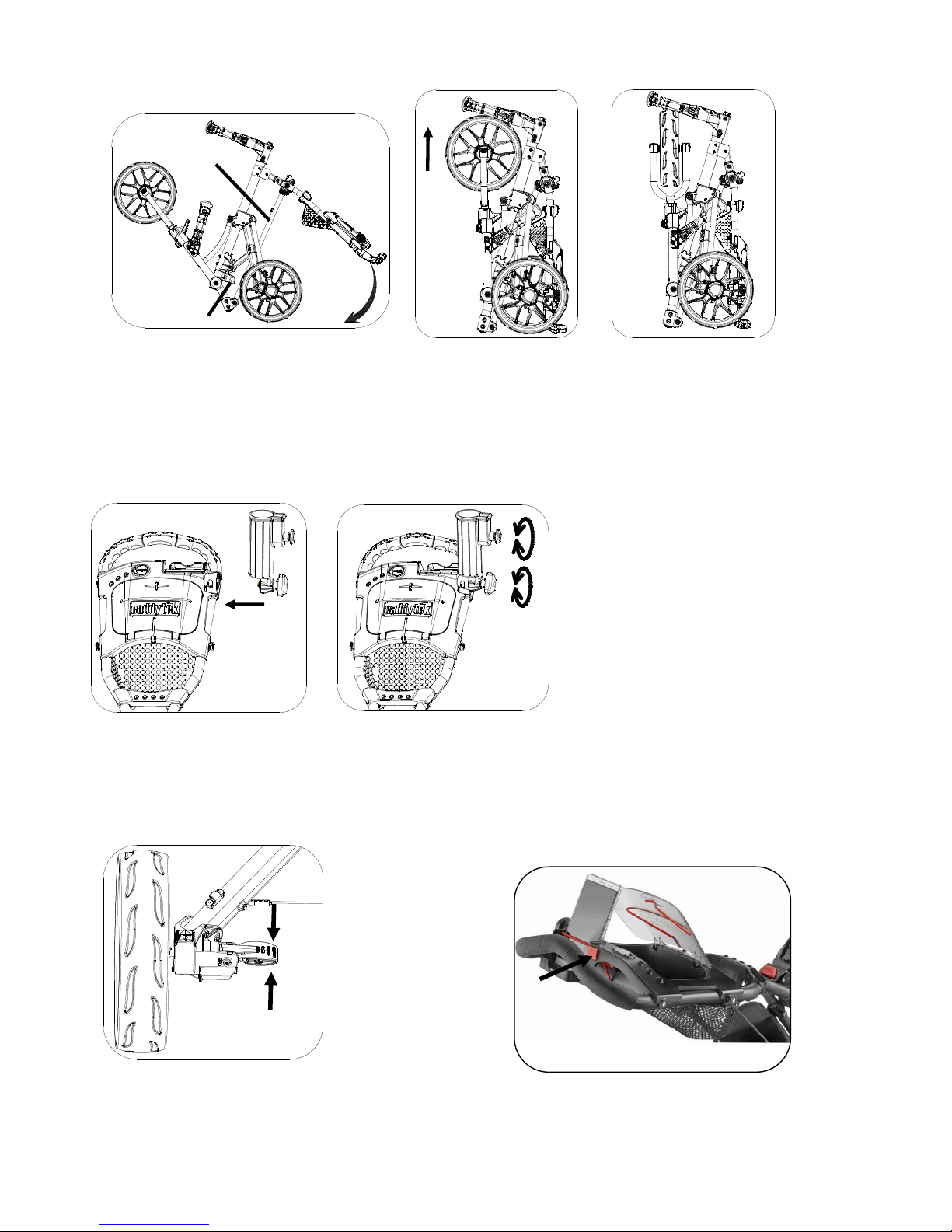

Umbrella Holder
To put in use:
Simply attach the umbrella holder
onto the cart as in fig. 9/10
Fig. 9
3
Fig. 10
U
se the brake
Press the footbrake to
brake, lift it up to release
as Fig. 11
Fig. 11
Fig. 7
T
o
open the sco
recard holder cover
Press the button to open the scorecard
holder cover as Fig. 12
Fig. 12
holding slot
connecting rod
Fig. 8
The connecting rod will insert into the plastic bracket when folding is completed as Fig.
7/8.Then pull up the front wheel assembly, then rotating 90 degree clockwise as Fig.8-1.
Fig. 8-1
Button

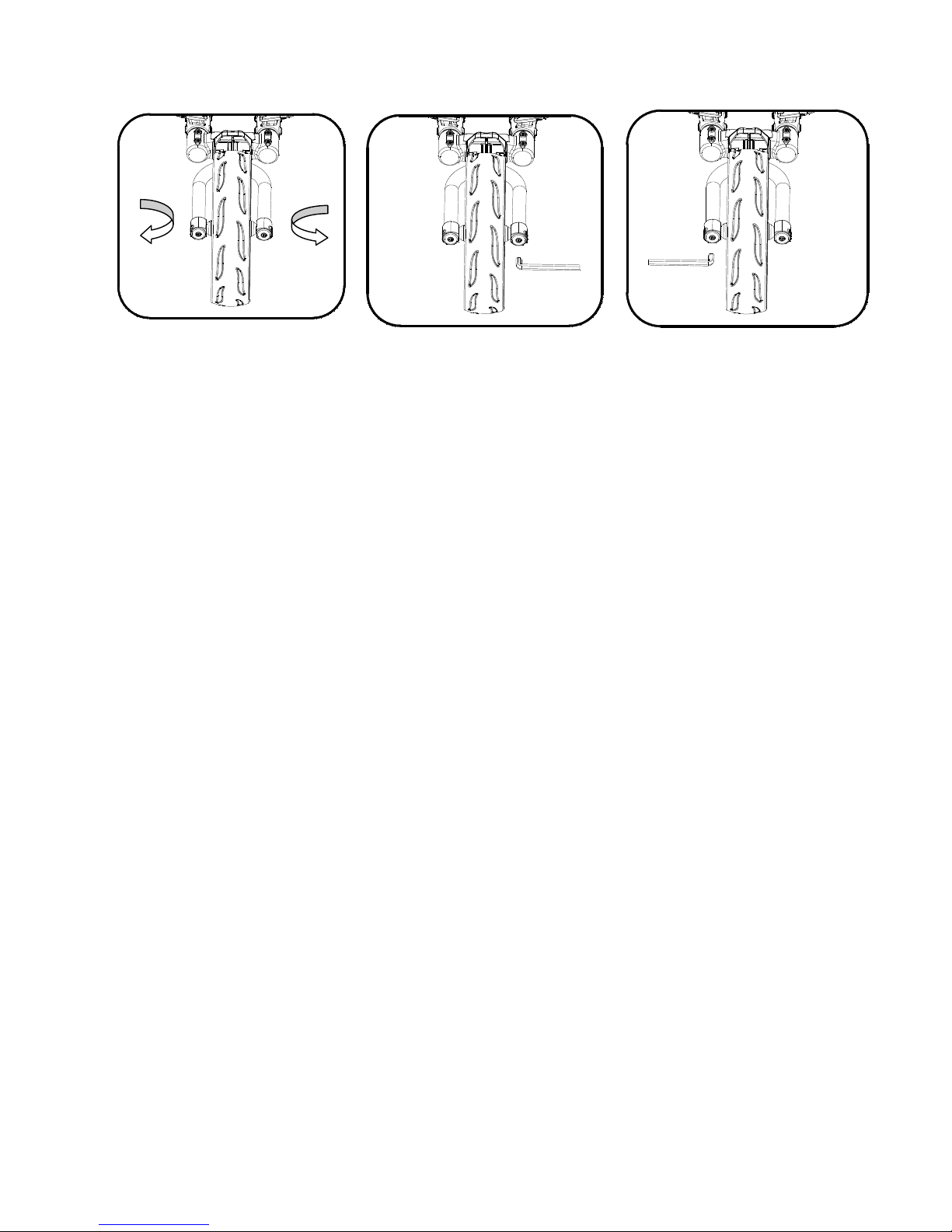

Front Wheel Ali nment
CART VEERING TO LEFT
If the cart veers to the left, face the front wheel and use the allen wrench
provided to make the adjustments. You can either screw the left bolt
clockwise, or the right bolt counterclockwise. Please continue doing so until
the front wheel is centered.
CART VEERING TO RIGHT
If the cart veers to the right, face the front wheel and use the allen wrench
provided to make the adjustments. You can either screw the left bolt
counterclockwise, or the right bolt clockwise. Please continue doing so until
the front wheel is centered.
Fig. 1
Fig. 13
4
Fig. 15
Right Left

WARRANTY
CaddyTek Inc. warrants its products to be free of defects and workmanship
for one year from the date of purchase. We will either repair or replace
defective products at our option.
Normal wear and fading of products are not considered manufacturer's
defect. This warranty does not apply to claim of damage to items used in
connection with CaddyTek Inc. products. In the case of deterioration due to
normal use we will repair the item for a normal charge. CaddyTek Inc. is the
sole judge of any claim or warranty.
For customers in North America, please contact CaddyTek Inc. for the
service. For customers outside of North America, please contact with your
dealer for the warranty service or you are welcome to contact CaddyTek Inc.
directly.

PRODUCT REGISTRATION
I have read and understand this product's operation and warranty, and wish to record
my purchase:
Model: ______________________________
Name (Mr./Mrs./Miss):________________________________
Address: ______________________________________________
City: ______________ State: ____________ ZIP: ______________
Tel:____________ E-Mail____________________
Date of Purchase: ______________Name of Store/Dealer: __________________
Round of Golf per Month: _______________ HCAP_______________________
Signed: ________________________ Date:________________________
Failure to return this card may result in delayed response to you warranty claim

Caddytek Inc.
20175 S. Atlantic Blvd., # C
Monterey Park, CA 91754
USA
You can also register your golf cart on www.caddytek.net
Stamp
